Automatic Glass Straight Line Edging Polishing

1 / 5

Automatic Glass Straight Line Edging Polishing

Customization:	Available
Certification:	CE
Processing Speed:	0.5-7m/Min

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

DZM11P

Processing Thickness

3-50mm

Voltage

380V

Warranty

12 Months

Min. Glass Size

30×30mm

Transmission Speed

0.5-7m/Min

Power

28kw

Weight

6300kg

Dimensions

8383×1200×2600mm

⚙️

Product Description

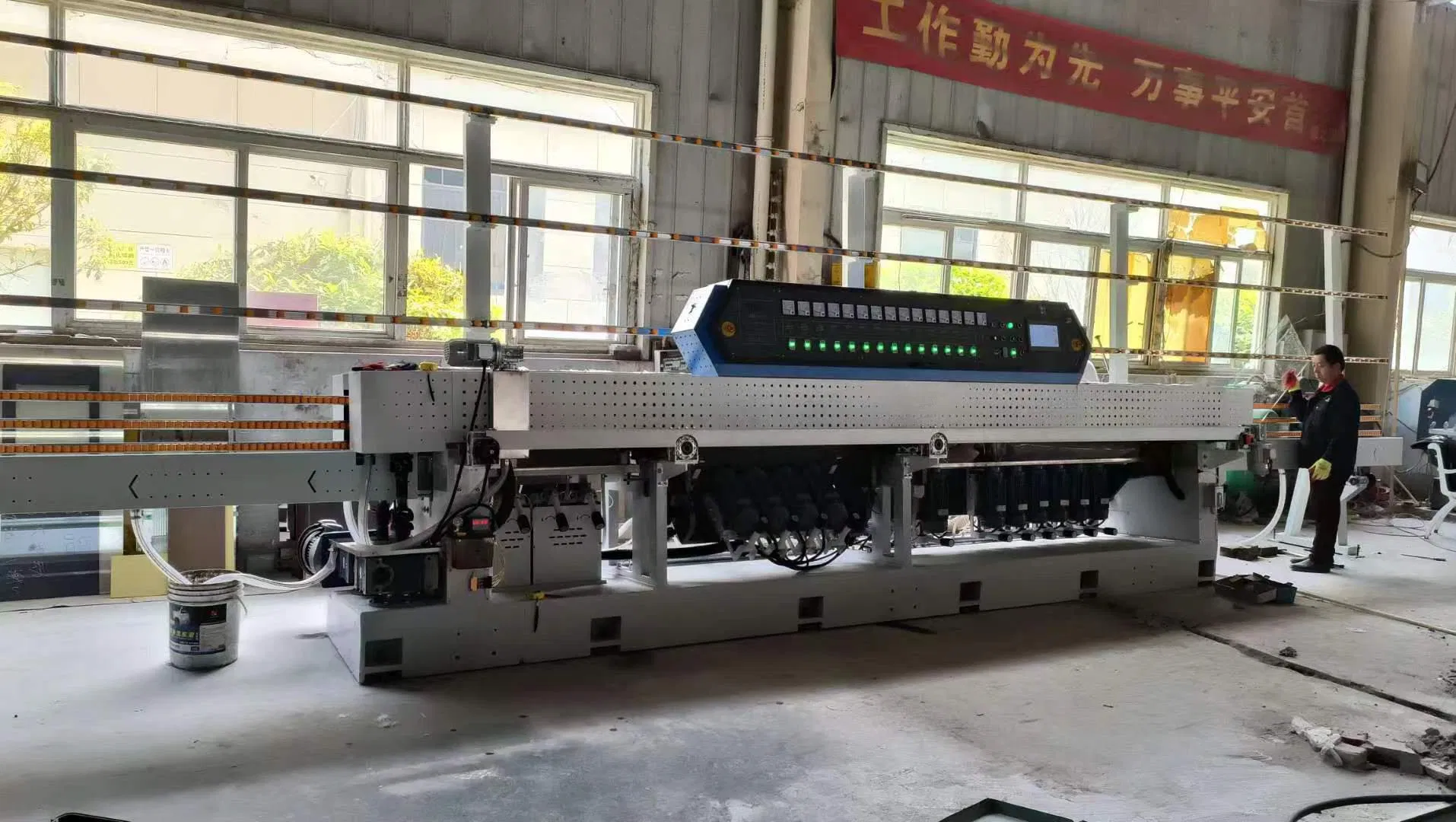

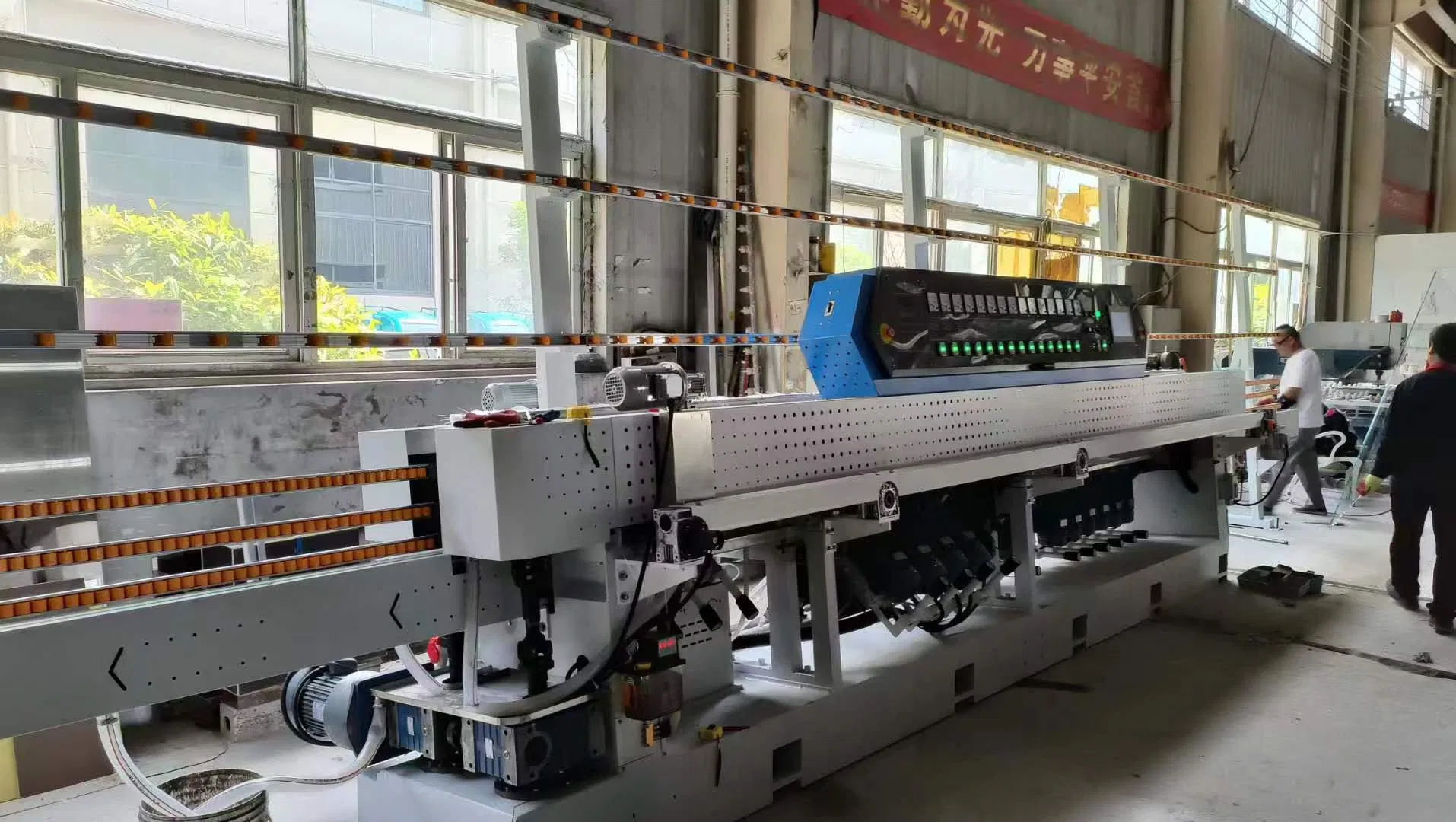

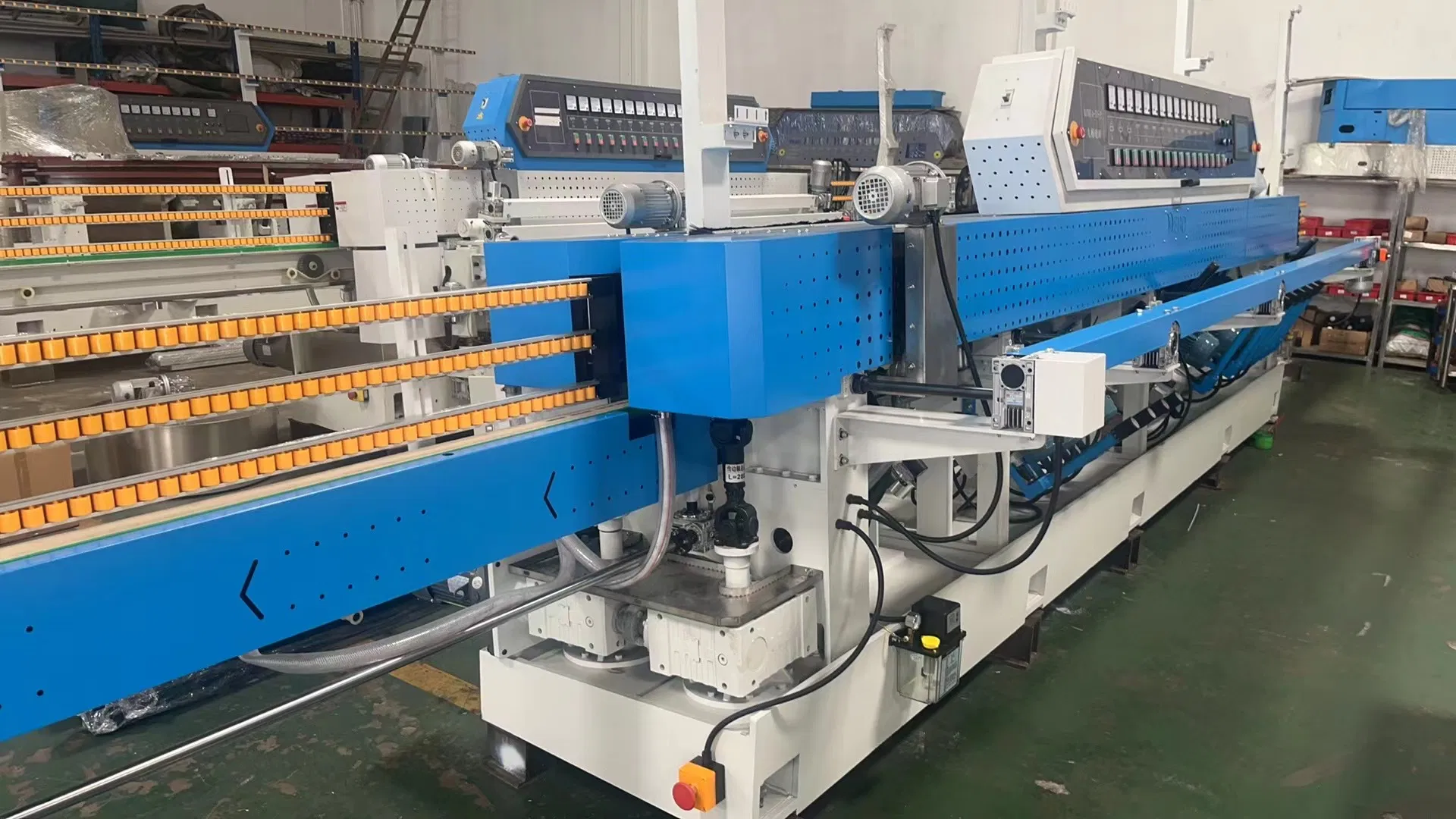

DZM11P GLASS STRAIGHT-LINE EDGING MACHINE

The front and rear beams of the machine adopt high-strength steel box structure. The right side of the beam is a circular track. The rails on both sides and round end of the beam are embedded with quenched super hard steel guide rails, which is more than ten times the service cycle of ordinary guide rails. The machine adopts chainless ball bearing transmission to change the sliding contact between the bearing and the guide rail into rolling contact, reduce the tension and drive smoothly.

The main drive adopts variable frequency speed regulation motor and hardened gear reducer combined with RV Reducer to ensure higher transmission efficiency, greater transmission torque force, no shaking at low speed, large speed regulation range, convenient and reliable operation. This machine adopts PLC control, Touch Screen display processed thickness, working speed and processed meters. It is applicable to process 3~50mm glass straight-line. Rough/fine grinding and polishing can be finished in one single passage.

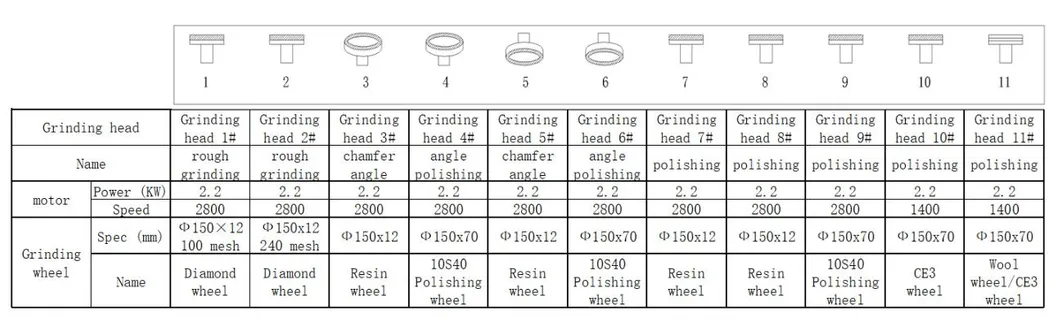

Wheels Placement Diagram:

Min. Glass size	30×30mm
Glass thickness	3-50mm
Transmission speed	0.5-7m/min
Max. hemline grinding	5mm
Arris grinding range	0.5-5mm
Power	28KW
Weight	6300kg

🔍

Detailed Features & Components

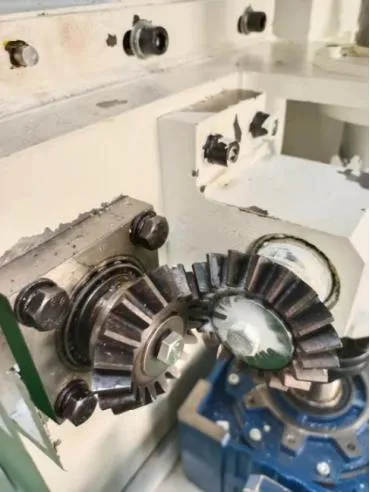

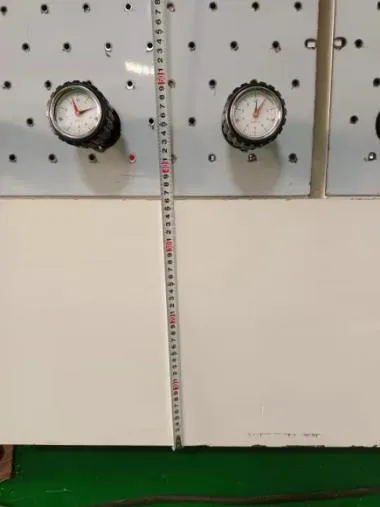

The base, weighing about 1600 kg, adopts two times annealing treatment to ensure no deformation. High datum accuracy for stability during heavy glass processing.

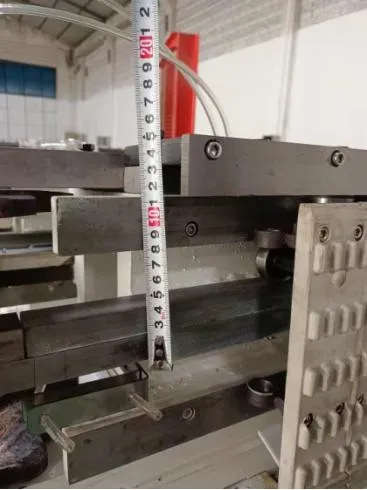

Guide rail quenched and heat-treated with 40 steel for high hardness and wear resistance. 35mm steel plate beams eliminate internal stress.

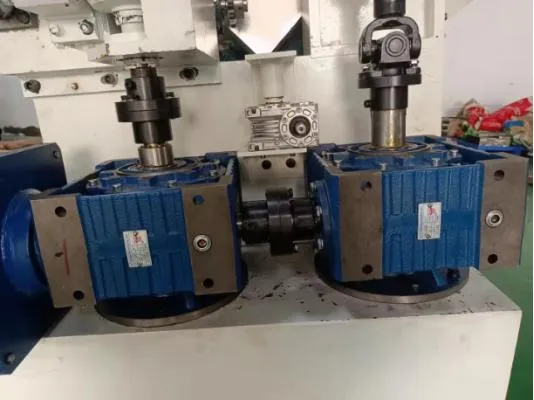

Dual 110 RV Gear reducers provide stable operation with increased power and durability.

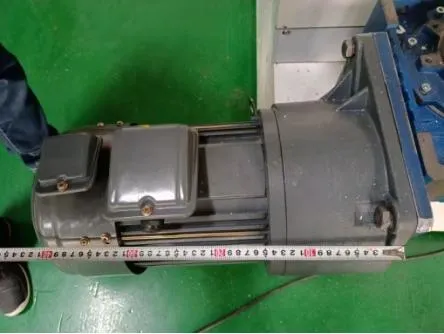

Frequency inverter motor and Hard-tooth reducer ensure machine stability when processing heavy or oversized glass.

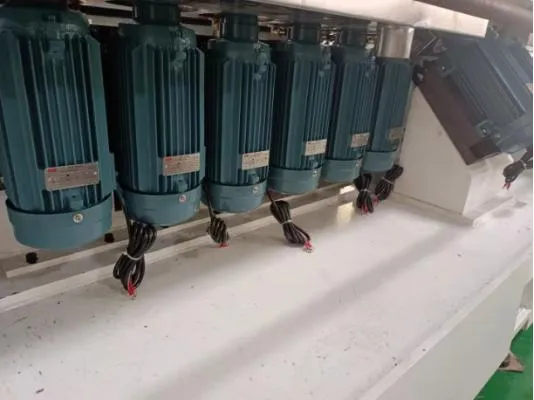

All spindles utilize high-strength motors, ensuring reliability and long-term durability in continuous use.

Special bearing base with taper adjusting bearing for high transmission accuracy and extended service life.

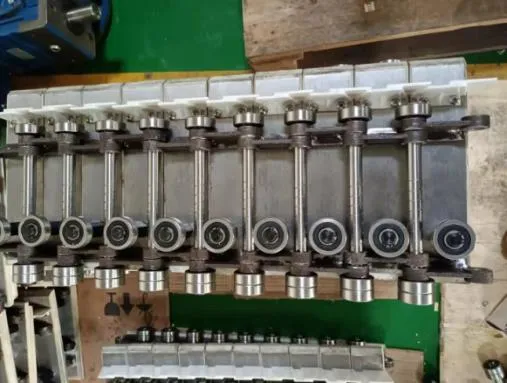

Link shaft and buckle made of 40 CR material. Features guide oil grooves for optimal lubrication.

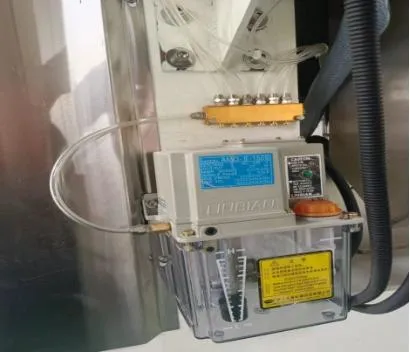

Automatic lubrication pump distributes oil to pad bearings via specialized piping for consistent maintenance.

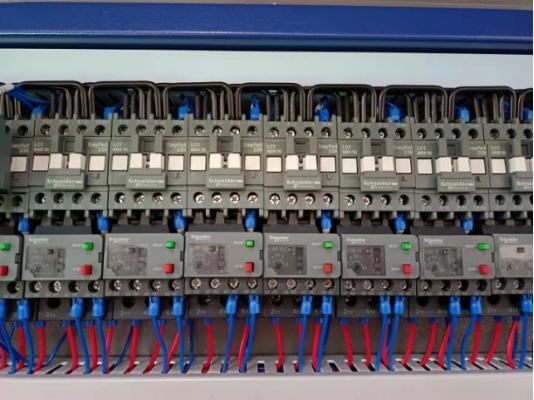

Equipped with Schneider electric components and neat line layout for enhanced safety and smooth running.

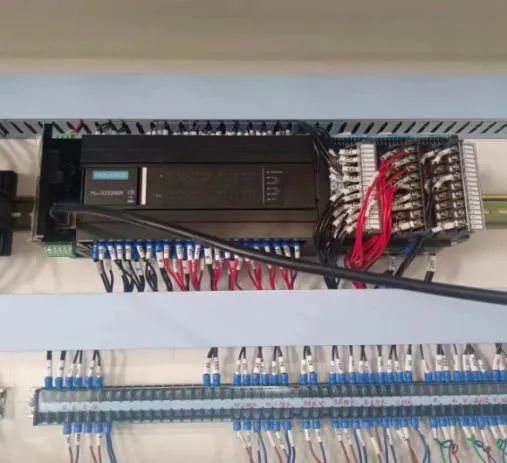

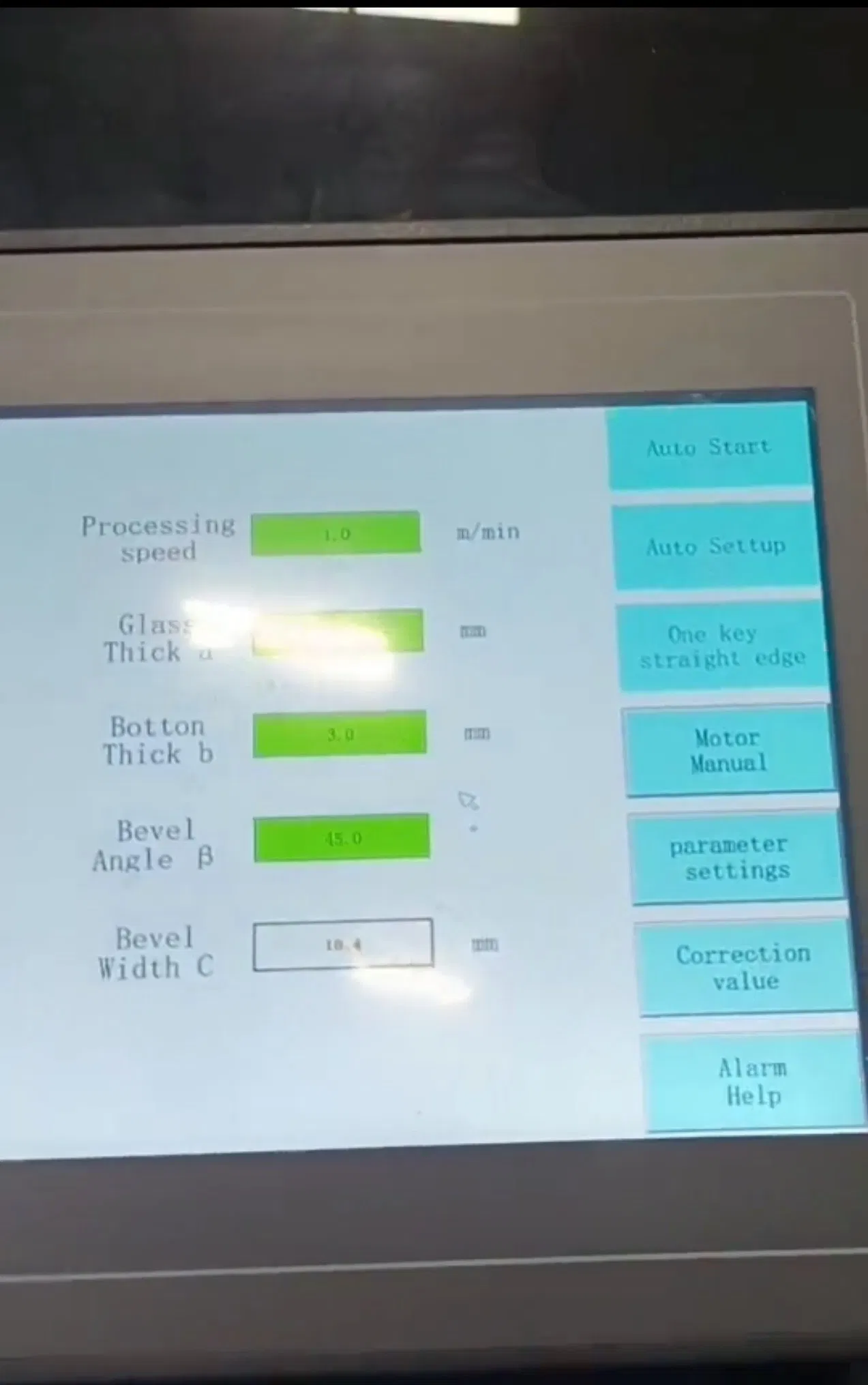

INOVANCE PLC and CMGC touch screen display real-time thickness and speed data for easy operation.

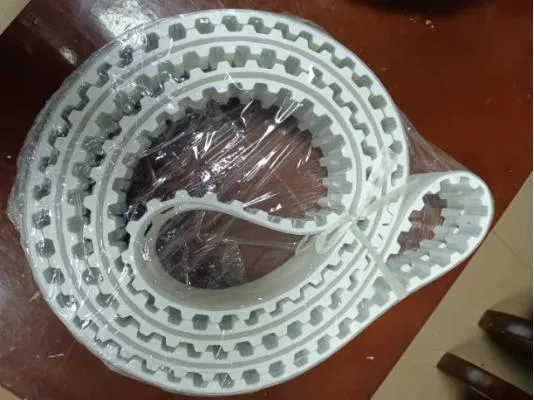

High-quality timing belt with 2PU coating for accurate glass conveyance and long-term durability.

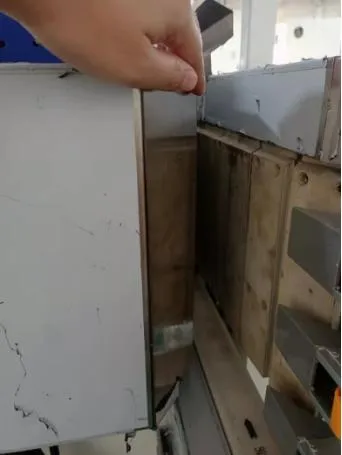

Anti-pinch hand clamping device at entry and exit ends automatically stops the machine if contact occurs.

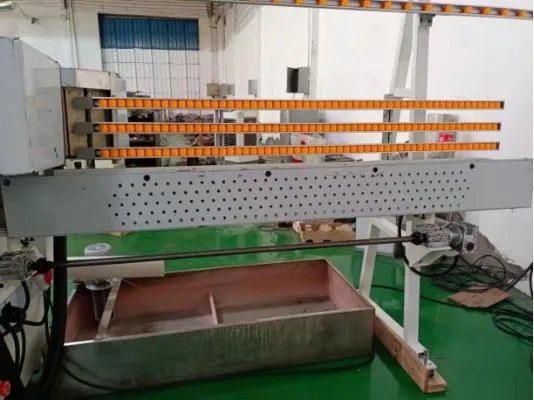

Entrance conveyor with vertical adjustment and LED display for glass removal without wheel repositioning.

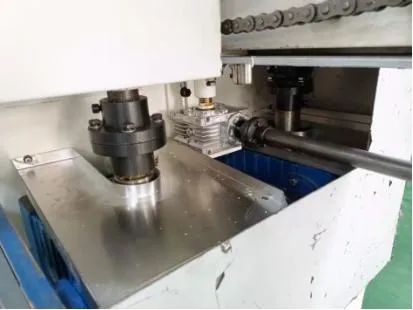

Water trays installed under loading/unloading tables keep the floor and machine gearbox dry.

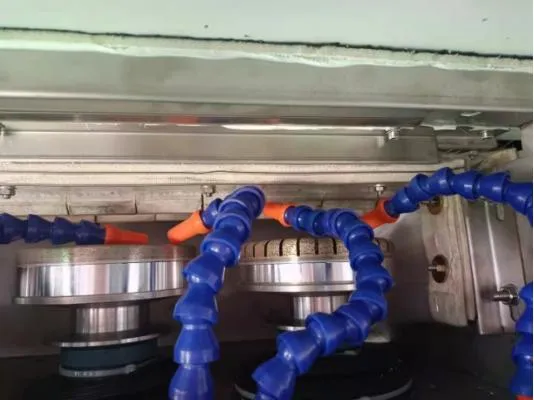

Two-layer and three-layer interactive waterproof brush systems protect bearings from moisture and debris.

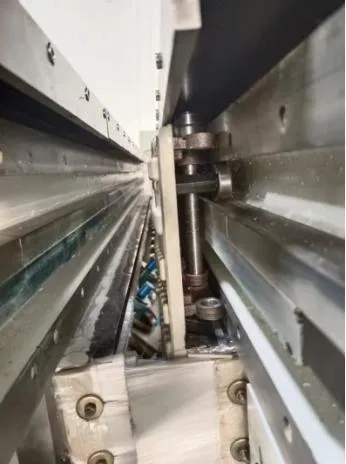

Corrosion-resistant stainless steel recycling water tank (1500x800x300mm) with PVC drainage pipes.

Mini-washers on beams keep rubber pads clean, facilitating easier glass cleaning post-processing.

❓

Frequently Asked Questions

What is the glass thickness range for the DZM11P?

The machine can process straight-line glass edges with a thickness ranging from 3mm to 50mm.

What is the minimum glass size this machine can handle?

The minimum glass size requirement for processing is 30mm x 30mm.

How is the machine's transmission speed controlled?

It uses a variable frequency speed regulation motor combined with a hardened gear reducer, allowing a speed range of 0.5 to 7 meters per minute.

What kind of control system is installed on this machine?

The machine is equipped with an INOVANCE PLC and a CMGC touch screen for monitoring thickness, speed, and other operational data.

Does the machine include any safety features for operators?

Yes, it features an "Anti-pinch hand clamping device" at both the entry and exit points, which automatically stops the machine if the safety plate is touched.

What is the total power and weight of the DZM11P?

The machine has a total power of 28KW and a total weight of approximately 6300kg.
