Automatic Igu Manufacturer Insulating Glass Machinery Hollow Glass Processing Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

📊 Basic Information

Model NO.

LBJ3060

Glass Thickness

3-19 mm

Max Glass Size

2000×3000mm

Min Glass Size

280×450mm

Argon Gas Efficiency

More Than 95%

Voltage

380V 50Hz

Washing Speed

2~12m/Min

Production Capacity

50 Sets Per Month

🚀 Product Description

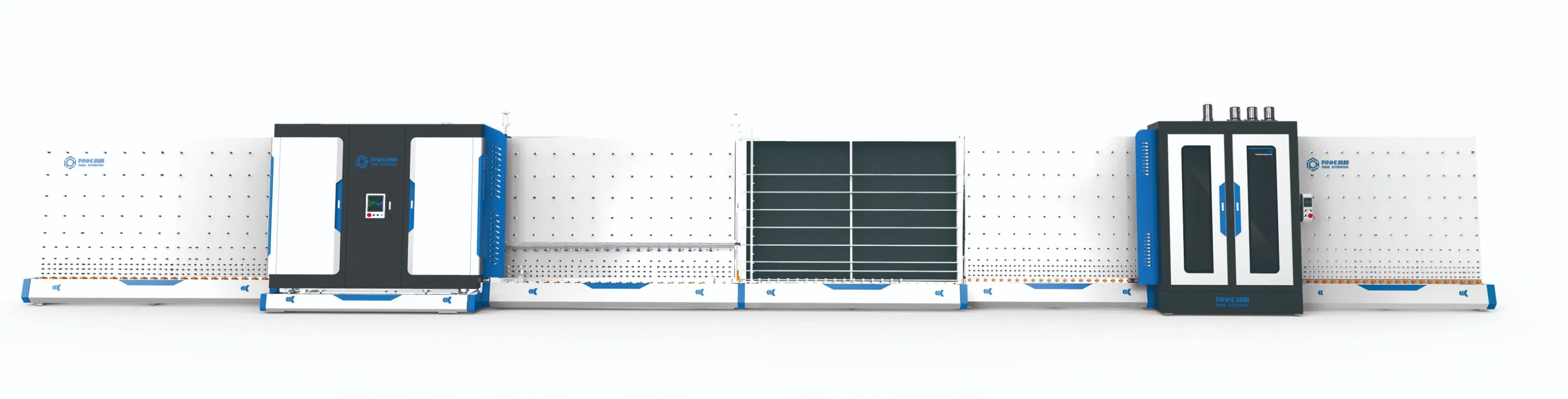

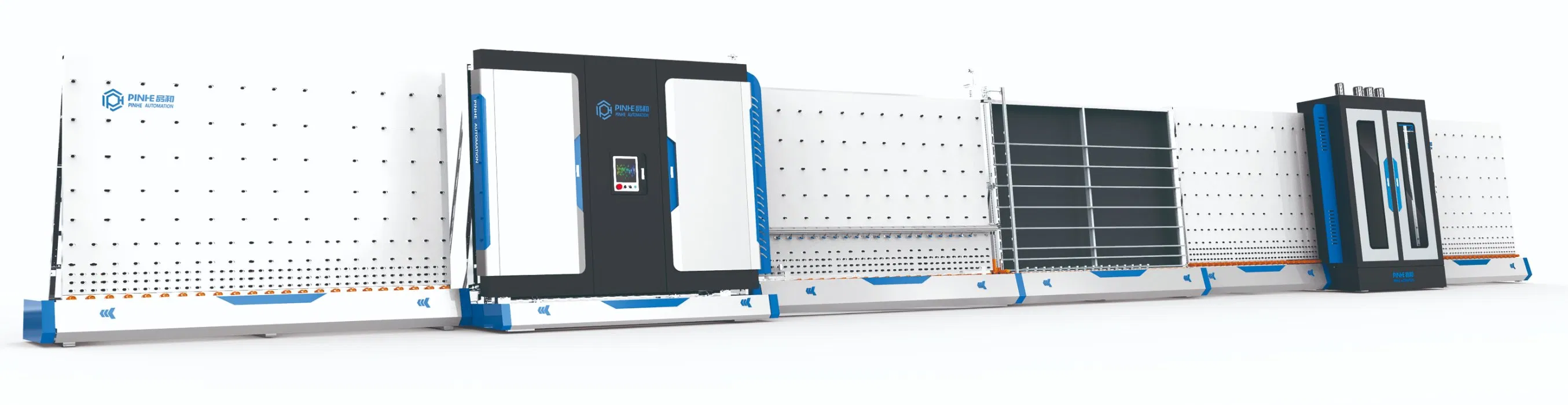

Automatic Gas-filled Insulating Glass Production Line

Automatic Insulating Glass Production Line

Adopts world-leading technology with imported PLC and mainstream frequency conversion governors.
Equipped with high-quality South Korean Autonics sensors for precision detection.
Independent procedures for inside or outside pressing, capable of double/triple insulating glass and shaped units.
Precision cast aluminum reducers and cast tin bronze turbines for long-lasting durability.
All-steel bearings ensure flexible rotation and silent operation.
Conveying wheels made of wear-resistant polyurethane material for low noise.

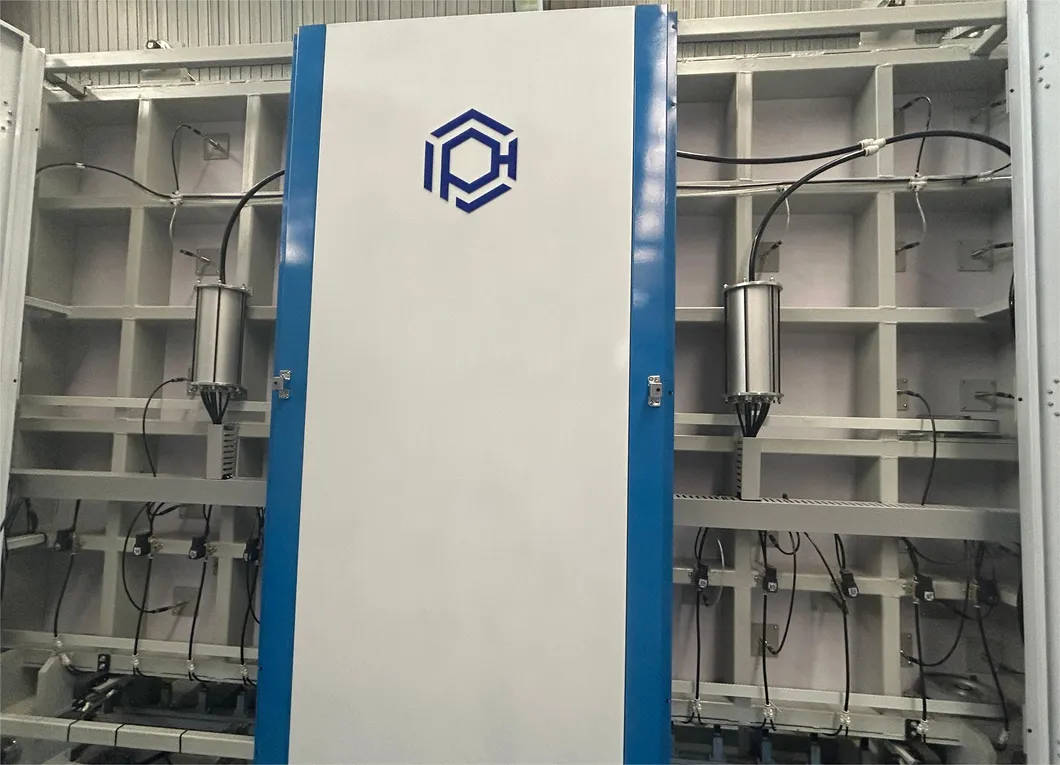

🛠️ Inside Assembly Section

Plate press unique open design with hydraulic cylinders allowing 500mm push for maintenance.
Vacuum generator and suction cups distributed for optimal glass suction.
Servo motor control system specialized for large and small pieces (Curtain wall glass).
Hydraulic mode control for constant plate pressure, ensuring superior sealing.
Board surface uses high-quality plates milled by CNC engraving machines to prevent deformation.

📋 Core Components & Brands

Name	Brand	Origin
PLC	Siemens / Omron	Germany / Japan
Touch Screen	Inovance / Kinco	China
Frequency Transformer	Siemens / Inovance	Germany / China
Photoelectric Switch	Autonics / Bedook	South Korea / Japan
Electromagnetic Valve	AirTAC	Taiwan, China
Electrical Apparatus	Schneider	France

📉 Technical Parameters

Technical Parameter	LBG2850	LBG3060
Total Power	70Kw	90Kw
Max. Glass Size	2800×5000mm	3000×6000mm
Min. Glass Size	280×450mm	280×450mm
Raw Glass Thickness	3-30mm	3-30mm
Max. I.G. Unit Thickness	12-80mm	12-80mm
Washing Speed	2-12m/min	2-12m/min

📸 Detailed Section Features

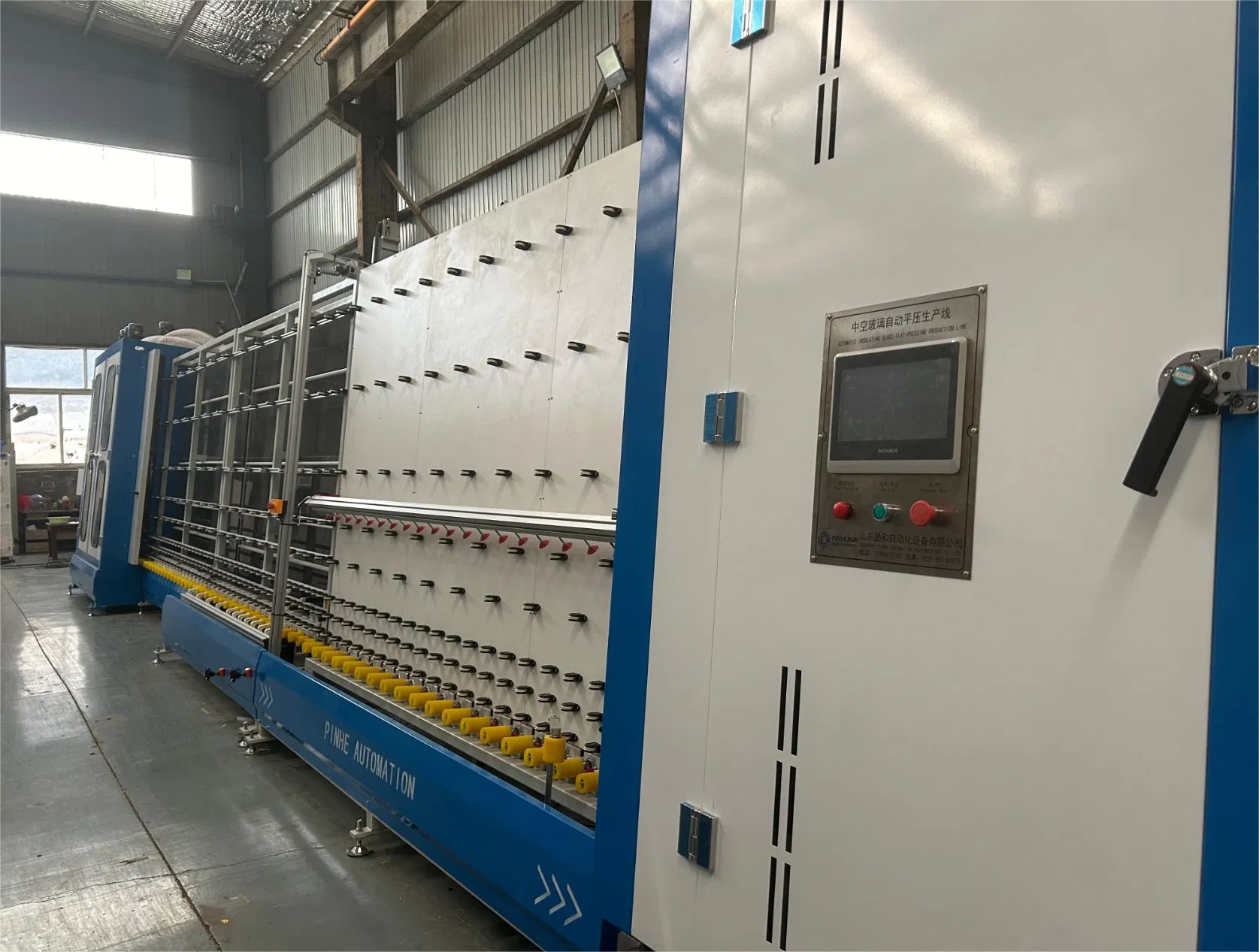

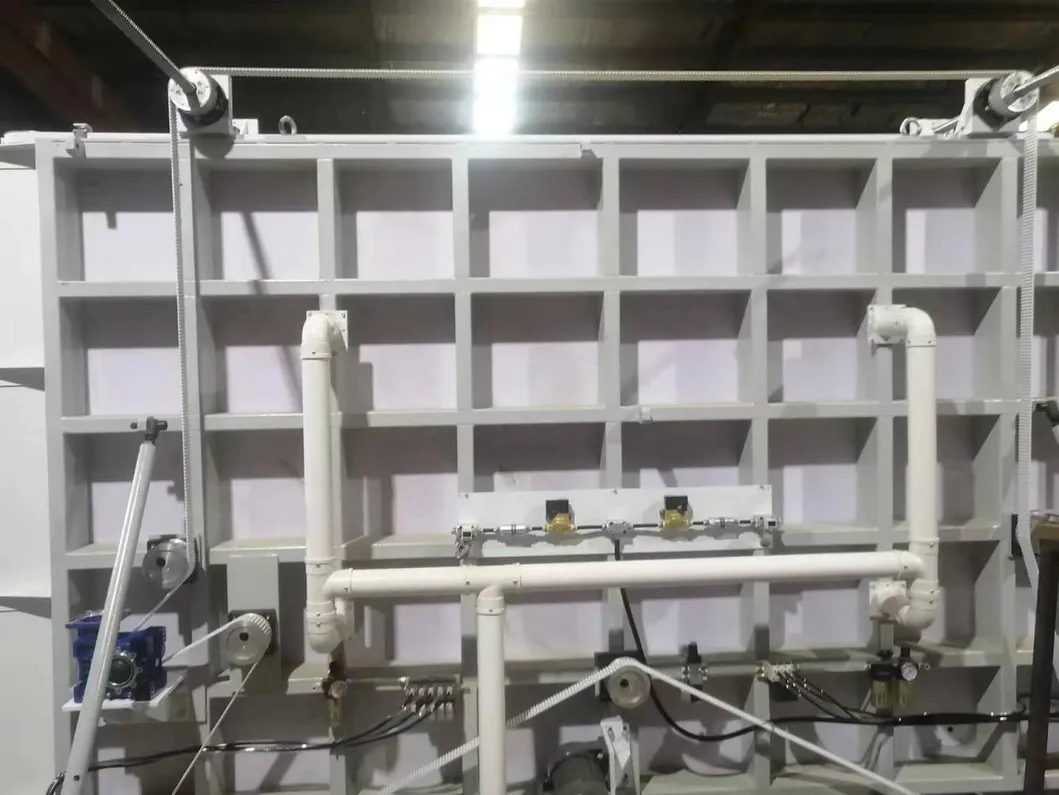

Loading & Washing Section:

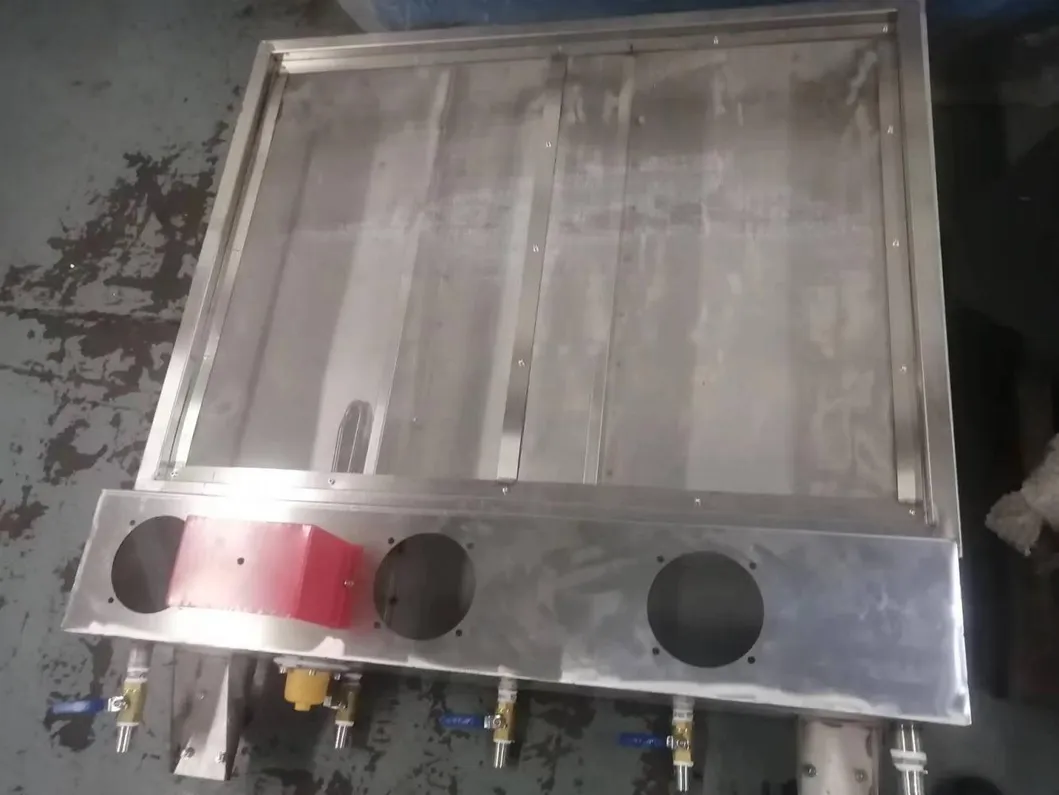

Cleaning & Drying System:

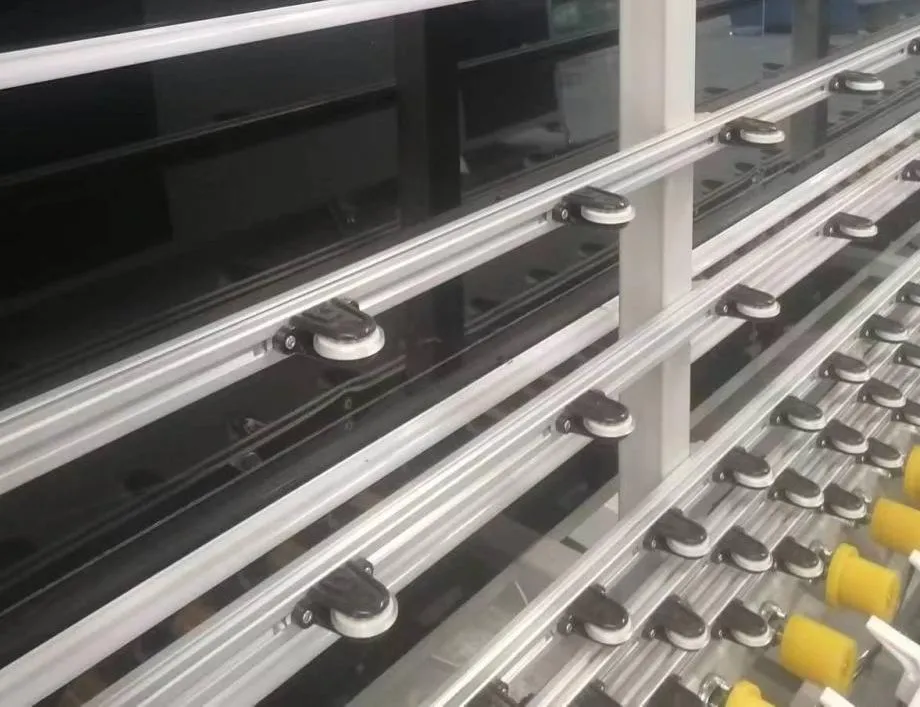

Assembly & Gas Filling:

🏢 Industrial Glass Solutions

We are a leading provider of high-quality flat glass processing machinery, service, and supplies. Our equipment is sourced from the most innovative and reliable manufacturers specialized in fabricating, handling, and processing flat glass. Each machine is characterized by innovative features, long-lasting durability, and high reliability.

Our extensive range of integrated machinery supports the manufacture of insulated glass units, glass windows, door fabrication, and façade systems.

❓ Frequently Asked Questions

1. What is the maximum glass size this production line can handle? The LBG3060 model can handle a maximum glass size of up to 3000mm × 6000mm.

2. Does the machine support triple insulating glass units? Yes, the production line is designed to produce double, triple, and even special-shaped insulating glass units.

3. What is the efficiency of the argon gas filling system? The system automatically detects glass size and tracks inflation parameters, ensuring an argon gas utilization and efficiency of more than 95%.

4. What brands of electronic components are used in the machine? We use premium international brands including Siemens, Omron, Schneider, Inovance, and Autonics to ensure stability and precision.

5. Can this machine process Low-E glass? Yes, a dedicated Low-E film detection device is installed before the washing section to prevent damage to the film during processing.

6. Is the washing section made of corrosion-resistant materials? Absolutely. The cleaning box uses a stainless steel base, waterproof aluminum accessories, and a stainless steel chain to prevent rusting.
