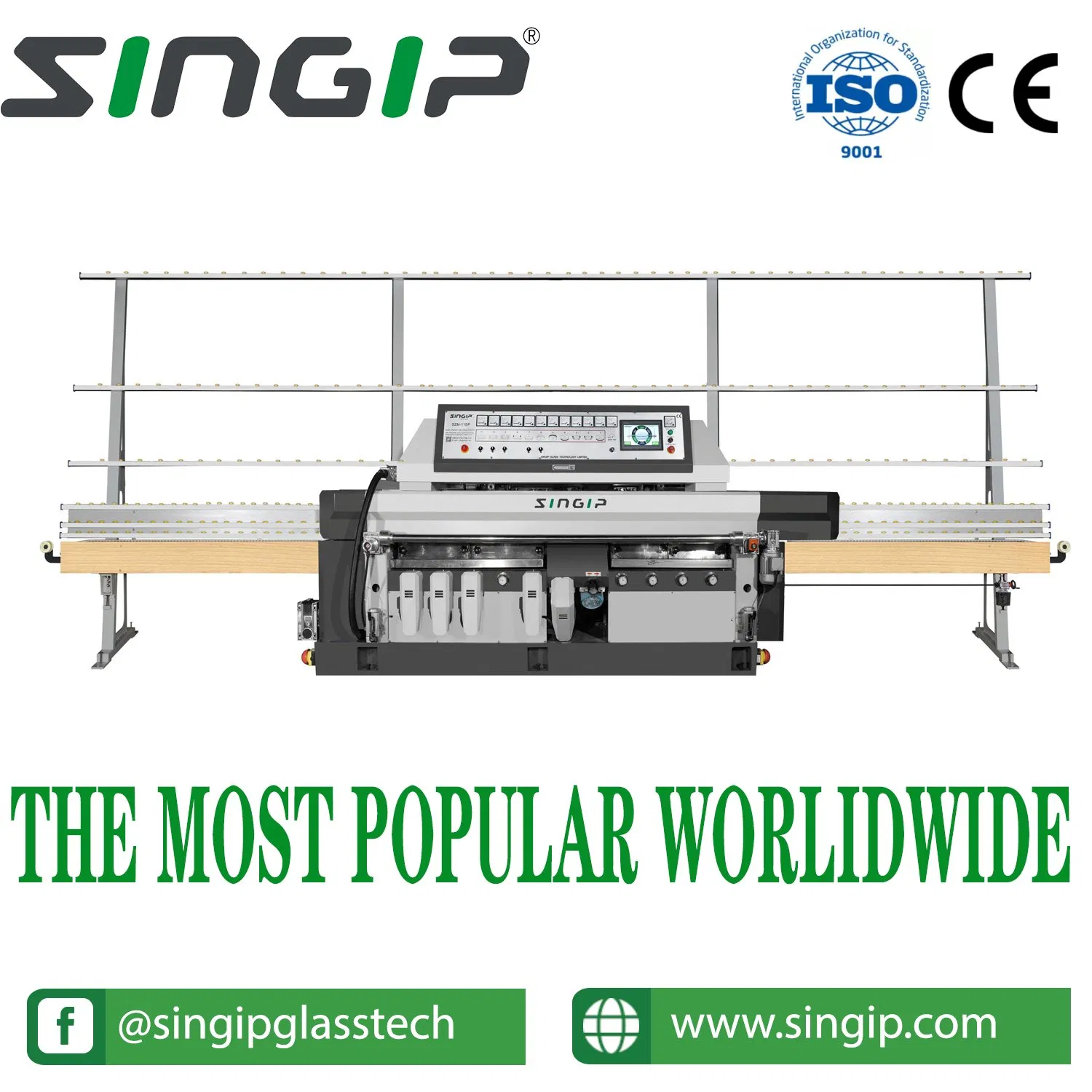

THE MOST POPULAR WORLDWIDE

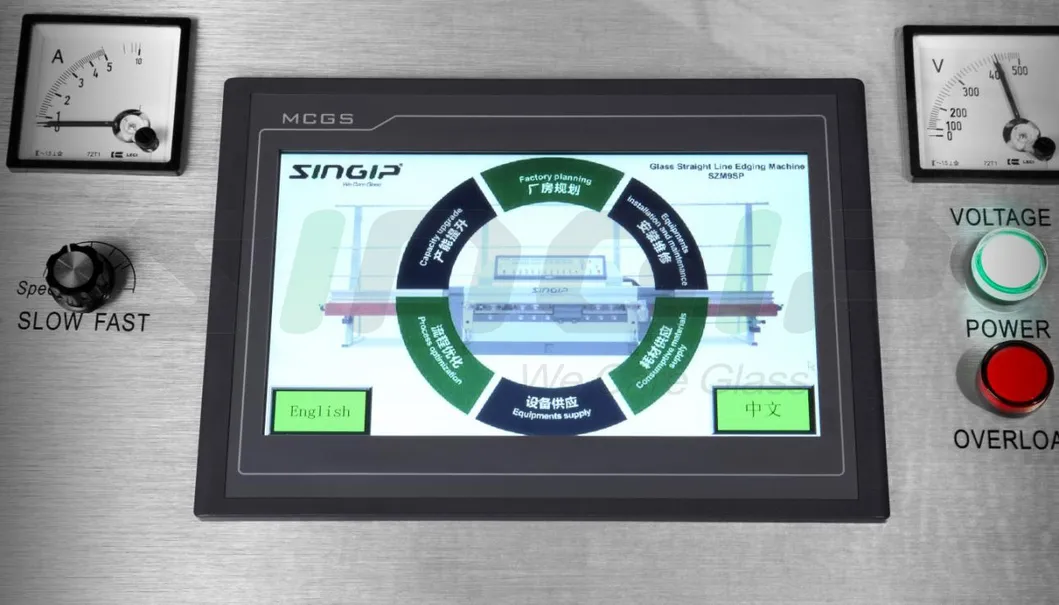

The SZM-10SP is the newest generation intelligent straight line edging machine. It combines stable and efficient traditional edging technologies with modern intelligent automation. Redesigned and optimized by engineers, this equipment features a patented intelligent edging control system to provide high-performance solutions for glass processing.
Sample Show and Application
| Parameter | Specification |
|---|---|
| Model | SZM-10SP |
| Minimum Processing Size | 100 x 100mm |
| Processing Thickness | 3-19mm |
| Feeding Speed | 0.5m/min - 6m/min |
| Total Power | 22kw |
| Worktable Height | 750mm |
| Max Arris Width | 2.5mm |
| Max Cutting (Flat Edge) | 3mm |
| Angle of Arris | 45° |
| Maximum Processing Size | 2500mm * 2500mm |
EXCELLENT LOAD CAPACITY: Using modern modelling systems (FEA), the structures are strengthened with cast iron (bedplate, beams, and columns). It handles large, thick glass sheets up to 200kg with ease.

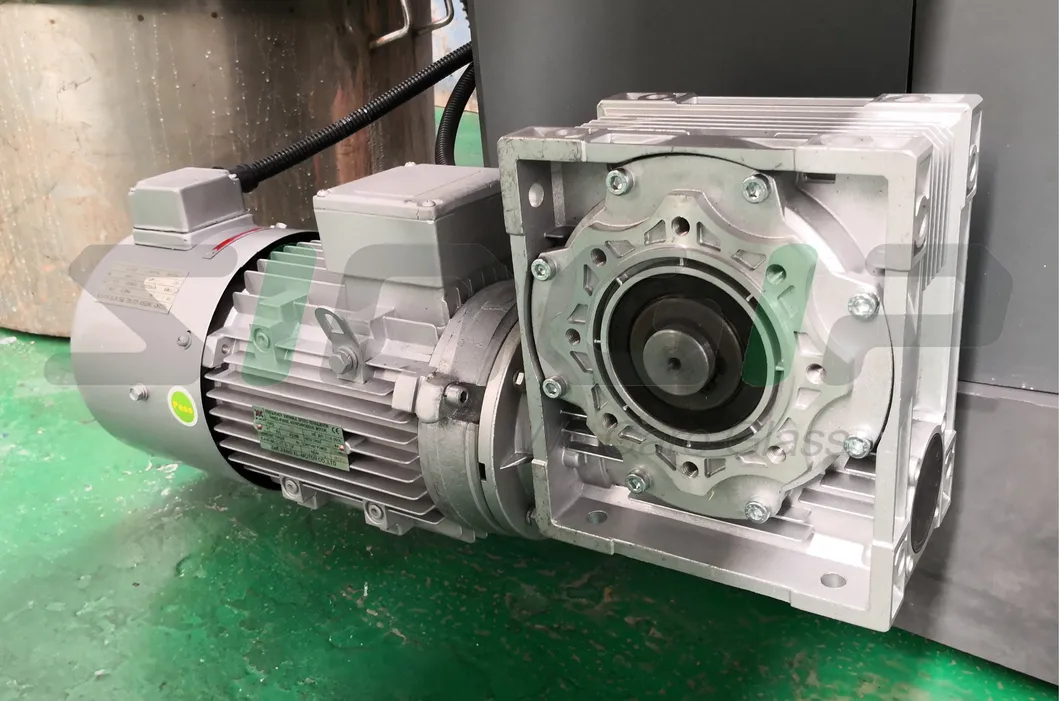

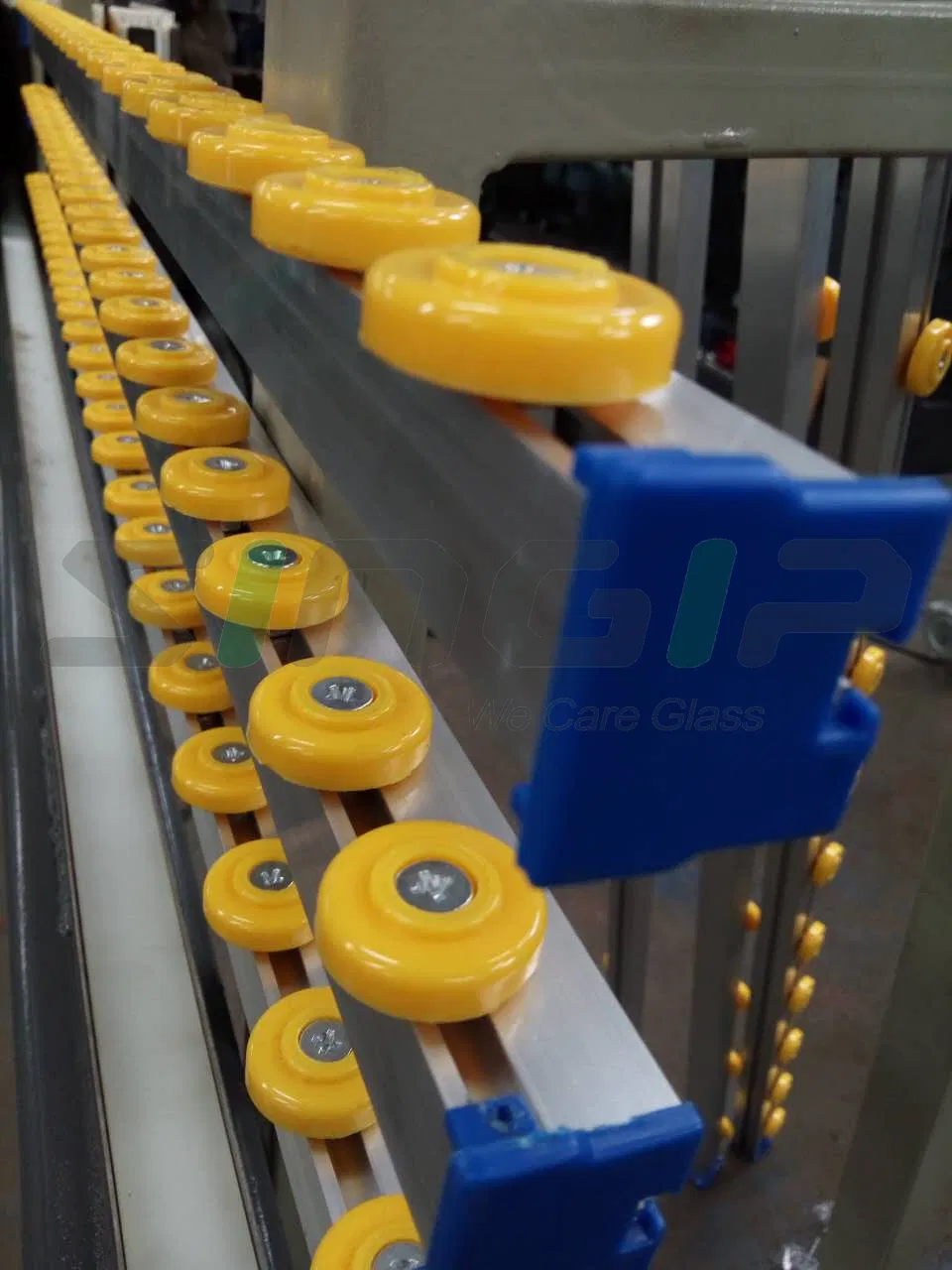

QUALITY OF END PRODUCT: The conveyor system is extremely precise and does not require ball bearings. Strengthened cast iron reduces vibration, paired with twin-bearing motors for superior grinding quality.

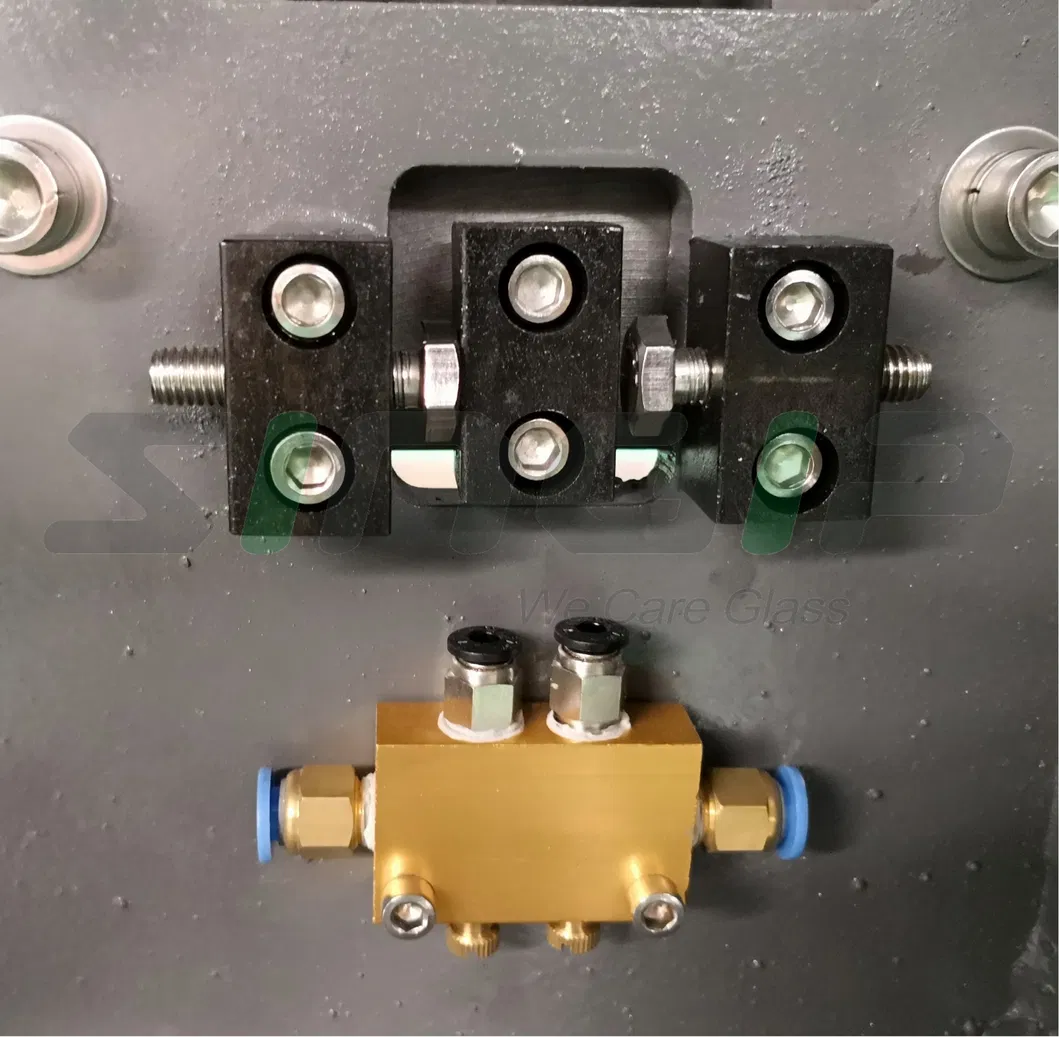

MINIMIZED MAINTENANCE: Features a centralized lubrication system and synchronous belts on inlet/outlet arms that can be replaced individually, ensuring long-term reliability.
