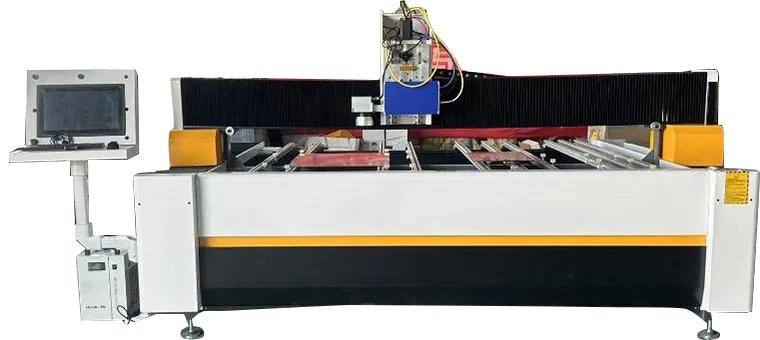

| Model NO. | ZK-CL2513 | Power Supply | 380V/50Hz |
| Equipment Name | Glass Laser Sander Drilling Machine | Equipment Size | 2200*4200*1800mm |
| Weight | 900kg | Range of Work | 1300*2500*160mm |
| Operate Mode | Fiber-Optic Laser Mobile Engraving | Laser Type | Fiber Laser |
| Laser Power | 120W/200W | Laser Wave Length | 1064nm |
| Mechanical Accuracy | ≤±0.25mm | Engraving Range | 1300*3000mm |
| Line Speed | ≤12000mm/s | Computer System | Win7/Win10 |
| Cooling Method | Water-cooling | Graphic Format | EPS/DXF/PLT-CDR/Al/AC6 |

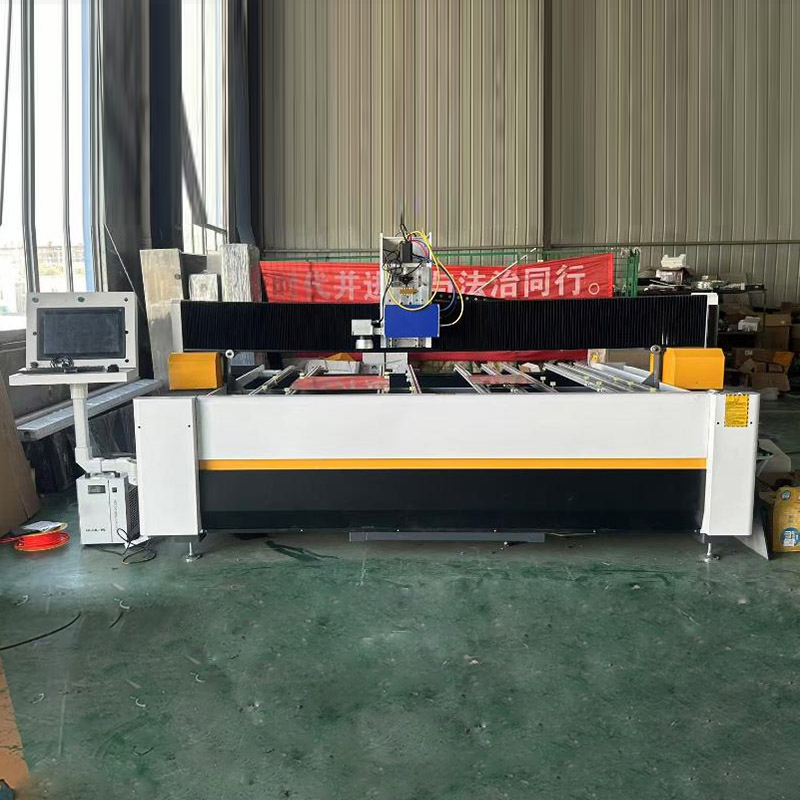

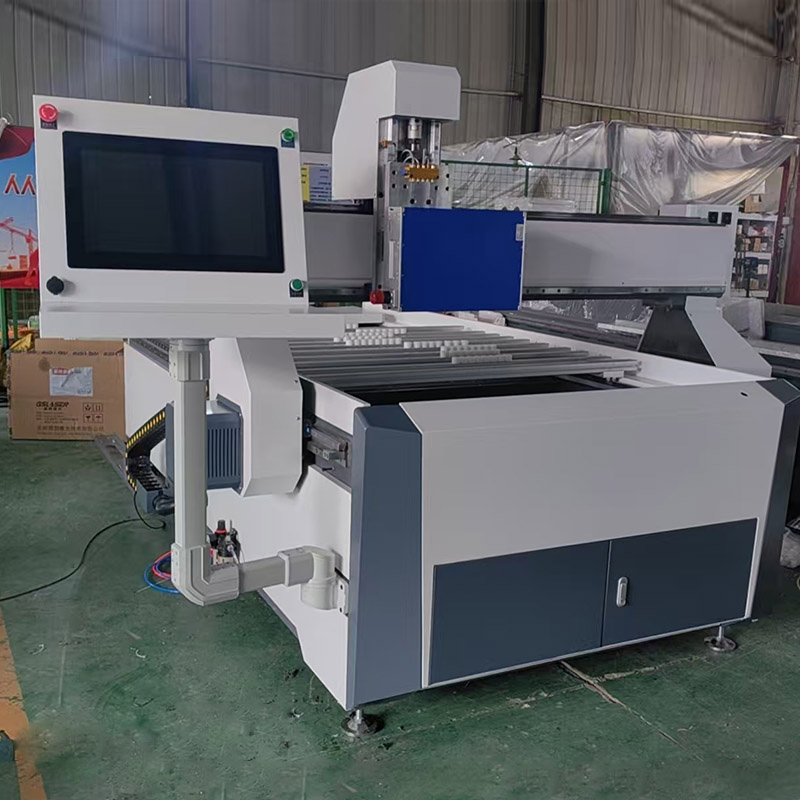

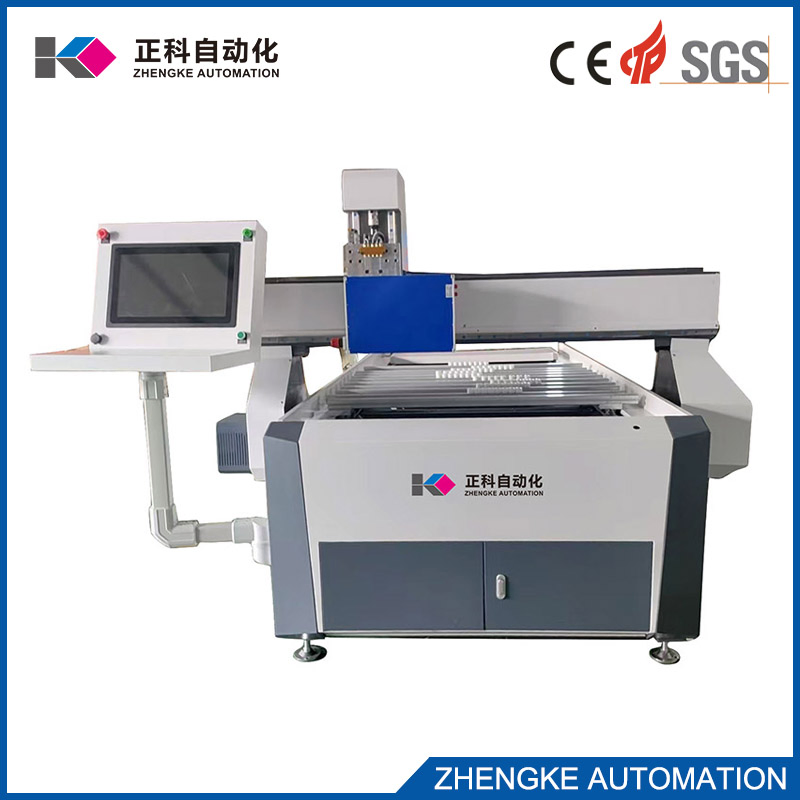

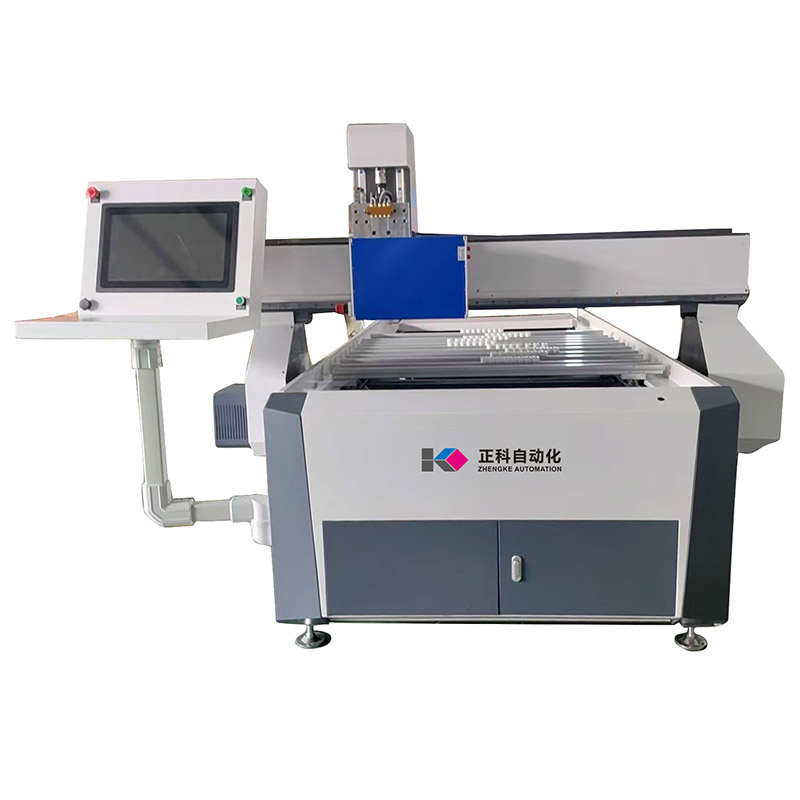

The CNC glass laser machine is a revolutionary solution designed specifically for smart mirror production. It eliminates tedious manual processes like film sticking, engraving, and tearing, significantly reducing the risk of scratches and defective products.

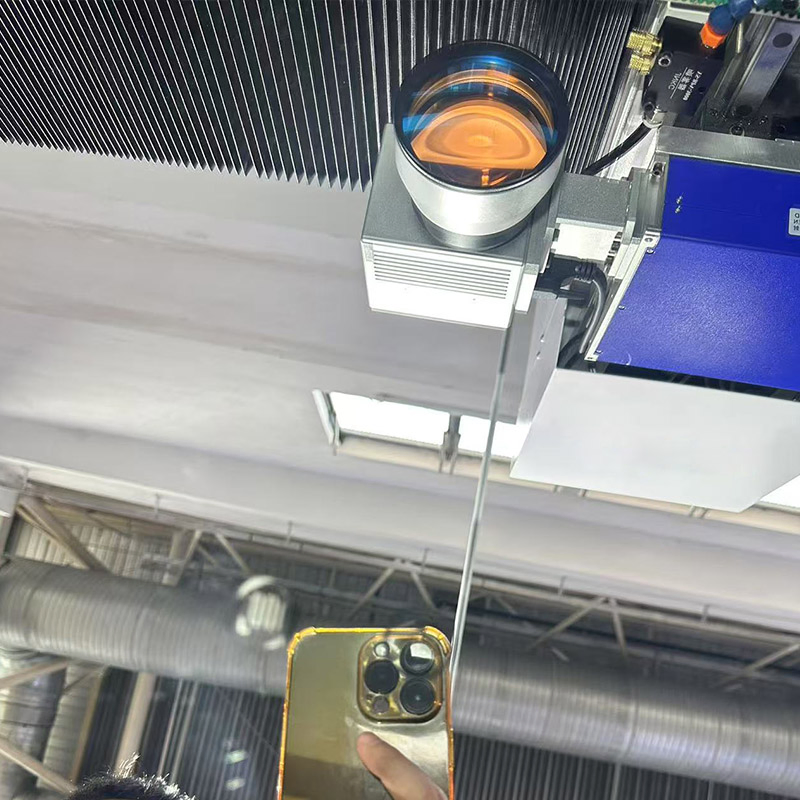

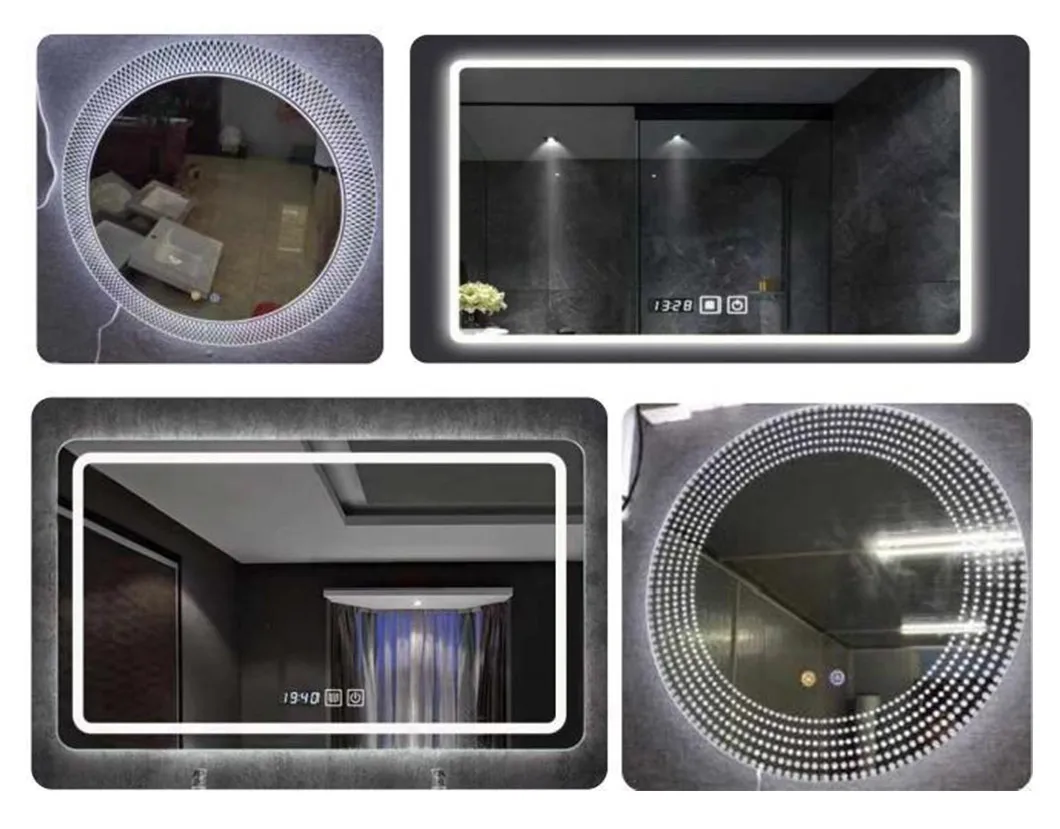

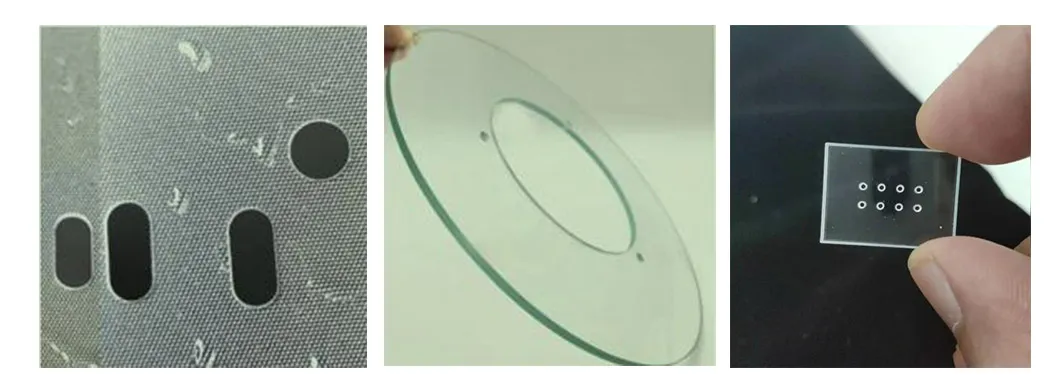

Equipped with high-precision laser etching, the machine creates light-transmitting areas and switch button areas in a single process. This multi-functional equipment handles smart mirror sanding, glass drilling, and mirror film removal, dramatically improving production efficiency while lowering equipment procurement costs.

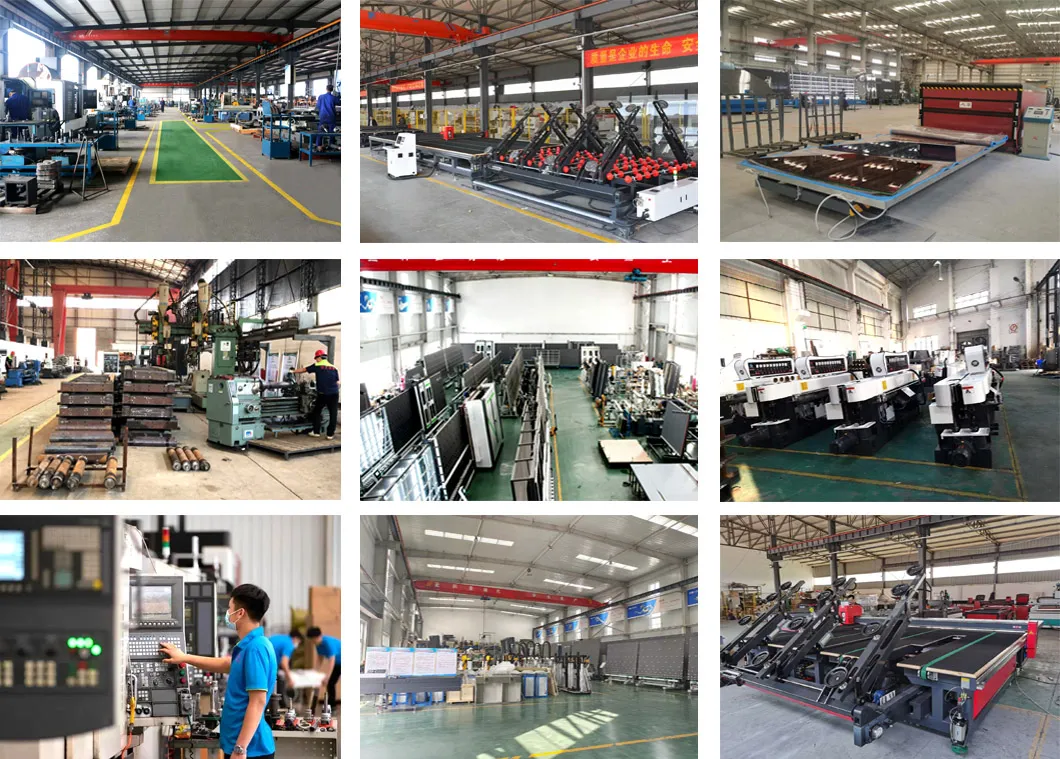

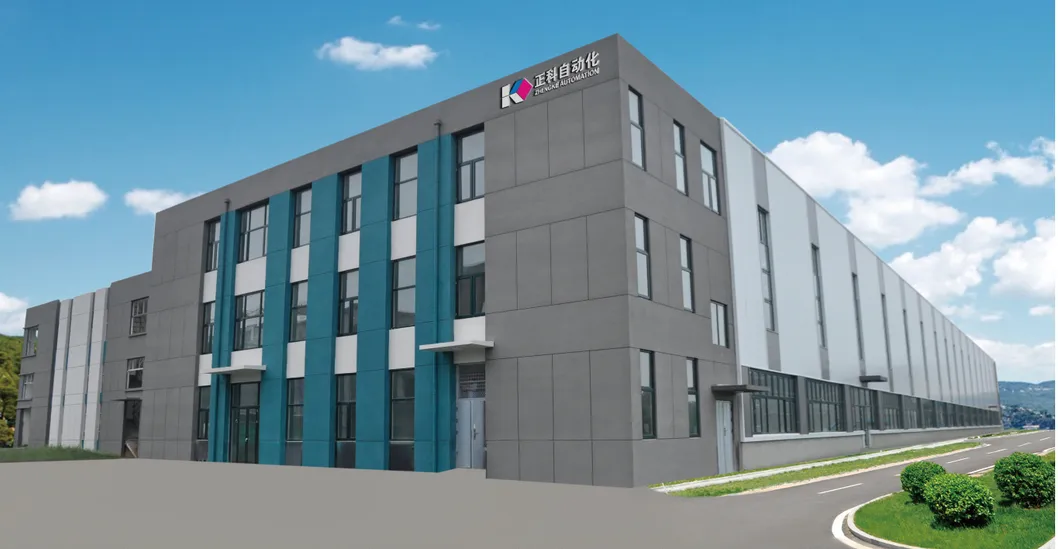

Specializing in high-tech glass machinery, the facility covers over 5,000 square meters with a dedicated research and development team. Our focus remains on cutting-edge glass processing technologies including cutting, edging, washing, and tempering machinery.
