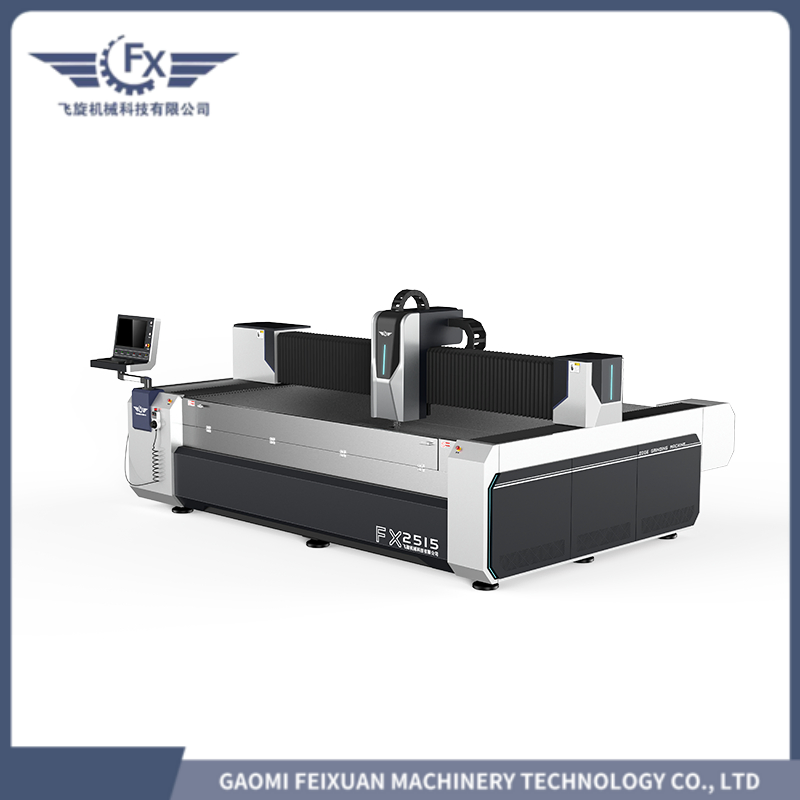

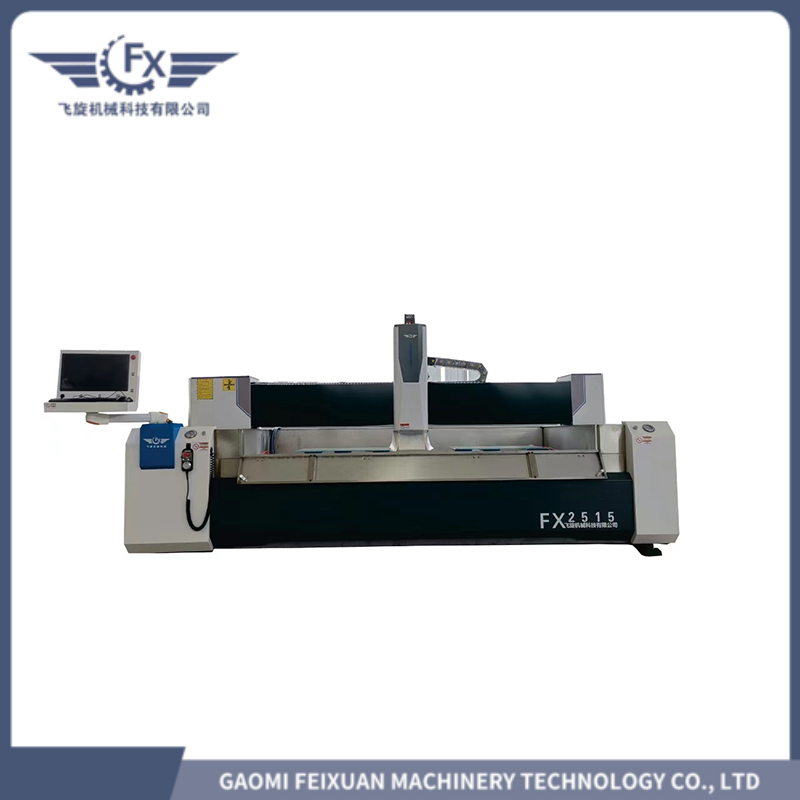

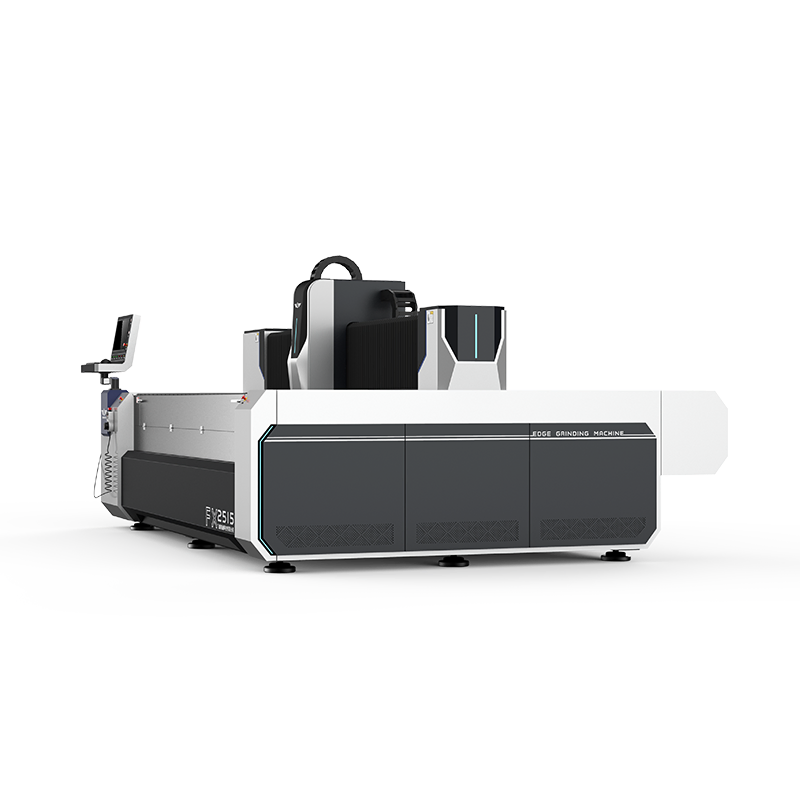

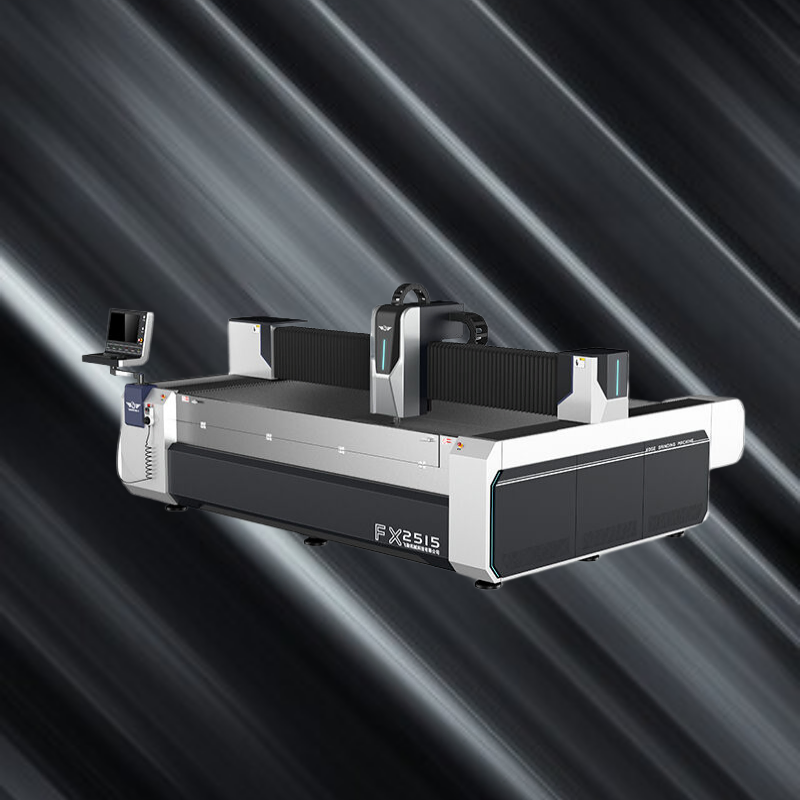

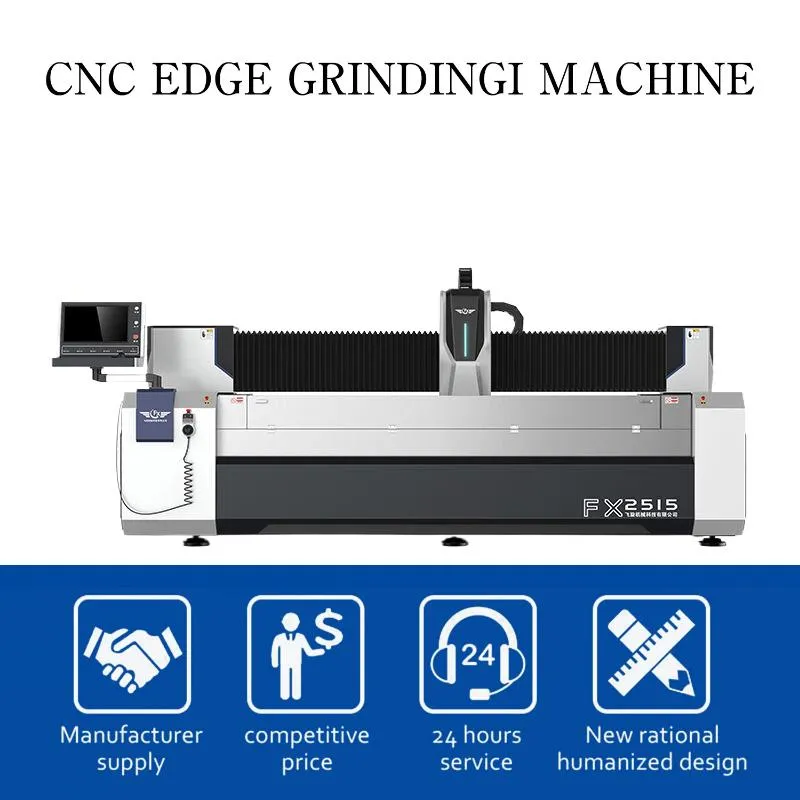

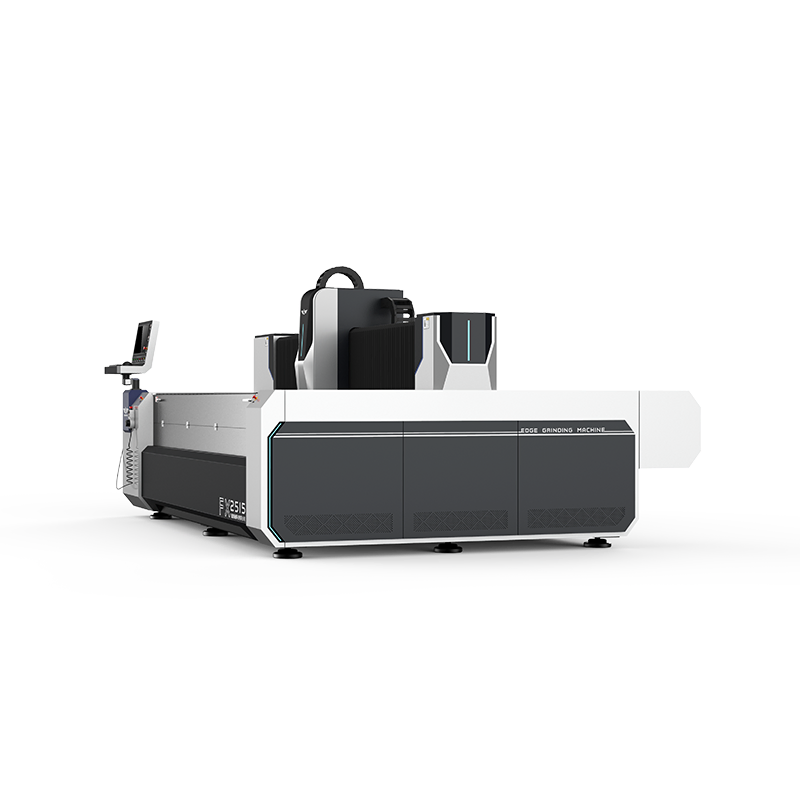

Glass Edging and Polishing CNC Workstation

Customization: Available
Voltage: 220V/380V/480V or Customized
Warranty: One Year

Product Description

ℹ️

Overview - Basic Info

Keyword
Glass Working Center
Product Name
CNC Glass Working Center
Processing Layout
2000*1000mm---2000*4000mm
Machine Model
Fx-2515
Processing Thickness
2-19mm
Power
17kw
Weight
4000 Kg
Key Selling Points
High-Accuracy
Operation
Automatic Control
Application
Color Mirror Glass
Type
Glass Edging Machine
Structure
Horizontal
Control System
PLC
Condition
New
Origin
China
HS Code
8464201000
⚙️

Product Description

Glass Edging and Polishing CNC Workstation

CNC Glass Processing Center

The FX CNC Glass Machining Center is an epitome of precision and versatility in glass processing. This state-of-the-art equipment seamlessly integrates edge grinding, chamfering, polishing, drilling, and milling. It is meticulously designed for both internal and external grinding applications, making it ideal for automotive glass, home appliance glass, furniture glass, shower room glass, and mirrors of all types. With an emphasis on automation and ease of use, this machine aims to elevate production efficiency and bolster the competitive edge of enterprises.

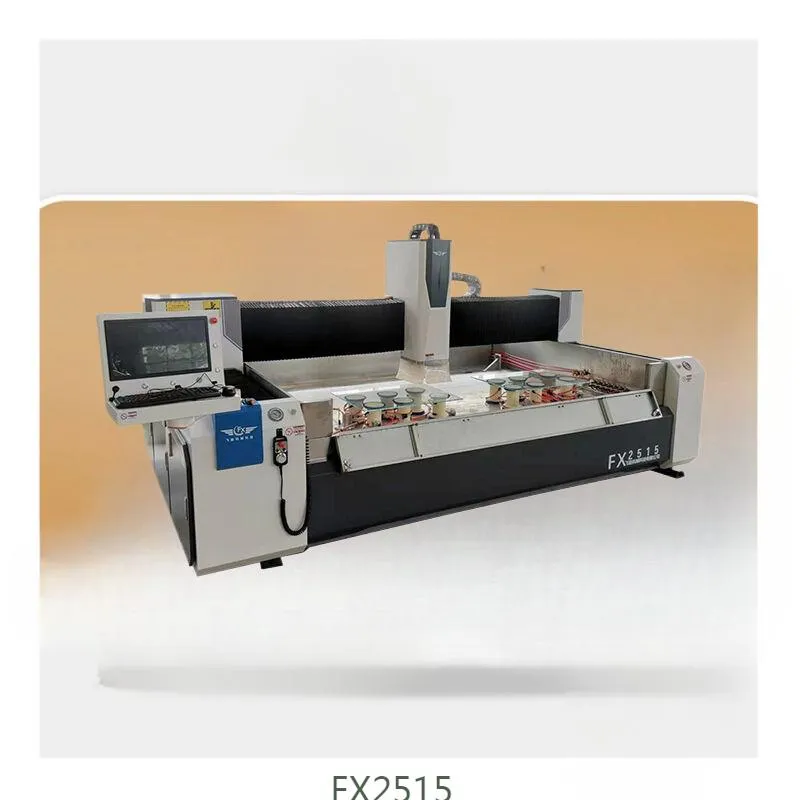

CNC Workstation Detail

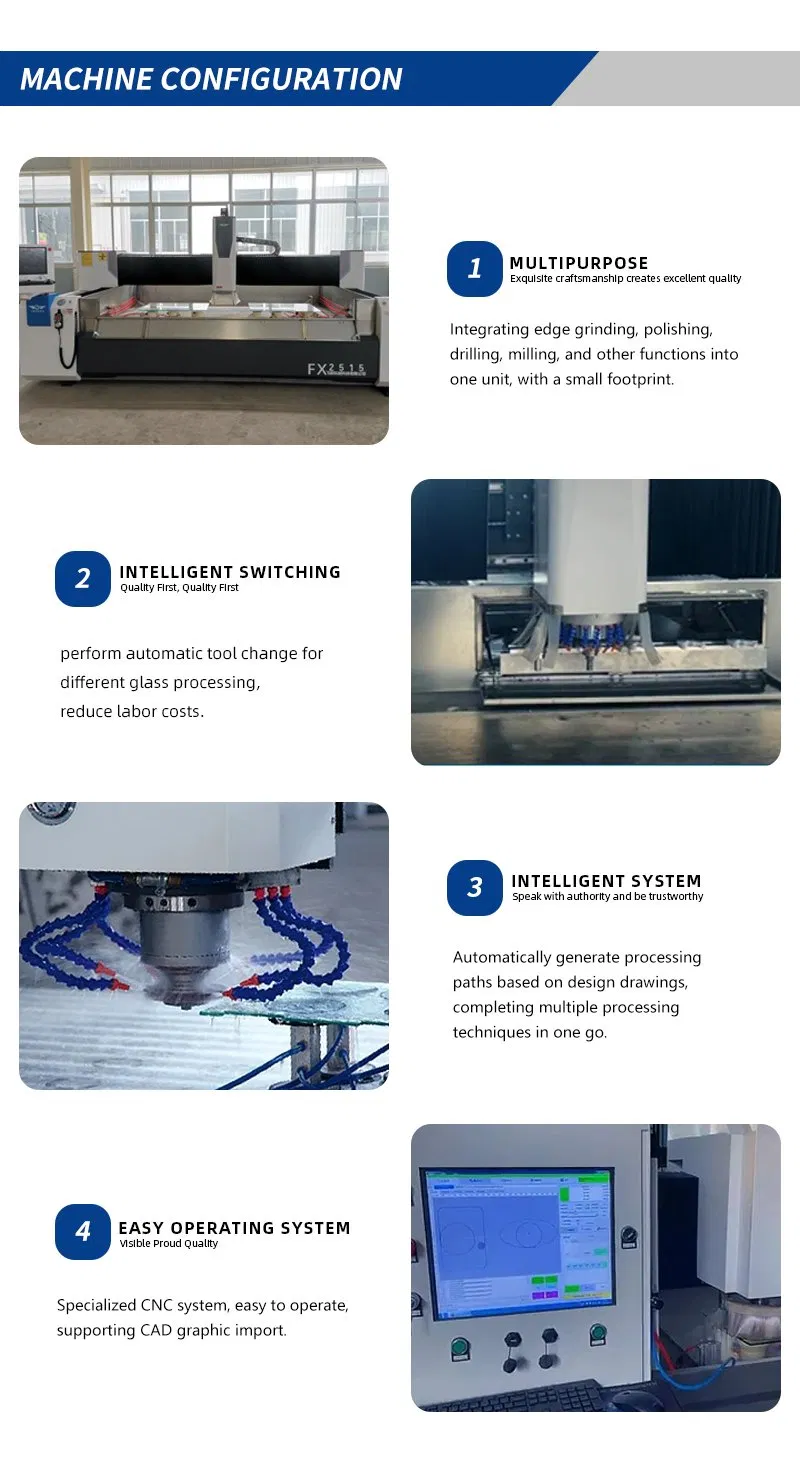

Processing View
📸

Detailed Photos & Technical Range

Machine Tool Processing Range:

  • Engineered for rough and fine machining of hard and brittle materials: Automobile, machinery, glass, rock slabs, and ceramics.
  • Adeptly process various materials by simply replacing cutting tools.
  • Perfectly suited for small to medium-sized batches of plate-shaped and uniquely shaped materials.
Machine Structure
Control System

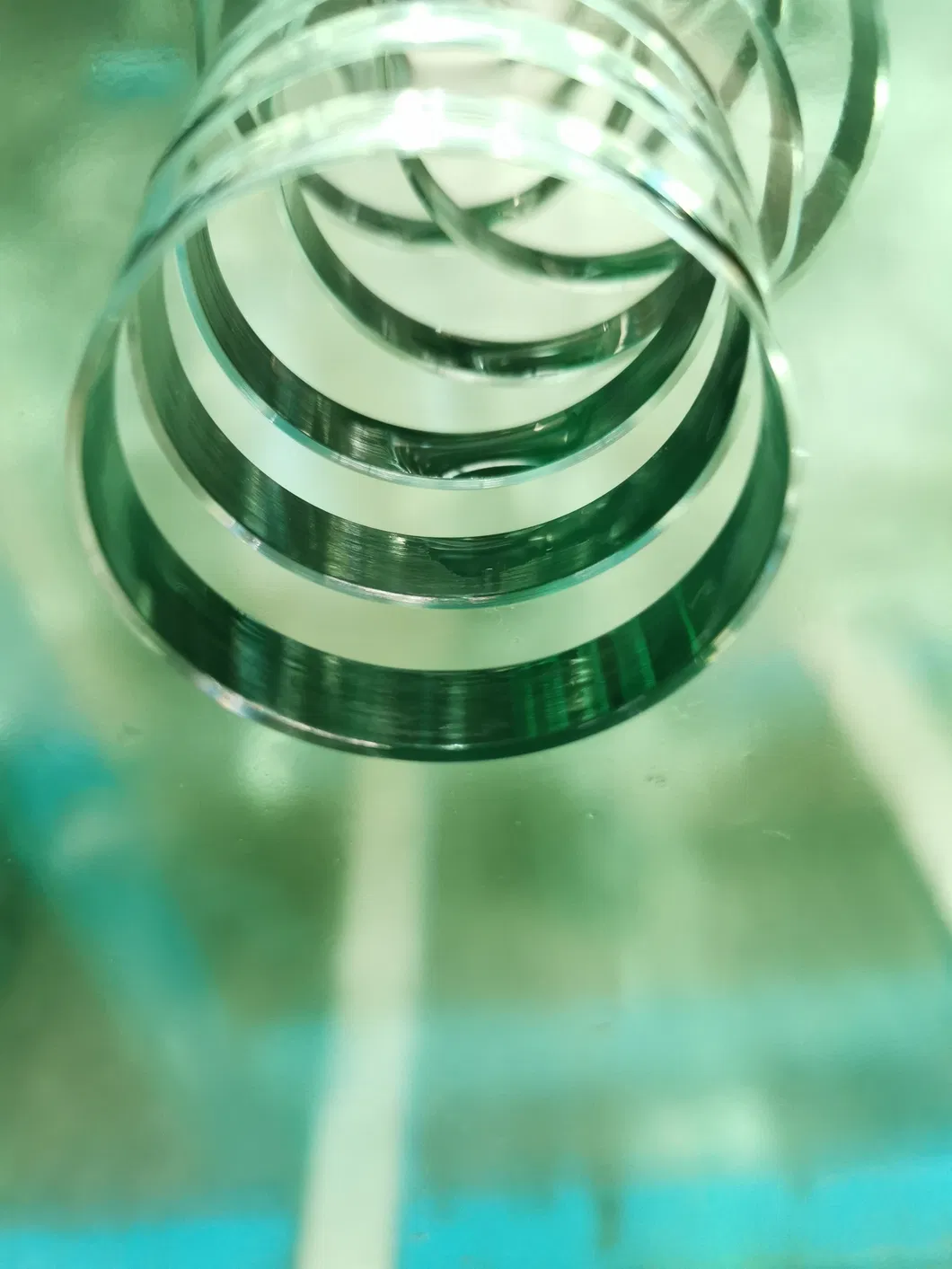

Glass Processing Detail
Divider
Feature Specifications
Machine ModelFX2010, FX2515, FX3015, FX3020, FX4020
Processing Layout2000*1000mm to 2000*4000mm
Spindle Power11KW / 15KW / 18.5KW
Spindle Speed3000-12000rpm
Processing Speed6-15M/min
Processing Thickness2-19mm
Precision±0.2mm
Cover Area4000mm * 5000mm
💎

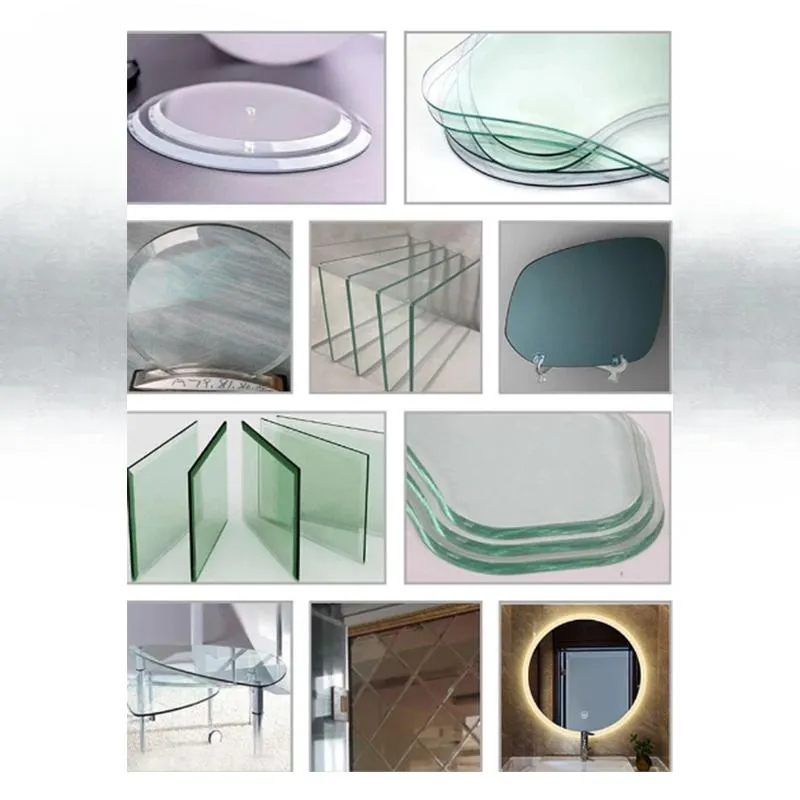

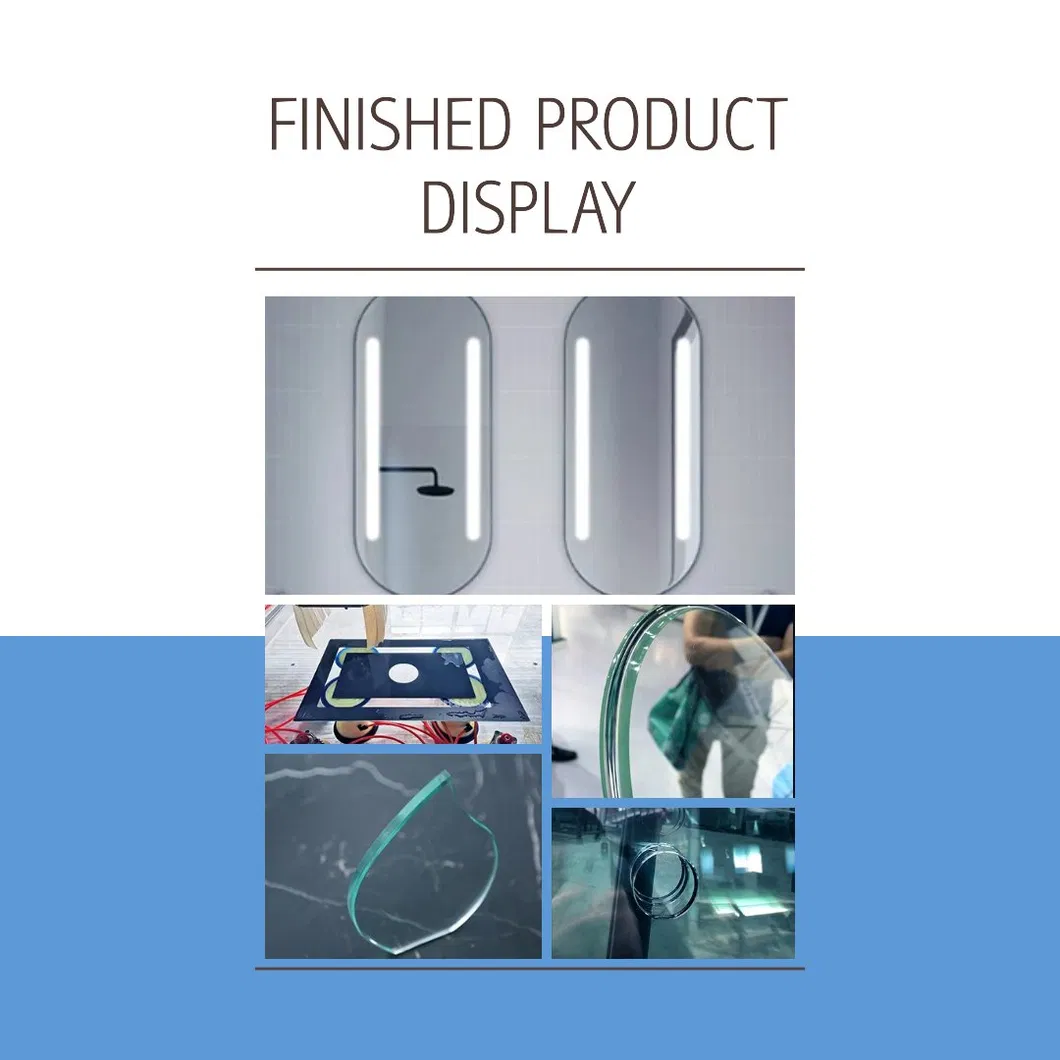

Finished Glass Sample & Application

  • Edging and polishing of electrical panel glass
  • Electronic scale glass
  • Furniture glass and tea table rock slabs
  • All kinds of special-shaped glass edging and polishing
  • Glass round table edging
  • Cupboard glass door panels and wardrobe door panels
  • Hood stove panels and induction cooker glass ceramic
  • Glass edging for cars
Application Samples
🤝

Exhibition and Team

Exhibition Display
🚢

Packaging & After-Sales Service

No. Item Service Details
1Service Duration7*24 Hours (All Weather Service)
2Warranty Period1 Year
Packaging Detail

Frequently Asked Questions

What materials can this CNC center process?
It is primarily designed for glass, but can also process rock slabs, ceramics, and other hard, brittle materials by changing the tools.
What functions are integrated into this machine?
The machine integrates edge grinding, chamfering, polishing, drilling, and milling into one workstation.
What is the processing precision of the equipment?
The machine offers high-accuracy processing with a precision of approximately ±0.2mm.
Is it suitable for shaped glass?
Yes, it is specifically engineered for both regular plate glass and uniquely shaped materials like round tables or oval mirrors.
What kind of control system does it use?
The machine utilizes an automatic PLC control system for ease of operation and consistent results.
What is the maximum glass thickness it can handle?
The processing thickness range for this CNC glass working center is between 2mm and 19mm.
