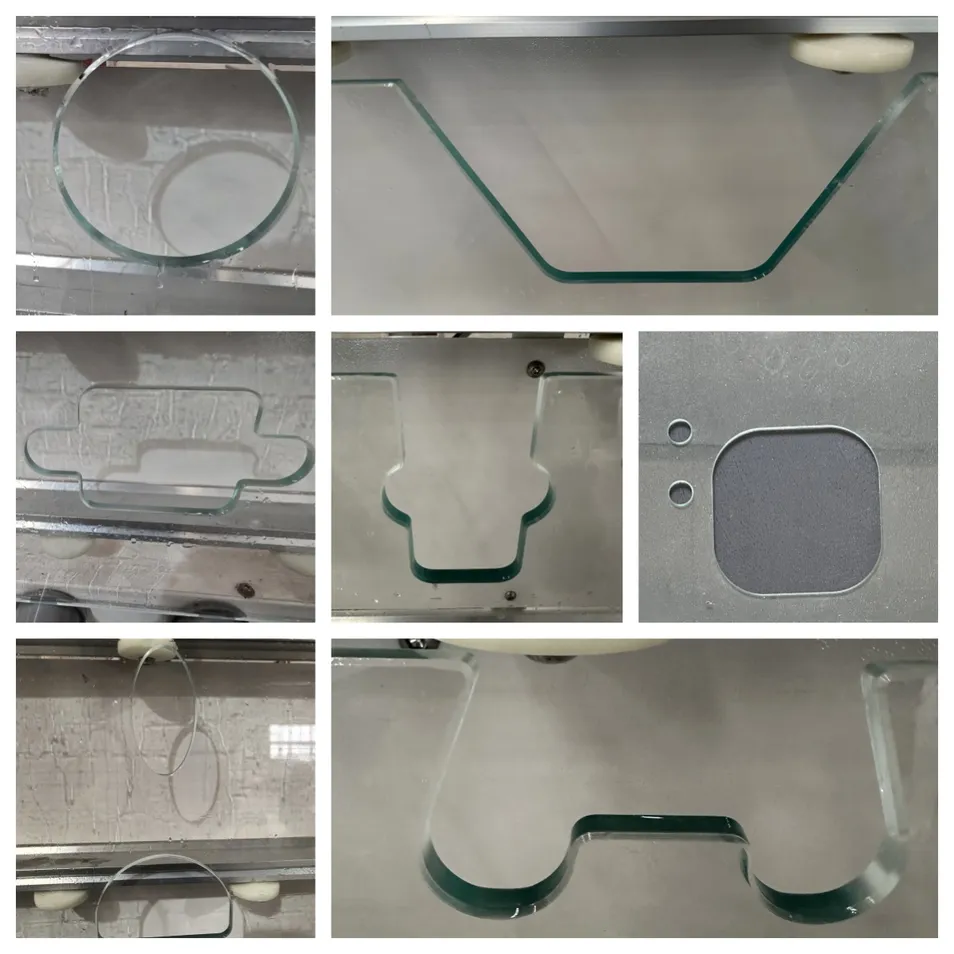

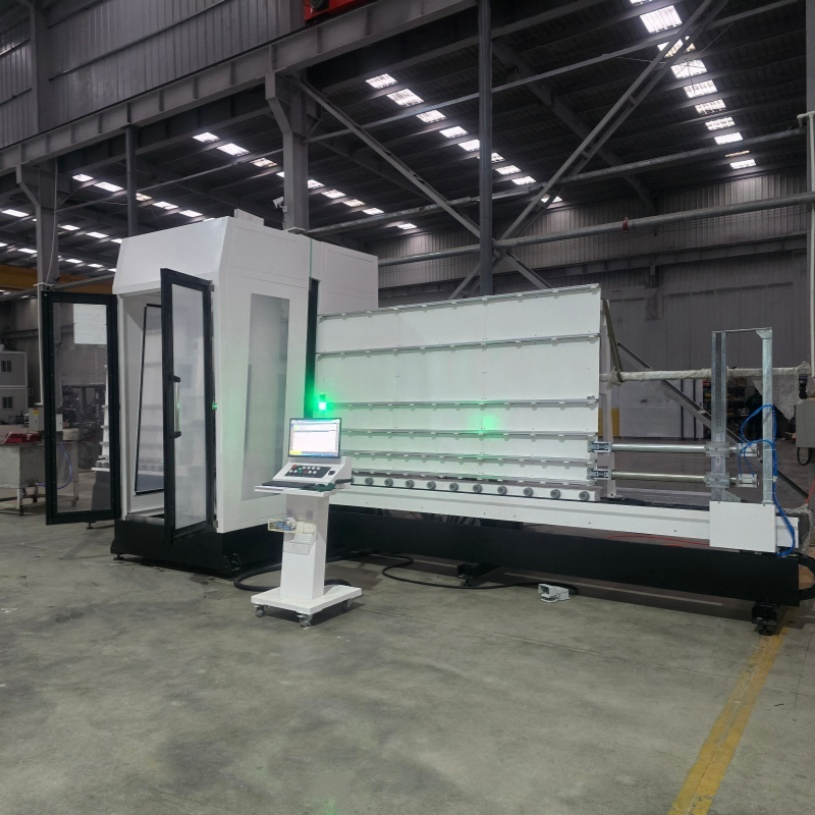

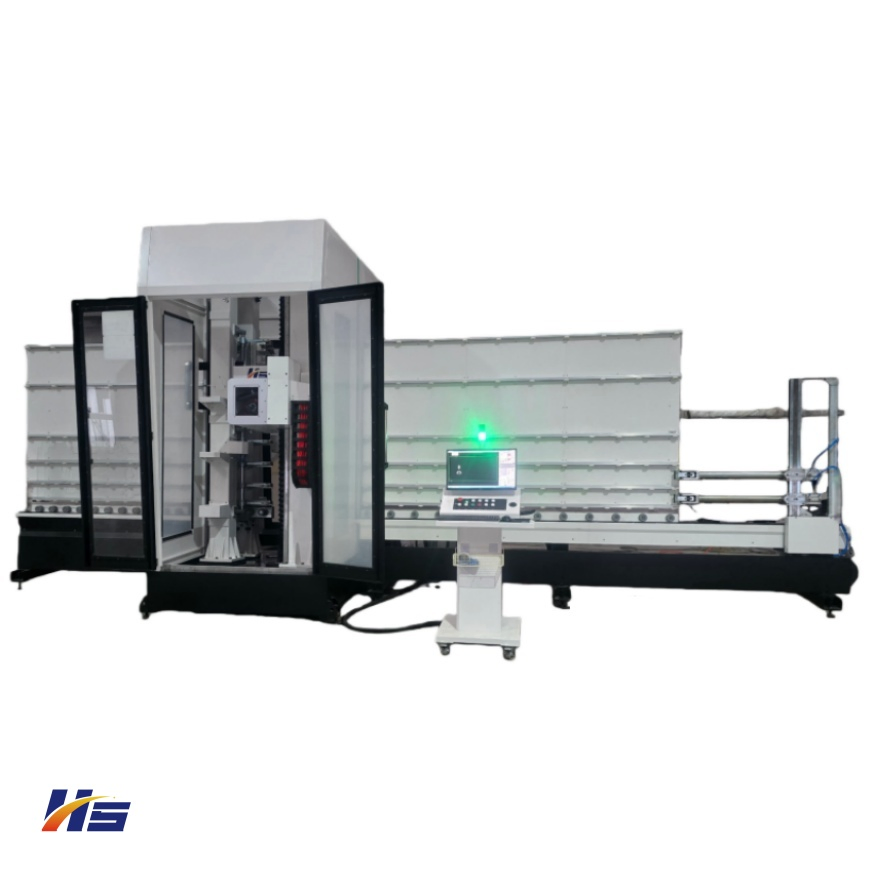

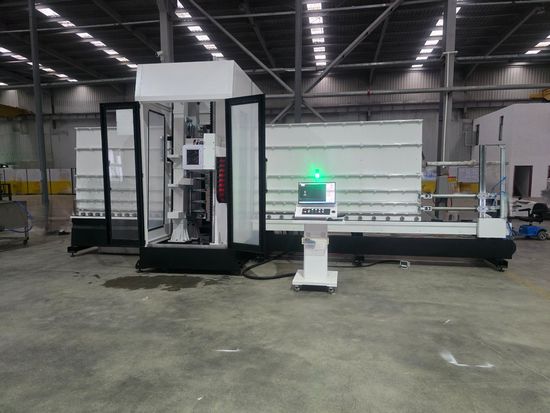

Professional manufacturer of CNC glass processing equipment. Multi-functional solution for stair, shower, chamfering, and polishing needs.
Drilling: High-speed drilling from both sides simultaneously with front and rear spindles, ensuring precision.
Milling: Front and rear spindles mill and grind inner edges simultaneously for fast operation.
Chamfering: Two methods: using a chamfering wheel directly or a chamfering sleeve on the drill bit.

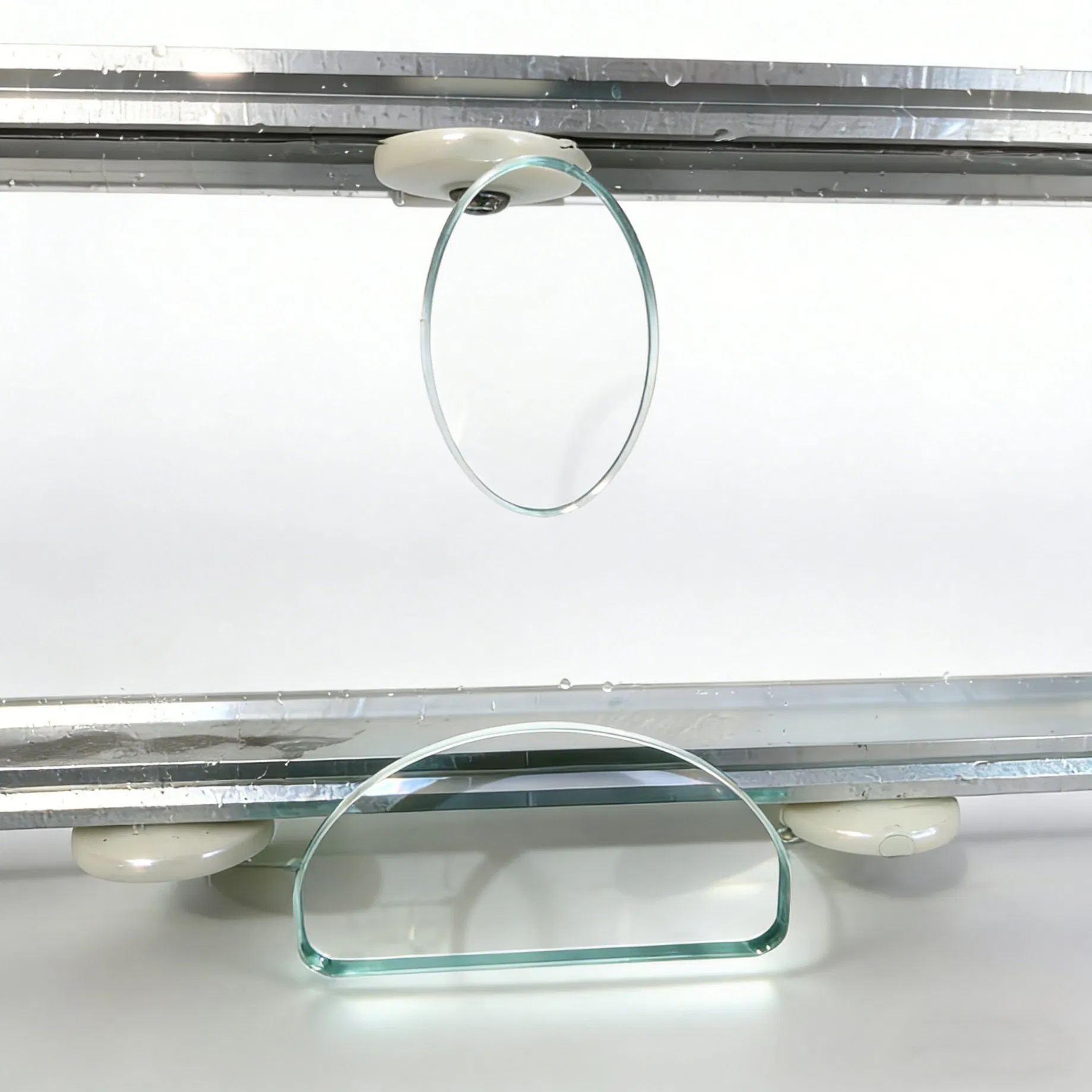

Polishing: High-quality polishing of inner circular patterns and safety corners.

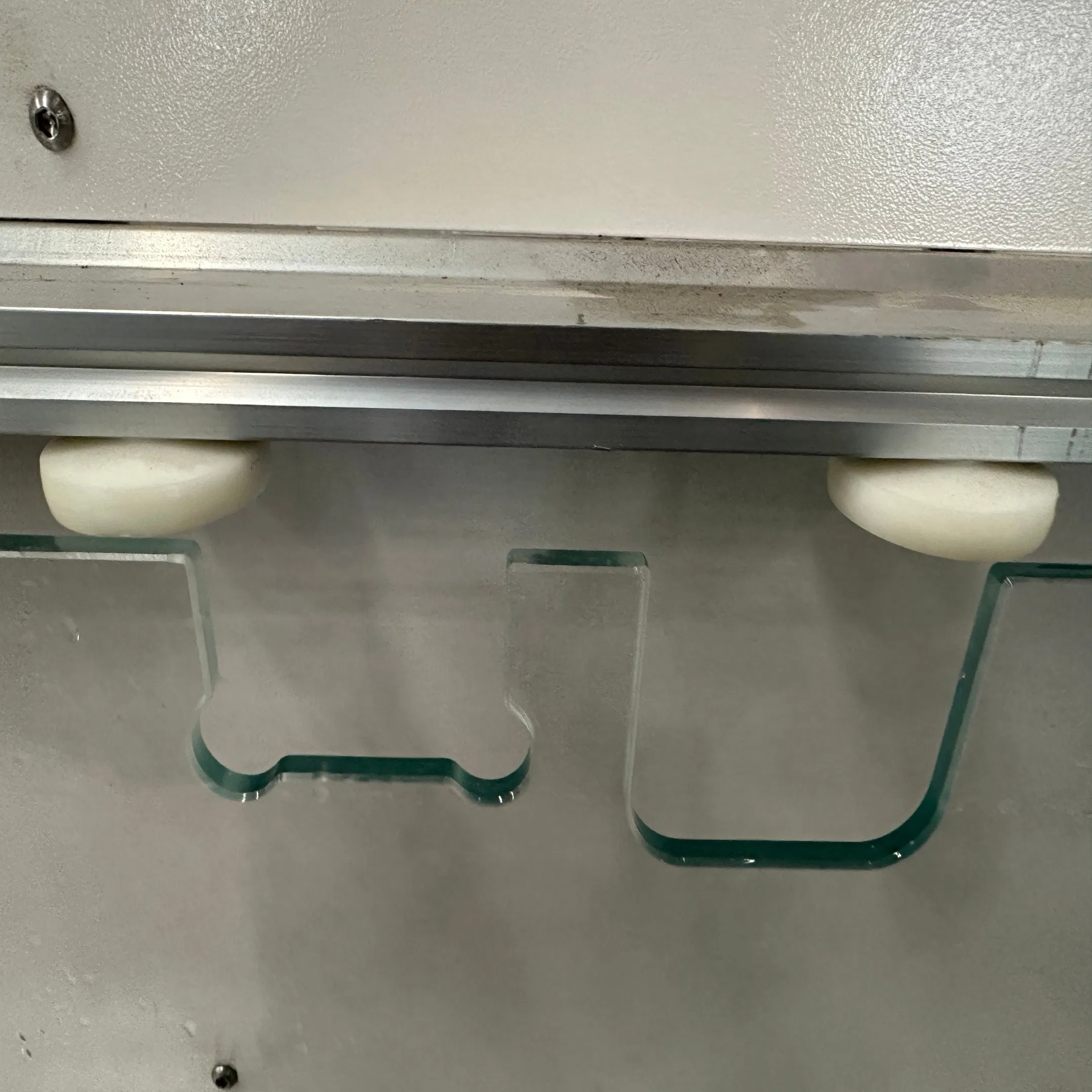

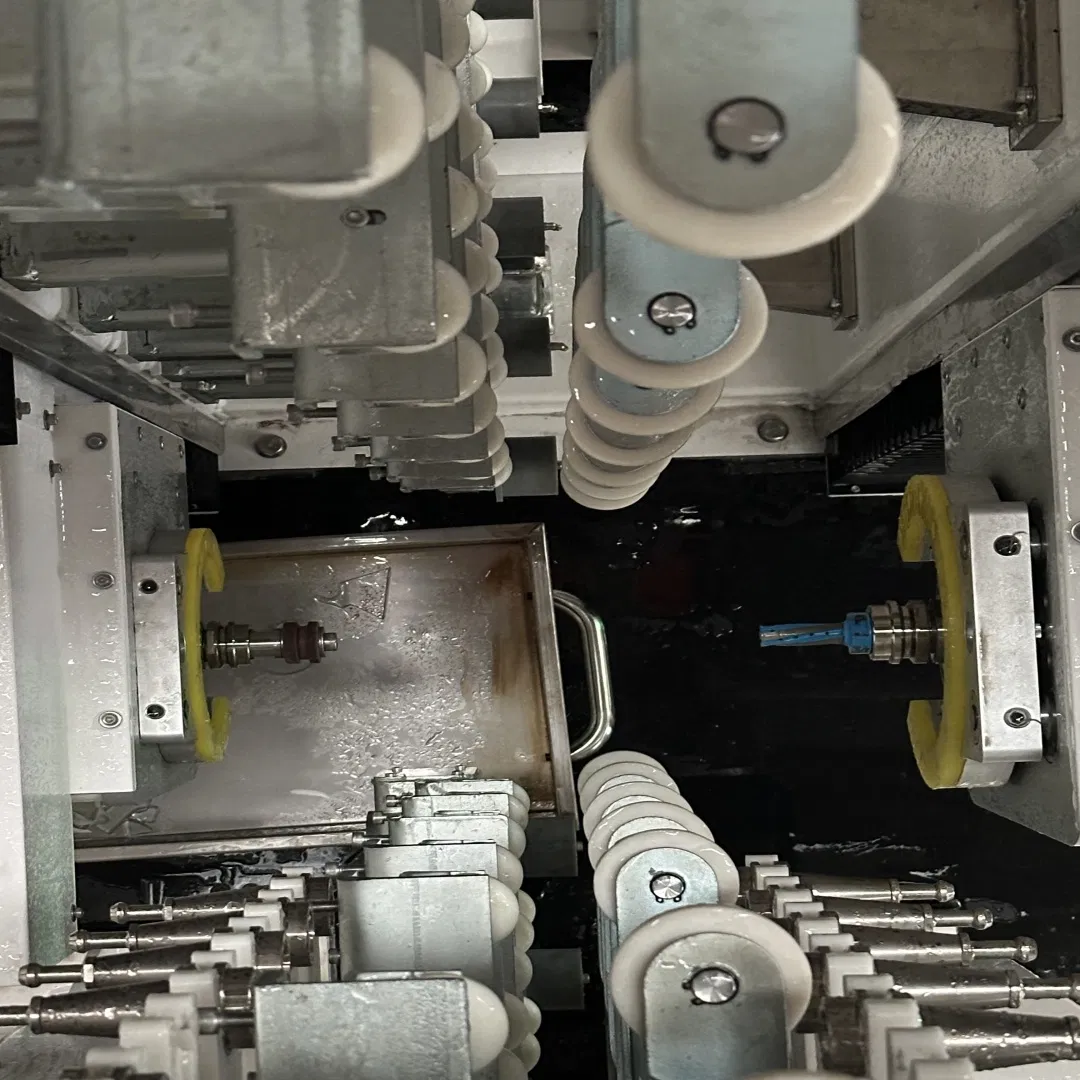

Clamping Device
Uses clamps to position and secure glass, improving rigidity. Clamps adjust flexibly based on glass size for optimal force distribution.
Tool Magazine
Vertical center with a multi-position tool magazine located centrally for fast changes and various technique requirements.
Electric Spindle
Features a coolant delivery system and constant temperature chiller to improve processing speed and spindle lifespan.
CNC System
Self-developed system with flexible operation, spindle synchronization, and real-time polishing compensation.
| Project | HS 2542 Details |
|---|---|
| Max Glass Size | 2500 x 4200 mm |
| Min Glass Size | 500 x 300 mm |
| Glass Thickness | 4 ~ 19 mm |
| Max Axis Speed | 45, 40, 15 m/min |
| Electric Spindle Power | 7.5 + 7.5 kw |
| Max Spindle Speed | 12000 rpm |
| Tool Shank | BT30 |
| Tool Magazine | 7 + 4 |
| Machining Accuracy | ±0.15 mm/m |
| Tools Center Cooling | YES |
| Water Cooler | Constant Temperature |

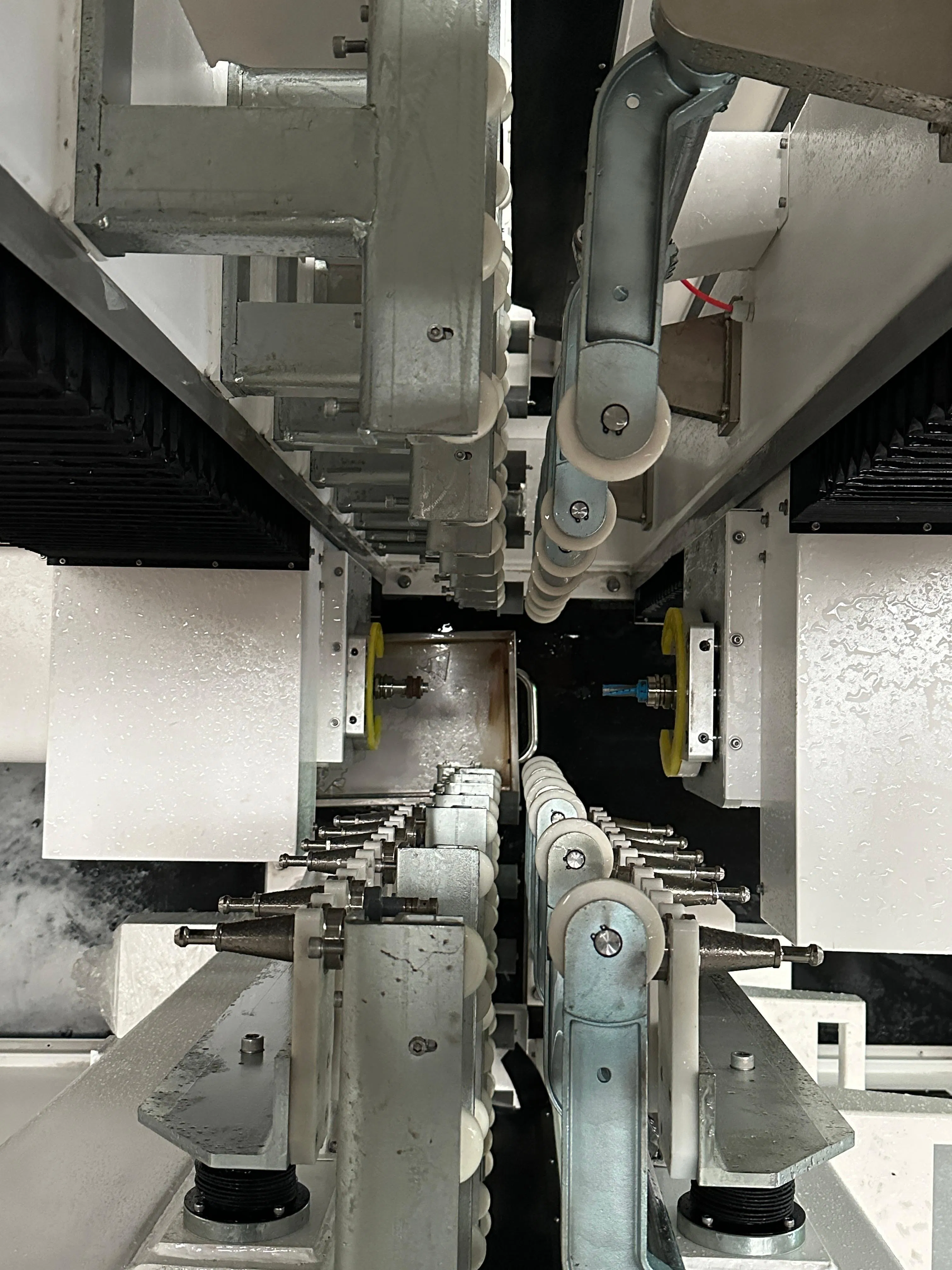

Double Drilling

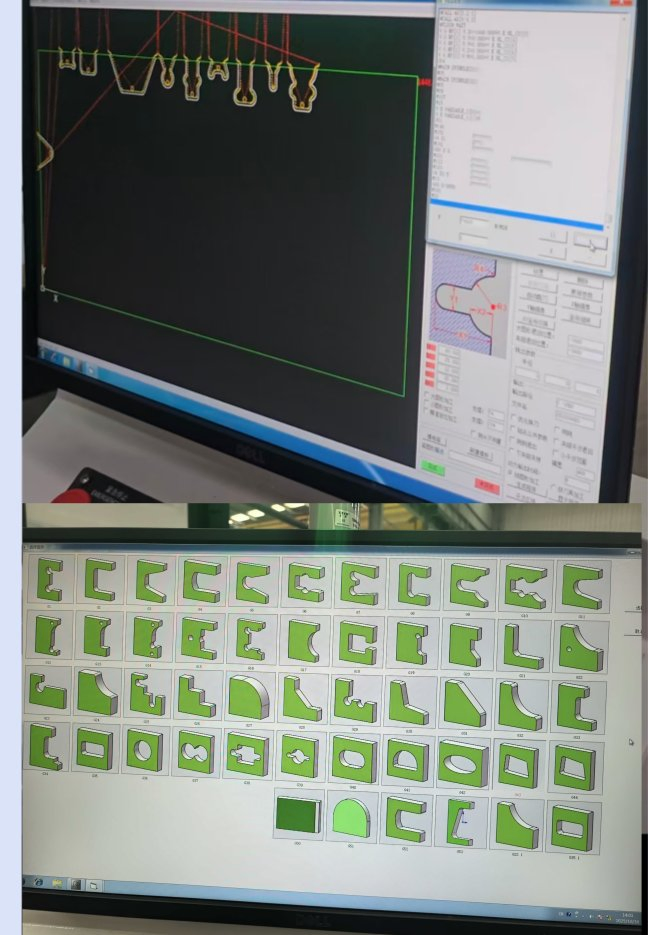

Multi-functional System

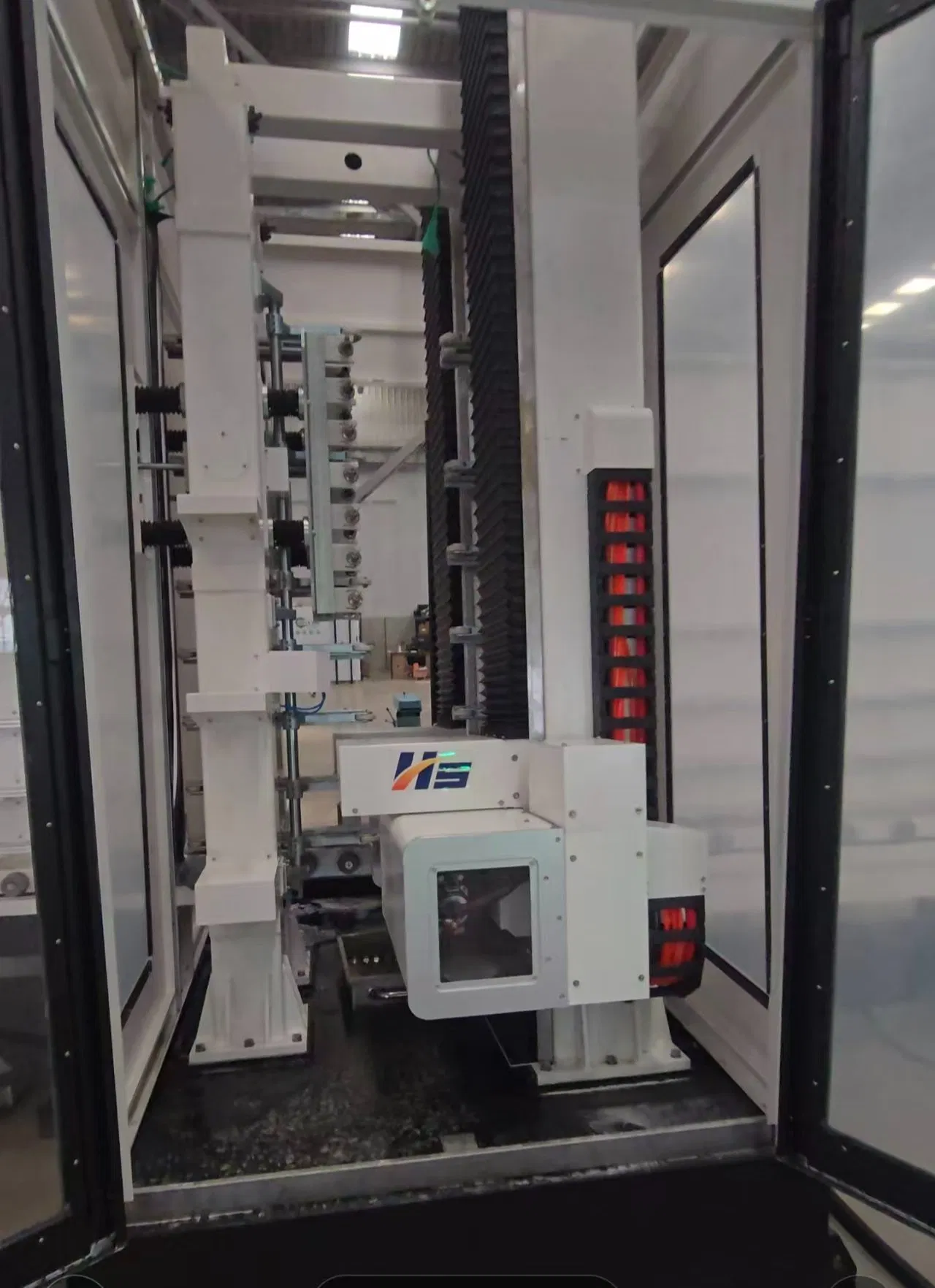

Rich Tool Library
