Double Triple Insulating Glazing Glass Making Machine Igu Production Line

Customization:	Available
Certification:	CE
Cutting Method:	No Cut Function

Basic Information

Model NO.LBZ-

Power Supply380V

Total Power32kw

Min. Glass Size500*300mm

Glass Washing Speed2~12m/Min

Weight3000kg

Safety FeaturesEmergency Stop, Overload Protection, Safety Sensor

Package Size3650.00cm * 380.00cm * 210.00cm

Product Description

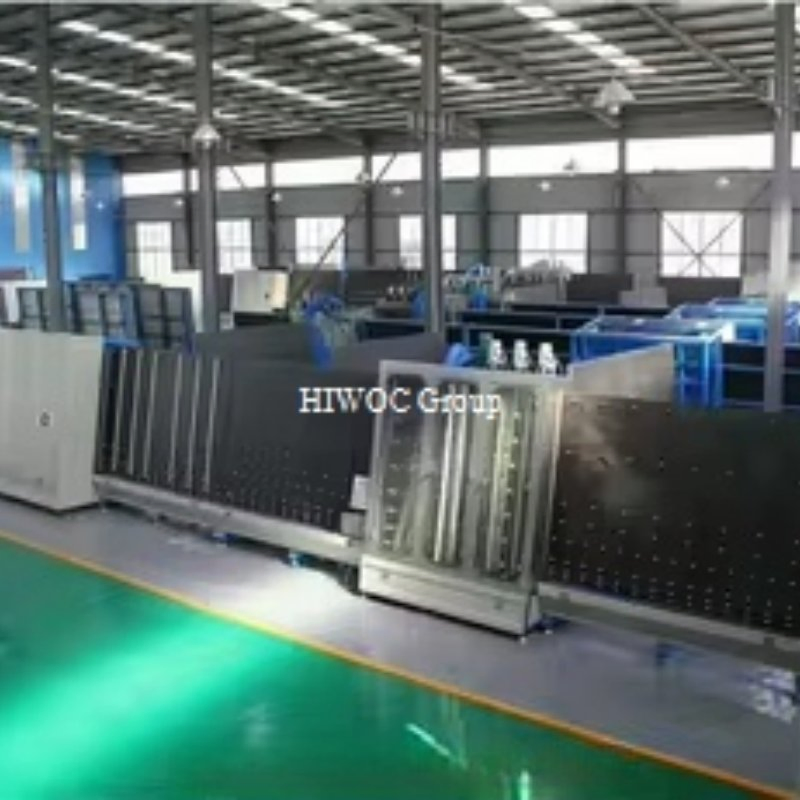

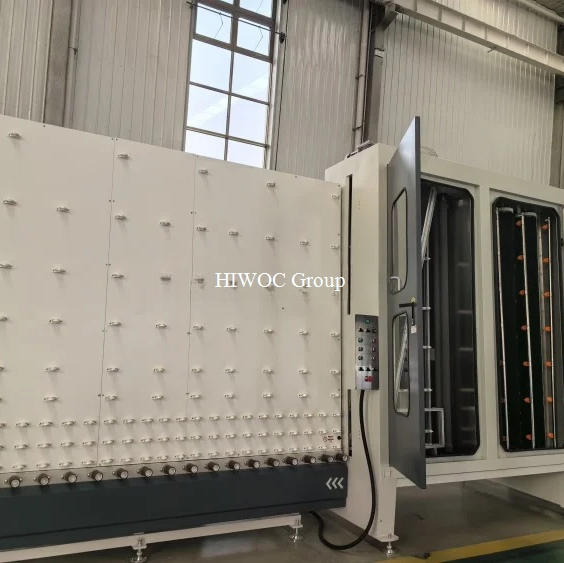

Vertical Automatic Insulating Glass Production Line

Automatically distinguish the coated glass and Low-E glass.

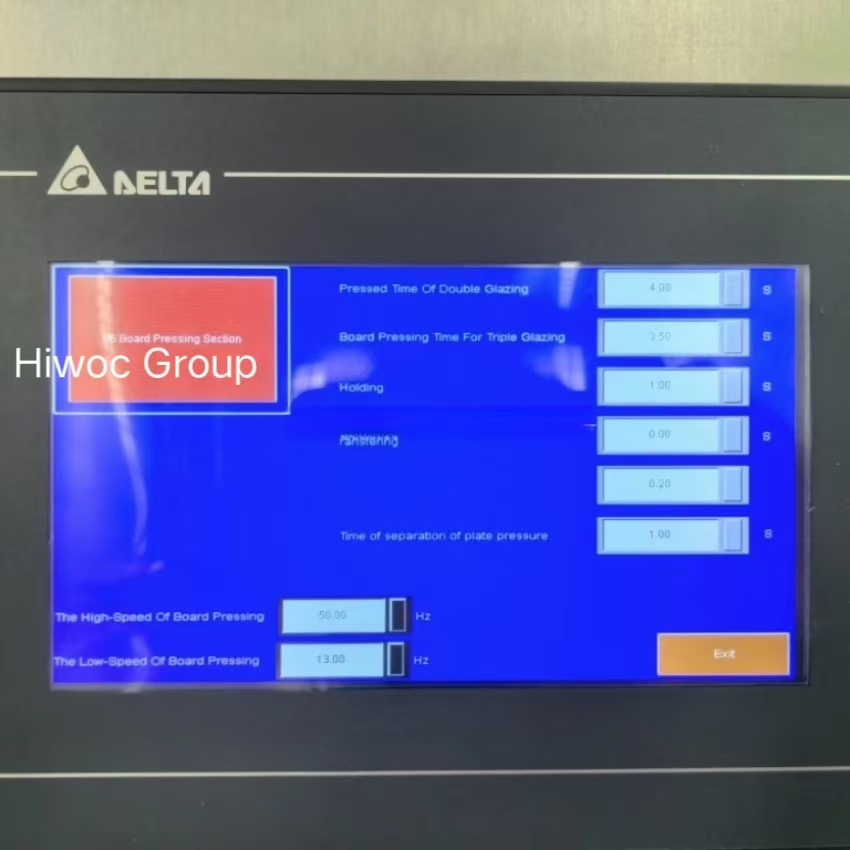

PLC control system with touch screen operation.
Machine work and fault dynamic display.
Production lines with outside panel press can produce standard double layer IG and three layers IG.
Production lines are available for both inside and outside panel press, capable of producing different sizes.
Inert gas filling in the plate (optional).
IG press rack, gear and chain synchronous device driven by hydraulic station.
Frequency control designed for glass transmission.

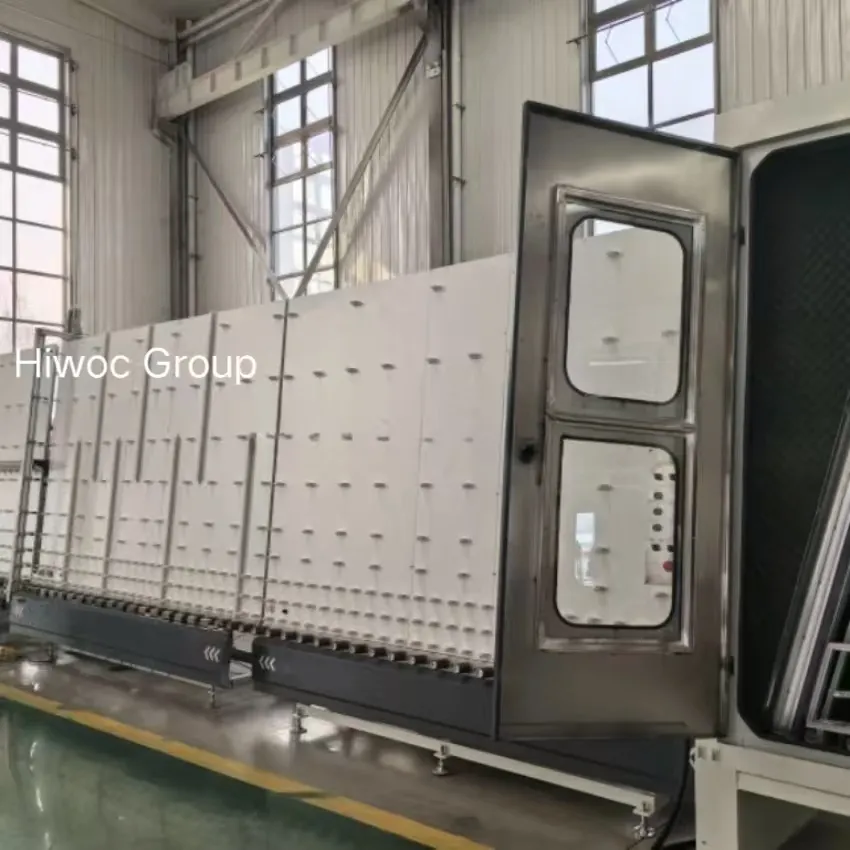

Panel press openable, easy for maintenance.
Output: 800 pieces double glass units per 8-hour shift (size 1m).

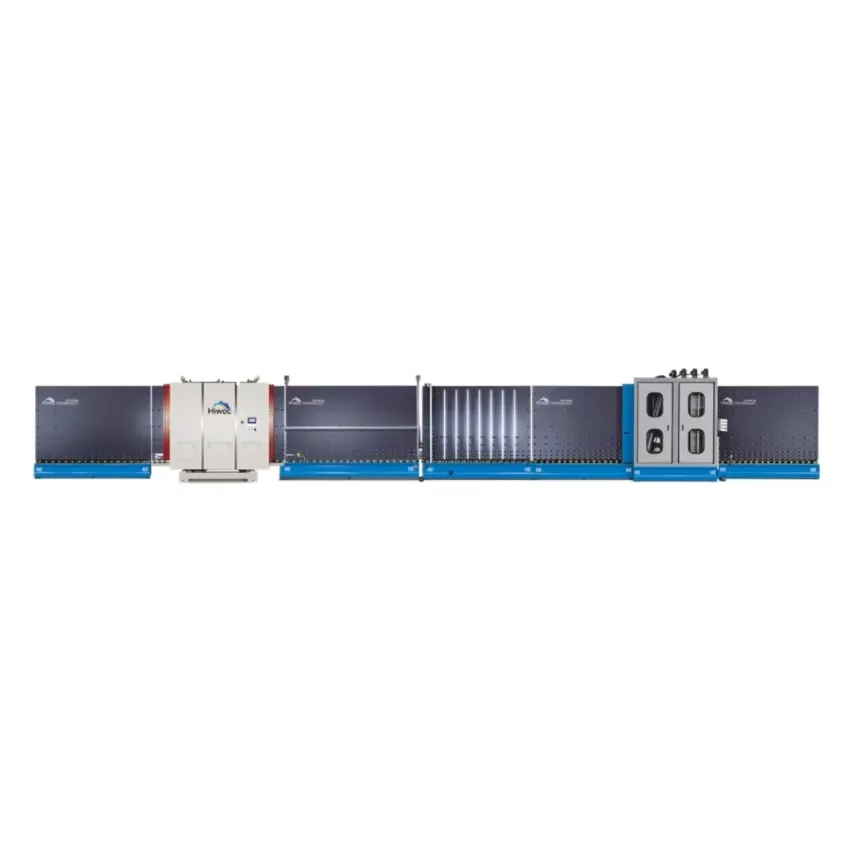

Automatic Insulating Glass Making Machine

Technical Specification

Max Size	2000*3500 mm
Min Size	280*450mm
Thickness of insulating glass unit	50mm
Single glass thickness	3-12mm
Glass transmit speed	40-45m / min
Cleaning speed	2-15m/min
Air Pressure	0.6-0.8 Mpa
Total power	35kw

Packing & Delivery

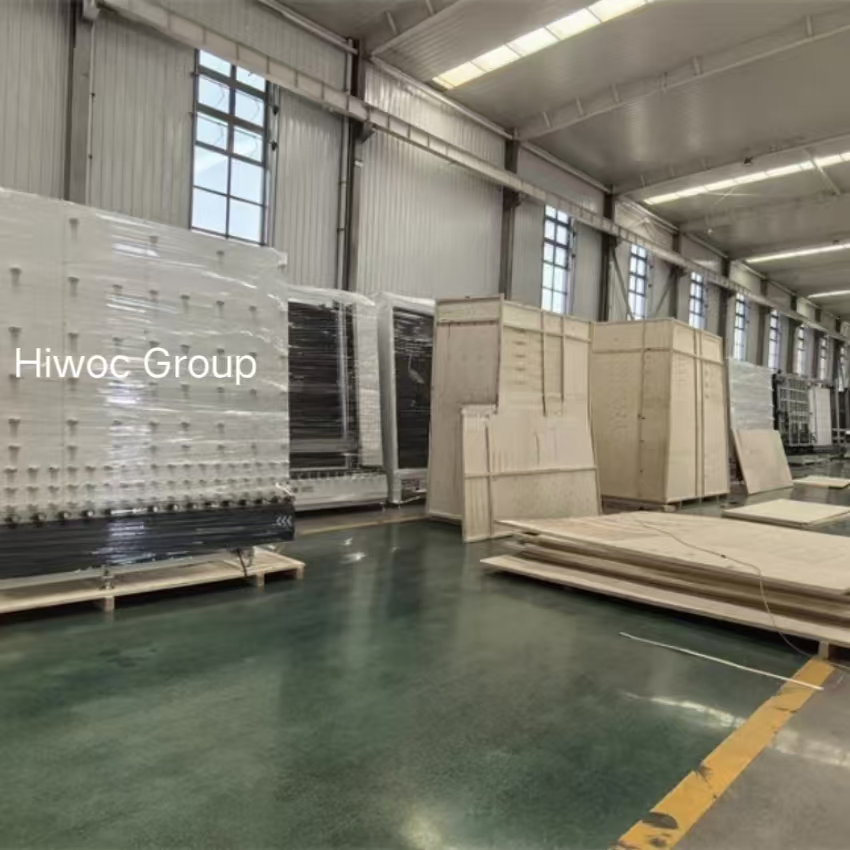

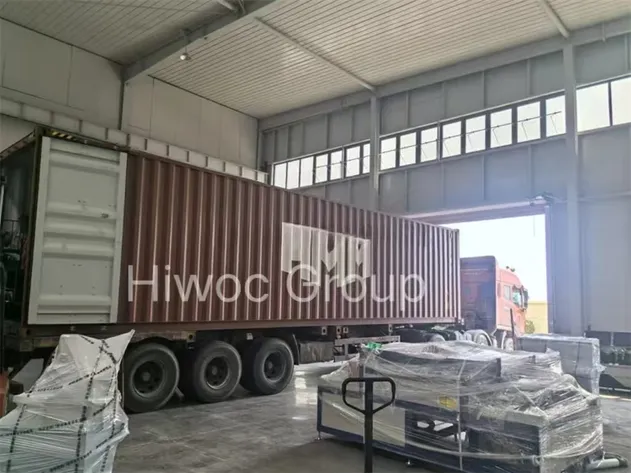

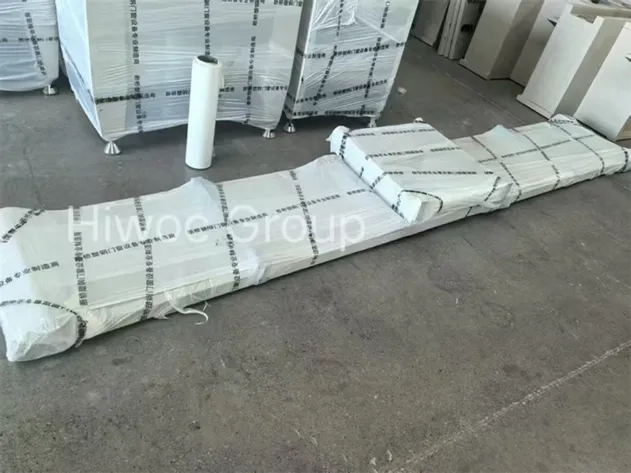

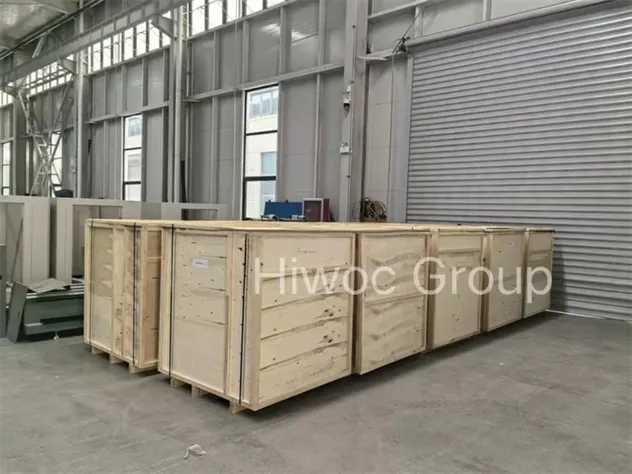

The machine is packed with wrapping plastic film. We use high-quality exporting standard non-fumigation plywood packages for the wooden boxes. The exterior is fastened with steel rolls to ensure cargo safety during transport.

Frequently Asked Questions

1. What is the production capacity of this line?

The production line can output approximately 800 pieces of double glass units in an 8-hour shift (based on 1m size units).

2. Can the machine handle Low-E coated glass?

Yes, the system is designed to automatically distinguish between standard coated glass and Low-E glass during the production process.

3. What are the maximum and minimum glass sizes supported?

The maximum processing size is 2000*3500mm, while the minimum size is 280*450mm (or 500*300mm depending on specific configuration).

4. Does the machine support triple glazing?

Yes, the production lines equipped with outside panel press are capable of producing both standard double-layer and triple-layer insulating glass units.

5. What kind of control system is used?

The machine utilizes a high-performance PLC control system featuring a user-friendly touch screen interface with dynamic fault display.

6. How is the quality of the machinery guaranteed?

We maintain strict quality control standards, ensuring a professional final inspection is conducted before every shipment.
