From prototype to high-volume production, our facility is dedicated to manufacturing custom plano optics to meet precise specifications. Pairing traditional craftsmanship with leading-edge technology, our processing capabilities include CNC cutting, milling centers, and advanced double-sided polishing systems.

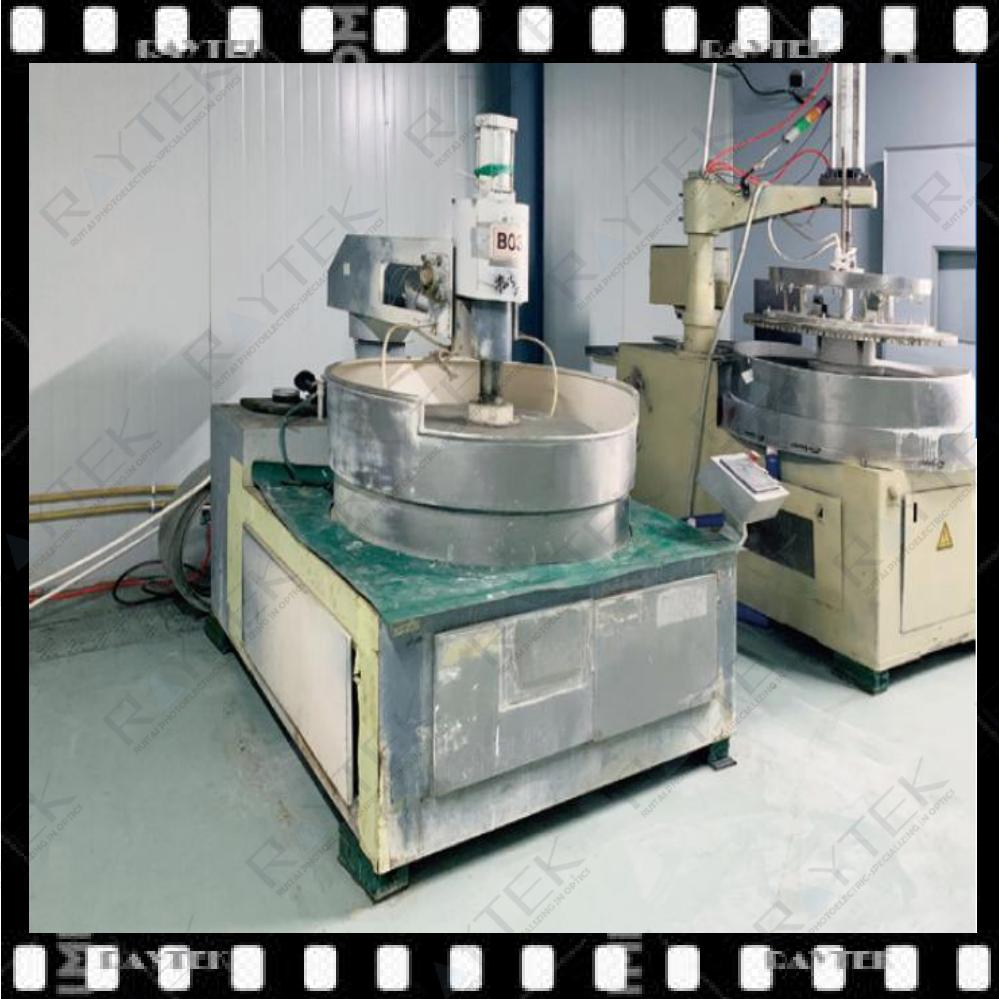

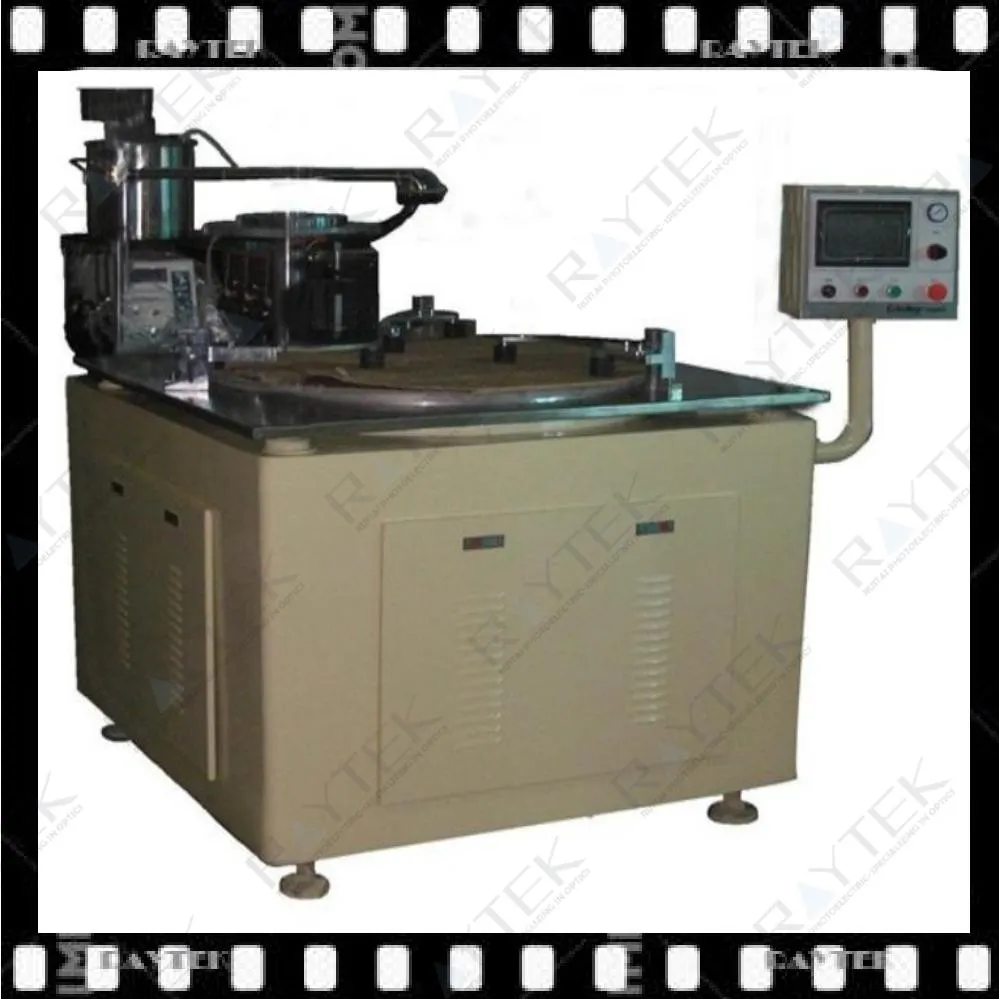

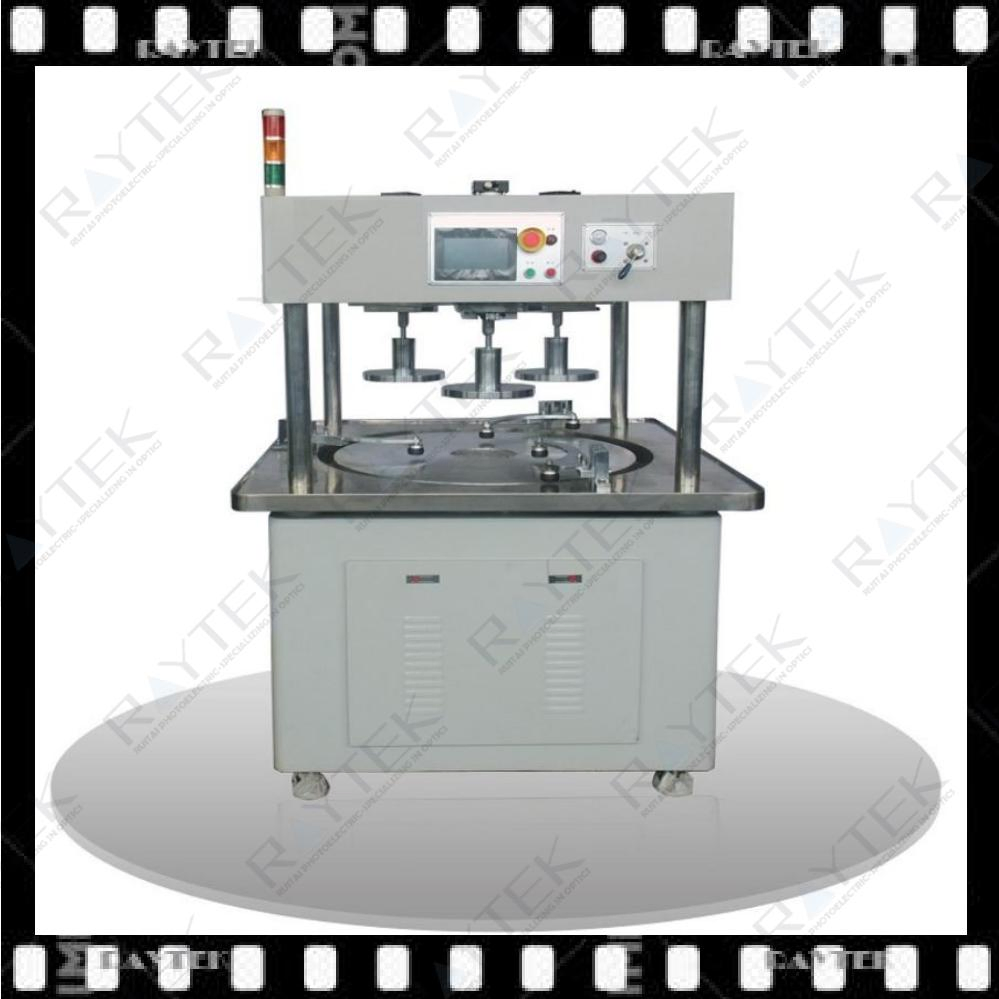

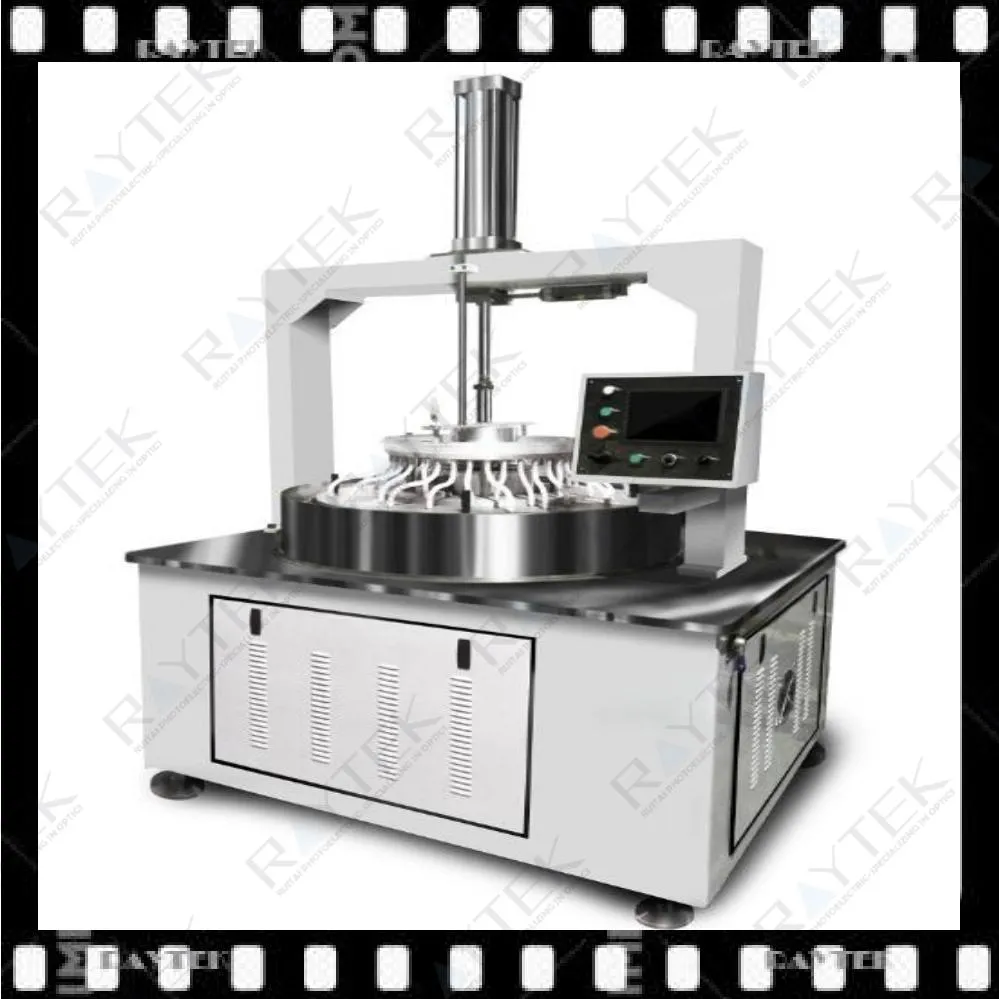

Double-sided grinding and polishing (lapping) is performed with particles suspended in a liquid vehicle to abrade parts equally from both surfaces. This process produces a stress-free environment that induces minimal thermal distortion, making it compatible with most optical materials. The planetary action results in outstanding transmitted wavefront error, parallelism, and surface roughness.
| Specifications | Manufacturing Limits |
| Processing Workcrafts | Lapping & Double-side grinding & polishing |
| Diameter / Length / Width | ≤800mm (± 0.010mm) |
| Thickness | ≥0.1mm (± 0.003mm) |
| Bow / Warp | 5um |
| Surface Roughness | ≥ 5 Å rms |
| Parallelism | ≤ 1 arc second |
| Surface Quality | 60-40 to 10-5 |
| Transmitted Wavefront Error (TWE) | ≥ 1/20 wave over clear aperture |
Payment Method: T/T or Western Union.
Delivery Time: 7-10 days.
Quality Warranty: We offer a comprehensive quality warranty for our optics products including OEM & ODM services with a "return, replace & refund" policy for any inferior-quality products.
