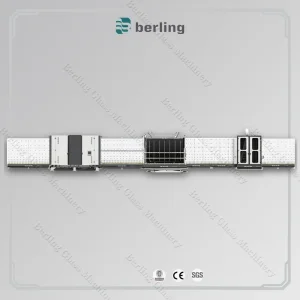

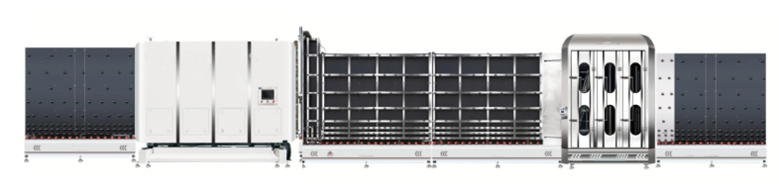

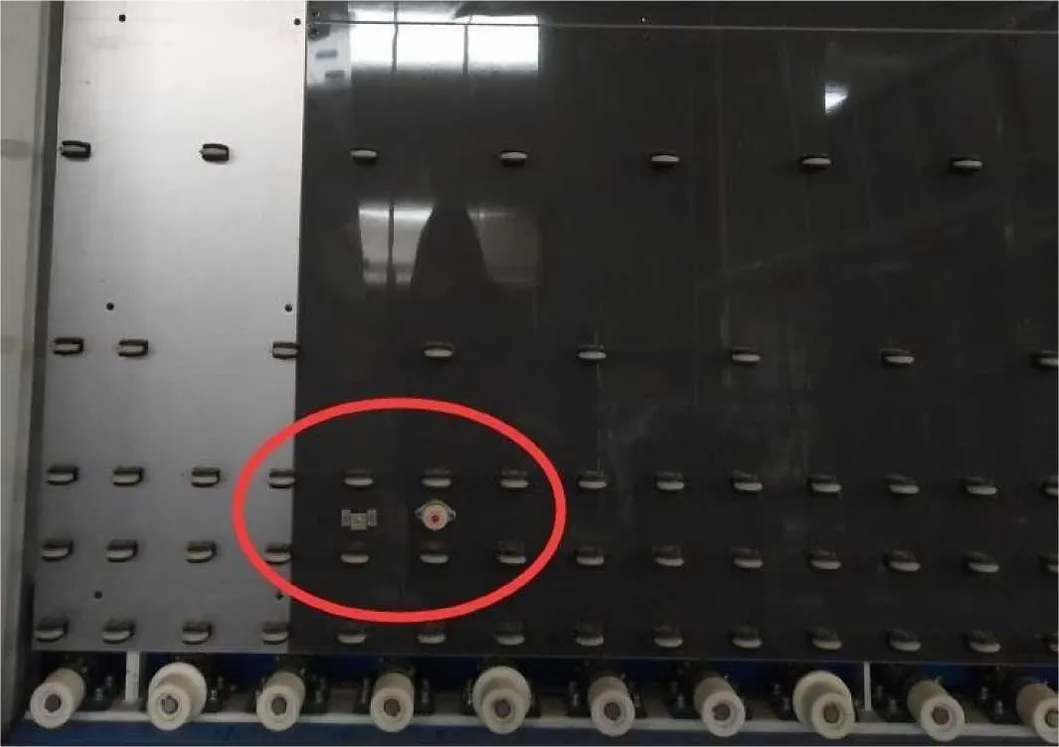

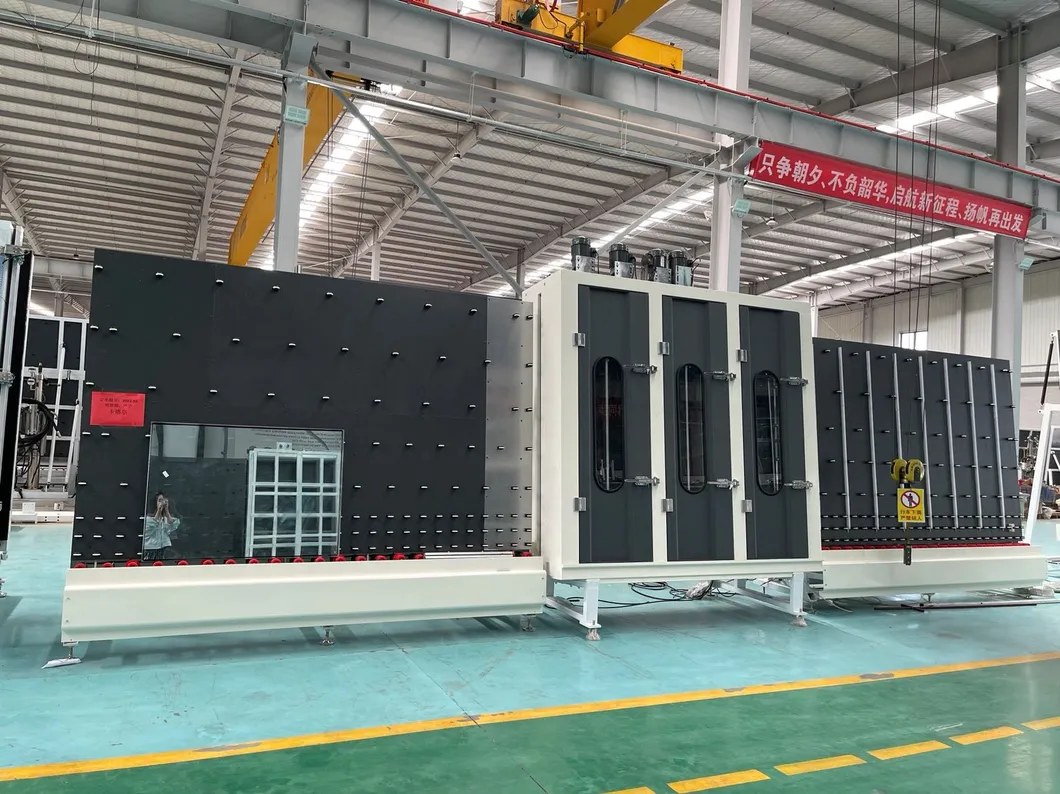

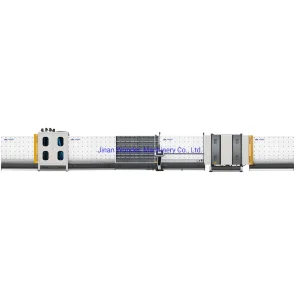

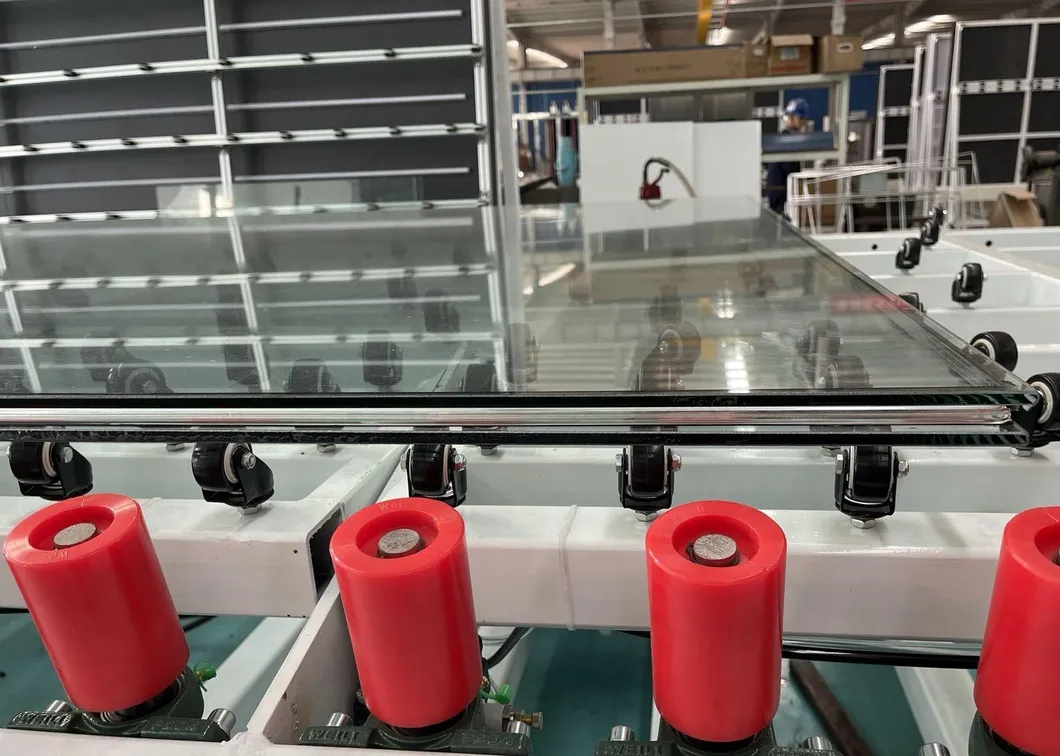

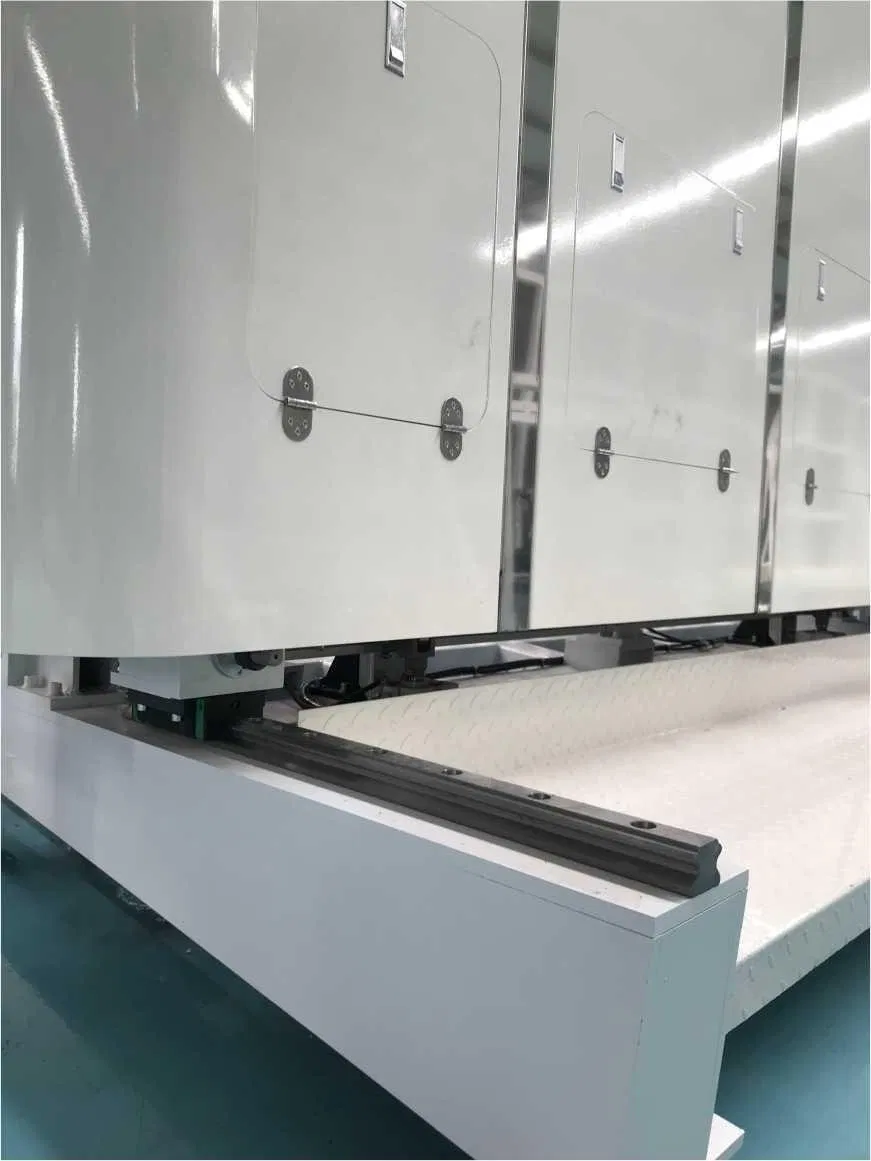

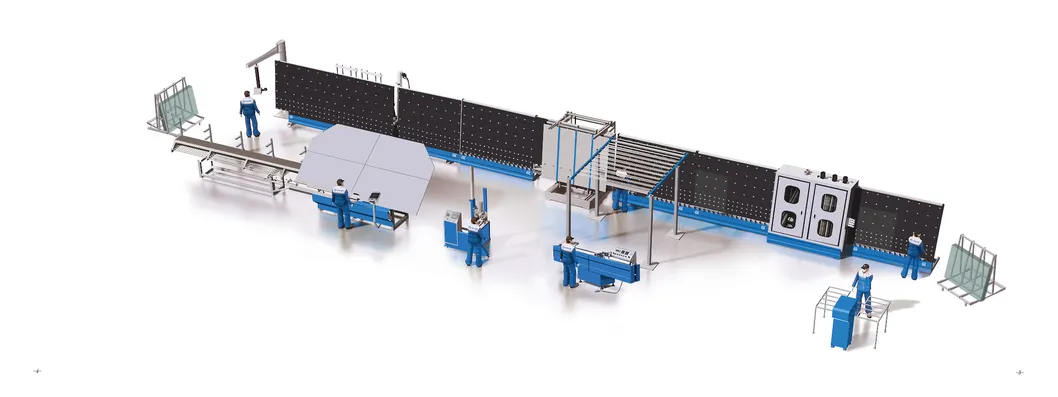

This production line is composed of 6 sections: feed section, washing and drying section, transition and storage section, light inspection section and spacer bar location section, inside flat press section, and storage section.
| Power Supply | 380V/50HZ 37.5Kw | Max Glass Size | 2500x3500mm |
| Dimensions | 21300x2800x3800mm | Min Glass Size | 300x400mm |
| Production Output | 600-700 IG units / 8h | Washing Thickness | 3-20mm |
| Washing Speed | 0-10m/min | IG Thickness | ≤ 60mm |
| Transmission Speed | 45m/min | Air Pressure | 1Mpa |

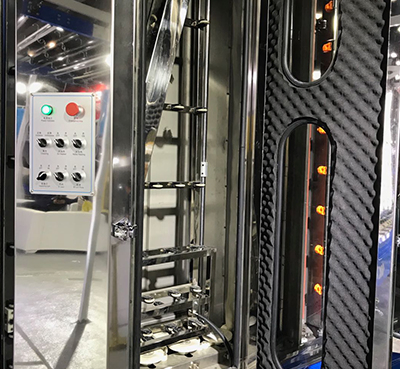

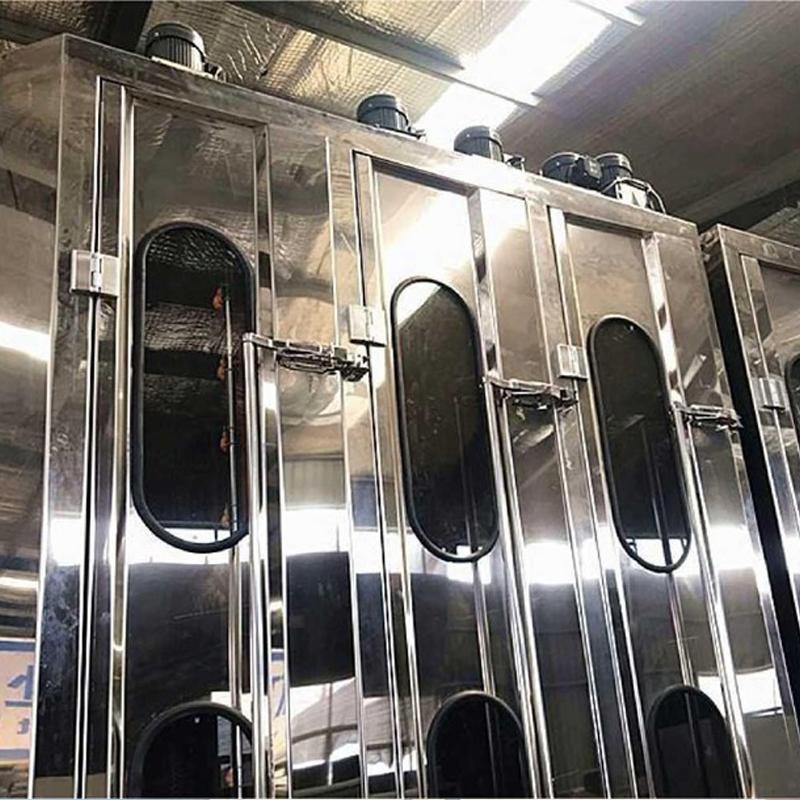

High density moisture-resistant board with polyurethane transmission wheels to resist abrasion and corrosion. Includes Low-E coating alarm system.

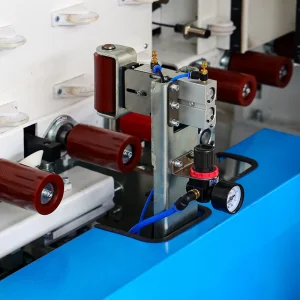

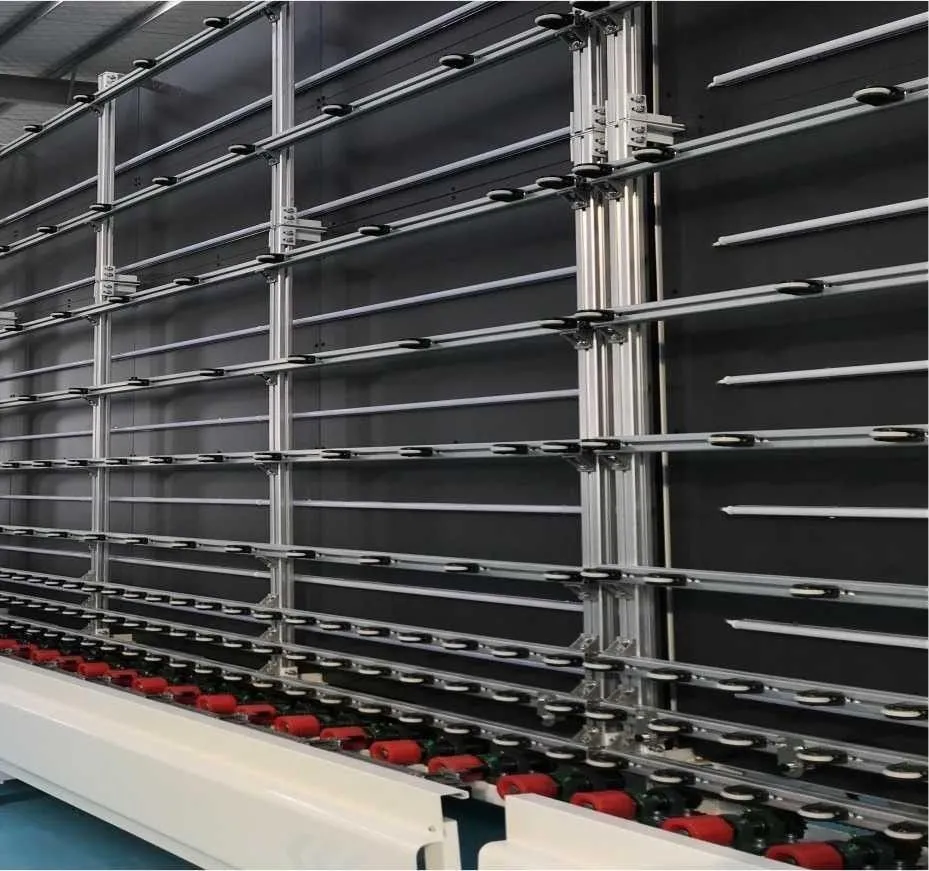

Integrated transition and storage with precision light inspection and manual/automatic spacer bar placement.
Trusted partner to the world's top 20 glass factory brands with 28 years of manufacturing experience.

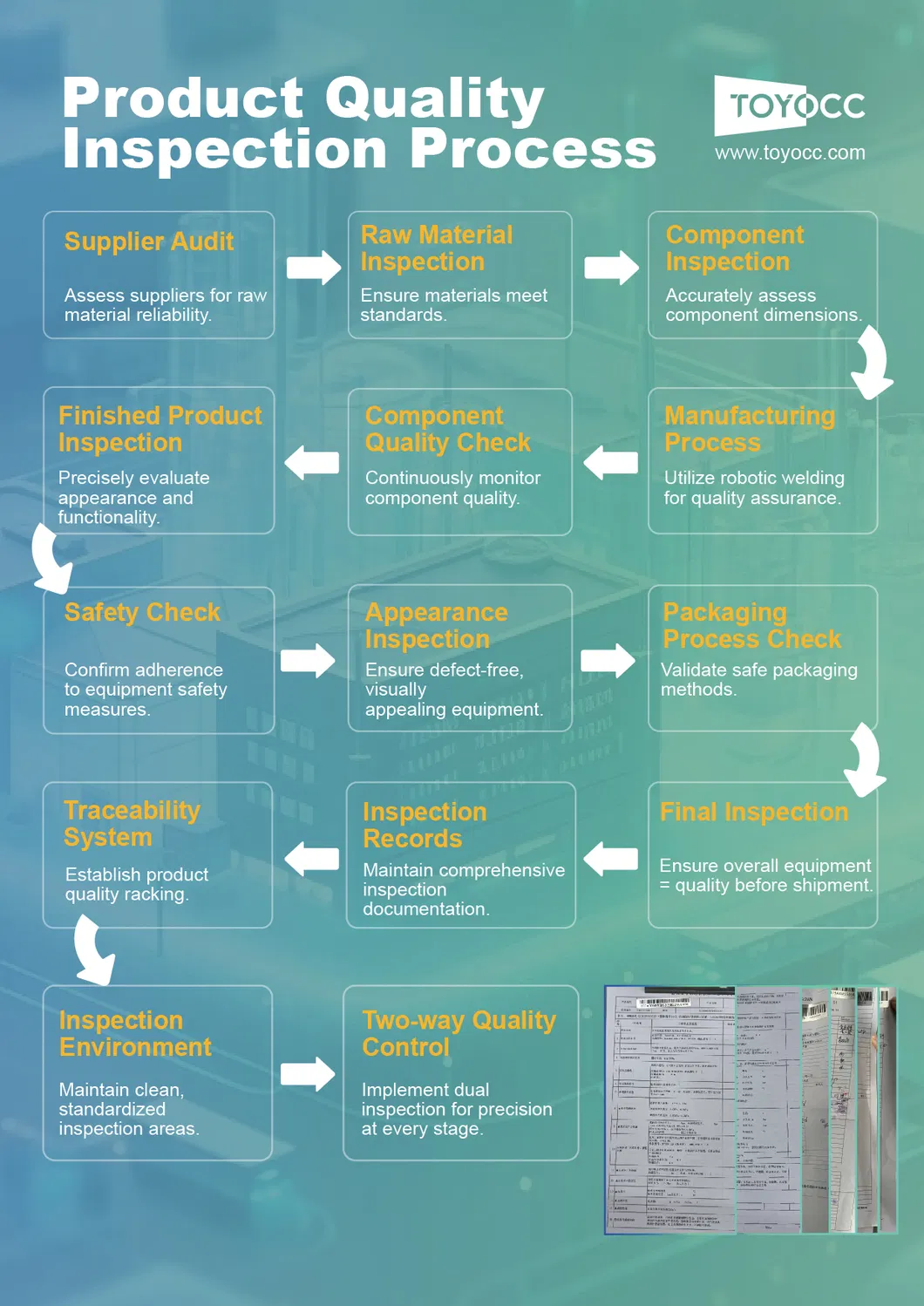

Strictly 15 quality inspections and adherence to 6S production requirements for every machine.
Fast shipping with stock availability and specialized four-step packing method to protect your cargo.
Competitive pricing typically 5%-10% lower than market average with a price match refund policy.
An IG (Insulated Glass) Line is used to produce double or triple-glazed insulating glass units (IGUs). It automates cleaning, spacer placement, assembly, and gas filling.
It can process flat glass, low-E glass, tempered glass, and coated glass for high-performance windows, doors, and facades.

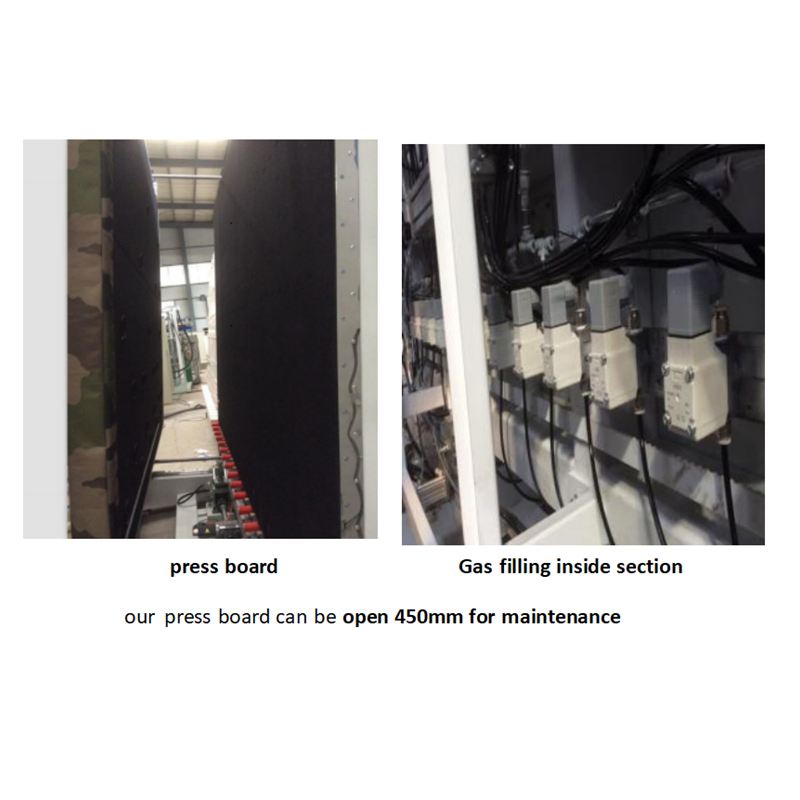

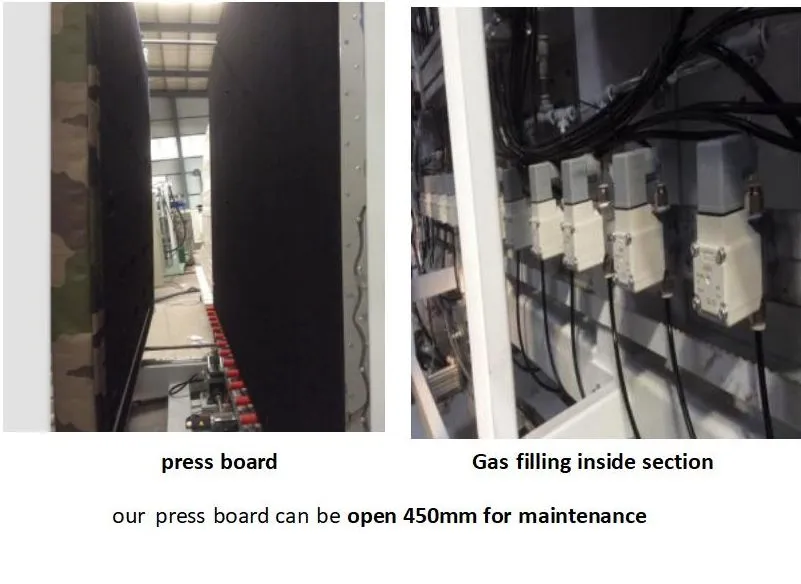

Yes, advanced IG lines include automatic gas filling systems for injecting inert gases like argon to improve thermal insulation.
High production efficiency, precise alignment, reduced labor costs, and superior consistent quality control.
Yes, most modern lines can be equipped with a two-component sealing robot for secondary sealant application (silicone or polysulfide).
Absolutely. Custom configurations are available for different glass sizes, thickness ranges, and spacer types (aluminum or warm edge).
