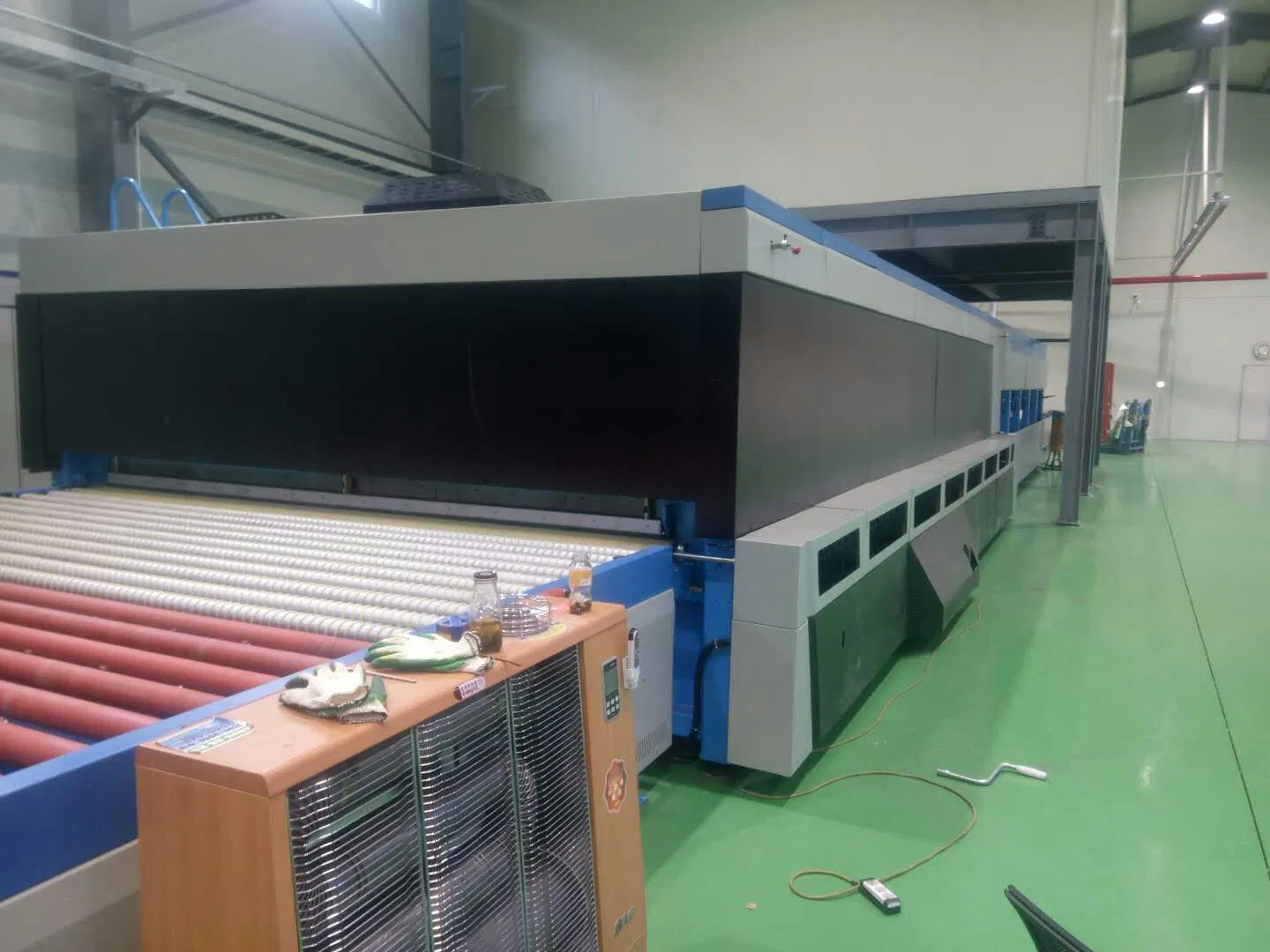

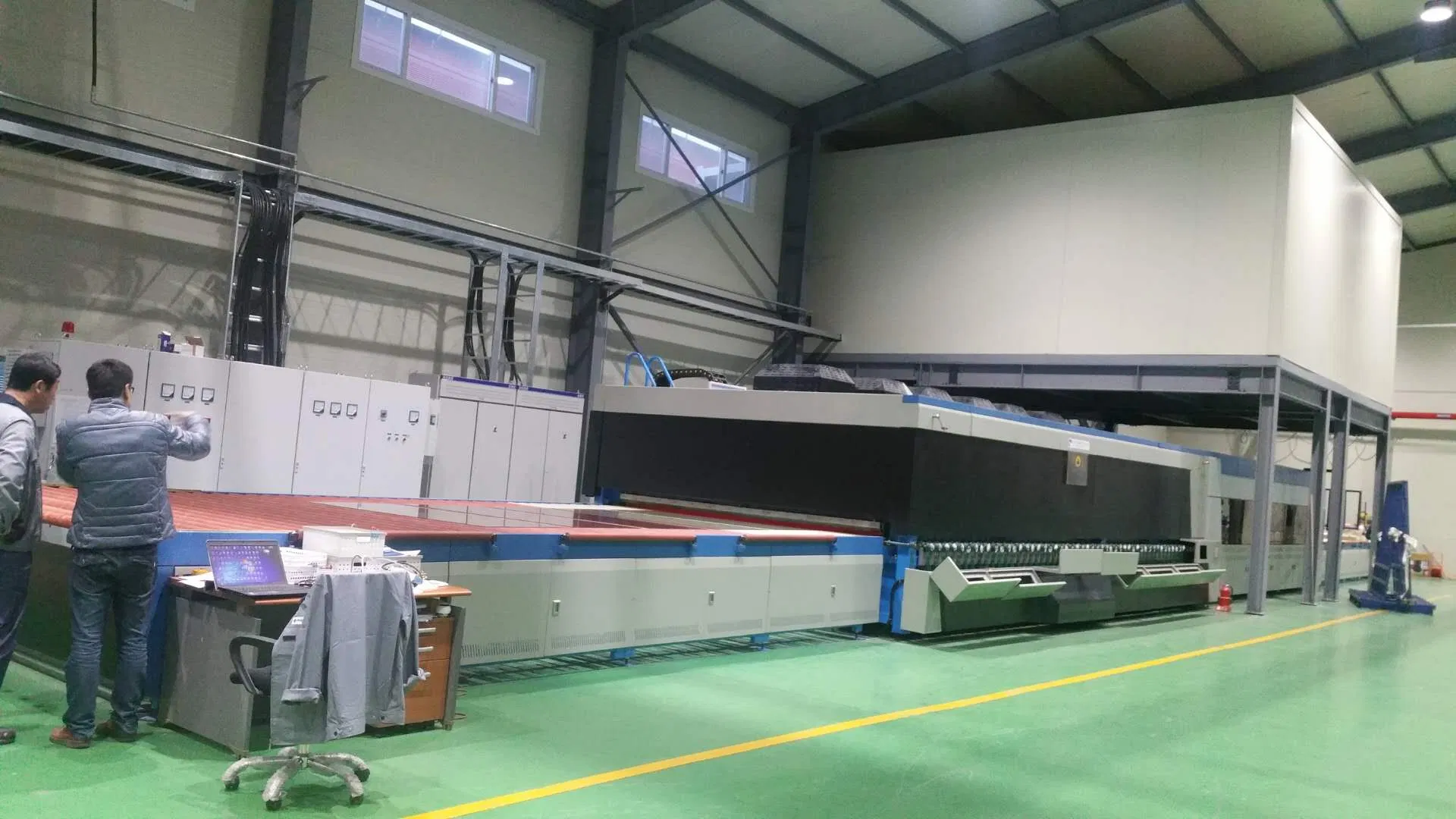

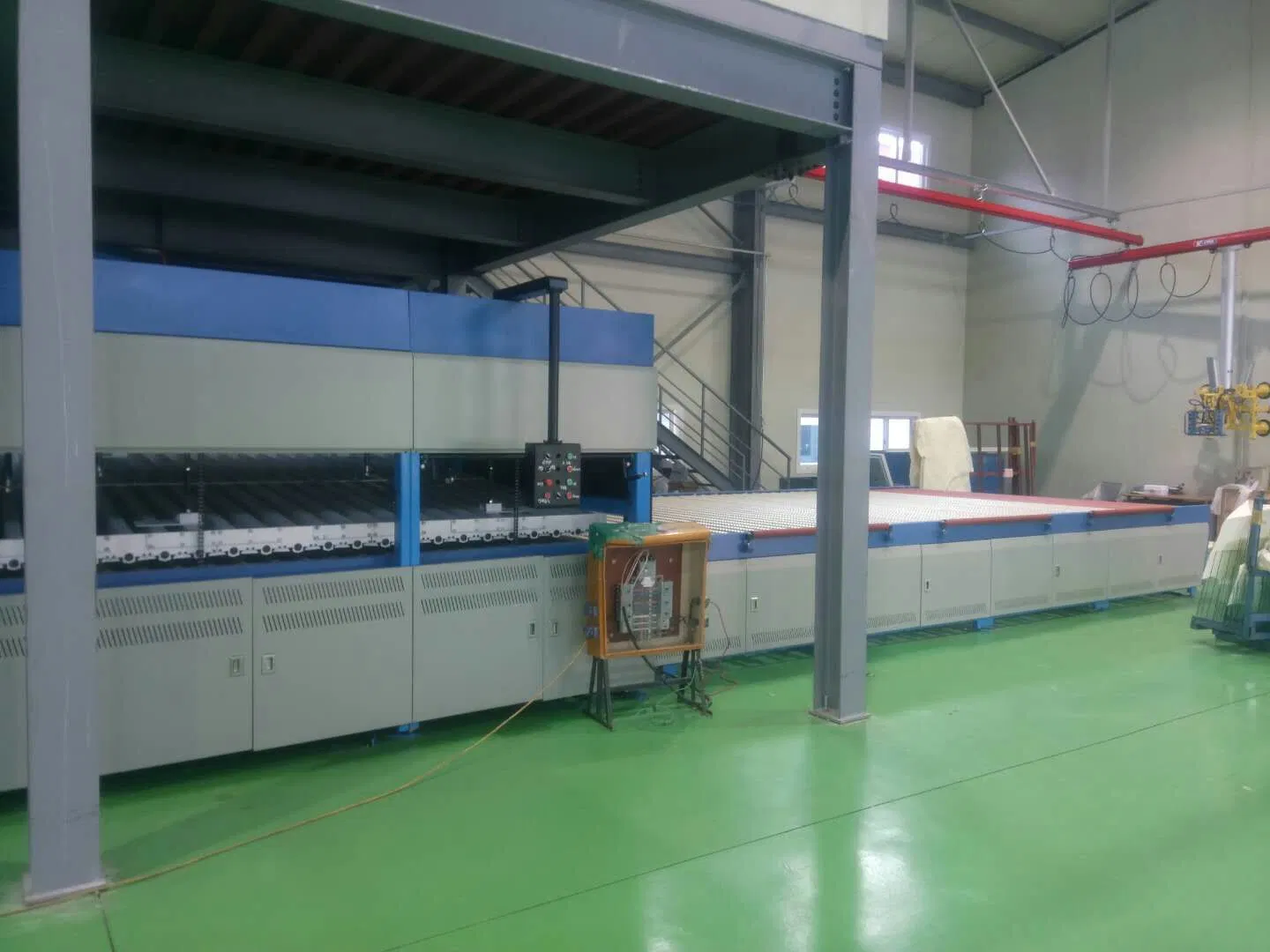

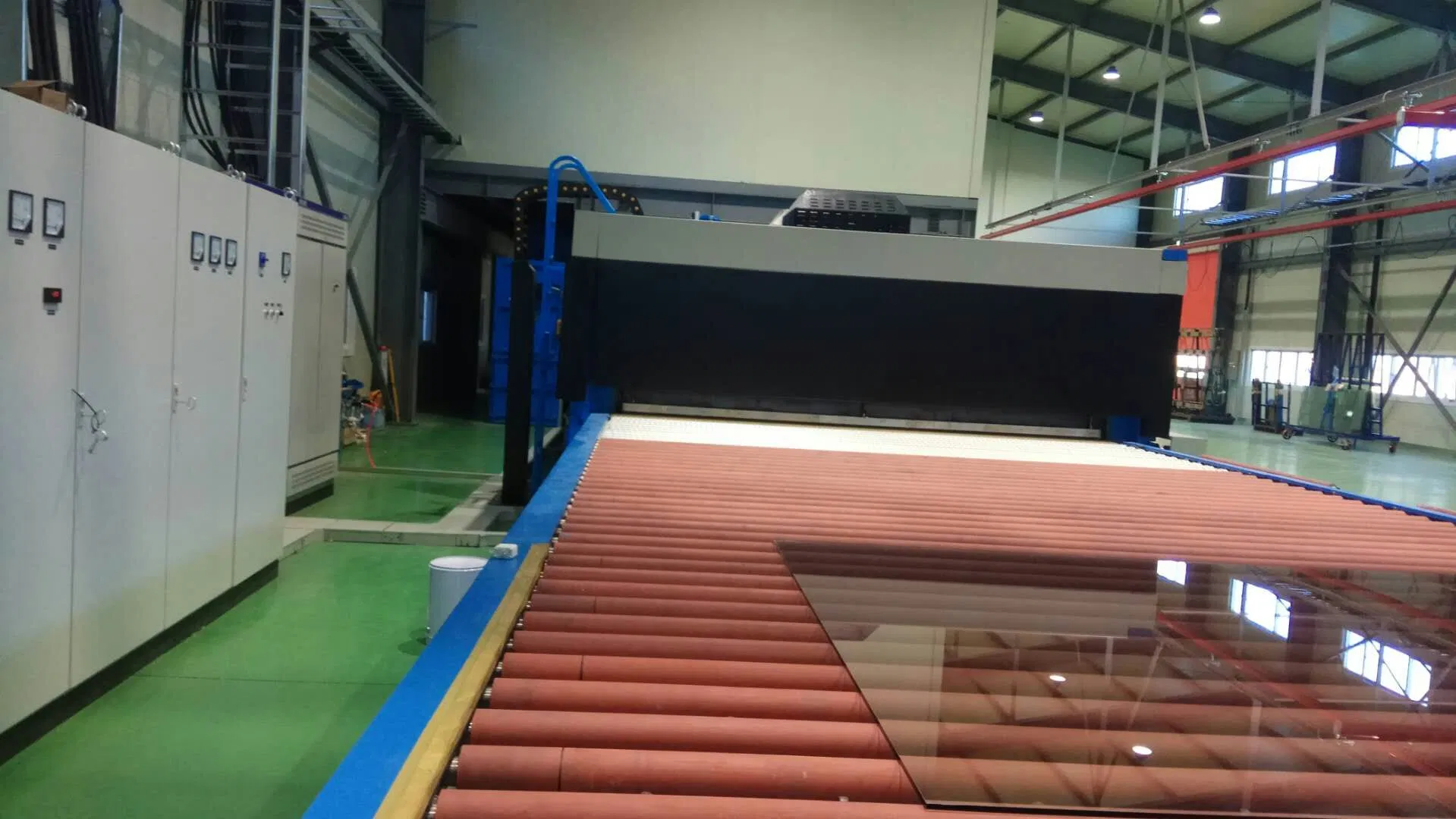

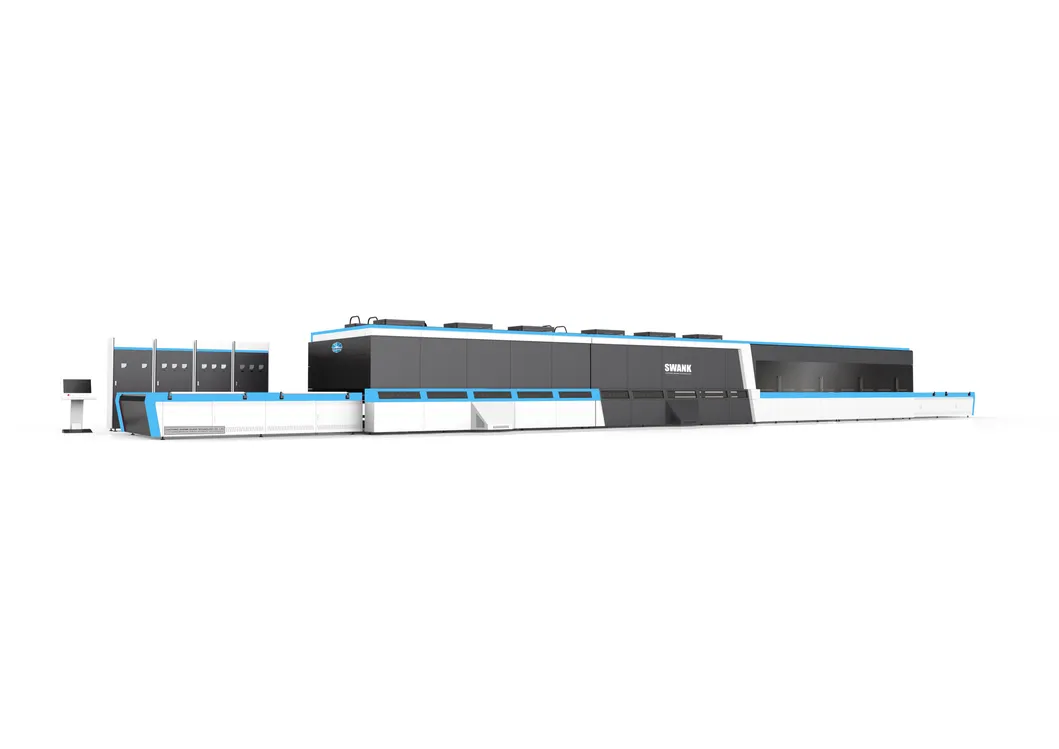

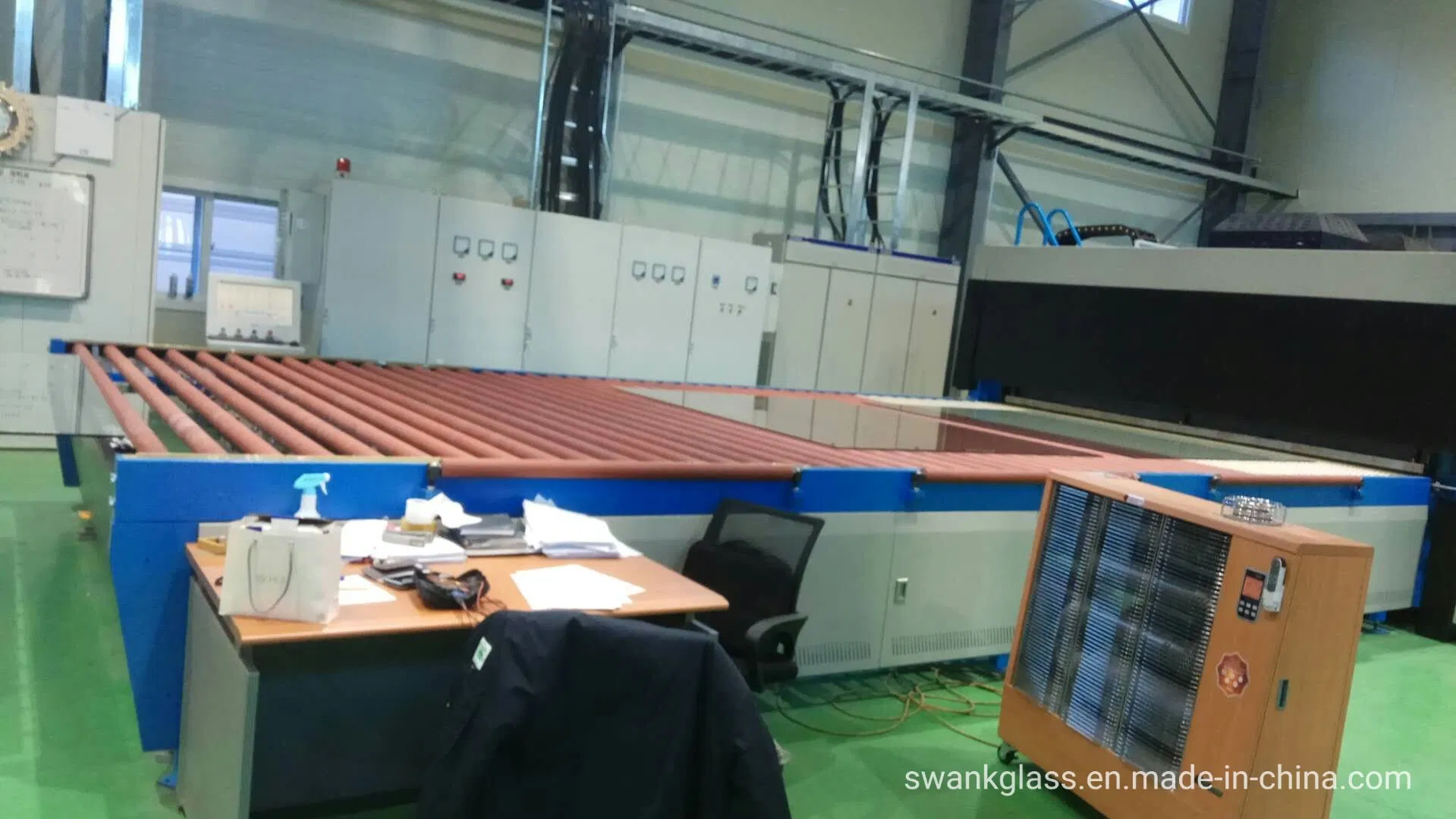

HG-TAQ series forced convection flat glass tempering furnace is suitable for processing float glass, patterned glass, coated glass, low-E glass, etc. It is mainly used for flat building glass, home appliance glass, furniture glass, and decorative glass. It is especially suitable for the processing of high-grade coated glass and hard/soft low-E glass.
| Model | Max size (mm) | Min size (mm) | Thickness (mm) | Capacity (m²/hour) | Installed Power (KVA) |
|---|---|---|---|---|---|
| HG-TAQ1825 | 1800x2500 | 100x250 | 3-19 | 81 | 315 |
| HG-TAQ2030 | 2000x3000 | 100x250 | 4-19 | 108 | 400 |
| HG-TAQ2036 | 2000x3660 | 100x250 | 4-19 | 131 | 500 |
| HG-TAQ2436 | 2440x3660 | 100x300 | 4-25 | 160 | 630 |
| HG-TAQ2442 | 2440x4200 | 100x300 | 4-25 | 186 | 630 |
| HG-TAQ2450 | 2440x5000 | 100x300 | 4-25 | 222 | 800 |
| HG-TAQ2460 | 2440x6000 | 100x300 | 4-25 | 266 | 1000 |
| HG-TAQ2842 | 2850x4200 | 200x350 | 5-25 | 221 | 800 |
| HG-TAQ2860 | 2850x6000 | 200x350 | 5-25 | 316 | 1000 |
| HG-TAQ3050 | 3000x5000 | 200x400 | 5-25 | 277 | 1000 |
| HG-TAQ3060 | 3000x6000 | 200x400 | 5-25 | 327 | 1250 |
| HG-TAQ3350 | 3300x5000 | 200x400 | 5-25 | 297 | 1000 |
| HG-TAQ3360 | 3300x6000 | 200x400 | 5-25 | 335 | 1250 |
| HG-TAQ3380 | 3300x8000 | 200x400 | 5-25 | 469 | 1600 |
Notice: The above data is calculated by 5mm clear glass and 100% loading rate. Actual data will be subject to glass types, specifications, and loading rate. Models can be customized according to requirements.
