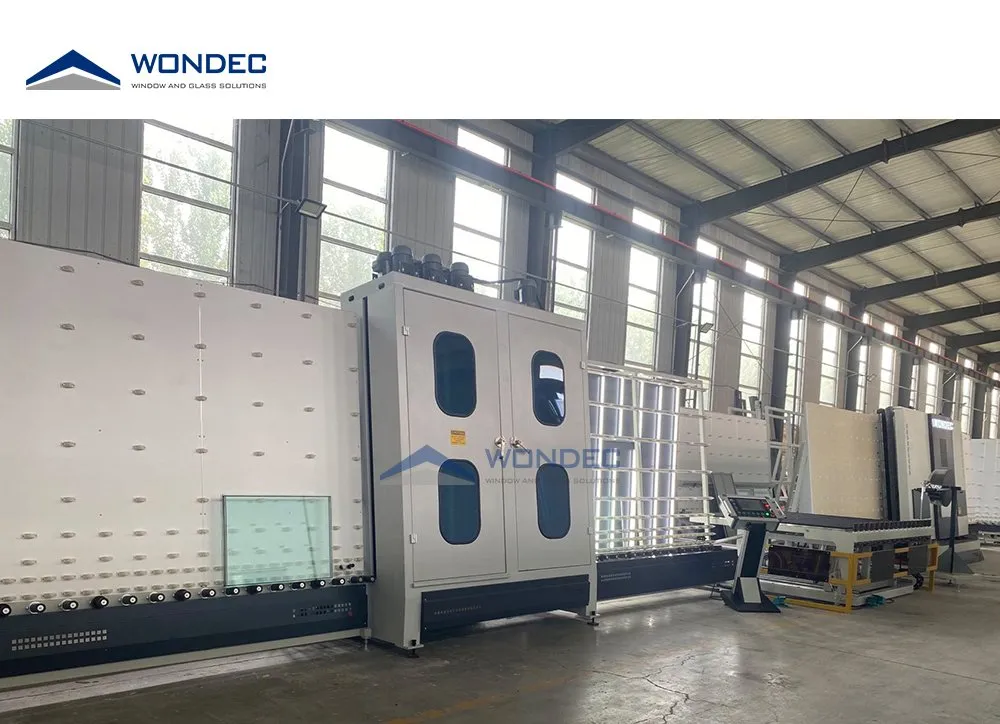

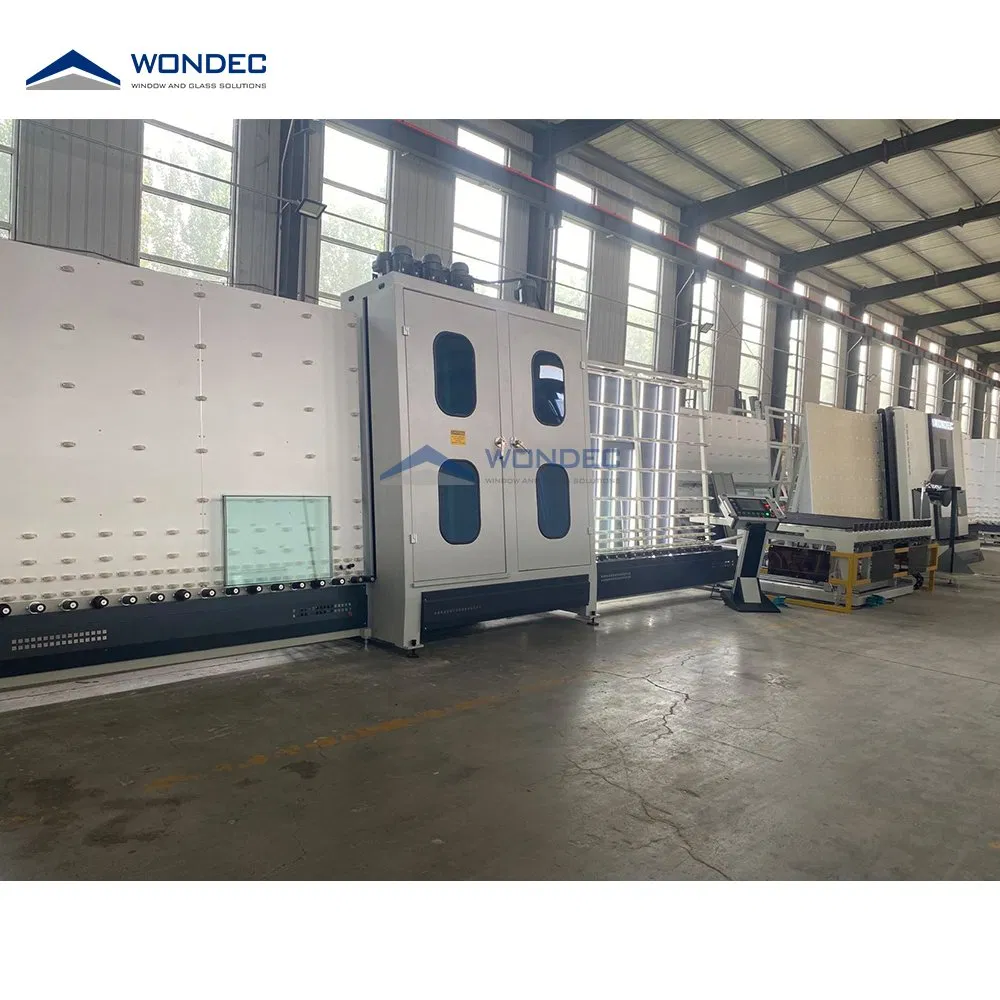

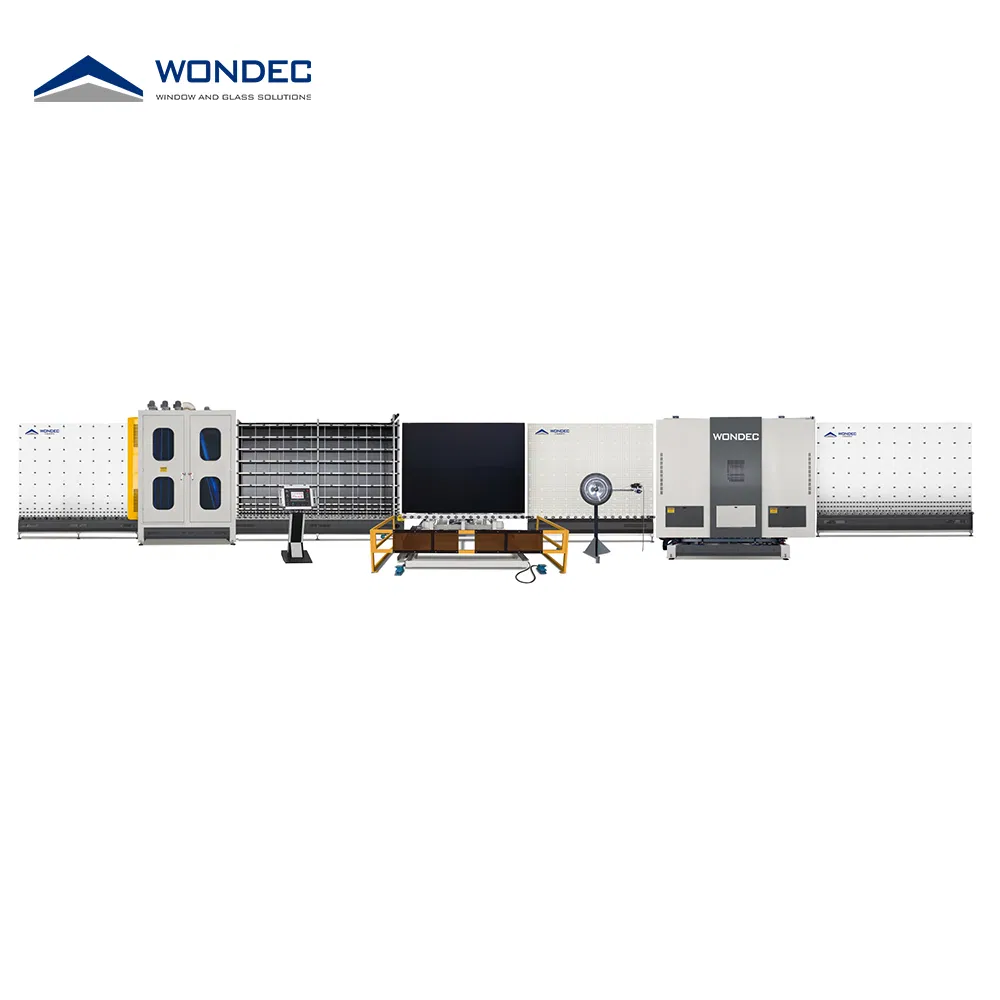

Fully Automatic Flexible Spacer Ig Production Line for Processing Igu Double Glazing Units and Making Insulating Glass

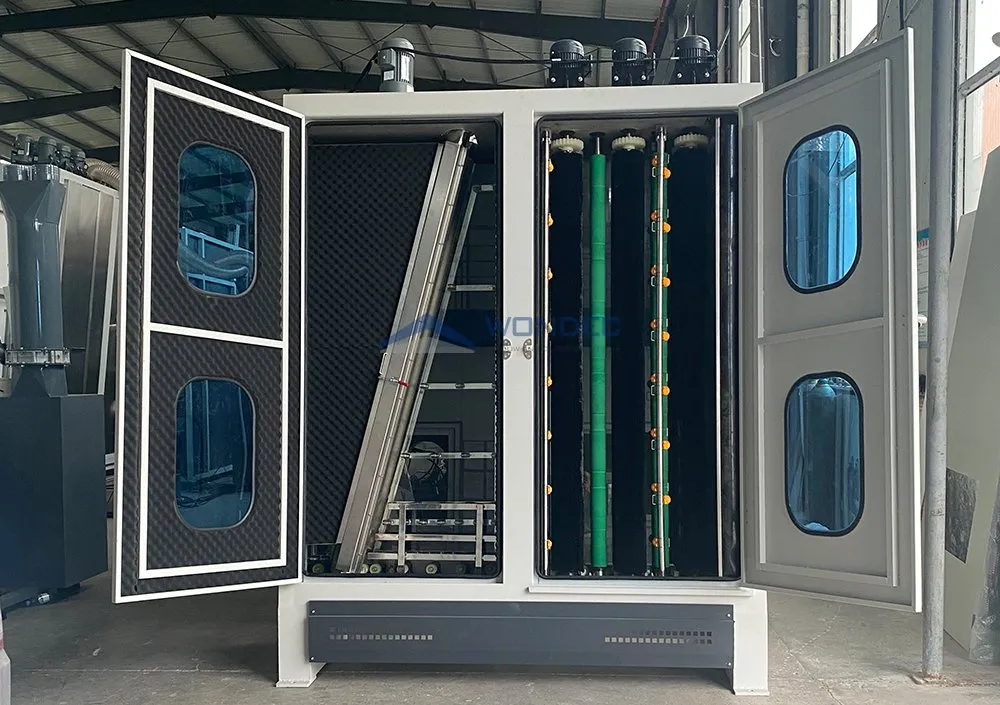

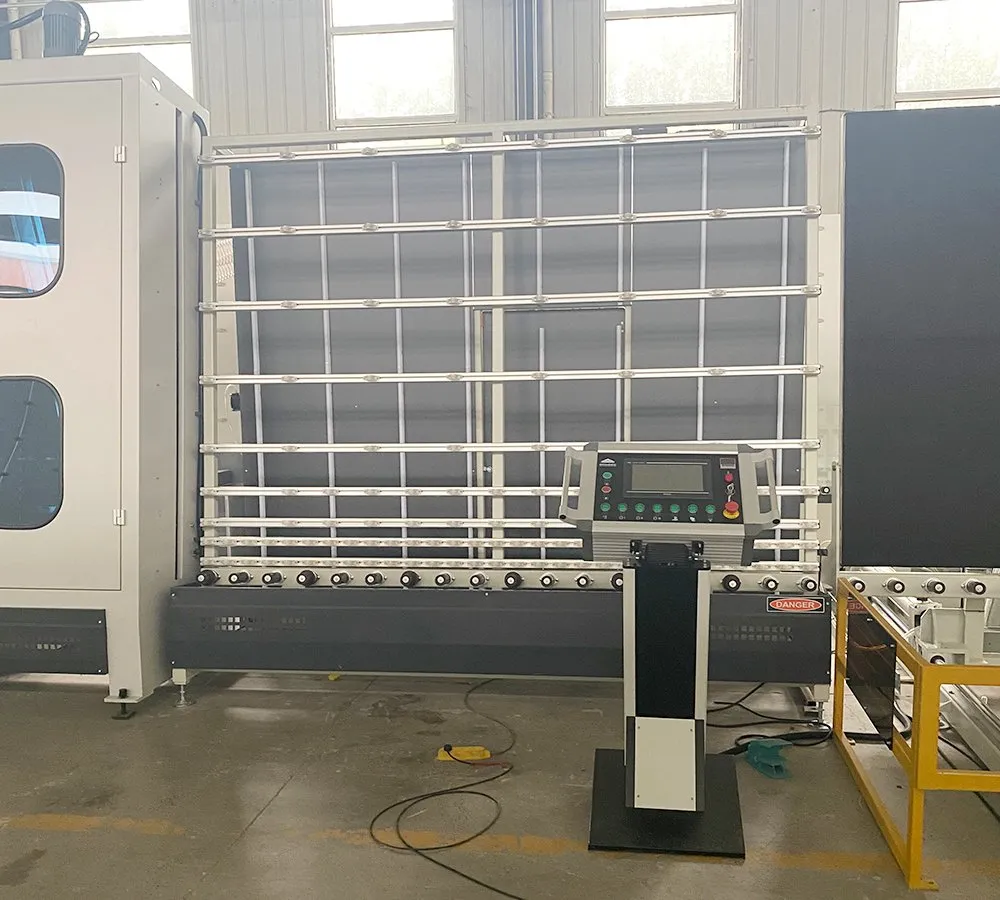

Mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

• Stainless steel and corrosion-resistant materials for all washing areas, water tanks, and waterway systems.
• 6 brushes driven by 6 independent motors; ensures continuous operation if one motor fails.
• Coupling connection between brush and motor prevents slipping or idling.
• Equipped with 3 soft brushes (0.1mm) for Low-E glass and 3 hard brushes (0.2mm) for ordinary glass.

• Denser steel frame for a stronger machine body.

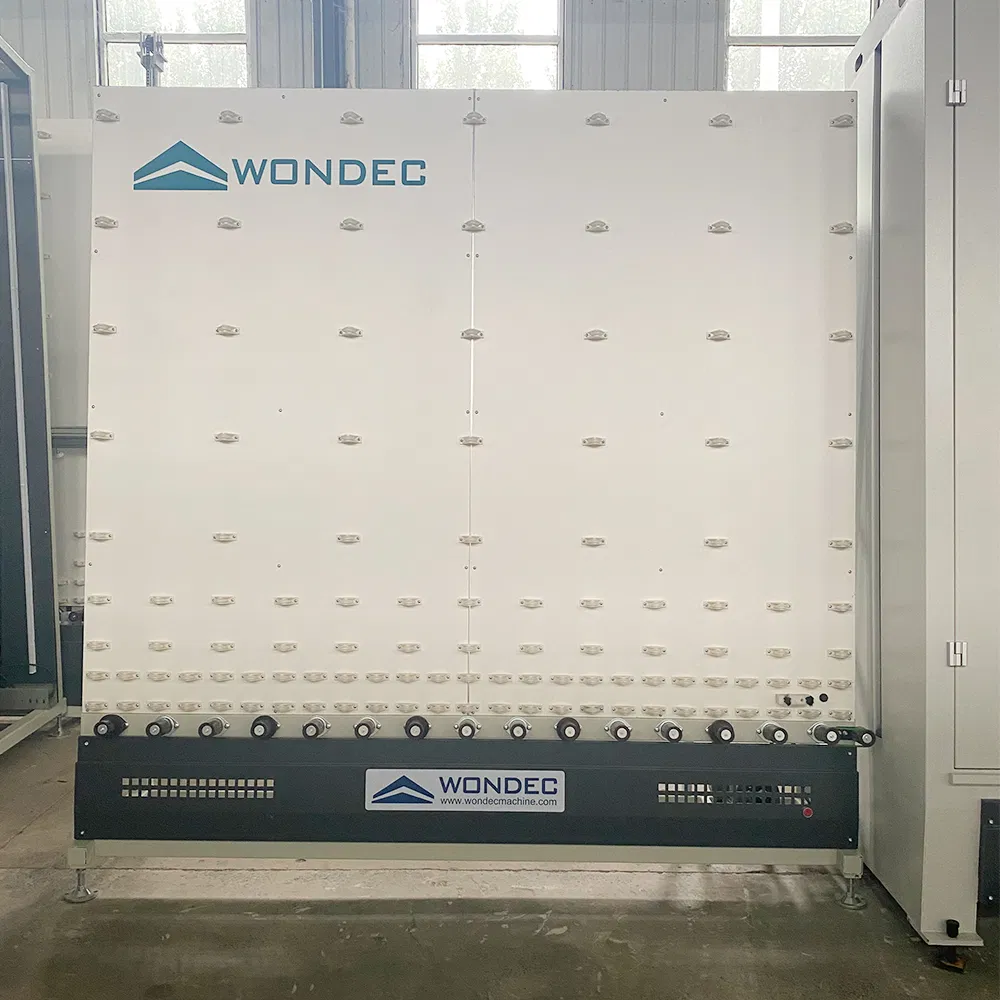

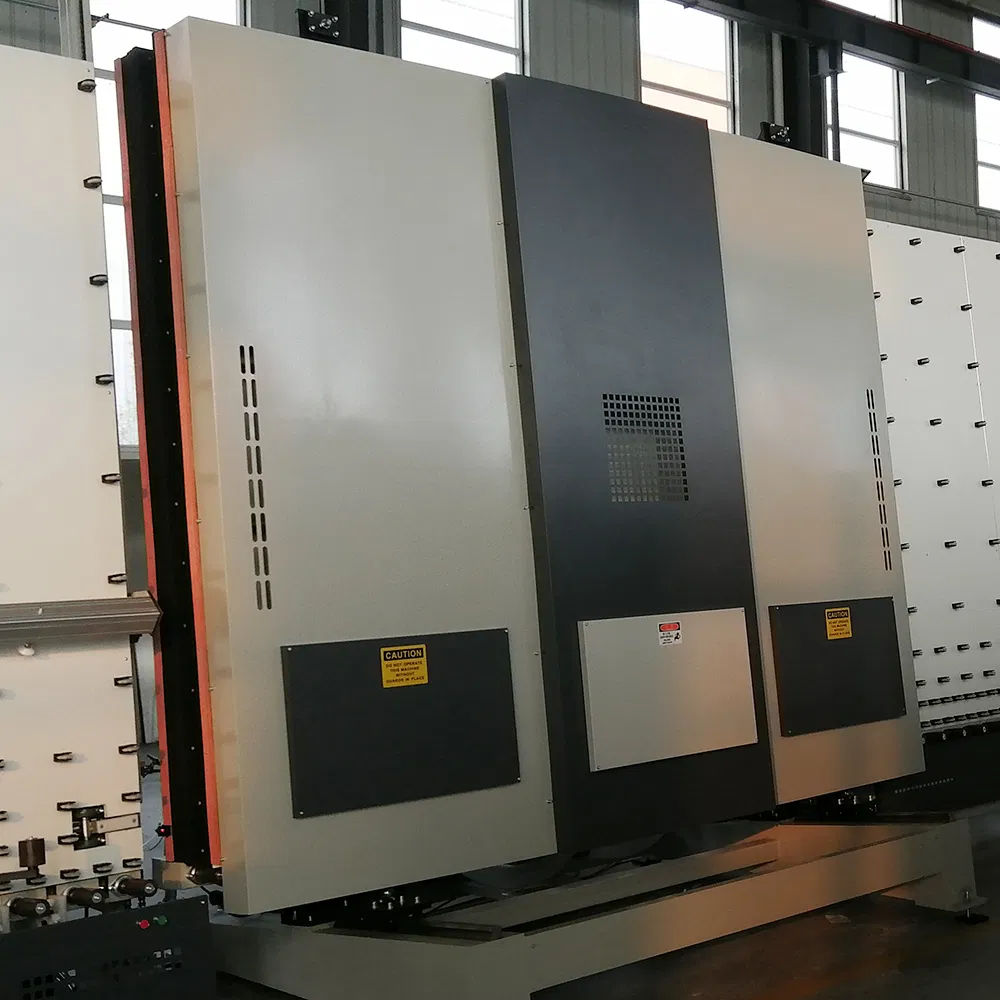

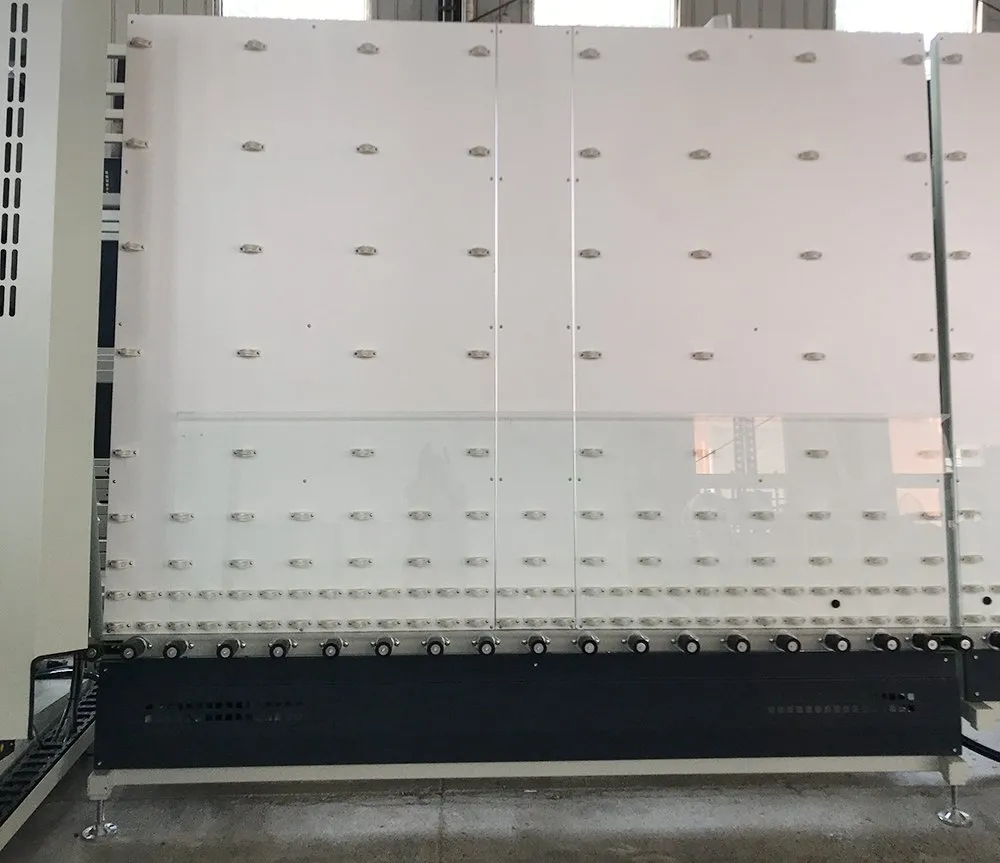

• Panel press controlled by high-precision Servo motor.
• Two-layer front pressing plate ensures optimal flatness over long-term use.
• Suction cups equipped with separate logic valves, working partitioned based on glass size.
• Automatic online bottom-side argon gas filling for double and triple IGU.

Used to transmit and store glass units to improve efficiency; compatible with sealing robots for automated storage.
