G Type Tempered Glass Lid Tempering Furnace for Glass Lid Production Line

1 / 5

G Type Tempered Glass Lid Tempering Furnace for Glass Lid Production Line

Certification:	CE
Control System:	PLC
Warranty:	Provide

Send Inquiry

Product Description

Basic Specifications

Model NO.PBL8500

Glass Thickness3-8mm

Productivity(240mm)700PCS/H

Working Air Pressure0.6-0.8MPa

Furnace Length8500mm

Overall Size13800*2500*2200mm

Glass Dia.120-420mm

Weight6000kg

Power215kw

Actual Working Power60kwh

TypeGlass Tempering Furnace

StructureHorizontal

OriginChina

Product Overview

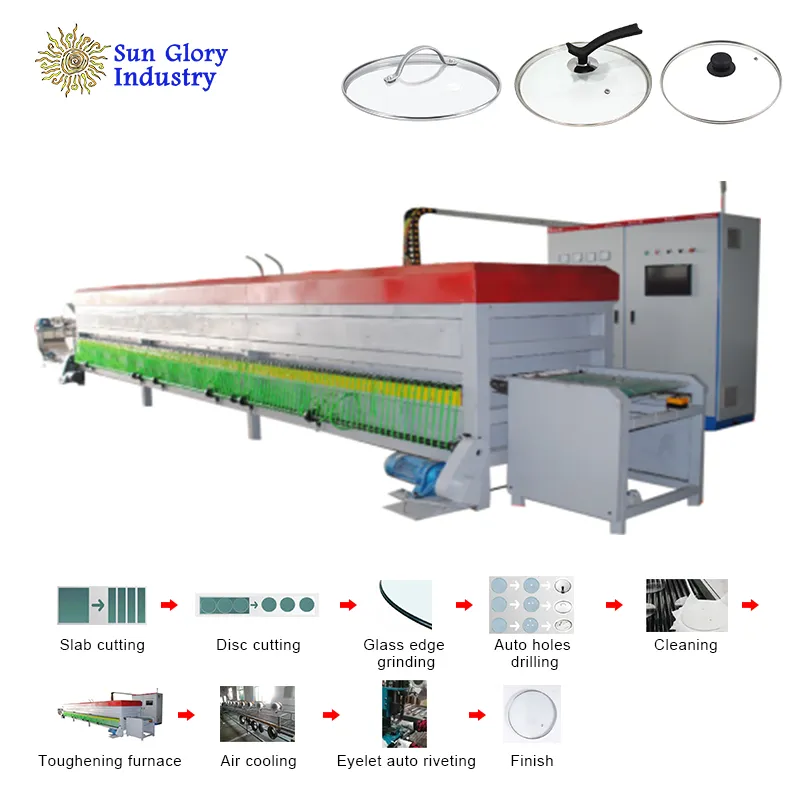

G type tempered glass lid tempering furnace for glass lid production line

🔥

Sectional Heating
Error of temperature ≤ 1ºC, power cost efficient.

✅

High Success Rate
99.7% successful tempering rate.

Technical Parameters

Parameter Item	Value / Specification
Operator	2
Glass Thickness	3-8mm
Productivity (240mm)	700pcs/H
Working Air Pressure	0.6-0.8Mpa
Furnace Length	8500mm
Overall Size	1380025002200mm
Glass Dia.	120-420mm
Weight	6000KG
Power	215Kw
Actual Working Power	60Kwh

Professional Support & Solutions

As an aluminum cookware & glass lid End to End Solution provider, we supply turn-key projects, including machinery & molds, consumables, and aluminum cookware & glass lid "know how", manufacturing training & regular production supporting.

Frequently Asked Questions

Q1: What is the maximum productivity of the PBL8500 furnace? A1: The machine can produce up to 700 pieces per hour for standard 240mm glass lids.

Q2: What thickness of glass can this tempering furnace process? A2: It is designed to process glass with a thickness range of 3mm to 8mm.

Q3: How energy efficient is this tempering system? A3: While the total installed power is 215kw, the actual working power is optimized at approximately 60kwh thanks to sectional heating technology.

Q4: What size glass lids can be manufactured with this equipment? A4: The furnace supports glass diameters ranging from 120mm to 420mm.

Q5: What is the success rate of the tempering process? A5: This G type furnace maintains a high success rate of 99.7%, ensuring minimal material waste.

Q6: Do you provide training for the production line? A6: Yes, we provide full turn-key solutions including manufacturing "know-how," operator training, and regular production support.
