Functions

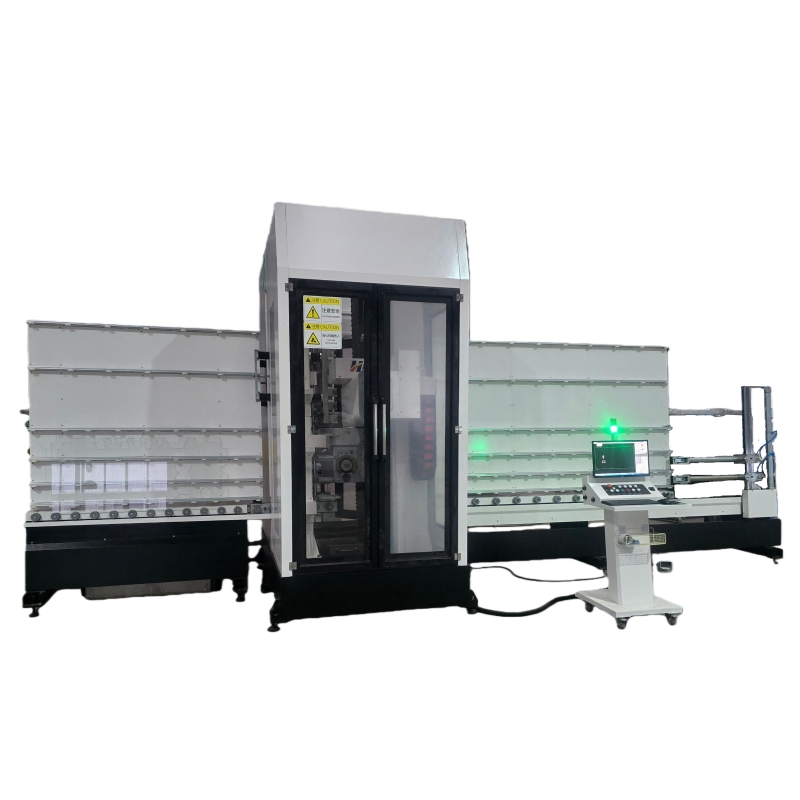

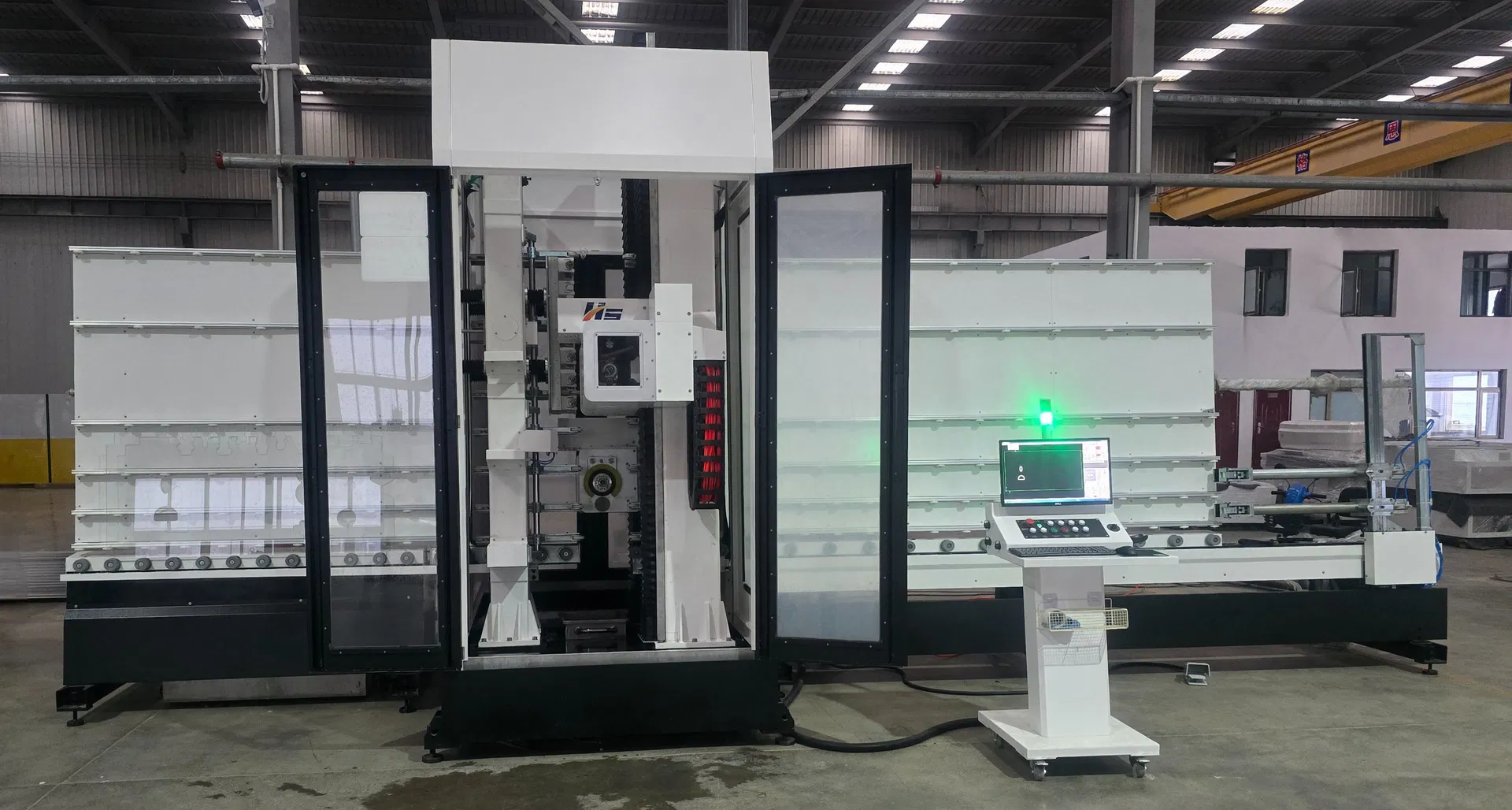

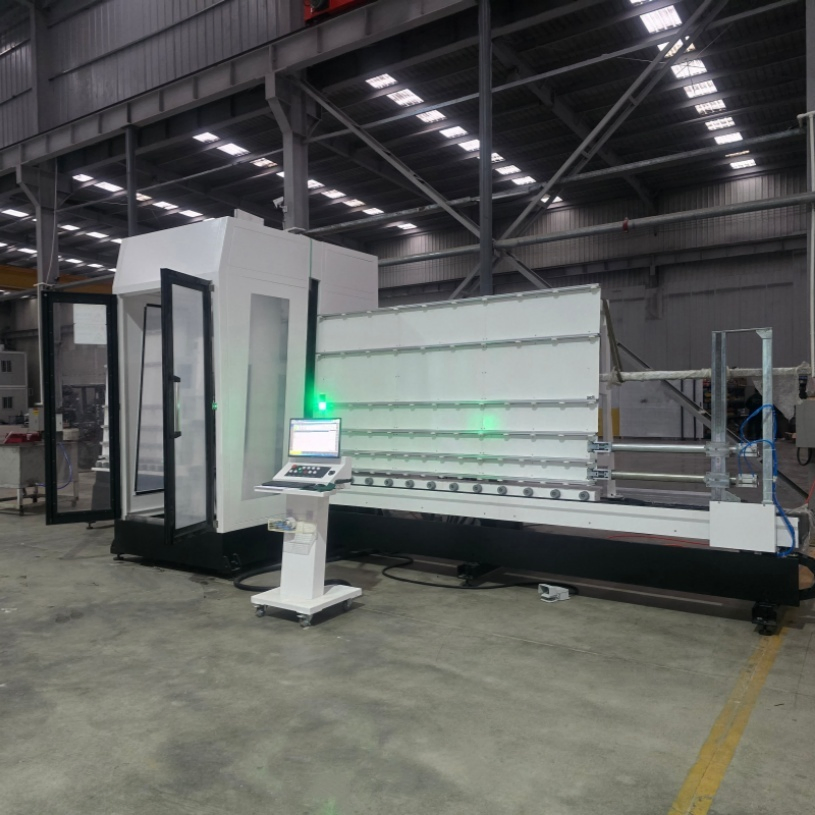

The vertical drilling and milling center is a multi-functional glass processing equipment that can automatically complete various glass processing processes.

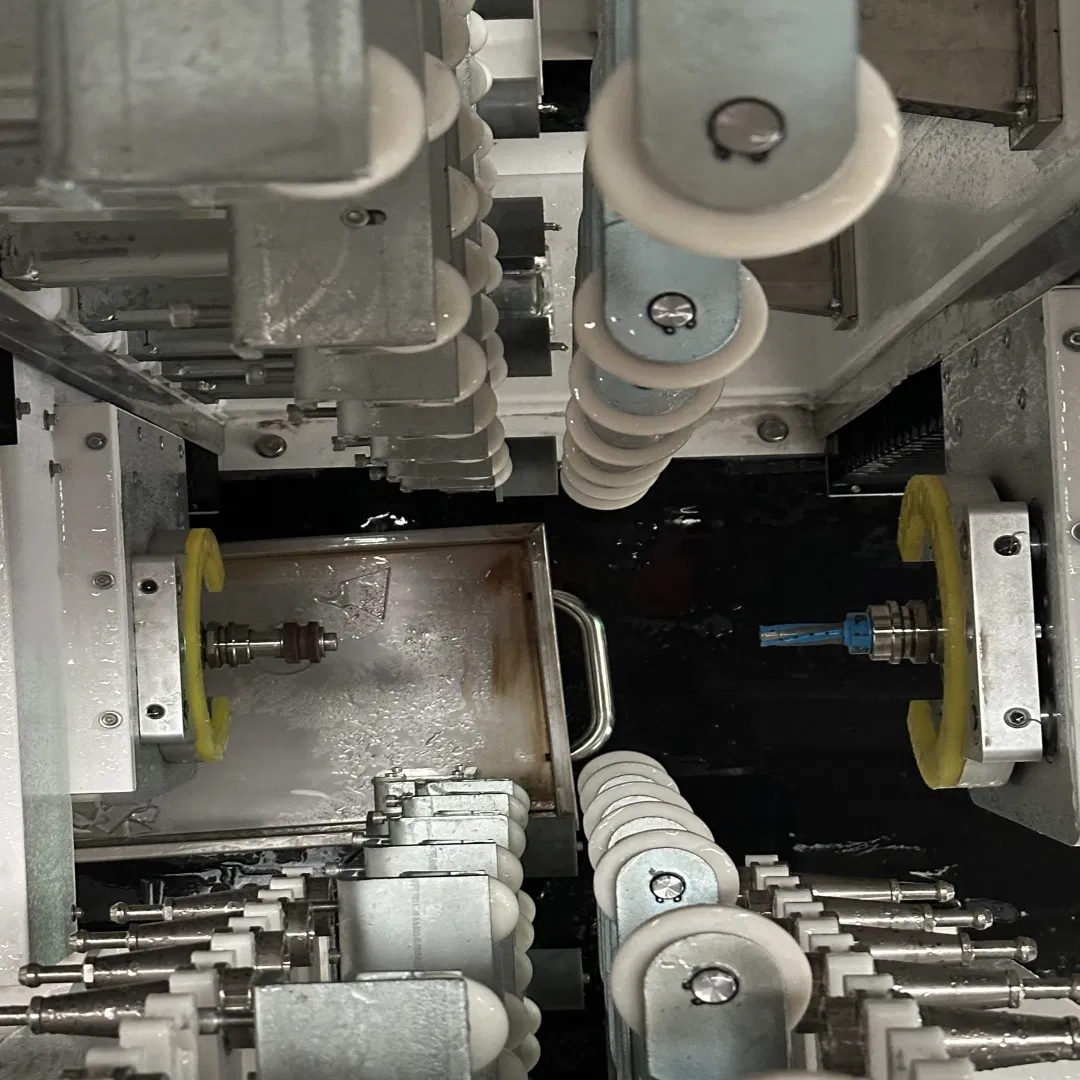

Drilling: Front and rear spindles allow high-speed simultaneous drilling from both sides, ensuring precision.

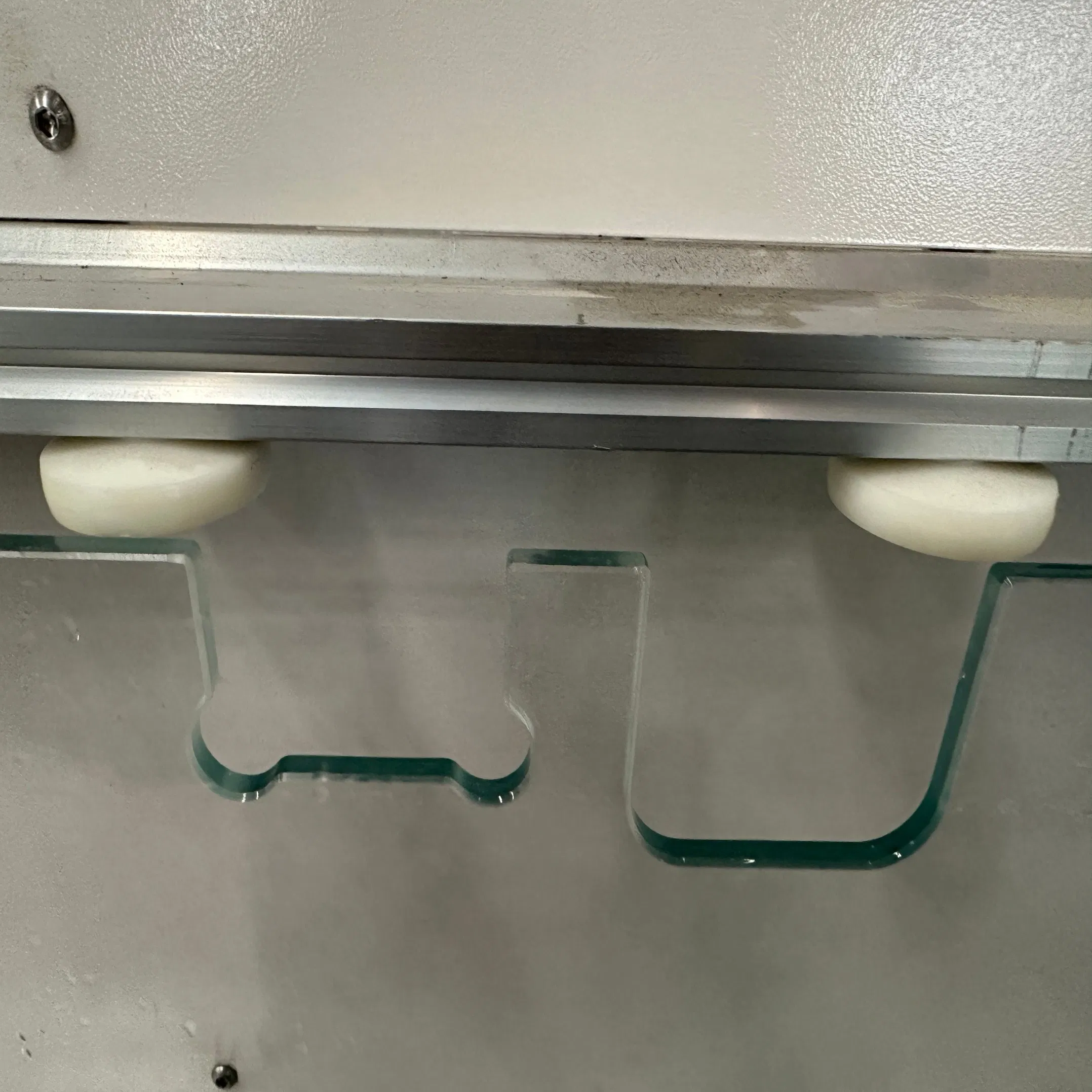

Milling: Fast operation where front and rear spindles mill and grind inner edges simultaneously.
Chamfering: Two methods available: direct chamfering wheel or using a chamfering sleeve on the drill bit.

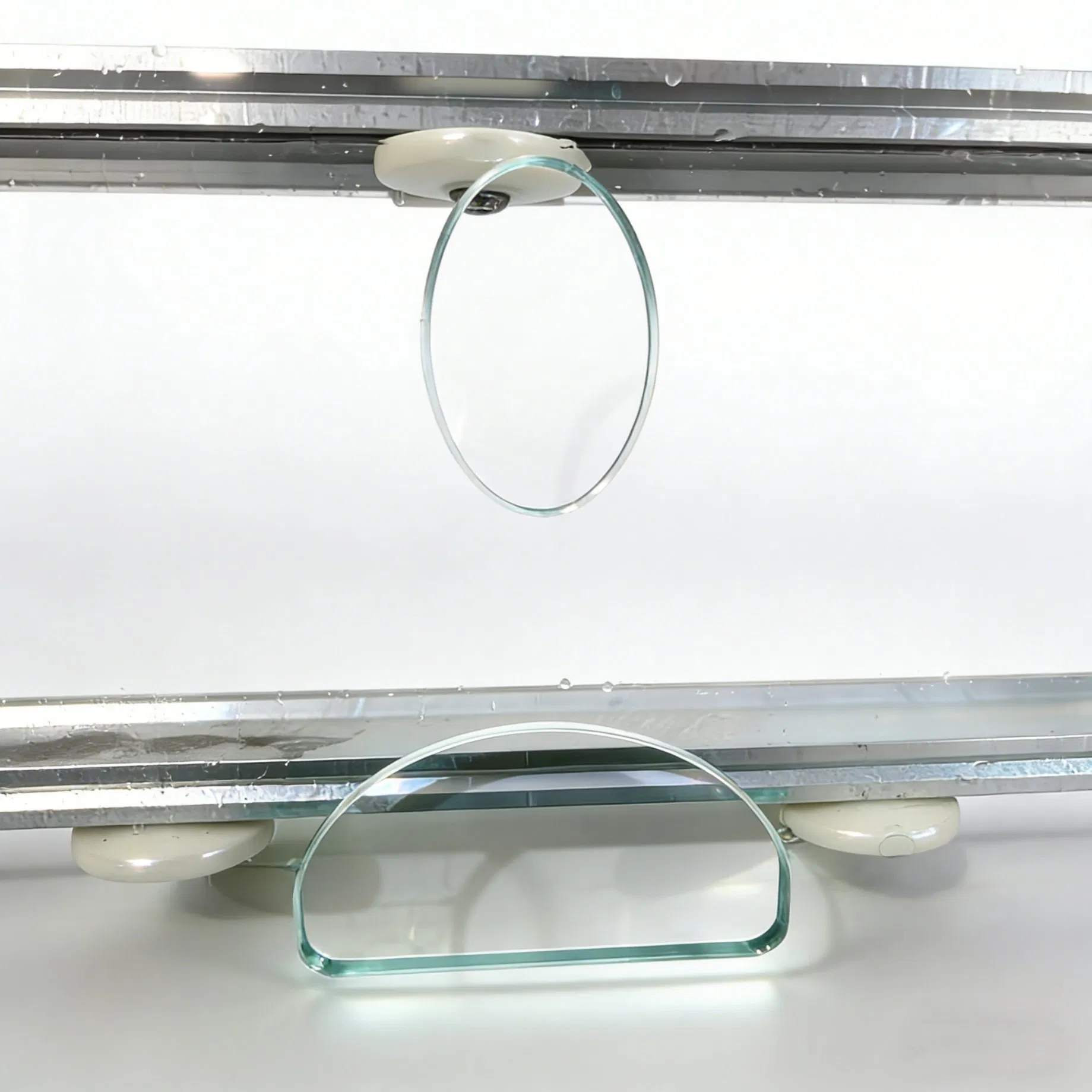

Polishing: Achieves high-quality polishing of inner circular patterns and safety corners.
Clamping Device: Uses flexible clamps to secure glass during processing, improving rigidity and reasonable force distribution.
Tool Magazine: Multi-position vertical magazine facilitates tool changes for various techniques.
Electric Spindle: Equipped with a coolant delivery system and constant temperature chiller to improve speed, quality, and lifespan.
CNC System: Self-developed system with front/rear spindle synchronization and real-time polishing compensation.
| Project | HS 2542 |
| Max glass size | 2500x4200mm |
| Min glass size | 500x300mm |
| Glass thickness | 4~19mm |
| Max axis speed | 45,40,15m/min |
| Electric spindle power | 7.5+7.5kw |
| Max spindle speed | 12000rpm |
| Front bearings | 50mm |
| Tool shank | BT30 |
| Tool magazine | 7+4 |
| Tools max diameter | 100mm |
| Machining accuracy | ±0.15mm/m |
| Tools center cooling | YES |
| Constant temperature water cooler | YES |

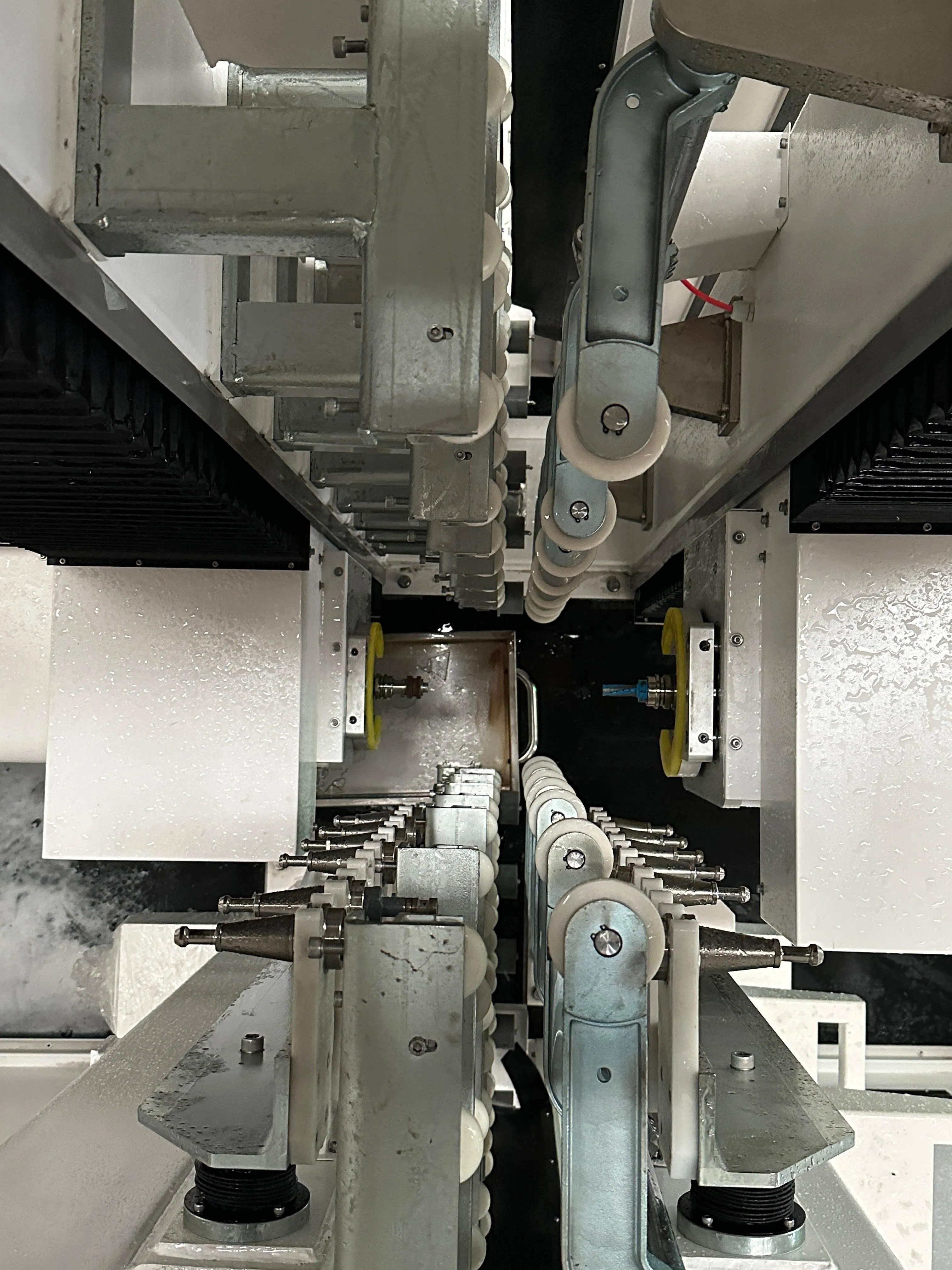

Double Drilling
Fast speed, precise positioning.

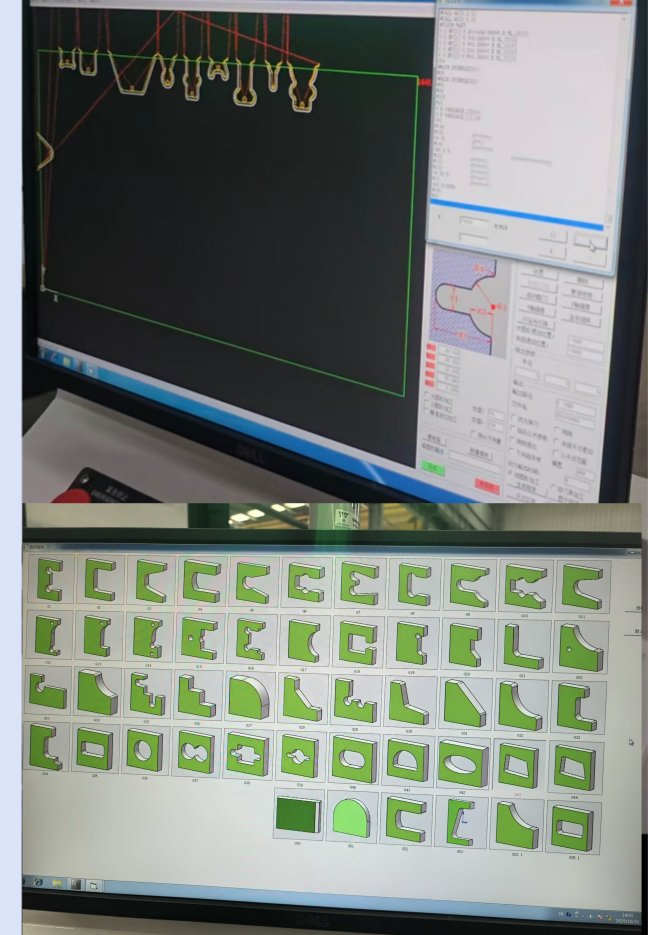

Multi-functional System
Simple operation, rich graphics library.

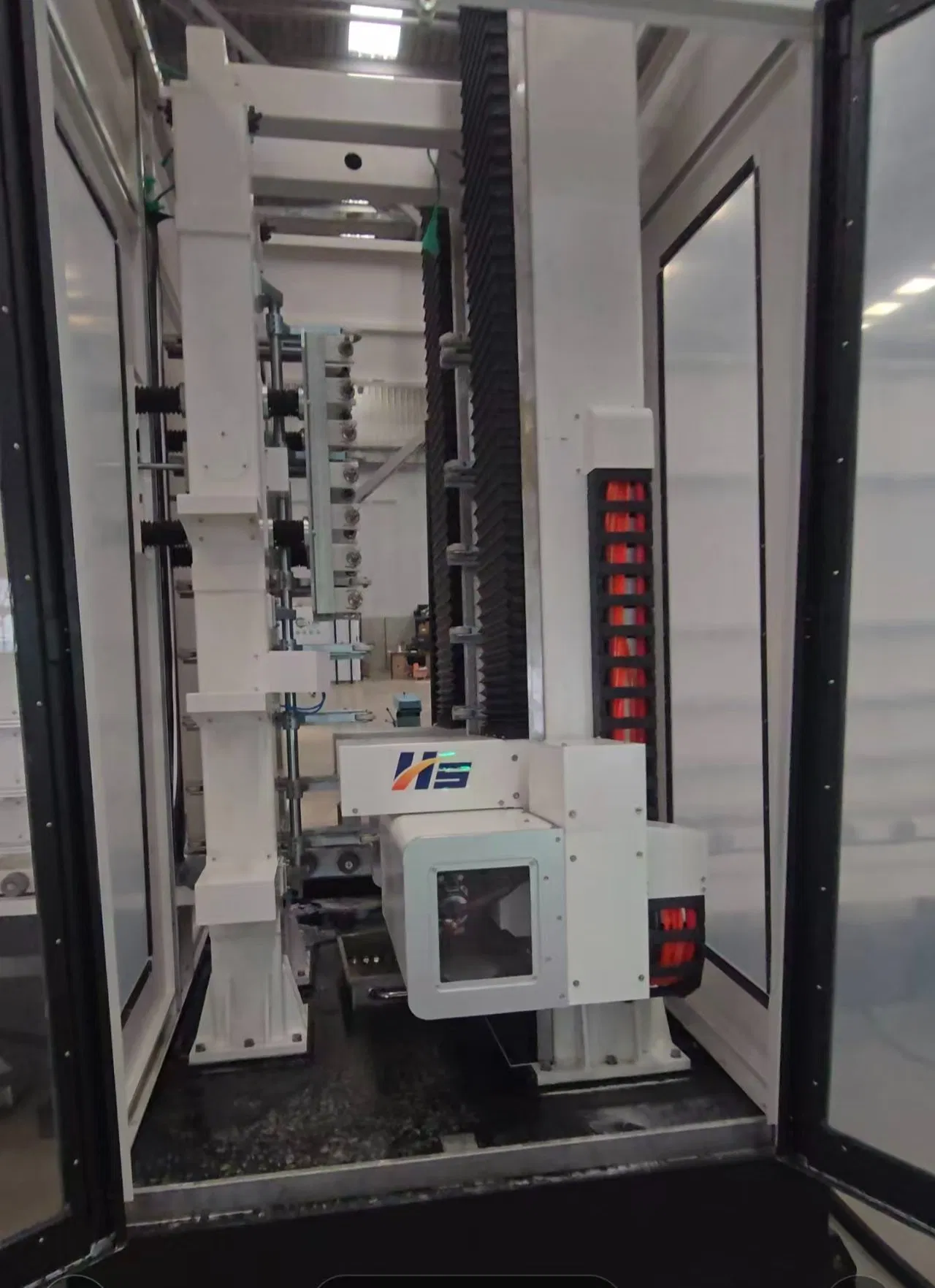

Rich Tool Library
Meets various machining needs.

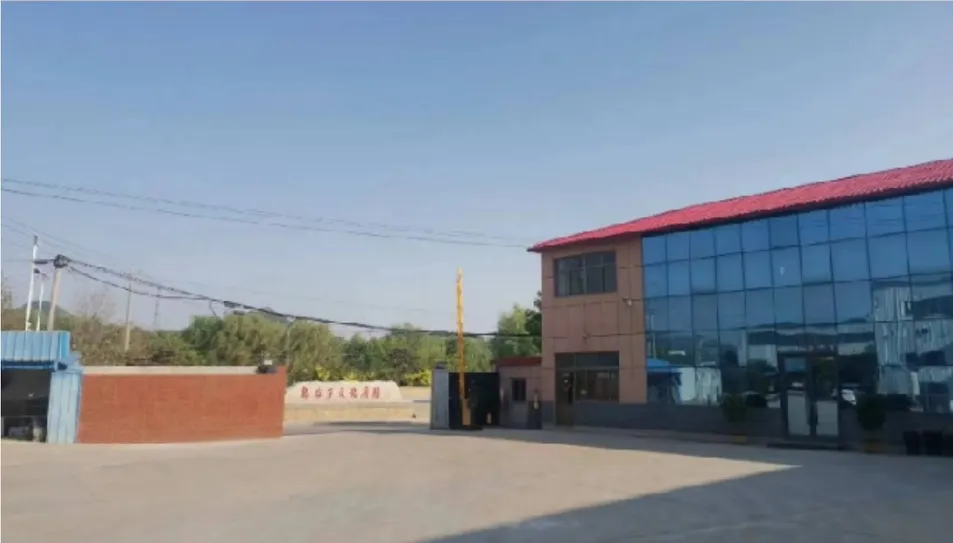

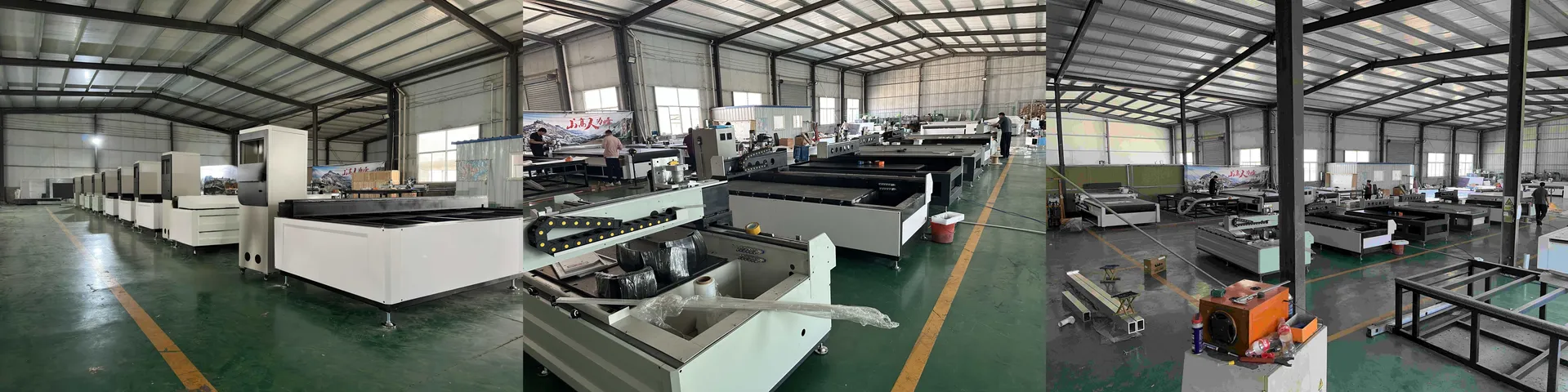

We are a CNC equipment manufacturing enterprise that integrates research and development, production, sales, and maintenance services. Our team is built with an experienced and highly skilled professional team, supported by a scientific quality management system and advanced production equipment.
Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
