Glass Edging and Polishing Suitable for Edge and Corner Grinding

Customization:	Available
Certification:	CE
Processing Speed:	0.7-7m/Min

Send Inquiry

Product Description

📋 Basic Information

Model:

JGZM9325

Processing Thickness:

3-25mm

Voltage:

380V/50Hz/3p

Warranty:

12 Months

Power:

19.75kw

Min. Glass Size:

80*80mm

Weight:

3000kg

Transmission:

Stepless Speed Regulation

Process Speed:

0.7-7m/Min

Machine Size:

7000*1200*2500mm

Origin:

China

Capacity:

500

🏭 Industry Leadership

We are a leading single source provider of high-quality flat glass processing machinery, service and supplies. We continue to search for the most innovative and reliable equipment manufacturers for fabricating, handling and processing flat glass. Each manufacturer specializes in a certain type of machinery, and all equipment is characterized by innovative features, long-lasting durability, and high reliability.

⚙ Product Description

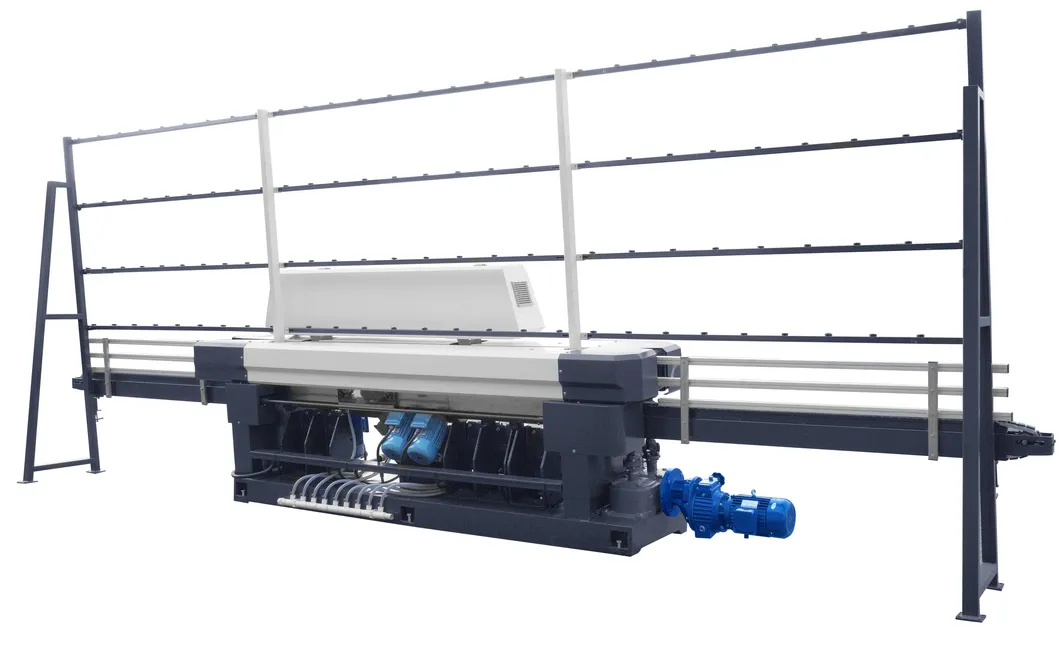

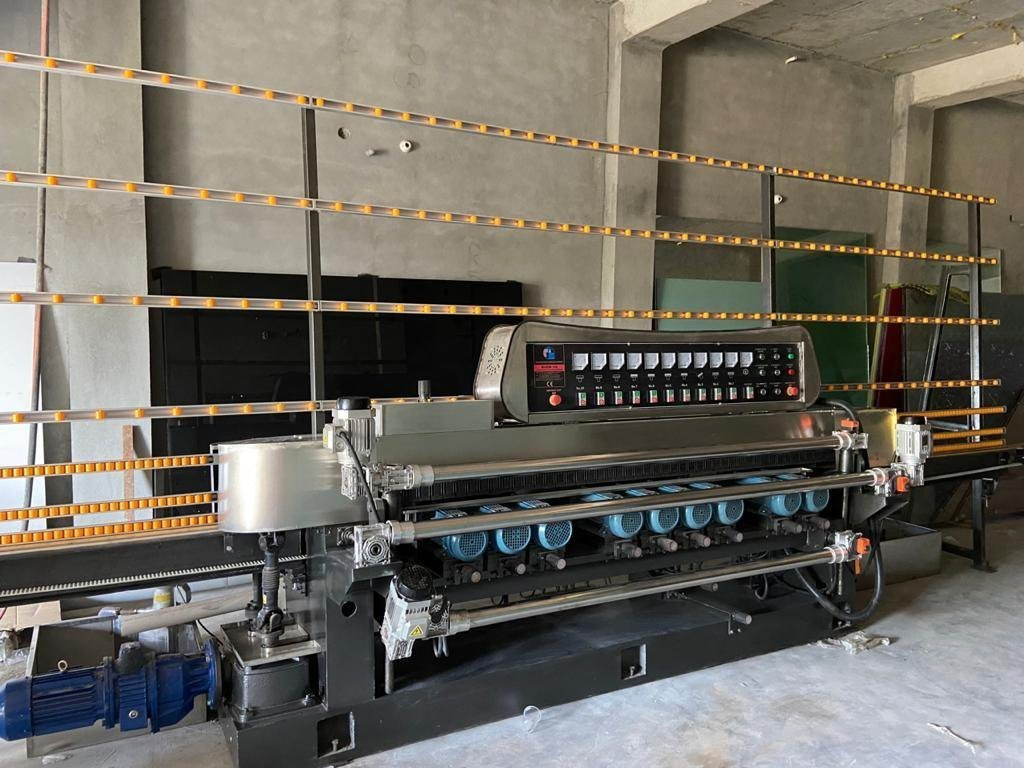

Glass Edging and Polishing Machine JGZM9325

This machine is suitable for edge and corner grinding of plate glass of different sizes and thicknesses, finishing coarse grinding, fine grinding, and polishing at one time. The flat surface after polishing is close to the bright and clean degree of the glass matrix.

When adjusting different processing thicknesses, the former chamfering grinding head can move simultaneously with the front-axle beam. It possesses the advantages of advanced structure, high working precision, easy operation, and the capacity for continuous processing of the same thickness, making it necessary equipment for glass deep processing.

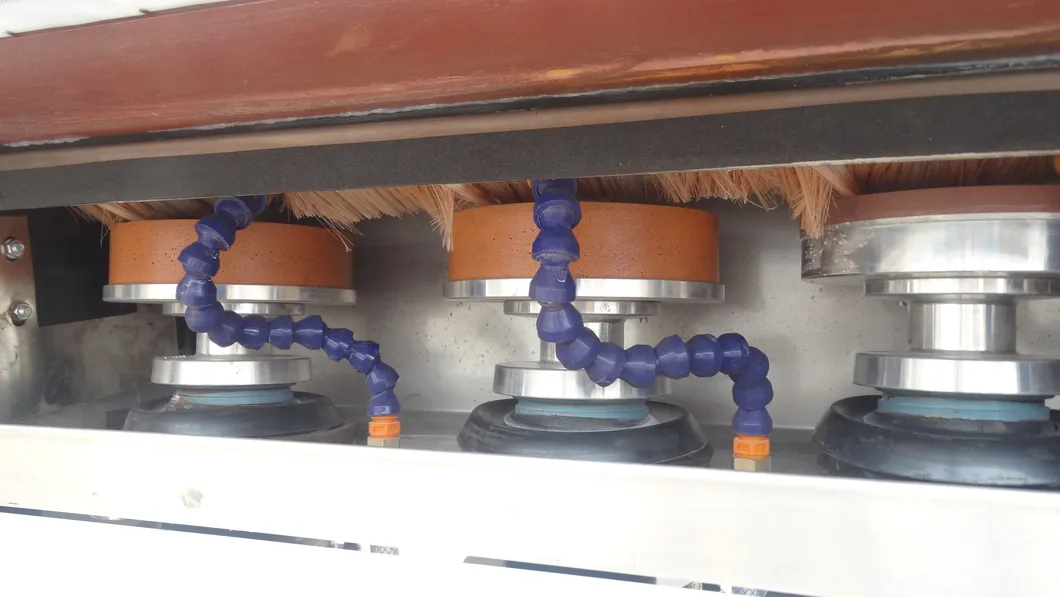

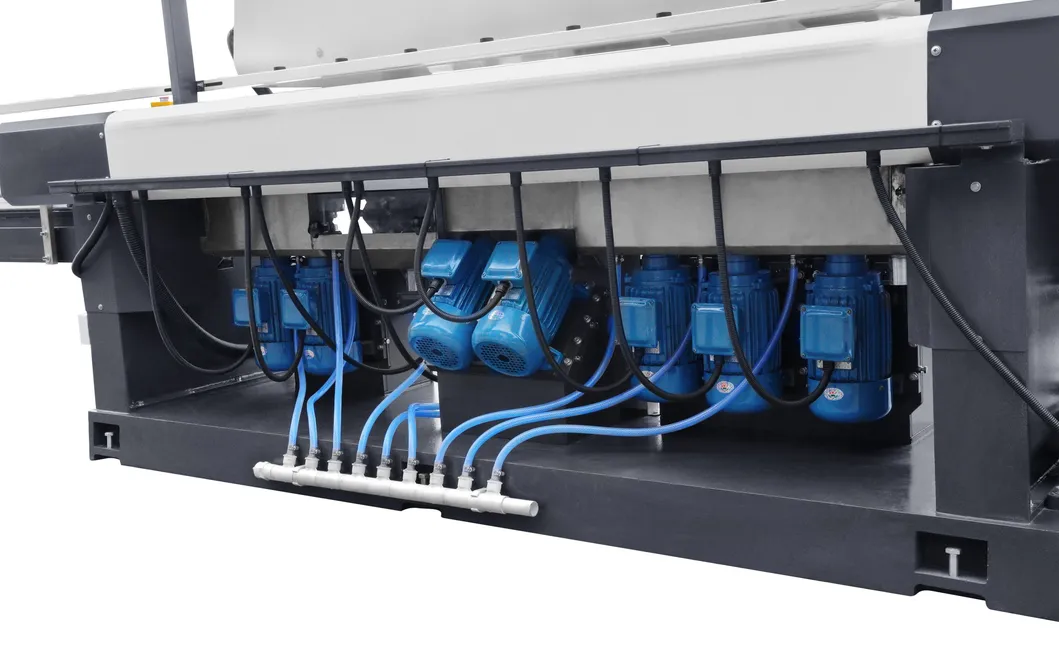

📊 Polishing Diagram (9 Motors)

Pos	1	2	3	4	5	6	7	8	9
Size	Φ150	Φ150	Φ130	S40	Φ130	S40	Φ150	S40	S40
Type	Diamond	Diamond	Resin	Polishing	Resin	Polishing	Resin	Polishing	Polishing
Wheel	Wheel	Wheel	Wheel	Wheel	Wheel	Wheel	Wheel	Wheel	Wheel

📝 Technical Parameters

Model	JGZM9325
Power Supply	380V/50HZ/3P
Total Power	19.75KW
Min. Glass Size	80*80mm
Glass Thickness Range	3-25mm
Weight	3000KG
Transmission Type	Stepless speed regulation
Processing Speed	0.7-7m/min
Dimensions	700012002500mm

🚀 Main Parts & Material Configuration

Component	Item	Specification/Supplier
Machine Motor	Supplier	JinLong
	Voltage	380V/50Hz
	Power	1.5kw ~ 2.2kw
Wheels	Supplier	AnHua
Conveyor Drive	Supplier	GuangDong NanHua
Conveyor Drive	Specification	2.2KW variable frequency motor
Main Bearing	Manufacturer	TaiWan ShangYin
Main Bearing	Supplier	NSK / HaErBin
Pressing Plate	Manufacturer	GuangDong LongJiang
Electric Appliances	Manufacturer	ZhengTai / ShiNaiDe
Structure Materials	Girder & Base	Cast iron with annealing treatment
Water Tank	Materials	Stainless Steel

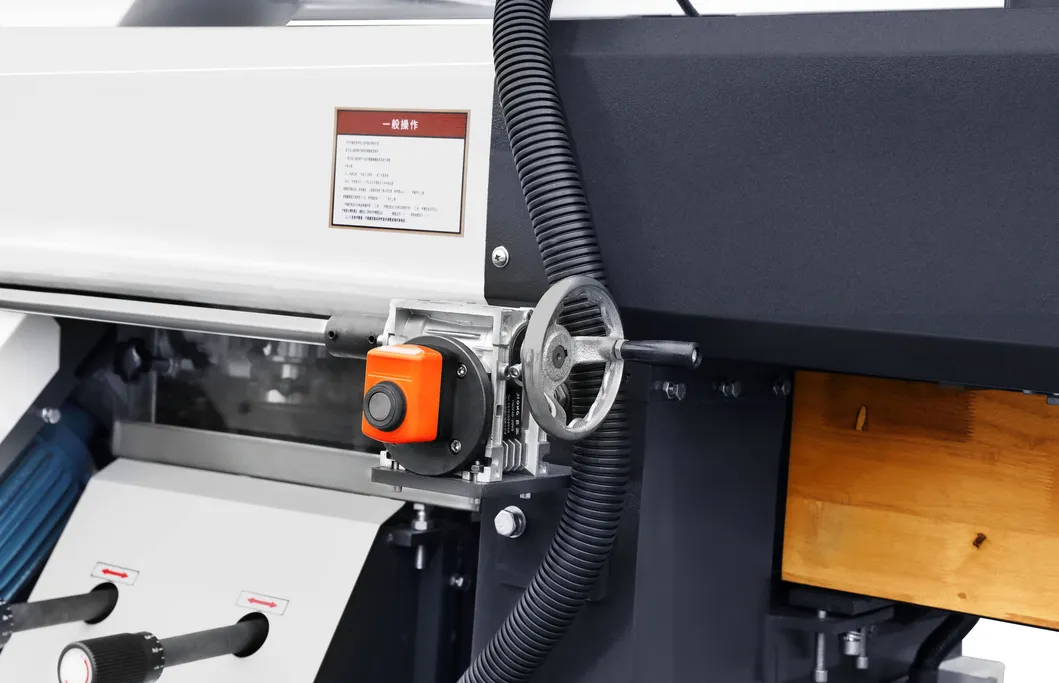

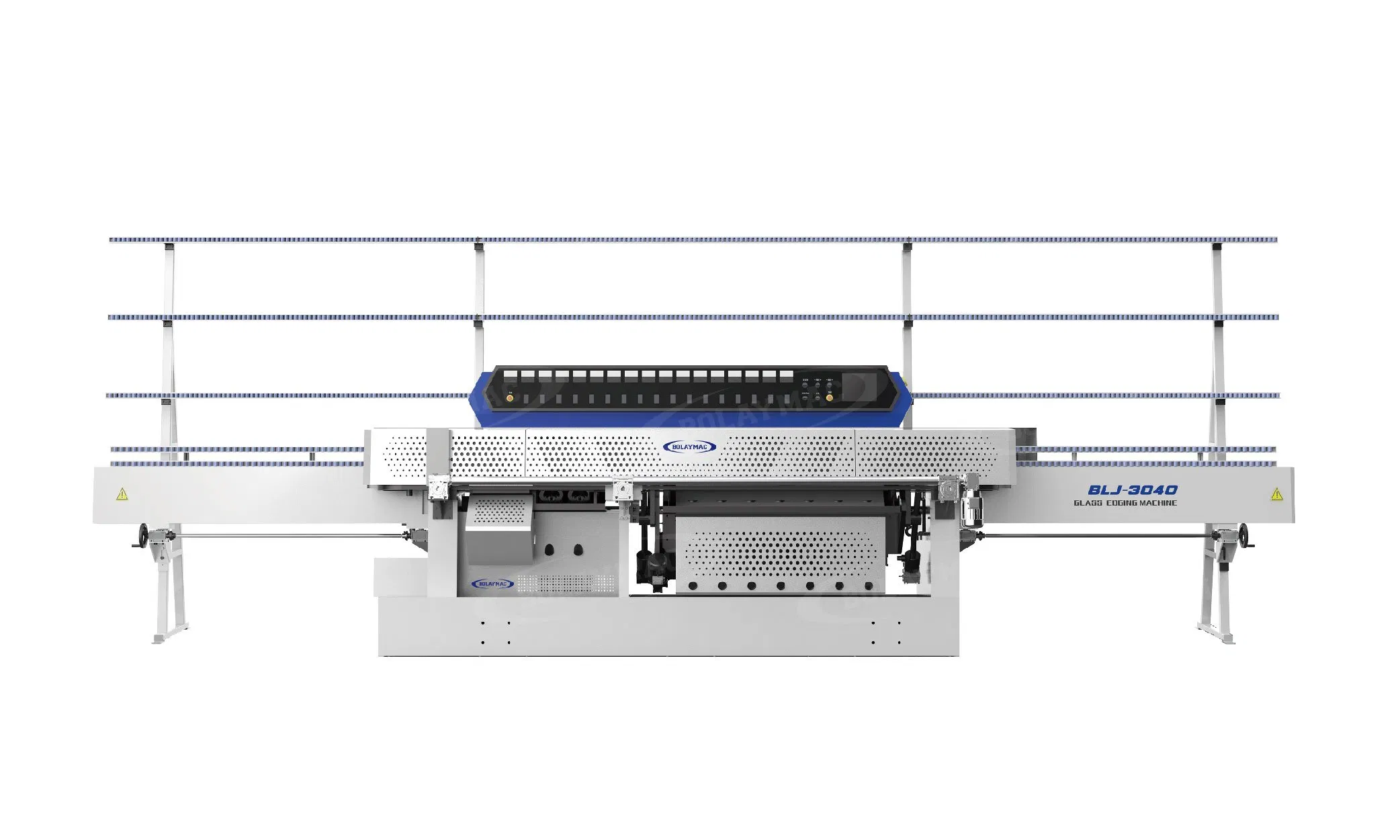

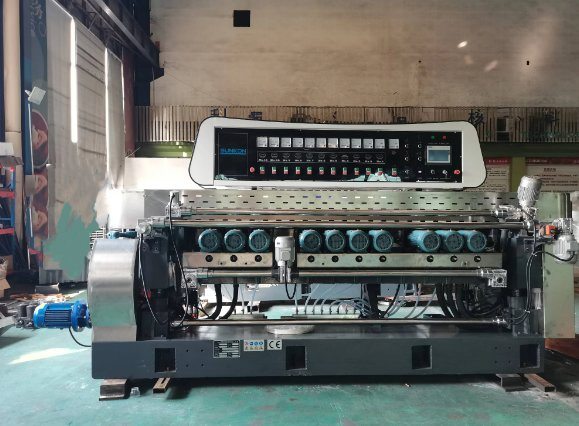

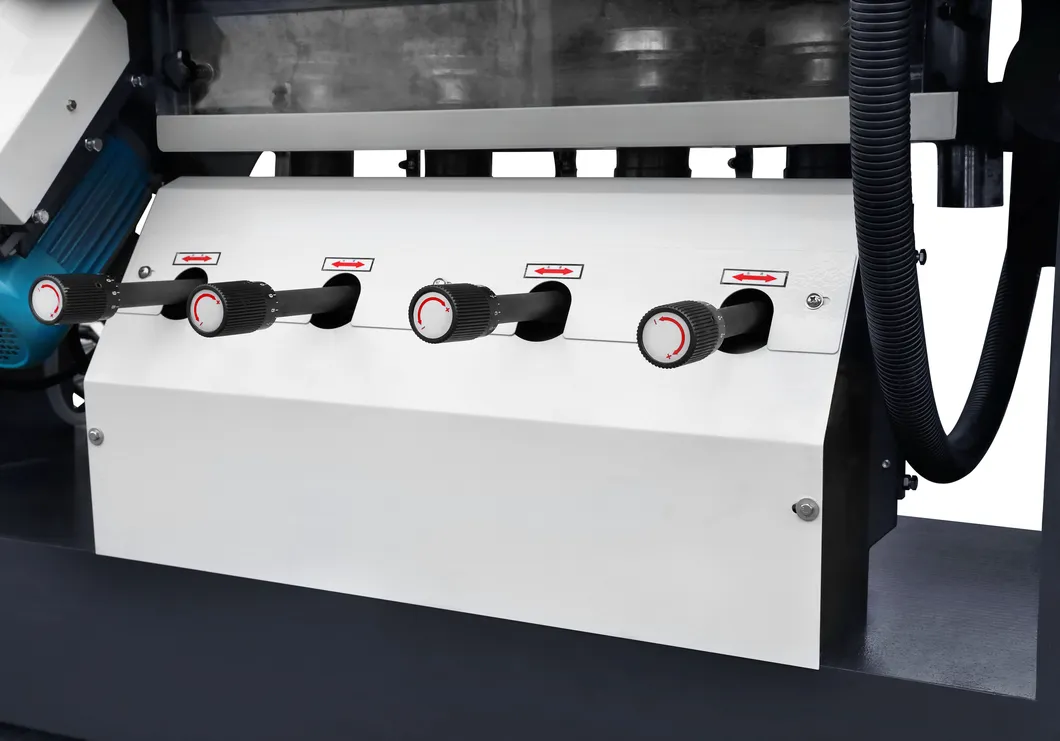

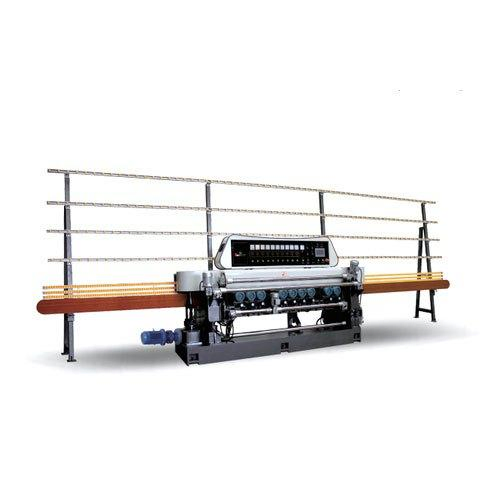

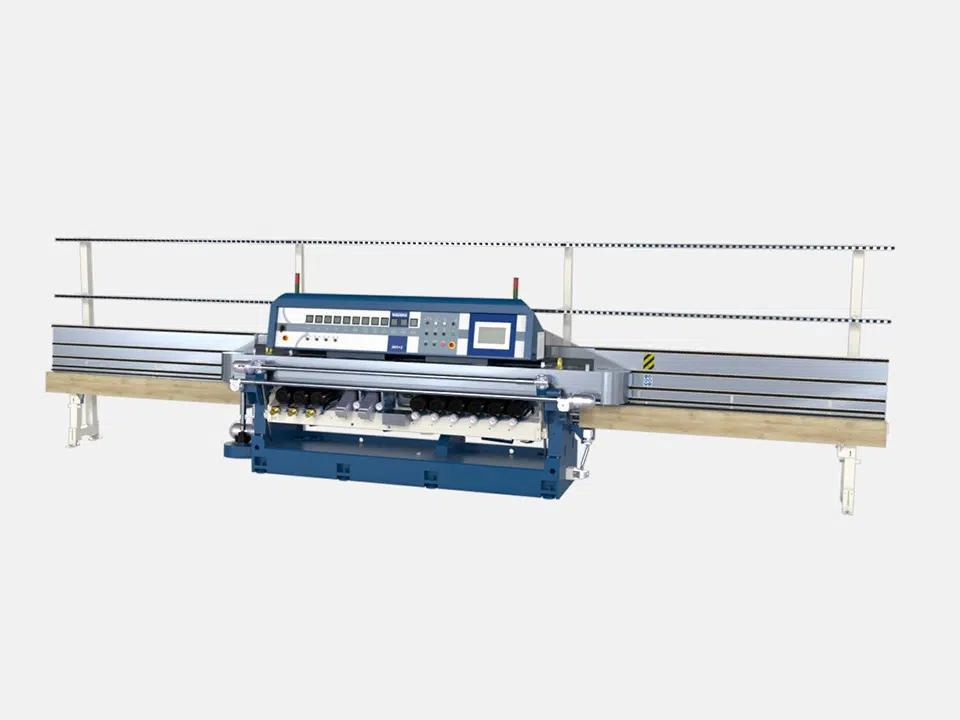

📷 Product Gallery

❓ Frequently Asked Questions

What range of glass thickness can the JGZM9325 process?

The machine is designed to process plate glass with a thickness ranging from 3mm to 25mm.

What is the minimum glass size required for operation?

The minimum glass size the machine can handle is 80mm x 80mm.

How many grinding heads (motors) does this machine feature?

The JGZM9325 is equipped with 9 motors, specifically configured for coarse grinding, fine grinding, and polishing in a single pass.

Is the processing speed adjustable?

Yes, the machine uses stepless speed regulation, allowing a processing speed range of 0.7 to 7 meters per minute.

What kind of durability features does the machine structure have?

The girder, base, and motor seats are made of high-quality cast iron that has undergone annealing treatment to ensure long-term stability and precision.

What components are used for the electrical system?

The machine utilizes reliable electrical components from manufacturers like ZhengTai and ShiNaiDe (Schneider) to ensure operational safety and longevity.
