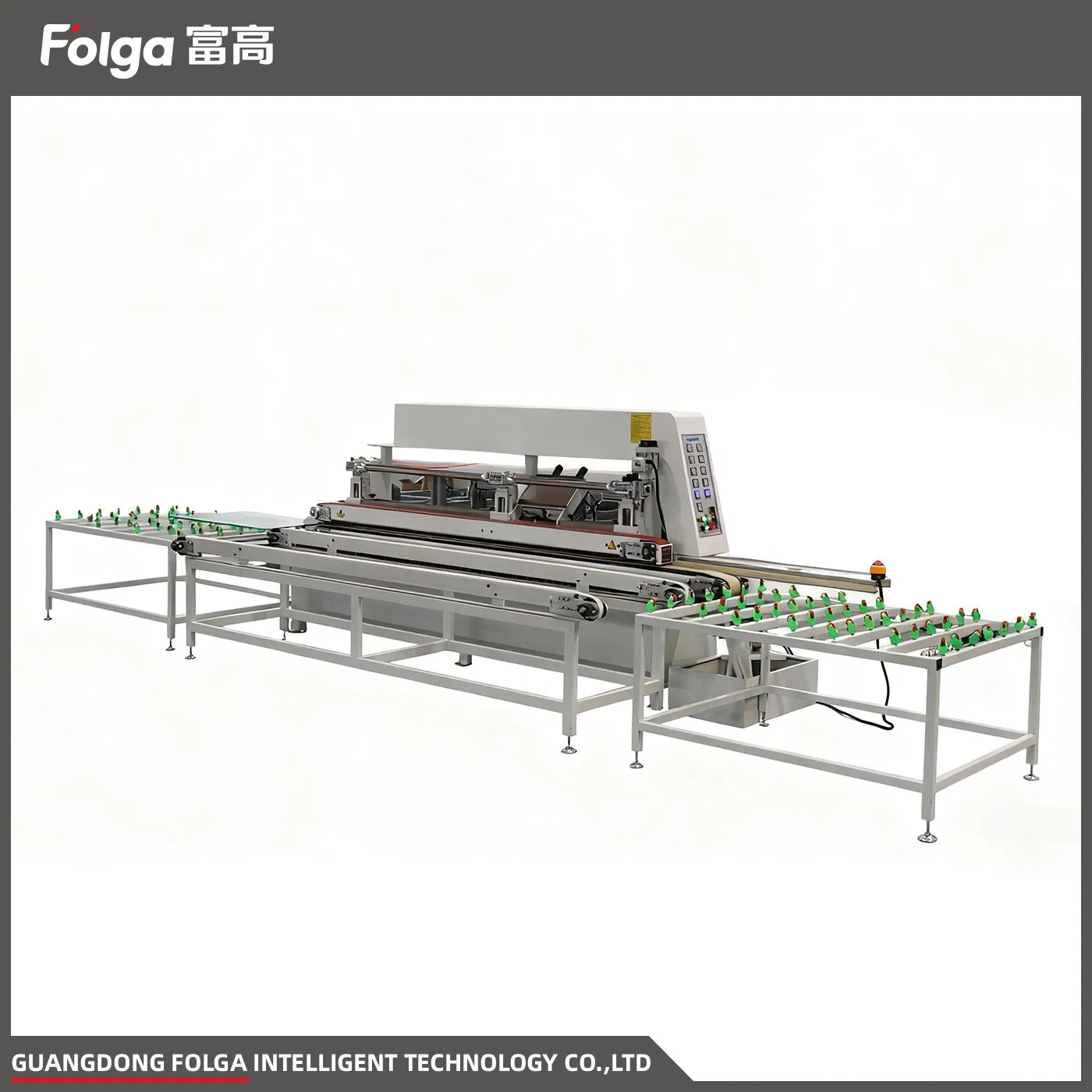

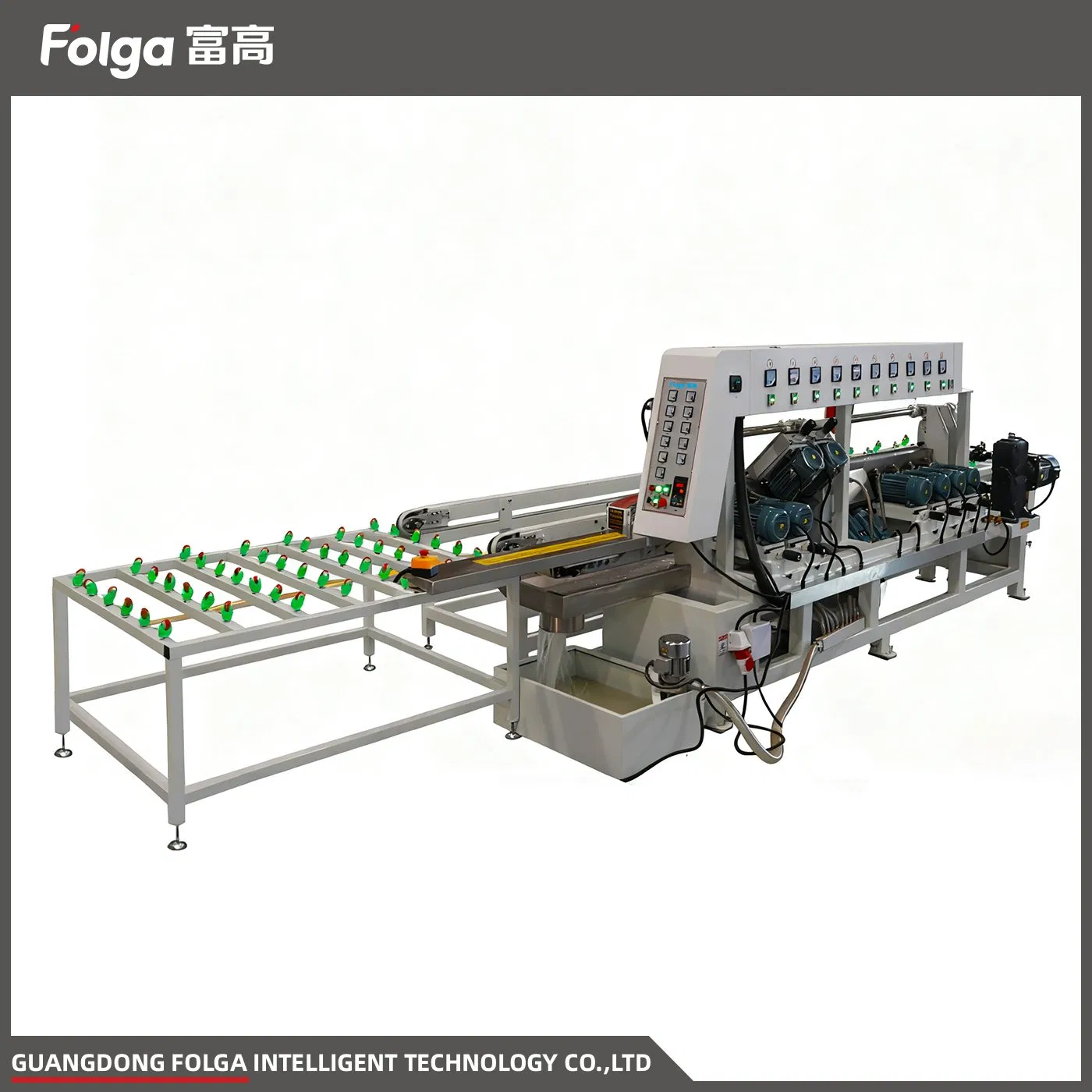

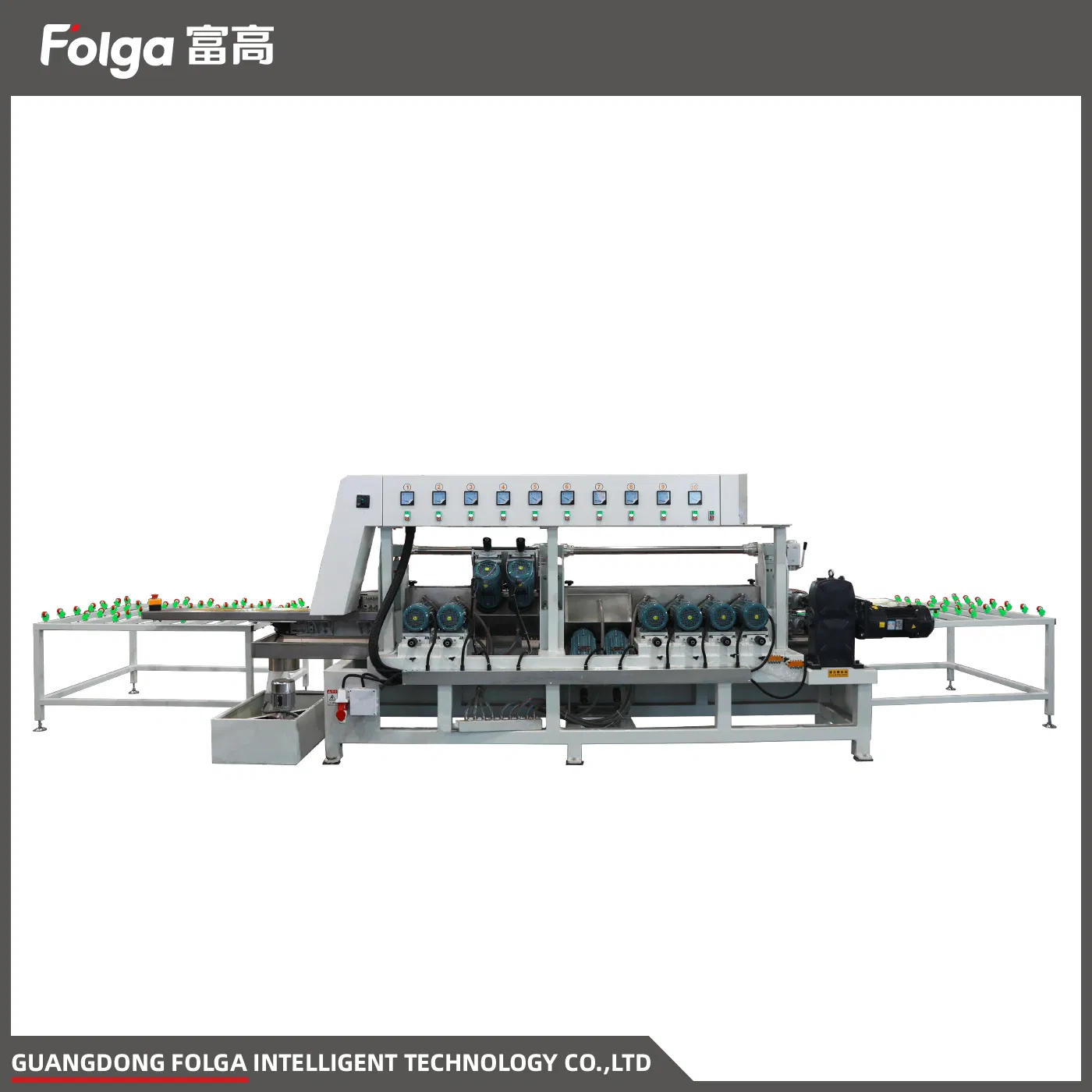

Glass Single Edging Polishing with 10 Motors for Straight Line Glass

Customization:	Available
Processing Speed:	0-0.5m/Min
Processing Thickness:	3-25mm

Basic Info & Overview

Model NO.

FSH-10

Voltage

380V

Min Glass Size

60*60mm

Working High

800mm

Weight

2500kg

Max Glass Size

Customize

Transport Package

Wood Box/Container

Origin

China

Product Description

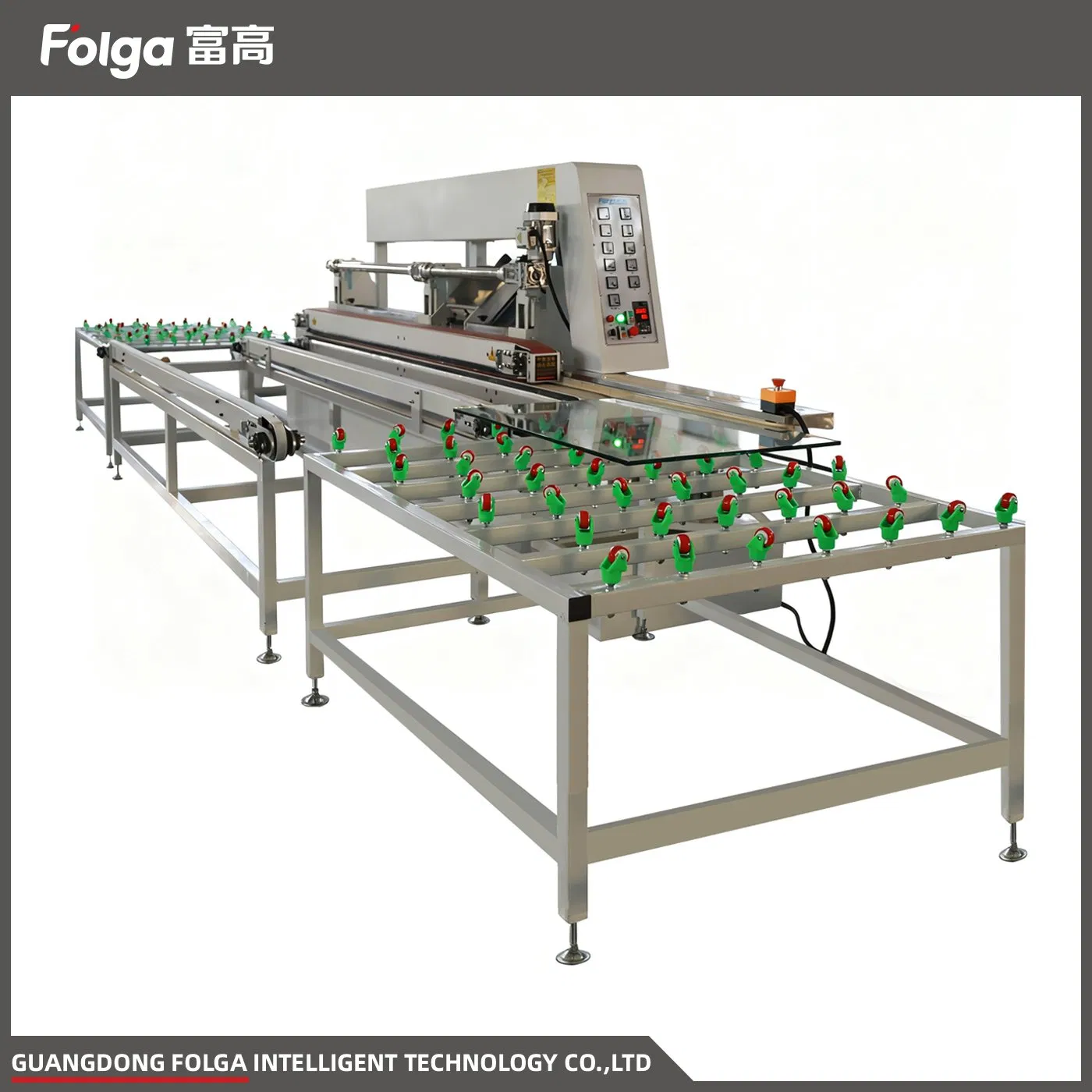

Horizontal glass single edger is used for grinding and polishing glass. The machine includes a shelf equipped with universal wheels to facilitate the smooth movement of glass sheets.

The inlet synchronous belt is 1500mm long and 30mm thick, ensuring stable glass sheet delivery.

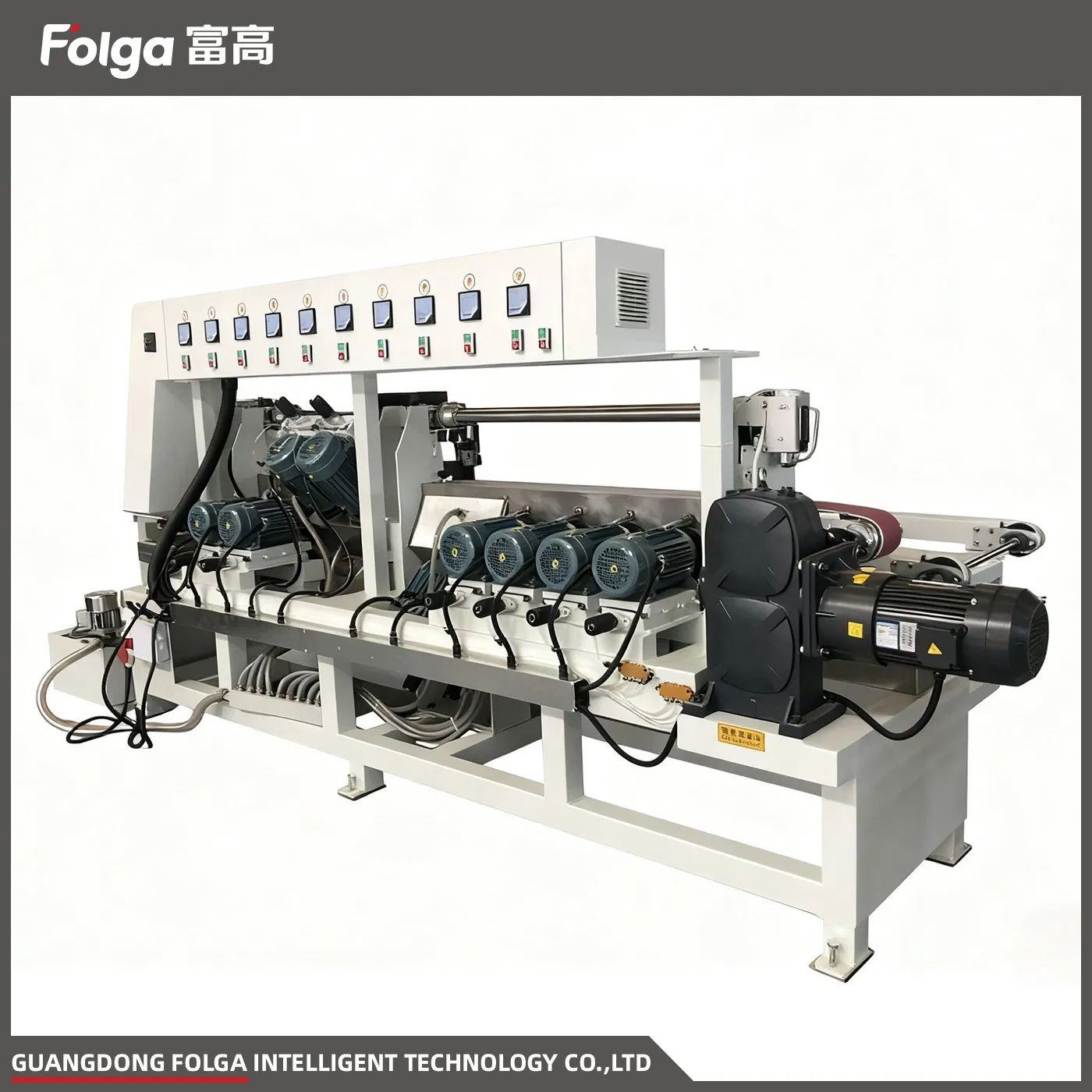

High-precise dovetail carriages support all grinding head motors, providing steady movement, high accuracy, and minimal vibration.
Lifting bridge structures and 45° chamfer capabilities allow operators to regulate height for easy clamping and wheel replacement.
Three-column upper bridge structure guarantees smooth glass pane delivery and superior grinding performance.
Ammeters located at both front and back of the motor allow for easy monitoring and control.
Integrated HMI and PLC systems for intuitive operation and high-level automation.

Technical Specification

Feature	Details
Dimensions	490012001800mm
Processing speed	0-0.5m/min
Thickness	3-25mm
Min glass size	60*60mm
Work Height	800mm
Voltage	380V
Weight	2500KG

Company Profile & Certifications

Frequently Asked Questions

What are your main products?

We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer other glass machinery such as washing machines, loading/unloading equipment, irregular glass shaping machines, and drilling machines.

How many years of experience do you have?

Established in 2004, we have 21 years of manufacturing history, ensuring stable technology, high quality, and professional after-sales service.

Are global installation services available?

Yes, we are available to dispatch engineers for on-site installation and staff training worldwide.

Can you customize machines for JUMBO glass?

Yes, we can customize glass machine sizes and specifications based on your specific requirements.

What kind of glass can be processed?

Our machines process all kinds of glass with options for shiny polishing or matte grinding. We recommend the optimum configuration based on your production needs.

What is your troubleshooting process?

We respond within 8 hours. Within 24 hours, our engineers provide step-by-step troubleshooting guides. If necessary, spare parts are dispatched immediately via DHL or other express services.
