Professional Glass Polishing Kit for Home and Auto Applications

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	10-15 m/min

Send Inquiry

Product Description

Basic Specifications

Processing Thickness:3-19 mm

Voltage:380V, 220V, 415V, 600V

Warranty:One Year

Machine Dimensions:4100*2650*2200mm

Processing Size:2500*1500mm

Weight:2600kg

Main Spindle Power:11kw

Drive System:Delta Servo

Main Functions:Grinding and Polishing

Structure:Horizontal

Tool Magazine:5 PCS

Production Capacity:50 Sets Per Month

Product Description

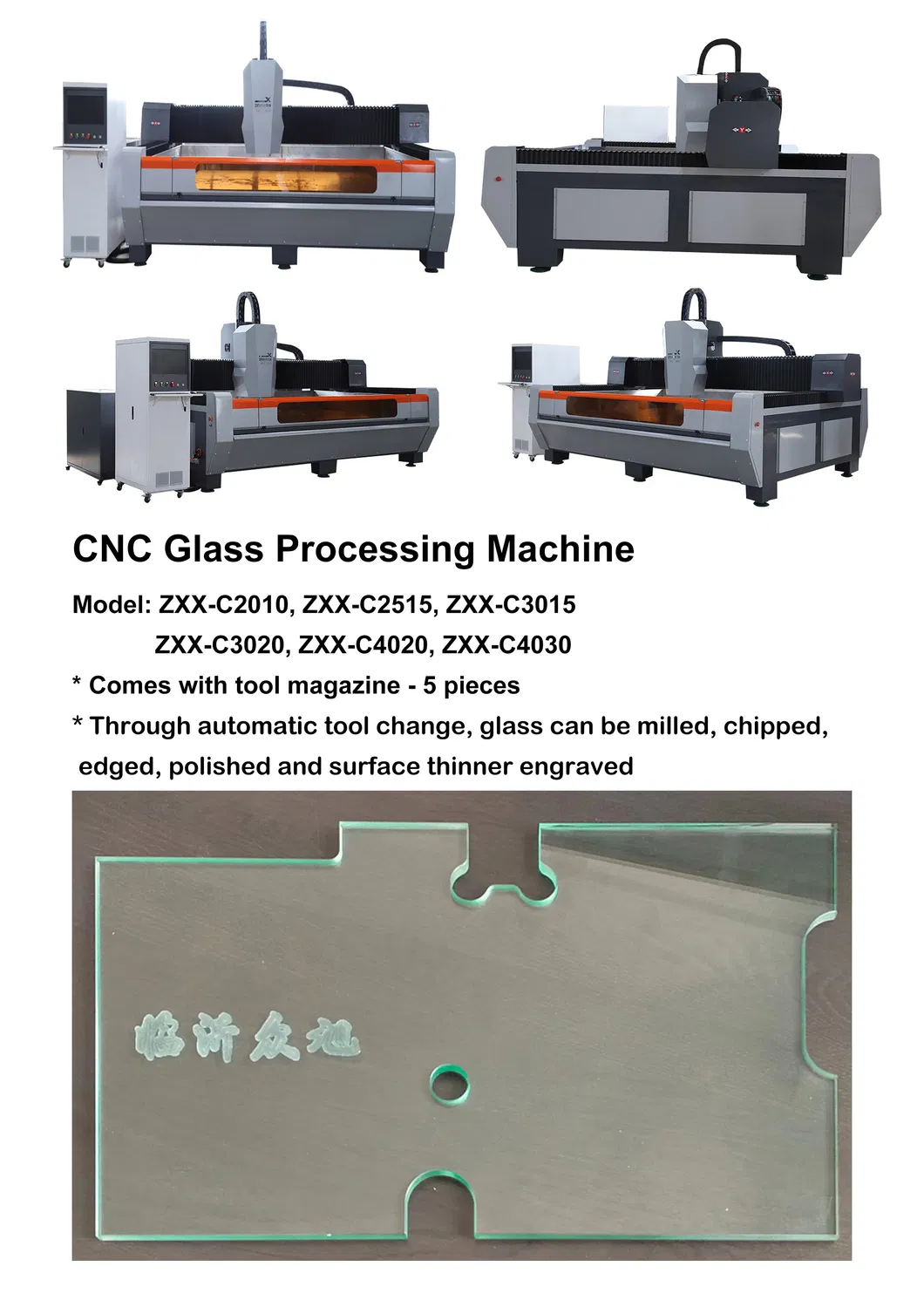

Advanced CNC Glass Machining Center

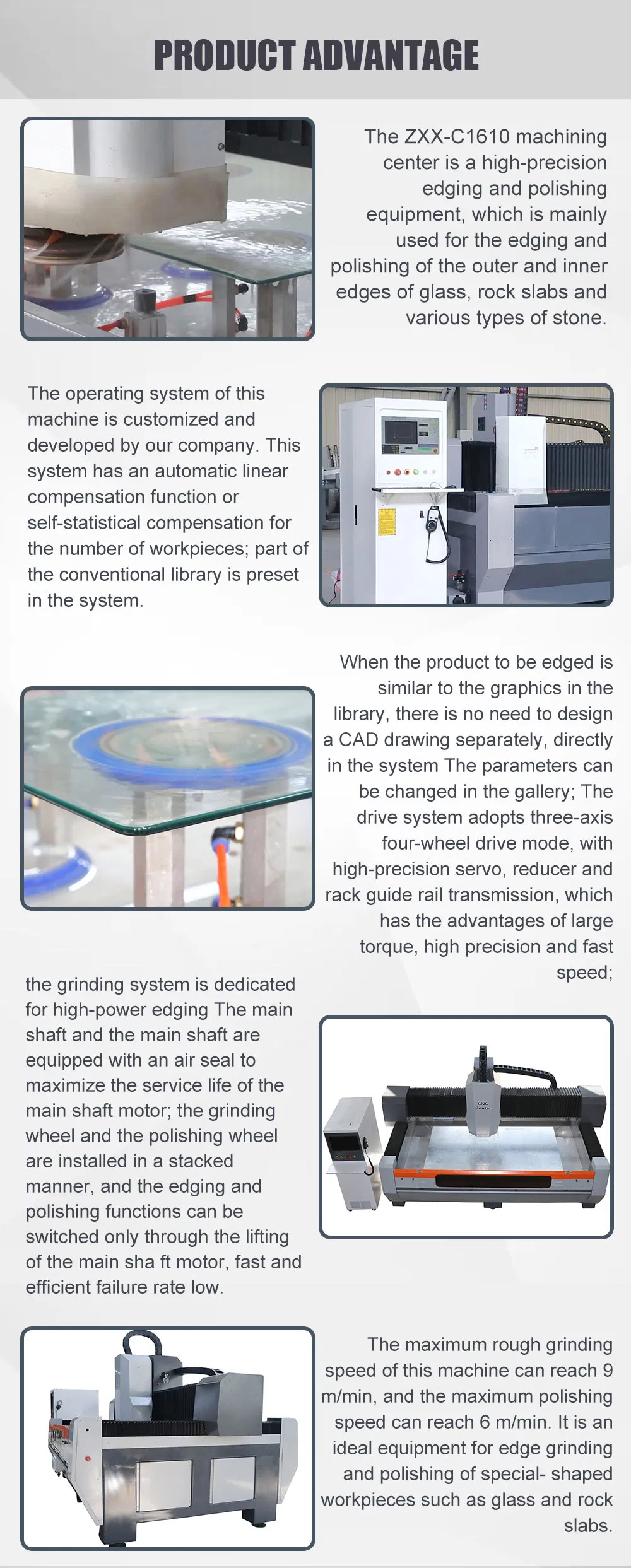

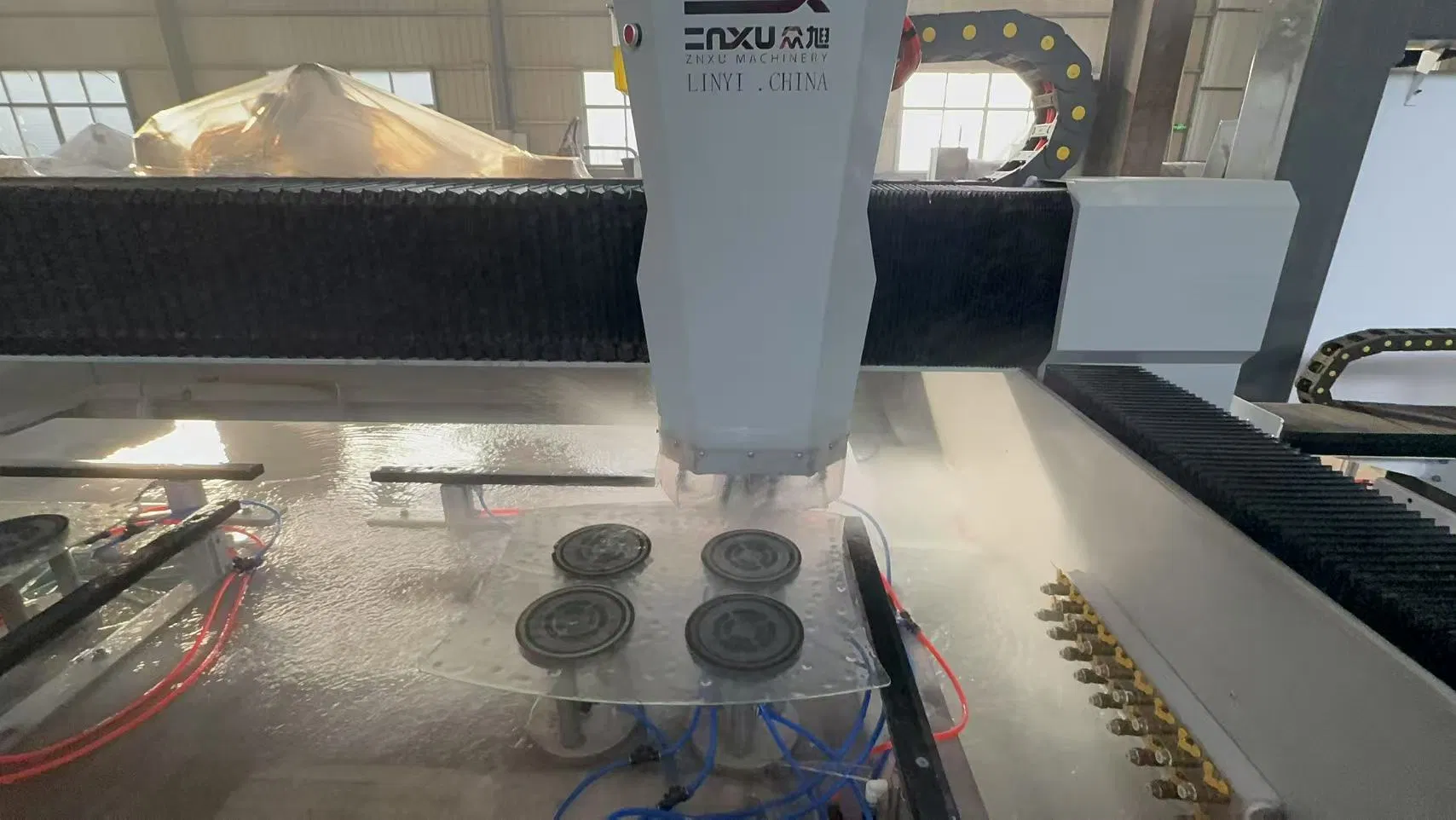

The PC based numerical control work center is dedicated to glass processing. Cutter heads can be moved left and right, up and down through the three-axis linkage structure controlled.

The base, the columns & beams are made of Heavy iron to ensure the stability of the machine for long-term operation. The drive adopts servo motor, and the sliding adopts imported high-precision linear guide rail to ensure running, slider and ball screw, which ensures the accuracy requirement during operation.

The design concept of this machine is to provide cost-effective equipment for glass deep processing enterprises. The structure is simplified while combining multiple functions for easy operation.

Key Features

⚙️ 3 axes linkage structure
🤖 Fully automated glass processing center
✨ Rough edging, fine edging, polishing
🌀 Glass drilling and milling
🛠️ Automatic tool changing system
❄️ Automatic spindle cooling
🛢️ Automatic central lubricating system
📏 Automatic tool calibration system
🏠 Compact and space effective design
🚗 Ideal for shower door and automotive glass

Technical Specifications

Machine Bed	Heavy heat treatment bed
Internal Structure	Half Cover/Waterproof design

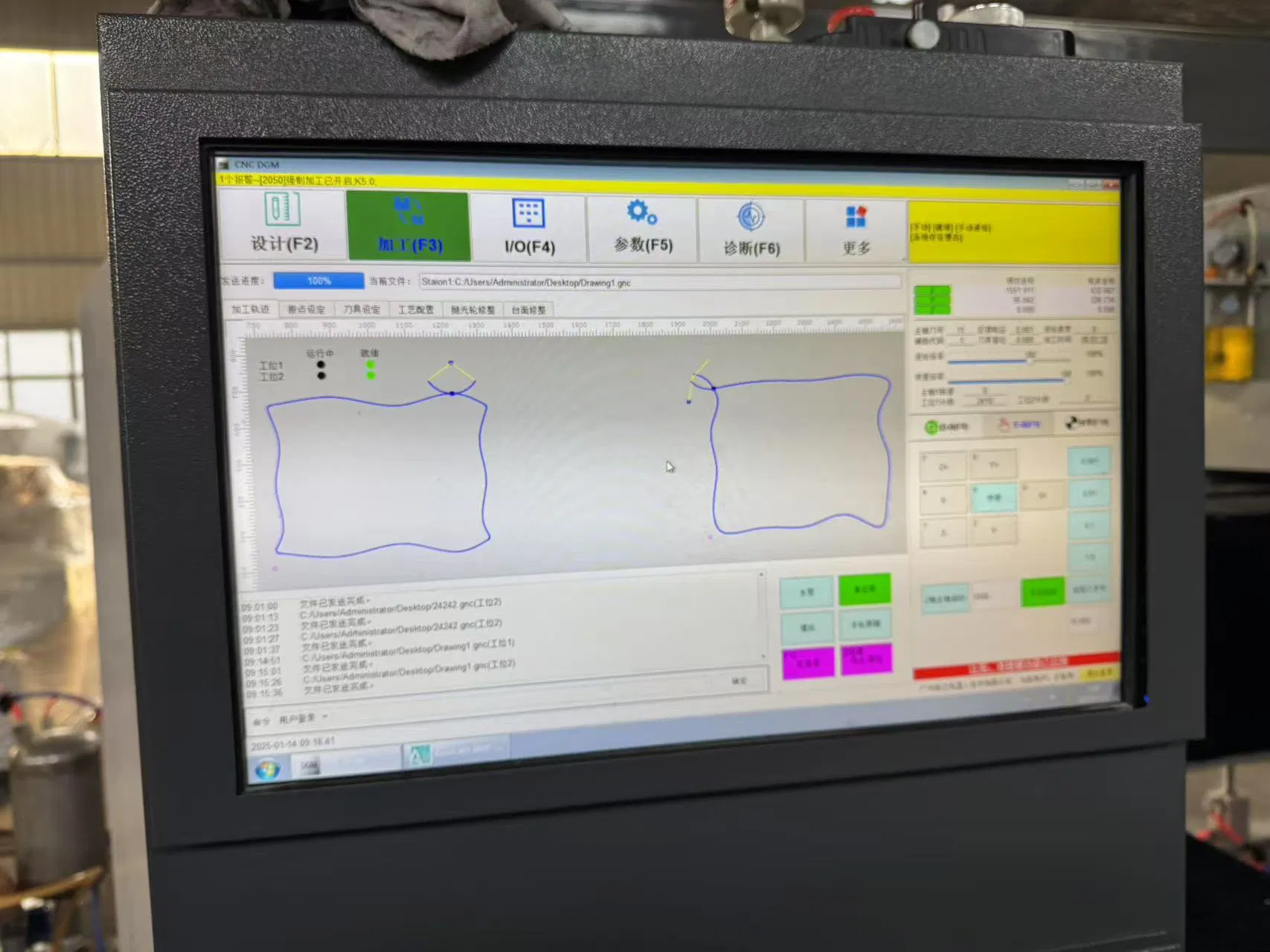

Control System	Special designed CNC Control
Main Spindle	DIAM θ150, Water Cooling, 12000 RPM, 15kw
Work Travel	2500 * 1500 * 380 mm
Max Grinding Size	2350 * 1350 mm
Cutting Speed	250mm-1500mm/min
Position Accuracy	0.1mm
Servo Motor	DELTA Servo
Total Power	24kw

Packaging & Delivery

Package Size:220.00cm * 320.00cm * 150.00cm

Package Gross Weight:200.000kg

Transport Package:Standard Export Package

Visual Gallery

Frequently Asked Questions

Q1: What range of glass thickness can this CNC center handle? A1: This machine is designed to process glass with a thickness range of 3mm to 19mm.

Q2: What are the primary functions of this equipment? A2: It is a multi-functional center capable of rough edging, fine edging, polishing, drilling, and milling.

Q3: How does the automatic tool changing system work? A3: The machine features a tool magazine with 5 PCS capacity, allowing for automated transitions between different processing stages like grinding and polishing.

Q4: What ensures the precision and stability of the machine? A4: Stability is provided by a heavy iron base and heat-treated bed, while precision is maintained through Delta servo motors and imported high-precision linear guide rails.

Q5: Is this machine suitable for automotive glass production? A5: Yes, its robust design and high precision make it an excellent solution for automotive glass, shower doors, and other glass furniture applications.

Q6: What are the cooling and lubrication requirements? A6: The machine includes an automatic water-cooling system for the spindle and an automatic central lubricating system to ensure long-term, maintenance-free operation.
