Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
1 / 5
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line
Glass Tempering Furnace for Tempered Glass Making Production Line

Glass Tempering Furnace for Tempered Glass Making Production Line

Customization: Available
Certification: CE, ISO
Control System: PLC
Send Inquiry

Product Description

i

Basic Information

Model NO.:GS-TAQ2436/2442/3050
Warranty:12 Months
Name:Glass Tempering Furnace Machine
Function:Tempering Glass
Usage:Tempering Furnace Machine for Tempering Glass
Glass Thickness:4-19mm
Max Glass Size:2000*2500mm
Structure:Horizontal
Condition:New
After-sales:24 Hours Support
★

Product Description & Features

Flat Glass Tempering Furnace Machine Key Features:

  • Top installed special heat-proof convection fan for superior performance.
  • Equipped with two sets of cooling and tempering blowers (Large KW and Small KW) for optimized energy saving and efficiency.
  • Convection system crafted with high-quality stainless steel, ensuring heat-resistance and antioxidant properties.
  • Advanced blowing design with special trough-type technology, capable of processing 3.5-19 mm glass.
  • Compatible with multiple glass types: off-line/on-line low-E glass, extra white glass, screen printed glass, pattern glass, color glass, and clear glass.

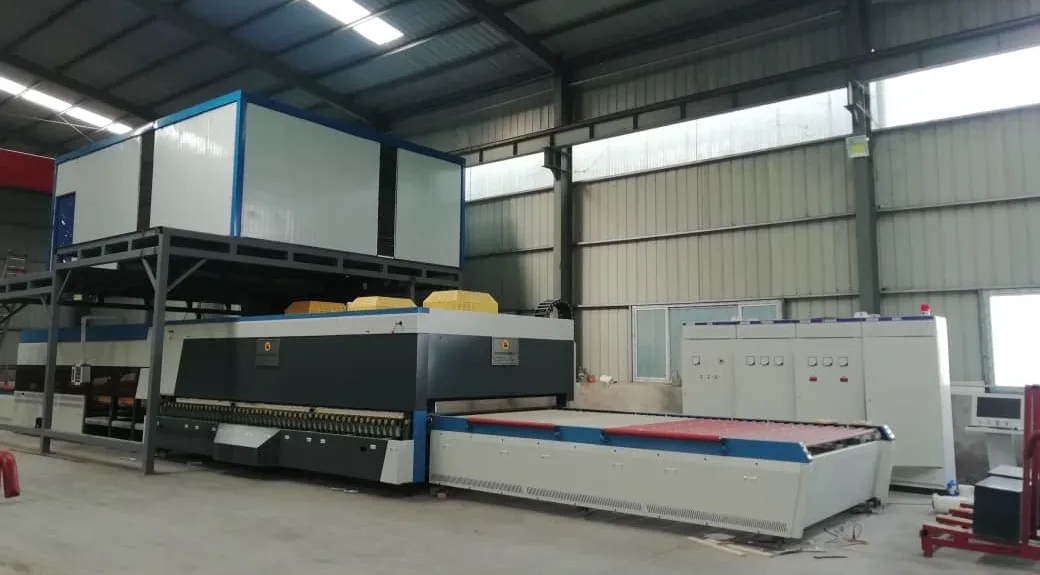

Glass Tempering Furnace Machine Overview

Advanced Technical Capabilities:

  • Computer-controlled curvature forming process: Input radius data for automated production.
  • Materials: High-grade aluminum-alloy wheels equipped with fiber rope.
  • Automated quench transmutation: Forming method operates without the need for manual molds.
  • Precision sensors included for accurate glass length measurement.
  • Versatile operation: Easily switch between different glass thicknesses or radii.
📷

Detailed Photos

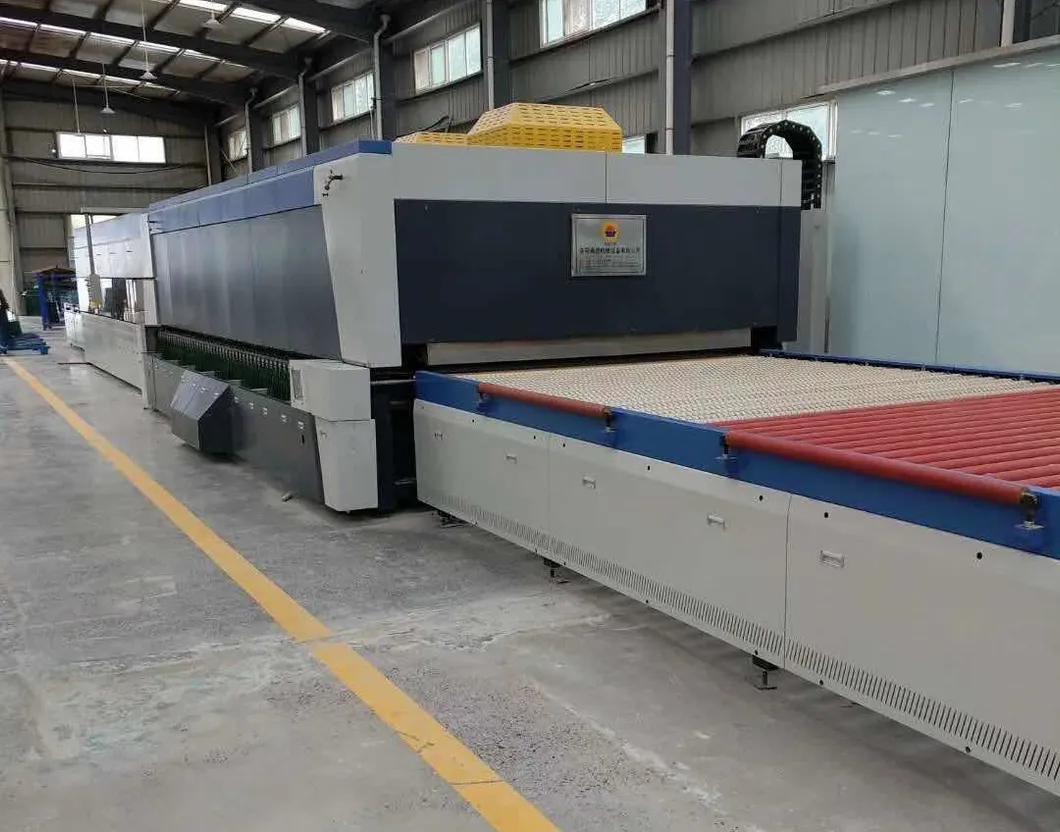

Furnace Detail 1

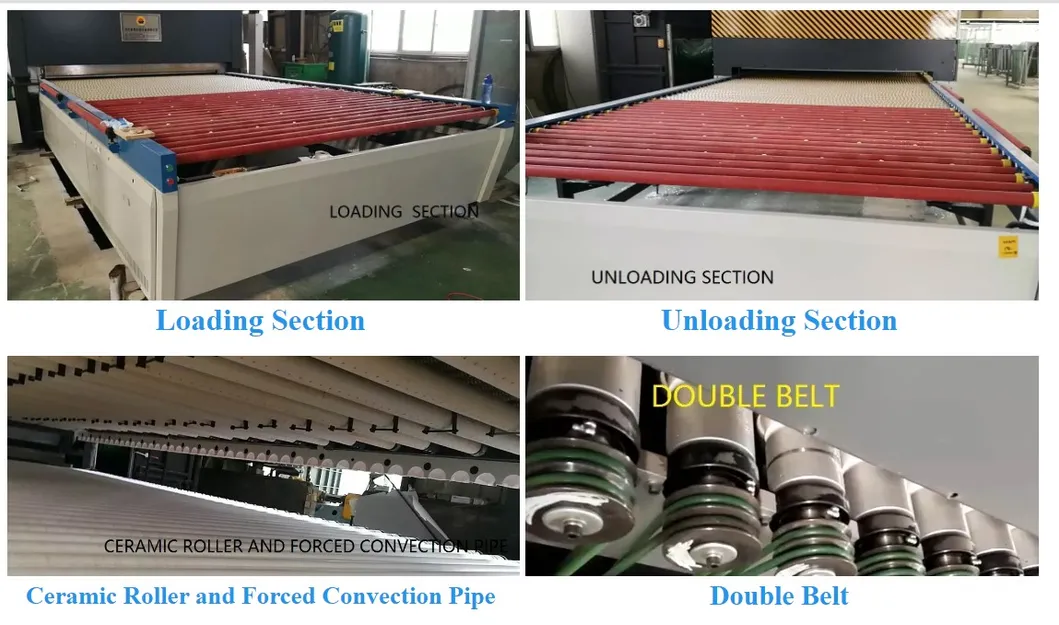

Furnace Detail 2

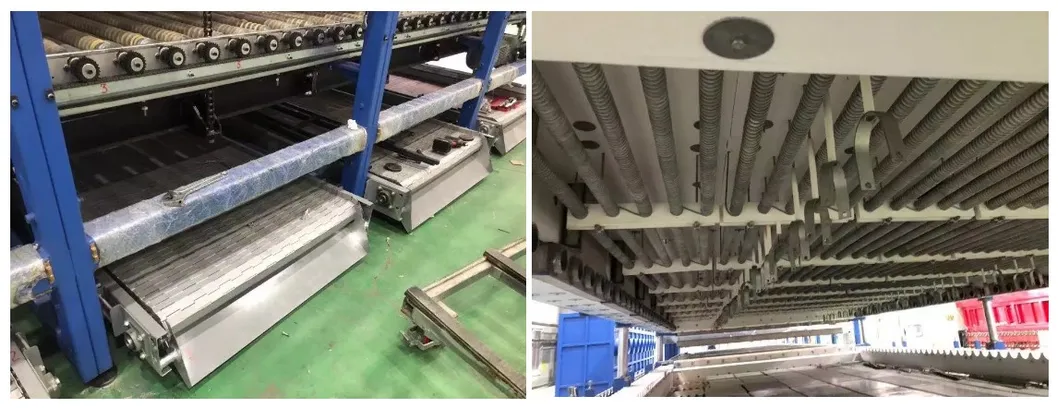

Furnace Detail 3

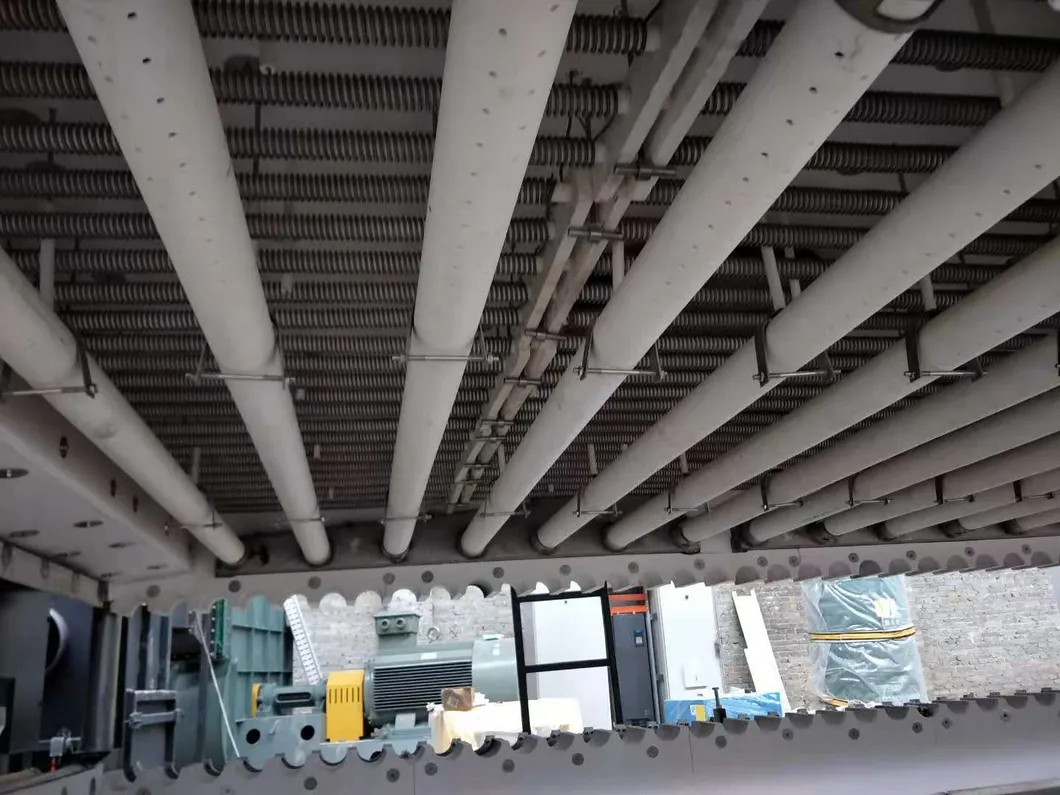

Production Line View
⚙

Product Parameters

Model Max Loading (mm) Min Size (mm) Thickness (mm) Output (m²/h) Capacity (KVA)
AT-TA12251250×2500100×2503-1953200
AT-TA16361600×3660100×2503-1991400
AT-TA20362000×3660100×2504-19126500
AT-TA24362440×3660100×3004-25152630
AT-TA24422440×4200100×3004-25173630
AT-TA24502440×5000100×3004-25202800
AT-TA24602440×6000100×3004-252451000
AT-TA28422850×4200200×3505-25213800
📦

Packaging & Facilities

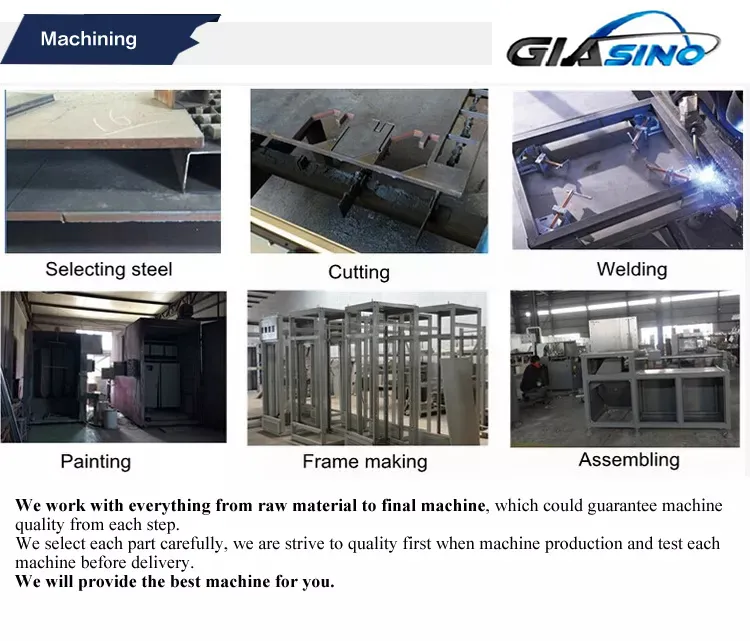

Facility 1

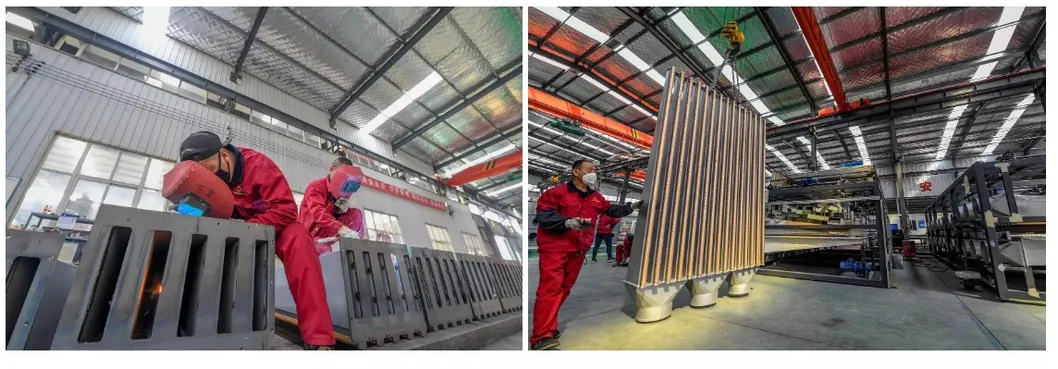

Facility 2

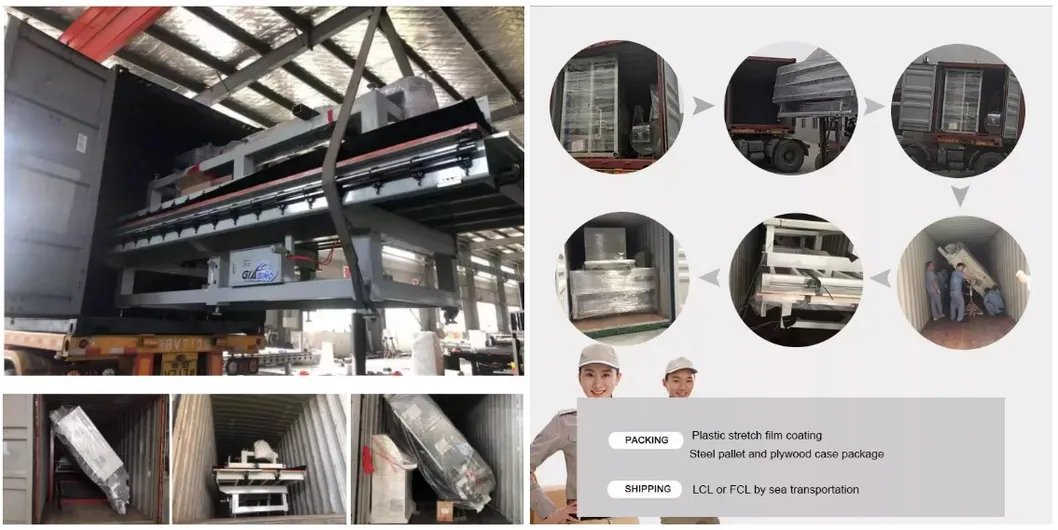

Packaging and Shipping
?

Frequently Asked Questions

What types of glass can be processed by this furnace?
The furnace is highly versatile and can temper off-line low-E glass, on-line low-E glass, extra white glass, screen printed glass, pattern glass, color glass, and standard clear glass.
What is the range of glass thickness supported?
Depending on the specific model, the furnace supports glass thicknesses ranging from 3mm to 25mm. Most standard models handle the 4-19mm range efficiently.
How do you ensure the quality of the tempered glass?
We implement a strict quality control process, including pre-production sample checks and a final inspection before shipment. All equipment comes with a one-year warranty.
Is the tempering process automated?
Yes, the process for glass curvature and tempering is computer-controlled. Users can input specific radius data, and the machine performs automatic quench transmutation without needing separate molds.
What is the energy efficiency of this machine?
Our furnace is equipped with dual blowers (a larger and a smaller KW set) specifically designed to improve efficiency and significantly reduce energy consumption during the cooling and tempering stages.
What other glass processing machinery do you provide?
In addition to tempering furnaces, we offer glass cutting machines, insulating glass machines, glass washing machines, and glass ceramic products kilns.
