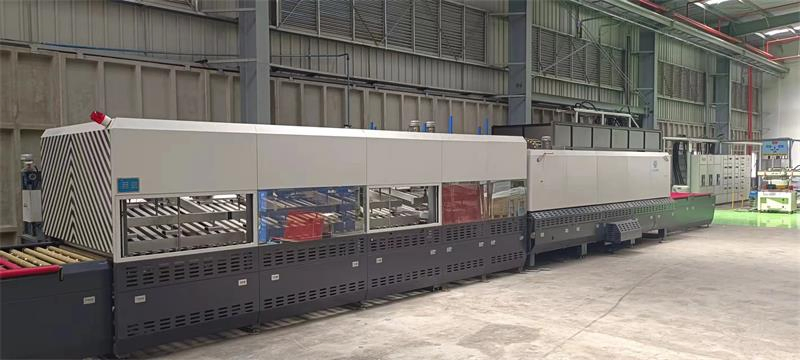

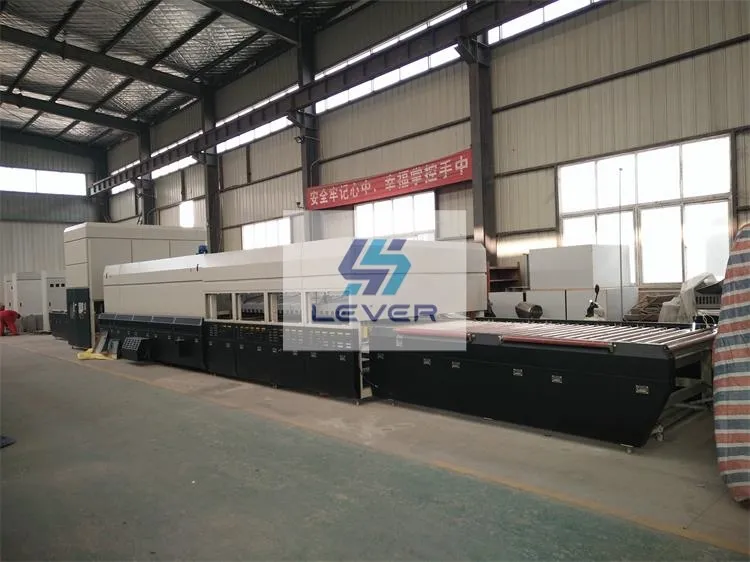

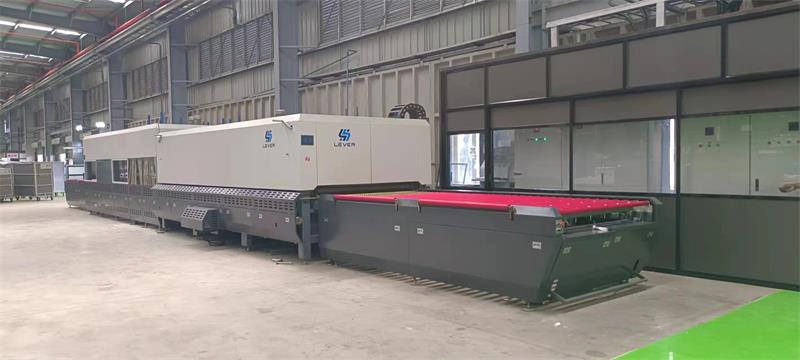

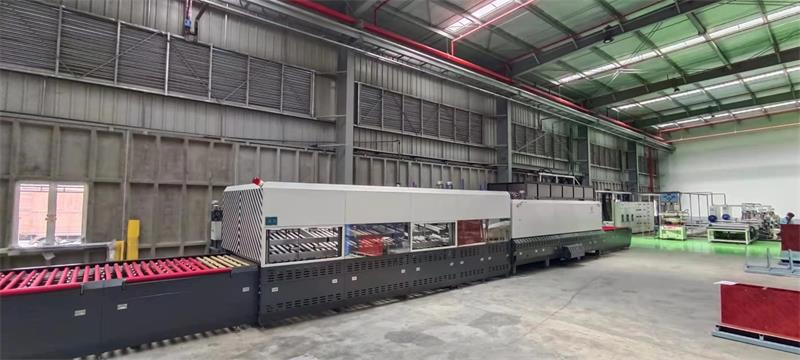

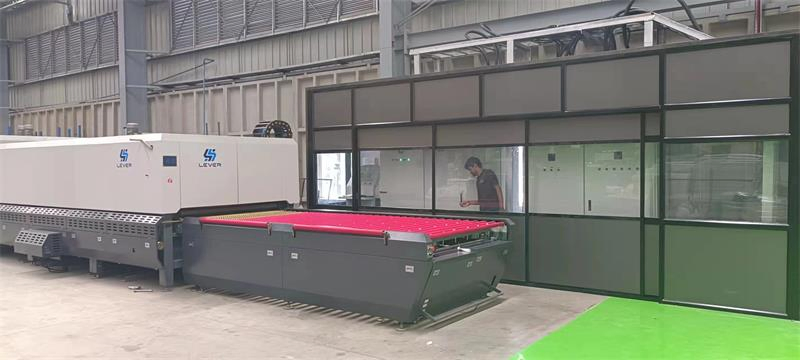

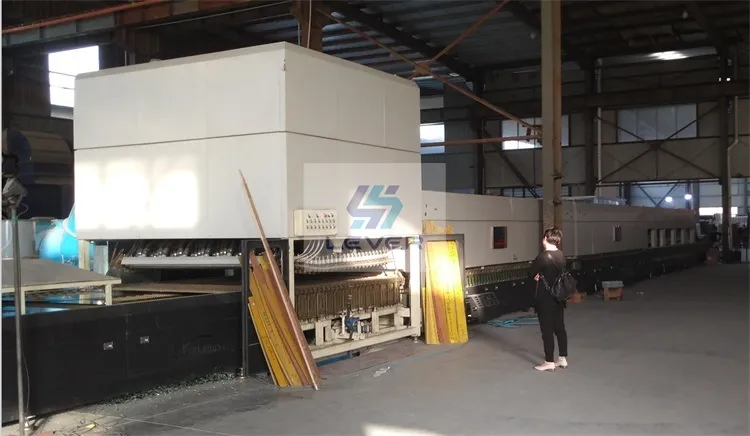

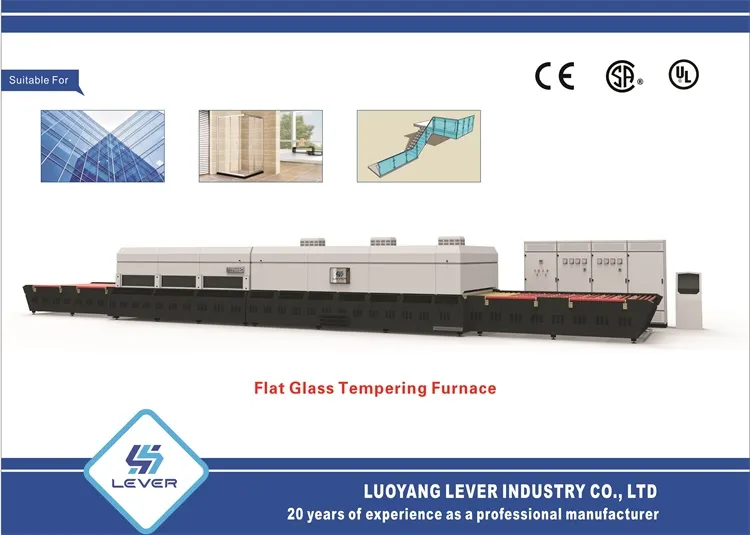

Flat/bent glass tempering furnace is a special plant used to produce flat and bent tempered glass and thermal strengthened glass. It is primarily used in fields such as architecture (doors, windows), automotive side doors/windows, shower rooms, home appliances, garden fences, elevators, furniture, and more.
With force convection system, the Low-e glass could be processed, especially for soft (off-line) Low-e glass.
| Model | Max. Size (mm) | Min. Size (mm) | Thickness (mm) | Capacity (Loads/Hour) |
|---|---|---|---|---|
| LV-TF0812 | 800x1200 | 100x150 | 3-19 | 15-16 |
| LV-TF1225 | 1200X2500 | 100x250 | 3-19 | 15-16 |
| LV-TF1525 | 1500X2500 | 100x250 | 3-19 | 15-16 |
| LV-TF2036 | 2000X3600 | 150x280 | 4-19 | 15-16 |
| LV-TF2442 | 2440X4200 | 150x320 | 5-19 | 15-16 |
| LV-TF33120 | 3300X12000 | 200x500 | 5-19 | 14-15 |
The furnace is suitable for clear float glass, reflective glass, hard and soft Low-E glass, patterned glass, body-tinted glass, and silk screen printed glass.
Yes, with the integrated force convection system, it can efficiently process soft (off-line) Low-E glass with emissivity E≥0.01.
The machine utilizes a high-quality Siemens PLC and Schneider or Siemens inverters to ensure stable and intelligent operation.
The standard thickness range is from 3mm to 19mm, depending on the specific machine model and size selected.
It uses a gapless heating element design (parallelogram shape) combined with ceramic plates at the top of the oven to ensure even heat distribution and high-quality results.

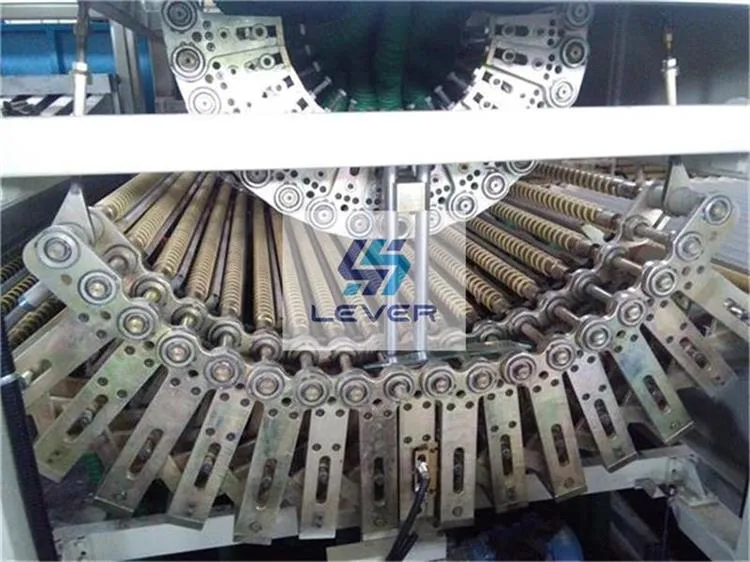

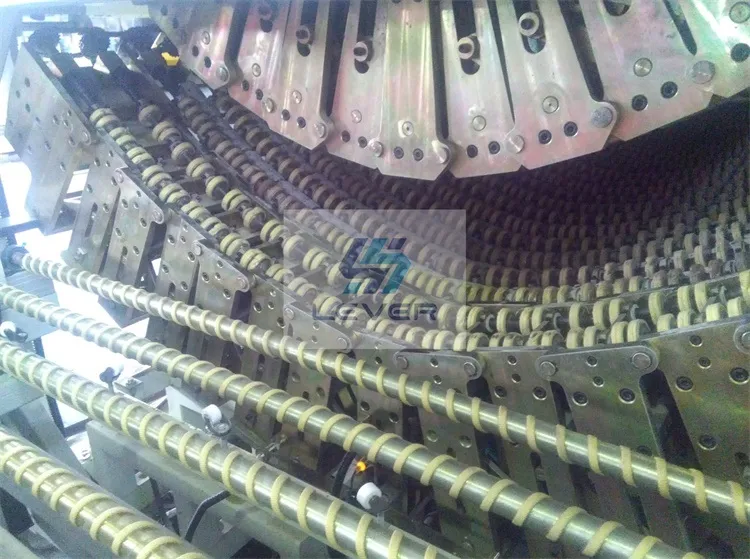

Yes, the furnace includes both flat and bent tempering and cooling sections to cater to various architectural and automotive glass requirements.
