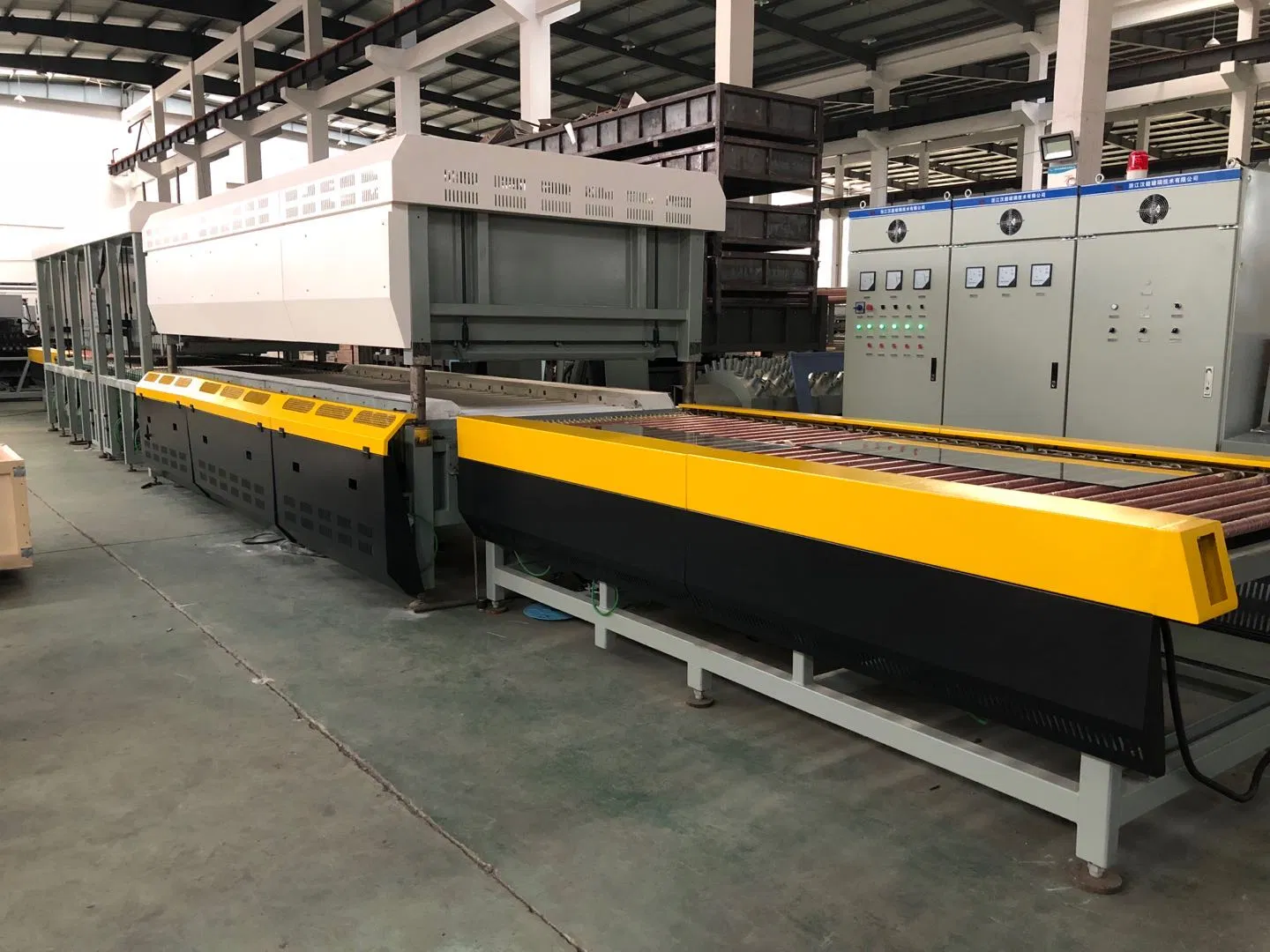

Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
1 / 5
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line
Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line

Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line

Customization: Available
Certification: CE, ISO
Convection: Turbo Blower
Send Inquiry

Product Description

Technical Specifications Overview

Ceramic Roller
Vesuvius
Inverter
Germany
Heating Wires
Ni-Cr Type
Transformer
500kVA
Productivity
18-20 batch/Hour
Installation
Free Installation Commissioning and Training
Glass Thickness
4-19mm
Type
Glass Tempering Furnace
Structure
Horizontal
Condition
New
Specification
2440*3660mm
Origin
China

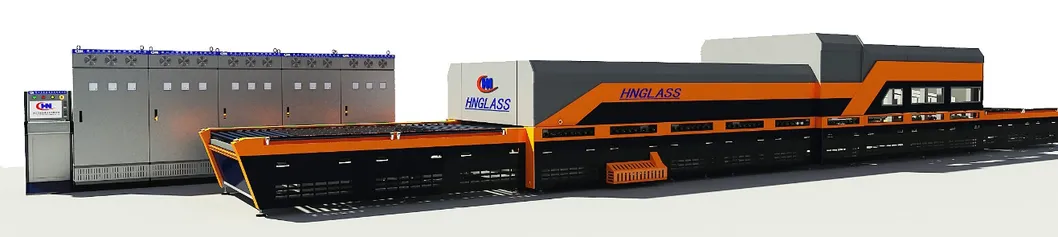

Glass Tempering Furnace Production Line

Glass Can Be Tempered

  • Float Clear Glass
  • Low-E Glass
  • Screen Printing Glass
  • Tinted Glass
  • Patented Glass

Applications

  • Building Glass
  • Furniture Glass
  • Insulation Glass
  • Laminated Glass

Model Specifications

Model Max Glass Size (mm) Mini Glass Size (mm) Thickness (mm) Productivity (m²/h) Power (KVA)
HNT-A0510Q500x100050x802.5-129.2100
HNT-A1020Q1000x200050x1503-1236.8120
HNT-A1225Q1250x2500100x2504-1950150
HNT-A1630Q1600x3000100x2504-1976.8250
HNT-A2030Q2000x3000100x2504-1996350
HNT-A2436Q2440x3660100x3004-19142500
HNT-A2442Q2440x4200100x3004-19164630
HNT-A2450Q2440x5000200x3004-19195800
HNT-A2460Q2440x6000200x3504-19234900
HNT-A2850Q2850x5000200x3004-19224900
HNT-A2860Q2850x6000200x3504-192681000
HNT-A3380Q3300x8000200x5005-193801500

Scope of Supply

  • Loading table
  • Heating section
  • Flat tempering & cooling section
  • Bent tempering section
  • Unloading table
  • Blower system with Inverter
  • Electrical & control system (Siemens PLC, Computer, etc)
  • Technical documents

1. LOADING TABLE

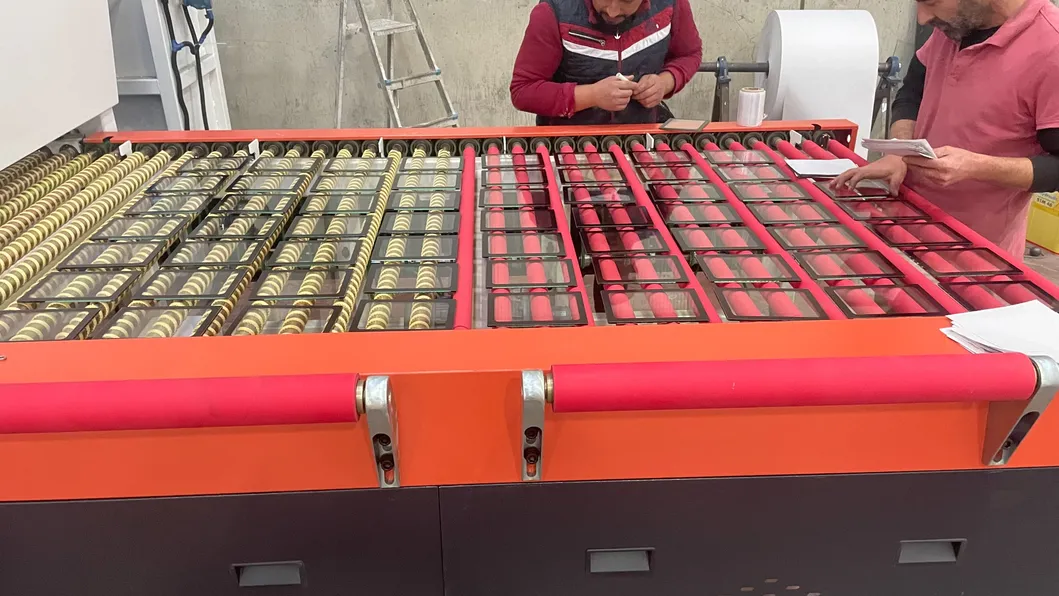

Loading Table
  • Automatic sensing step for convenient loading.
  • PTFE straight handle universal wheel with high strength quality.
  • Automatic lift/Lower function to prevent glass from smashing during unloading.

2. HEATING SECTION

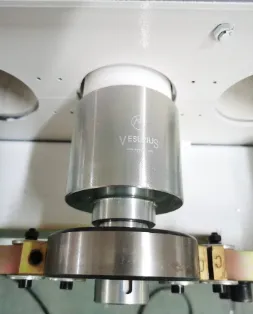

Heating Detail 1
Heating Detail 2

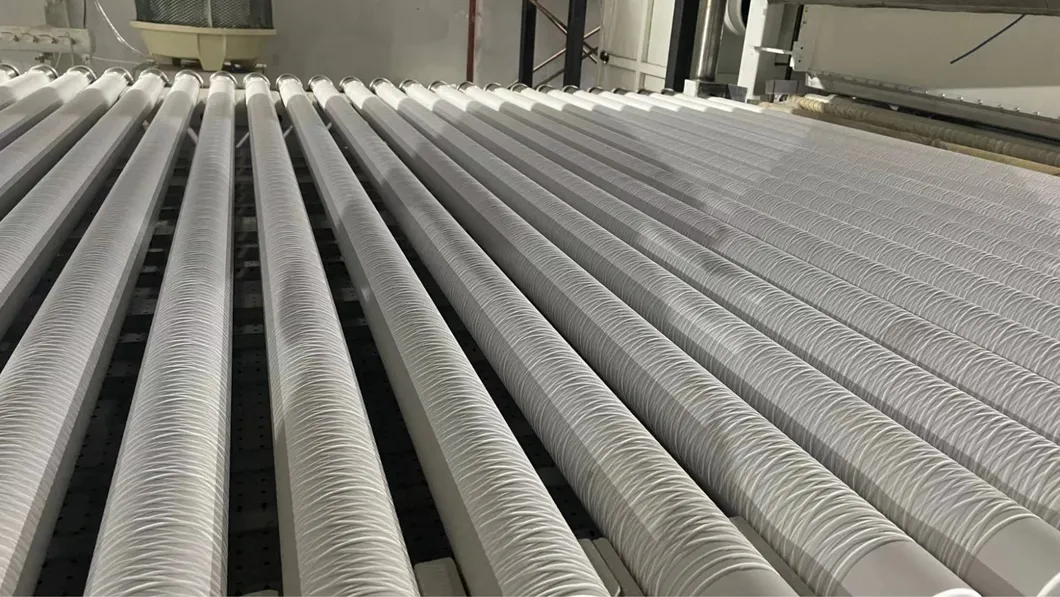

Heating Detail 3

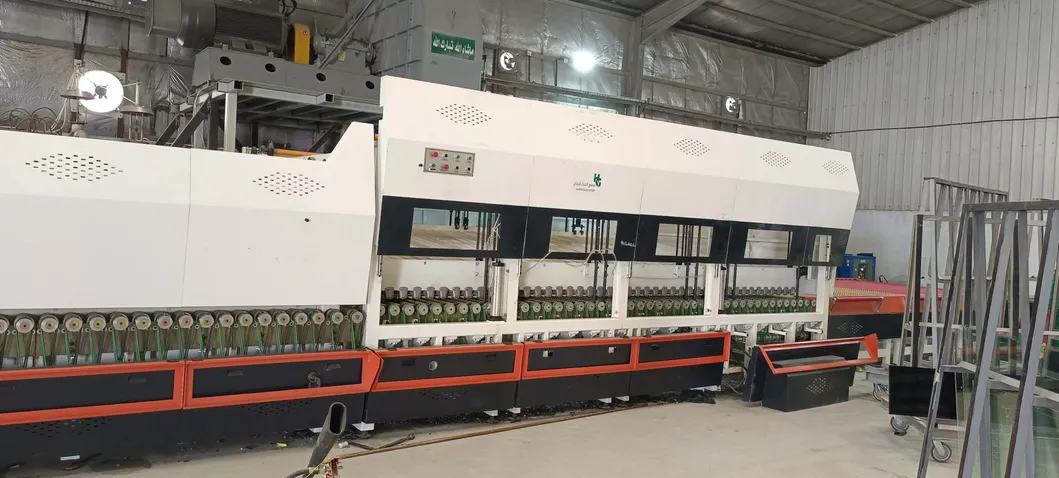

Heating Detail 4

3. TURBO BLOWER CONVECTION

  • Realize partial area convection for precise control.
  • Turbo blower can be stopped during clear glass production to save energy.
  • Compact installation size with excellent heat preservation.
  • Exterior installation allows for convenient maintenance.
  • Inverter-controlled system for easy adjustment and low power demand.

Frequently Asked Questions (FAQ)

Q: What glass thicknesses can this furnace process?
A: The furnace supports glass thicknesses ranging from 4mm up to 19mm, with specific models handling down to 2.5mm.
Q: Is the furnace compatible with Low-E glass?
A: Yes, it is specifically designed to temper various glass types including Low-E, Tinted, and Screen Printing glass.
Q: What brands of components are used in the furnace?
A: The machine utilizes high-quality international components such as Vesuvius ceramic rollers, German inverters, and Siemens PLC control systems.
Q: What is included in the installation service?
A: We provide free installation, commissioning, and comprehensive technical training for your operators.
Q: How does the turbo blower save energy?
A: For common clear glass production, the turbo blower convection system can be fully stopped, significantly reducing power consumption.
Q: What is the maximum glass size available?
A: Depending on the model, the furnace can handle maximum glass sizes up to 3600mm x 8000mm.
