| Model NO. | ZK2436 (5-19mm) |
| Type | Glass Tempering Furnace |
| Glass Thickness | 5 - 19mm |
| Maximum Specification | 2440*3660 mm |
| Minimum Specification | 100*300 mm |
| Comprehensive Yield | Not Less Than 98% |
| Power Consumption | Less Than 3.5 °/M2 - 5mm |
| Production Quantity | 16-18 Heats/Hours (5mm); 13-15 Heats/Hours (6mm) |
| Heating Power | 535kw |
| Fan Power | 185kw |
| Transformer | 630 kVA |
| Glass Quality | Better Than National Standards |
| After-sales Service | Lifetime Warranty |

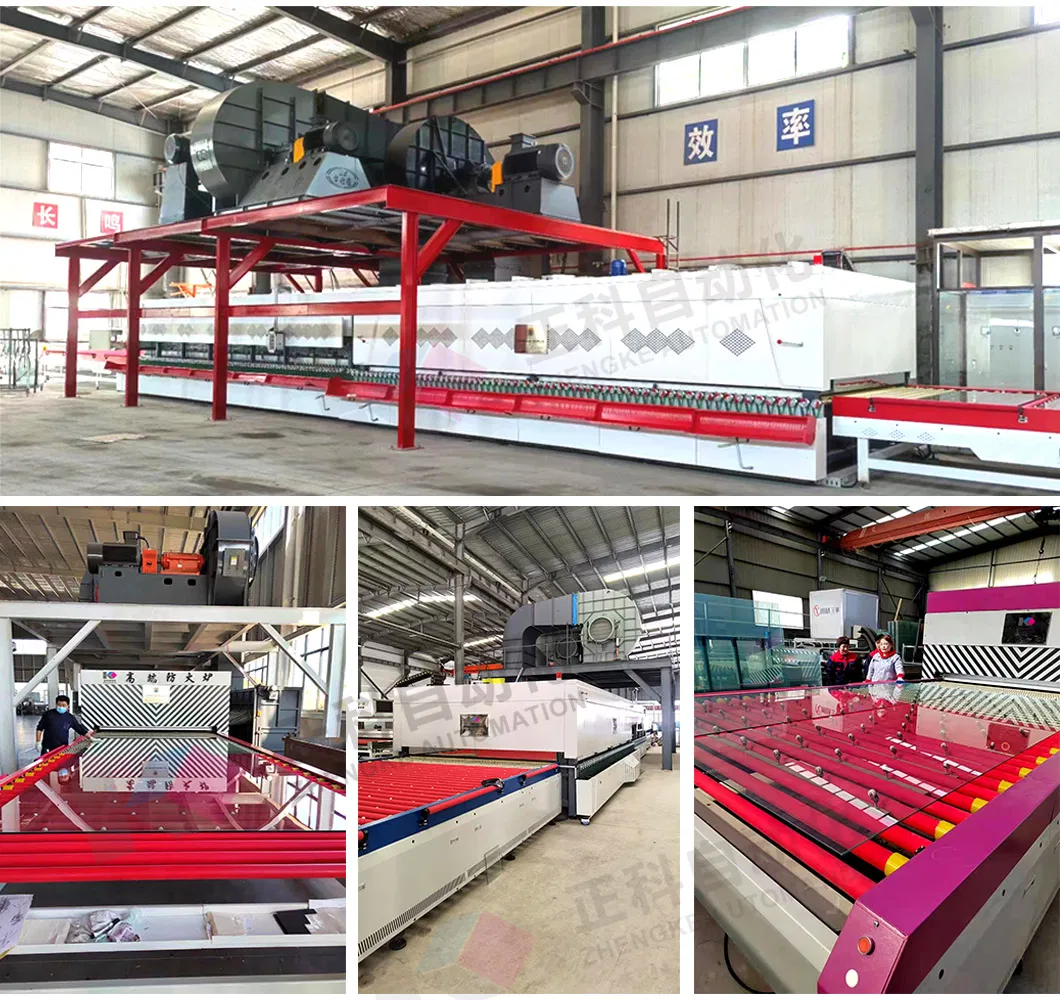

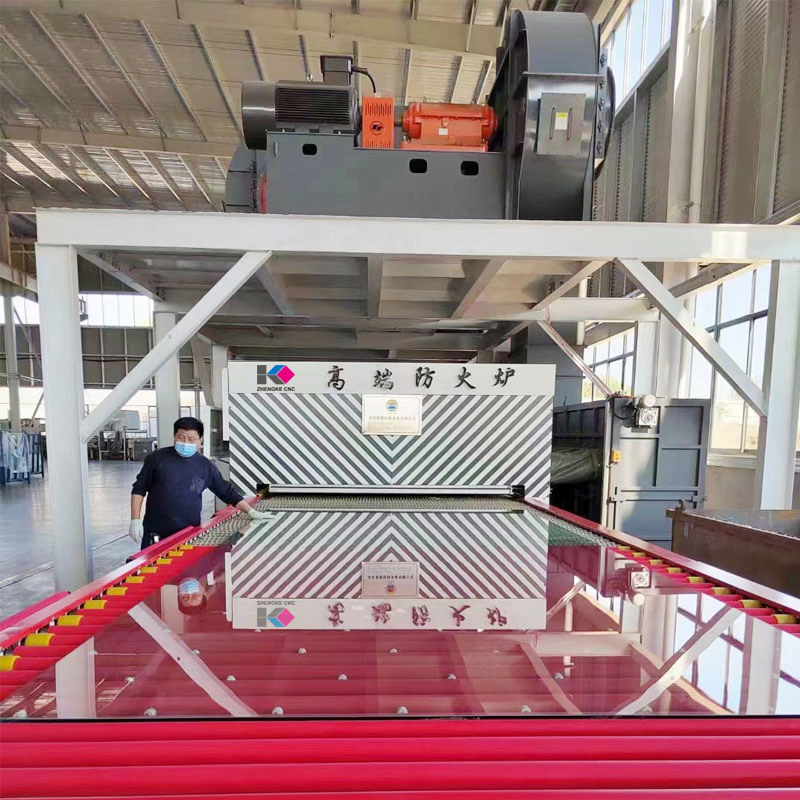

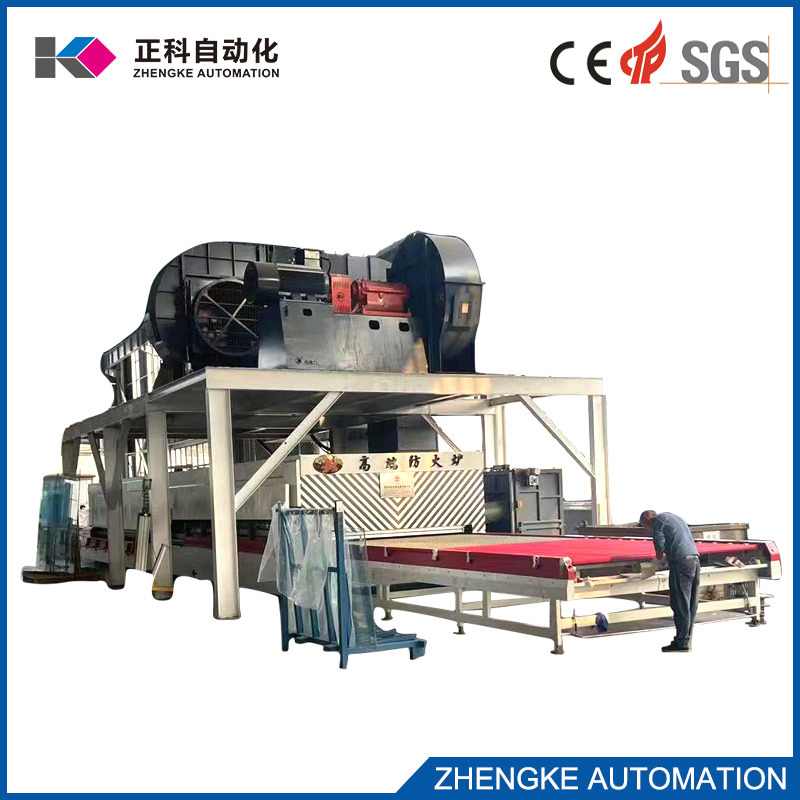

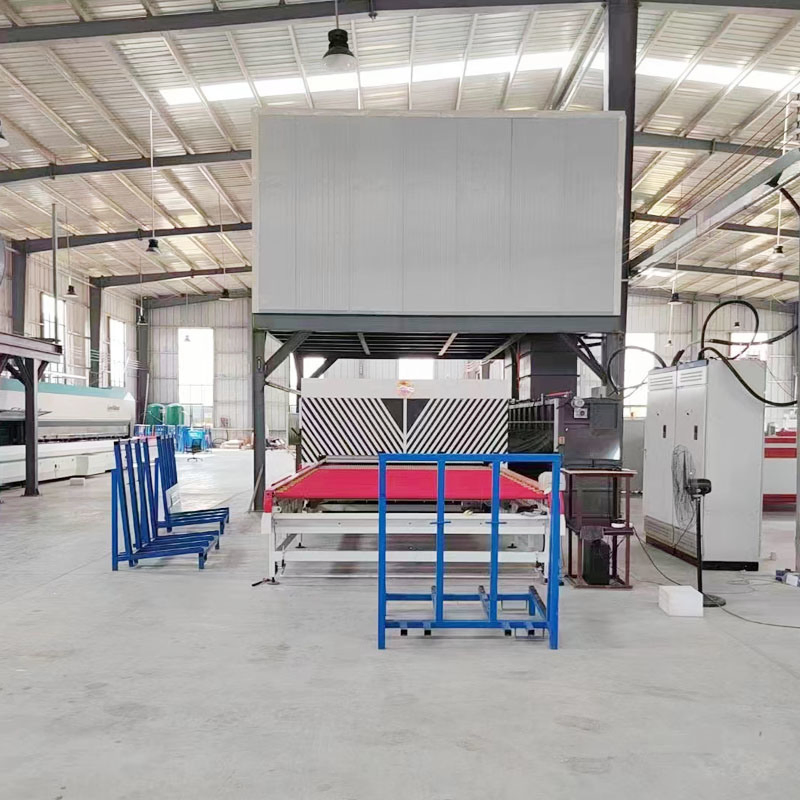

The forced convection tempering electric furnace represents a new generation of horizontal roller type tempered glass units. Designed with advanced thermal insulation and system control, this equipment offers high reliability and low energy consumption. It is specifically engineered for the high-efficiency deep processing of Low-E glass, coated glass, and various other glass products.
The system comprises heating sections, flat steel cooling sections, and sophisticated control systems. Glass raw materials enter the heating furnace via upper sets. After optimal heating, the glass moves to the flat steel grid for rapid tempering and cooling, delivering the final product to the unloading section.
