Machine Application

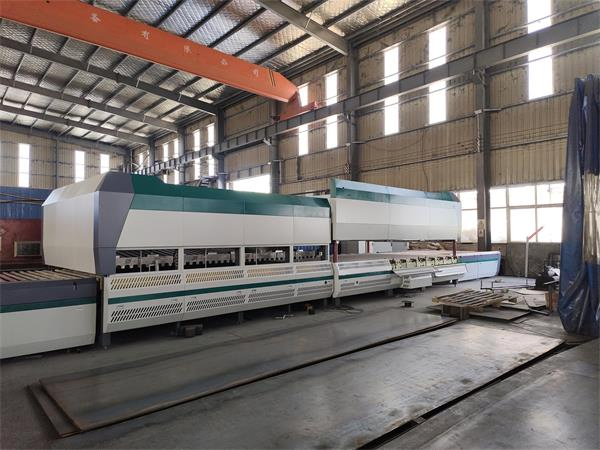

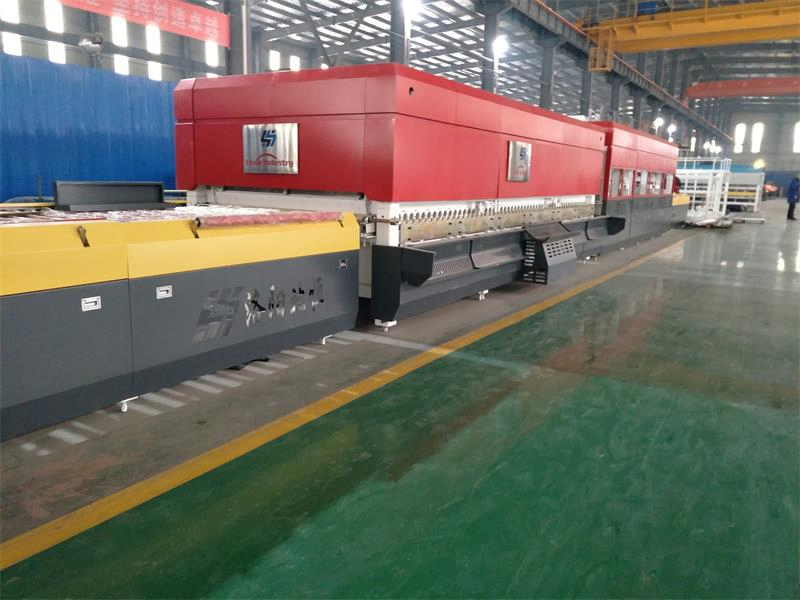

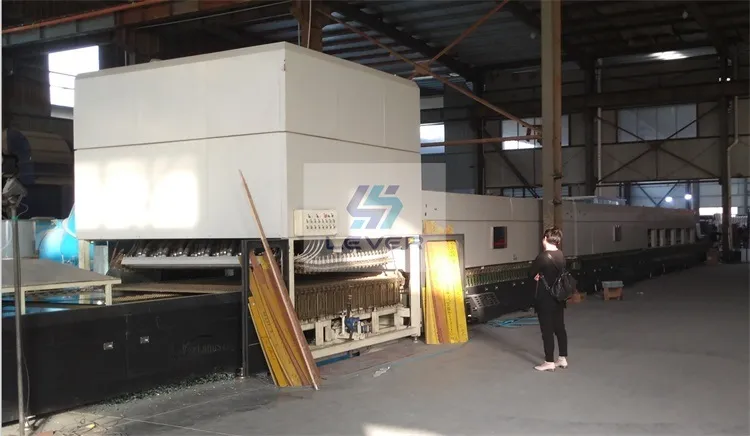

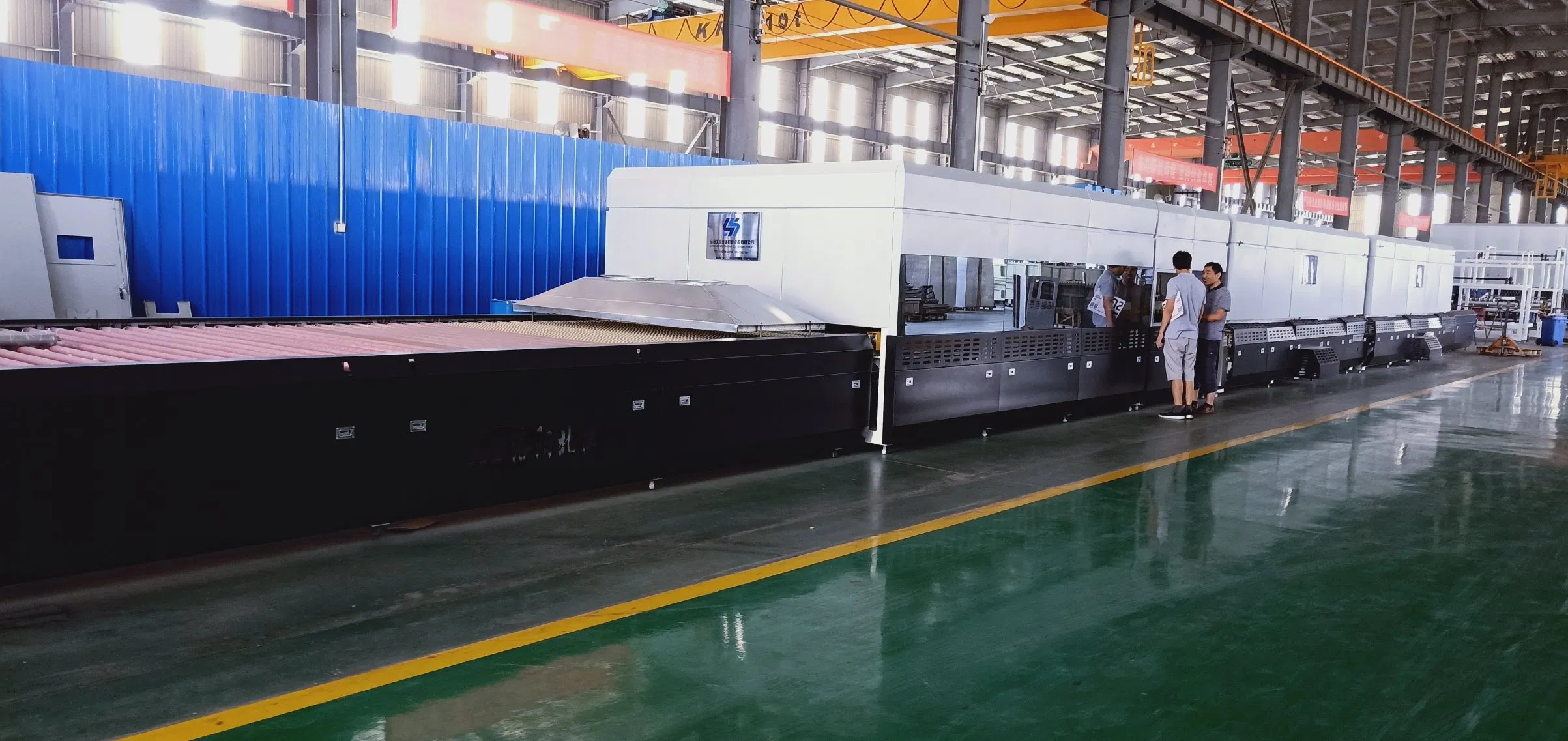

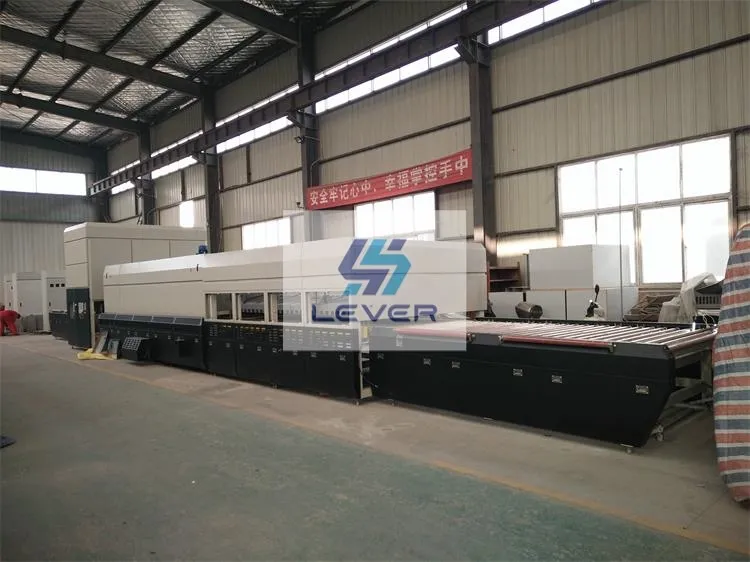

The flat/bent glass tempering furnace is a specialized plant used to produce flat and bent tempered glass as well as thermal strengthened glass. It is widely used in various fields:
Architecture (Doors, Windows)
Automotive Glass
Shower Rooms
Home Appliances
Furniture & Elevators

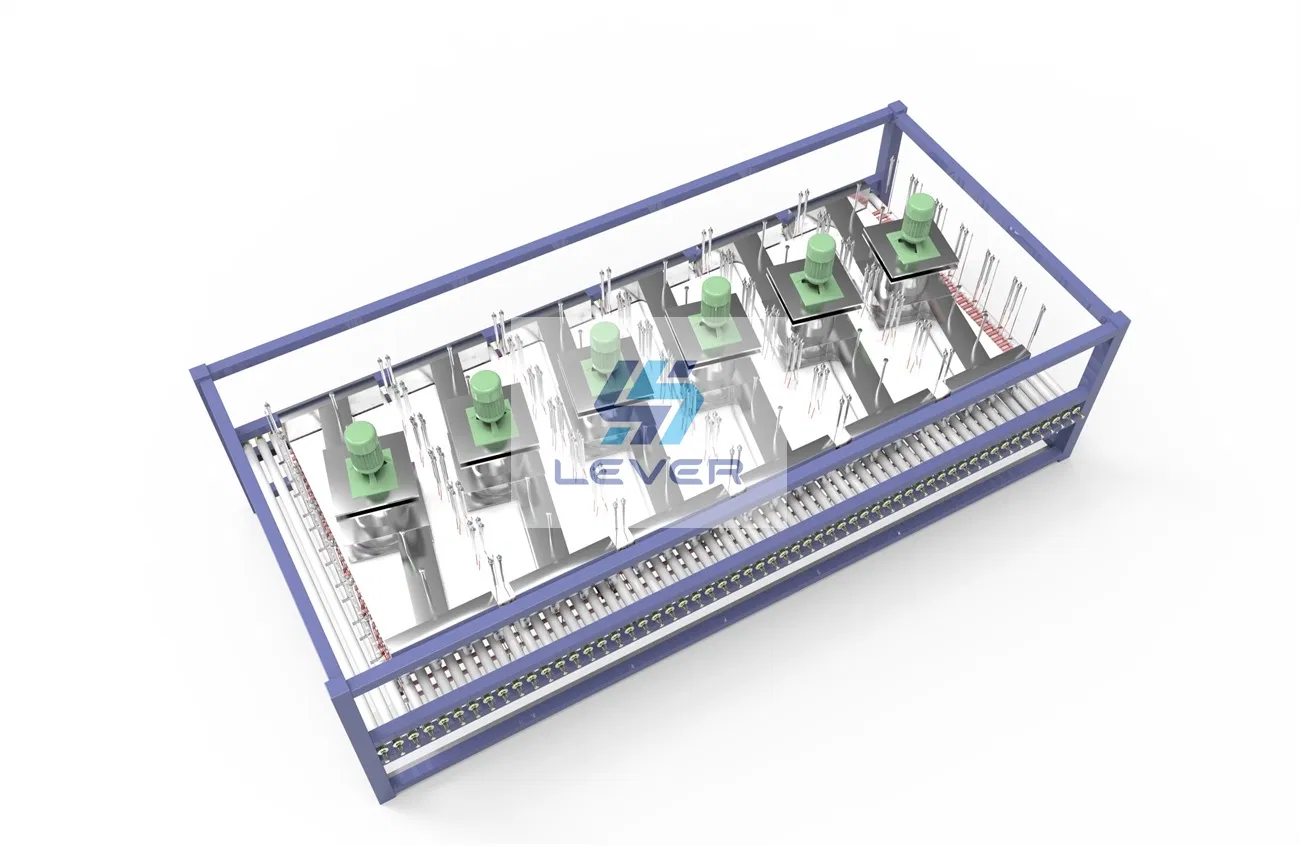

🚀 With force convection system, Low-E glass can be processed efficiently, especially soft (off-line) Low-E glass.
Technical Features
Ceramic plates installed at the top of oven for even heating and avoiding dregs.
Triple belt driven ceramic rollers for simultaneous and stable running without scratches.
Gapless parallelogram heating elements design for superior product quality.

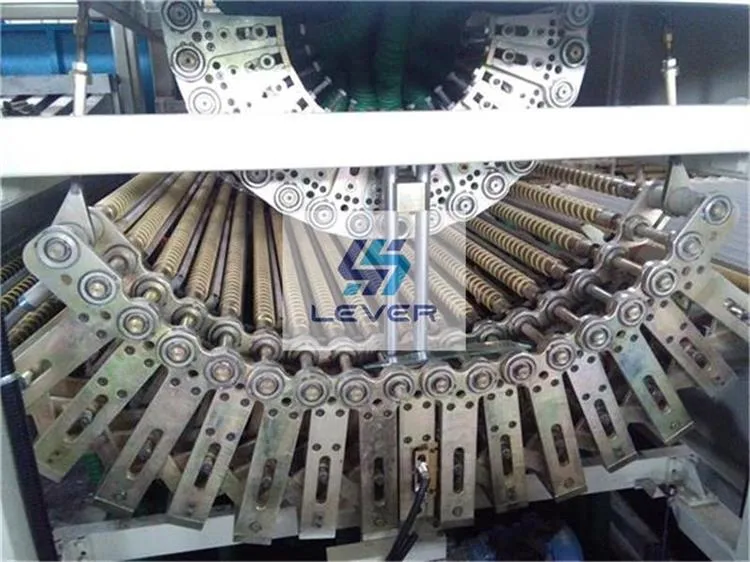

Upper and lower quenching sections move separately to adjust glass flatness.
Intelligent glass positioning and collision avoidance system.
Servo motors & controllers for precise bending forming.
Network data control for servo motors to eliminate disturbance.
Automatic detection of heating elements for easy maintenance.
Supply Scope
1. Loading TableAutomatic loading system
2. Heating SectionForce convection (Vesuvius ceramic rollers)

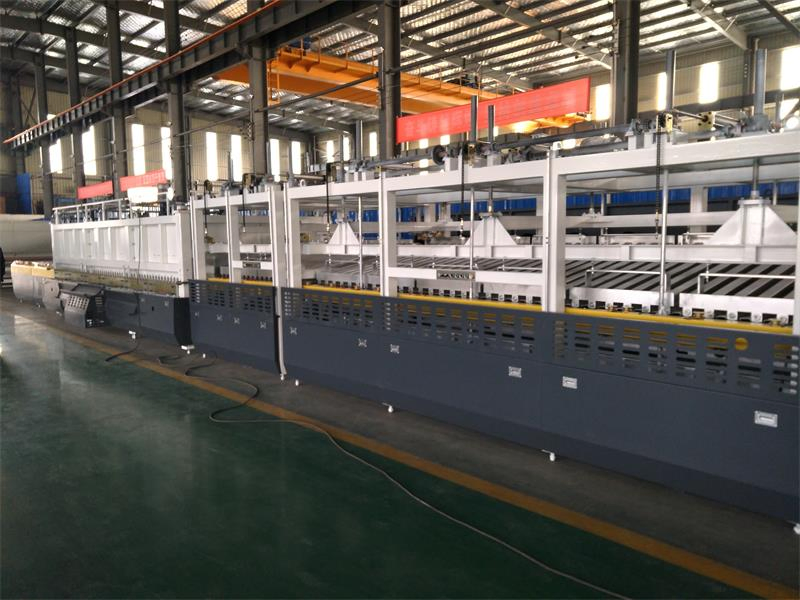

3. Tempering SectionFlat & Bent tempering/cooling modules
4. Blower SystemTaixin Blower with Siemens motor
5. Control SystemSiemens PLC & Computer Interface
6. SupportSpare parts & Technical documentation
Frequently Asked Questions
What types of glass can this furnace process?
The machine is suitable for clear float glass, reflective glass, hard & soft Low-E glass (E≥0.01), patterned glass, body-tinted glass, and silk screen printed glass.
Can this machine process Low-E glass?
Yes, it features a force convection system specifically designed to handle soft (off-line) Low-E glass effectively.
What are the main electrical components used?
The machine uses high-quality international brands including Siemens PLC and Inverters, Schneider or Siemens Blower Inverters, and Siemens Blower Motors.
What is the thickness range for glass tempering?

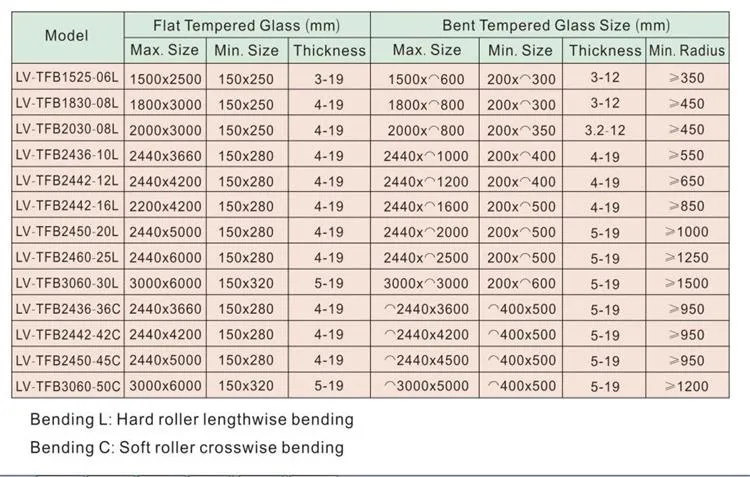

Depending on the specific model chosen, the furnace can process glass with thicknesses ranging from 3mm to 19mm.
Is the machine size customizable?
Yes, while we have popular standard models, we offer customized sizes to meet specific factory space and production requirements.
How is the heating uniformity ensured?
Heating uniformity is guaranteed through top-installed ceramic plates, gapless parallelogram heating element designs, and advanced convection technology.
