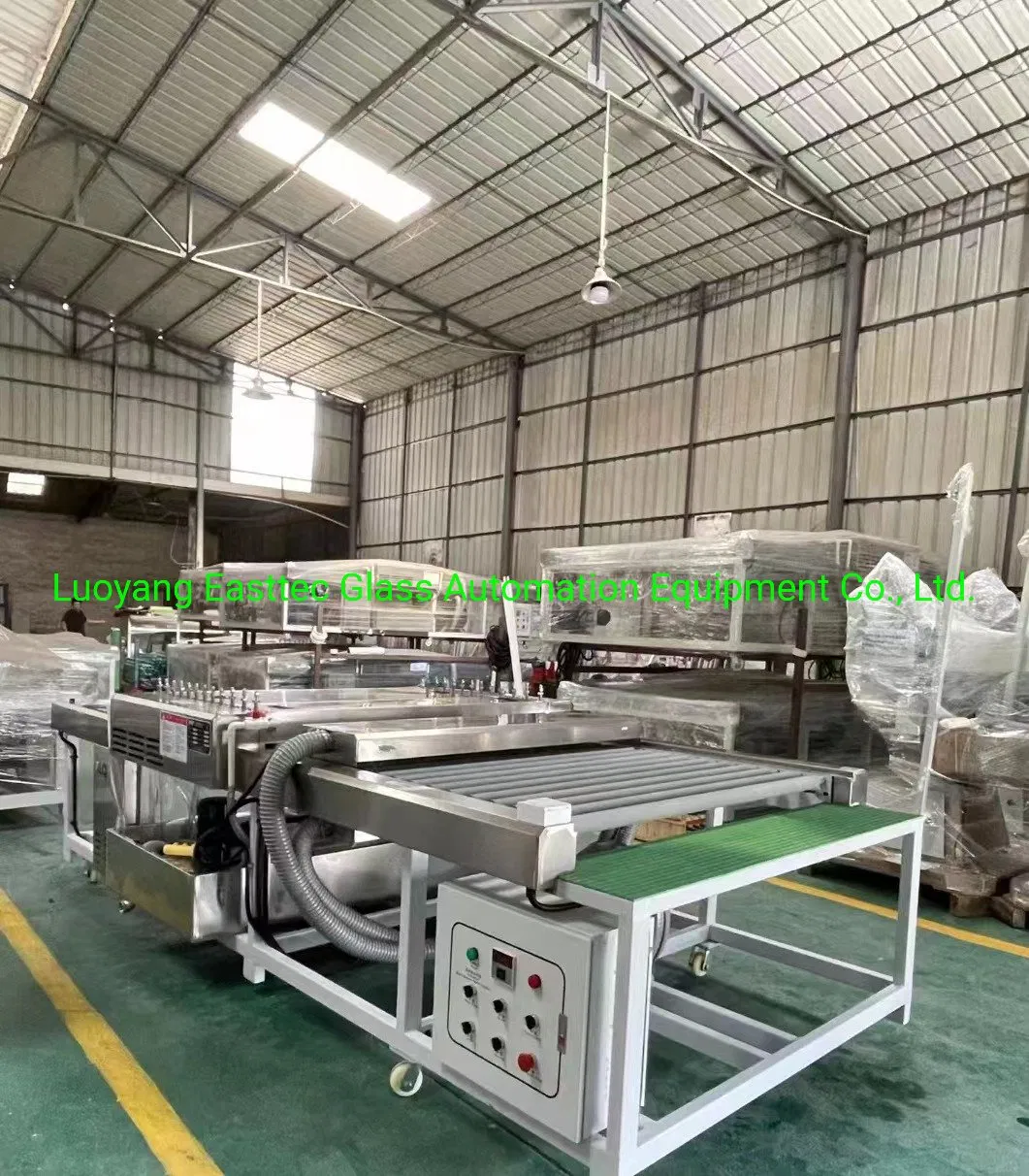

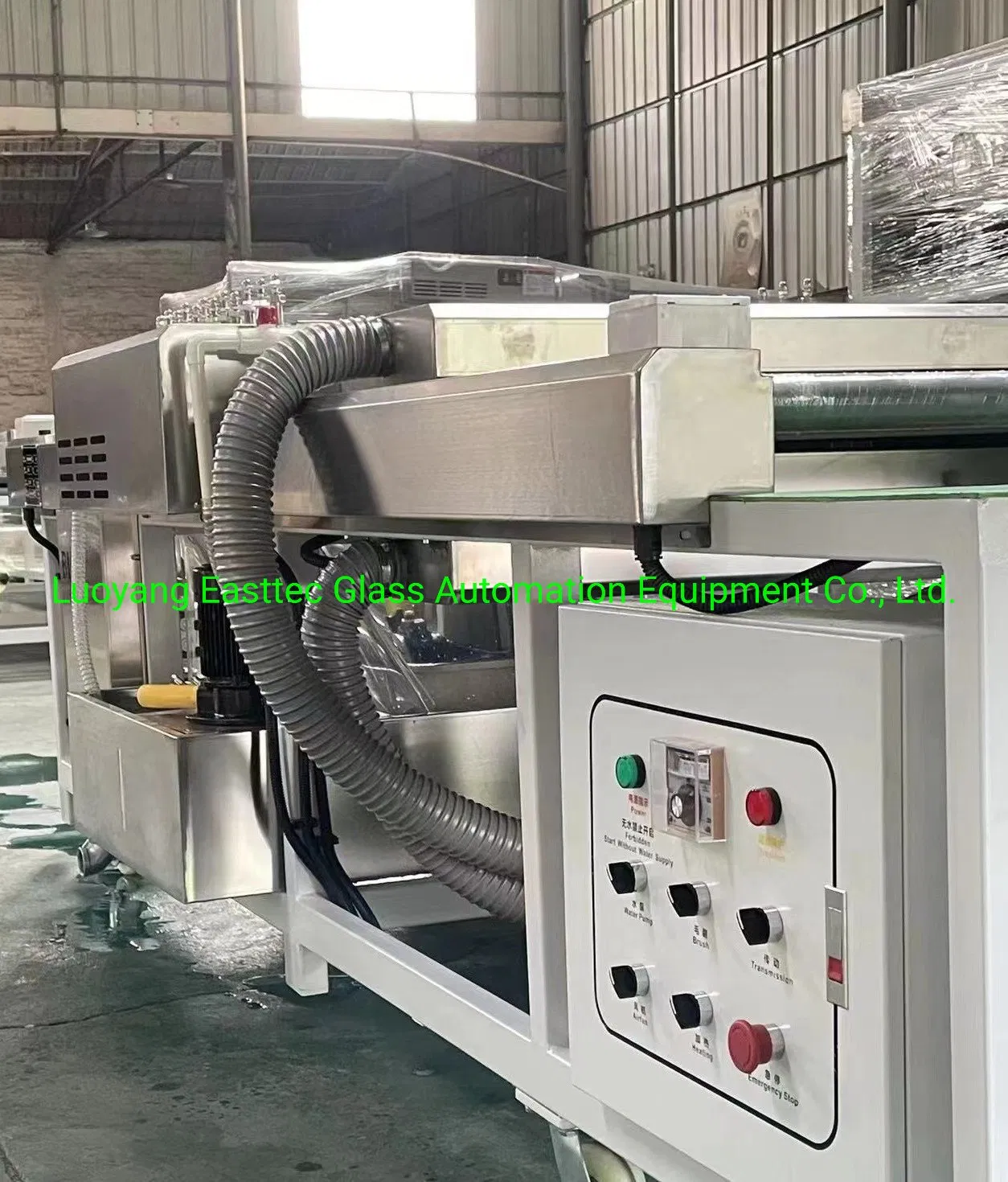

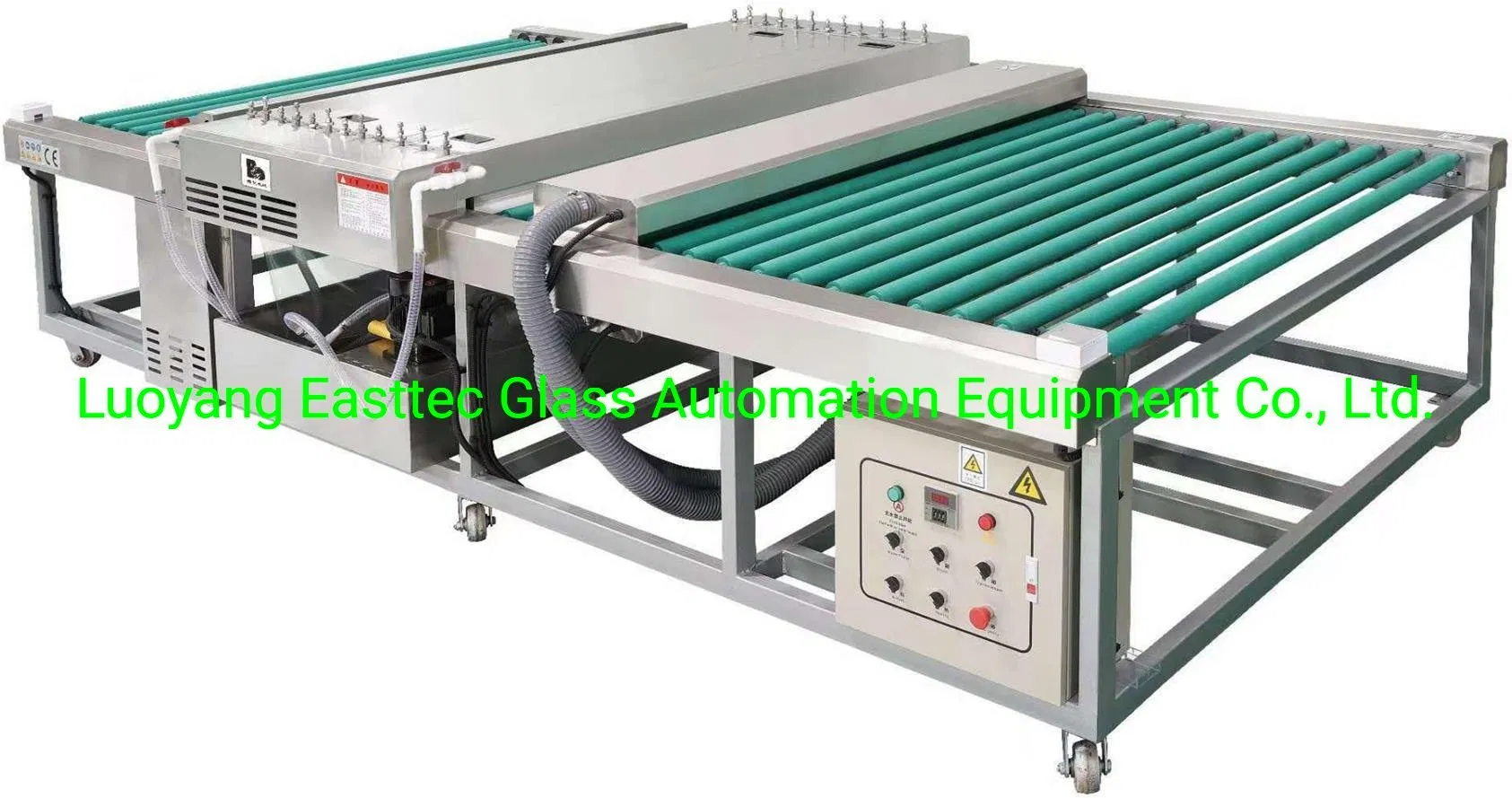

Glass Washing and Drying Machineb W2000

Customization:	Available
Certification:	CE, ISO, FDA, UR, PCI, PDA
Type:	Glass Washing and Drying Machine

Basic Info.

Model NO.

W2000

Structure

Horizontal

Control System

PLC

Machine Type

Horizontal Glass Washing Machine

Condition

New

Warranty

One Year

After-sales Service

Field Installation, On-line Support

Transport Package

Standard Packing

Production Capacity

50 Sets/Month

SPECIFICATION & FEATURES

1

High-Quality Build
All cleaning parts and installations (heating flange, sensors, pipe, tank, etc.) are made of high-quality stainless steel.

2

Smooth Operation
Chain convey system with stepless speed motor ensures machine runs smooth and stable.

3

Water Conservation
Two-grade filtered two-pump cycle system distributes clear and turbid water to save resources.

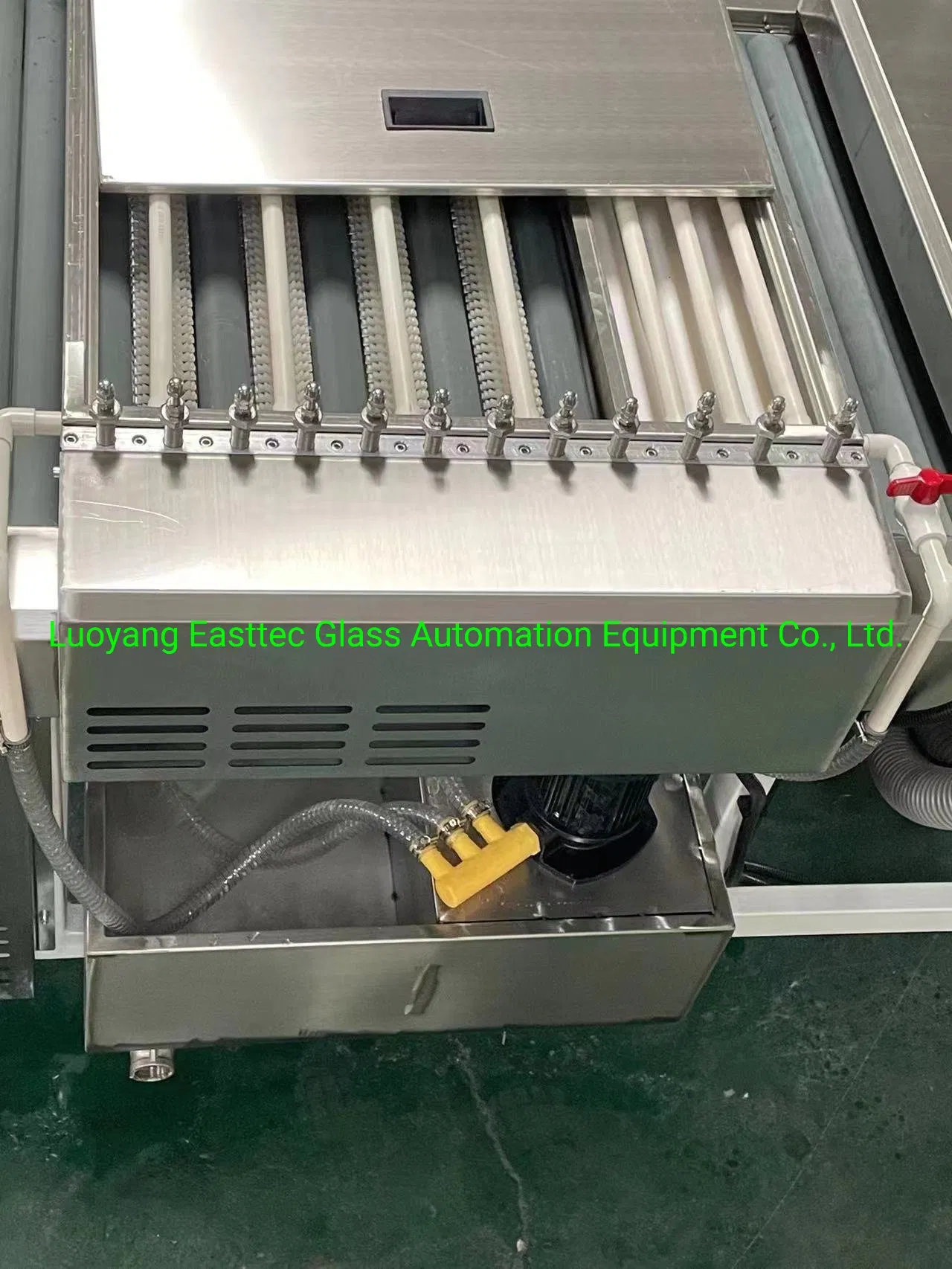

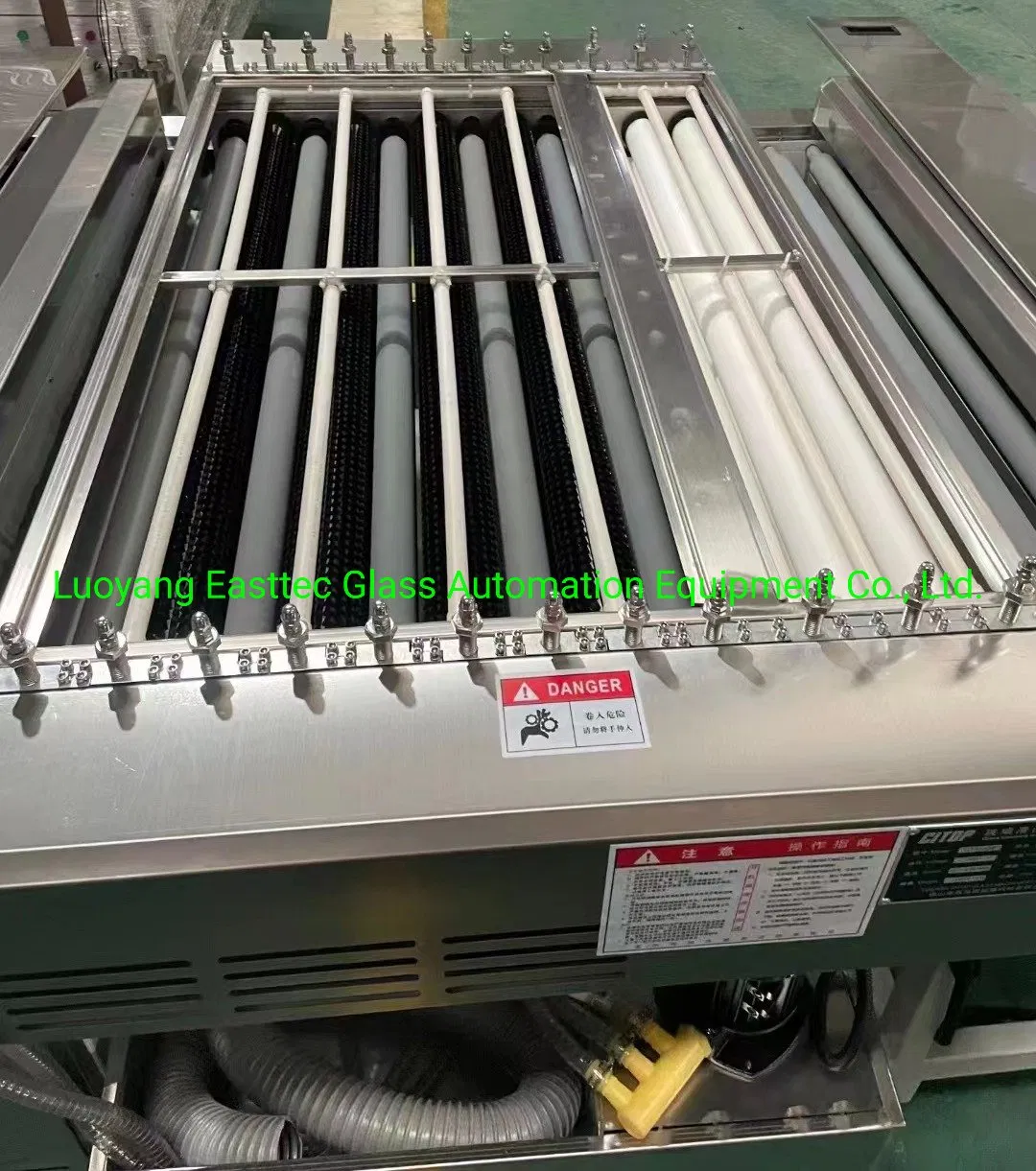

✔ Brushes: Four pairs of brushes for thorough cleaning.
✔ Drying: Four pairs of sponge rollers for efficient drying.
✔ Heating: Three pairs of heating tubes (1.2kw/pcs).
✔ Rollers: Durable vulcanized rubber rollers (Diameter: 48mm, Space: 50mm).

Technical Parameter

Dimension: 3700*2000*1150mm
Weight: 1000kg
Power: 380v / 220v / 415v
Frequency: 50hz / 60hz
Total Power: 8.7KW
Working Speed: 0.5-4m/min
Max Washing Size: 1550*2500mm
Mini Glass Size: 180*180mm
Glass Thickness: 3-12mm (Customizable >12mm)

Electricity Component and Configuration

No	Name	Model	Brand and Origin
1	Transducer	VFD015M43	DELTA/TAIWAN
2	Thermal Overload Relay	NR2**	CHINT
3	Power Breaker	NM1 225S 160A	CHINT
4	Connector	NC1**	CHINT
5	Mico Breaker	NB1_63**	CHINT
6	Reply	JQX-13(D)-24VAC	CHINT
7	Phase Protector	K8AB-PH61	OMRON/JAN
8	Blower	18	CHINA
9	Water Pump(KW)	0.75	CHINA
10	Motor	-	DELTA/TAIWAN

Frequently Asked Questions

What is the maximum glass size this machine can wash?

The machine can handle a maximum washing size of 1550mm * 2500mm.

What is the range of glass thickness it can handle?

Standard support is for glass thickness between 3mm and 12mm. For glass thicker than 12mm, customization options are available.

How is the cleaning performance ensured?

The machine utilizes four pairs of high-quality brushes for cleaning and four pairs of sponge rollers for drying, ensuring a clean and streak-free finish.

What control system does the W2000 use?

The W2000 is equipped with a professional PLC control system for precise and stable operations.

Is after-sales technical support available?

Yes, we provide field installation services as well as ongoing online technical support. The machine also comes with a one-year warranty.

What materials are used for the cleaning components?

All cleaning parts, including water tanks, pipes, and heating flanges, are constructed from high-quality stainless steel for durability and corrosion resistance.
