High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
1 / 5
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine
High Efficiency Full Automatic Glass Drilling and Milling Machine

High Efficiency Full Automatic Glass Drilling and Milling Machine

Customization: Available
Control System: Semi-Automatic
Coolant System: Yes
Send Inquiry

Product Description

GLASS DRILLING and MILLING MACHINE FY-0222

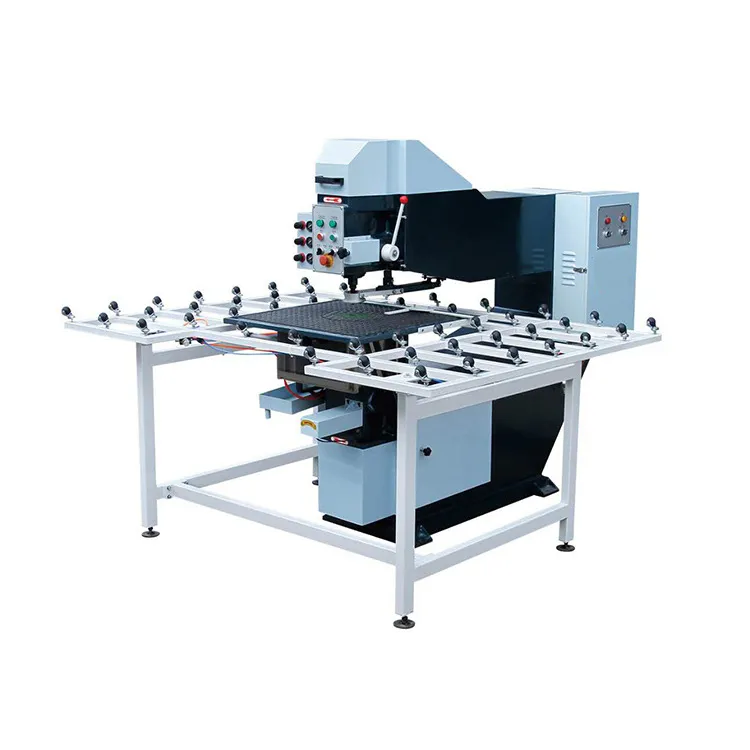

Glass Drilling and Milling Machine FY-0222
★
Main Features
Adopt pneumatic clamping glass, upper and lower drilling head drill at sequence, feeding automatically, workable table can elevate pneumatically, with wide machining size range, high efficiency and easy operation.
⚙
Technical Parameters
Model FY-0222
Drilling Diameter 4-200mm
Glass Thickness 3-20mm
Power Supply 380V / 50HZ 3P (Customized as Request)
Total Power 3kw
Spindle Speed 2000-3000 RPM
Max Processing Width 2600 * 2400mm
Feeding Speed 1.5-6m/min
Weight 800kg
Dimensions 2600mm * 2600mm * 1700mm
HS Code 8462269000
Production Capacity 500/Year
📷
Product Display

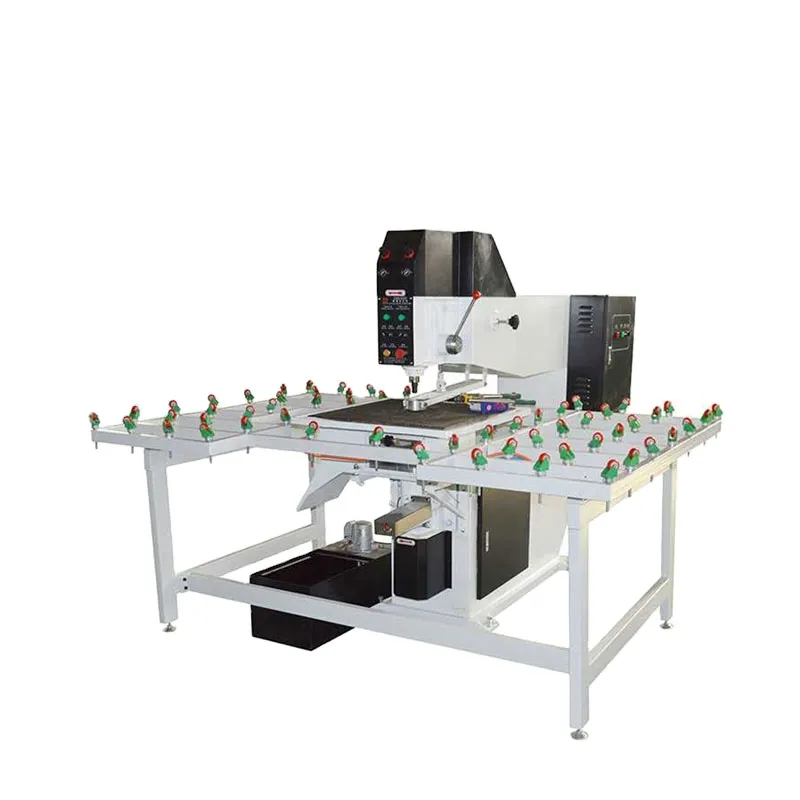

Machine Detail 1

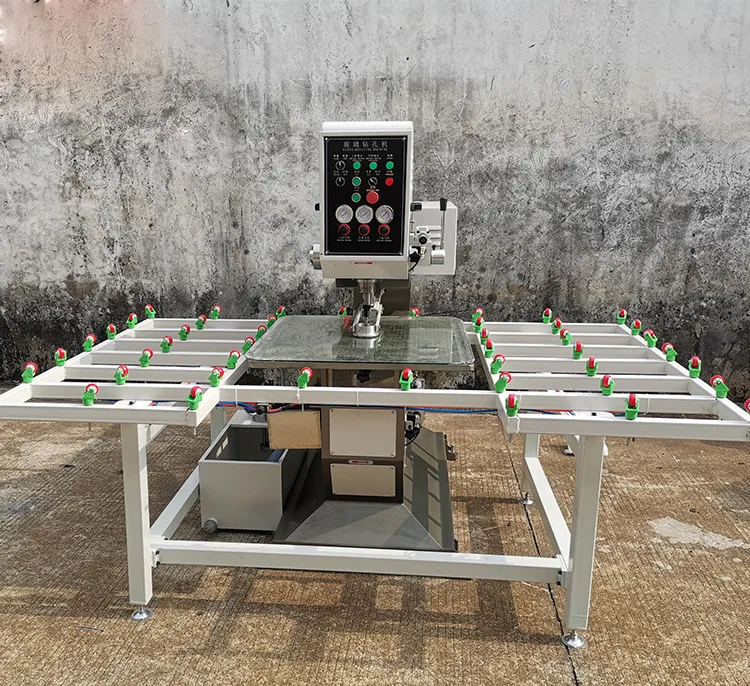

Machine Detail 2
Machine Detail 3
Machine Detail 4
?
Frequently Asked Questions
What is the drilling capacity of the FY-0222 machine?
The machine can drill holes ranging from 4mm to 200mm in diameter.
What thickness of glass can be processed?
It is designed to handle glass with a thickness between 3mm and 20mm.
How does the clamping and feeding system work?
The FY-0222 adopts a pneumatic clamping system and provides automatic feeding for high efficiency.
Can the power supply be customized for different regions?
Yes, while the standard is 380V/50HZ, it can be customized as per your specific request.
What is the maximum glass size the machine can handle?
The maximum processing width is 2600mm by 2400mm.
How many units can be produced annually?
The production capacity for this model is approximately 500 units per year.
