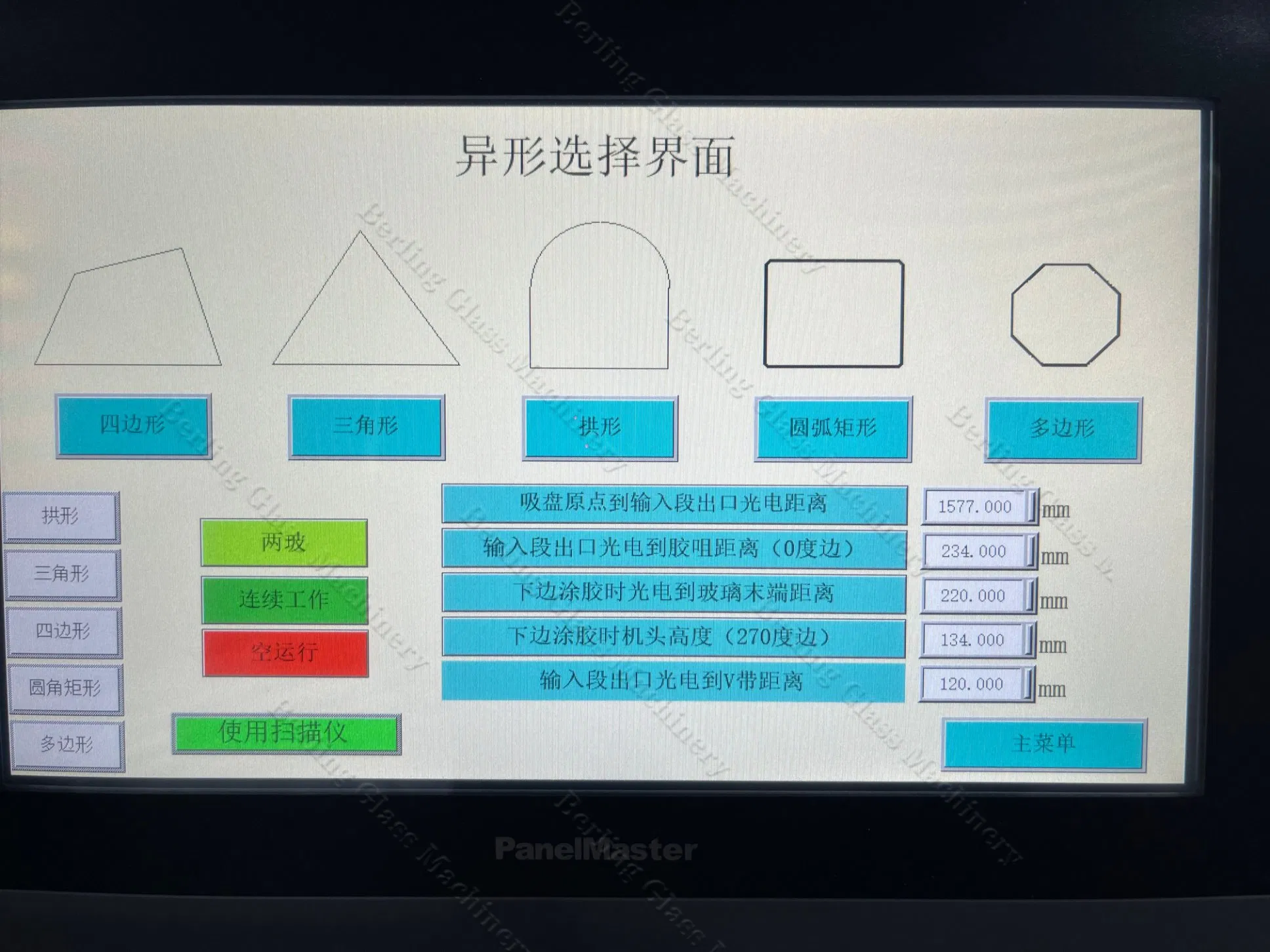

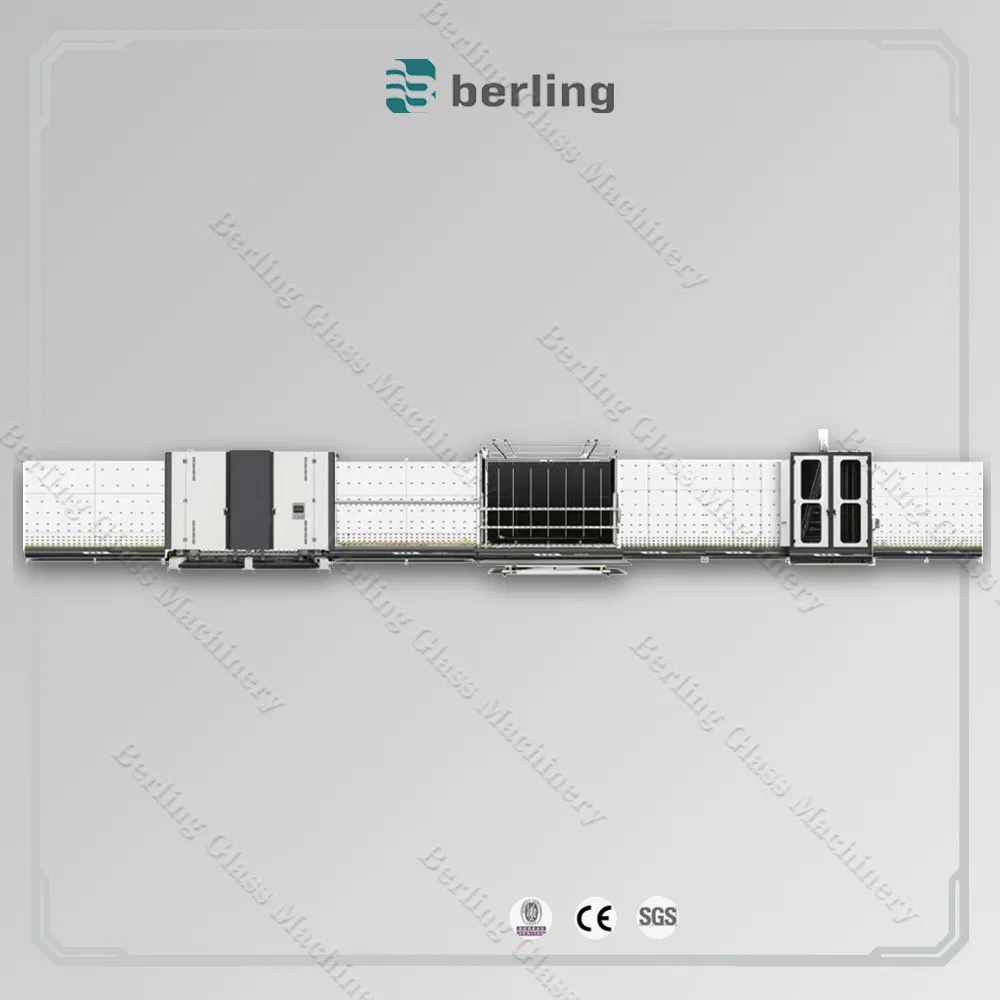

Provide high-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Our systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.
| Item | BLBG-3060 | BLBG-2850 | BLBG-2540 | BLBG-2030 |
|---|---|---|---|---|
| Total power | 90KW | 70KW | 46KW | 36KW |
| Max glass size | 3000*6000mm | 2800*5000mm | 2500*4000mm | 2000*3000mm |
| Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm |
| Panel glass thickness | 3~30mm | 3~12mm | 3~12mm | 3~12mm |
| Max IG unit thickness | 12~80mm | 12~80mm | 12~40mm | 12~40mm |
| Working Speed | 2-45m/min | 2-45m/min | 2-45m/min | 2-40m/min |

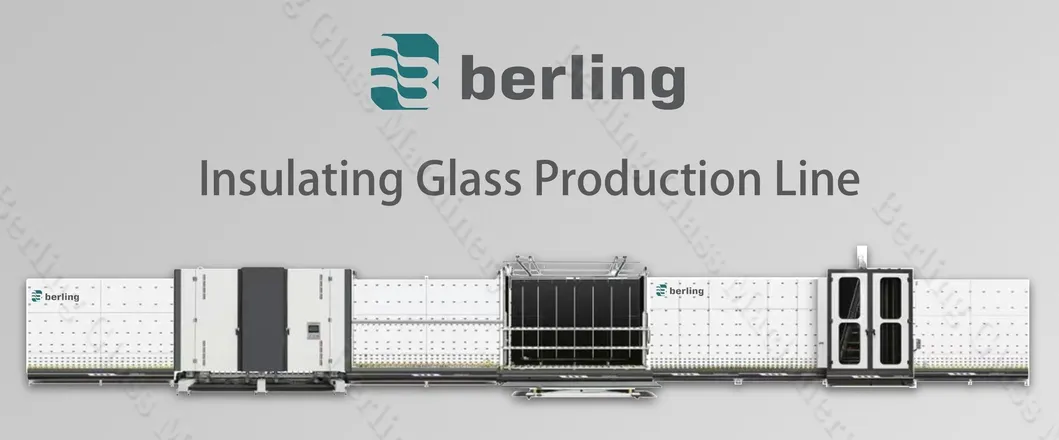

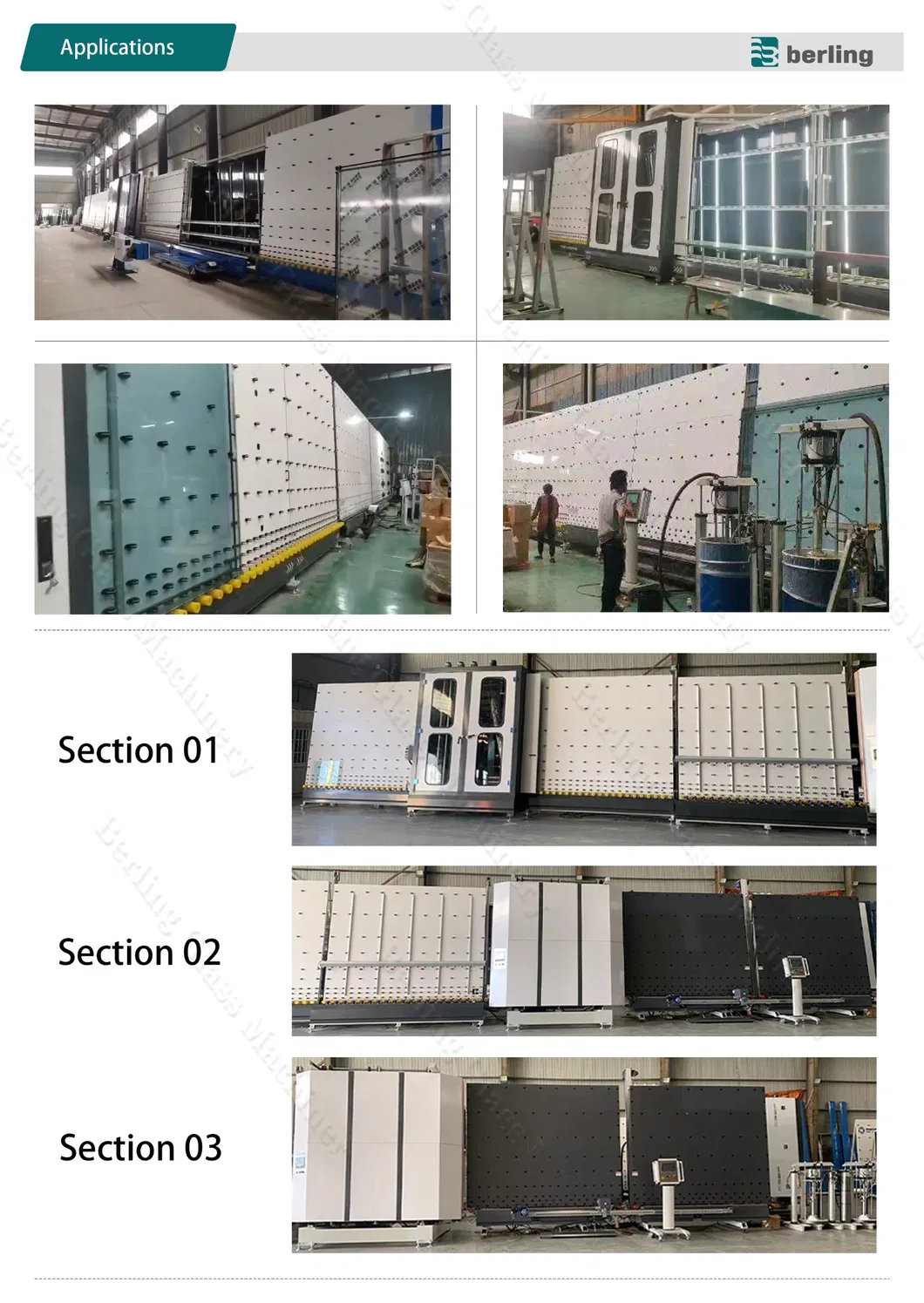

The vertical line is designed for double, triple, and structural glass units, including high-performance Low-E energy-saving glass.
We use PLC control systems, Omron sensors for Low-E detection, and servo-driven pressing to ensure high precision and consistent quality in every unit.
Key features include independent brush motors for superior cleaning, a servo-controlled argon gas filling system, and a durable stainless steel build for long-term industrial use.
The line supports glass thicknesses from 3mm to 12mm for individual panels and can produce finished IG units with total thicknesses up to 80mm, with maximum sizes up to 3000*6000mm depending on the model.

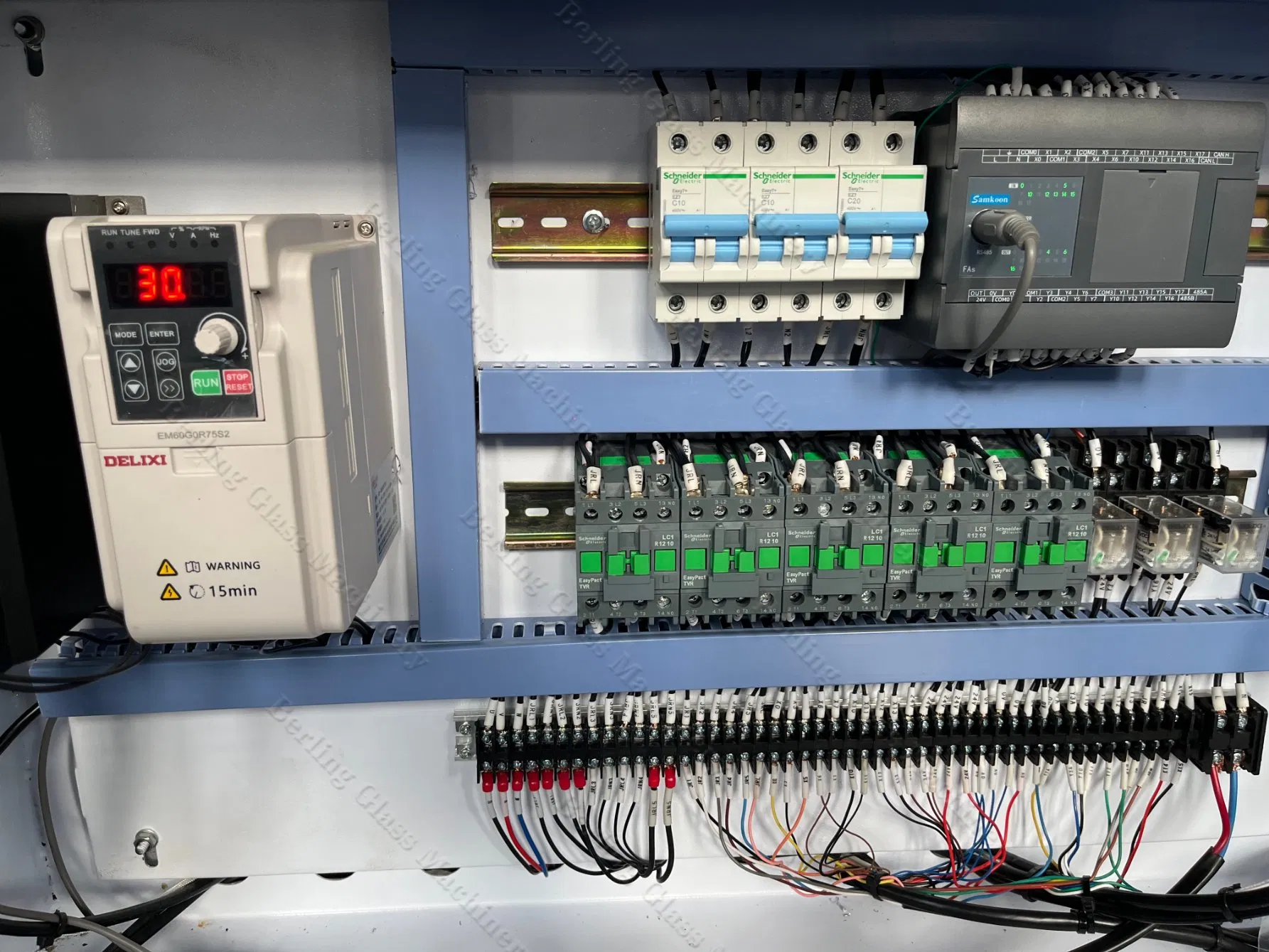

The equipment utilizes high-quality core components including Mitsubishi PLC systems, reliable motors, and advanced pump technology for stable operation.
Yes, we provide professional packaging and shipping services worldwide. Our engineering team provides professional after-sales support to ensure equipment performance.
