We are a leading single source provider of high-quality flat glass processing machinery, service, and supplies. We focus on finding the most innovative and reliable equipment for fabricating, handling, and processing flat glass. Each piece of equipment is characterized by innovative features, long-lasting durability, and high reliability.

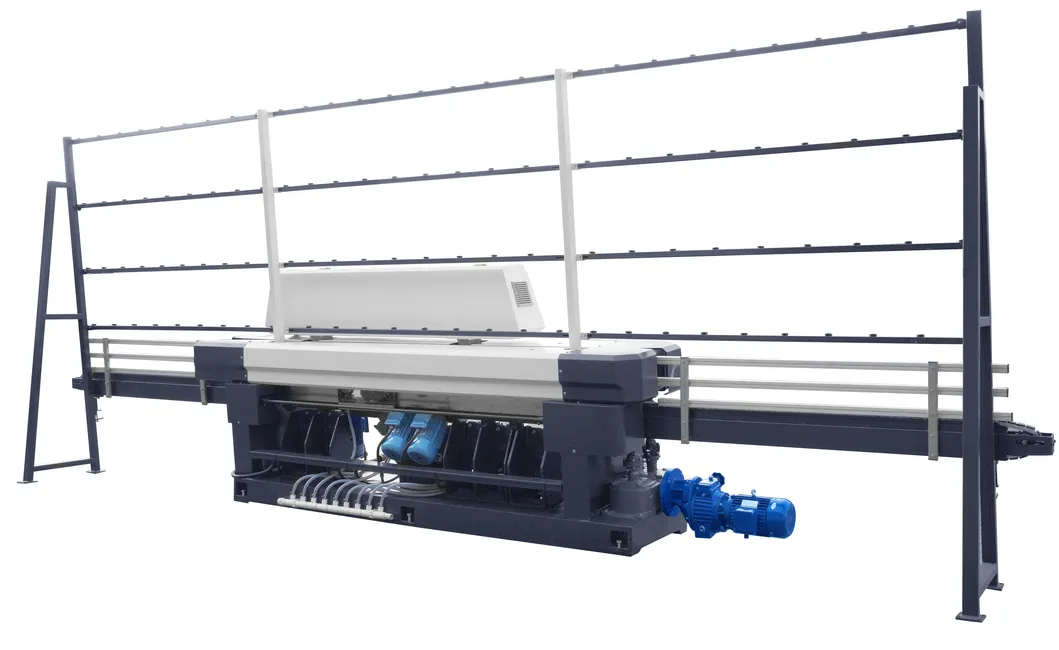

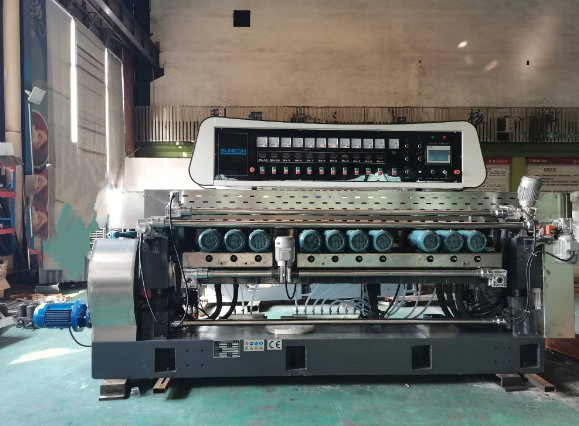

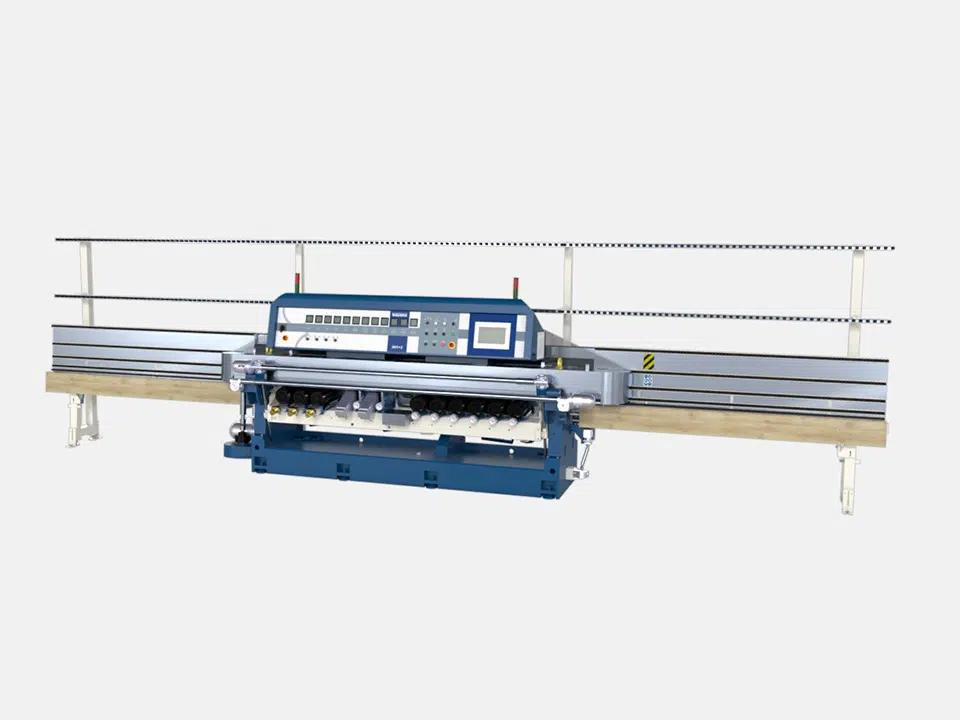

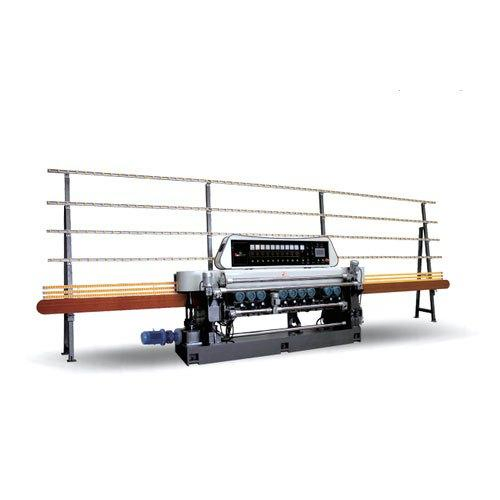

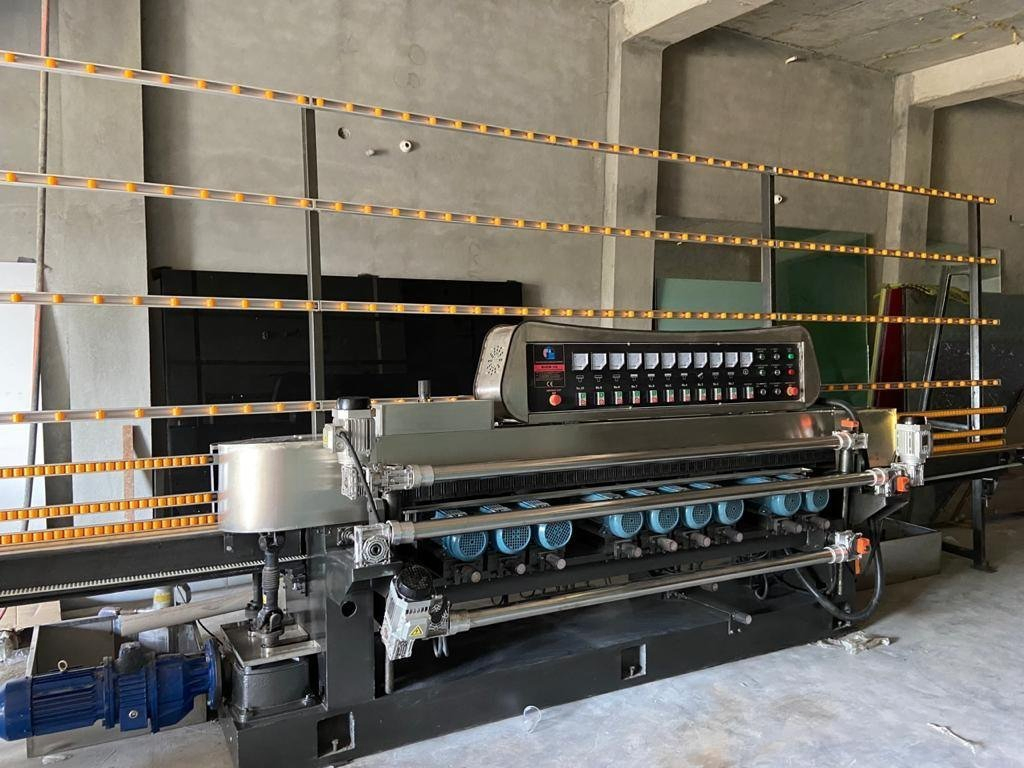

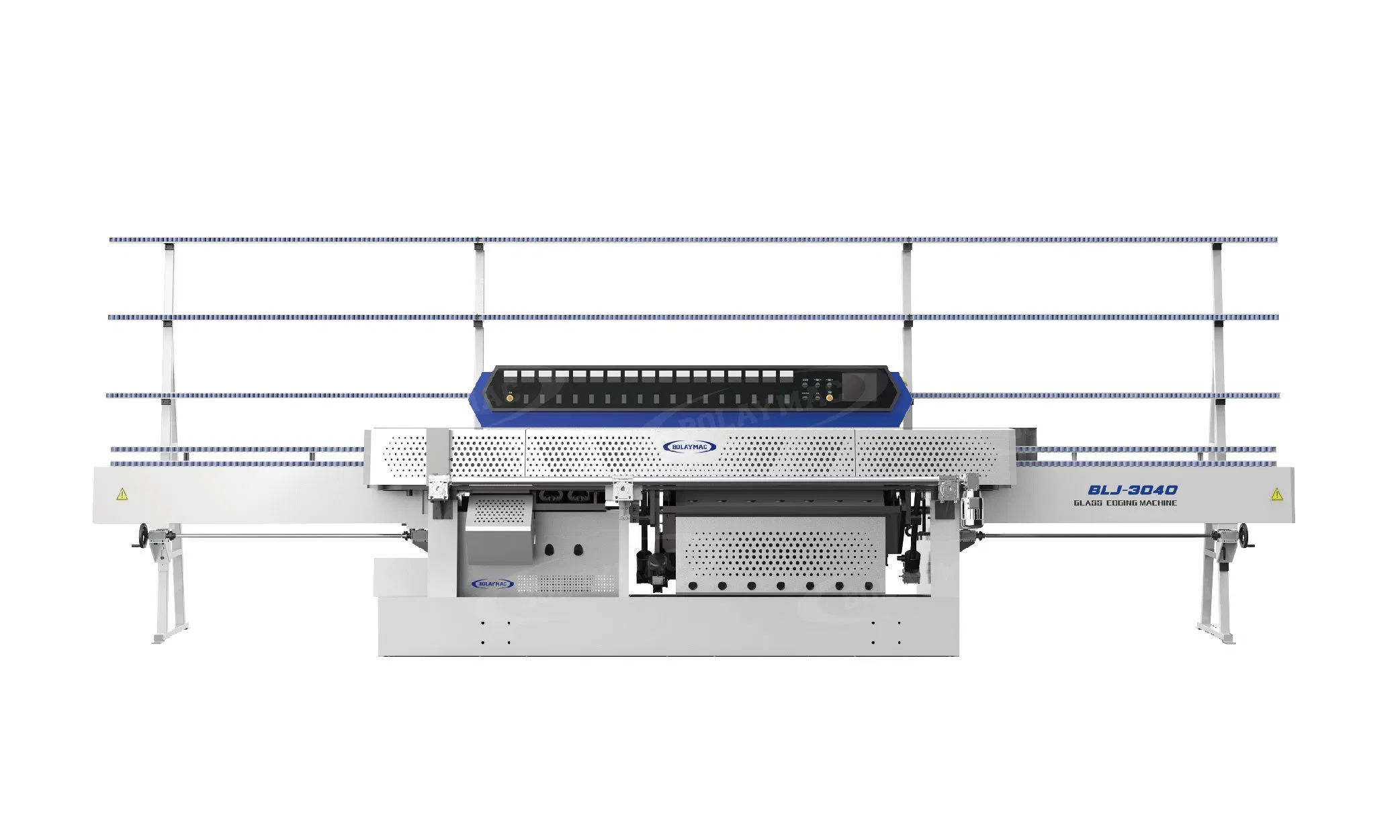

Glass Edging and Polishing Machine JGZM9325
This machine is suitable for edge and corner grinding of plate glass of different size and thickness, finishing coarse grinding, fine grinding, and polishing at one time. The flat surface after polishing is close to the bright and clean degree of the glass matrix. When adjusting different processing thickness, the former chamfering grinding head can move simultaneously along with the front-axle beam. It possesses advanced structure, high working precision, and easy operation.

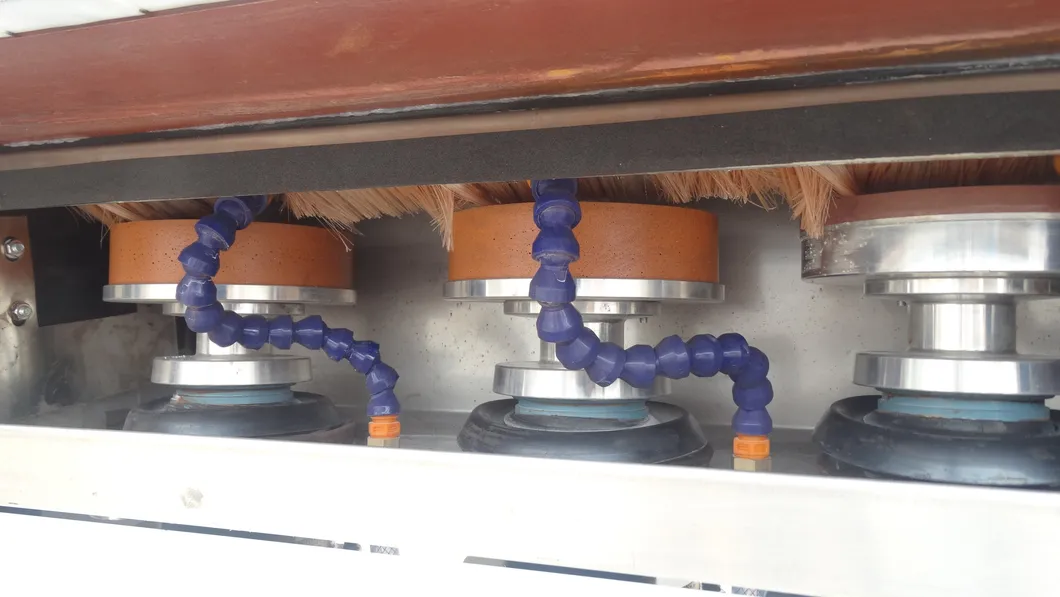

POLISHING DIAGRAM
| Wheel No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Spec | Φ150 | Φ150 | Φ130 | S40 | Φ130 | S40 | Φ150 | S40 | S40 |
| Type | Diamond | Diamond | Resin | Polishing | Resin | Polishing | Resin | Polishing | Polishing |
| Model | JGZM9325 |
| Power Supply | 380V/50HZ/3P |
| Power | 19.75KW |
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-25mm |
| Weight | 3000KG |
| Transmission | Stepless speed regulation |
| Process Speed | 0.7-7m/min |
| Machine Size | 7000*1200*2500mm |
| Component | Feature | Details |
|---|---|---|

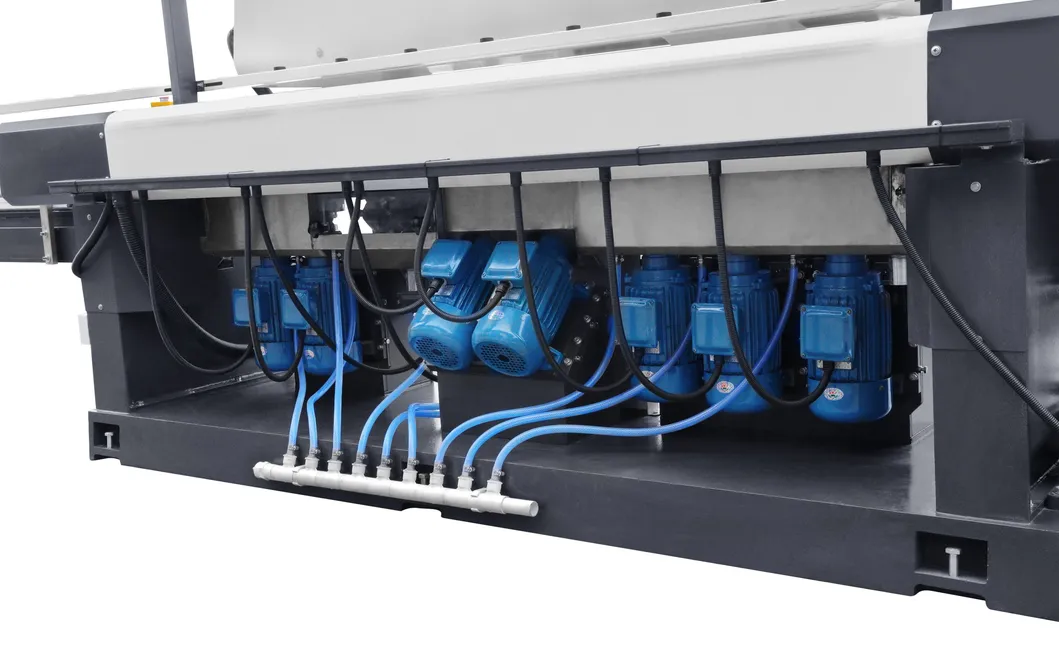

| Machine Motor | Voltage/Power | 380V / 1.5kw - 2.2kw |
| Conveyor Drive | Specification | 2.2KW variable frequency |
| Main Bearing | Origin | High-precision technical grade |
| Pressing Plate | Material | Durable specialized casting |
| Electrical System | Standard | Industrial safety certified |
| Machine Base | Material/Tech | Cast iron with annealing treatment |
| Motor Tank | Material | Stainless steel |
