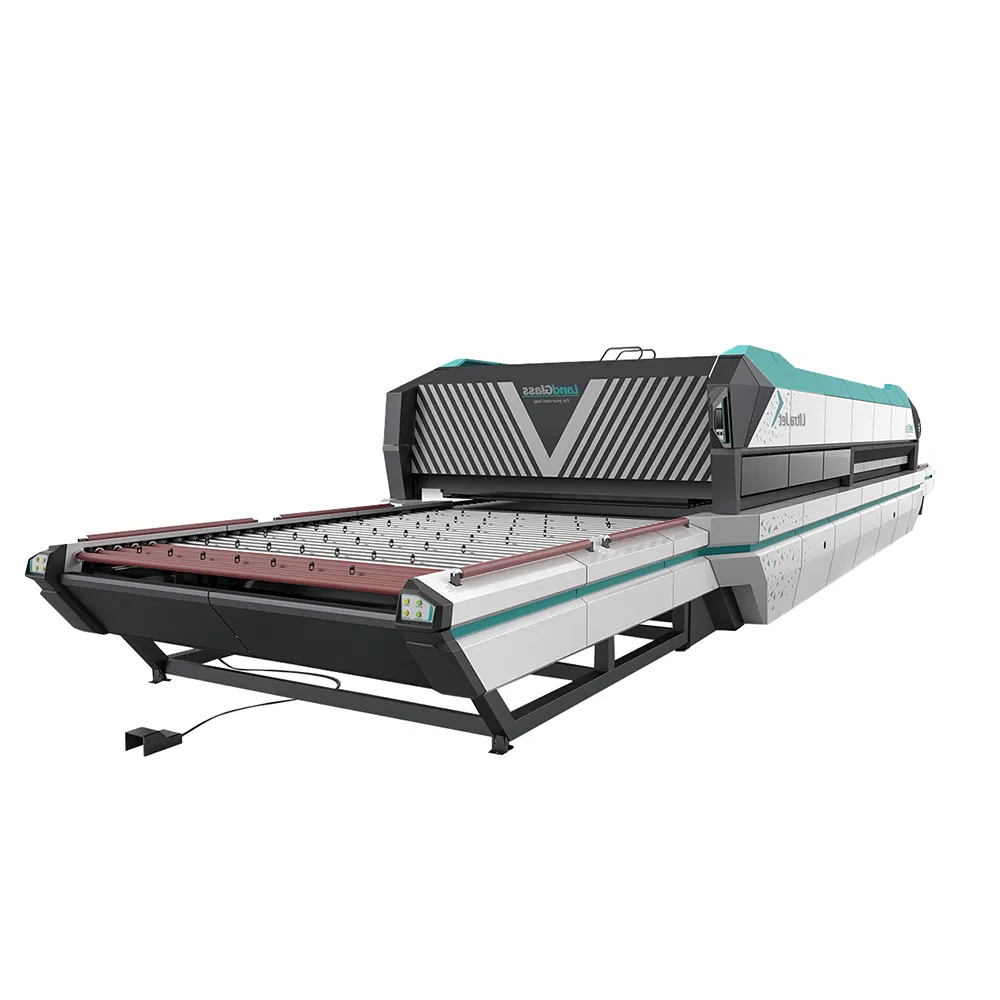

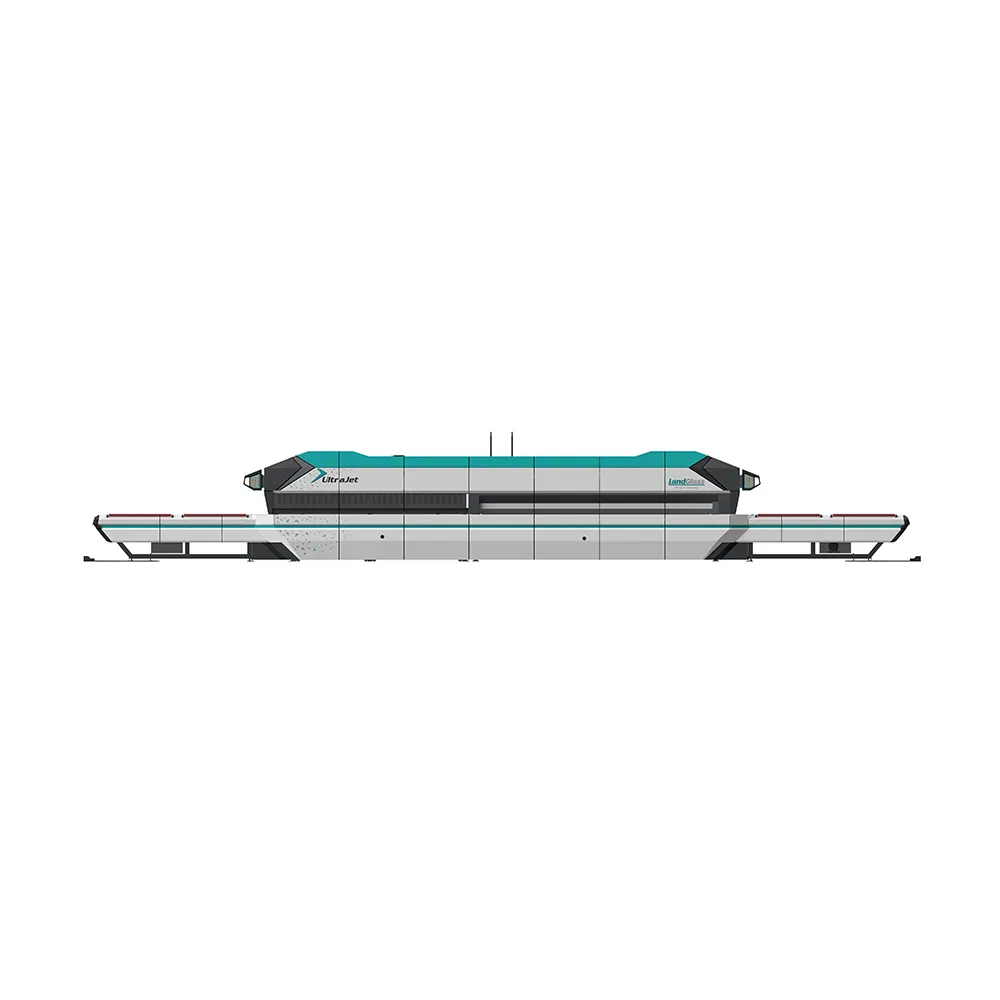

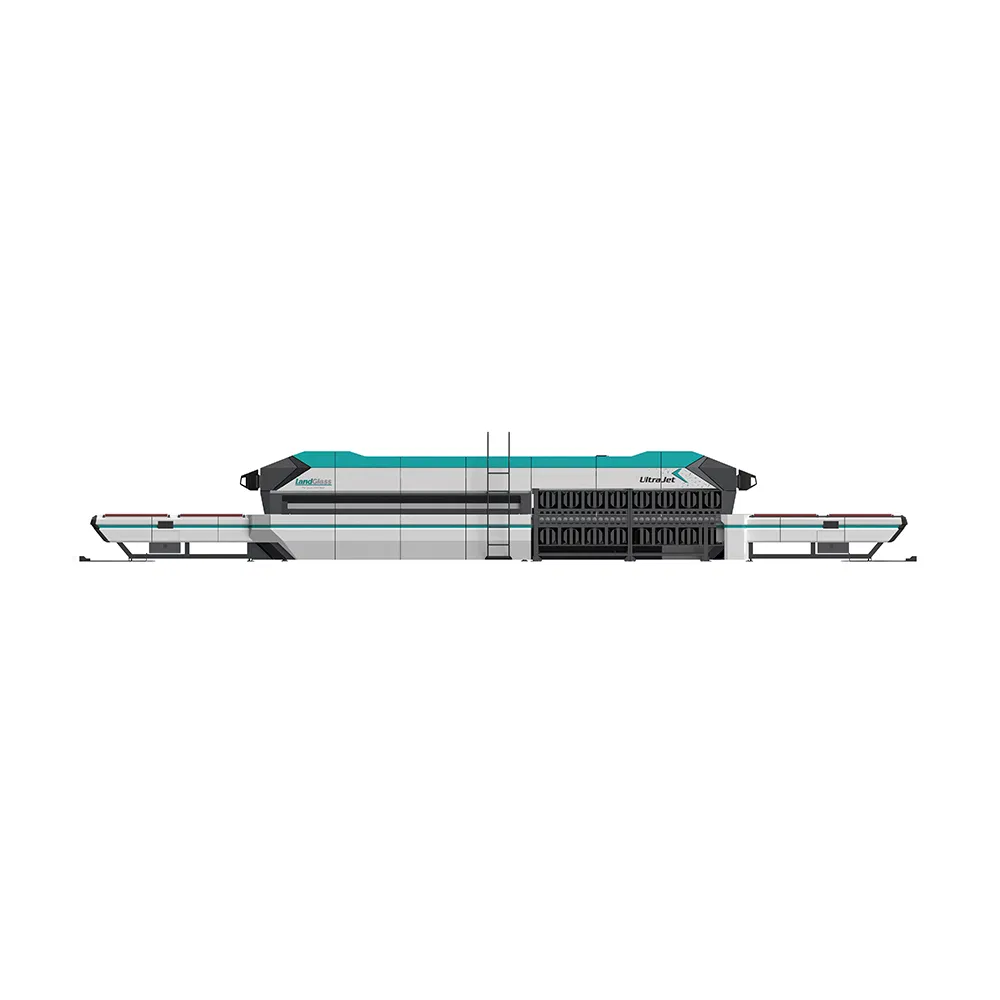

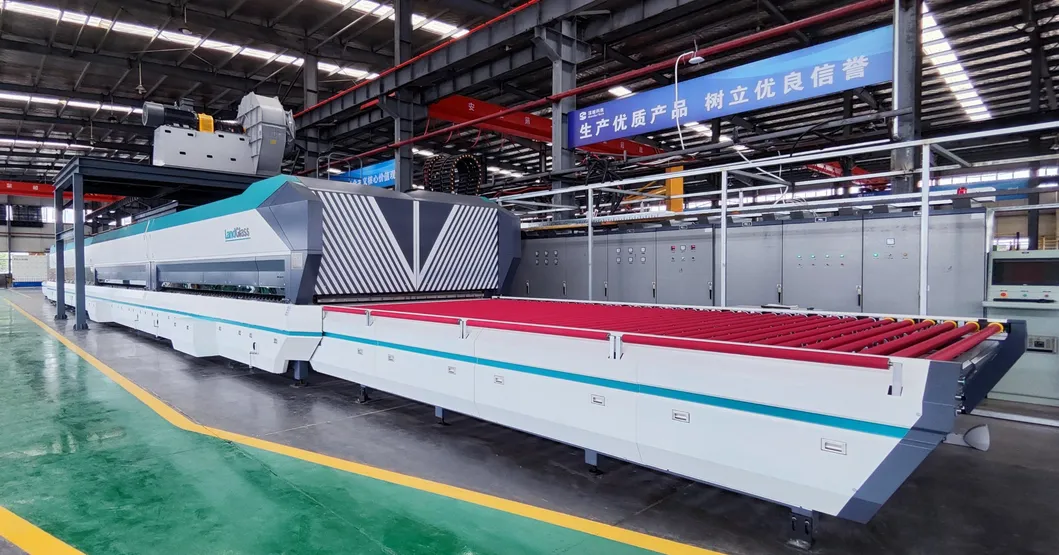

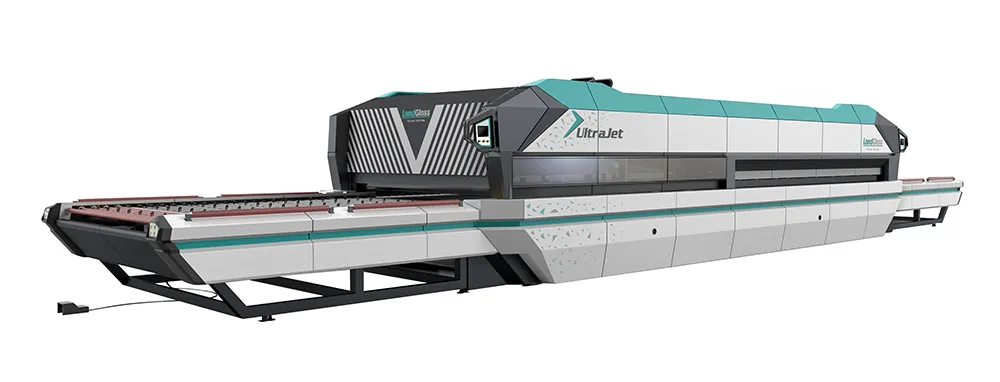

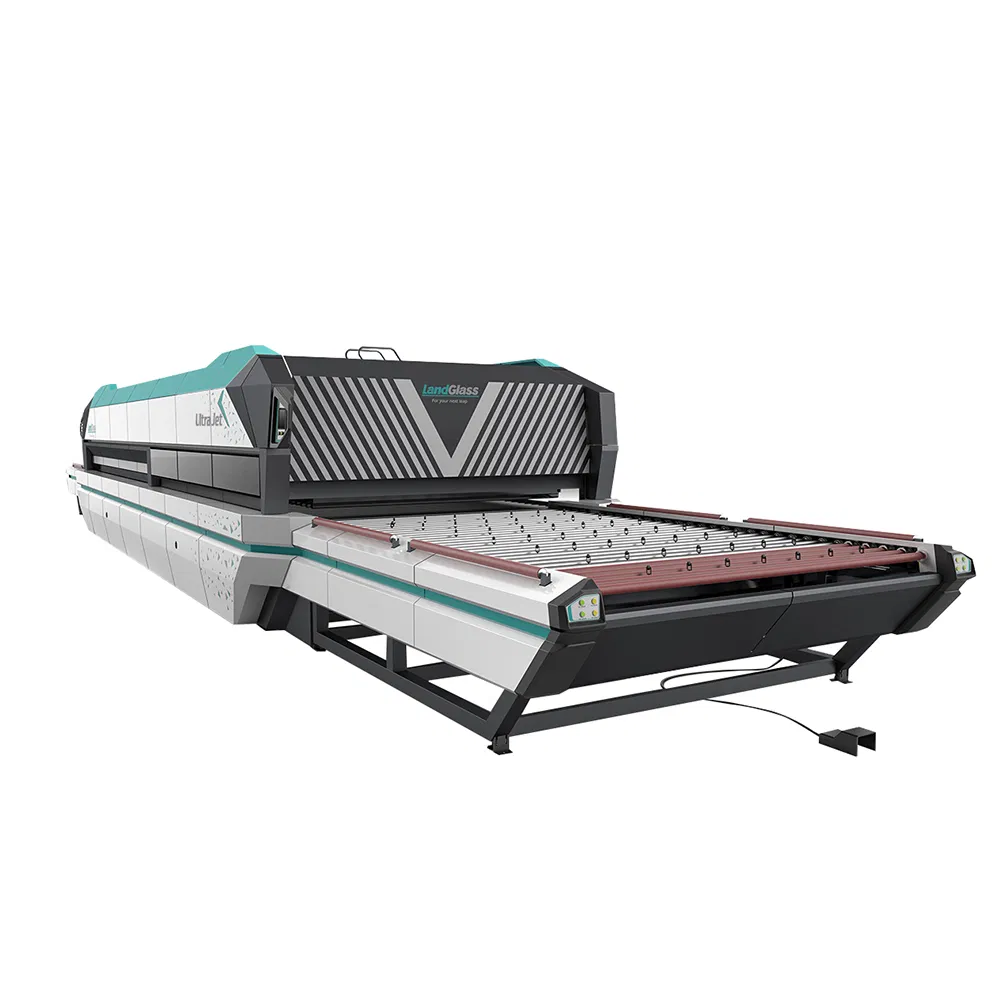

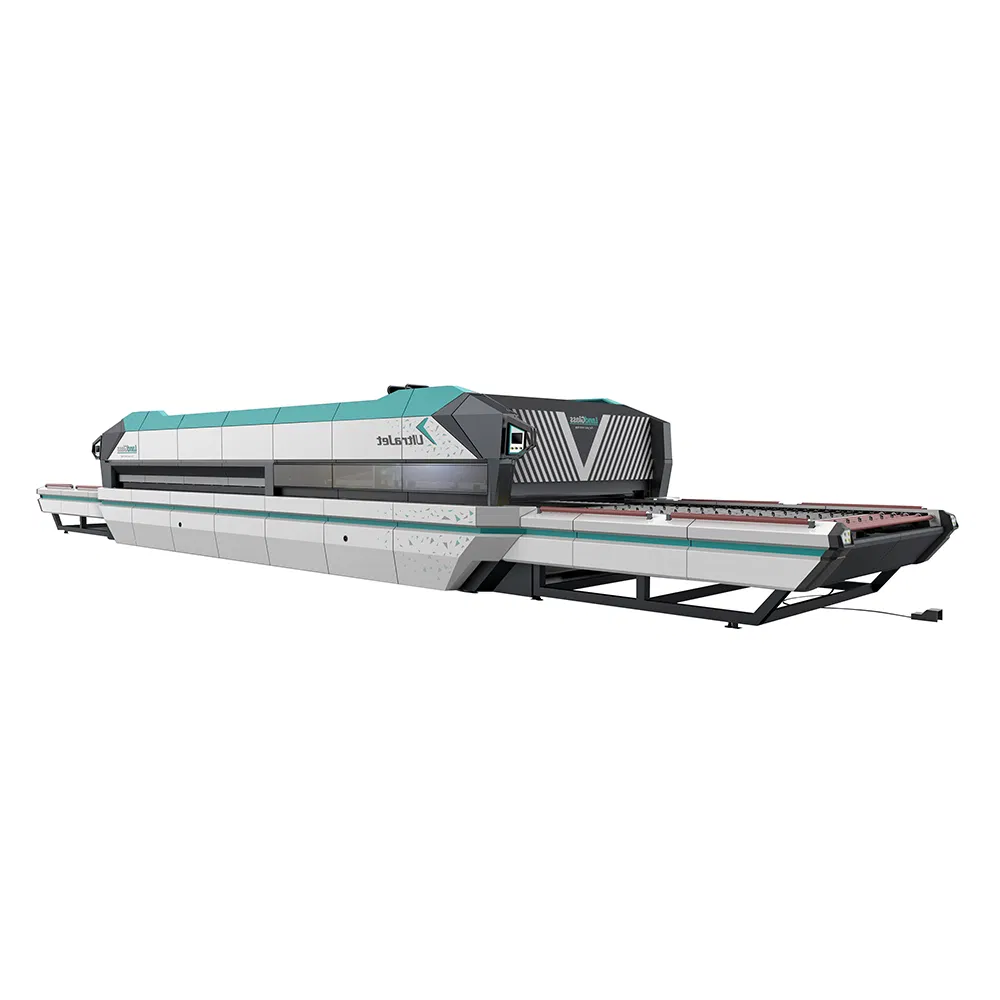

Factory Direct High Output Energy Saving Low-E Building Glass Tempering Furnace
The new-generation UltraJet series glass tempering furnace fulfills the diversified demands from architecture, furniture, automobile, home appliance, and solar power industries. It guarantees both quality and capacity for flat and bent tempered glass using classic JetConvection technology.
| Quality Metrics | UltraJet Series Standard | National Standards |
|---|---|---|
| Edge waviness | e.g. 0.09/300 mm (5 mm Low-E glass) | Waviness ≤ 0.2% |
| Stress marks | No visible marks under natural light (6 layers) | N/A |
| Flatness | Overall bow: 1/1000 mm | Overall bow ≤ 0.3% |
| Stress level | Difference ≤ ±8 Mpa/m² | N/A |
| Type | Max. Dimension (mm) | Min. Dimension (mm) | Thickness (mm) | Productivity (Loads/h) | Capacity (KVA) |
|---|---|---|---|---|---|
| A2436 | 2440 X 3600 | 150 X 350 | 4-19 | 20-22 | 800 |
| A2442 | 2440 X 4200 | 150 X 350 | 4-19 | 20-22 | 1000 |
| A2460 | 2440 X 6000 | 150 X 350 | 4-19 | 20-22 | 1250 |
| A3050 | 3000 X 5000 | 300 X 500 | 5-19 | 20-22 | 1250 |
| A3080 | 3000 X 8000 | 300 X 500 | 5-19 | 20-22 | 2000 |
Upgraded N-stage heating with a smooth heating curve for varied furnace types.
Reduces edge kink defects and improves overall glass flatness significantly.
Interface solutions for intelligent production and information interchange.
Optimized splitter plate structure for improved convection evenness.

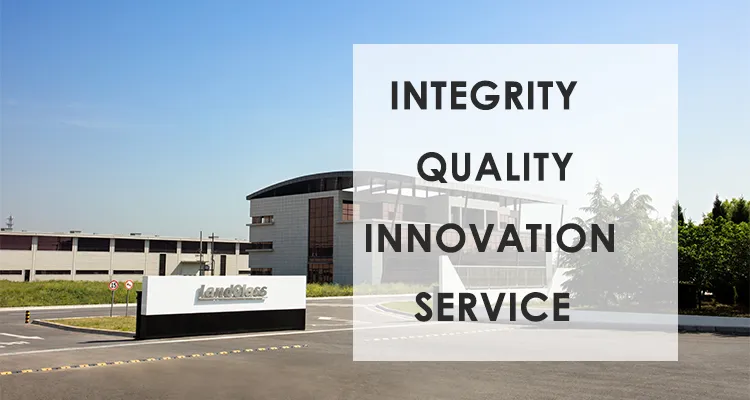

Our research base spans over 6,000 m² with a manufacturing plant of 22,500 m². We have applied for hundreds of patents, with authorizations in America, Germany, and Australia. Our commitment to technology has earned multiple Gold Awards for innovation.
Pre-Sale Assistance:
After-Sale Support:
