High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
1 / 5
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line
High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line

High Speed Glass Tempering Furnace for Architectural Use Toughening Tempered Production Line

Customization: Available
Certification: CE, ISO
Control System: PLC Control, Touch Screen Control
Send Inquiry

Product Description

📋

Basic Information

Model NO.
BLTF-2850
Glass Thickness Range
4-19mm
Heating Method
Convection Heating
Maximum Glass Size
2800×5000mm
Machine Type
Glass Tempering Furnace
Voltage
380V/415V/220V
Core Components
Motor, PLC
Total Power
800kw
Heating Power
1008kw
Production Capacity
80 Sets/Month
🏗️

Product Description

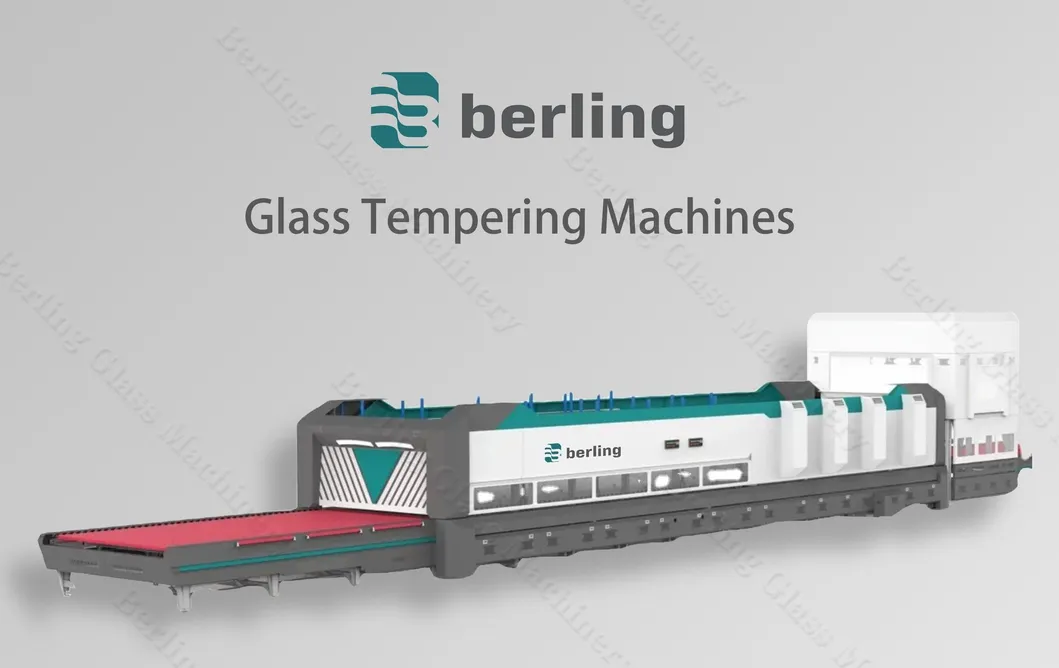

Tempering Furnace

Energy Efficient Single Chamber Tempering Furnace

This advanced glass tempering furnace is capable of withstanding temperatures over 1000°C for more than 60 minutes without cracking or blowing. Ideal for producing high-strength, heat-resistant glass for architectural and safety applications, it combines precision control, energy efficiency, and intelligent protection.

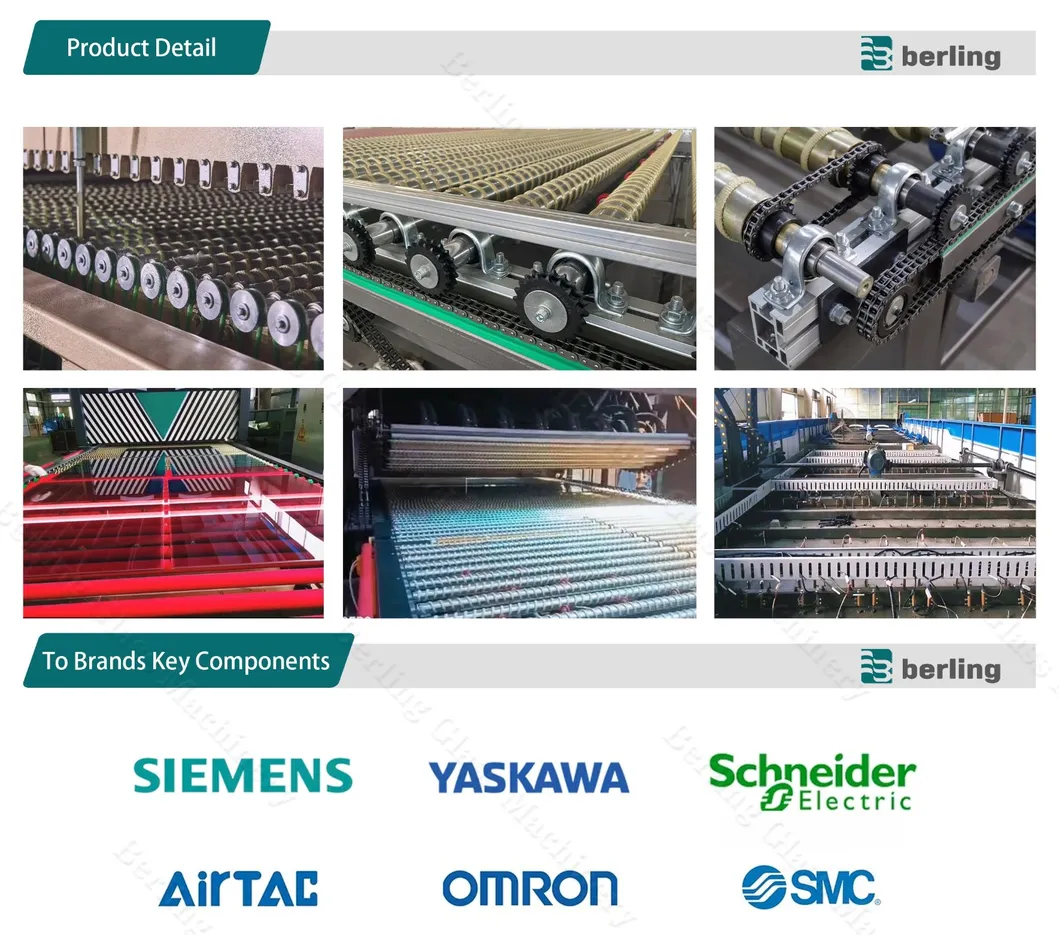

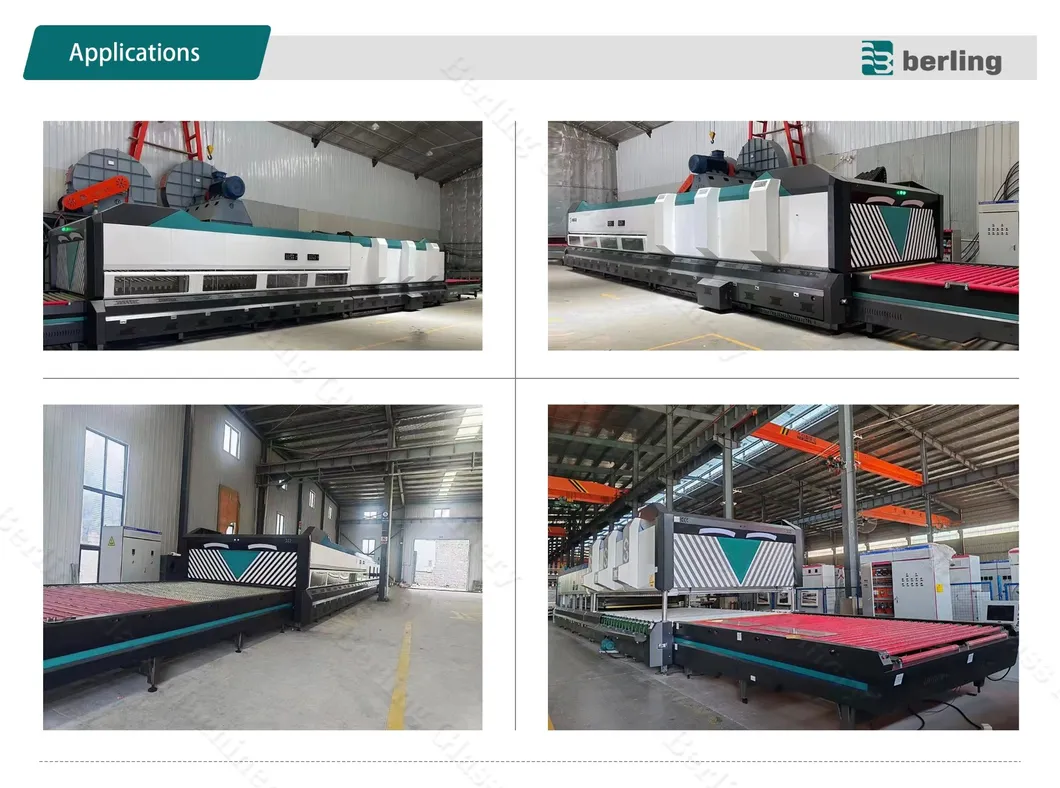

Processing Capabilities Machine Detail

Application Scope

  • Ordinary float glass & Ultra-clear glass
  • Silk-screen printed glass & Figured / patterned glass
  • Colored glass & Low-E (low emissivity) glass
  • Fireproof DFB single-layer glass

Key Features

  • PLD Closed-Loop Heating Control: Intelligent regulation ensures accurate temperature control.
  • Multi-Curve Control: Process different glass sizes and types simultaneously with optimal quality.
  • Smart Heating Protection: Prevents overheating and surface damage caused by temperature spikes.
  • Frequency Conversion Fan System: Enhances energy efficiency and reduces consumption.
  • Emergency DC Backup: Protects quartz rollers during unexpected power outages.
  • Flexible Recipe Management: Stores hundreds of parameters for various production needs.
📊

Technical Parameters

Type Max. Size (mm) Min. Size (mm) Thickness (mm) Output (m²/h) Transformer
BL-TF10201000*2000100*1002.85~1926250KVA
BL-TF14251400*2500300*1002.85~1945250KVA
BL-TF18251800*2500300*1004~1958250KVA
BL-TF20302000*3000300*1004~1977400KVA
BL-TF24362440*3600300*1504~19106500KVA
BL-TF24422440*4200300*1504~19121630KVA
BL-TF28502800*5000300*2004~19179800KVA
BL-TF33803300*8000300*2005~193381250KVA
🚢

Packaging & Shipping

Shipping
📜

Certifications & Profile

Certification
Factory View Workshop
🛠️

After Sales Service

Service Team
❓

Frequently Asked Questions

1. What types of glass can this tempering furnace process?
It is suitable for processing ordinary float glass, ultra-clear glass, silk-screen printed glass, patterned glass, colored glass, Low-E glass, and fireproof DFB single-layer glass.
2. How do you guarantee the quality of the machinery?
We always provide a pre-production sample before bulk production and conduct a comprehensive final inspection before shipment to ensure stability and performance.
3. What is the advantage of the PLD Closed-Loop Heating system?
The PLD system provides intelligent regulation of heating wires, ensuring flexible and highly accurate temperature control for optimal glass quality.
4. Is the furnace energy efficient?
Yes, it features a frequency conversion fan system with stepless speed regulation, which significantly reduces power consumption and enhances overall energy efficiency.
5. What safety features are included for power failures?
The machine includes an emergency DC backup system and a power failure alert system with telephone notifications to protect rollers and glass during disruptions.
6. What range of glass thickness can be tempered?
Depending on the model, the furnace can process glass thickness ranging from 2.85mm up to 19mm.
