Basic Specifications
Glass Thickness:3-80mm
Dimension(L*W*H):21300*2800*3800mm
Weight:5500kg
Power:37.5kw
Min. Glass Size:300*400mm
Max. Glass Size:2500*3700mm
Type:Insulating Glass Production Line
Structure:Vertical
Condition:New
Warranty:30 Years
HS Code:8464901100
Production Capacity:20set/Month, 700-800 Pic/8h
Product Description
Insulating Glass machine Double Glazing Glass Machine with function Argon Gas Filling automatically

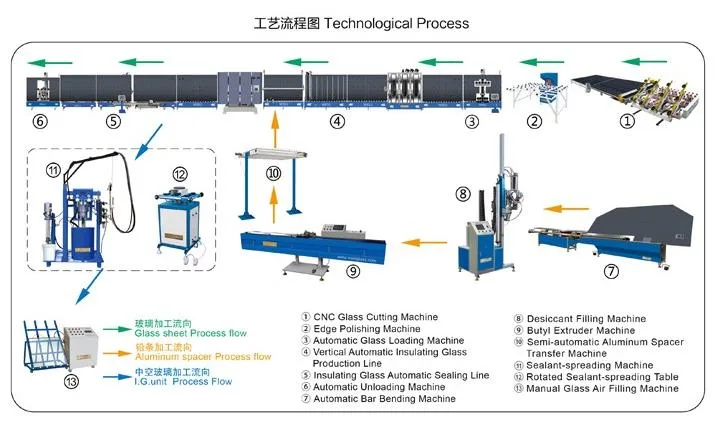

The IGU line is to change the production of insulating glass from manual operation to machine operation and connect each link through the system to produce in one go. First, the two pieces of glass used to make hollow glass, which can be original glass or tempered glass, are put into the hollow production line, and then washed, dried, made spacer frame, filled with desiccant, and first sealed (with butyl glue), check, put the frame and sheet, press the sheet, the second sealing (polysulfide glue or silicone glue), and multiple processes of unloading. The quality of the products processed by the insulated glass wire is high, and the processing speed is very fast, so the double glazed glass wire is very popular with IGU glass processing enterprises.
Insulating Glass Machine Details

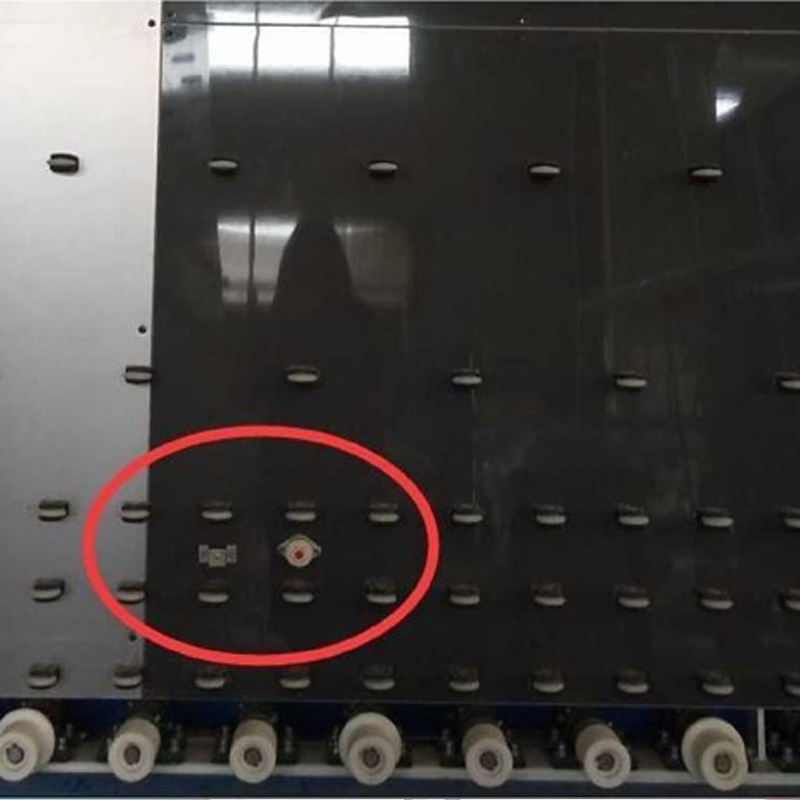

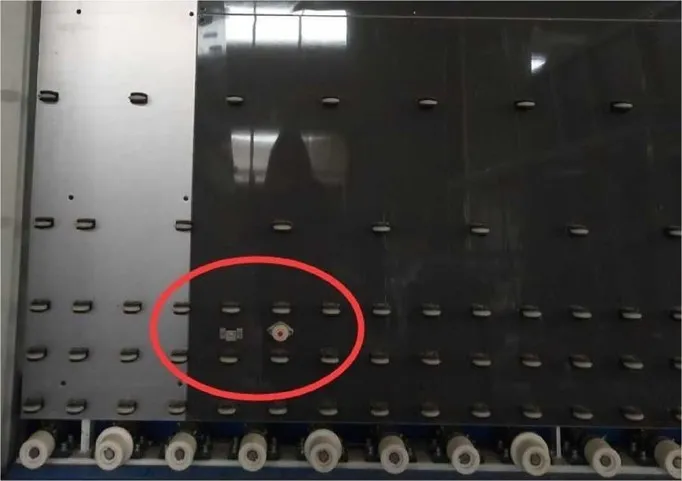

1. Feeding part with low-e coating checking system

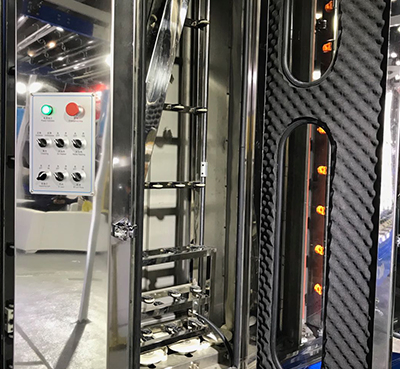

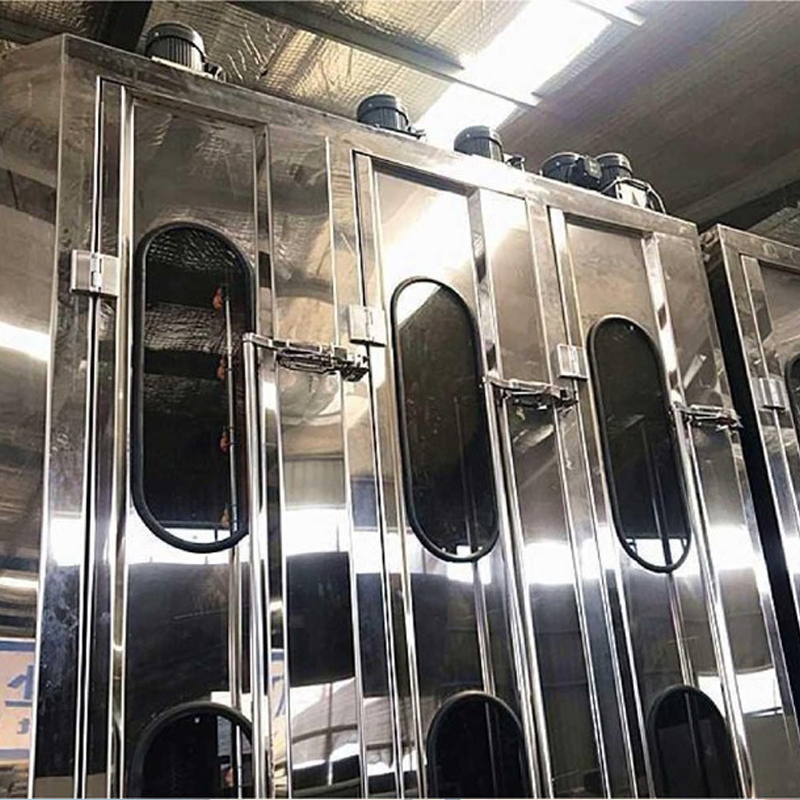

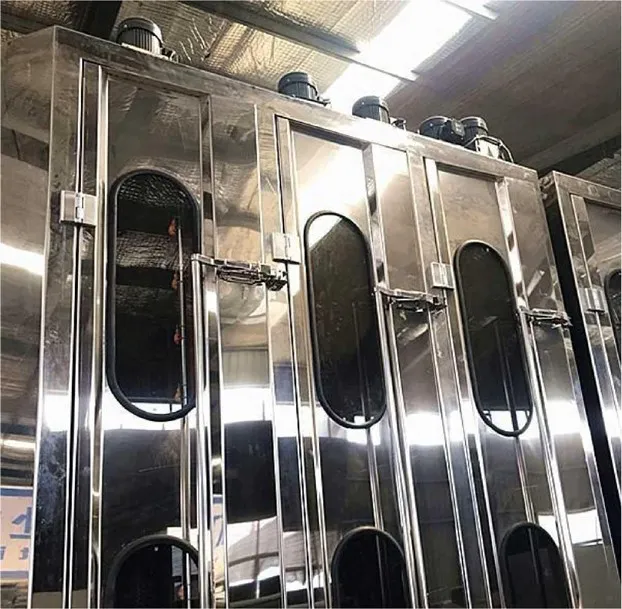

2. Washing and drying machine

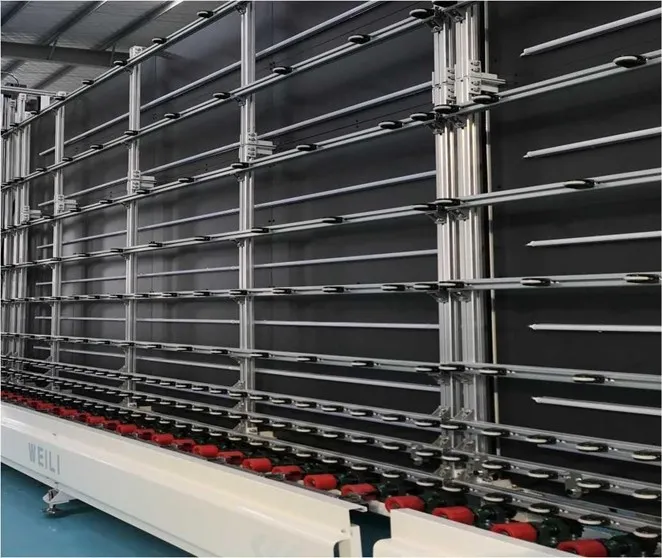

3. Transition, Storage, Light Inspection and Spacer Bar Location

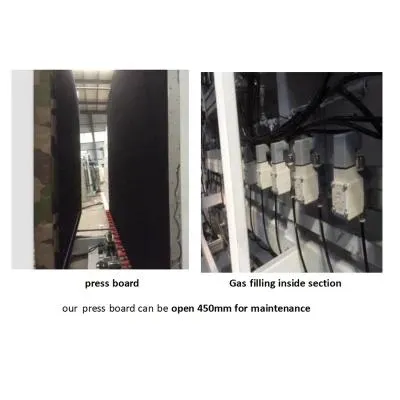

4. Inside Flat Press and Assembly

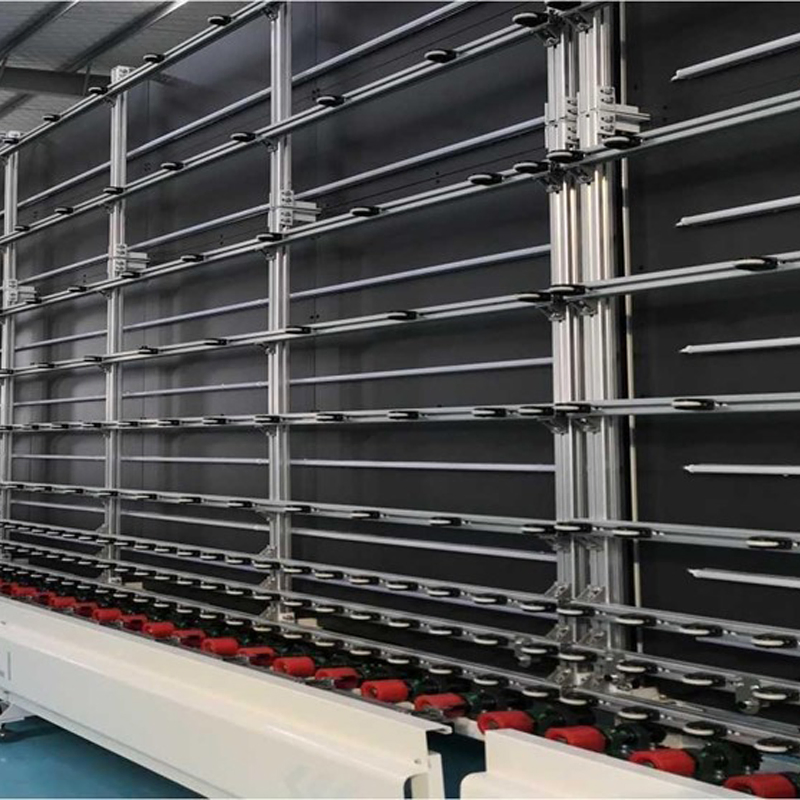

5. Convey and Storage
Frequently Asked Questions
Q: What is the maximum glass size the production line can process?
A: The machine can handle a maximum glass size of 2500*3700mm (Technical parameter notes 2500x3600mm).
Q: Does the machine support automatic Argon gas filling?
A: Yes, it features an automatic gas filling press machine that ensures an Argon concentration of 90% or higher.
Q: Can it detect Low-E coated glass?
A: Yes, the feeding part includes a low-E coating checking system and automatically detects the coated surface of Low-E and other coating glass.
Q: What types of insulating glass can be produced?
A: This line is capable of producing double, triple, low-E film, and laminated insulating glass.
Q: How long is the warranty and after-sales service?
A: The product comes with a comprehensive 30-year warranty and 30 years of after-sales service.
Q: How does the machine adjust to different glass thicknesses?
A: The air knife and other components automatically adjust based on the detected glass thickness for optimal processing.
