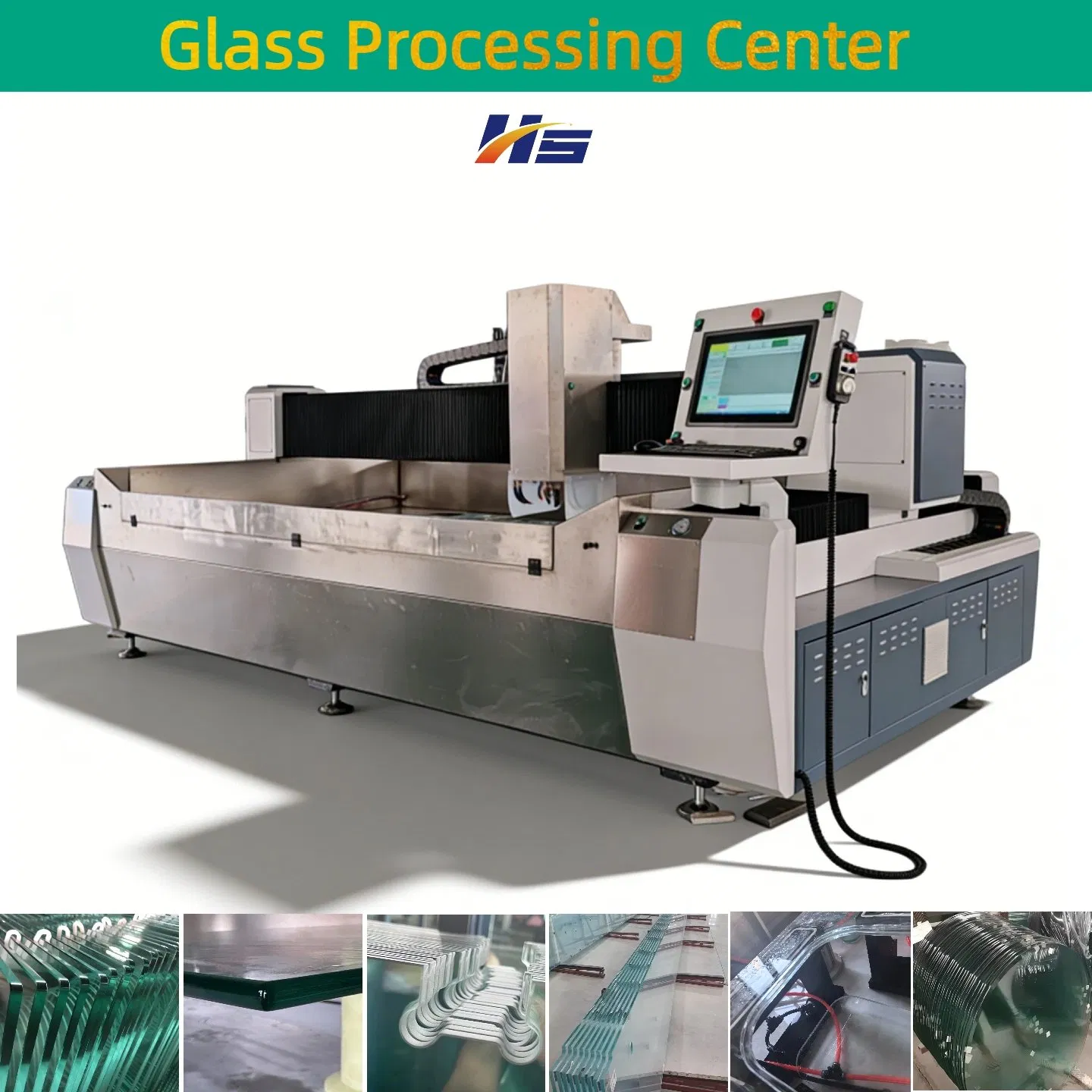

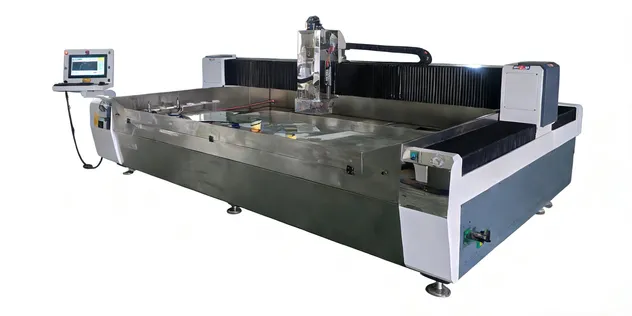

Integrated Glass Processing Solution: Drilling, Notch Carving, Internal-External Edging & Polishing

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

Basic Information

Model NO.HS2515

Warranty1 Year

Working Area3000*1500mm

Equipment Size5200*2250*1800mm

Cooling SystemWater Cooling

Auto or NotAutomatic Machine

Transport PackageWooden Crate or Wrapping Film

OriginChina

HS Code8464201000

Core Functions

Drilling: Circular or oval holes for hinges, handles, and screws in doors and cabinets.
Grooving: Slots for glass splicing, inlaying, or hardware fixing.

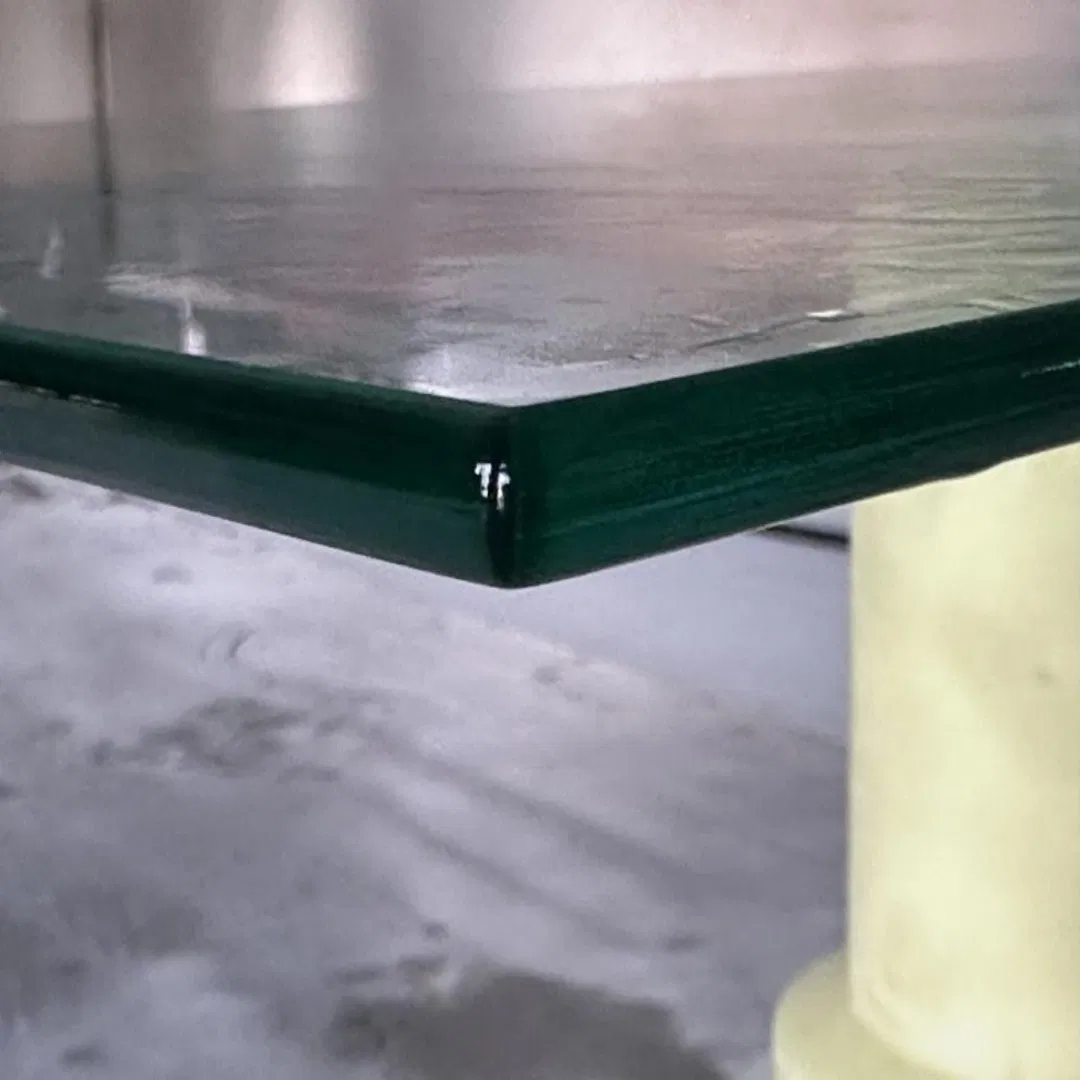

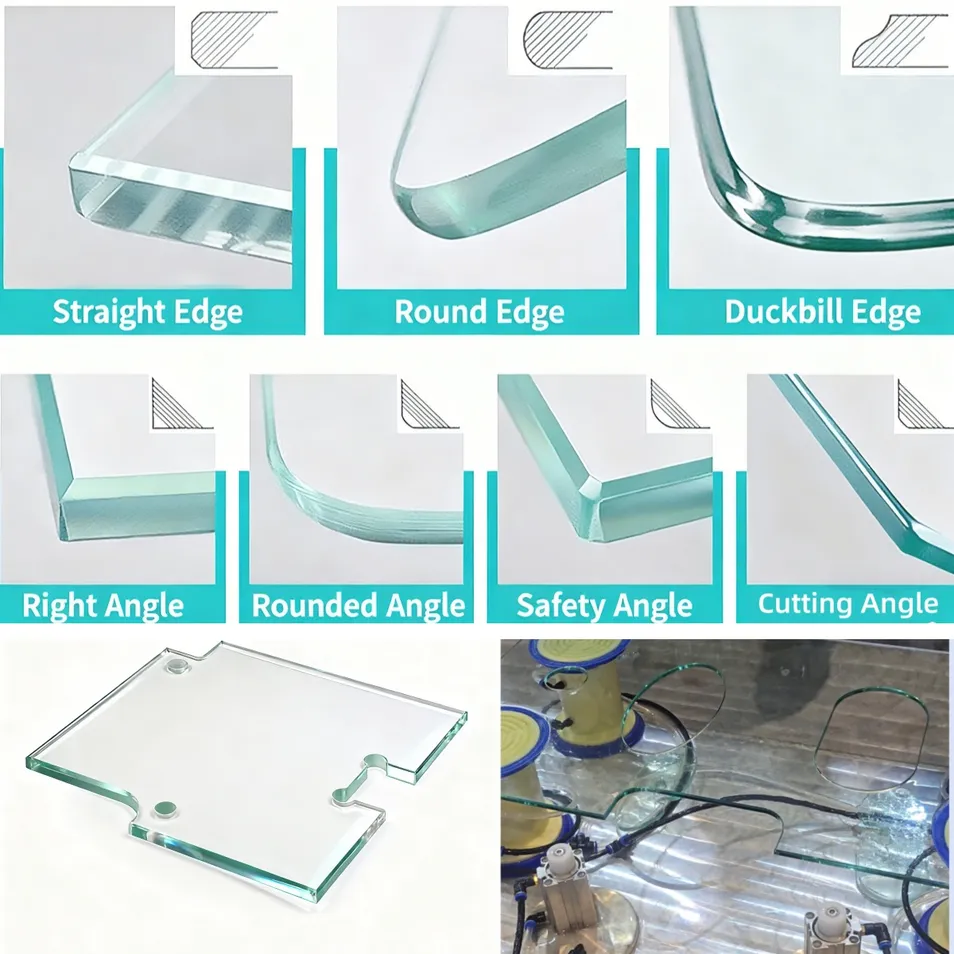

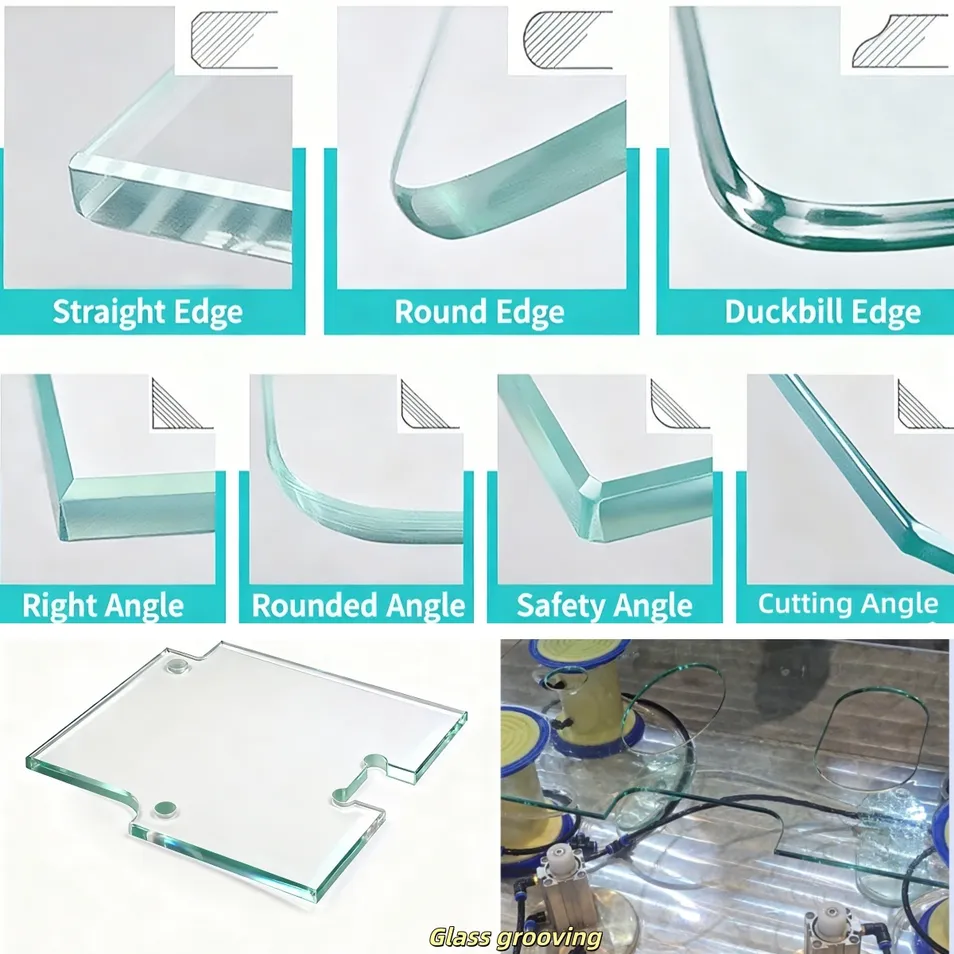

Edge Grinding: Includes straight, round, bevel, and duckbill edge adjustments.
Chamfering: Rounding edges to prevent scratches and meet fitting requirements.
Polishing: High-gloss treatment using polishing wheels for a mirror-like effect.

Product Advantages

Mechanical Structure

Horizontal structure for easy loading. Constructed with thick-walled square tubes and processed on a five-axis machining center with high-temperature annealing for long-term stability.

High-Power Spindle

Ultra-high speed electric spindle with positioning accuracy of ±0.01mm and repeatability of ±0.005mm.

Operating System

Professional control system with a rich image library and multiple processing modes, making operation simple and intuitive.

Corrosion Resistance

All parts in contact with water are made of stainless steel to reduce corrosion and extend machine service life.

Automatic Tool Changer

Equipped with a 6-tool magazine for automatic changing to meet various glass processing techniques.

Technical Specifications

Model		2515	3015	3020
Spindle Travel	X Axis	2500mm	3000mm	3000mm
	Y Axis	1500mm	1500mm	2000mm
	Z Axis	350mm	350mm	350mm
Working Table	Area	2500*1500mm	3000*1500mm	3000*2000mm
Working Table	Max Loading	300KG
Performance	Spindle Motor	15KW
Performance	Max Cut Speed	6000-12000mm/min
Precision	Positioning	±0.05mm
Precision	Repeatability	±0.03mm

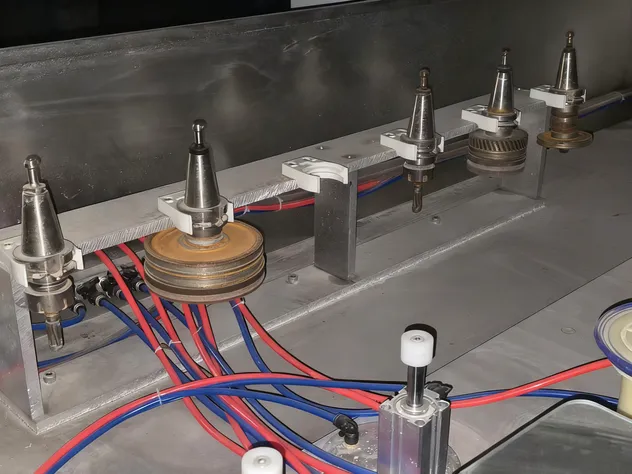

Automatic Tool Changer

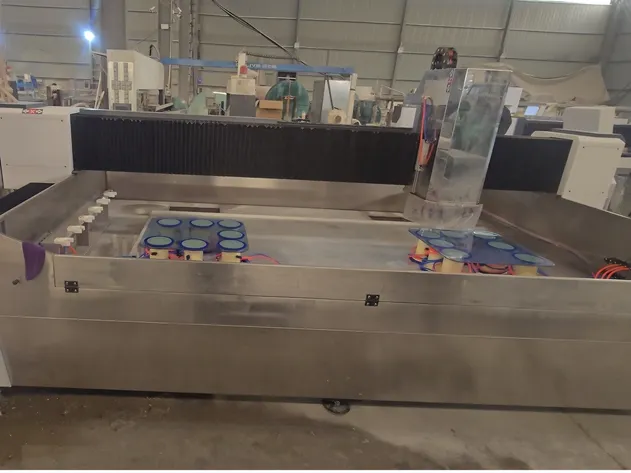

Dual Station Processing

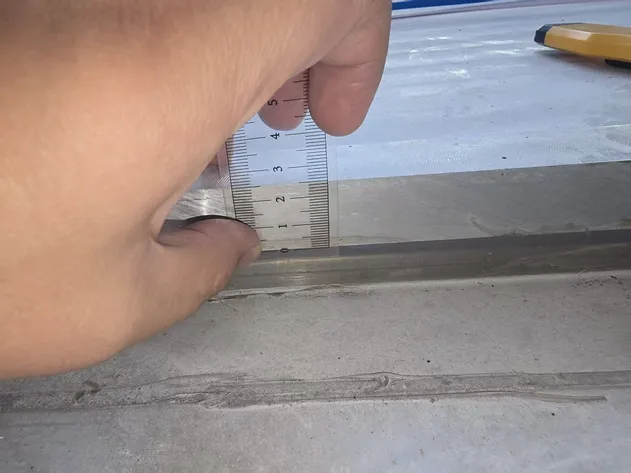

25mm Aluminum Surface

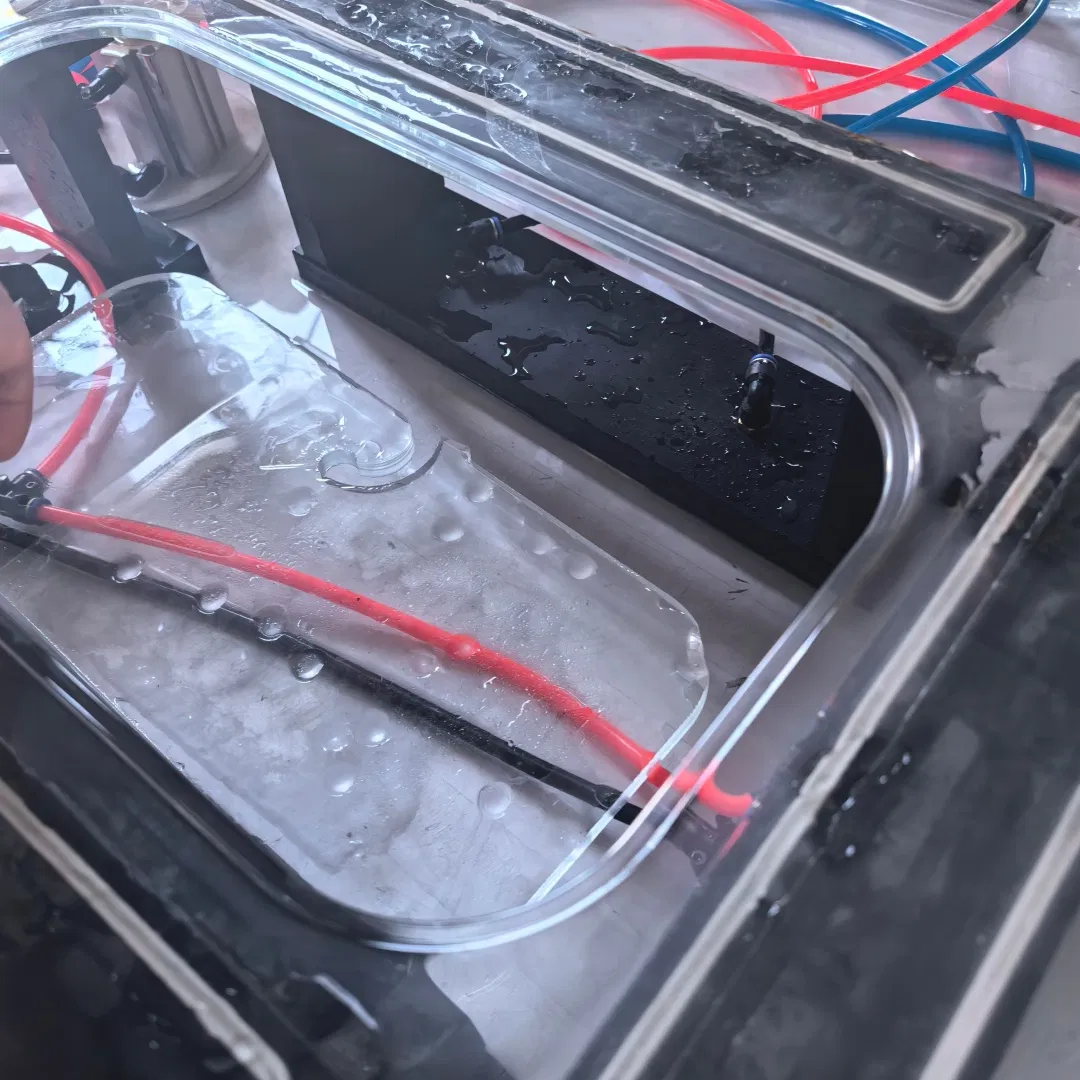

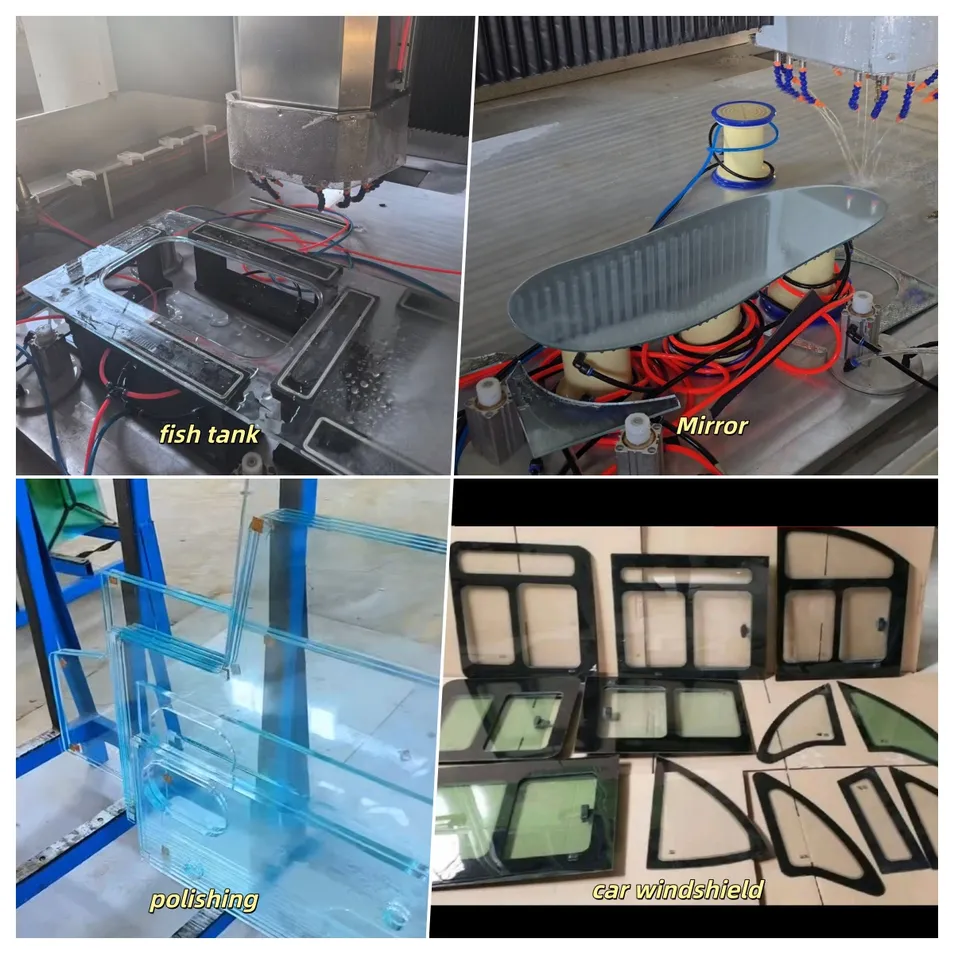

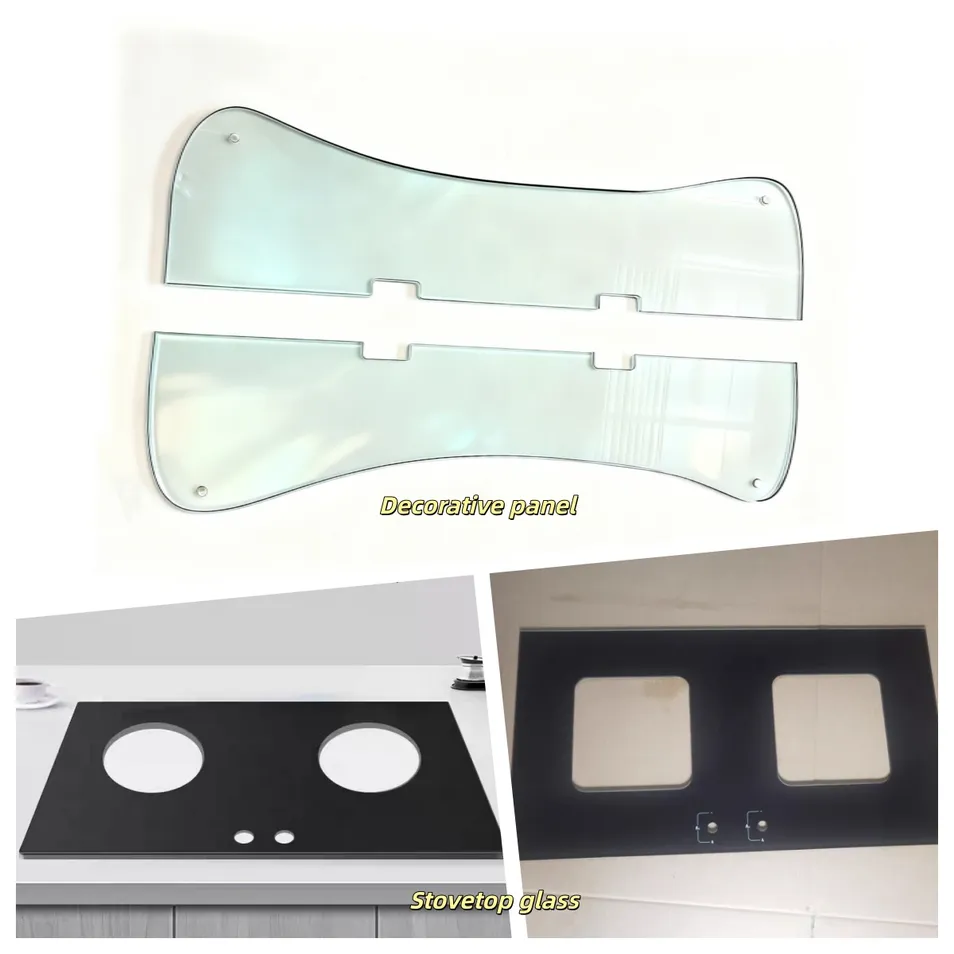

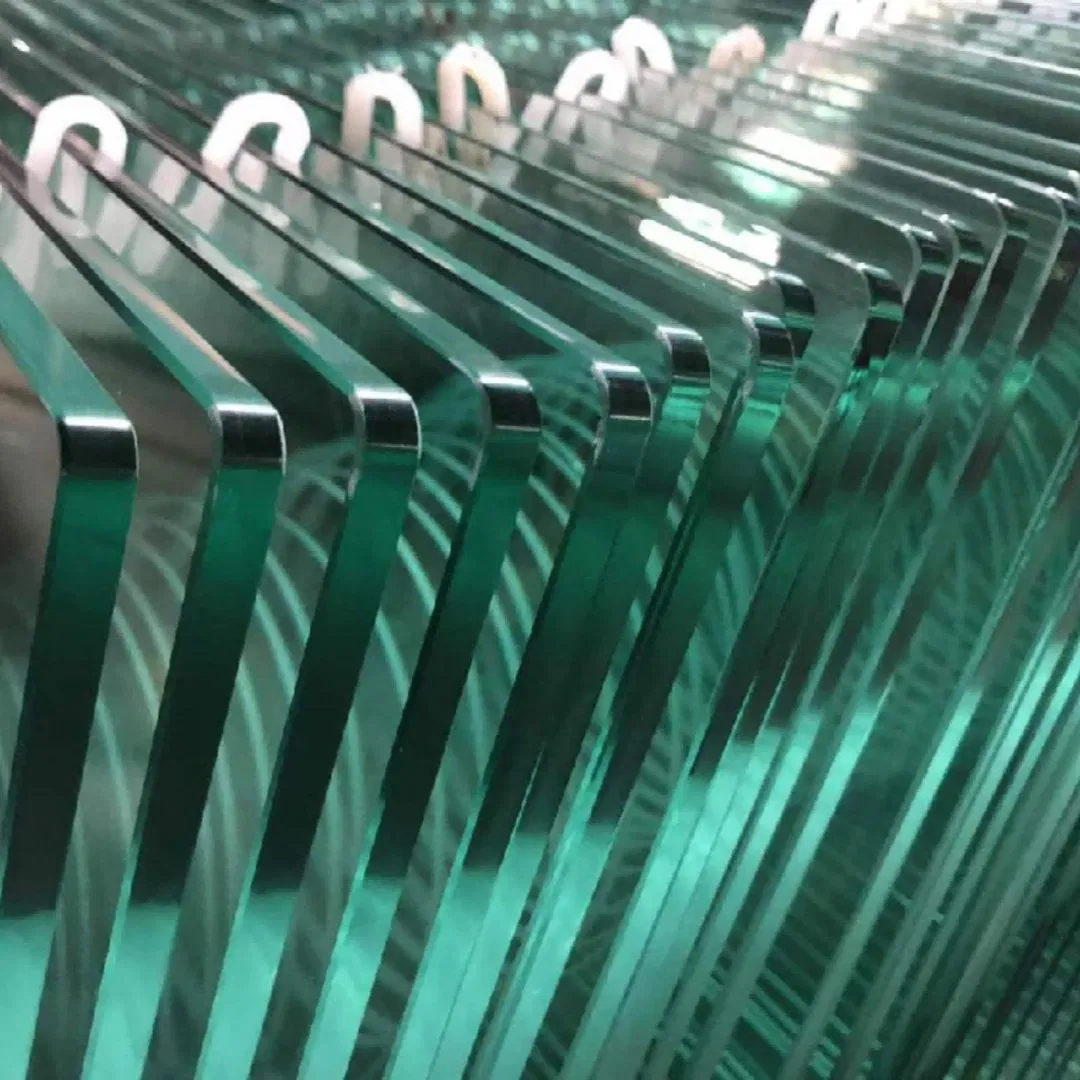

Work Samples

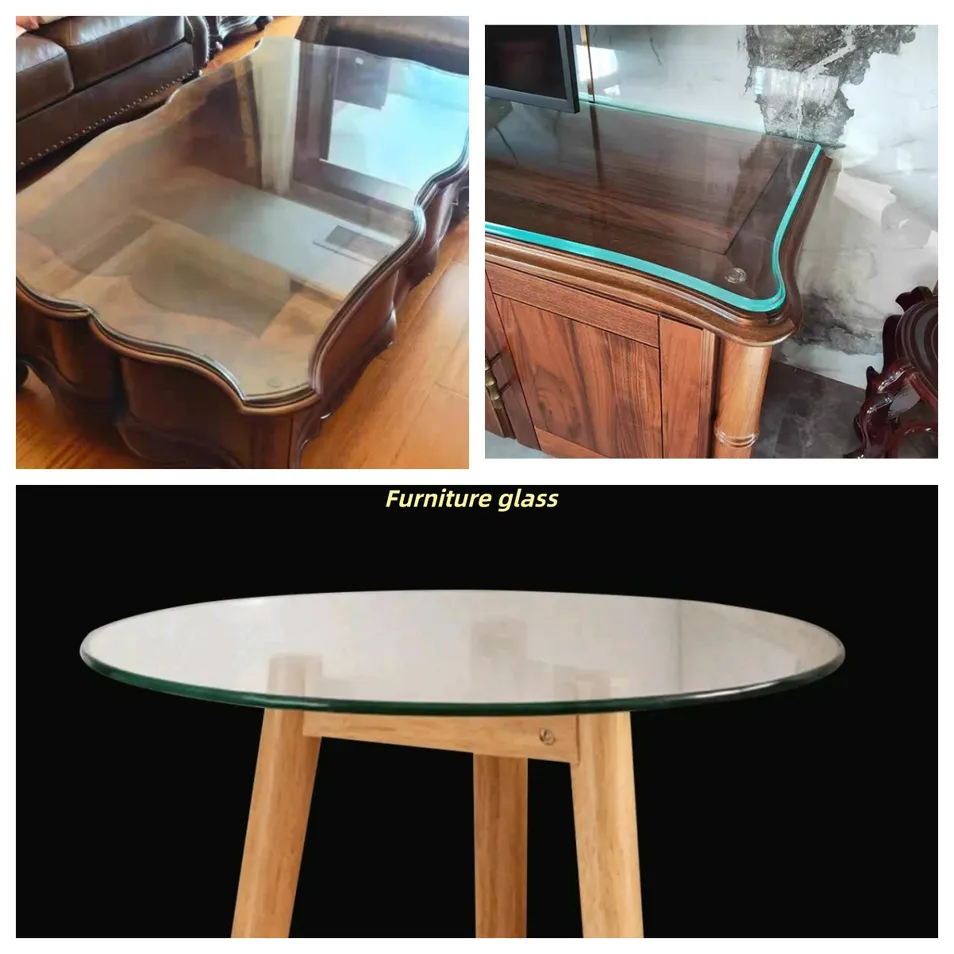

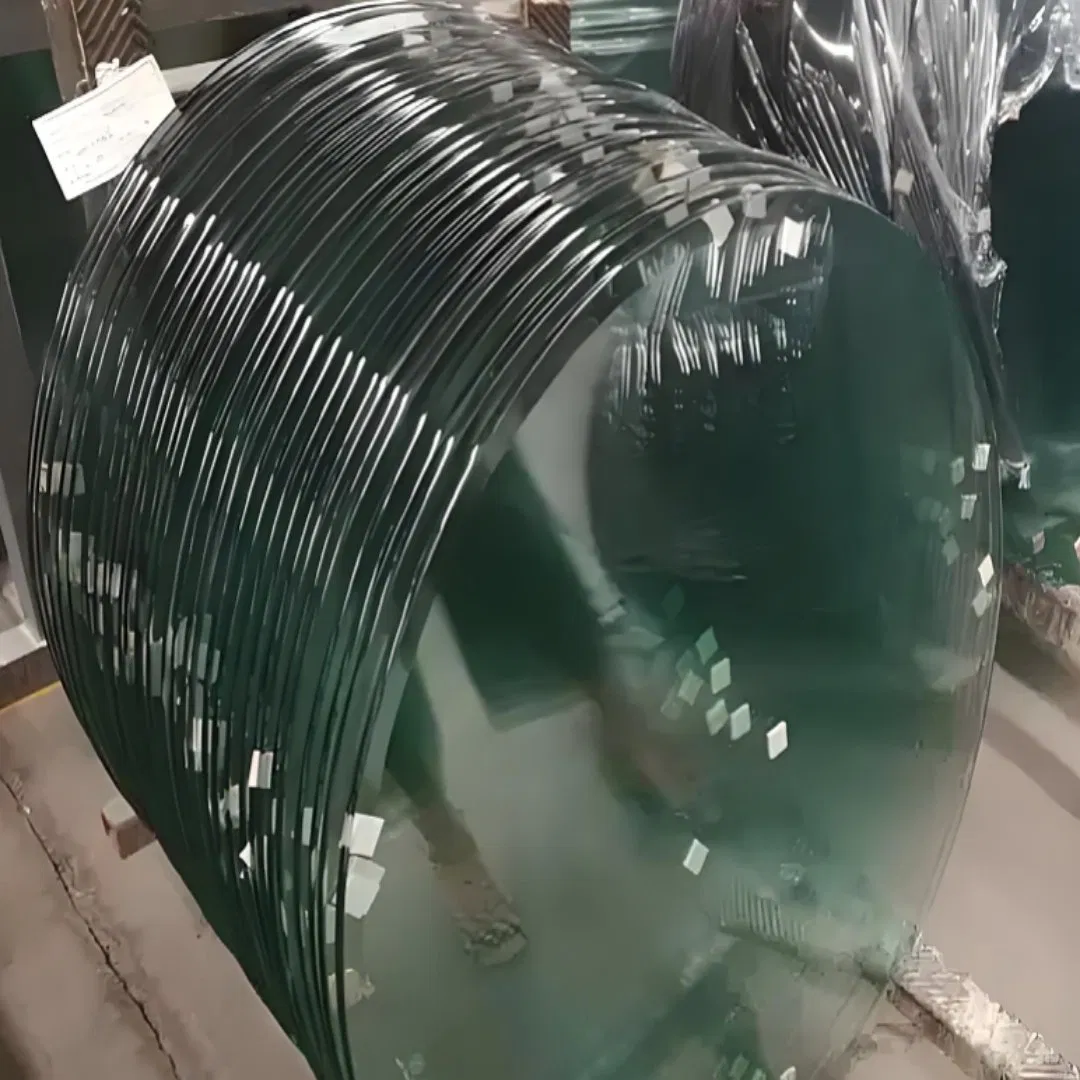

Suitable for furniture glass, appliance glass, mirrors, aquarium glass, automotive glass, and more.

Service & Logistics

After Sales Support

Standard Warranty: 12 months.
Extended Warranty: Optional up to 36 months.
Global Support: 24/7 technical assistance.
Training: On-site or remote maintenance training.

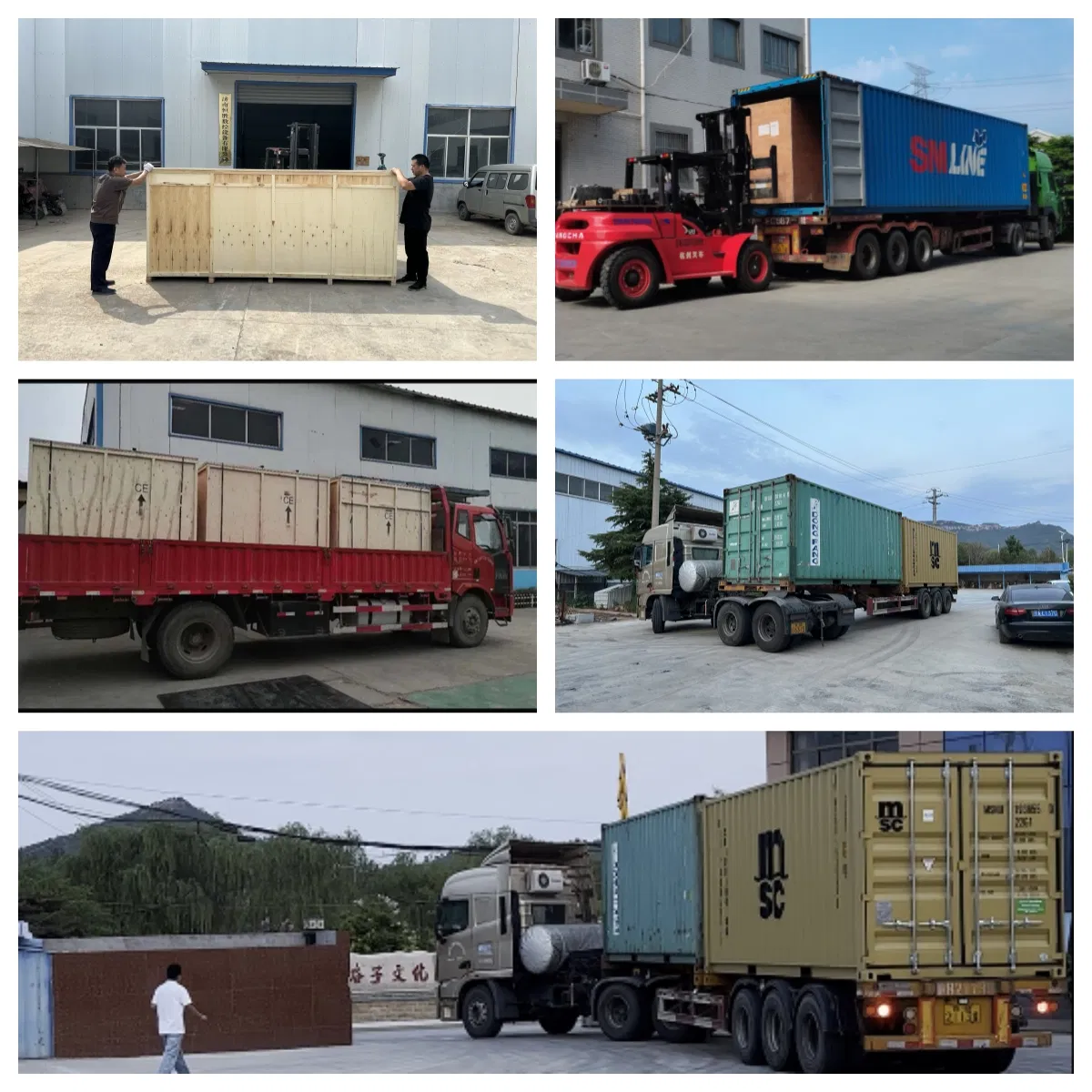

Packaging & Shipping

Standard width controlled at 2200mm for easy container loading. Modular designs available for larger units. Secure wooden crate or film wrapping ensures safe transport.

Frequently Asked Questions

Q: What is the standard lead time for orders? A: Standard models typically ship within 15–30 days, while customized units require 30–45 days.

Q: Can I request customized machine dimensions for my project? A: Yes, we offer comprehensive customization services to meet specific size and configuration requirements.

Q: Do you provide on-site technical support overseas? A: Yes, we provide 24/7 global support and have partnered service centers in key regions to assist with installation and maintenance.

Q: Is the factory a direct manufacturer? A: Yes, we are a professional manufacturer specializing in CNC equipment with strong R&D and production capabilities.

Q: How do you ensure the precision of the glass processing? A: Our machines feature high-precision servo systems and electric spindles with repeatability up to ±0.005mm, ensuring high-quality finished products.

Q: What materials can the CNC center process besides standard glass? A: It is ideal for various glass types including furniture glass, appliance glass, automotive glass, mirrors, and aquarium glass.
