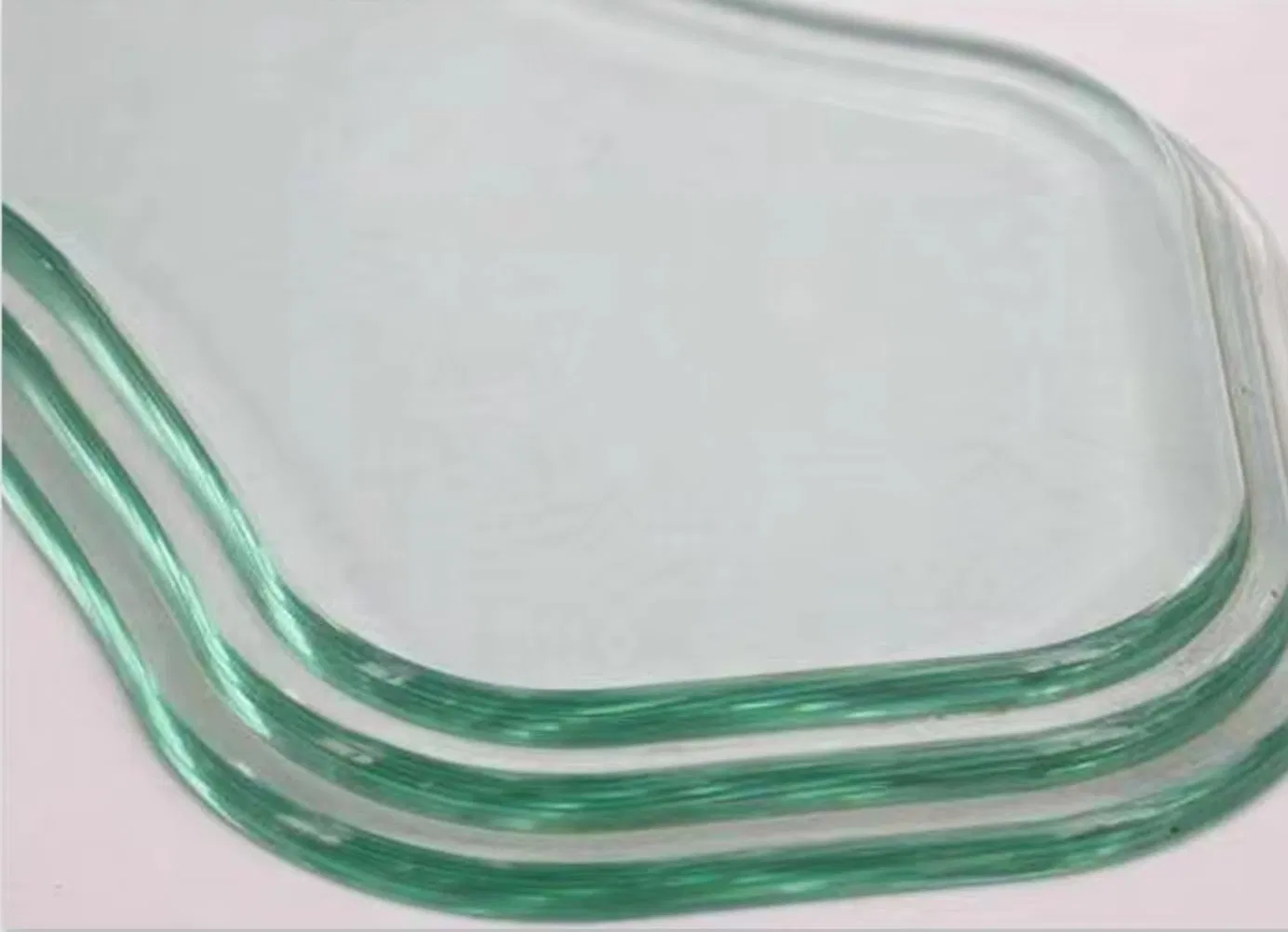

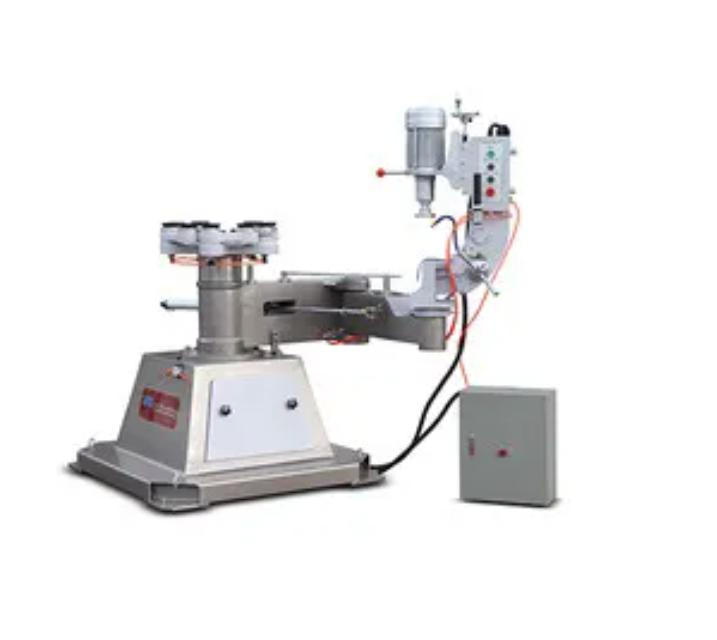

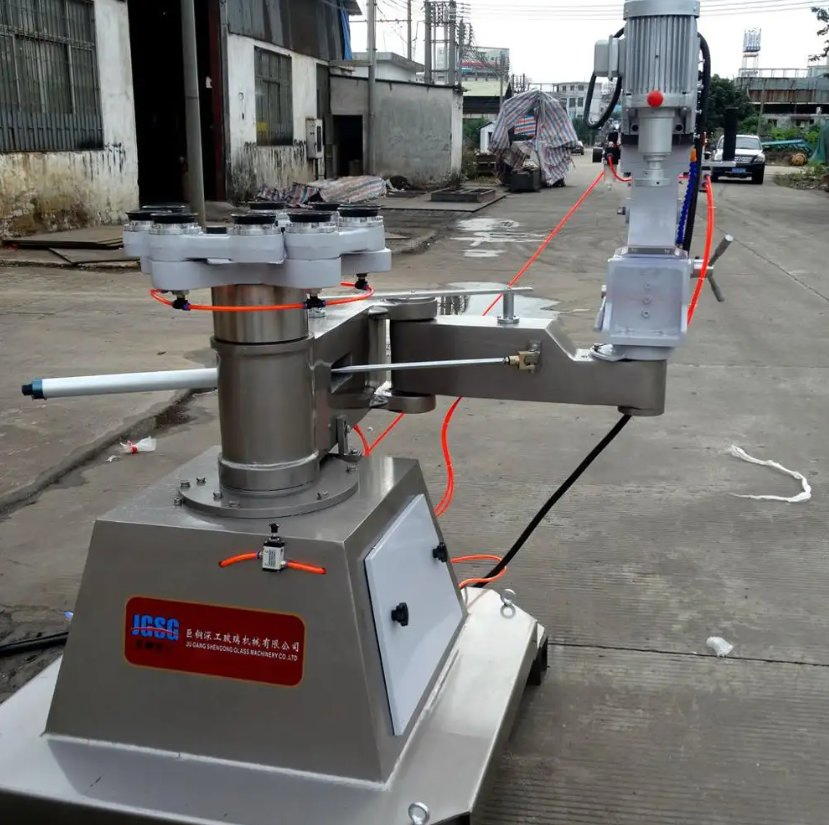

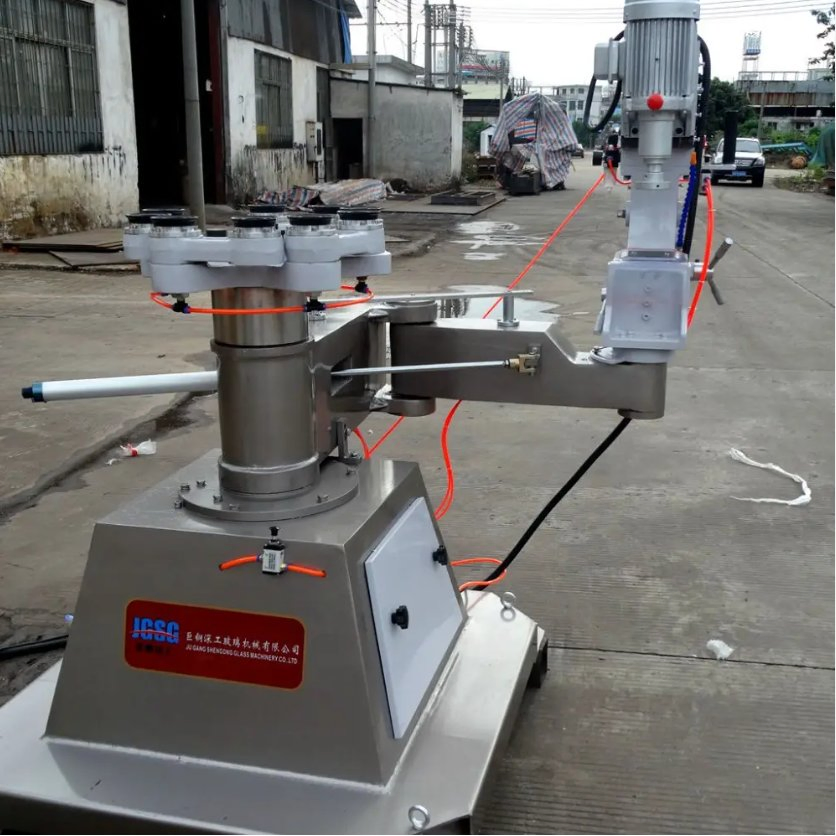

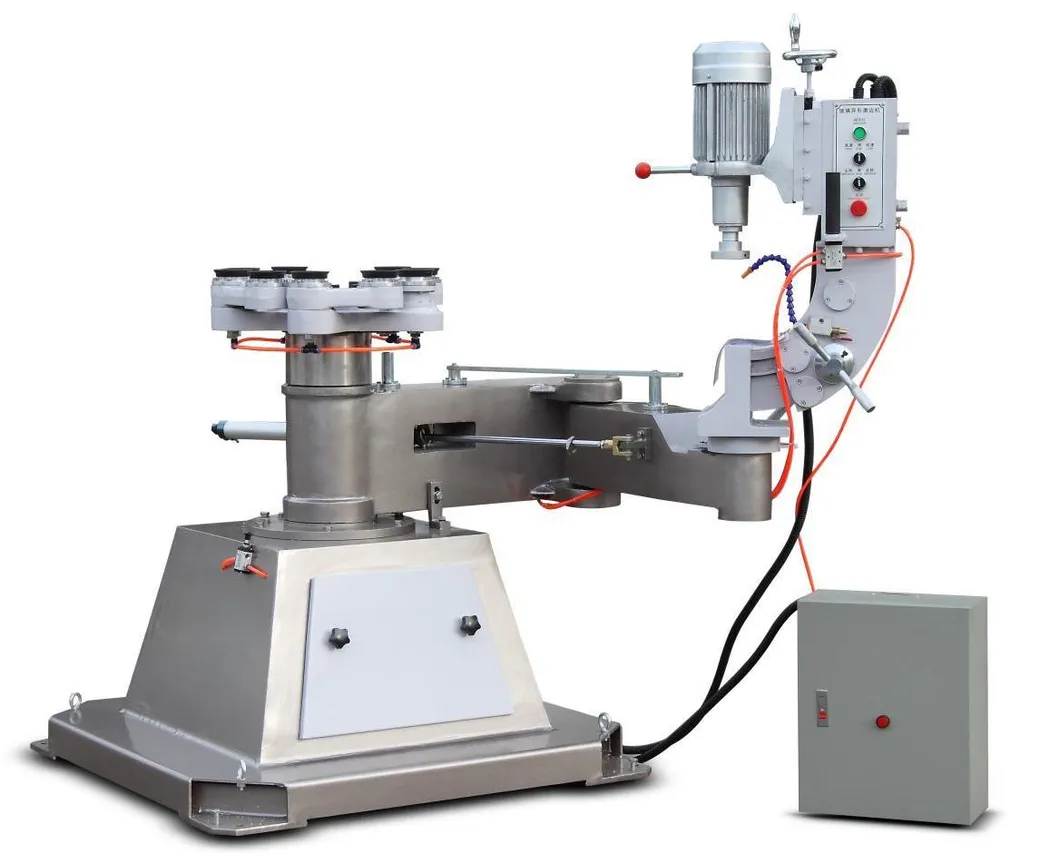

This machine is suitable for processing of circular are edge, duckbilled edge, edge and other shape deformation of various kinds of flat glass (depending on the shape of grinding wheels). The glass with simple shape can be implemented semi-automatic grinding.

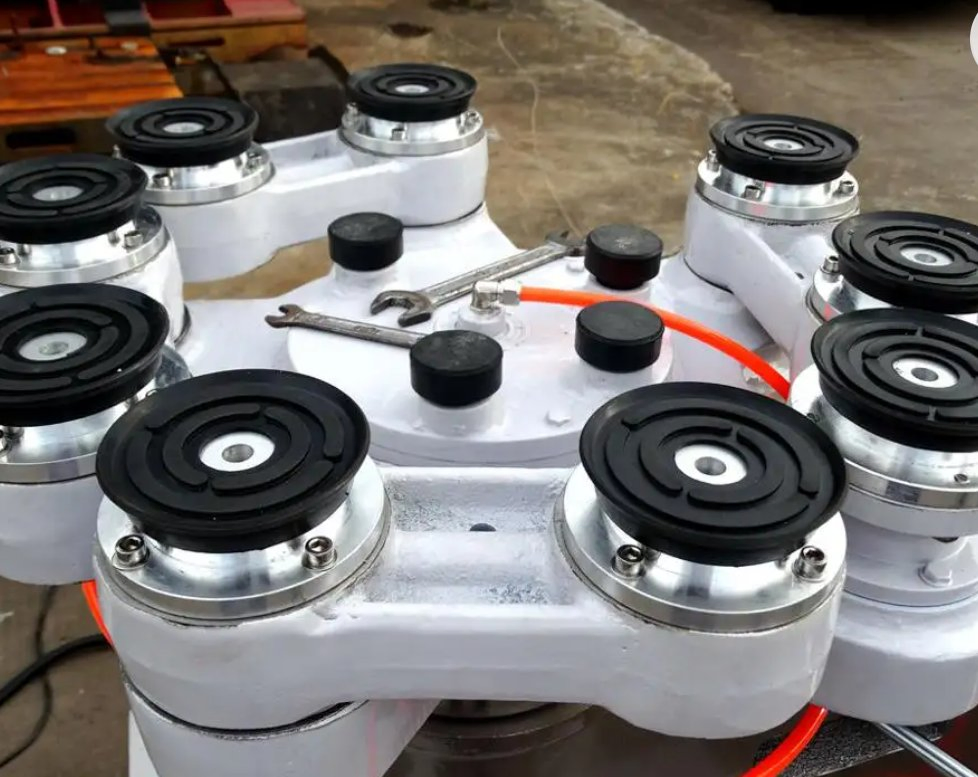

Aimed at the deficiency of previous models, this machine has specifically improved accuracy of the rotary table to ensure the grinding precision of the bevel edge; distinctively, it adds the brake system, eliminating the movement clearance, and in rotation it exerts the moderate load (adjustable) to make it keep no clearance action for a long time, thus greatly reducing the grinding vibration and making operation more convenient and efficient.
| Model | HHJGYM1320 | Glass transmission speed | 0.75-3.5m/min |
| Max.glass size | Unlimited | Glass thickness | 3-30mm |
| Bevel edge angle | 0°-20° | Overall size | 1770*900*1690mm |
| Glass turning diameter | 100-2100mm | Power supply | 380V/ 50Hz/3P |
| Power | 3Kw | Weight | 800kg |
| Bevel edge wheel | φ150 | Min.Glass Size | Unlimited |
| Part Name | Specification / Material |
|---|---|
| Electric machine | 380V/50Hz, 1.5kw~2.2kw |
| Conveyor drive motor | 2.2KW variable frequency motor |
| Main bearing | High-precision components |
| Motor tank | Stainless steel |
| Girder, base, motor seat | Cast iron with annealing treatment |
| Electric appliance | Industrial Standard Components |

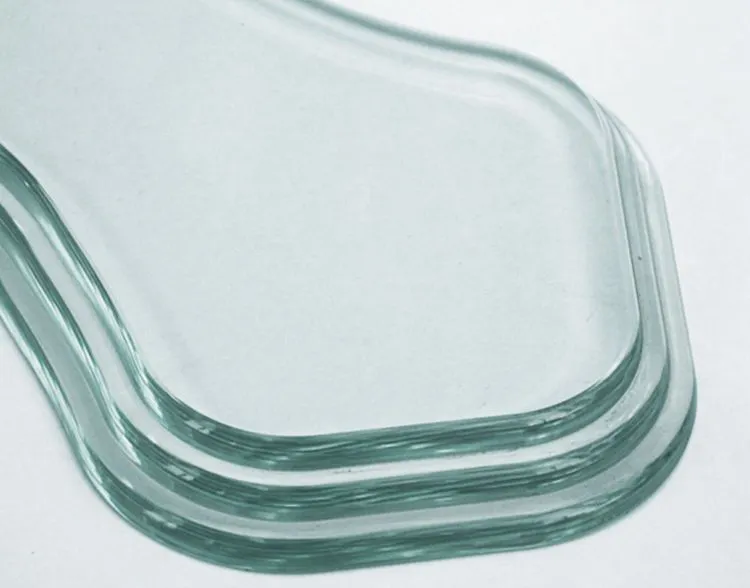

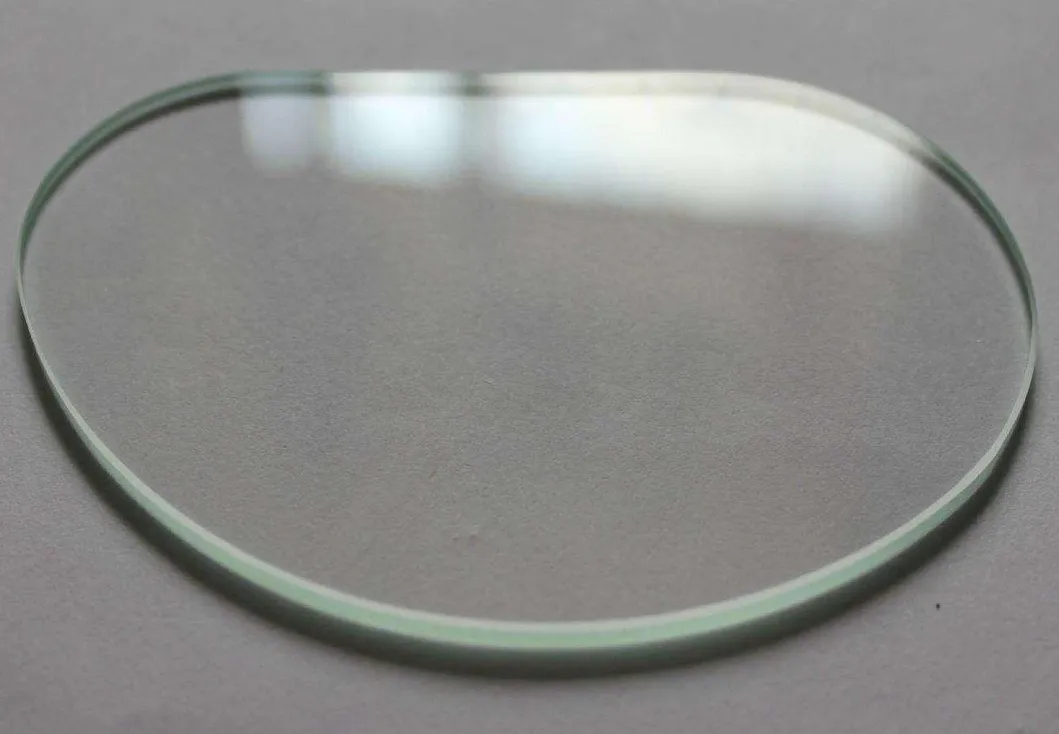

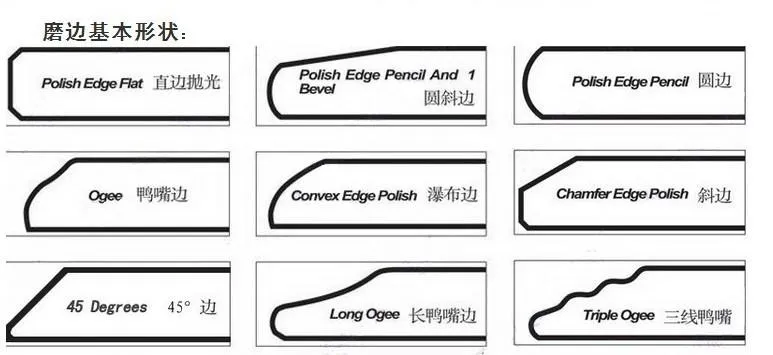

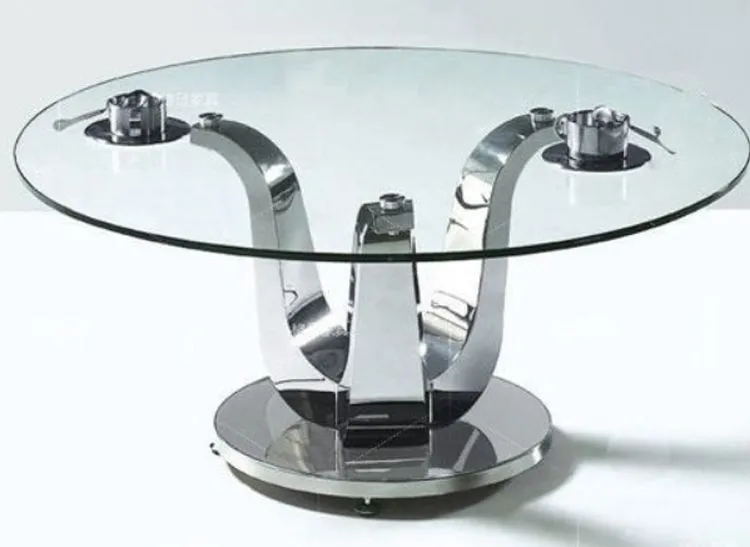

The following edge types can be machined according to different grinding wheels, and even more side types.

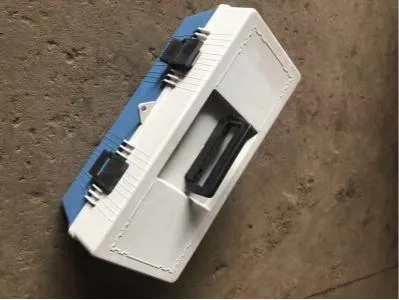

Toolbox Set

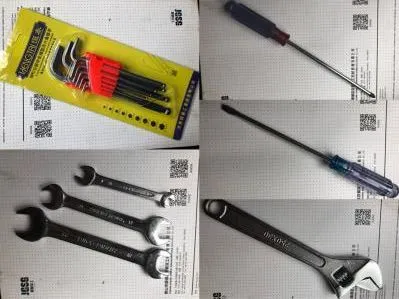

Hardware Tools
Universal Hose
