| Model NO. | JGZM9325 | Processing Thickness | 3-25mm |
|---|---|---|---|
| Voltage | 380V | Warranty | 12 Months |
| Power Supply | 380V/50Hz/3p | Power | 19.75kw |
| Min. Glass Size | 80*80mm | Weight | 3000kg |
| Transmission | Stepless Speed Regulation | Process Speed | 0.7-7m/Min |
| Machine Size | 7000*1200*2500mm | Specification | 9 motors |
A leading provider of high-quality flat glass processing machinery, service, and supplies. Specializing in the most innovative and reliable equipment for fabricating, handling, and processing flat glass. Each system is characterized by innovative features, long-lasting durability, and high reliability.

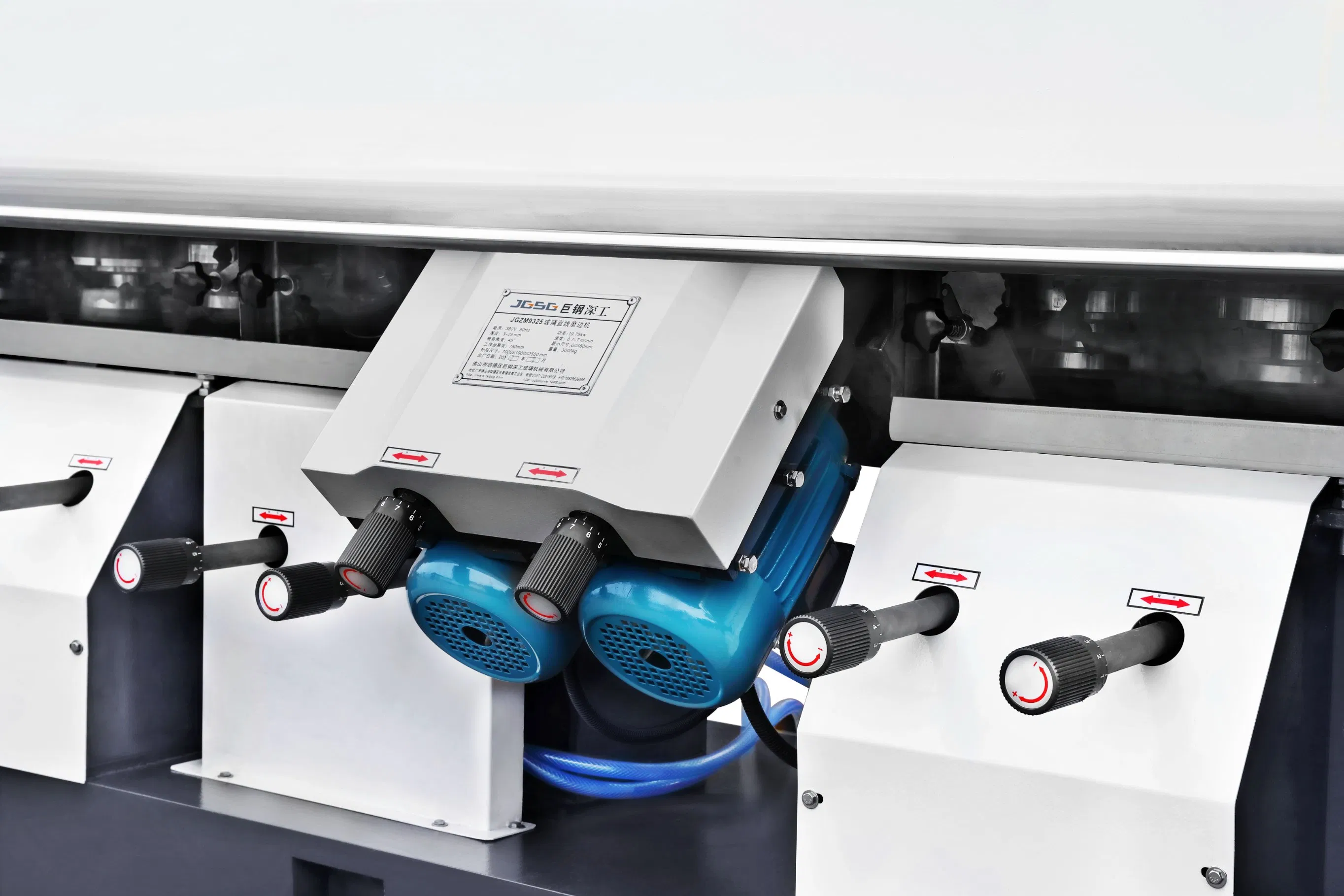

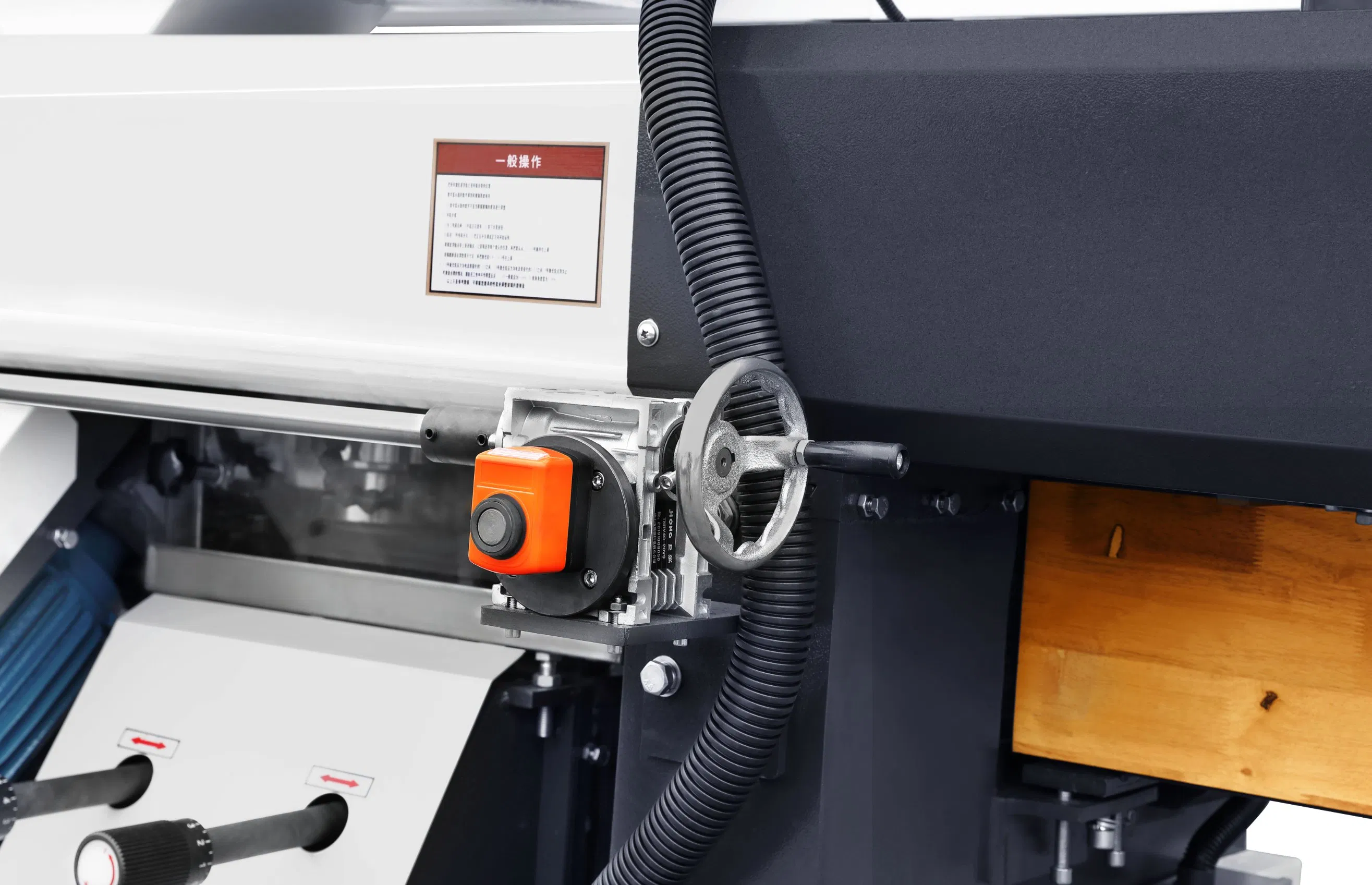

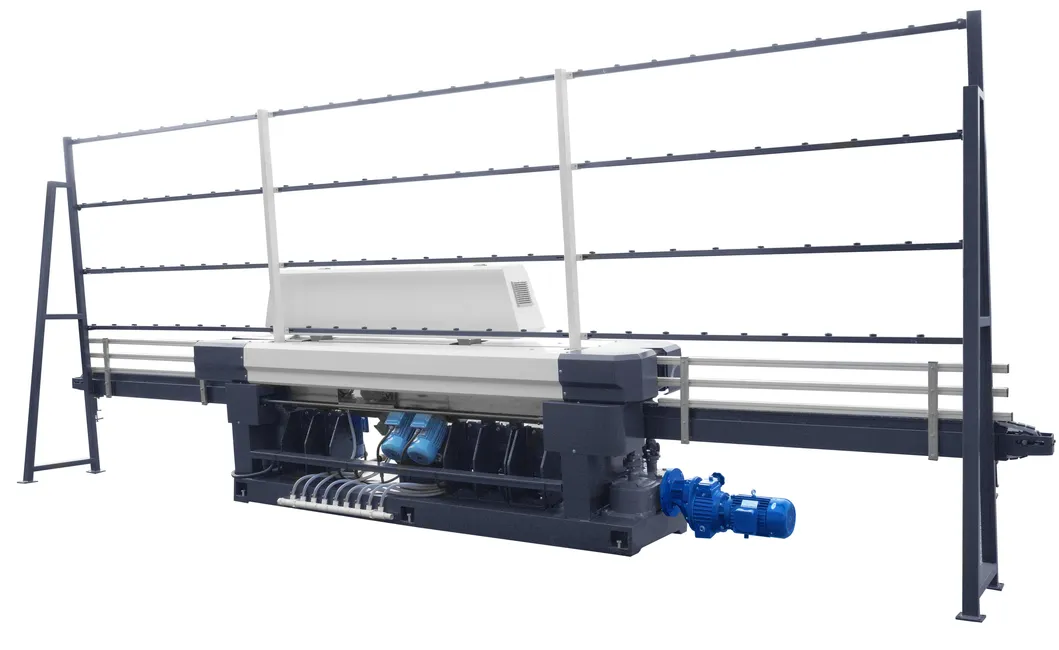

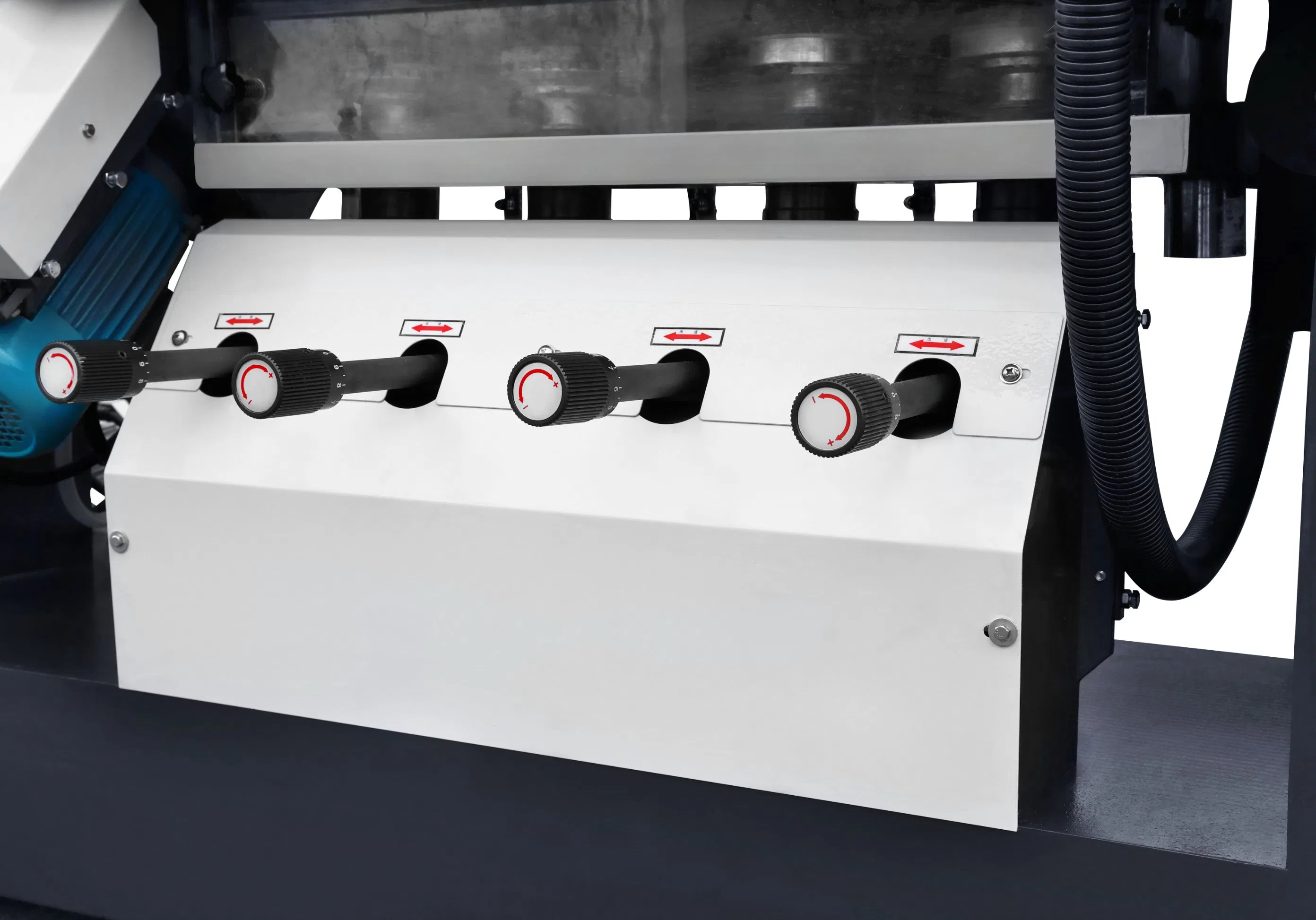

Glass Edging and Polishing Machine JGZM9325
This machine is suitable for edge and corner grinding of plate glass of different sizes and thicknesses, finishing coarse grinding, fine grinding, and polishing at one time. The flat surface after polishing is close to the bright and clean degree of the glass matrix.

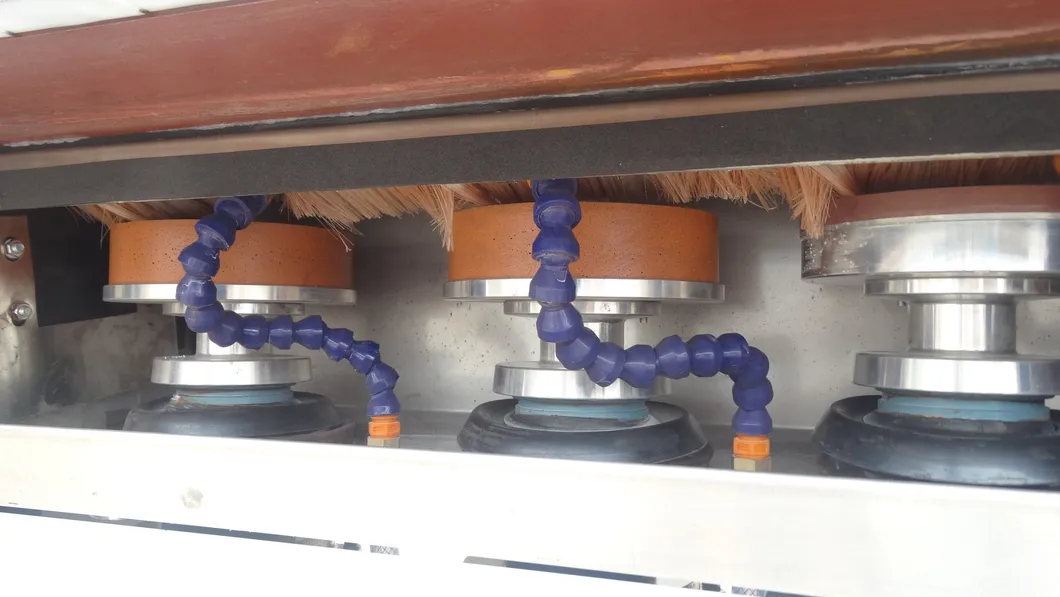

POLISHING DIAGRAM
| Pos. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Size | Φ150 | Φ150 | Φ130 | S40 | Φ130 | S40 | Φ150 | S40 | S40 |
| Type | Diamond | Diamond | Resin | Polishing | Resin | Polishing | Resin | Polishing | Polishing |
| Model | JGZM9325 |
| Power Supply | 380V/50HZ/3P |
| Power | 19.75KW |
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-25mm |
| Weight | 3000KG |
| Transmission | Stepless speed regulation |
| Process Speed | 0.7-7m/min |
| Machine Size | 7000*1200*2500mm |
| Part Name | Component Specification | Brand/Material |
|---|---|---|

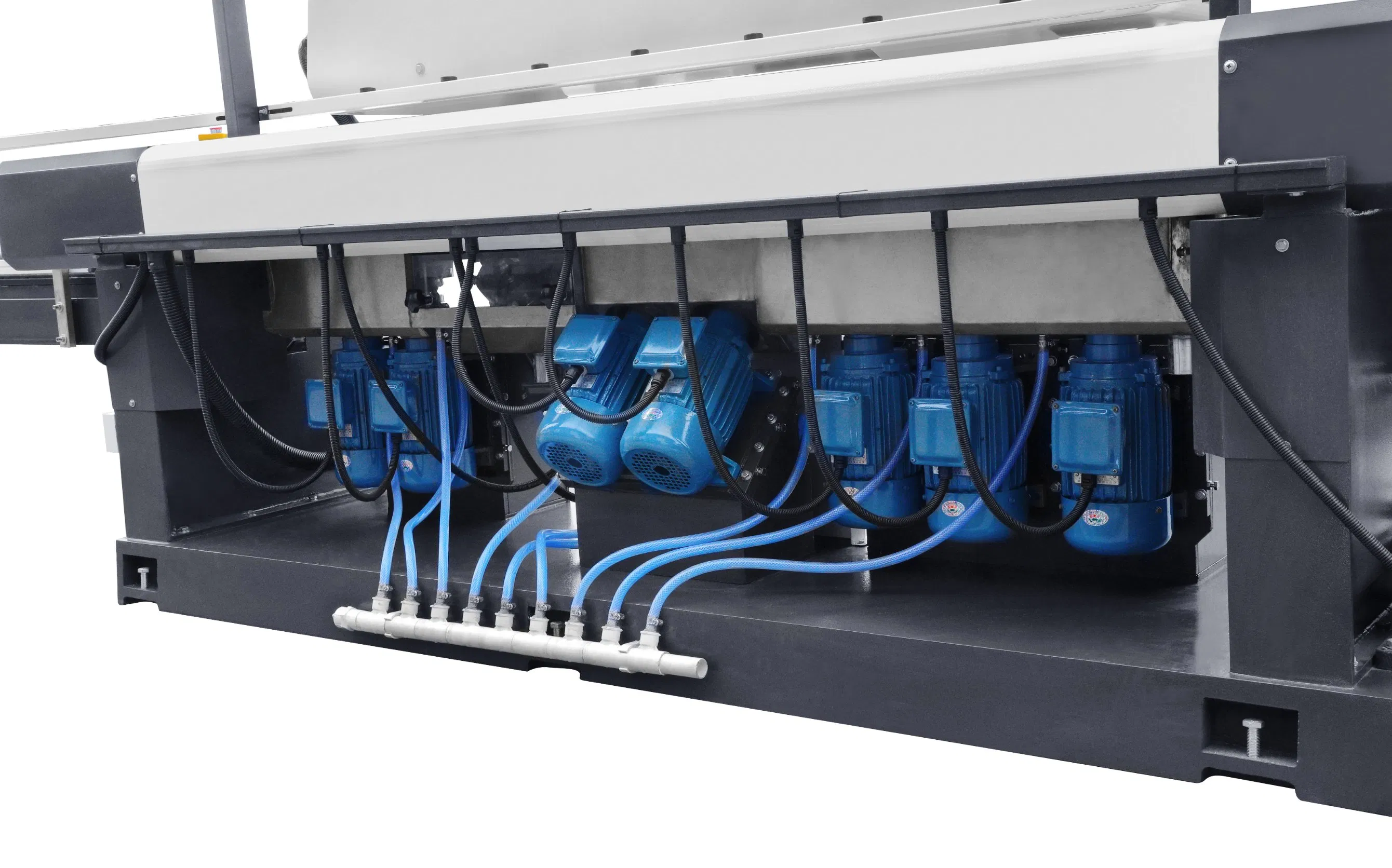

| Machine Motor | 1.5kw ~ 2.2kw (380V/50Hz) | JinLong |
| Wheels | High Precision | AnHua |
| Conveyor Drive | 2.2KW variable frequency | NanHua |
| Main Bearing | Linear Guide / High Load | NSK / HaErBin / ShangYin |

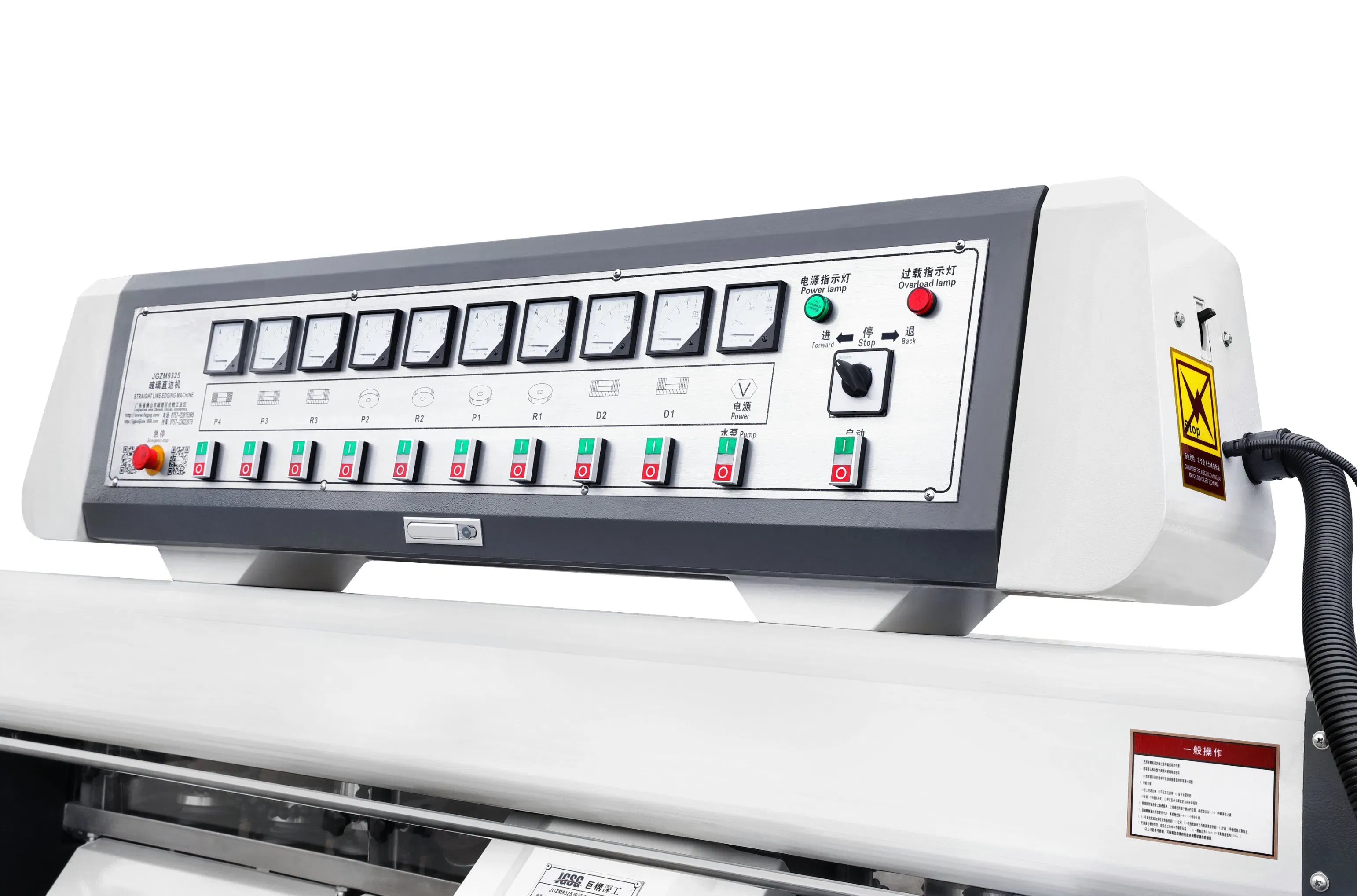

| Electric Appliances | Contactor/Relay | ZhengTai / ShiNaiDe / TianZheng |
| Structure | Girder, Base, Motor Seat | Cast Iron (Annealing Treatment) |
| Water Tank | Anti-corrosion | Stainless Steel |
