Landglass Double Hearing Chamber Flat Low-E Clear Glass Tempering Furnace Machine Production Line

Certification:	CE, ISO
Control System:	PLC
Machine:	Landglass Double Hearing Chamber Flat Low-E Clear

Send Inquiry

Product Description

Basic Specifications

Model NO.

LD-AT

Tempering Type

Glass Toughen Machine

Application

Architectures, Automobile, Household Appliance

Heating Method

Jet Convection

Installed Capacity

800kVA - 2000kVA

Max Loading Dimension

Customized Requirements

Min Loading Dimension

200mm * 400mm

Glass Thickness

3-19mm

Productivity

25-28 Loads/H

Structure

Horizontal

Warranty

12 Months

Specifications

CE, CCC, UL, ISO9001

Product Description

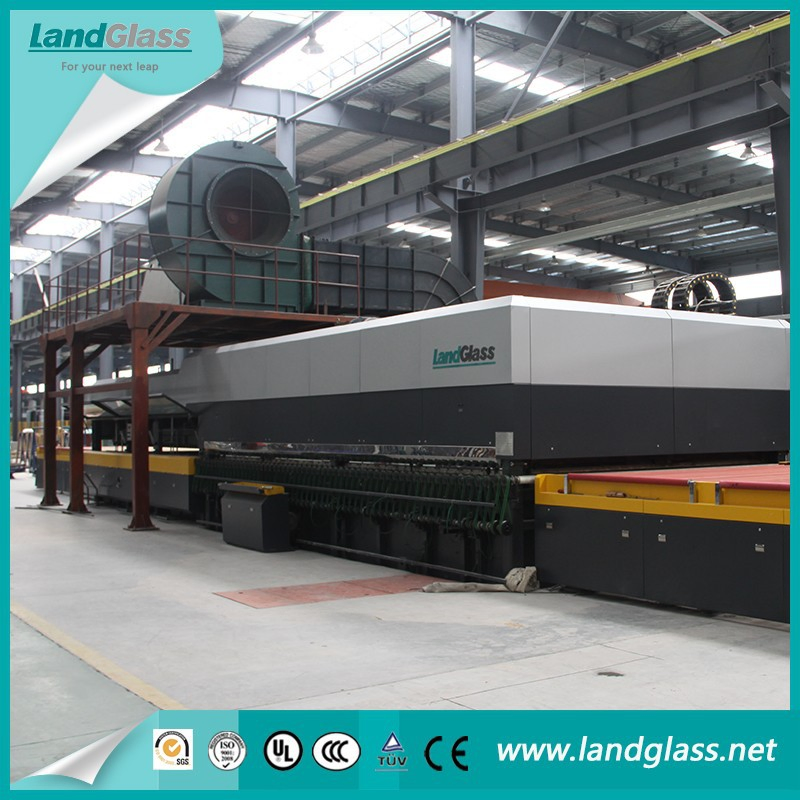

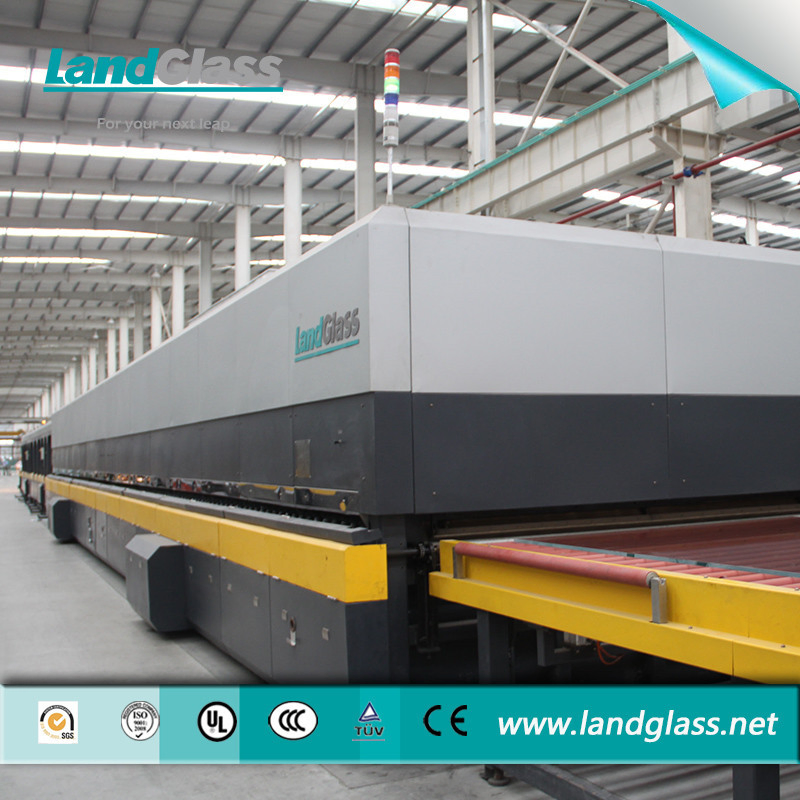

Double Heating Chamber Flat Low-E Clear Glass Tempering Furnace Machine Production Line

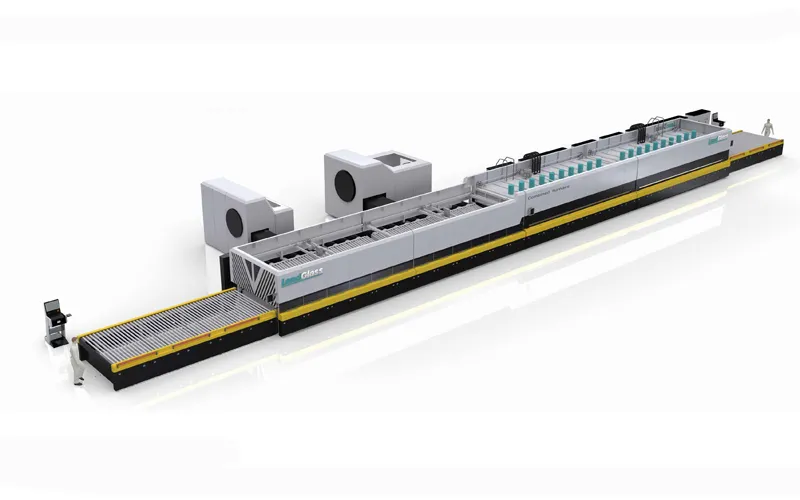

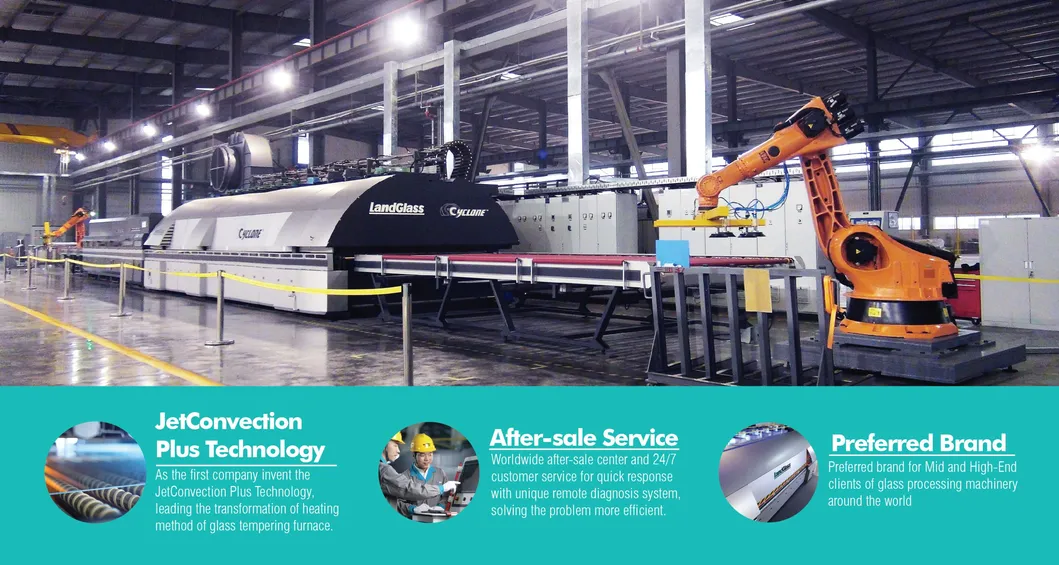

Double Heating Chamber Glass Tempering Furnace

CE Certificate Tempered Glass Toughening Equipment Technical Data
Types	Max. Dimension	Min. Dimension	Glass Thickness	Productivity (loads/h)	Capacity (KVA)
A2436T	2440X3600	200X400	4-19	18-22	1400
A2442T	2440X4200	200X400	4-19	18-22	1600
A2450T	2440X5000	200X400	4-19	18-22	1800
A2460T	2440X6000	200X400	4-19	18-22	2200
A2480T	2440X8000	200X400	4-19	18-22	2800
A3050T	3000X5000	300X500	5-19	18-22	2300
A3080T	3000X8000	300X500	5-19	18-22	3500

⚙️

JetConvection Plus™ Technology: Convection heating plays a main role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces, then recirculated by convection blowers. This enhances final product quality and increases productivity by ensuring even heating while minimizing costs.

Working Modes & Versatility

🔹

Dual Heating Sections: Utilizes JetConvection and Airstream technology for optimum effects based on glass features.

🔹

Quality Focus: First section acts as a preheating furnace to reduce optical distortion, hot spots, and white haze.

🔹

Productivity Focus: Both sections work as heating furnaces to significantly increase throughput.

🔹

Size Focus: Two sections combine into one large chamber for extra-large glass sheets.

🔹

Material Compatibility: Suitable for on-line and off-line Low-E (E=0.02), extra white, screen-printed, patterned, and tinted glass.

Research and Development

A professional team of researchers and developers with deep technical knowledge ensures continuous innovation. With hundreds of patented technologies and international certifications like 3C, CE, and UL, the equipment represents the state-of-the-art in glass processing.

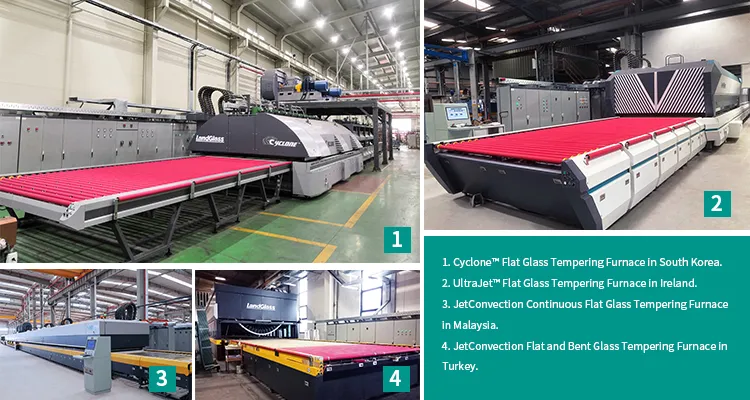

International Presence

Equipment is currently operational across North and South America, Europe, Africa, the Middle East, Asia, and Oceania. Global marketing networks provide prompt technological solutions and support.

Frequently Asked Questions

What types of glass can this furnace process?

The furnace is designed to temper a wide range of glass, including on-line and off-line Low-E (E=0.02) glass, extra white glass, screen-printed glass, patterned glass, tinted glass, and standard clear glass.

What is the advantage of the Double Heating Chamber?

The dual-chamber design offers three modes: a quality mode (preheating to reduce defects), a productivity mode (both chambers heating for high throughput), and a size mode (combined chambers for extra-large sheets).

What glass thickness range is supported?

This equipment supports a glass thickness range from 3mm to 19mm, making it suitable for architecture, automotive, and appliance industries.

What heating technology is used?

It utilizes JetConvection Plus™ technology, which uses heated air circulated within the chamber to ensure even heating across the glass surface, improving quality and reducing costs.

Does the machine meet international standards?

Yes, the equipment is fully certified with CE, CCC, UL, and ISO9001:2008 specifications, ensuring compliance with global safety and quality standards.

What is the productivity of the LD-AT model?

Depending on the specific configuration and glass type, the productivity typically ranges between 25 to 28 loads per hour.
