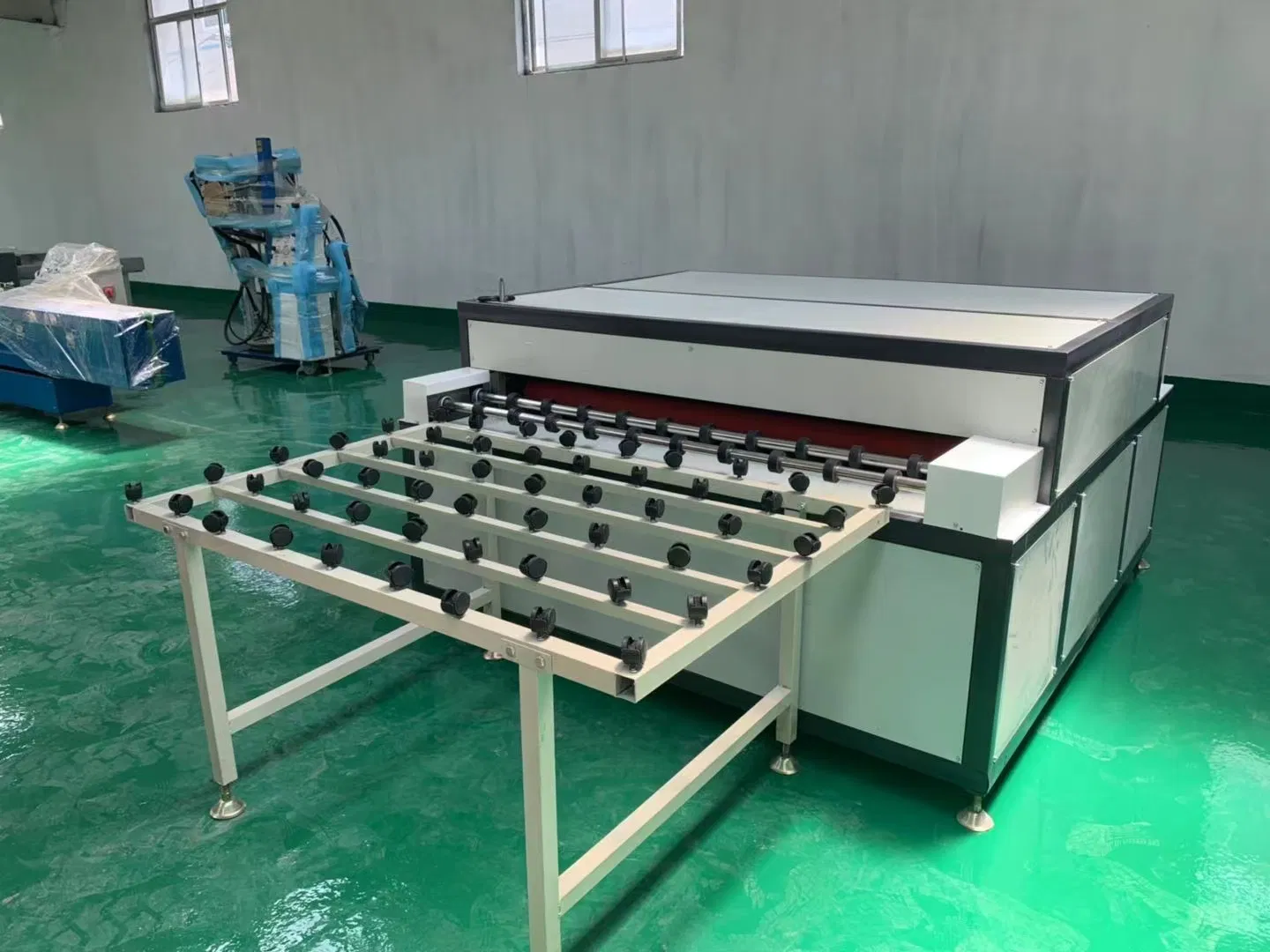

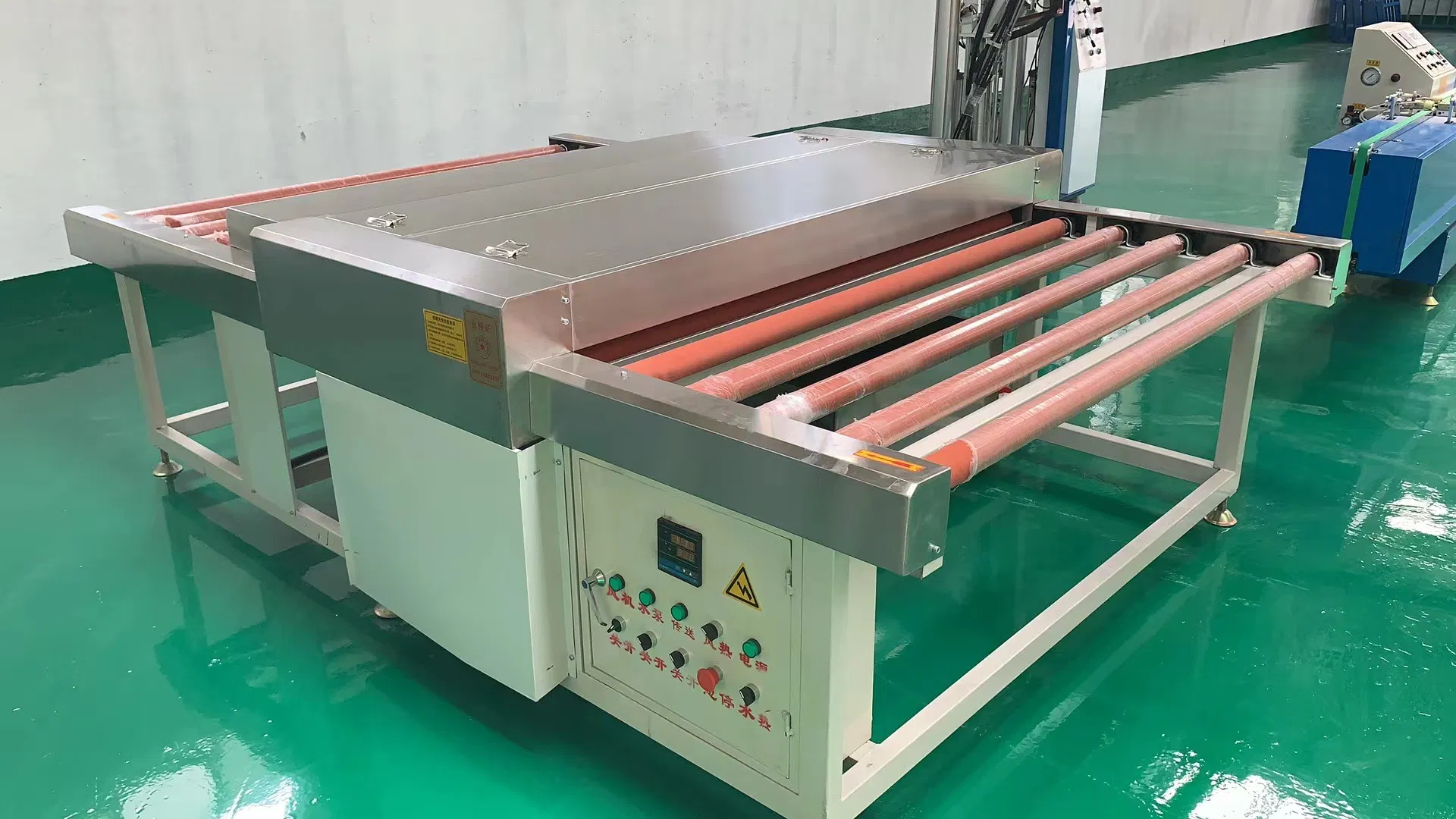

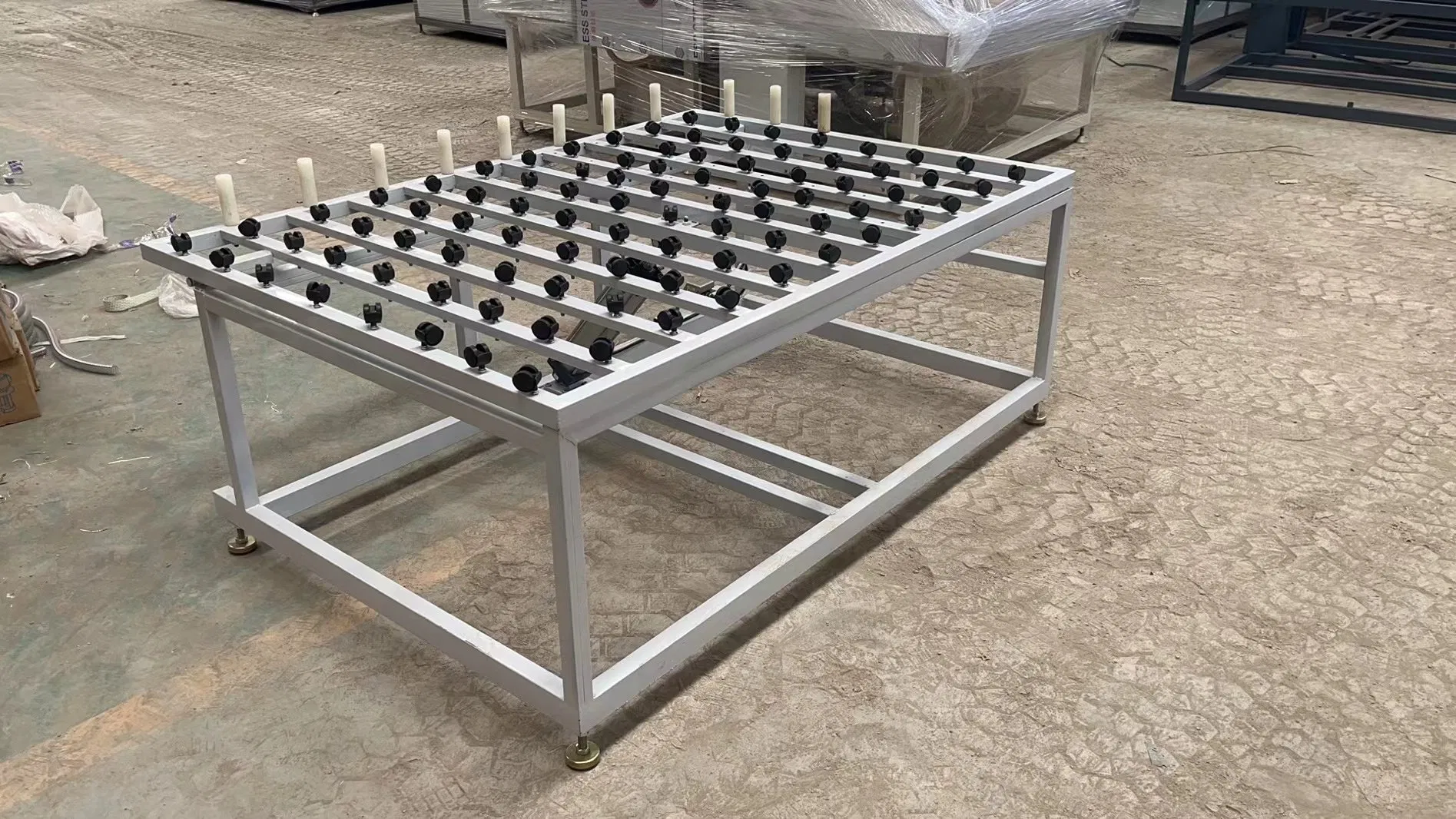

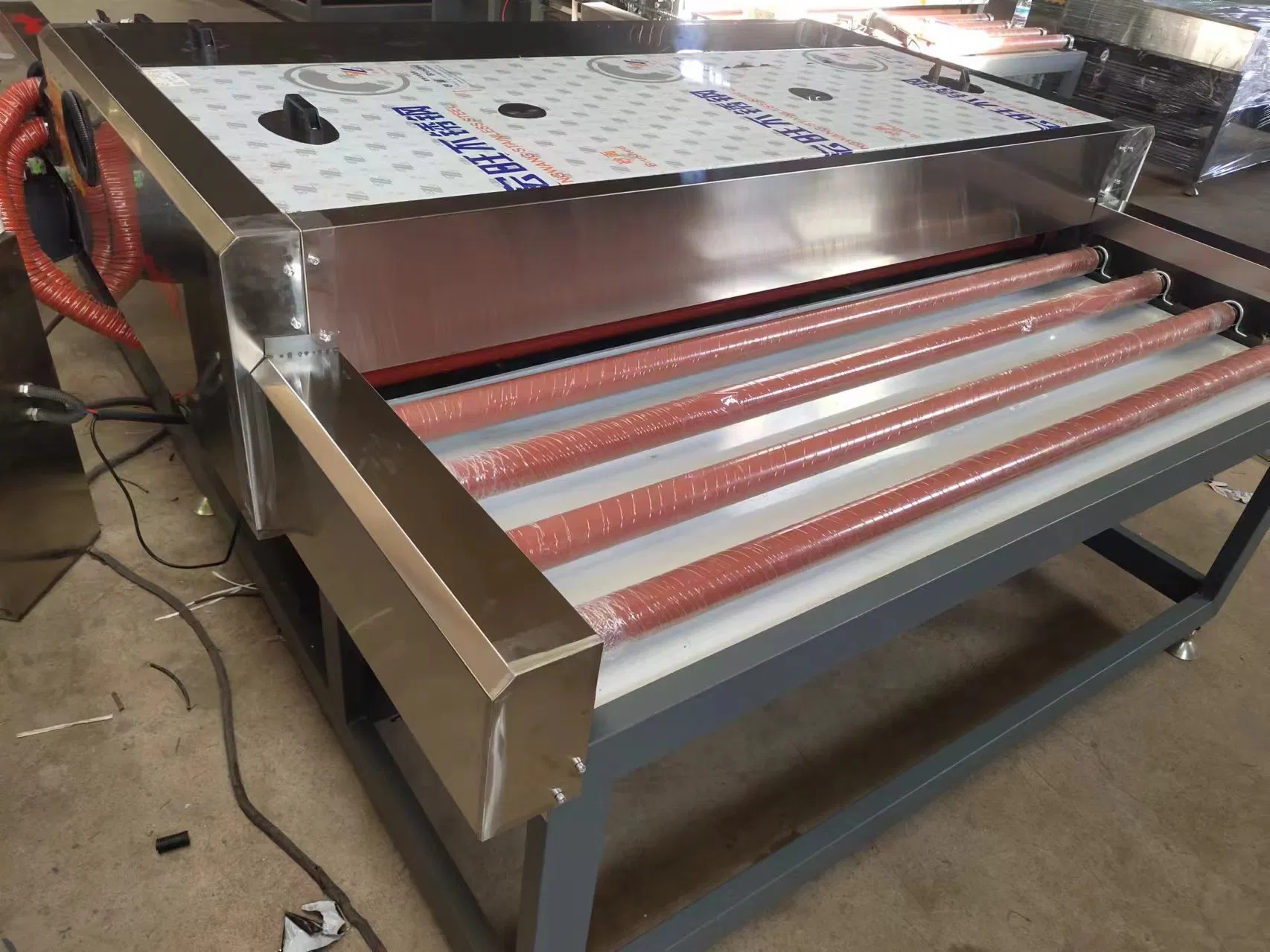

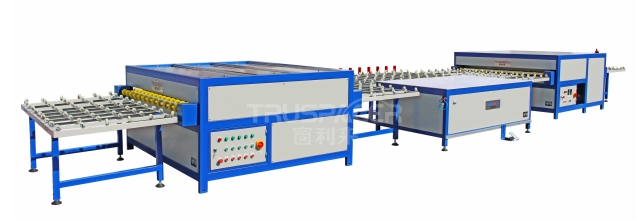

Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
1 / 5
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200
Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200

Low Speed Horizontal Glass Insulating Double Glazing Hot Roller Press Line Machine Insulated Glass Washing Drying Tilting Table 1200

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
HHHDG1200
Type
Insulating
Shape
Flat
Structure
Hollow
Glass Thickness
3-12MMS
Air Cavity Depth
6-12
Moh's Hardness
5
Energy Transfer
Radiation
Processing
Hollow Glass
Color
Clear
Usage
Furniture, Door, Building, Window
Status
Horizontal
Speed
<2ms/Min
Transport Package
Container
HS Code
8475299000
Capacity
50000sets/Year
Product Gallery

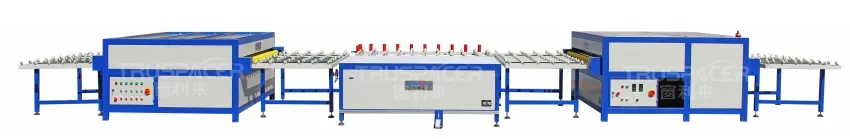

Glass Insulating Machine
Double Glazing Machine

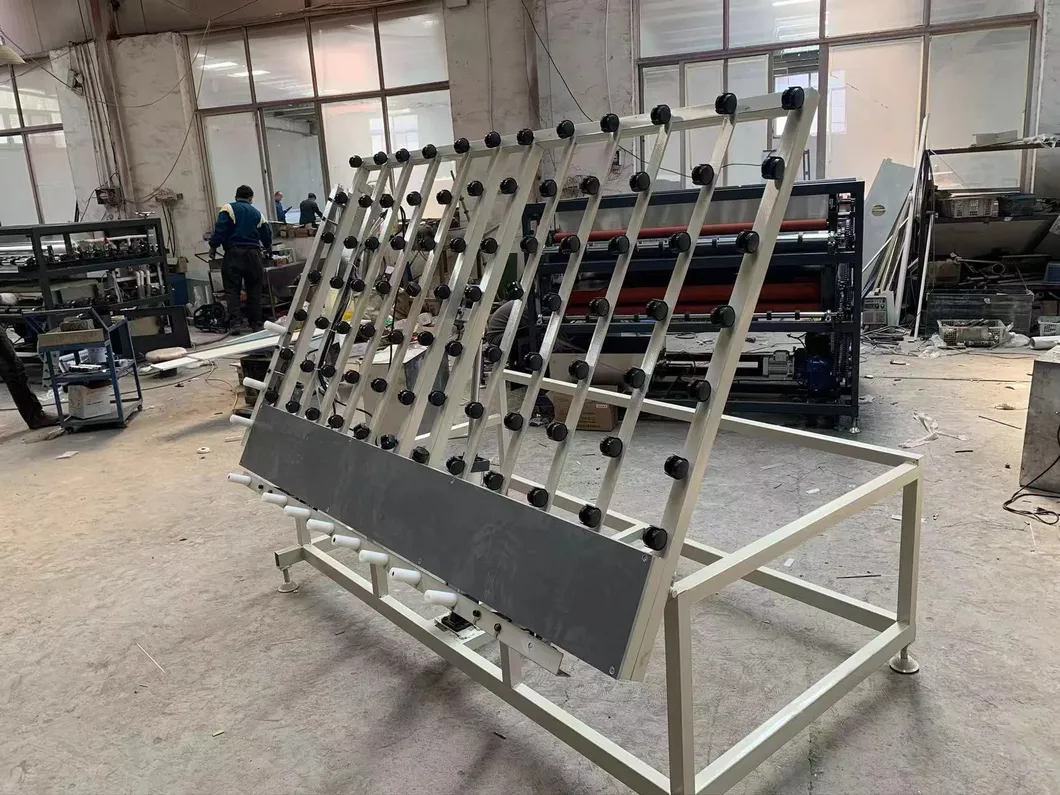

Hot Roller Press Line
Insulated Glass Machine

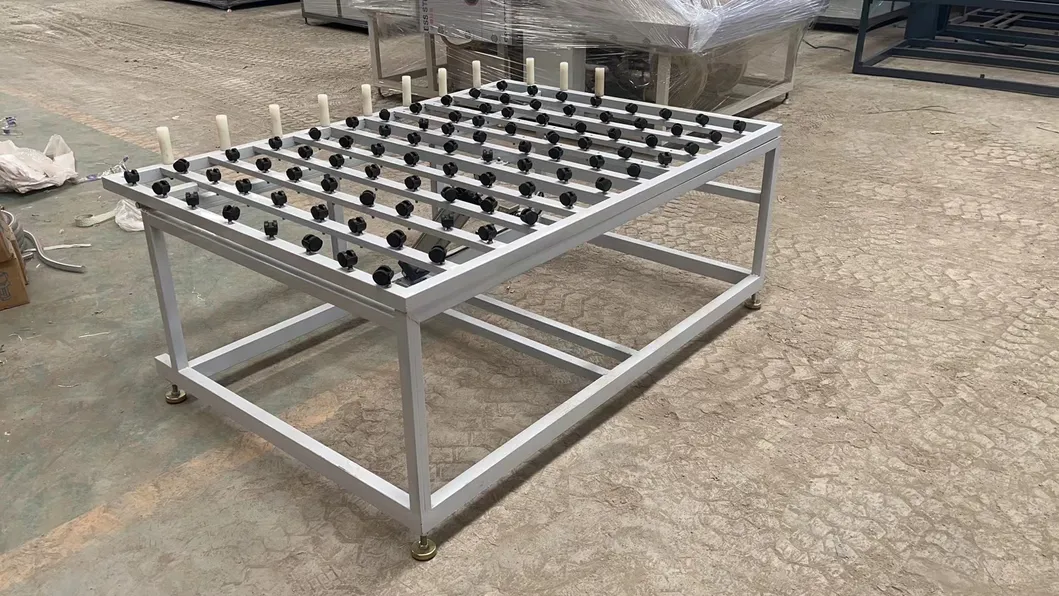

Washing Drying Table
Equipment Features
✓Adopts 18 quartz for heating, the thermal efficiency is very high.
✓Compressing intensity of 2 pairs glue rollers of increase, and the tolerance of thickness becomes smaller.
✓Adopts the gradient press way according to the direction from inputs to the output section, the press fits effect is very good.
✓Adopts the instantaneous heating function.
✓Can realize manual adjustment stepless adjustment.
✓Rinsing sector and water flow system adopt rustproof and rot proof material.
✓Includes rinsing room, water-absorbing room and dry room for excellent rinsing and drying.
✓Sponge stick water absorption and heat drying for excellent performance.
✓Transmission system adopts five speed for high efficiency application.
Technical Parameters
Technical Parameter Specification
Input voltage380V/50Hz
Input power7.5Kw
Work speed1.2~5.0m/min
Max. Glass size1600*2000mm
Min. Glass size400*400mm
Insulating glass thickness3~12mm
Overall dimension2500*2030*1000mm
Packaging & Shipping
For LCL (Less Container Load):
Inner package: stretch film
Outside package: standard export plywooden cases
For FCL (Full Container Load):
All machines wrapped with film and fixed into container with steel iron.
Frequently Asked Questions
What is the maximum glass size this machine can process?
The maximum glass size is 1600*2000mm, with a minimum size of 400*400mm.
What heating system is used in the hot roller press?
It adopts 18 quartz tubes for heating, ensuring very high thermal efficiency and instantaneous heating capability.
What is the working speed of the production line?
The working speed is adjustable, ranging from 1.2 to 5.0 meters per minute.
How is the rinsing and drying quality ensured?
The system features dedicated rinsing, water-absorbing, and dry rooms using rustproof materials and sponge stick absorption.
What type of glass thickness is compatible with this machine?
It is designed for insulating glass with a thickness range of 3mm to 12mm.
How are the machines protected during international shipping?
For LCL, we use standard export plywood cases. For FCL, machines are wrapped in film and securely fixed with steel iron.
