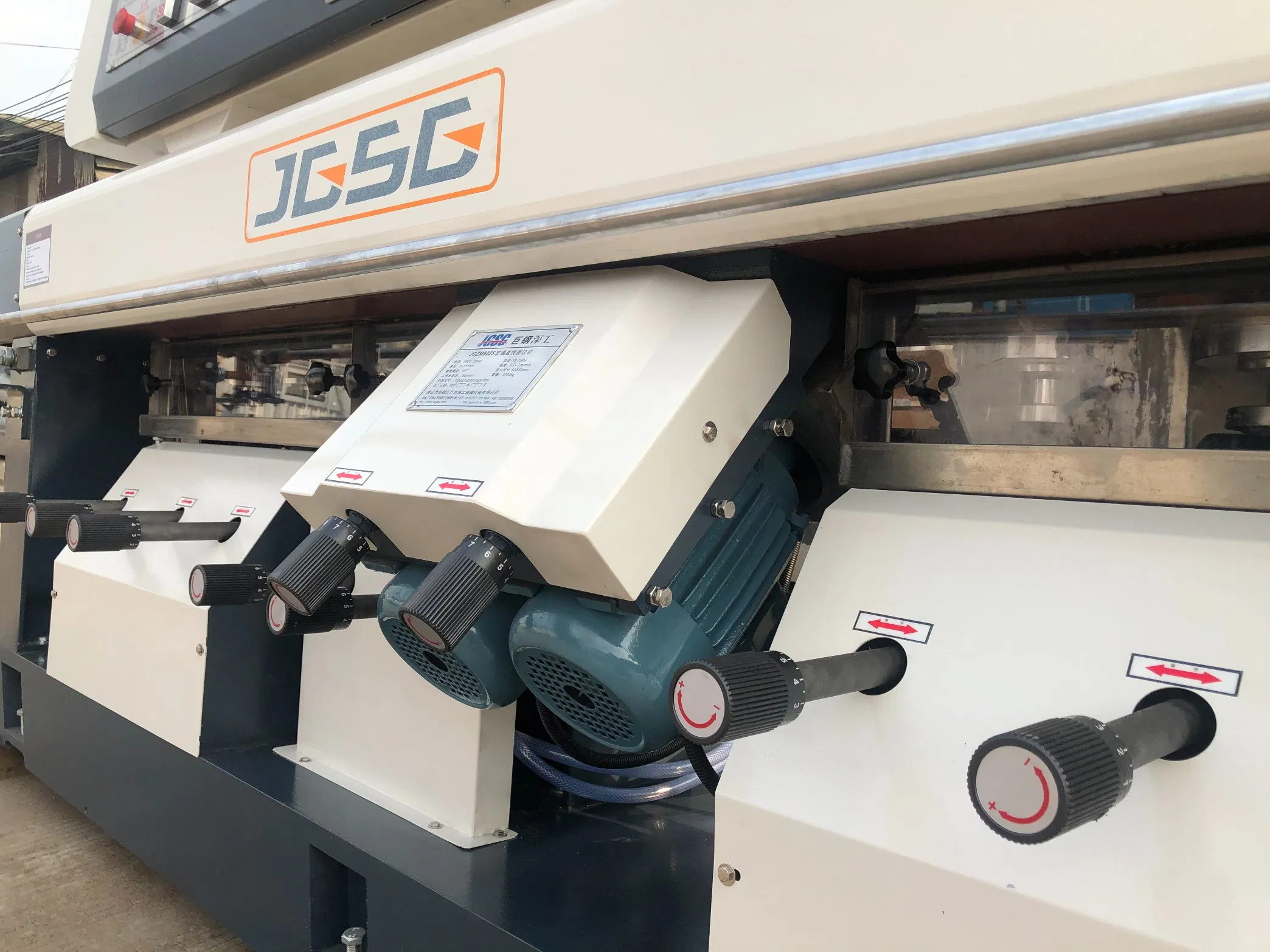

Nine Motors Glass Edging and Polishing 9325

1 / 5

Nine Motors Glass Edging and Polishing 9325

Customization:	Available
Certification:	CE
Processing Speed:	0.7-7m/Min

Send Inquiry

Product Description

📊 Basic Information

Model NO.

JGZM9325

Processing Thickness

3-25mm

Voltage

380V

Warranty

12 Months

Power Supply

380V/50Hz/3p

Power

19.75kw

Min.Glass Size

80*80mm

Weight

3000kg

Transmission

Stepless Speed Regulation

Process Speed

0.7-7m/Min

Machine Size

7000*1200*2500mm

Origin

China

🏢 Profile

We have been a leading single source provider of high-quality flat glass processing machinery, service and supplies. We continue to search for the most innovative and reliable equipment manufacturers for fabricating, handling and processing flat glass. Each manufacturer specializes in a certain type of machinery and all of our equipment is characterized by innovative features, long lasting durability and high reliability.

⚙️ Product Description

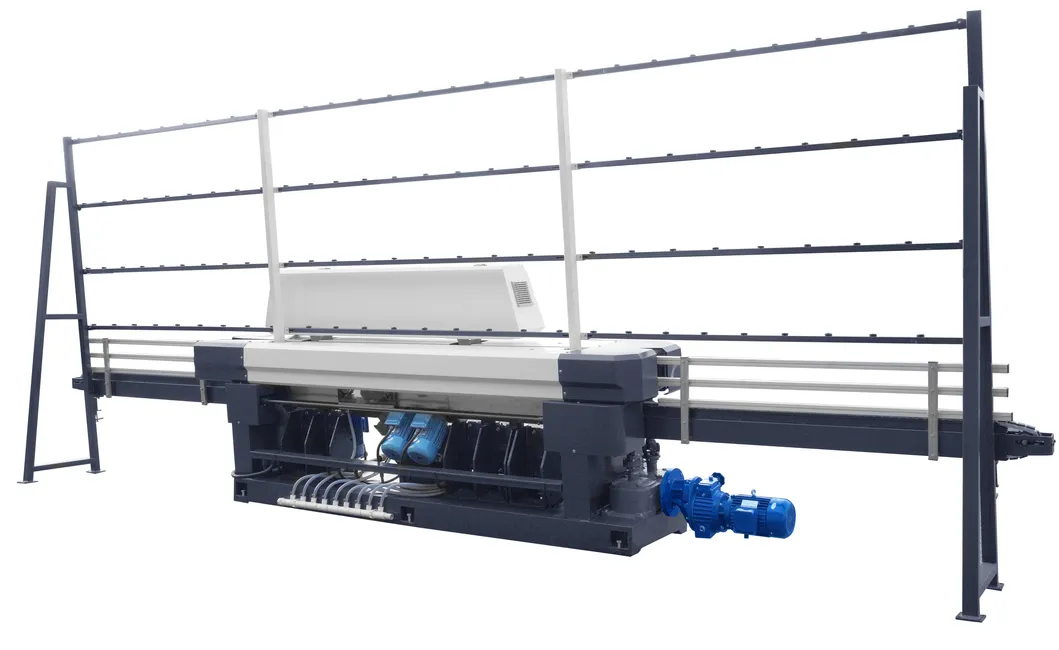

Glass edging and polishing machine JGZM9325

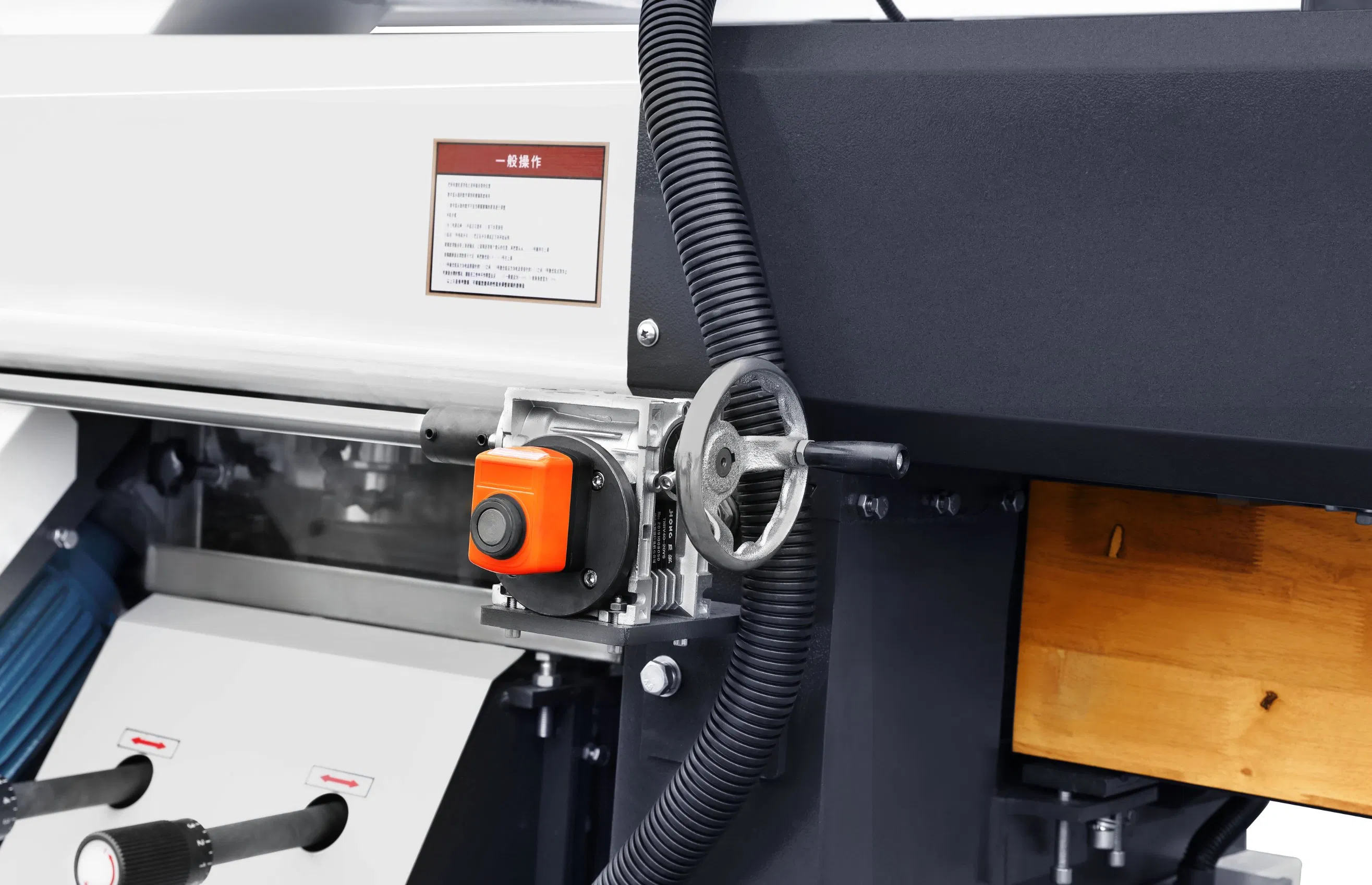

This machine is suitable for edge and corner grinding of plate glass of different size and thickness, finishing coarse grinding, fine grinding and polishing at one time. The flat surface after polishing is close to bright and clean degree of glass matrix. When adjusting different processing thickness (able to refer to data display instrument on front-axle beam), former chamfering grinding head can move simultaneously along with the front-axle beam. It possesses the advantages of advanced structure, high working precision, easy operation and capacity of continuous processing for the same thickness, and thereby is necessary equipment for glass deep processing.

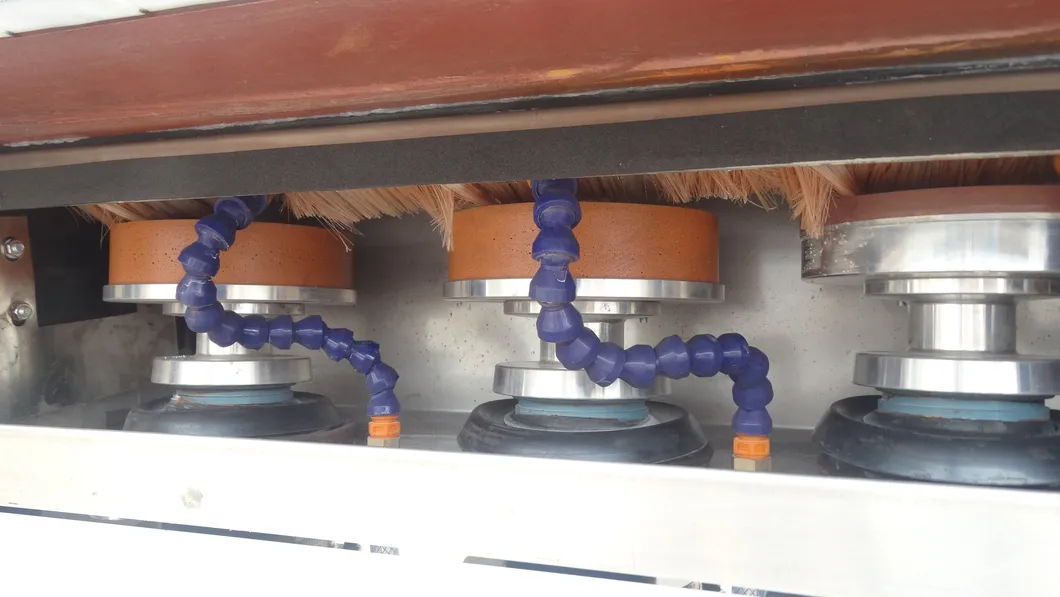

📐 Polishing Diagram

Pos	1	2	3	4	5	6	7	8	9
Spec	Φ150	Φ150	Φ130	S40	Φ130	S40	Φ150	S40	S40
Type	Diamond	Diamond	Resin	Polish	Resin	Polish	Resin	Polish	Polish

📋 Product Parameters

Model	JGZM9325
Power Supply	380V/50HZ/3P
Power	19.75KW
Min. Glass Size	80*80mm
Glass Thickness	3-25mm
Weight	3000KG
Transmission	Stepless speed regulation
Process Speed	0.7-7m/min
Machine Size	700012002500mm

🛠️ Main Parts Configuration

Component	Attribute	Details
Machine Motor	Supplier	JinLong
Machine Motor	Power	1.5kw ~ 2.2kw
Wheels	Supplier	AnHua
Conveyor Drive	Supplier	GuangDong NanHua
Conveyor Drive	Specification	2.2KW variable frequency motor
Main Bearing	Supplier	NSK / HaErBin

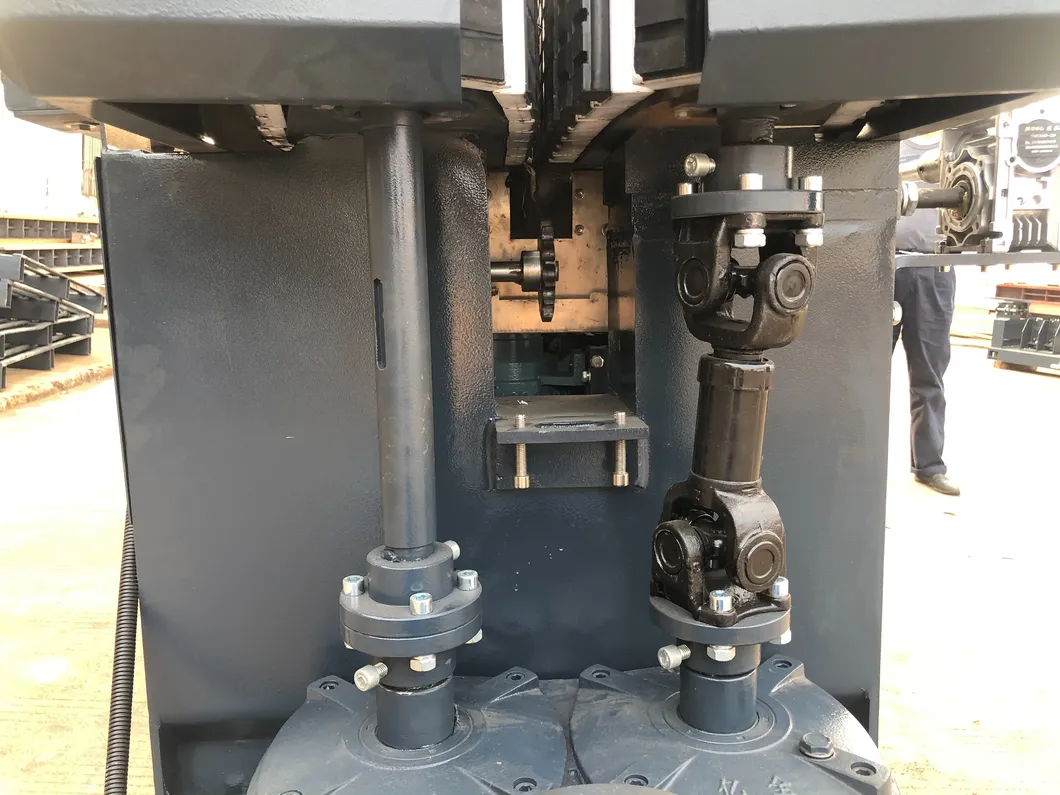

Reduction Gears	Supplier	MengKaTe

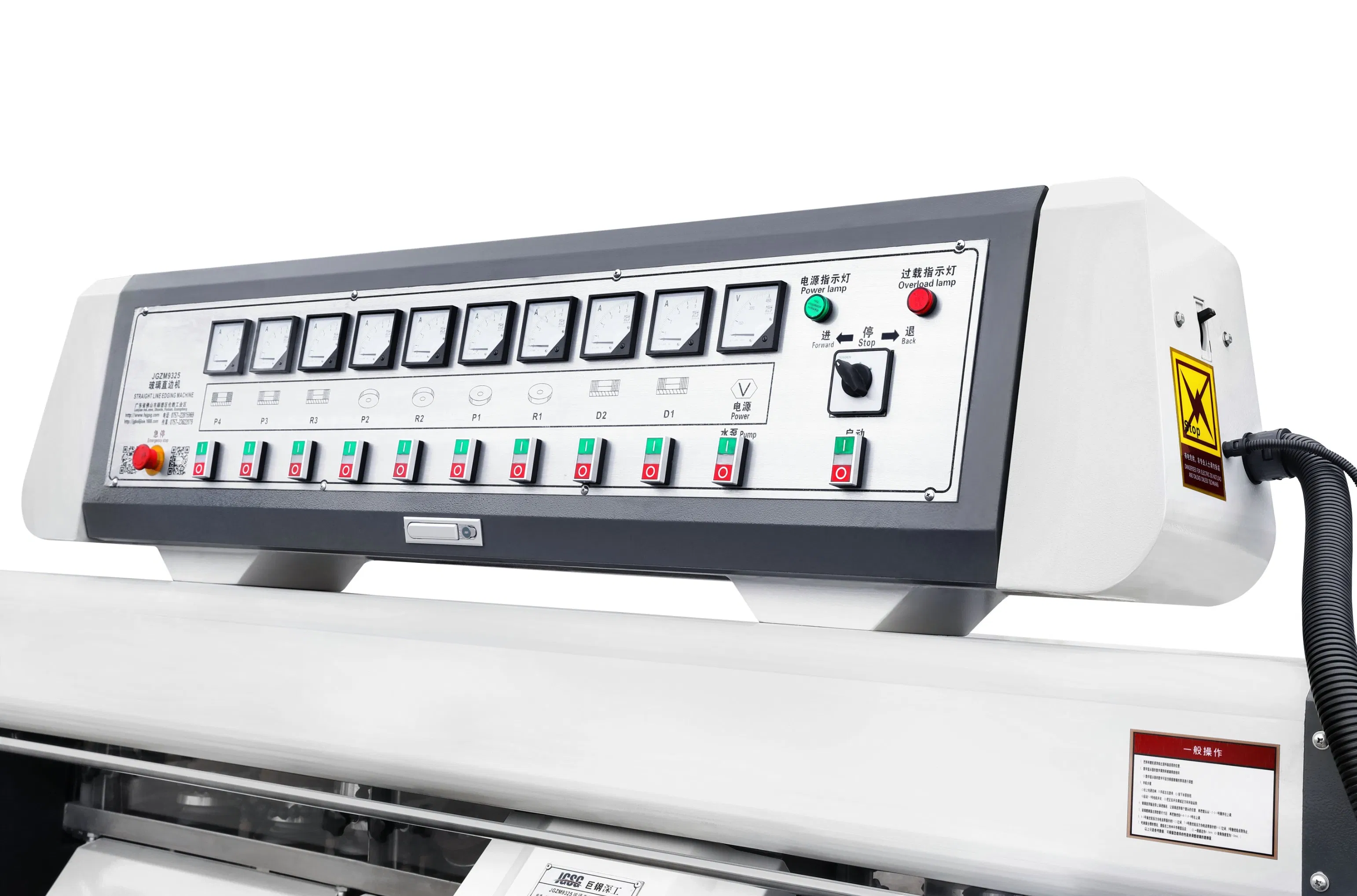

Electric Appliance	Manufacturer	ZhengTai
AC Contactor	Model	EV1000-4T0022G
Intermediate Relay	Model	MY4N AC24V (ShiNaiDe)
Motor Tank	Material	Stainless Steel
Structure (Base/Girder)	Technology	Cast iron with annealing treatment

🖼️ Product Gallery

❓ Frequently Asked Questions

What range of glass thickness can the JGZM9325 process?

The machine is capable of processing plate glass with a thickness ranging from 3mm to 25mm.

What is the minimum glass size for this edging machine?

The minimum processing size for the JGZM9325 is 80mm x 80mm.

How many grinding motors are included in this model?

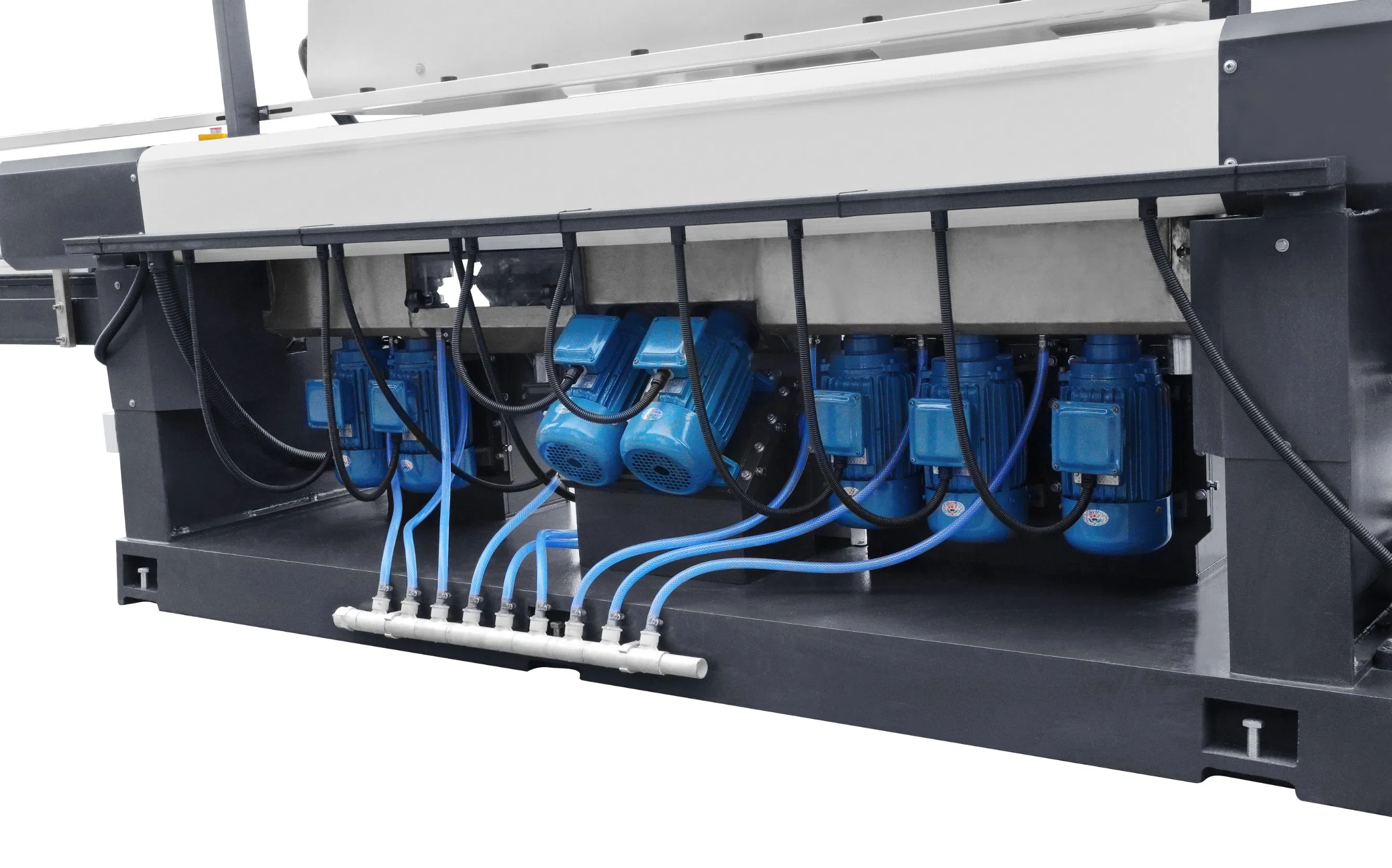

This model features a 9-motor configuration designed for coarse grinding, fine grinding, and polishing.

Does the machine support variable processing speeds?

Yes, it utilizes stepless speed regulation, allowing a process speed range of 0.7 to 7 meters per minute.

What is the build quality of the machine's structural components?

The girder, base, and motor seats are made of high-quality cast iron that has undergone professional annealing treatment for long-term stability and precision.

What kind of polishing result can I expect?

The machine finishes coarse/fine grinding and polishing in a single pass, achieving a flat surface finish that is close to the bright and clean quality of the original glass matrix.
