APPLICATION:
Glass Final Polishing, for Shape Grinding Machine & straight line pencil/flat/OG machine.

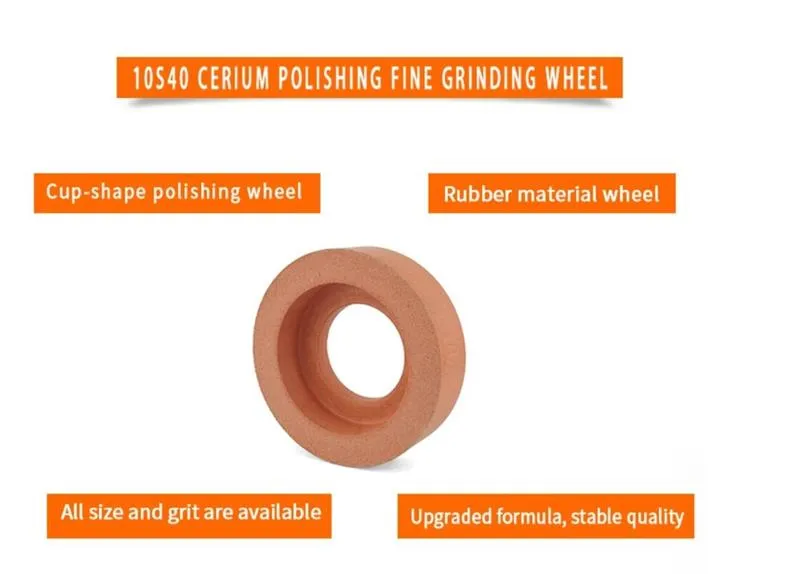

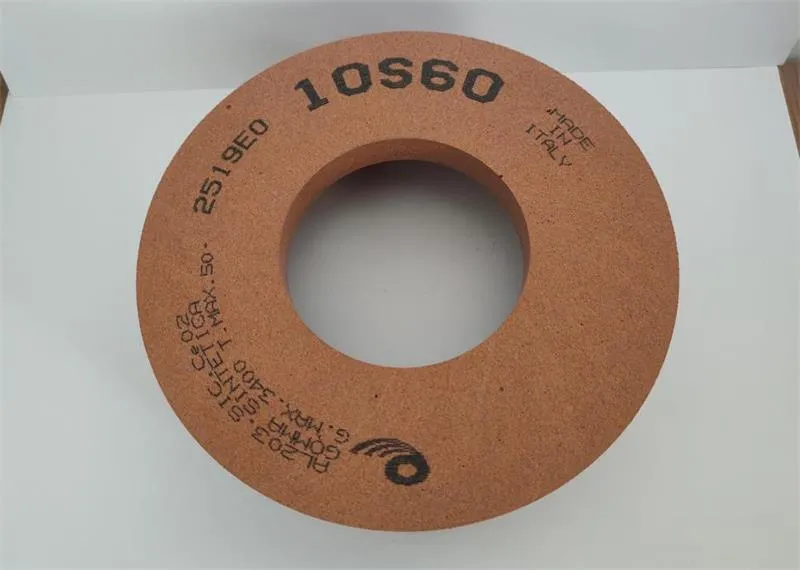

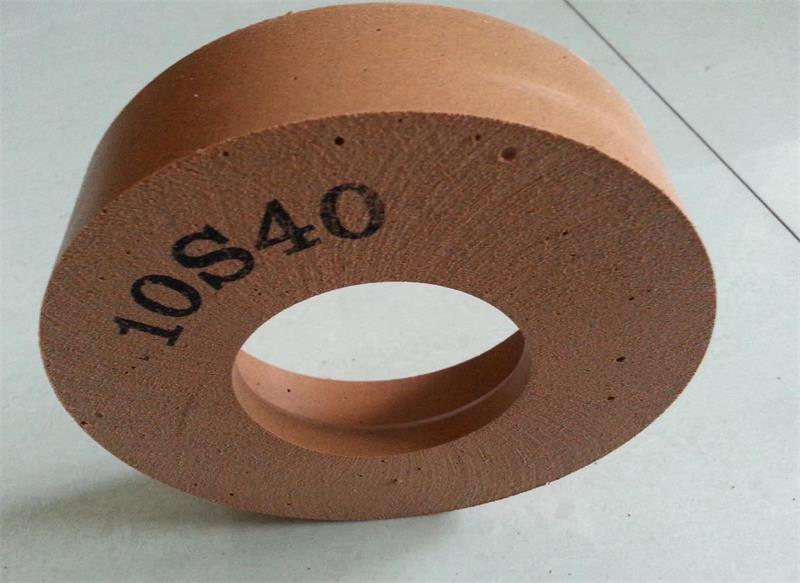

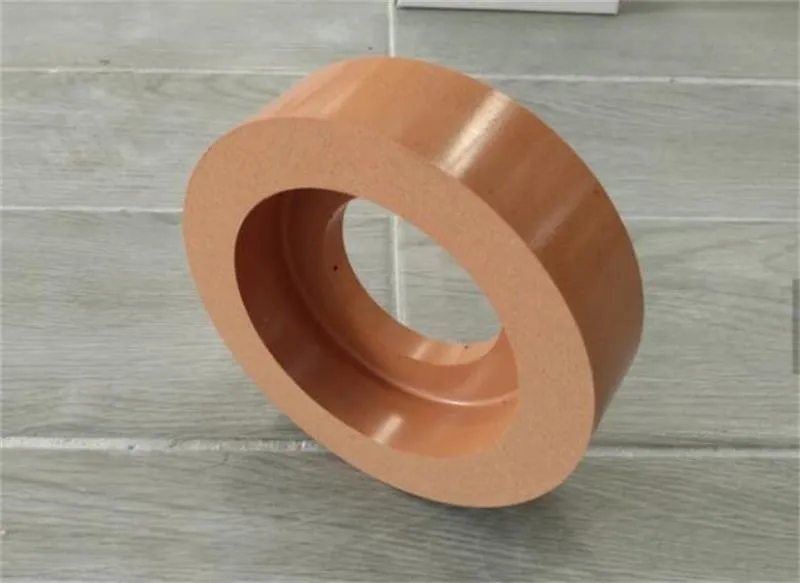

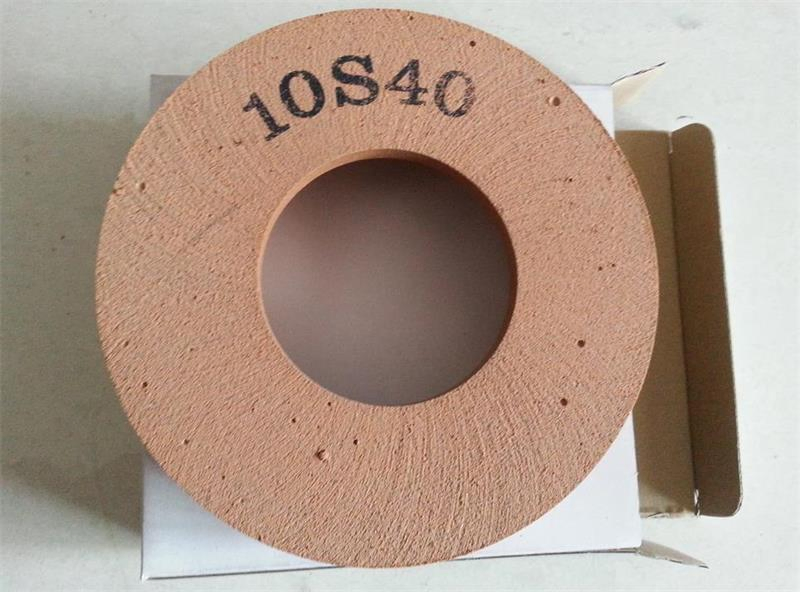

10S polishing cup wheels offer excellent flexibility, wear-resistance, and polishing efficiency. They are designed for installation in straight-line edge, straight-line beveling side edge, straight-line double side, and multi-functional grinding machines. Made from high-flexible macromolecules, silicon carbide, and cerium oxide.
Available Polishing Wheel Types:
| Description Of Wheel | Specification |
|---|---|

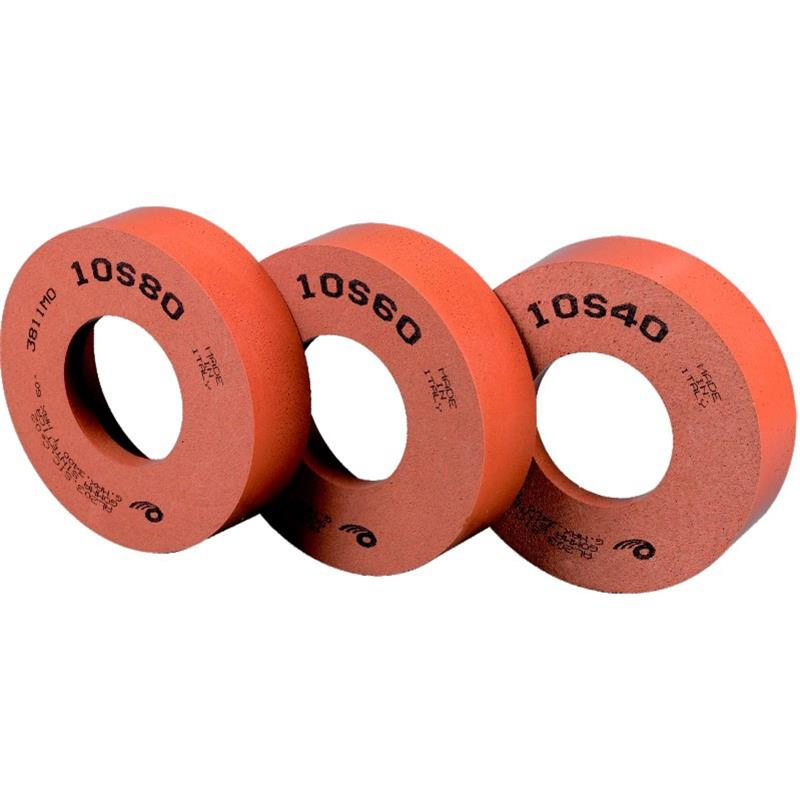

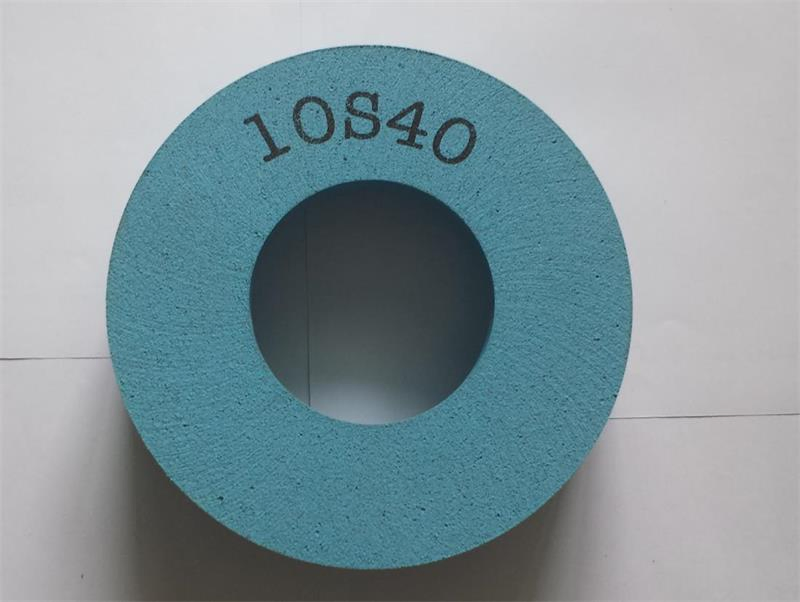

| 10S40/60/80/120 | 150x70x40; 130x60x35; 130x60x27 (for max 50/60/80); 125x22x35 (for Schiatti) |
| X3000 | 150x70x30; 150x70x40; 170x70x30; |
| X5000 | 150x70x30; 150x70x40; 170x70x30; |
| CE3 | 150x70x40 W30; 150x22x40 W30; 150x50x40 W30; 150x70x30 W30; 150x50x40 W20; |
| 9R40/60/80 | 150x70x40; 150x50x40; 150x22x15/20/25/30; 200x22/90x15/20/25/30; |
| BD | 150x12x30/35/40; 130x12x30/35/40; 100x12x30/35/40 |
| Black Stone Wheel | 100x12/50x40; 100x11x45 (For Bavelloni machine) |
| Spiral Felt Wheel | 150x70x40 |

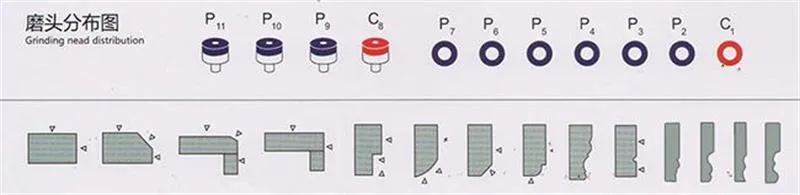

Configuration of Wheels:
| # | WHEEL NAME | SPECIFICATION | MESH | MOTOR (KW) |
|---|---|---|---|---|
| 1 | Rough diamond wheel | Φ150×12 | 100 | 2-2.2KW |
| 2 | Refine diamond wheel | Φ150×12 | 240 | 2-2.2KW |
| 3 | Front arris resin wheel | Φ130×12 | --- | 2-1.5KW |
| 4 | Front arris 10S40 wheel | Φ130×60×35 | --- | 2-1.5KW |
| 5 | Back arris resin wheel | Φ130×12 | --- | 2-1.5KW |
| 6 | Back arris 10S40 wheel | Φ130×60×35 | --- | 2-1.5KW |
| 7 | Flat resin wheel | Φ150×12 | 240 | 2-2.2KW |
| 8 | Flat 10S40 wheel | Φ150×70×40 | --- | 2-2.2KW |
| 9 | Flat 10s60 wheel | Φ150×70 | --- | 2-2.2KW |
Professional provider for entire spare parts & service for glass processing machines. Entire upgrade solutions or single replacement units can be selected freely by the customer.
We focus on quality and technical support, backed by a team of engineers with decades of experience in the glass processing industry, specifically in glass tempering furnace manufacturing, operation, and maintenance.
