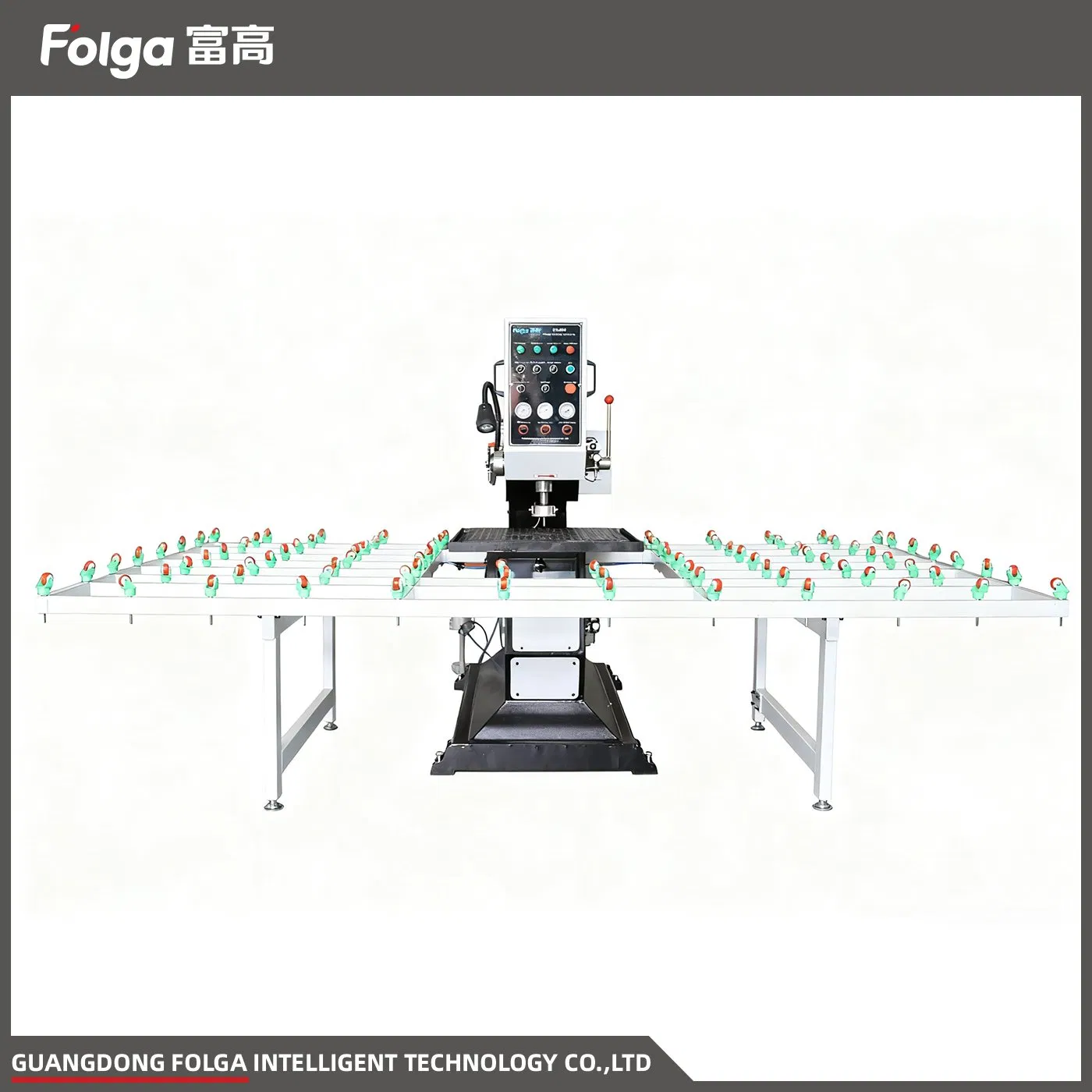

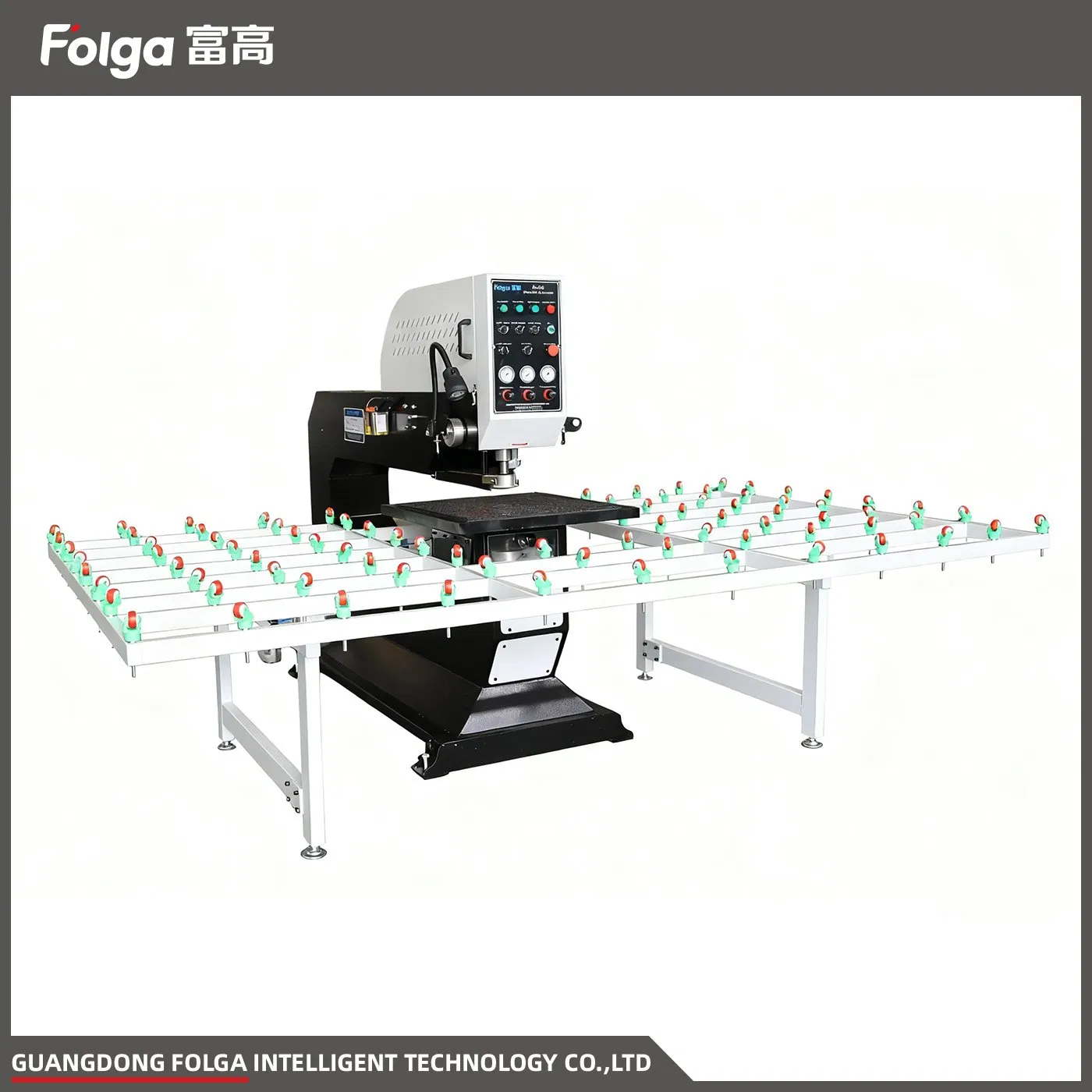

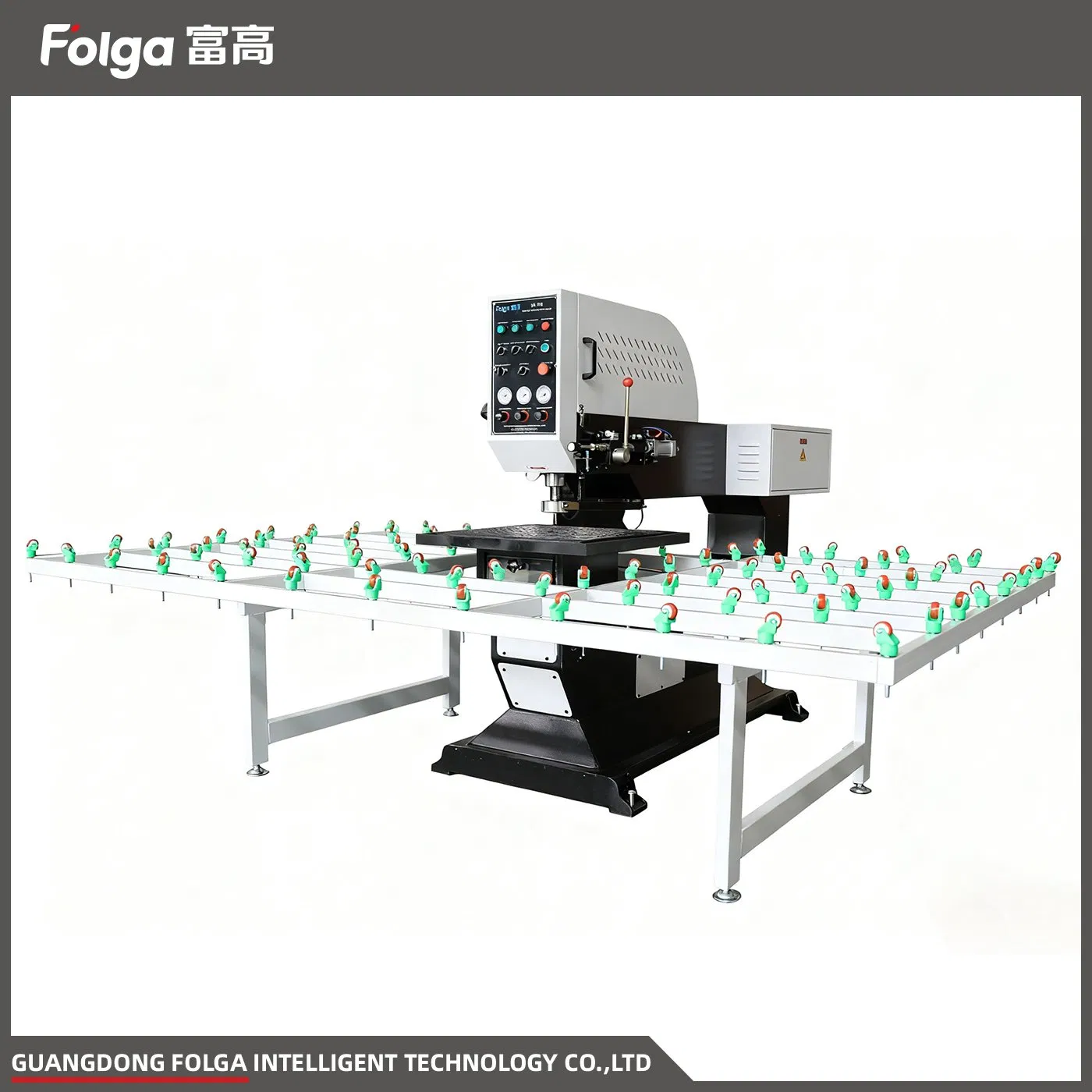

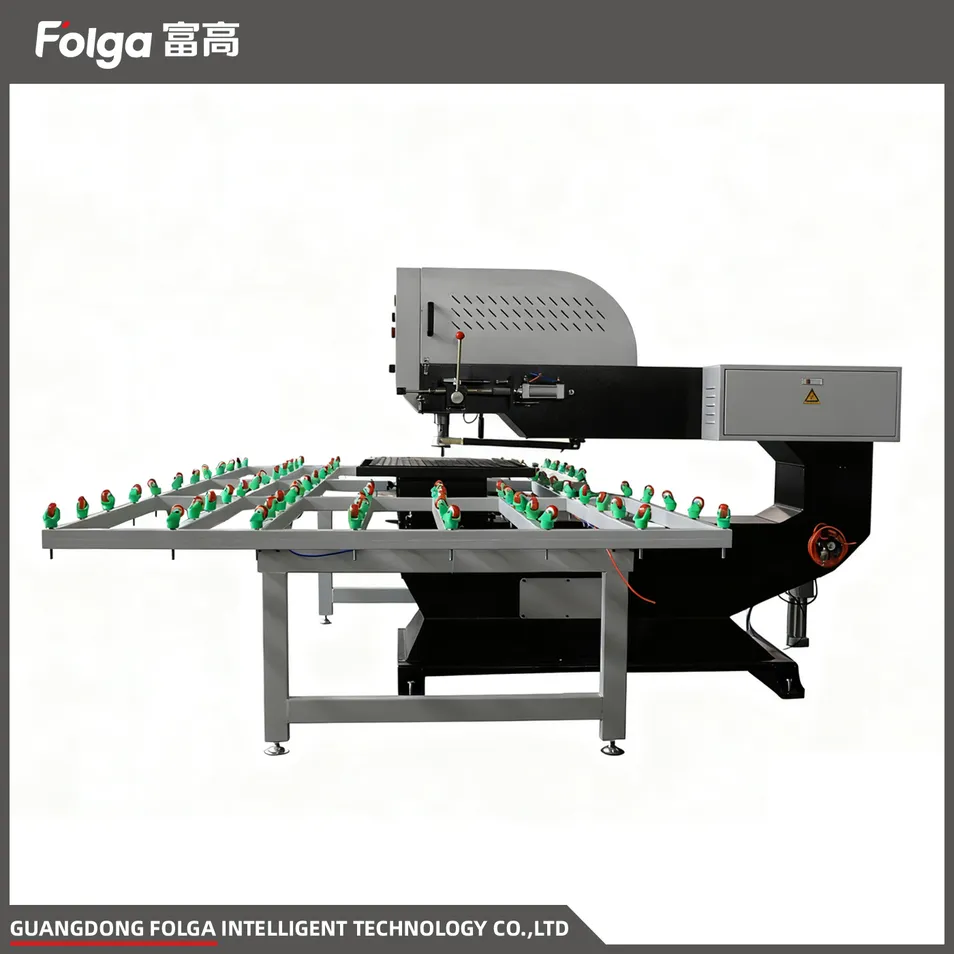

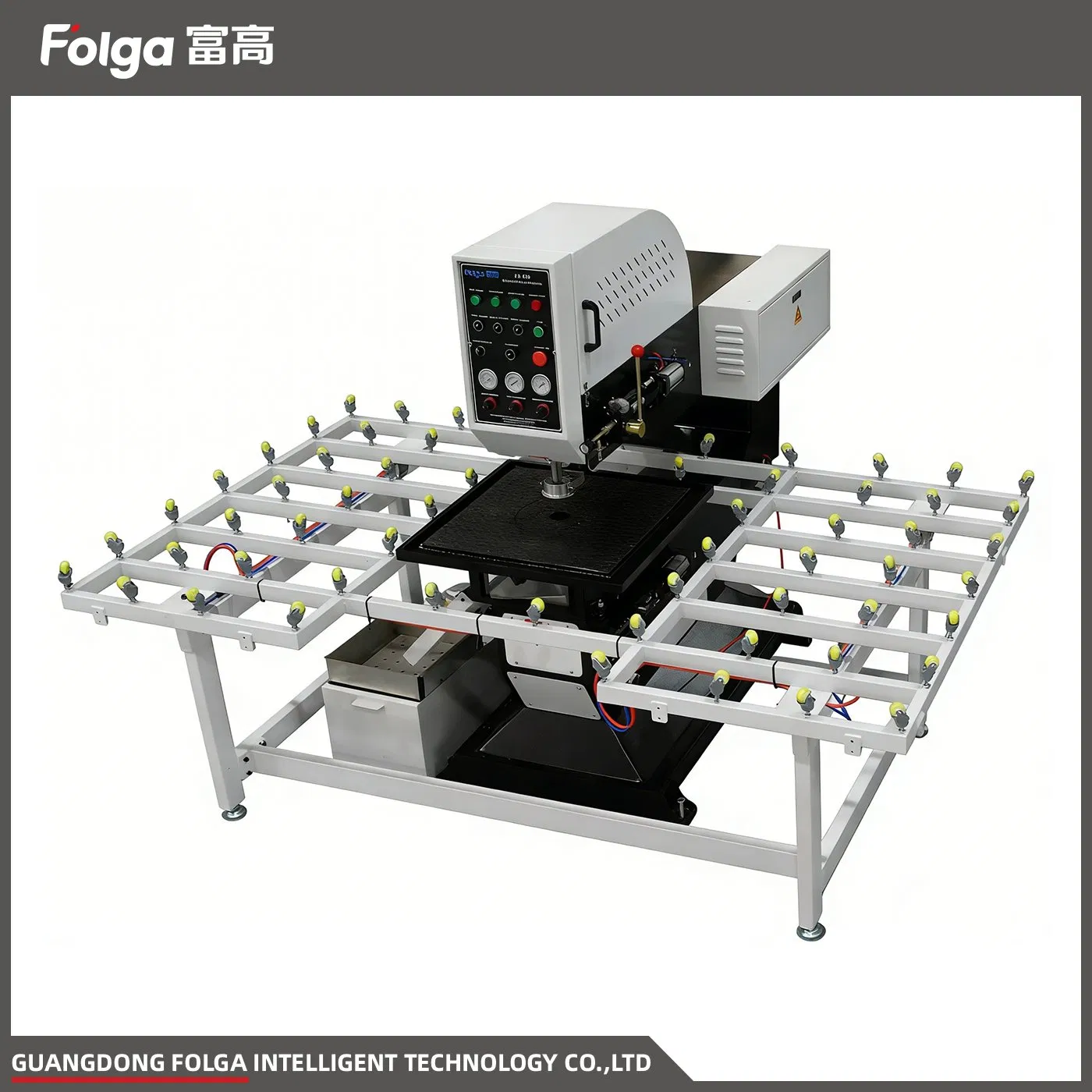

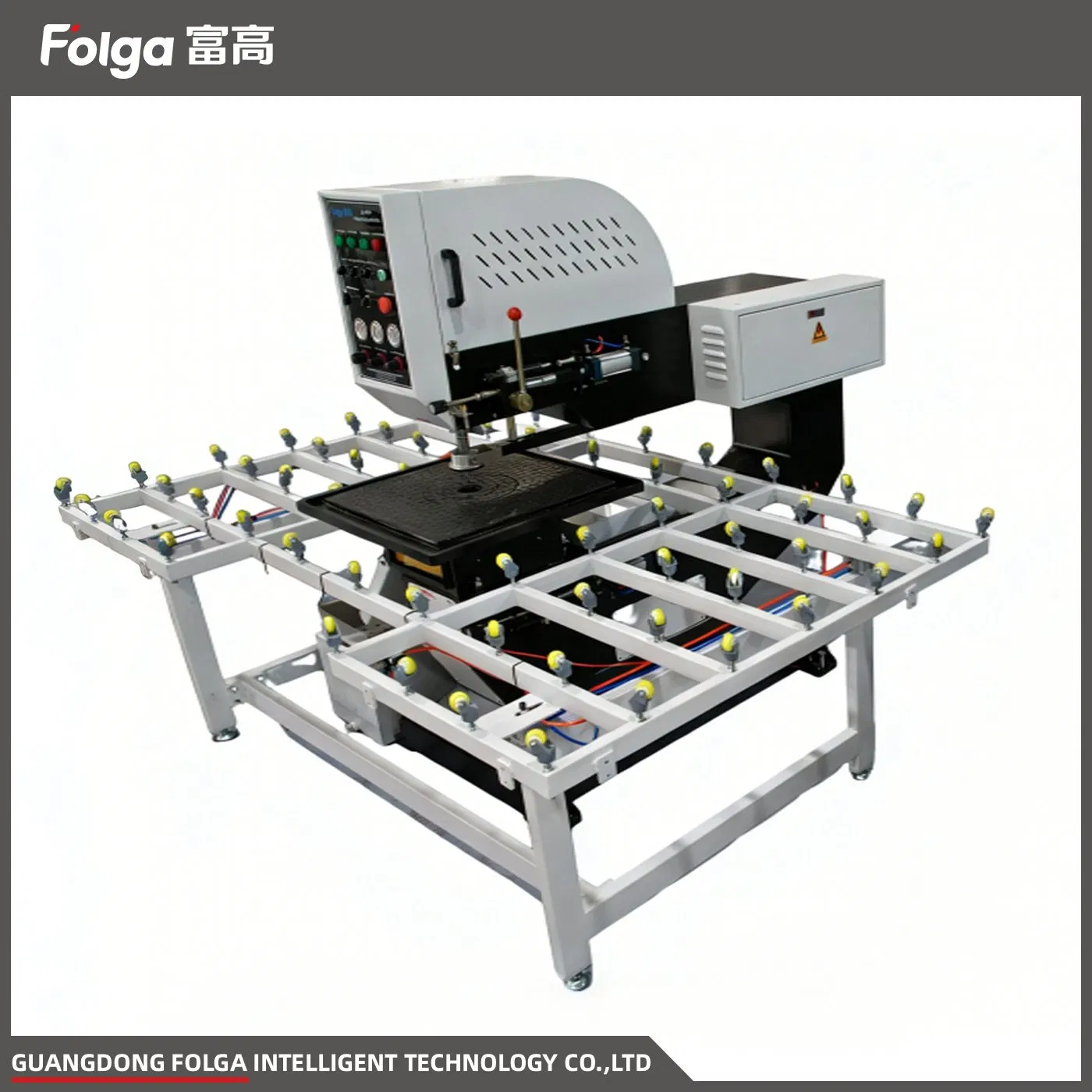

The glass drilling machine is a professional and vital equipment for drilling holes on glass sheets. With excellent performance, a wide diameter of drilling bits, and enough space for lifting glasses, it is possible to process the large size glass. The worktable with proper height is easy for daily operation and maintenance. The lower drilling bit speed is controlled by pneumatic and hydraulic pressure, greatly improving stability and productivity. To maximize production efficiency, the drilling machine is ideal for batch orders or flow-line production.
| Distance between the drill spindle center and the column | 1200mm |
| Worktable height | 850mm |
| Glass thickness | 3-20mm |
| Max. glass size | 2600mm*2400mm |
| Min. glass size | 100*100mm |
| Glass diameter | φ4-210mm |
| Total power | 4.5kw |
| Dimension | 2600mm*2100m*1700mm |
| Drilling error | ≤0.3 mm |
| Radial runout of the spindle taper hole | ≤0.05 mm |
| Axial runout of the spindle taper hole | ≤0.03 mm |
