Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
1 / 5
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass
Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass

Cookware Glass Lid Tempering Furnace Production Line of Tempered Glass

Certification: CE
Control System: PLC
Warranty: Provide
Send Inquiry

Product Description

Basic Information
Model NO.
PBL8500
Glass Thickness
3-8mm
Productivity(240mm)
700PCS/H
Working Air Pressure
0.6-0.8MPa
Furnace Length
8500mm
Overall Size
13800*2500*2200mm
Glass Dia.
120-420mm
Weight
6000kg
Power
215kw
Actual Working Power
60kwh
Type
Glass Tempering Furnace
Structure
Horizontal
Condition
New
Production Capacity
700PCS/H
Origin
China
Product Description

Cookware Glass Lid Tempering Furnace Production Line

✓ Toughening Furnace + Cooling Conveyor
✓ Error of temperature ≤ 1ºC Sectional heating
✓ Power cost less than 100kw
✓ Successful rate: 99.7%

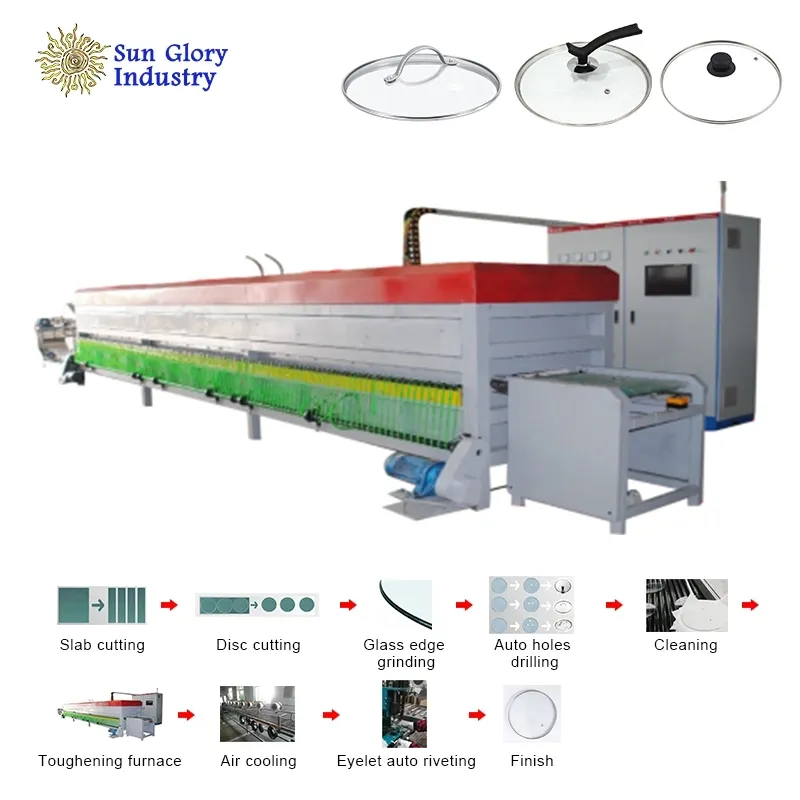

Tempering Furnace Production Line
Operator2
Glass Thickness3-8mm
Productivity (240mm)700pcs/H
Working Air Pressure0.6-0.8Mpa
Furnace Length8500mm
Overall Size13800*2500*2200mm
Glass Dia.120-420mm
Weight6000KG
Power215Kw
Actual Working Power60Kwh

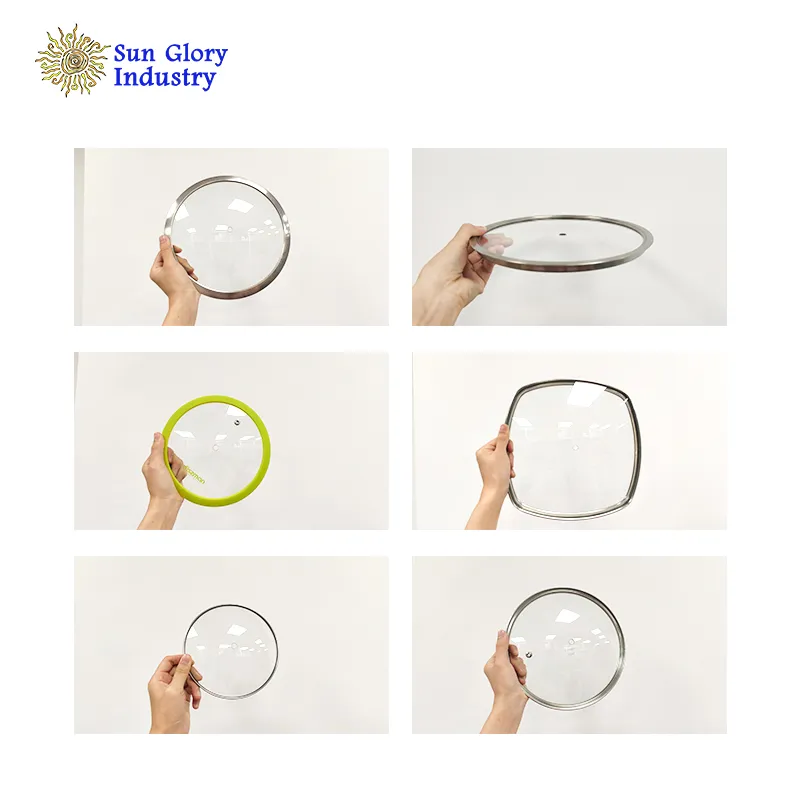

Glass Lid Production
How can we support you?

As an aluminum cookware & glass lid End to End Solution provider, we supply turn-key projects, including machinery & molds, consumables, and "know how" for aluminum cookware & glass lid manufacturing training and regular production supporting.

Production Support 1 Production Support 2 Production Support 3 Production Support 4 Production Support 5
Frequently Asked Questions
Q1: What is the glass thickness range for this furnace?
The production line is designed to process glass with a thickness ranging from 3mm to 8mm.
Q2: What is the production capacity for standard glass lids?
For a standard 240mm diameter glass lid, the productivity is approximately 700 pieces per hour.
Q3: How energy efficient is the tempering furnace?
While the total power is 215kw, the actual working power consumption is optimized at approximately 60kwh.
Q4: What is the temperature accuracy of the heating system?
The system features sectional heating with a temperature error of ≤ 1ºC, ensuring high-quality tempering.
Q5: What sizes of glass lids can be processed?
The machine supports glass diameters ranging from 120mm to 420mm.
Q6: What is included in the turn-key project support?
We provide an end-to-end solution including machinery, molds, consumables, manufacturing training, and regular production technical support.
