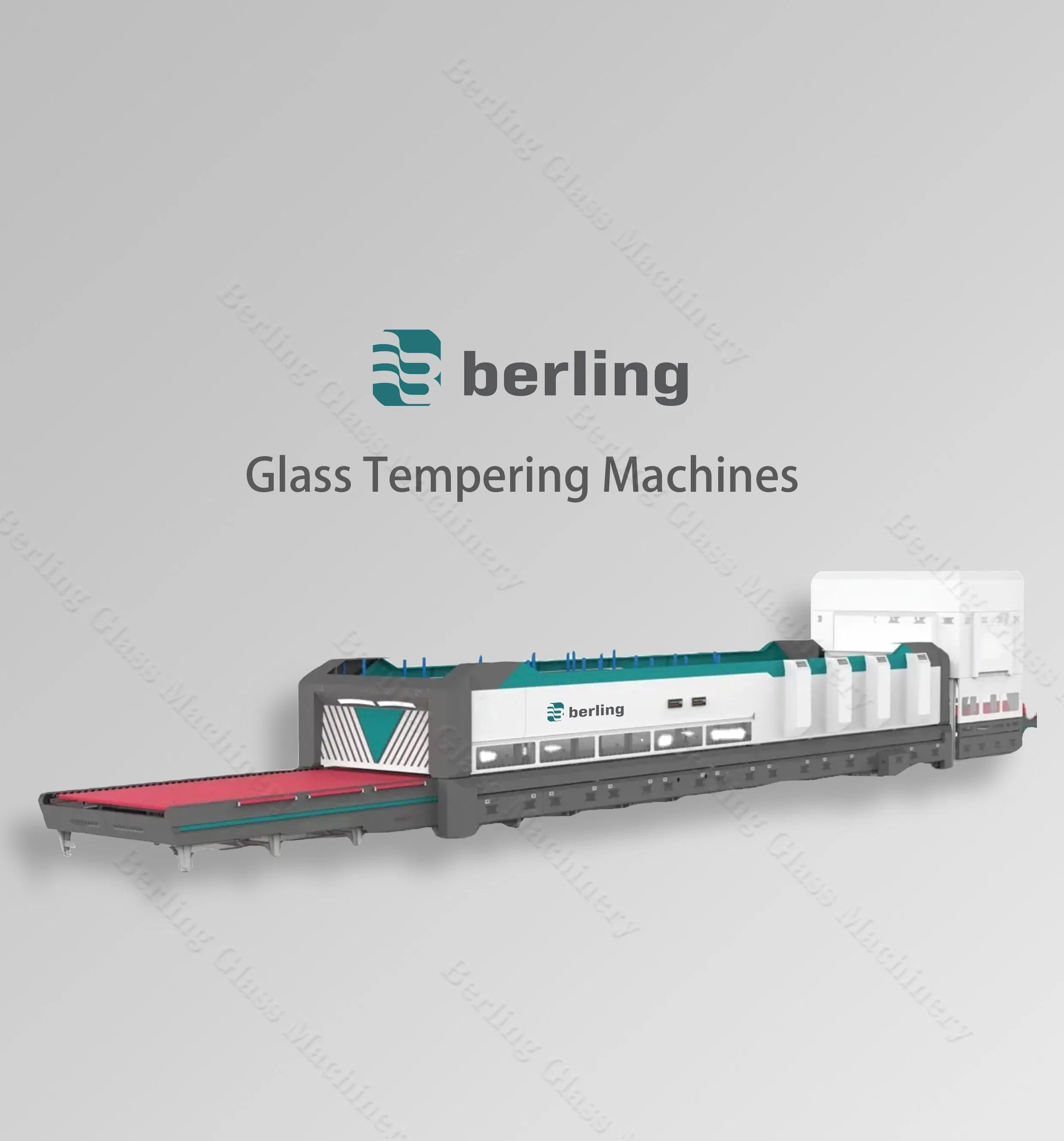

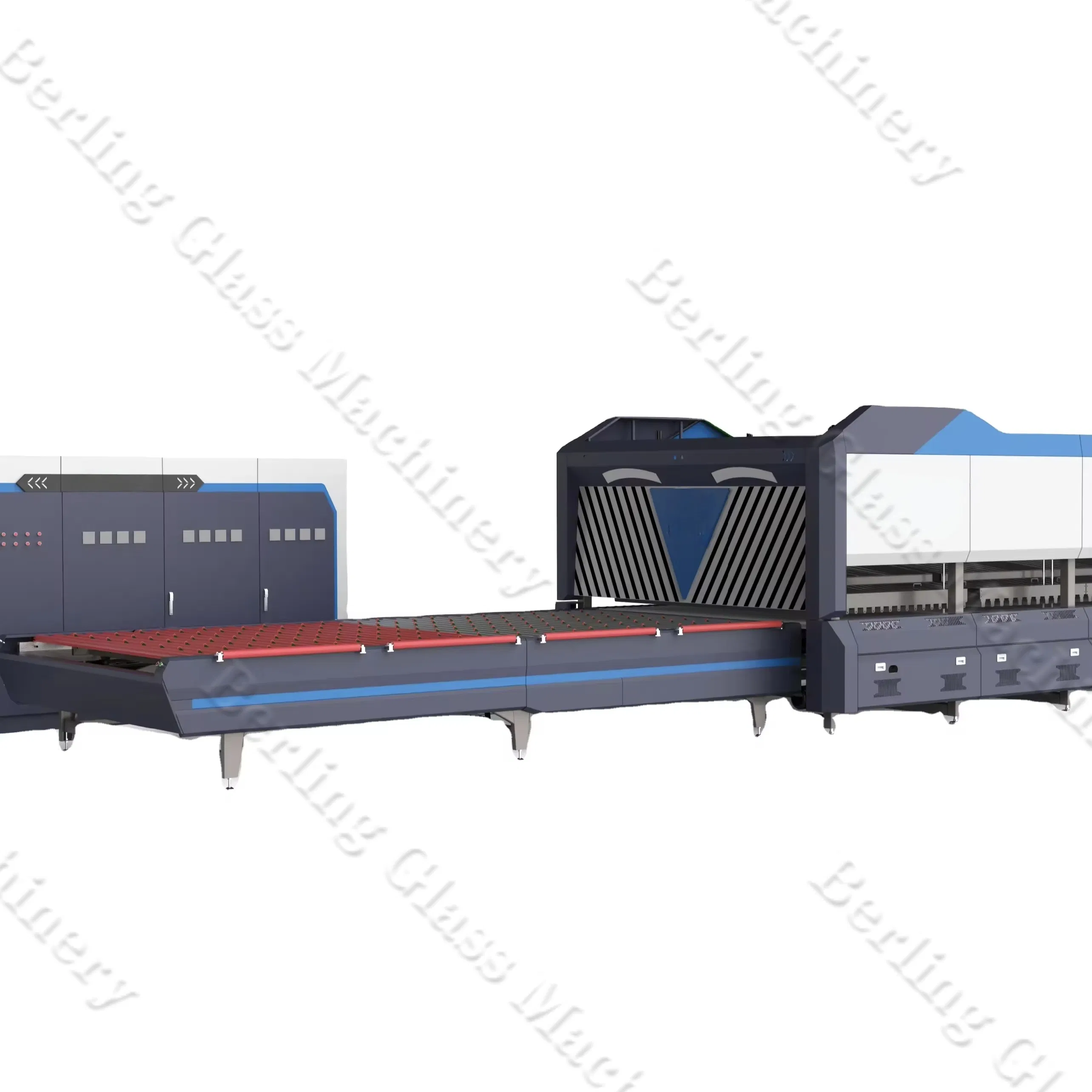

Tempered Glass Machine Flat or Curve Tempering Glass Furnace Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control, Touch Screen Control

Overview

Model NO.

BLTF-2850

Glass Thickness

4-19mm

Heating Method

Convection Heating

Maximum Glass Size

2800×5000mm

Warranty

1 Year

Machine Type

Glass Tempering Furnace

Core Components

Motor, PLC

Heating Power

1008kw

Total Installed Power

1338kw

HS Code

8464201000

Product Description

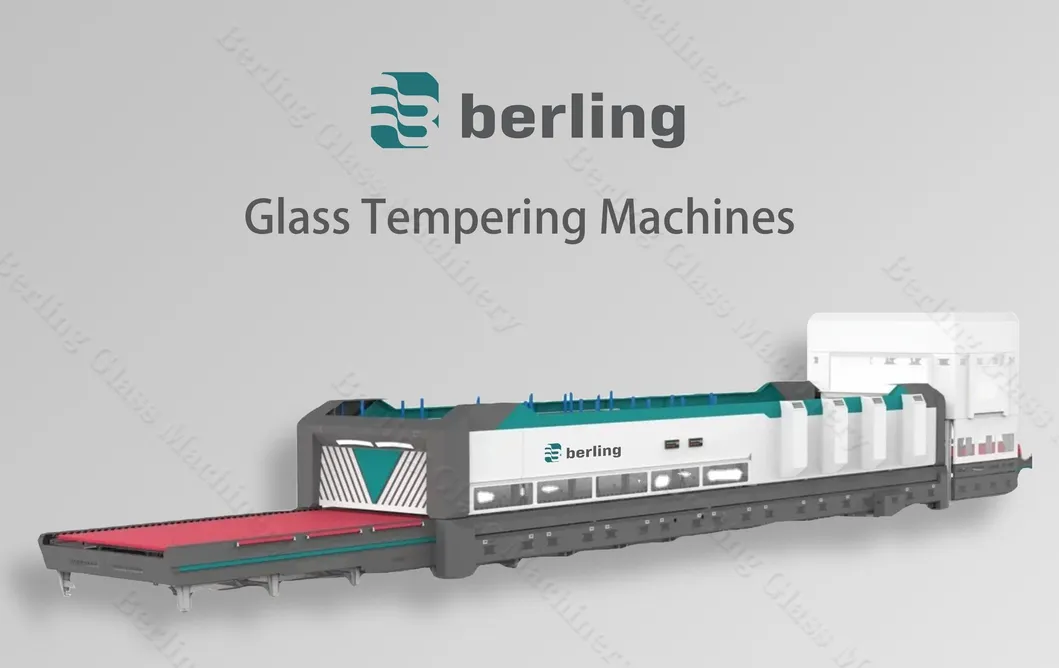

Energy Efficient Single Chamber Tempering Furnace

This advanced glass tempering furnace is capable of withstanding temperatures over 1000°C for more than 60 minutes without cracking or blowing. Ideal for producing high-strength, heat-resistant glass for architectural and safety applications, it combines precision control, energy efficiency, and intelligent protection.

Application Scope

✔ Ordinary float & Ultra-clear glass

✔ Silk-screen printed & Figured glass

✔ Low-E (low emissivity) glass

✔ Fireproof DFB single-layer glass

Key Features

PLD Closed-Loop HeatingIntelligent regulation of heating wires ensures flexible, accurate temperature control.

Smart Heating ProtectionPrevents overheating and surface damage caused by furnace temperature spikes.

Frequency Conversion FanStepless speed regulation enhances energy efficiency and reduces power consumption.

Emergency DC BackupProtects quartz rollers from glass damage during unexpected power outages.

Flexible Recipe ManagementStores hundreds of production parameters, easily adjustable for various needs.

Dual Safety SystemTime + Temperature dual control ensures consistent heat and avoids roller adhesion.

Product Parameters

Type	Max. Production Size	Min. Production Size	Thickness Range	Output/Hour (5mm)	Transformer Capacity
BL-TF1020	1000*2000	100*100	2.85~19	26m²/h	250KVA
BL-TF1425	1400*2500	300*100	2.85~19	45m²/h	250KVA
BL-TF1825	1800*2500	300*100	4~19	58m²/h	250KVA
BL-TF2030	2000*3000	300*100	4~19	77m²/h	400KVA
BL-TF2436	2440*3600	300*150	4~19	106m²/h	500KVA
BL-TF2442	2440*4200	300*150	4~19	121m²/h	630KVA
BL-TF2842	2800*4200	300*200	4~19	150m²/h	800KVA
BL-TF2850	2800*5000	300*200	4~19	179m²/h	800KVA
BL-TF3360	3300*6000	300*200	5~19	253m²/h	1000KVA
BL-TF3380	3300*8000	300*200	5~19	338m²/h	1250KVA

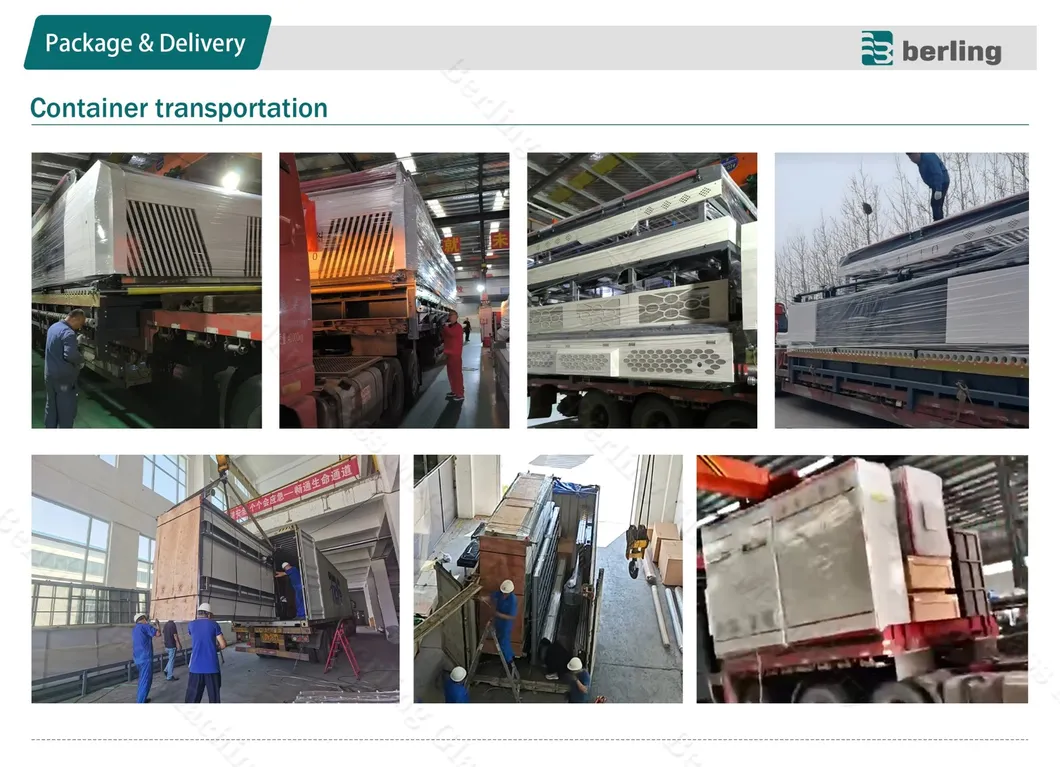

Packaging & Shipping

Certifications

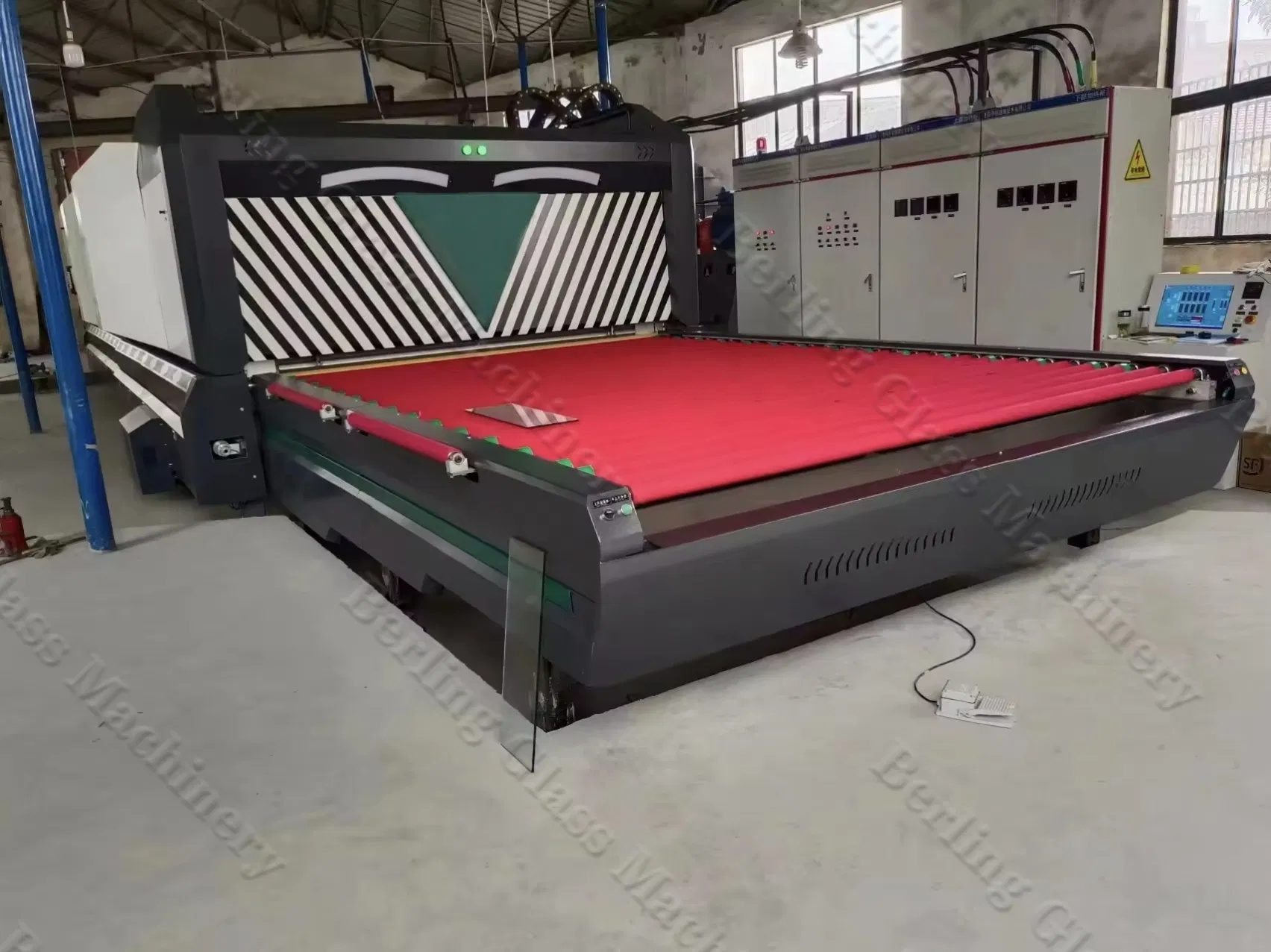

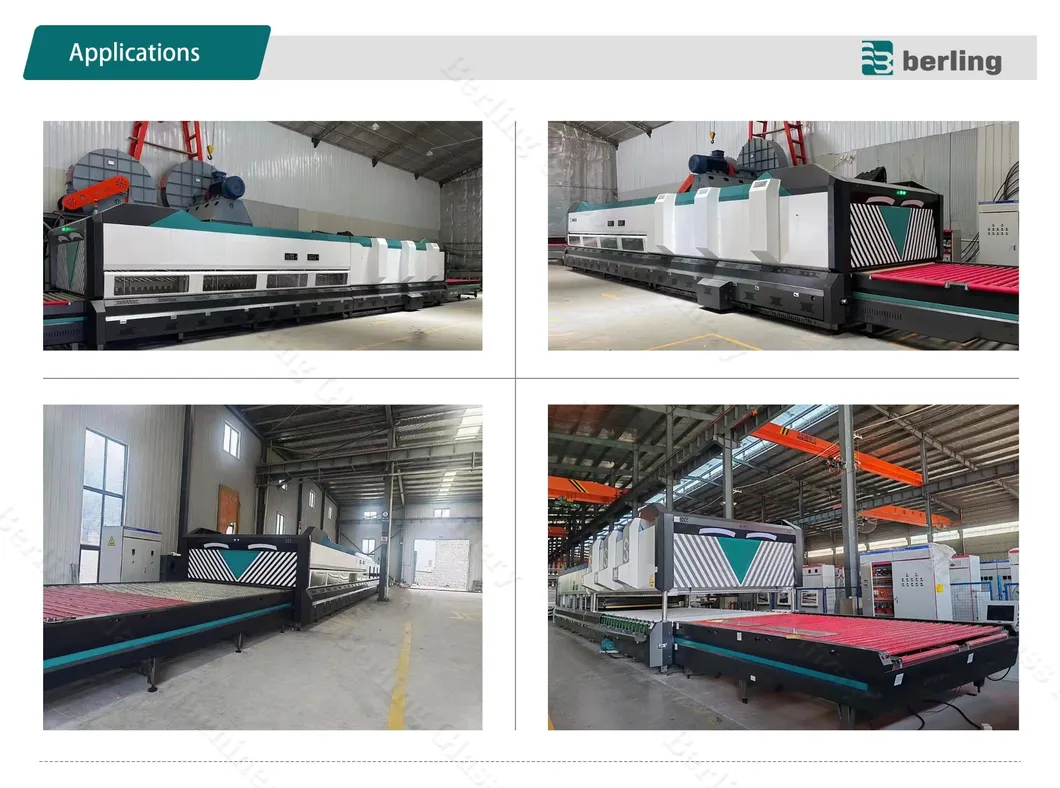

Production Gallery

FAQ

How is the product quality guaranteed?

We always provide a pre-production sample before bulk production and conduct a mandatory final inspection before shipment to ensure the highest standards.

What types of glass machinery can I purchase?

Our range includes Insulated Glass Production Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Production Lines.

What are the advantages of choosing your equipment?

With over 20 years of production experience, an excellent engineering team, and professional after-sales service, we provide stable and high-quality products exported worldwide.

What delivery and payment terms are accepted?

We accept various delivery terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY currencies.

What is the technical performance of the tempered glass?

For 5-6mm thick glass, the surface stress reaches 160-180 MPa. The improved air grid structure ensures stable tempering that meets international safety standards.
