Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line
1 / 4
Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line
Tempering Furnace Glass Lid Production Line

Tempering Furnace Glass Lid Production Line

Additional Capabilities: Drying
Certification: CCC
Condition: New
Send Inquiry

Product Description

Basic Information

Cutting Thickness:
3~8mm
Function:

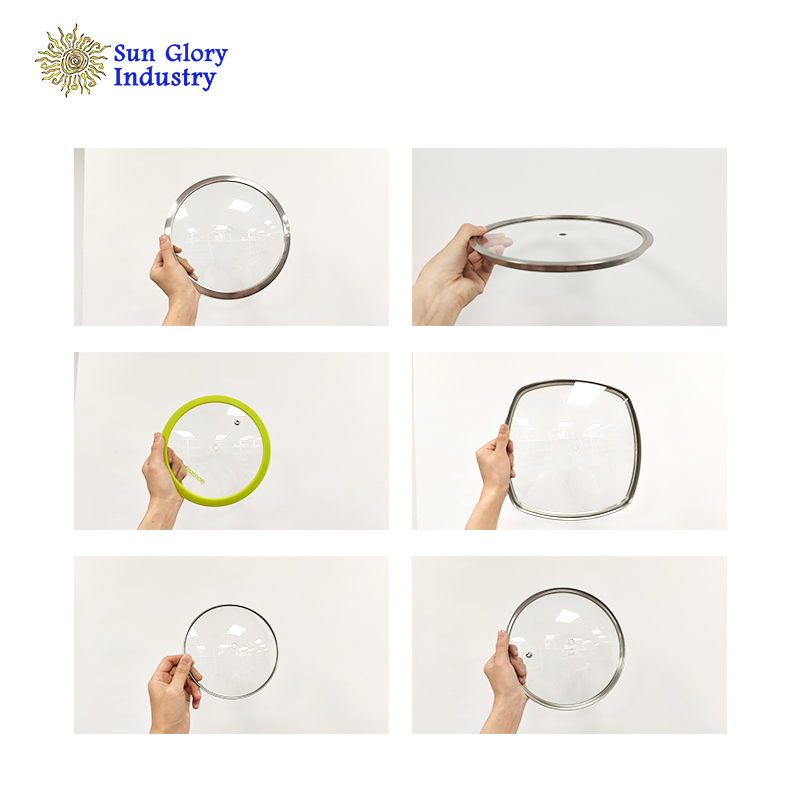

Flat Lid, High Curvature Lid, Irregular Shapes
Core Components:
PLC
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Inspection:
Video Outgoing-Inspection Provided
Layout Type:
Horizontal
Specification:
13800*2500*2200mm
Origin:
China
Production Capacity:
400-700PCS/H

Product Description

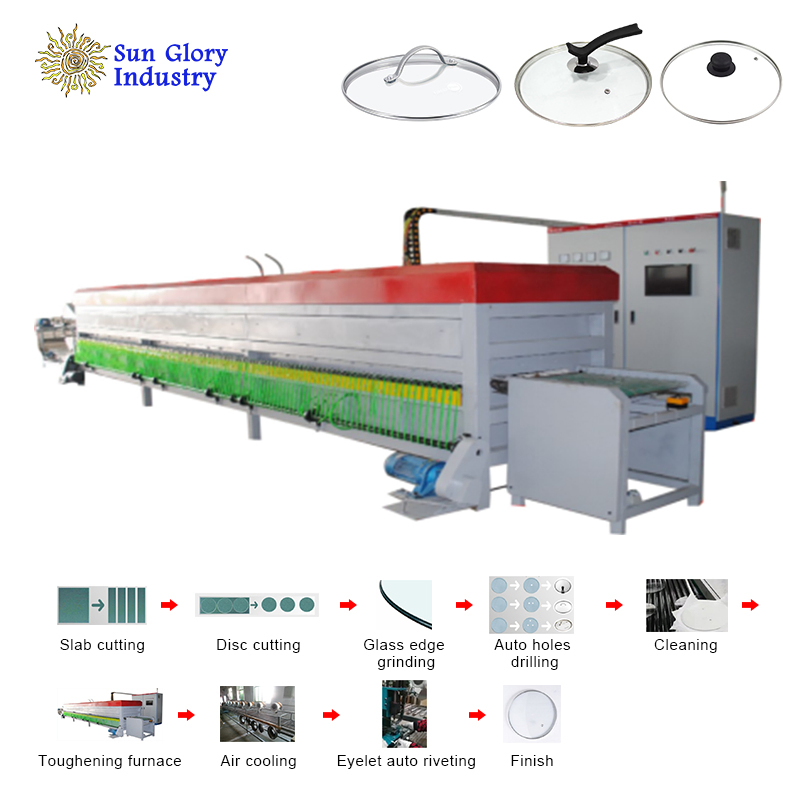

Tempering Furnace Glass Lid Production Line
Operator2
Glass Thickness3-8mm
Productivity (240mm)700pcs/H
Working Air Pressure0.6-0.8Mpa
Furnace Length8500mm
Overall Size13800*2500*2200mm
Glass Dia.120-420mm
Weight6000KG
Power215Kw
Actual Working Power60Kwh
Tempering Furnace Glass Lid Production Line

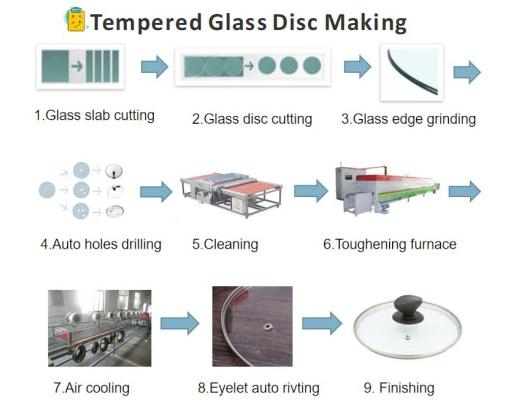

Comprehensive solutions for Glass Lid, Cooking Pot, and Kettle production.

Production Line View 1
Production Line View 2
Production Line View 3
Production Line View 4
Production Line View 5

Service Area

Pre-sale Service

Popular design and new trend information sharing; Return of investment analysis; A-Z solution flow chart design; Production process design and feasibility study; Machine line arrangement.

In-sale Service

Machine and molds quality control during manufacturing and after finish; Independent verification for each process; Pre-acceptance with simulated production according to future conditions.

After-sale Service

Plant layout proof & production line positioning; Production line installation & debugging; Operation training & examination; Re-training in the next 6 months; Annual on-site visits.

Upgraded Service

Market trend & latest fashion broadcasting; Continuous & systematic training for management, maintenance teams & operators; Regular production backup support.

Team and Service Overview

Frequently Asked Questions

Q: What range of glass thickness can this production line handle? A: The system is designed to process glass with a thickness ranging from 3mm to 8mm.
Q: What is the maximum production capacity of the machine? A: The production capacity is between 400 and 700 pieces per hour, depending on the product specifications.
Q: What are the space requirements for the entire production line? A: The overall size of the machinery is approximately 13800mm * 2500mm * 2200mm.
Q: What type of control system does the equipment use? A: The core components of the machinery utilize a PLC (Programmable Logic Controller) for precise operation.
Q: Is the machinery tested before delivery? A: Yes, both a machinery test report and a video outgoing-inspection are provided for quality assurance.
Q: What are the power consumption details? A: The total installed power is 215Kw, while the actual working power consumption is approximately 60Kwh.
