Ultimate Glass Polishing Kit for Crystal Clear Shine

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	10-15 m/min

Send Inquiry

Product Description

Basic Specifications

Processing Thickness3-19 mm

Voltage380V, 220V, 415V, 600V

WarrantyOne Year

Size of Machine4100*2650*2200mm

Processing Size2500*1500mm

Weight2600kg

Main Spindle11kw

DriveDelta

Main FunctionGrinding and Polishing

Tool Magazine5 PCS

Production Capacity50 Sets Per Month

OriginChina

Packaging & Delivery

Package Size220.00cm * 320.00cm * 150.00cm

Package Gross Weight200.000kg

Transport PackageStandard Export Package

Product Description

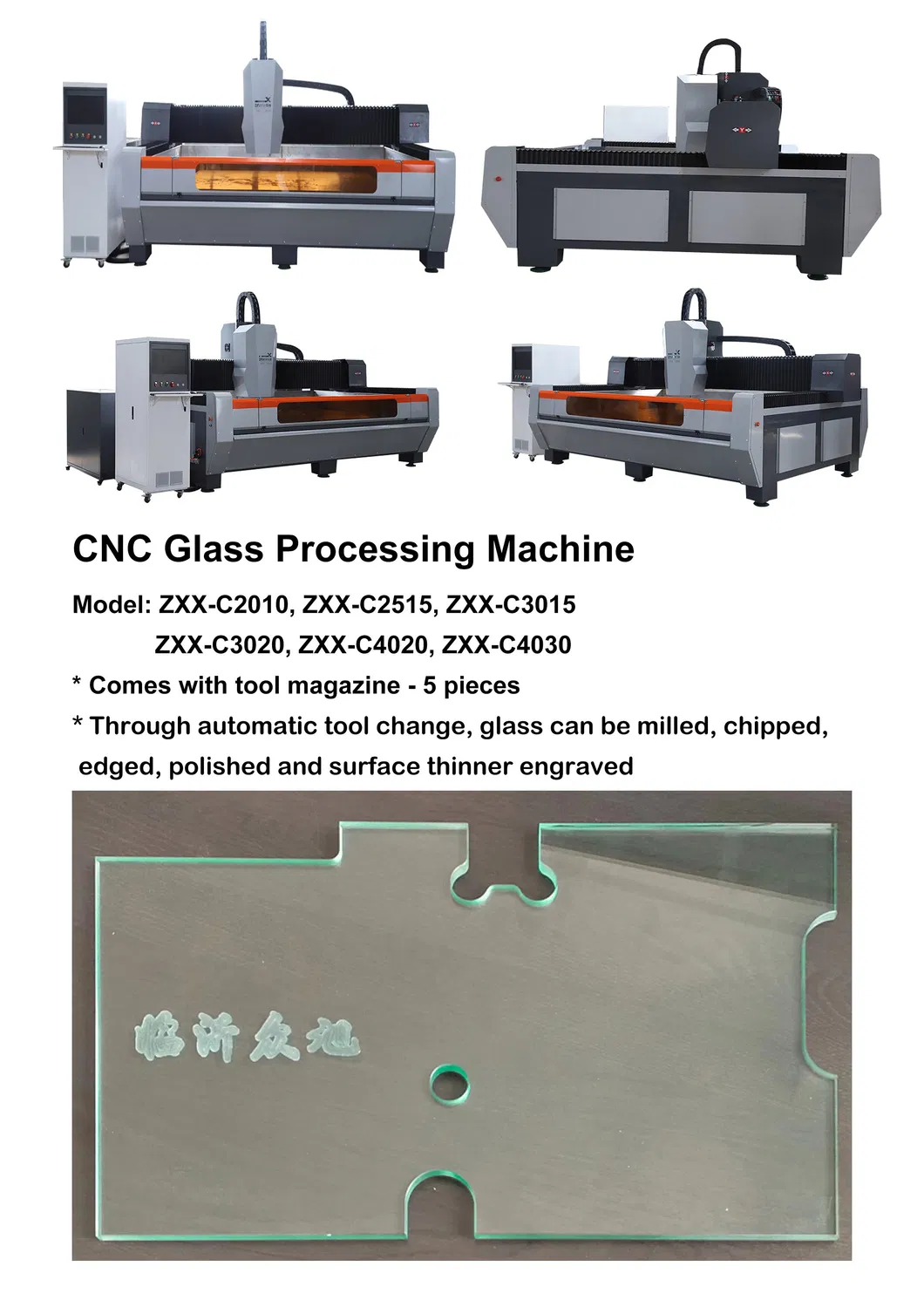

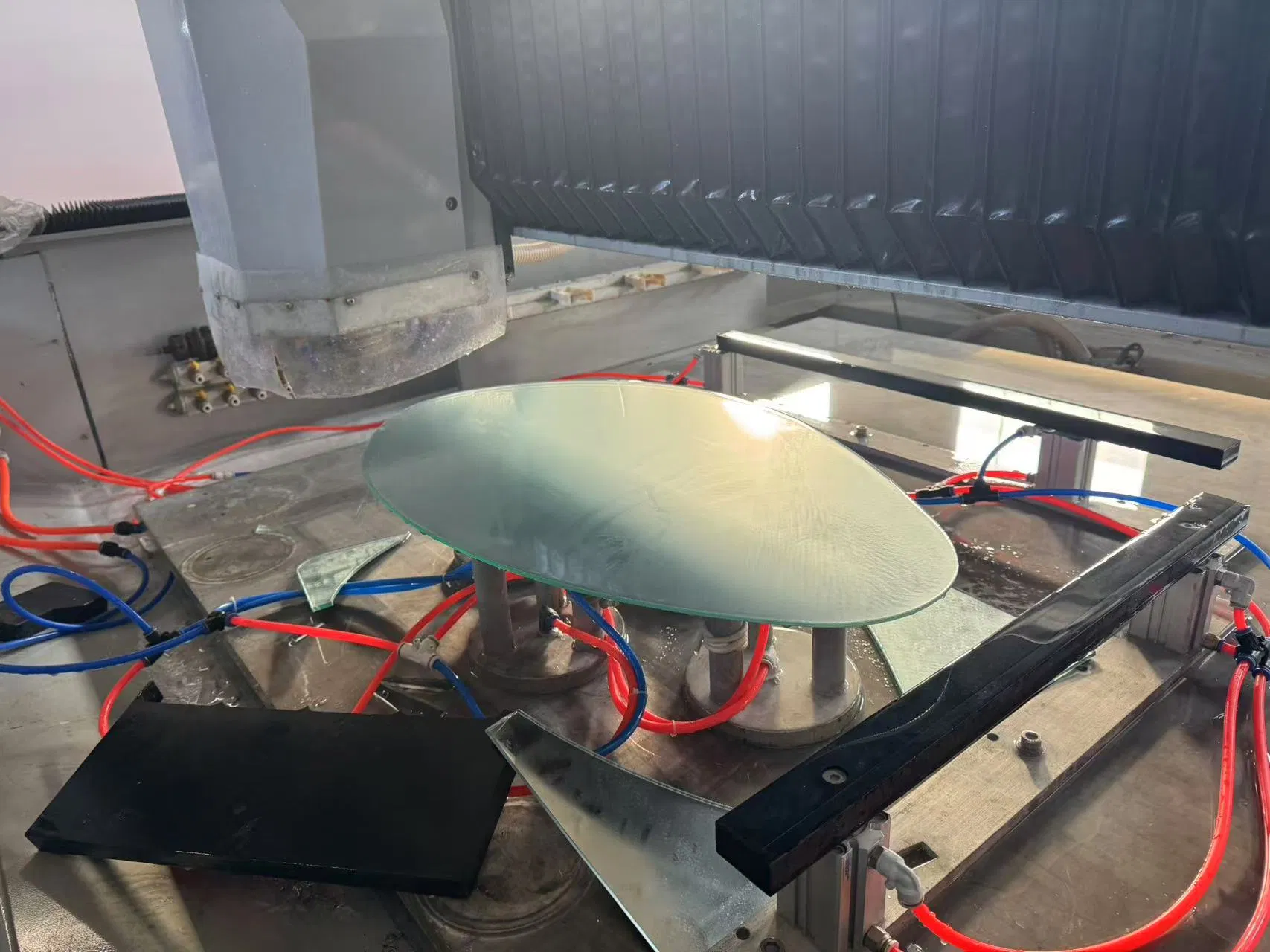

Advanced C2515 CNC Glass Machining Center

The PC based numerical control work center is dedicated to glass processing. Cutter heads can be moved left and right, up and down through the three-axis linkage structure controlled. The base, columns, and beams are made of Heavy Iron to ensure the stability of the machine for long-term operation.

The drive adopts a servo motor, and the sliding adopts imported high-precision linear guide rails to ensure running accuracy. The design concept is to provide cost-effective equipment for glass deep processing enterprises with a structure that is simple yet multi-functional.

Key Features

3-Axis linkage structure
Fully automated glass processing
Rough edging, fine edging, and polishing
Glass drilling and milling capabilities
Automatic tool changing system
Automatic spindle cooling system
Central lubricating system
Robust structural design for shower/automotive glass

Technical Data Sheet

MODEL No.	C2515
Machine Bed	Heavy heat treatment bed
Internal Structure	Half Cover / Waterproof design
Main Spindle	Water Cooling, 12000 RPM, 15kw
Table Size	2500*1500MM
Work Travel	25001500380MM
Max Grinding Size	2350*1350MM
Processing Speed	Grinder <15M/MIN, Polish <6M/MIN
Position Accuracy	0.1mm
Total Power	24kw

Product Gallery

Frequently Asked Questions

What is the range of glass thickness this machine can process?

The CNC machining center is capable of processing glass with a thickness ranging from 3mm to 19mm.

What are the main functions of the C2515 model?

It is a multi-functional center that supports glass drilling, milling, rough edging, fine edging, and high-quality polishing.

Does the machine feature an automatic tool changer?

Yes, the machine is equipped with a 5-piece tool magazine and a fully automated tool changing system for increased efficiency.

What is the positioning accuracy of this CNC center?

The machine offers high precision with a position accuracy and repeated position accuracy of 0.1mm.

What type of cooling and lubrication systems are included?

The machine features an automatic spindle water cooling system and an automatic central lubricating system to ensure long-term stability and performance.

What industries is this equipment best suited for?

It is an excellent solution for producing glass doors, shower enclosures, and automotive glass components.
