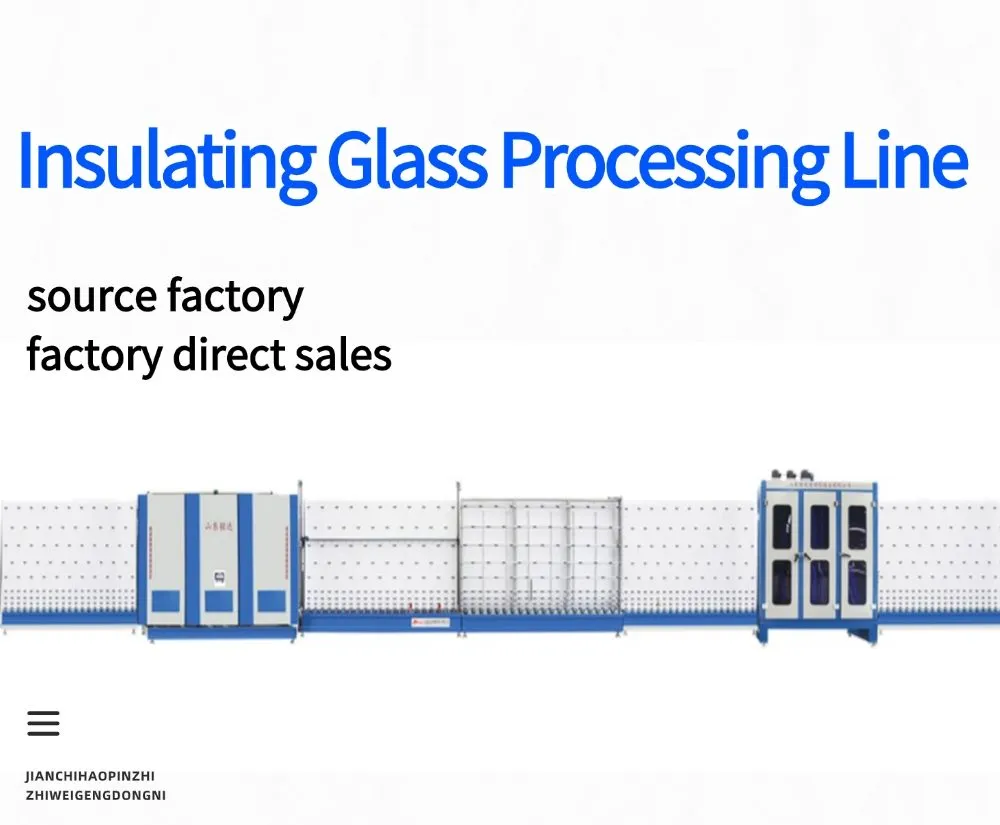

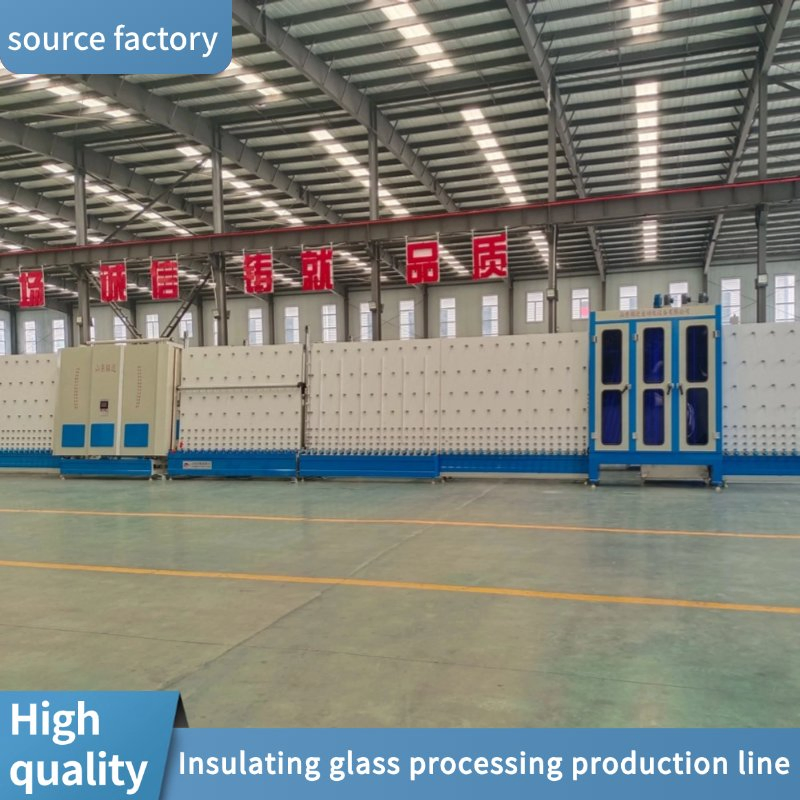

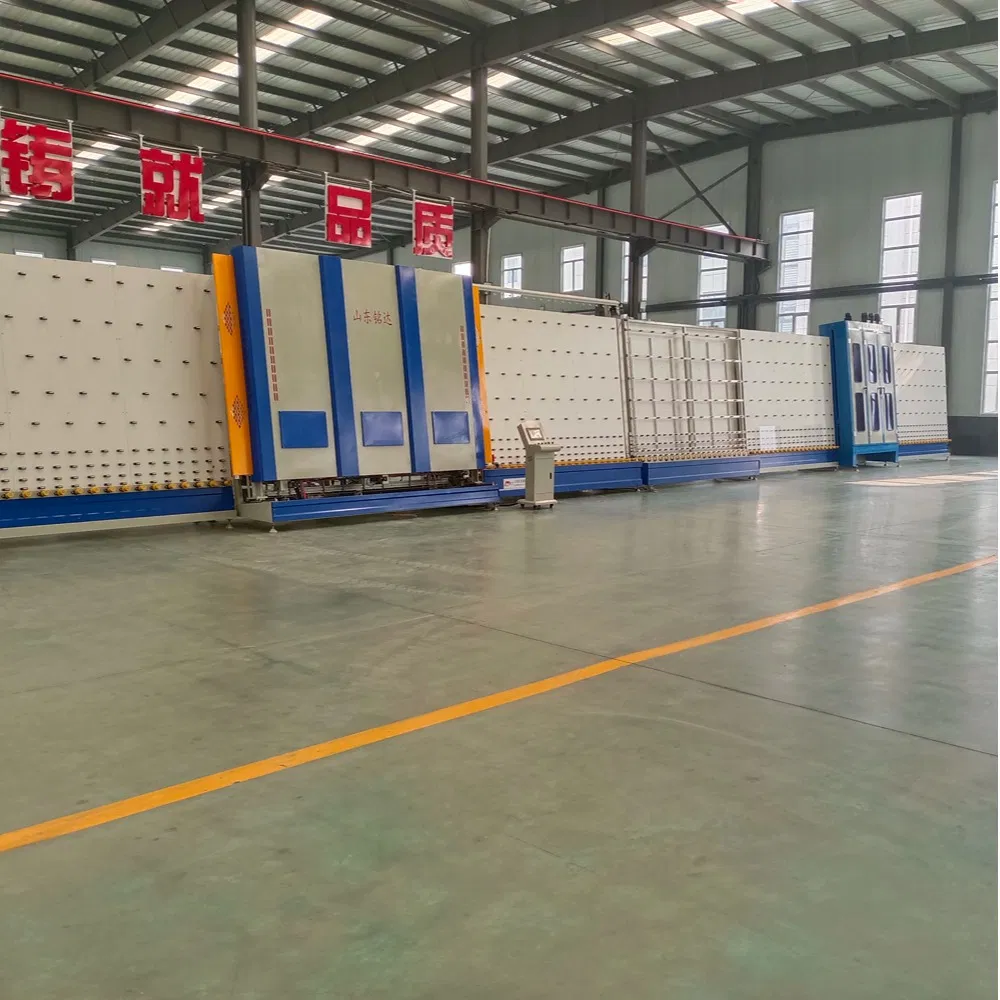

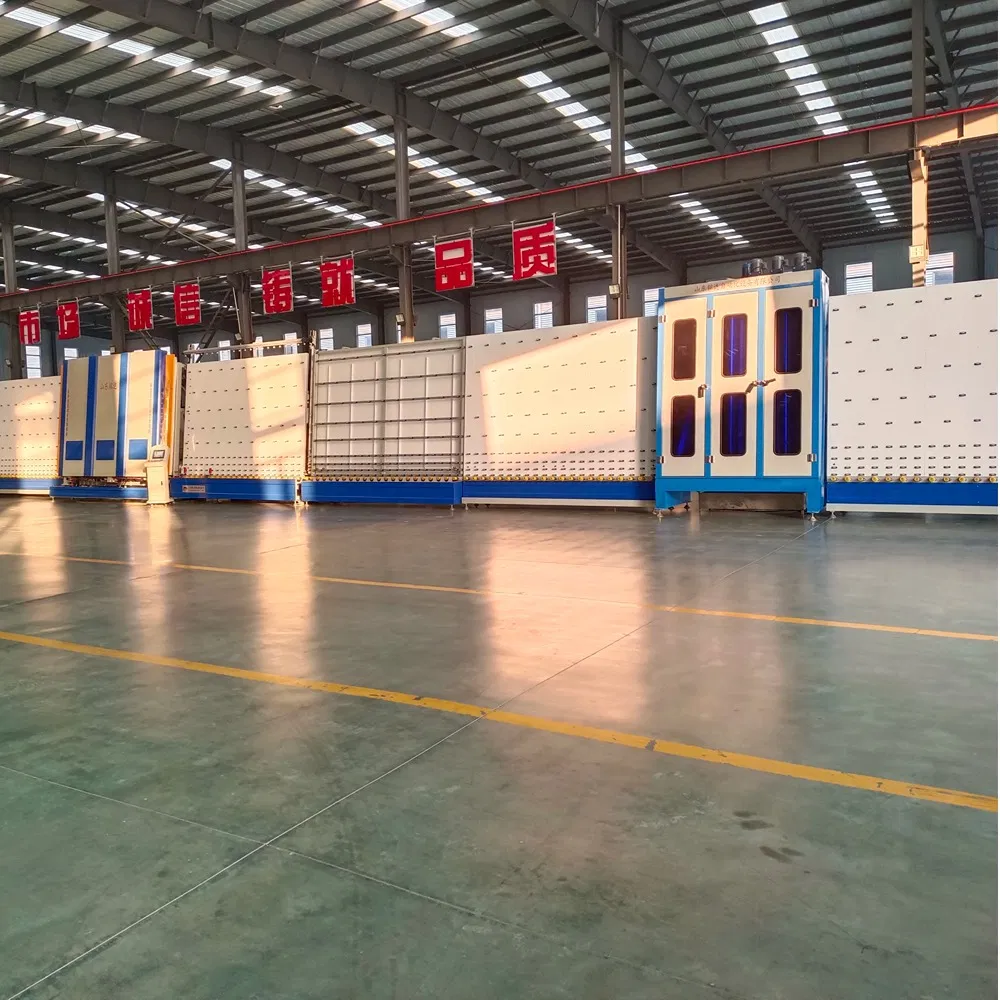

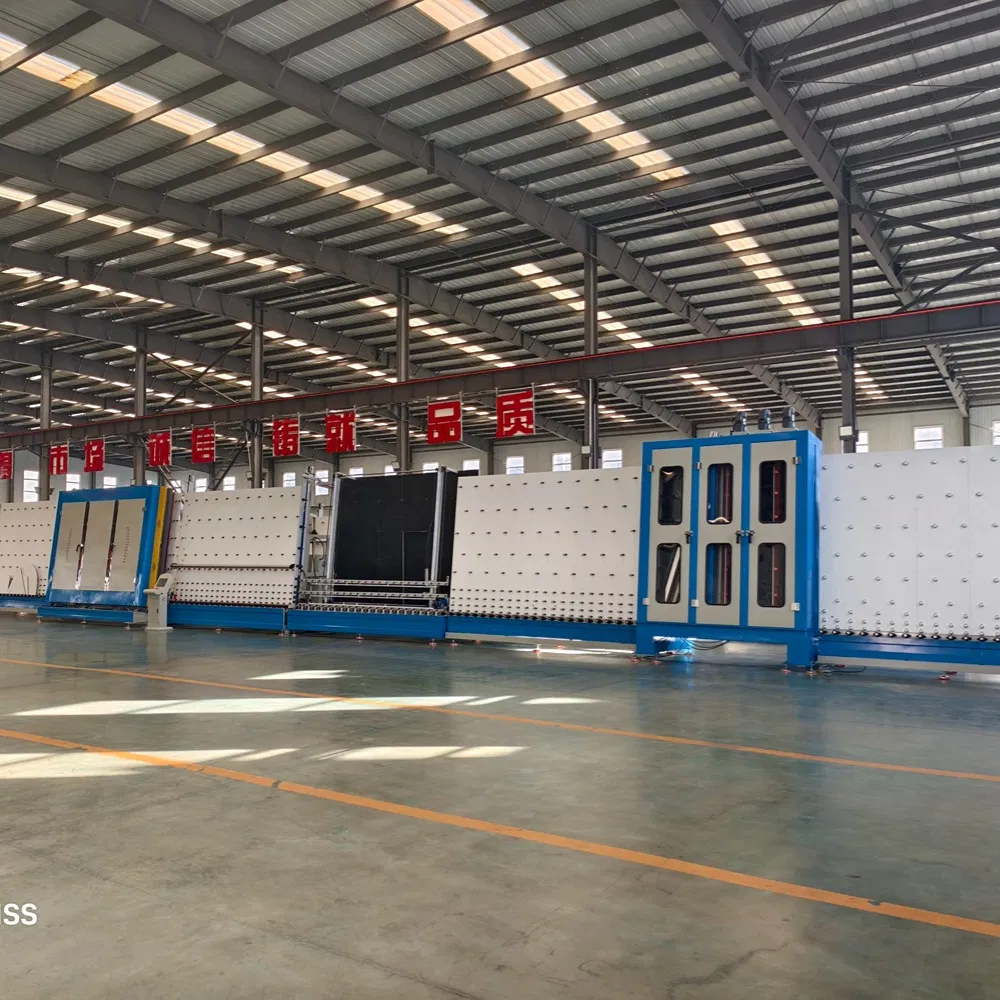

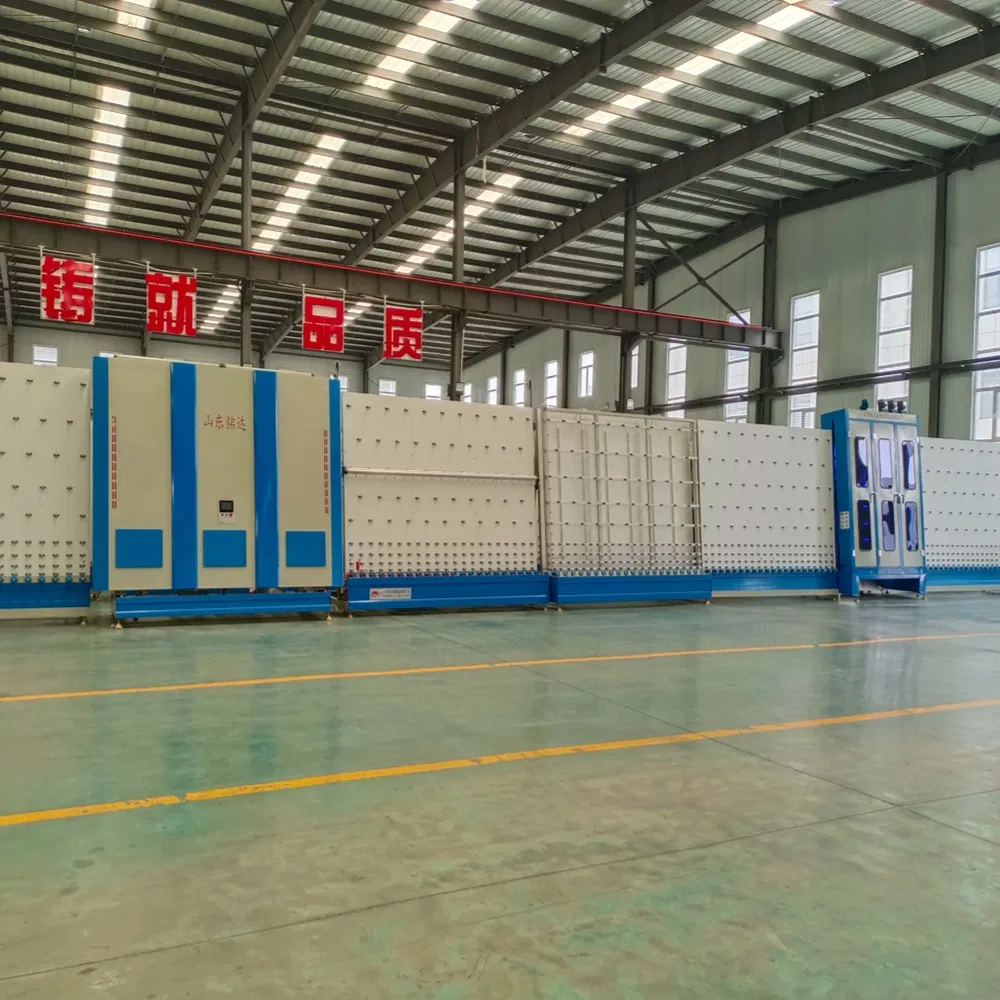

Vertical Insulated Glass Igu Machine Insulating Glass Processing Production Line

Customization: Available
Certification: CE
Control System: PLC Control

Product Description

Basic Info.

Model NO. LBP2500
Customized Available
Glass Thickness 3-19 mm
Electric Power 42.6kw 380V 50Hz
Glass Cleaning Speed 3-12m/Min
Transmission Speed 15-45m/Min
Air Pressure 0.7MPa
Package Size 3500cm * 4000cm * 3000cm
Gross Weight 10000.000kg

Product Specifications

Electric Power 38.6kw 380v 50HZ Rinsing speed 3-12m/min
Max. glass size 3600*2500mm Working speed 15-45m/min
Min. glass size 450*450mm Outside Dimension 26600*2500*3680mm
Glass Thickness 3-12mm Air Flow 0.8m³/min
Air pressure 0.7Mpa Aeration time 3-5S
ENV. temp. 7-50ºC

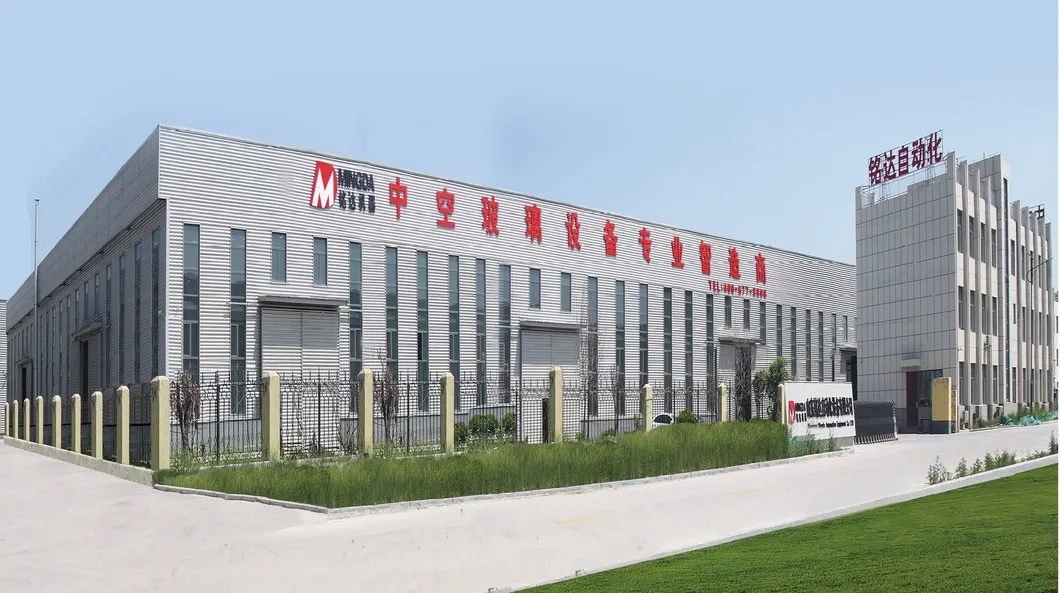

About Us

We are a private high-tech enterprise integrating production, scientific research, development and sales, specializing in the development and production of medium and high-end insulating glass processing equipment.

Since establishment, a lot of research and development in the area of hollow glass has been conducted, accumulating a wealth of practical experience. We have established a perfect sales and service system, creating world-class hollow glass processing equipment. In more than 20 years of operation, we always adhere to the principle of quality first and credibility. We maintain in-depth exchanges with users to listen to suggestions and attention to user needs. In product design and manufacturing, we always center on the needs of users to provide the most suitable products and establish a customer-centric marketing service system.

Frequently Asked Questions

What is the maximum glass size this production line can process?
The LBP2500 model can handle a maximum glass size of 3600*2500mm.
What is the compatible glass thickness range?
The system supports glass thicknesses ranging from 3mm to 19mm.
What are the power requirements for the machine?
The machine requires an electric power of 42.6kw (380V, 50Hz).
How fast can the glass be cleaned on this line?
The glass cleaning speed is adjustable between 3-12 meters per minute.
What air pressure is needed for optimal operation?
The recommended air pressure for the production line is 0.7MPa.
Is the machine suitable for different environmental temperatures?
Yes, the machine is designed to operate in environmental temperatures ranging from 7-50ºC.
