Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
1 / 5
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line
Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line

Warm Edge Double Glazing Machinery, Warm Edge Spacer Insulating Glass Production Line, Super Spacer Igu Line

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

📊 Basic Information
Model NO.
HHHDG1200
Type
Insulating
Shape
Flat
Structure
Hollow
Glass Thickness
3-12mm
Air Cavity Depth
6-12
Usage
Furniture, Door, Building, Window
Work Speed
<2m/min

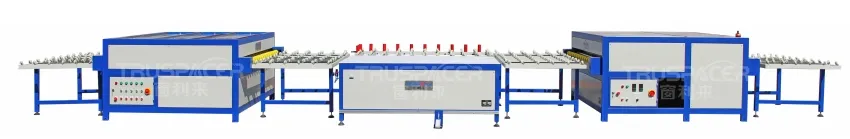

Machinery Overview
Machine Detail 1
Machine Detail 2

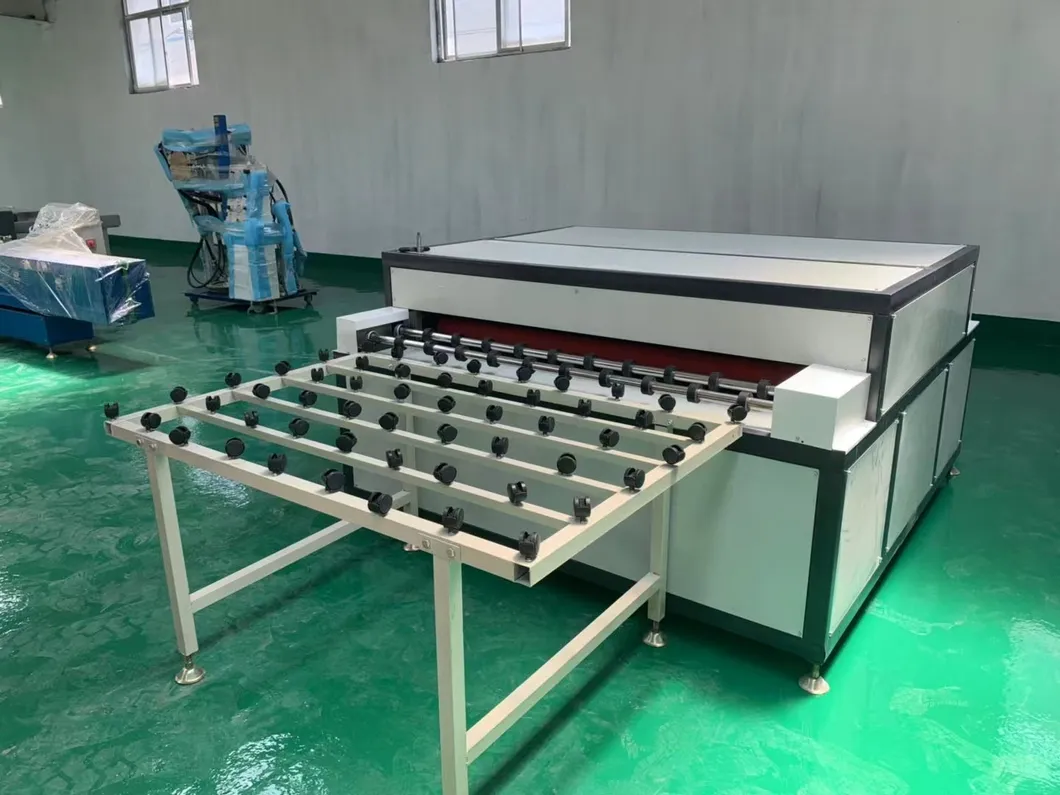

Machine Detail 3

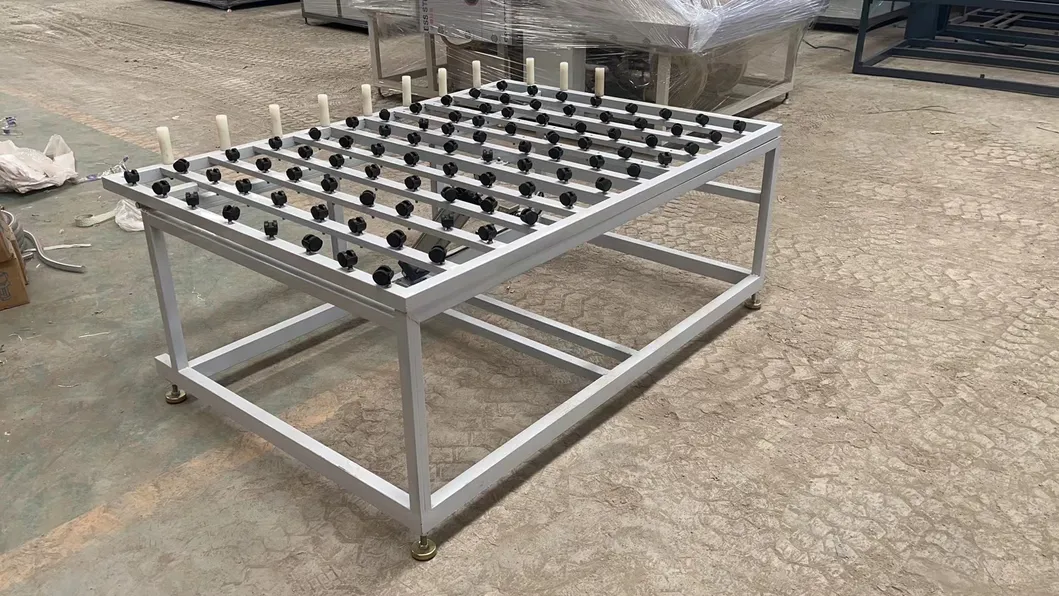

Machine Detail 4
⚙️ Equipment Features
  • Adopts 18 quartz for heating, ensuring extremely high thermal efficiency.
  • Compressing intensity of 2 pairs of glue rollers is increased, making thickness tolerance smaller.
  • Adopts a gradient press method from input to output section for superior press fit effects.
  • Equipped with an instantaneous heating function for rapid operation.
  • Supports manual stepless adjustment for flexible control.
  • Rinsing sector and water flow system use rustproof and rot-proof materials for durability.
  • Divided into rinsing, water-absorbing, and drying rooms for excellent cleaning results.
  • Transmission system adopts five speeds to achieve high-efficiency application.
📋 Technical Parameters
Technical Specifications
Input Voltage 380V / 50Hz
Input Power 7.5Kw
Work Speed 1.2 ~ 5.0m/min
Max. Glass Size 1600 * 2000mm
Min. Glass Size 400 * 400mm
Insulating Glass Thickness 3 ~ 12mm
Overall Dimension 2500 * 2030 * 1000mm
📦 Packaging & Shipping

LCL (Less than Container Load): Wrapped in stretch film and packed in standard export plywooden cases.

FCL (Full Container Load): All machines are wrapped with film and securely fixed into the container with steel iron to ensure stability during transport.

❓ Frequently Asked Questions
What is the maximum glass size this machine can handle?
The machine can process glass with a maximum size of 1600mm x 2000mm.
How does the heating system work?
The machine utilizes 18 quartz tubes for heating, providing high thermal efficiency and an instantaneous heating function.
Is the machine resistant to rust?
Yes, the rinsing sector and water flow system are constructed from rustproof and rot-proof materials designed to withstand heavy usage.
What are the power requirements for this equipment?
The machine requires an input voltage of 380V at 50Hz and has a total input power of 7.5Kw.
How is the drying effect achieved?
The machine uses a combination of sponge stick water absorption and heat drying within a dedicated drying room to ensure excellent results.
What type of packaging is used for international shipping?
We use stretch film and standard export plywood cases for LCL shipments, and film wrapping with steel iron fixation for FCL shipments.
