Basic Information
Type
Glass Cutting Machine
Safety Features
Emergency Stop, Overload Protection, Safety Sensor
Specification
3900*2800 mm
Product Description

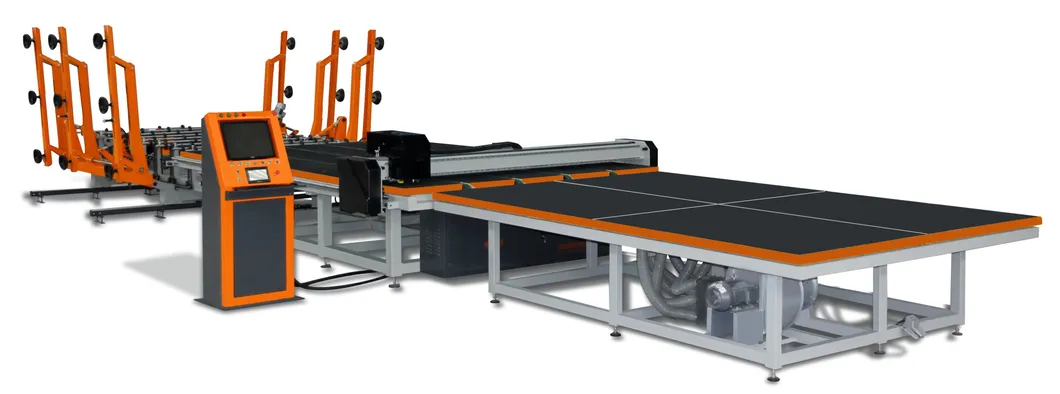

The production line mainly contains three essential sections:

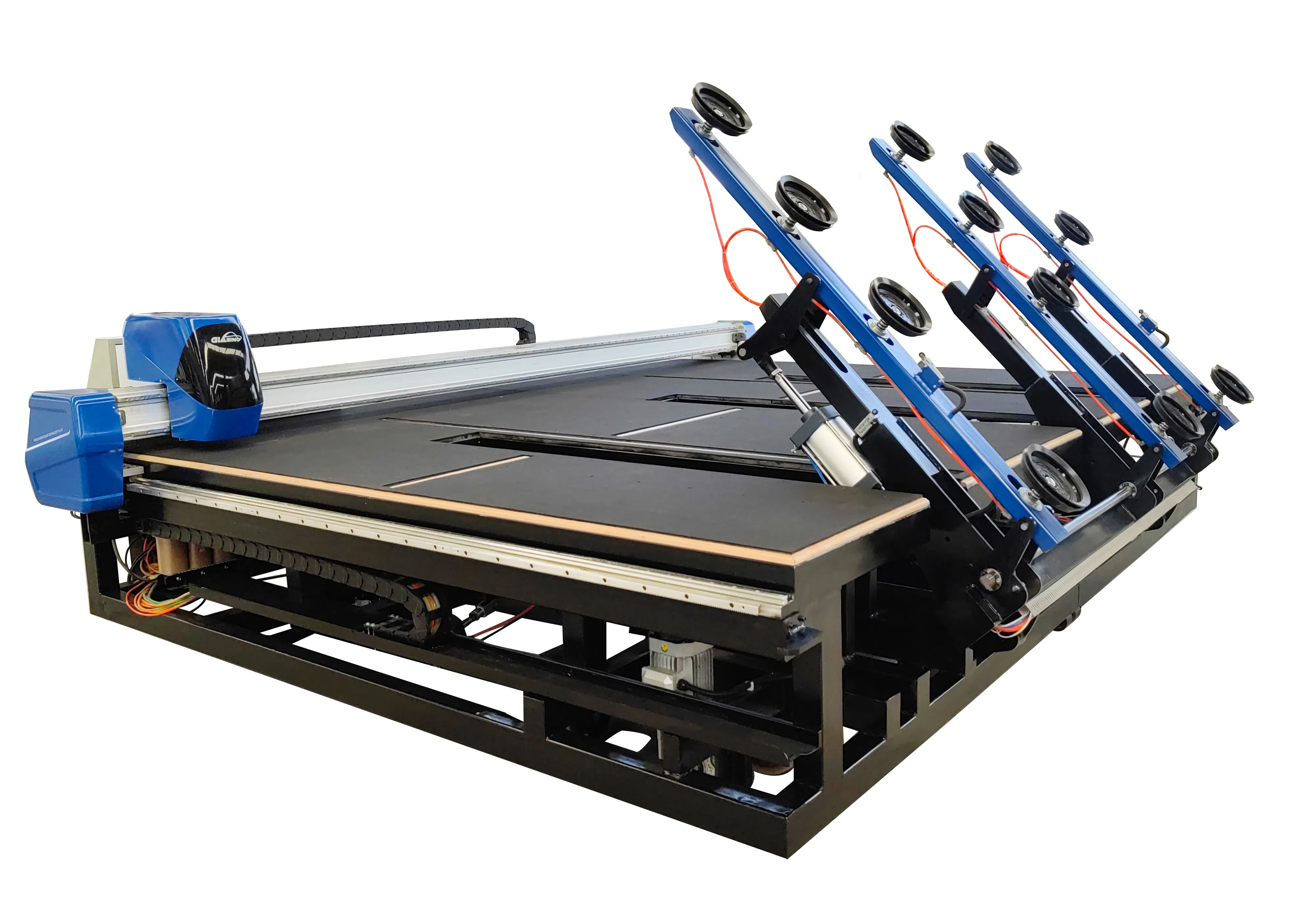

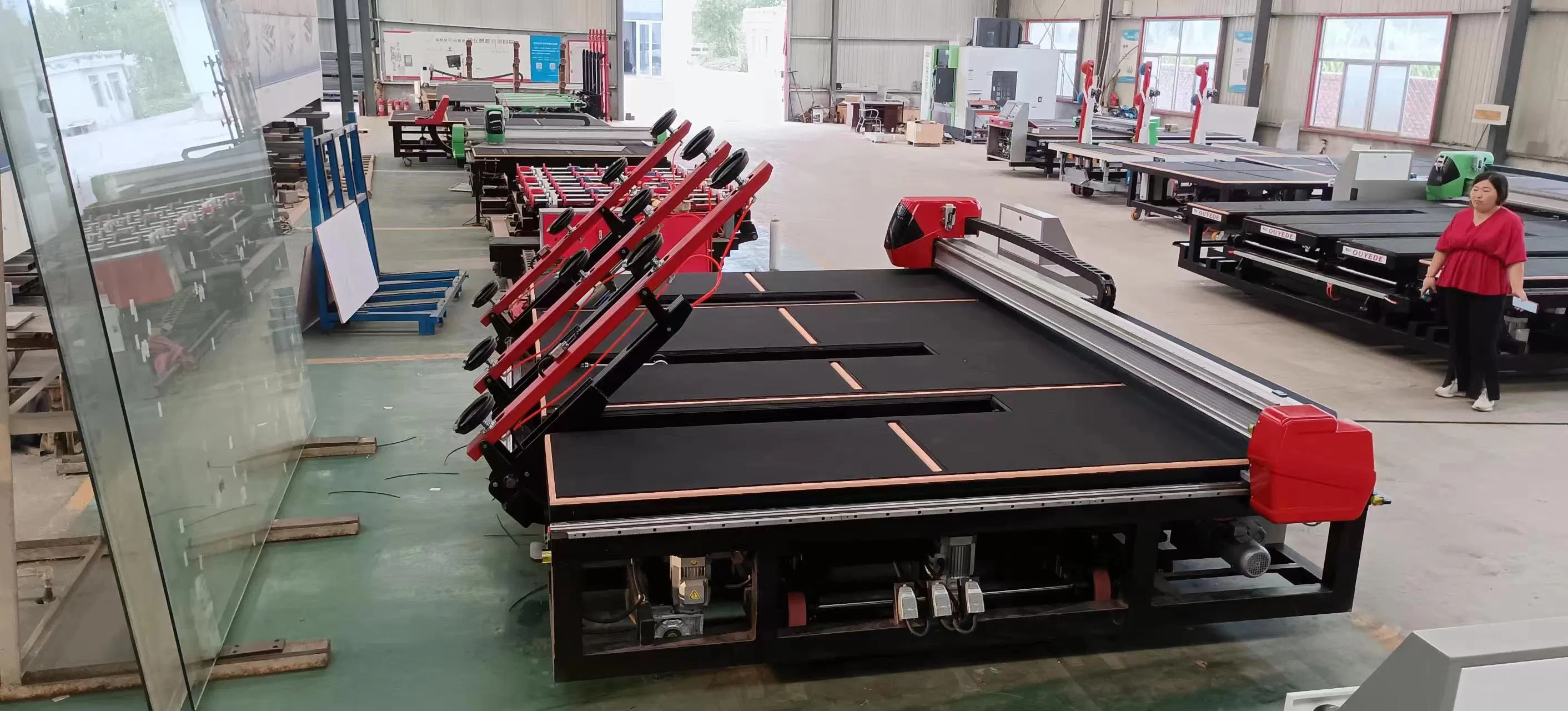

- Automatic Glass Loading Machine

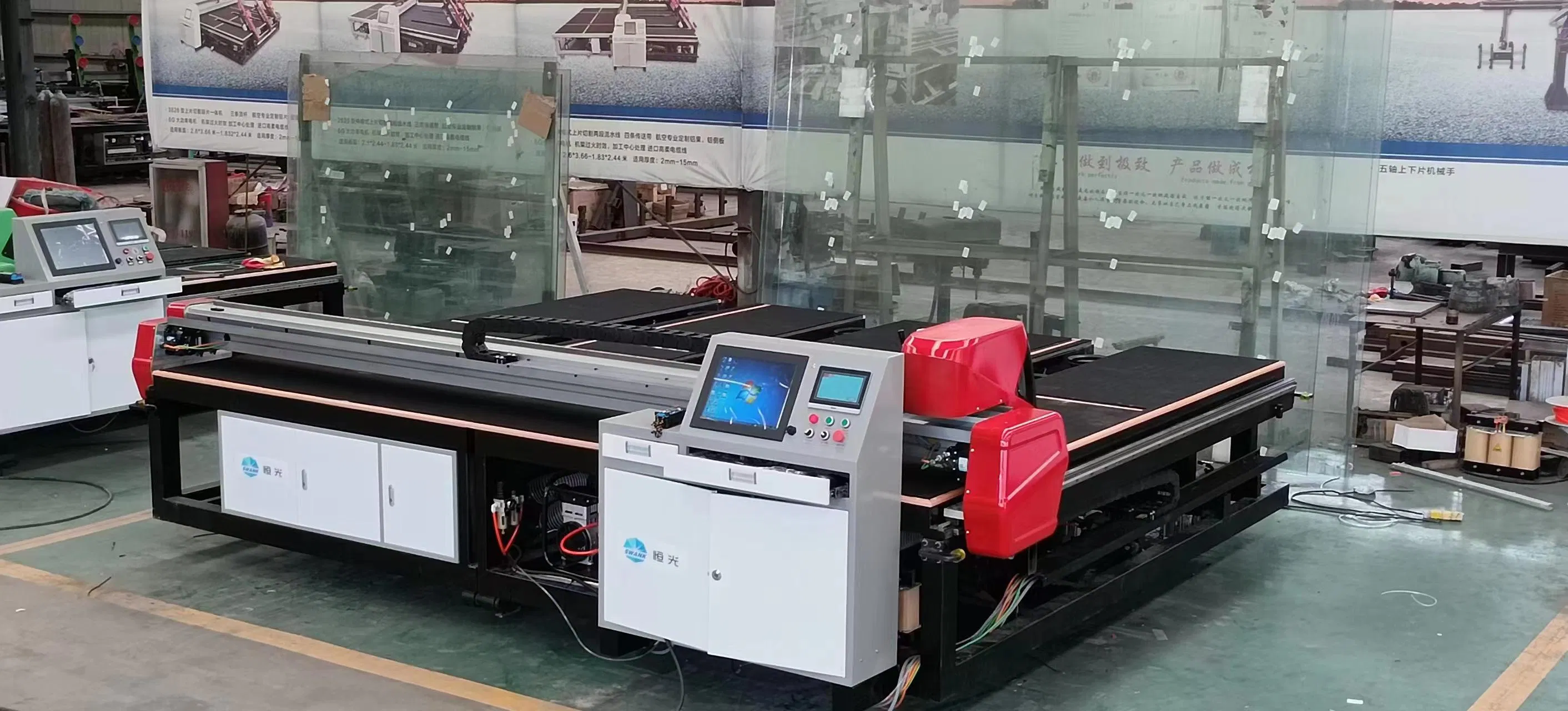

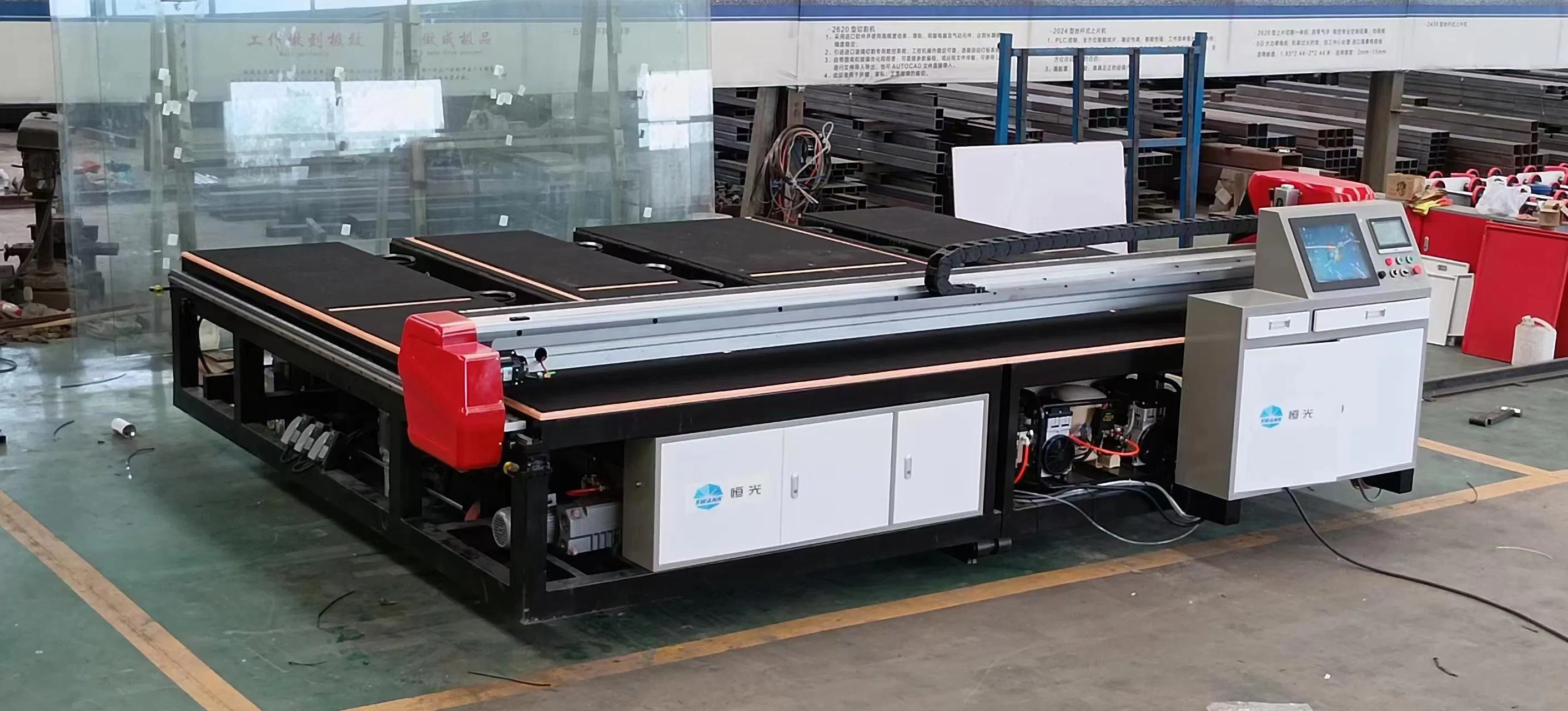

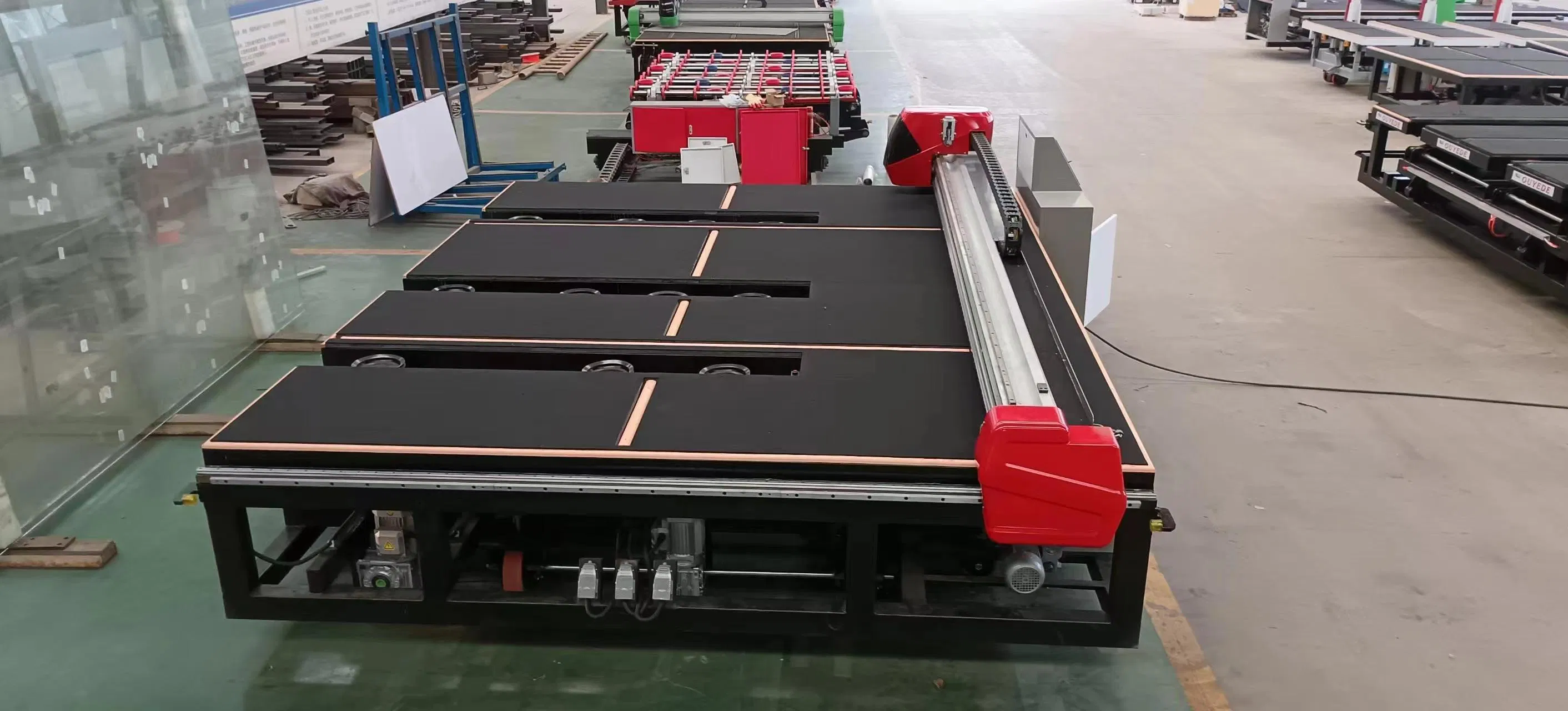

- Automatic Shaped Glass Cutting Machine
- Glass Breaking Table
Mechanical Characteristics
- Mn bridge steel (Q345A), perfect surface treatment
- Perfect machine body structure ensures the table is flat and maintains shape
- Japan SMC valve controls cutting pressure for various glass thicknesses
- Cutter head 360-degree rotation with up and down buffers for protection
- High-density water-proof table with imported antistatic felt
- 3D edge searing system and high precision automatic location function
- Automatic lubrication system synchronized with cutter head
- Air float function and belt transmission for smooth handling
- Linear guide rail for high cutting precision and low noise
Main Mechanical Parts
- Table panel: high density water proof panel (flatness ≤±0.20mm/m)
- Rack and rail: KHK Japan
- Guide rail: Hiwin Taiwan
- Belt: Maiku (Joint venture)
- Cutter wheel and holder: Bolhe Germany
Main Electrical Components
- CNC System: Galil (USA)
- Optimization software: Optima (Italy)
- Servo motor: YASKAWA (Japan)
- Pneumatic parts: Airtec (Taiwan)
- Low voltage electric parts: Schneider (France)
- Cutting pressure valve: SMC (Japan)
Technical Parameters
| Model |
Max. Glass Size |
Thickness |
Precision |
Max. Speed |
Dimensions (L*W*H) |
| CT-3725 |
3700*2500mm |
3~19mm |
±0.25mm |
160m/min |
4820*3100*1300mm |
| SP-3725 |
3700*2500mm |
- |
- |
~ |
4600*2850*900mm |
| QP-3725 |
3700*2500mm |
- |
- |
~ |
12500*3600*1300mm |
Frequently Asked Questions
1. What is the standard power supply for the glass cutting machine?
The machine operates on a standard 380V power supply, suitable for industrial glass processing environments.
2. What type of glass thickness can this machine handle?
The CT-3725 model is designed to handle glass thicknesses ranging from 3mm to 19mm accurately.
3. How does the machine ensure cutting precision?
Precision is maintained through high-quality components including KHK Japan racks, Hiwin Taiwan guide rails, and a Galil (USA) CNC system, achieving a precision of ±0.25mm.
4. Is the glass cutting software included?
Yes, the system comes integrated with professional Optima optimization software from Italy to maximize material usage and efficiency.
5. What safety features are integrated into the system?
The machine is equipped with an Emergency Stop Button, Overload Protection, and Safety Sensors to ensure a secure working environment for operators.
6. Does the table provide protection against glass scratches?
Yes, the table features high-density water-proof panels covered with imported antistatic felt and includes an air float function to protect glass surfaces during movement.
