Advanced Glass Cutting Automation System for Rapid Production Efficiency

Customization:	Available
Certification:	CE
Cutting Method:	Diamond Wheel Cutting

Basic Information

Model NO.

4228

Max Cutting Thickness

20 mm

Power Supply

Customized

Safety Features

Emergency Stop, Overload Protection

Warranty

1 Year

Glass Loading thickness

3-19mm

Max Loading Load

1500 Kg

Vacuum Pressure

-90~0kpa

Equipment Power

12kw

Origin

China

Product Description

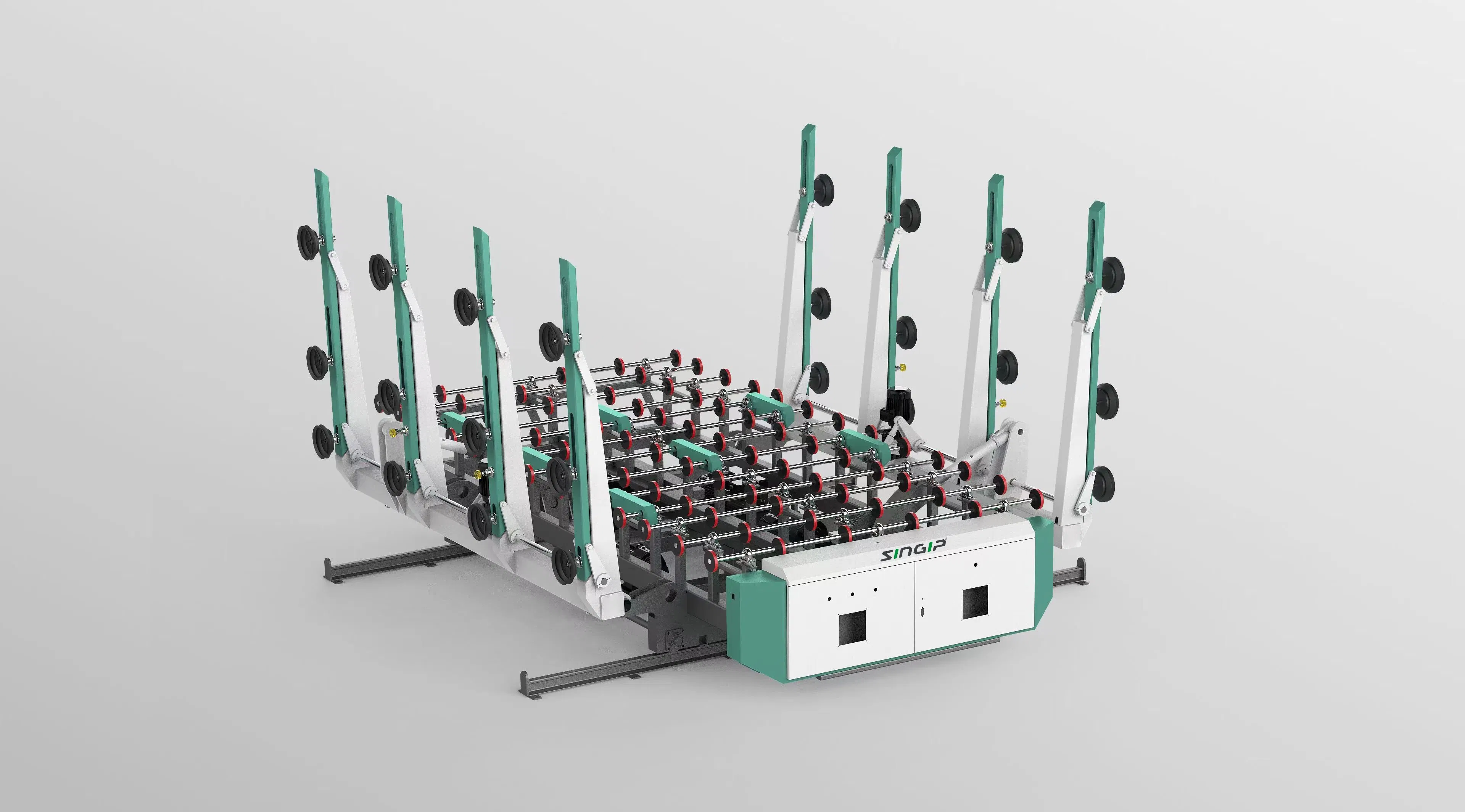

C Intelligent Series - Fully Automatic Glass Loading Machine
Components: Equipment frame system, transmission system, vacuum adsorption system, mechanical turn-over system, and electrical control system.

Mechanical Configuration
Flip gear chain	High-precision wear-resistant type
Transmission roller	PU material
Vacuum suction cup	Nitrile rubber (double adsorption)
Vacuum pump	German technology (60 CBM)
Motor	High-performance brand
Cylinder/pipe	AirTAC

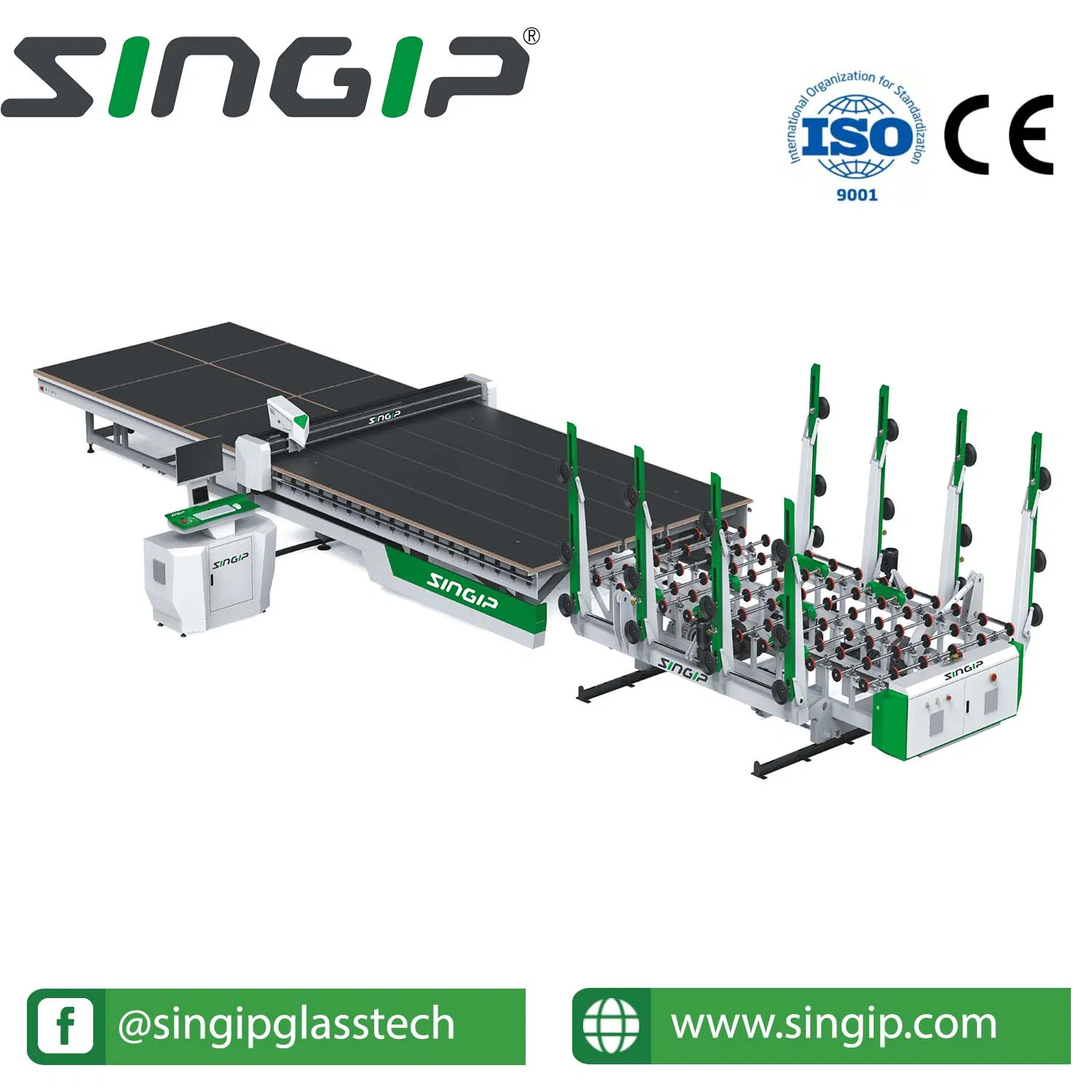

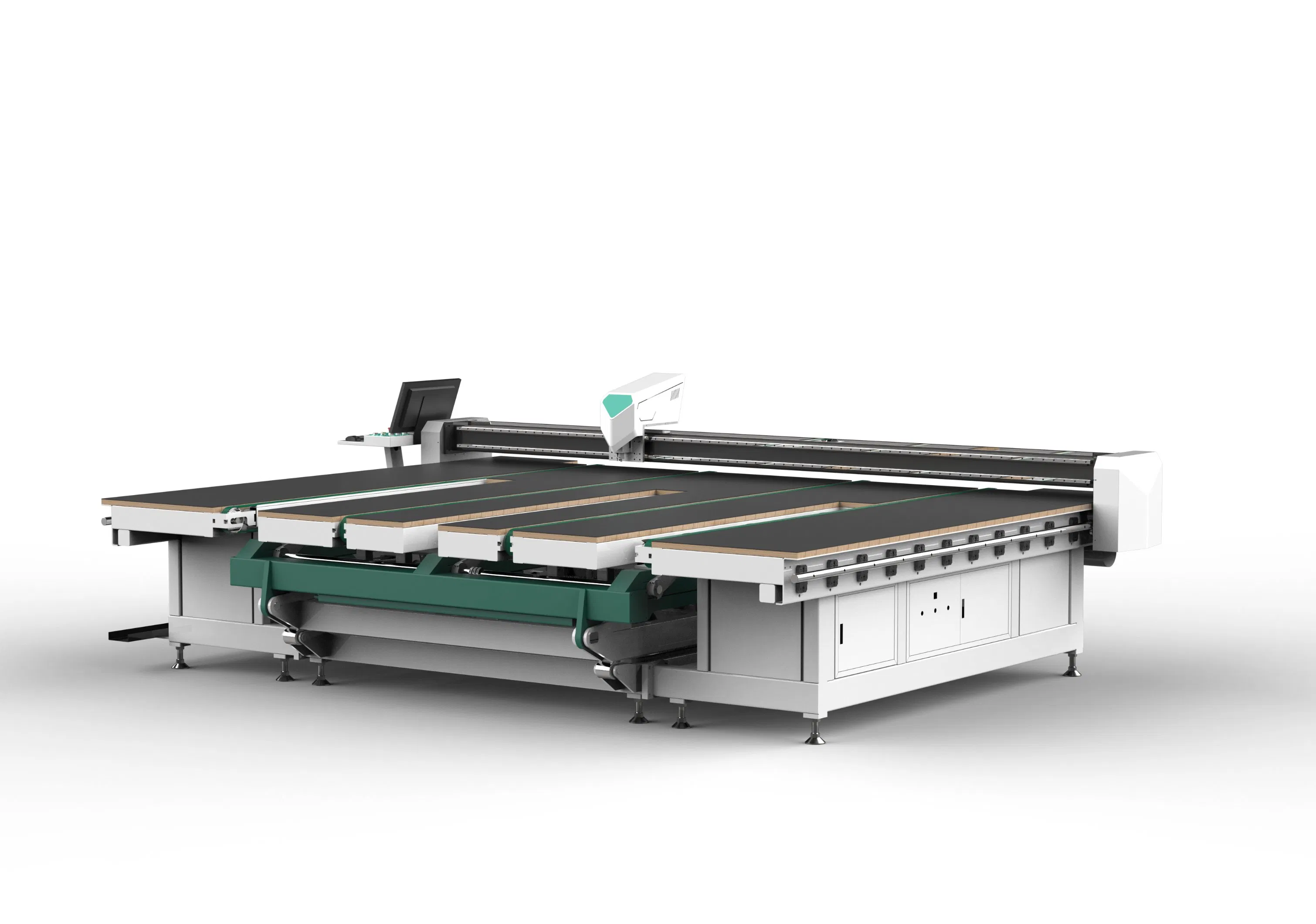

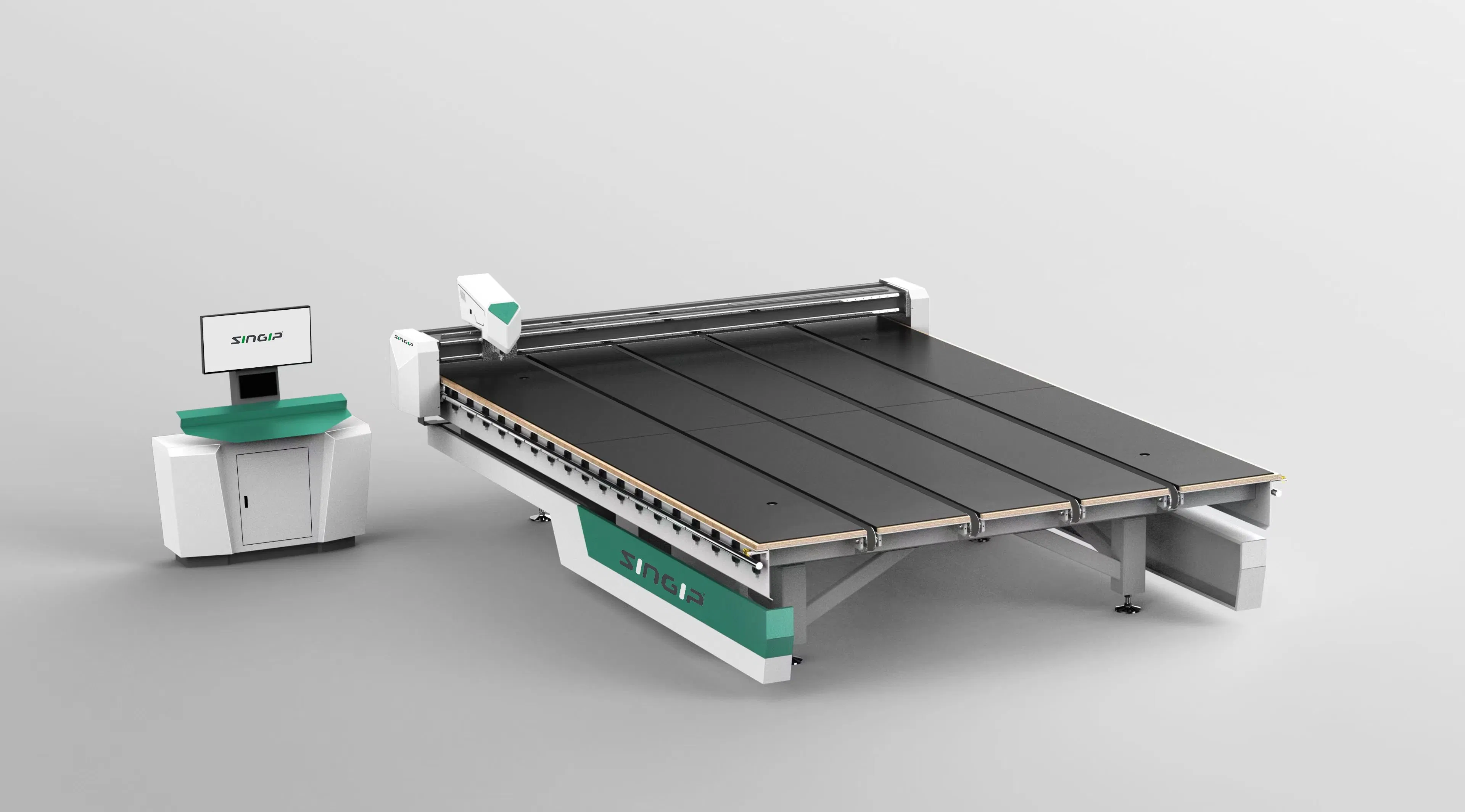

CNC 4228 Automatic Glass Cutting Machine

Technical Parameters - CNC 4228 Cutting Machine
Max Cutting Size	4200 * 2800 mm
Cutting Thickness	3-19mm
Cutting Speed	0~220m/min (adjustable)
Straight Line Parallelism	≤±0.2mm/m
Diagonal Accuracy	≤±0.25mm/m
Worktable Height	900mm ± 10mm
Fuel Supply	Pneumatic automatic lubrication
Power	5.5KW / 380V

Optimization Software Features

Supports lead-in of optimization results from office sources
Manual creation and editing of cutting plans
Includes copy, move, and manual sequence editing functions
Quick cutting scheme creation in XYZ mode
Simultaneous optimization of multiple glass sheet sizes
No size limits for layout optimization
Rotation and mirror image management for results
Pattern scanning function and graphic processing
Integrated glass pattern library management

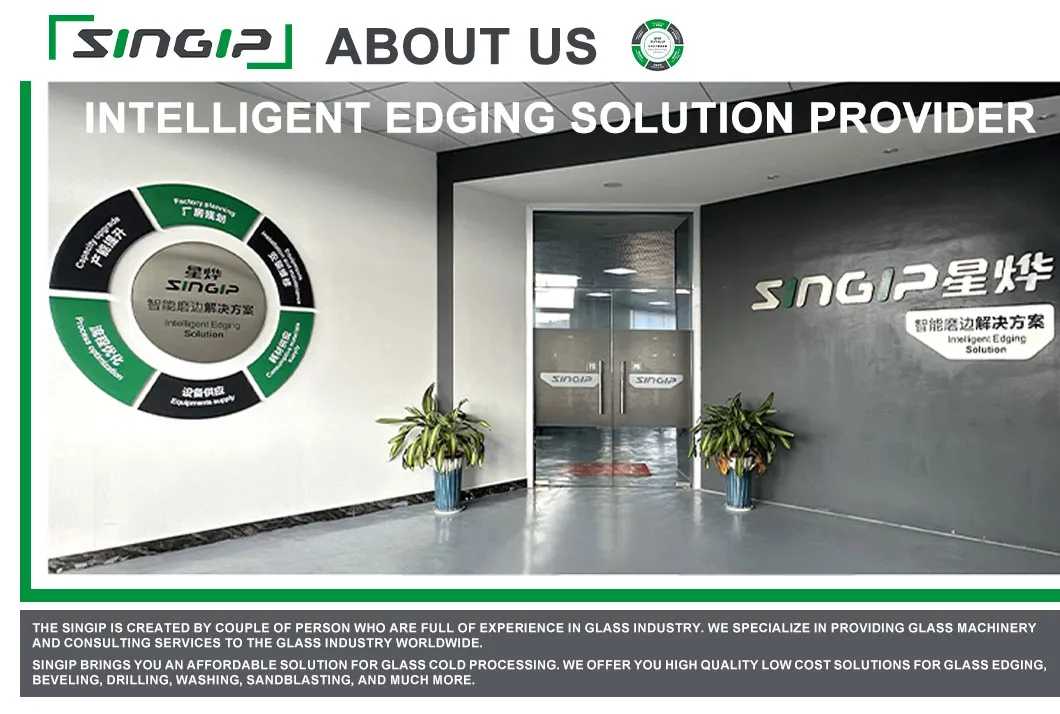

Processing Solutions & Workshop

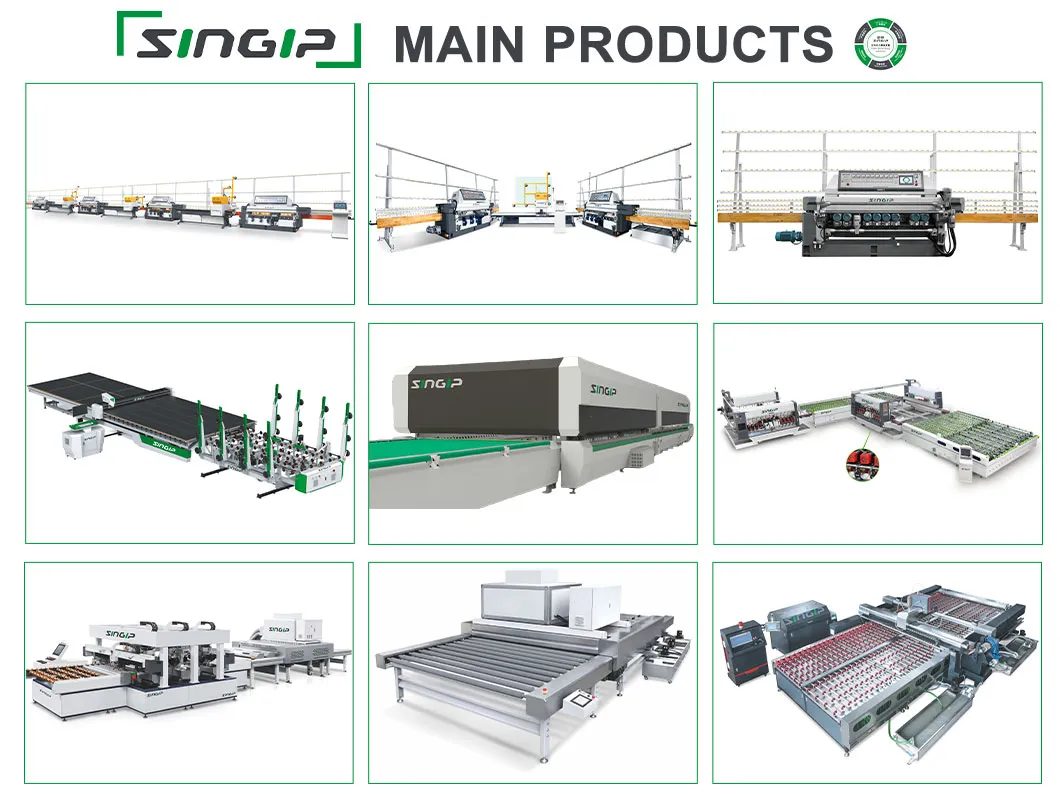

Specializing in a diverse range of industrial machinery, including various processing lines and single-unit machines designed for efficiency and precision. We provide high-quality cold-processing solutions for glass edging, beveling, drilling, washing, and sandblasting.

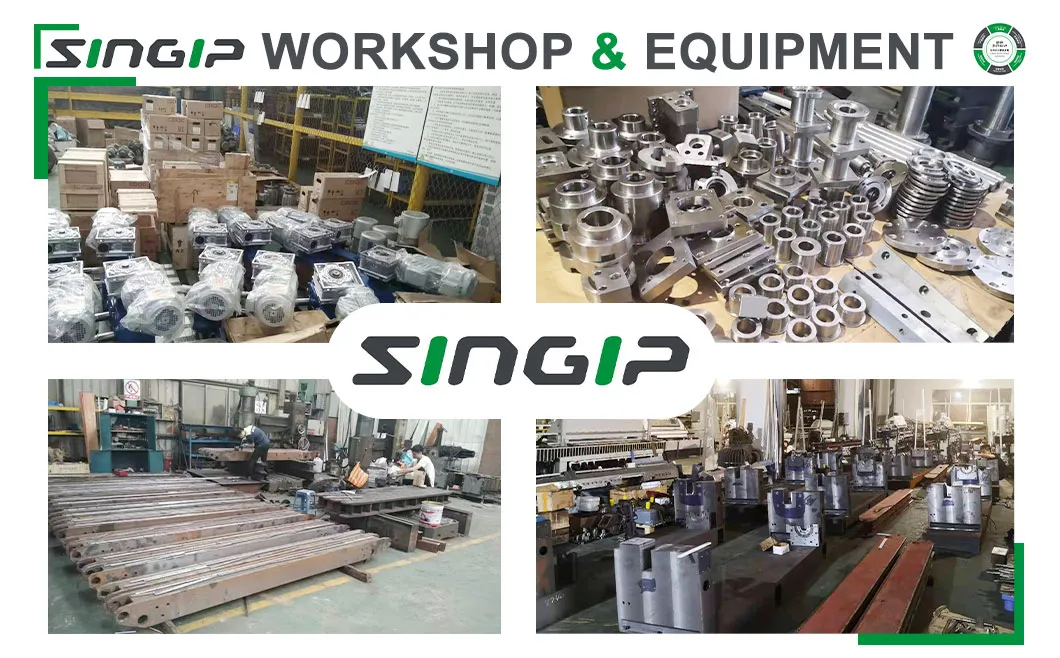

The professional workshop is equipped with diverse precision machines and organized metal structures, ensuring high-standard production for glass-processing equipment globally.

Quality & Global Presence

Our machinery carries CE marks, ensuring electromagnetic compatibility and low-voltage compliance. We strictly adhere to international standards to provide reliable service to small and large enterprises alike.

Packaging & Shipping

Frequently Asked Questions

Q: Do you provide on-site installation and training? A: Yes, we offer global installation services and operator training programs to ensure smooth machine operation.

Q: How are your glass machines packaged? A: Machines are packed in containers suitable for long-distance ocean transport, using shock-absorbing materials like pearl cotton and protective film. Wooden box upgrades are available.

Q: How do you ensure the stability of long-term operation? A: We conduct rigorous endurance tests on all units before they leave the factory and select high-quality components with proven durability.

Q: Can I custom order machinery? A: Yes, most of our machinery can be custom-configured to match your specific production requirements and spatial needs.

Q: Where can I get spare parts for the machinery? A: We stock a full array of spare parts for all our machinery to ensure minimal downtime for our customers.

Q: How long is the warranty period of the machine? A: The standard warranty is 12 months (wear and tear parts are excluded).
