Product Description

Basic Information

Model NO.

TYJT-2420/TYJT-3628

Safety Features

Emergency Stop Button, Overload Protection, Safety Sensor

Cutting Thickness

3-19mm

Power Supply

380V

Package

Wooden Container

Origin

China

HS Code

8464901100

Package Size

360cm * 400cm * 140cm

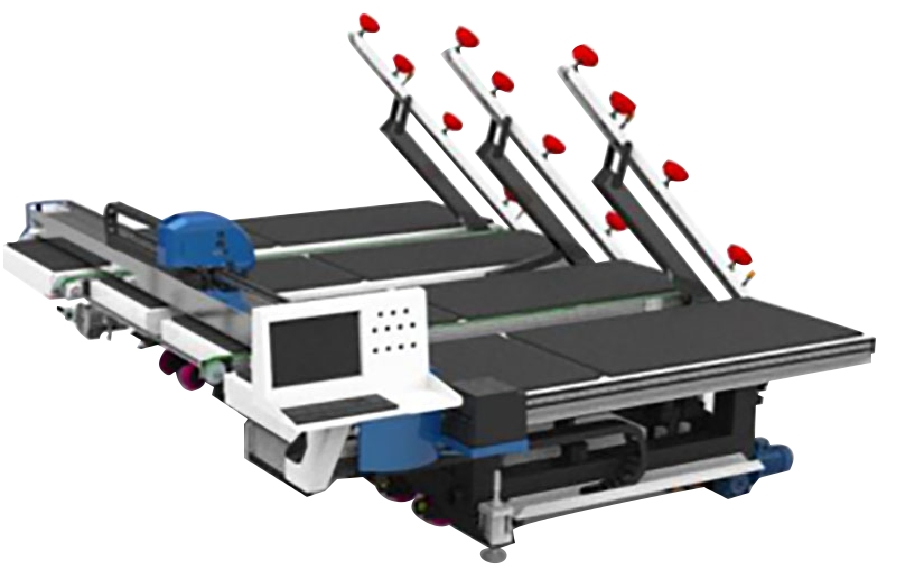

CNC Glass Cutting Machine Series

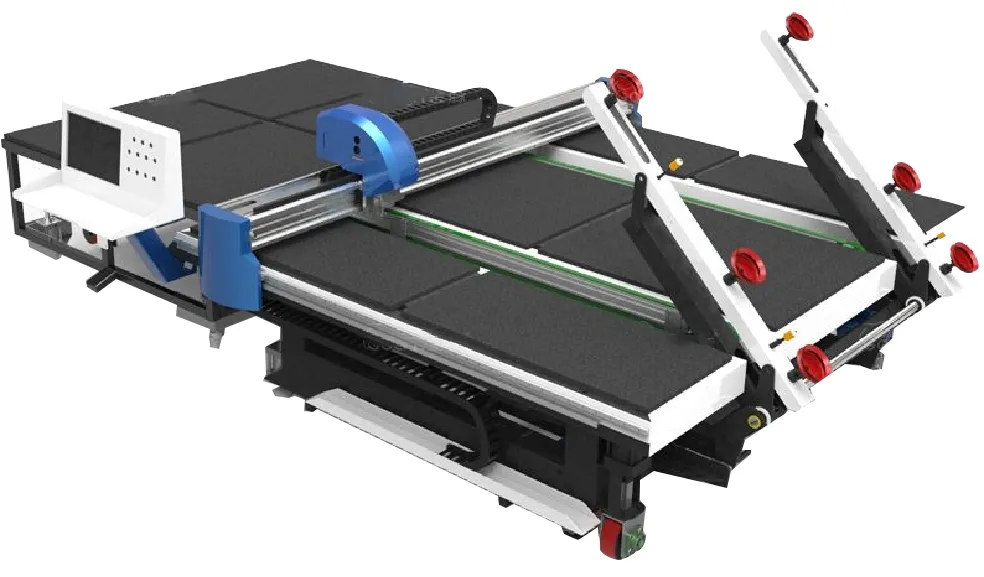

Loading, Cutting, Transfer & Break off table - 4 in 1 System

The Automatic Glass Cutting system is a highly intelligent system designed for efficient handling and precision cutting of large, thick glass sheets. It integrates loading, positioning, and cutting in one streamlined process, offering enhanced safety, speed, and accuracy.

Key Capabilities

Integrated Loading + Cutting: Automatically converts vertically placed glass to horizontal.
Dual Control System: Combines PLC microcomputer for loading and CNC system for cutting.
360° Movement: Free workshop walking and rotation for flexible space utilization.
Auto Detection: Identifies glass angle and location for perfect alignment.
Smart Layout: High-precision linear and shaped cutting with automatic typesetting to reduce waste.
Precision Hardware: German-imported cutter wheel with collision-protection.

Technical Parameters

Technical Parameters	TYJT-2420	TYJT-3628
Dimensions	363047001400mm	39307001400mm
Table Height	850mm	850mm
Max Processing Size	2440*2000mm	3660*2800mm
Cutting Thickness	3-19mm	3-19mm
Cutting Speed	0-180m/min	0-180m/min
Voltage & Pressure	380V/50HZ, 0.6MPA	380V/50HZ, 0.6MPA
Loading Speed	15-40 seconds	15-40 seconds
Net Weight	3000KG	3100KG

System Details & Technology

Smart Suction & Typography

Smart suction: One-touch start with automatic boom raising and suction monitoring.

Smart typography: Input sizes via control panel for automatic optimization.

Cutting & Platform

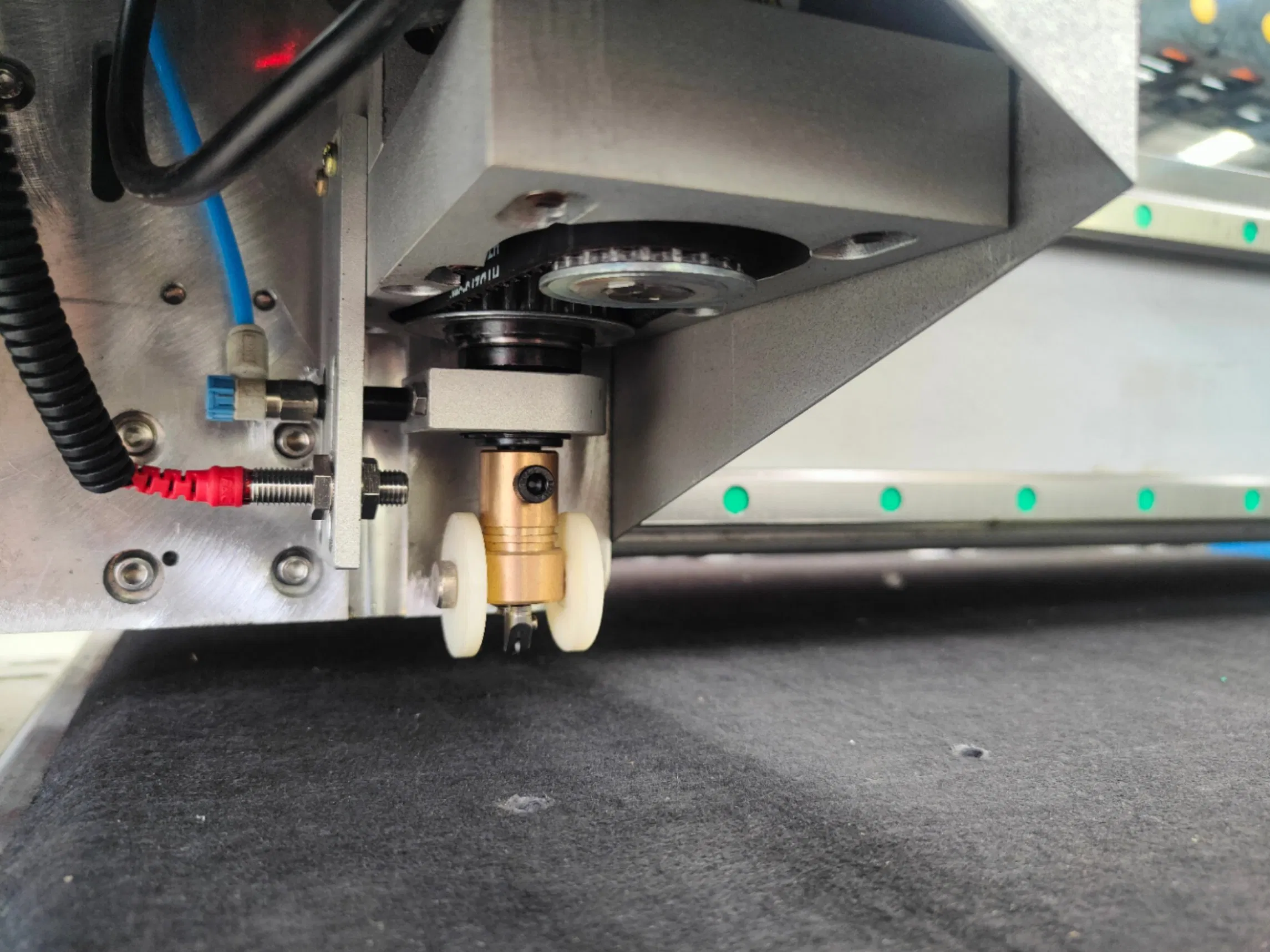

Automatic cutting: 360-degree rotating German Boler cutter head.

Air floating: Over 100 air holes ensure stable airflow for easy glass handling.

Core Components

Sensors from Panasonic Japan
German Boler cutter head technology
Electrical components (Relays) from American Honeywell
Dual motor heads for cutting precision

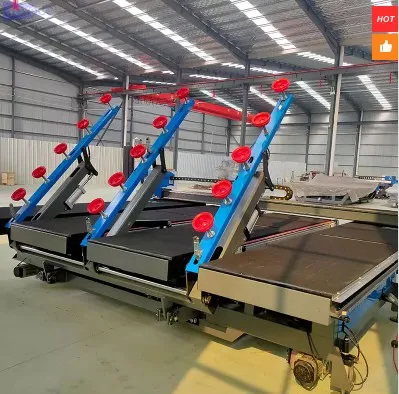

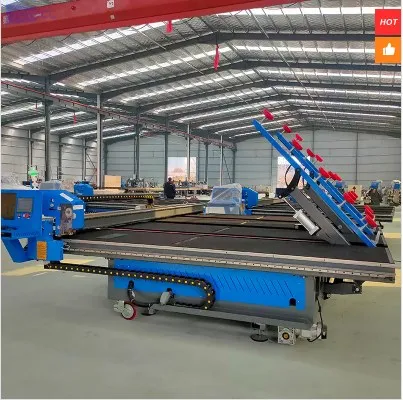

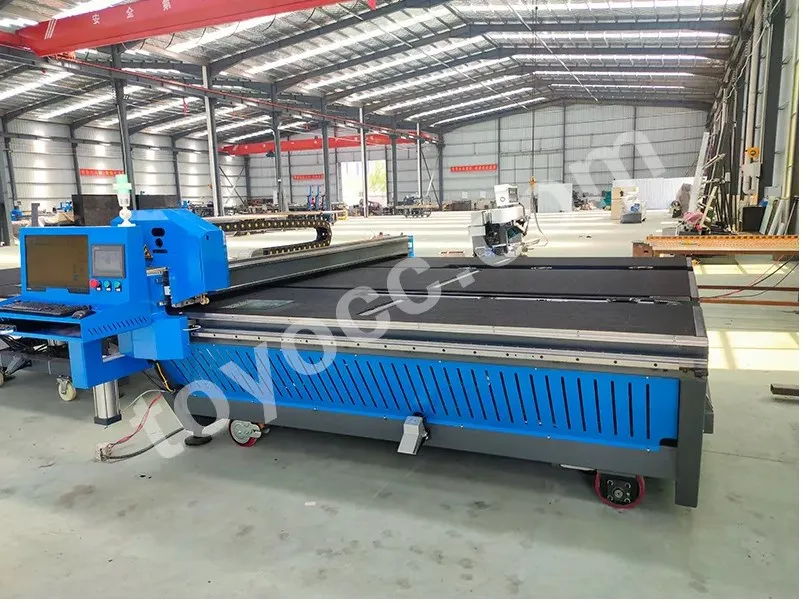

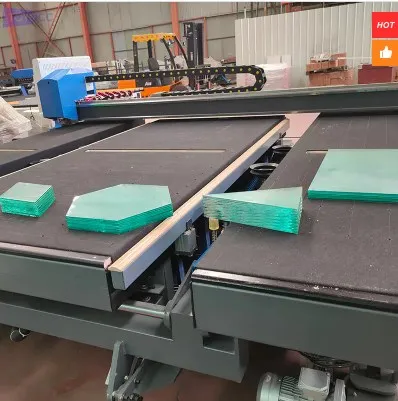

Detailed Photos

Our Advantages

Global Reach: Serving 864+ global clients with premium machinery.
Expertise: 28 years of manufacturing and 9 years of export experience.

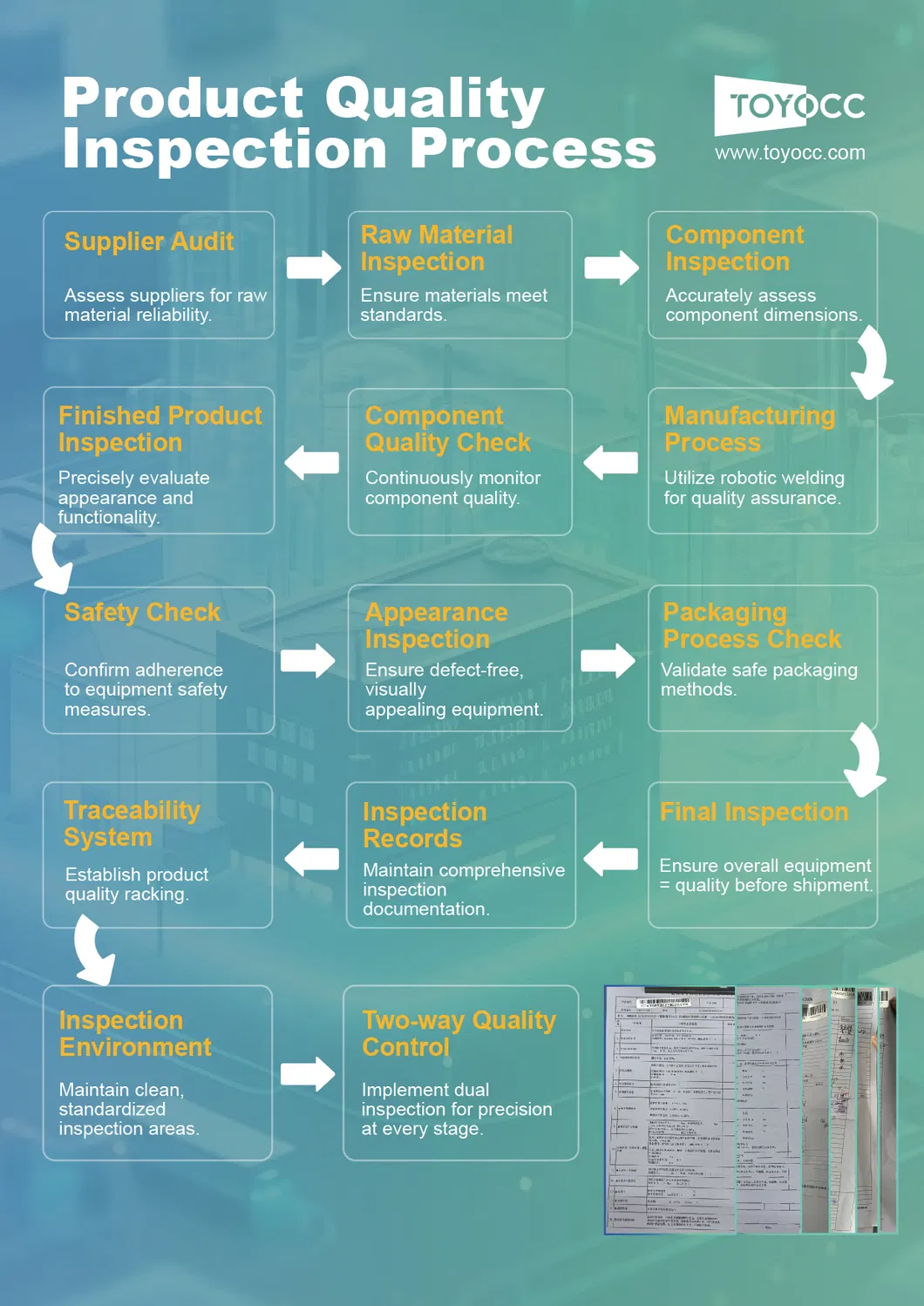

Quality Control: 15 rigorous quality inspections and 6S production standards.
Industry Leader: Partner with Top 20 global glass factory brands.

Frequently Asked Questions

Q1: What is the maximum glass thickness this machine can cut?

The machine is designed to cut glass thickness ranging from 3mm to 19mm with high precision using air pressure control.

Q2: Can the machine handle irregular or complex shapes?

Yes, the 360-degree rotating German Boler cutter head and advanced CNC software support both linear and shaped (heterosexual) cutting profiles.

Q3: How fast can the machine cut?

The cutting speed is adjustable from 0 to 180 meters per minute, depending on the glass thickness and shape complexity.

Q4: Does the system include automatic glass loading?

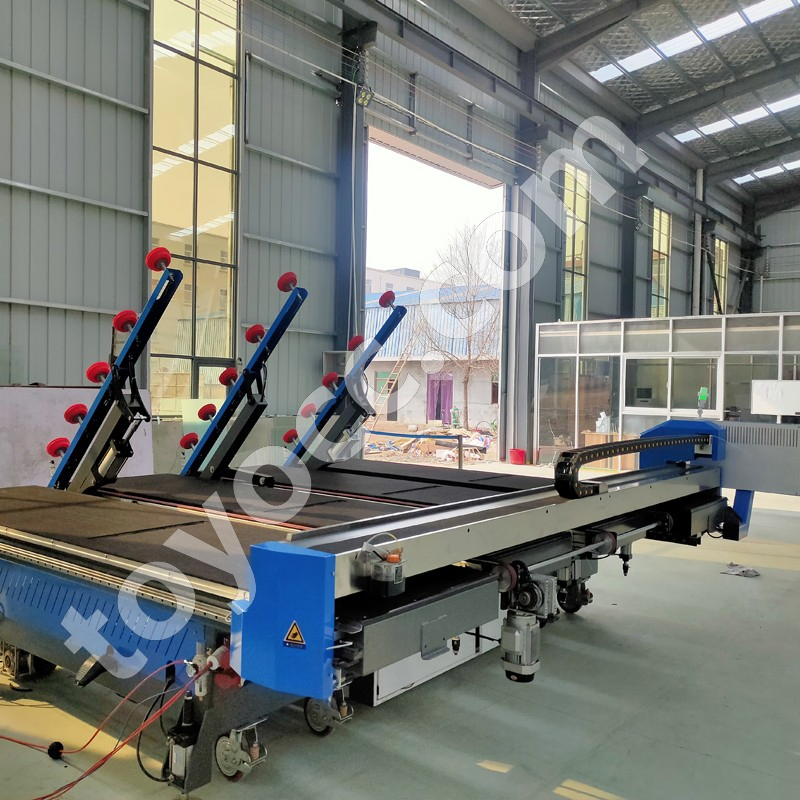

Yes, the 4-in-1 series integrates loading, cutting, transfer, and a break-off table. It uses suction cups to lift vertical glass and place it horizontally.

Q5: What are the main electrical brands used in the machine?

We use top-tier global components including sensors from Panasonic (Japan) and relays from Honeywell (USA) to ensure long-term reliability.

Q6: Is it easy to move the glass on the cutting table manually?

Absolutely. The machine features an air-floating platform with over 100 air holes, making it extremely easy to push or pull large glass sheets.
