Max. Cutting Speed
25m/Min
Type
Glass Cutting Machine

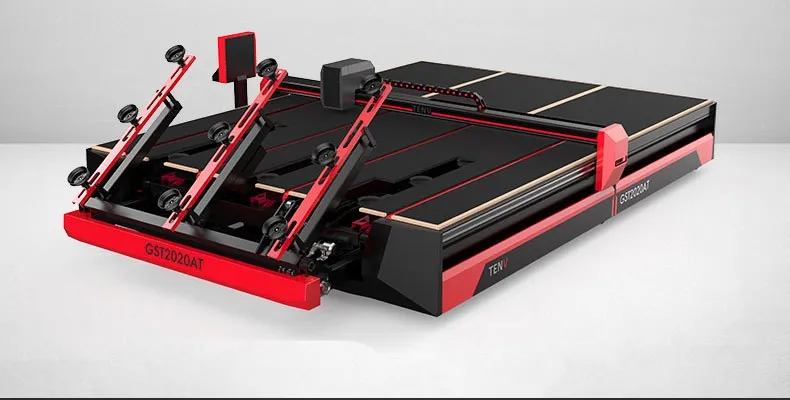

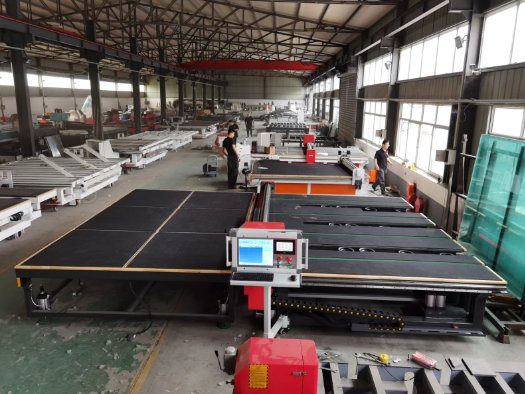

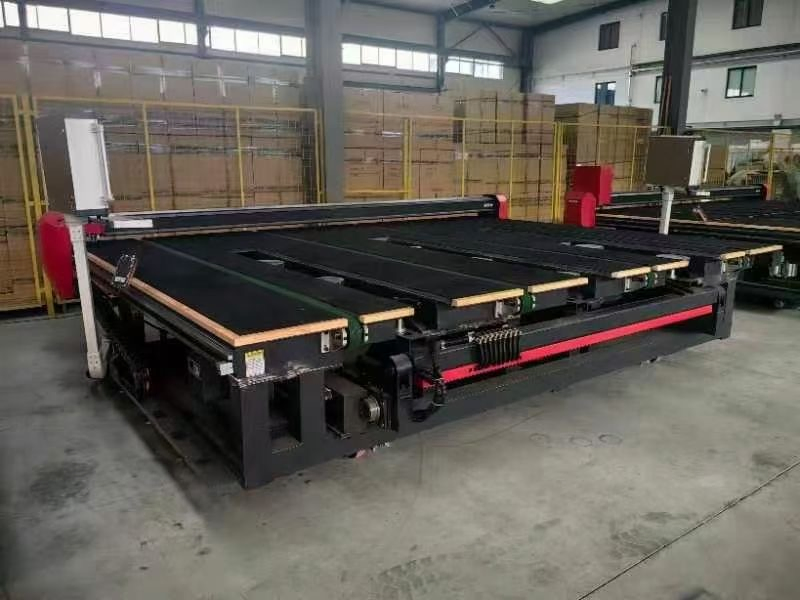

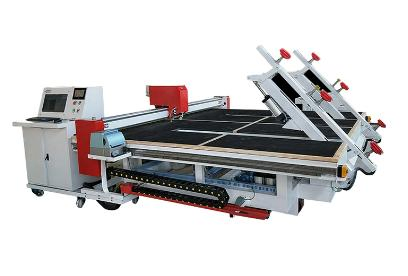

All in one CNC Integrated Glass Cutting Machine with loading, cutting and break off table
| Cutting Thickness | 2-30mm |
| Cutting Accuracy | Parallelism: ≤±0.15mm/m |
| Cutting Speed | 180m/minute (adjustable) |
| Outline Size | 4300*3600*900mm |
| Max Cutting Size | 3660*2840mm |
| Transmission System | X, Y, Z Axis equipped with reliable motors |
| Cutter Block | Pneumatic and spring system; 360° rotation for any shape cutting |
| Oiling Method | Automatic oiling supply |
| Transportation | Flotation device for convenient glass sheet movement |
★
Application & Key Features

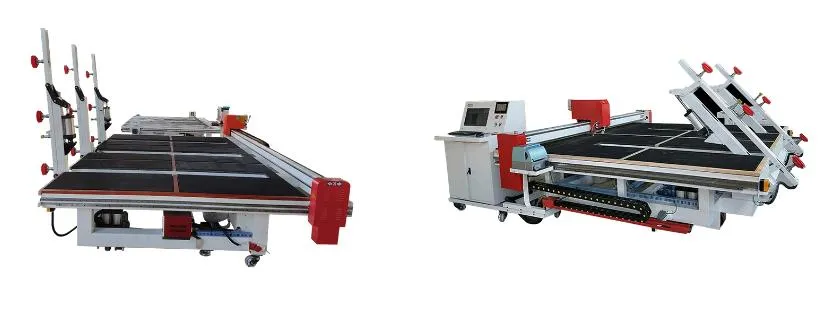

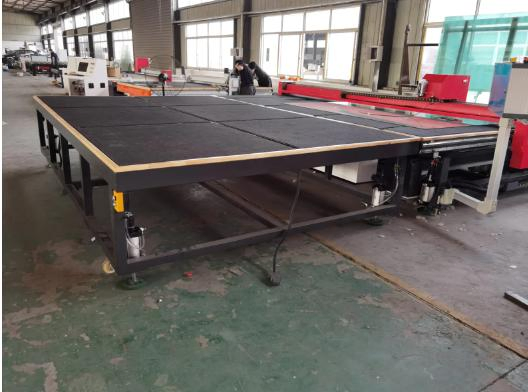

CNC integrated cutting machine for flat float glass is an automatic, self-loading table for straight and shaped cutting. It is equipped with a fixed working table, loading arms, and breakout bars. The system uses suction cups on the cutting bridge for automatic transfer to a breakout table.

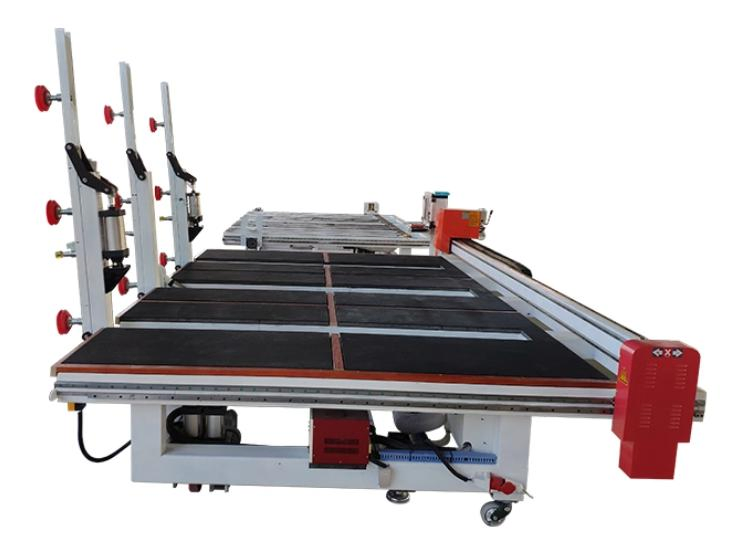

The loading arms feature double suction cups powered by a vacuum pump to ensure maximum safety. Glass sheets are positioned automatically and squared electronically without operator intervention.
- User-friendly interface for easy control of various functions
- Rotary tool changer "Click & Cut" for quick selection
- Automatic reading of templates and detection of internal holes
- Equipped with labeling systems for glass identification
- Specialized program for cutting artistic stencils
- Electric motor powered grinding wheel for edge deletion of Low-E glass
⚙
Technical Solutions & Service
We provide high-quality flat glass processing machinery, offering complete solutions packages. From planning to construction of manufacturing facilities, we offer specialist advice and technical support at every project stage.
Turnkey Solutions:

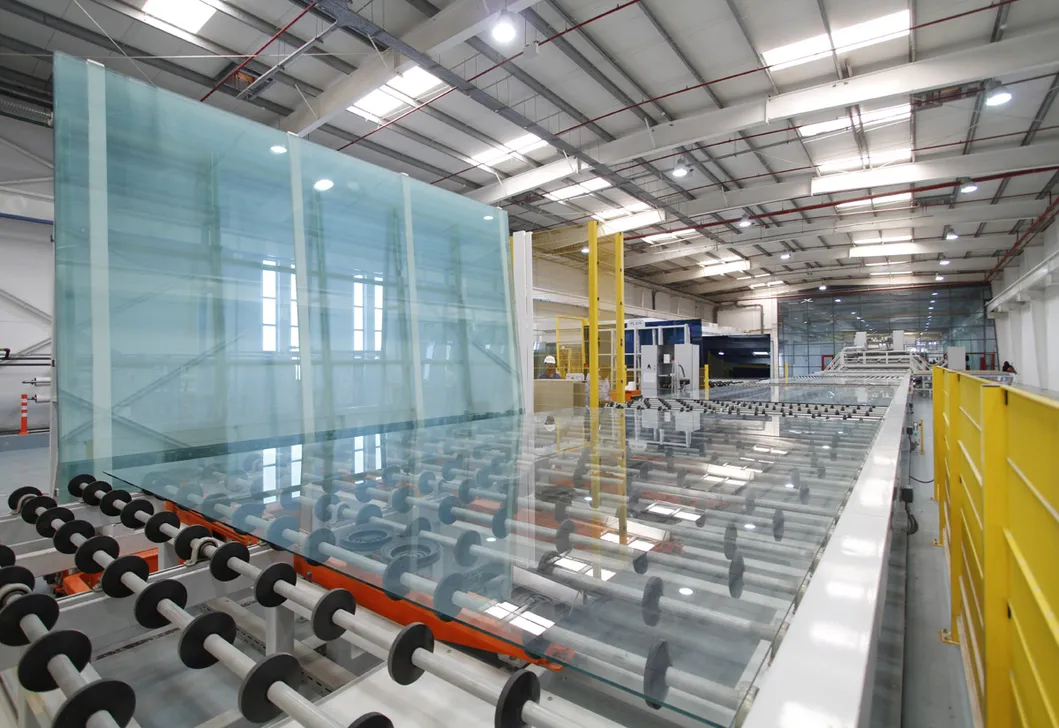

Tailored production lines, manufacturing packages, and assistance with technical drawings for factory layouts. On-site or remote installation, commissioning, and training support are standard.
?
Frequently Asked Questions
What is the range of glass thickness this machine can cut?
The machine is designed to handle flat float glass with a thickness ranging from 2mm to 30mm.
Does the machine support shaped glass cutting?
Yes, the cutter holder can rotate 360 degrees, allowing the machine to perform both straight and complex shape cutting.
What is the cutting accuracy of the CNC system?
The machine maintains high precision with a parallelism accuracy of ≤±0.15mm per meter.
Is the loading process automated?
Absolutely. It features automatic loading arms equipped with double suction cups and a vacuum pump for safe and efficient sheet handling.
Can it process Low-E glass?
Yes, the machine can be equipped with a grinding wheel powered by an electric motor specifically for edge deletion of Low-E glass.
What kind of after-sales support is provided?
Support includes on-site or remote installation, commissioning, operator training, and a guaranteed supply of spare parts.
