Gluing part adopts special relocation mechanism, ensure the gluing nozzle will touch IG unit closely, but will not break it. It adapts to a certain range of displacement error of IG unit.
📏
Sealing width is adjustable by parameter input, convenient and accurate. Sealing depth is detected automatically. Speed is controlled by depth and quantity to ensure quality, including reinforced corner sealing.
🧩
All important electric elements adopt imported famous brands (Servo motor, controller, sensors, fiber optic switches), ensuring reliability and long service life.
🚀
Sucker, reducer, rails, and sliders are from premium foreign brands to ensure smooth, safe, and reliable glass transfer.
💧

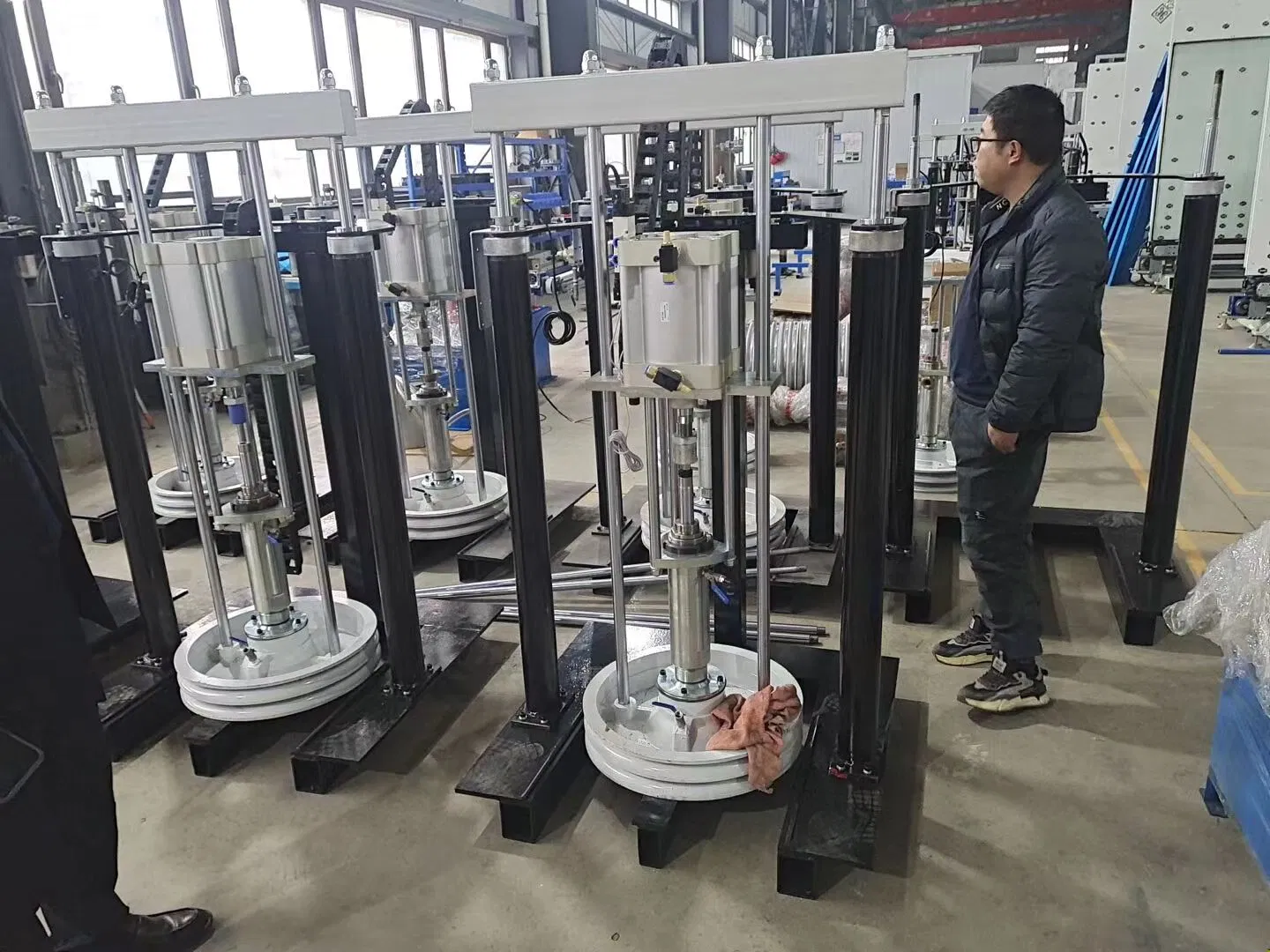

Hydraulic glue system utilizes pressure on the hydraulic station for quantitative supply, controlling glue distribution through mechanical linkage adjustment ratios.
⛓️
Adopts a combination transfer mode of high-quality precision 3-row roller chains and a unique V block for stable running of coated glass and low friction.
🖥️
Equipped with a Touch screen man-machine interface and graphic combination, making it easy to understand and operate.
🤖
Automatic digital control system by servo motor ensures high precision. Features include unilateral sealing, alarming, and automatic safety determination with lock functions.
⚡

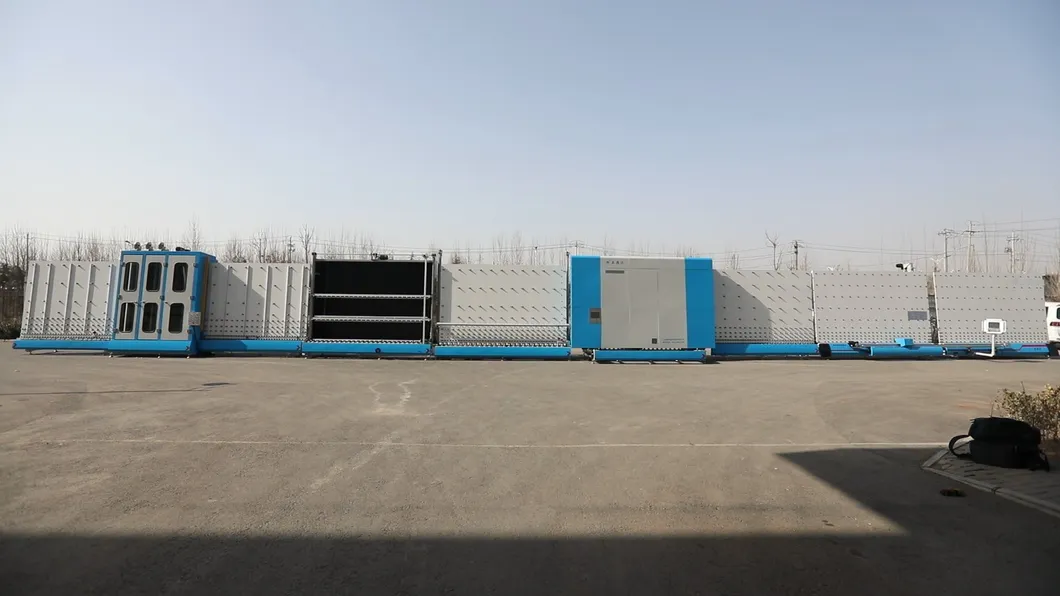

Can work as a standalone unit or integrated into an IG unit production line for maximum efficiency.
🛡️
Built with high-quality Aosong board via NC machining, ensuring the machine is both beautiful and durable.
🌱
Optimized structure achieves low power consumption while maintaining high production efficiency.
Frequently Asked Questions
❓ What is the maximum glass size the ZDJ-V33 can process?
The machine can handle a maximum glass size of 6000*3300mm, making it suitable for large-scale architectural glass production.
❓ How fast is the sealing speed of this robot?
The sealing speed is adjustable between 5 to 35 meters per minute, depending on the sealing depth and gluing quantity required.
❓ Does the machine support different glass thicknesses?
Yes, it supports Insulating Glass (IG) unit thicknesses ranging from 12mm to 50mm.
❓ What kind of control system does it use?
It features a touch screen man-machine interface with a digital control system powered by high-precision servo motors.
❓ Can this sealing robot be integrated into an existing production line?
Absolutely. While it can work as a standalone machine, it is designed to be easily equipped with an IG unit production line for higher efficiency.
❓ How is the sealing quality ensured on corners?
The system automatically adds extra glue on the IG unit corners to ensure complete and consistent sealing throughout the entire perimeter.
