Automatic Sealing Robot for Silicone Sealant Sealing in Double Glazing Glass Making with High Efficiency

Customization:	Available
Certification:	CE, CE, ISO
Condition:	New

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

ZDJ-V20

Control System

Automatic, CNC, PLC Control, Touch Screen Control

Glass Thickness Range

3-60mm

Warranty

2 Years for Free

Type

Insulating Glass Production Line

Structure

Vertical

After-Sales Service

Lifetime Warranty

Weight

2800kg

Production Efficiency

800 Square Meters Per Set Per Day

Max. Size

2000*3000mm

Min. Size

350*200mm

Origin

China

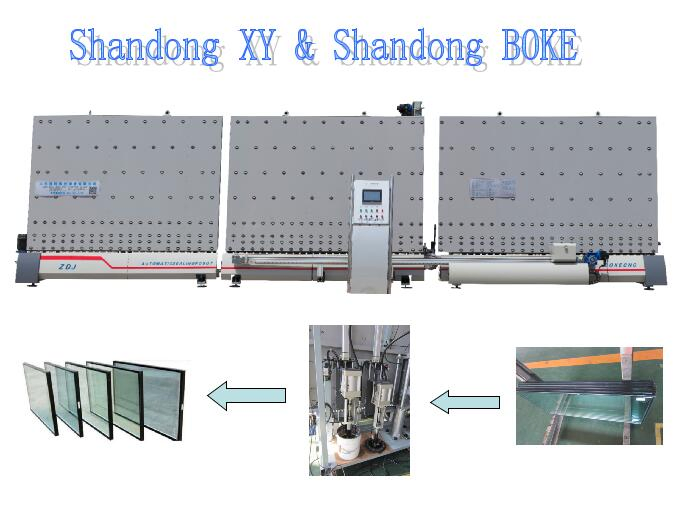

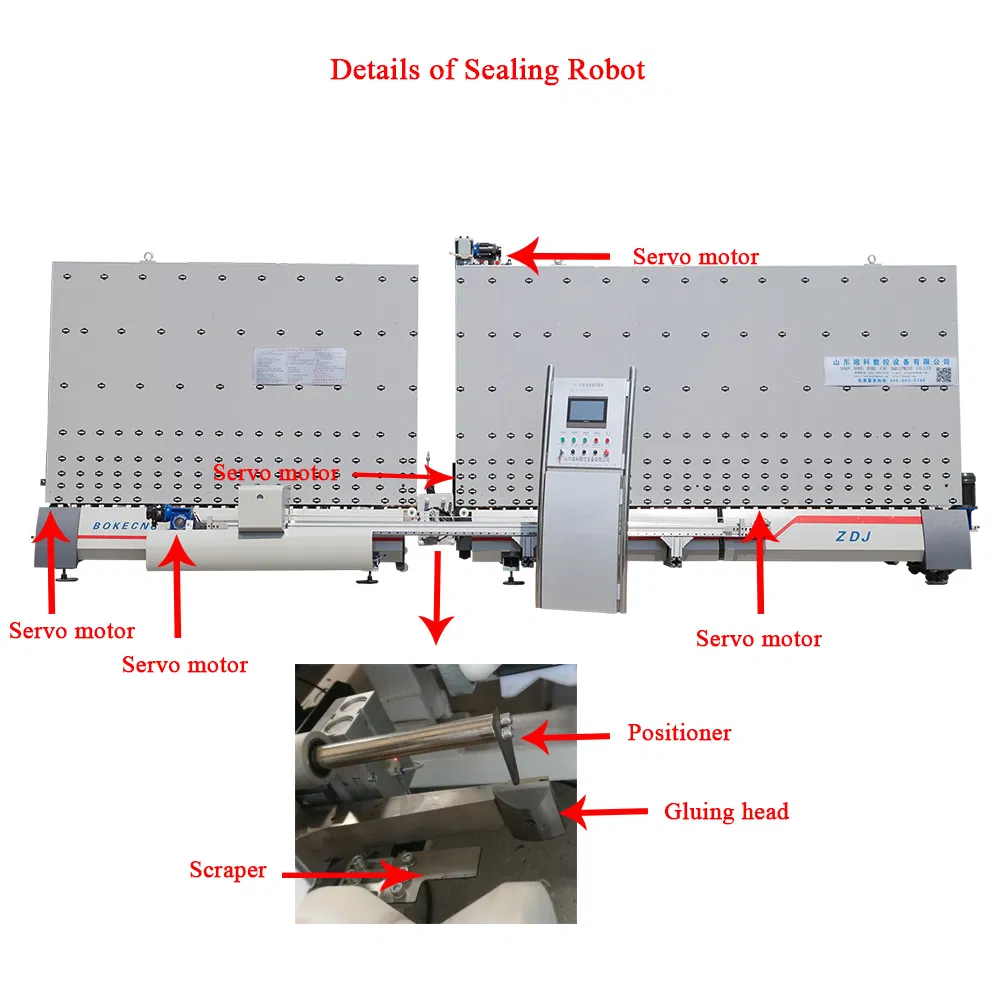

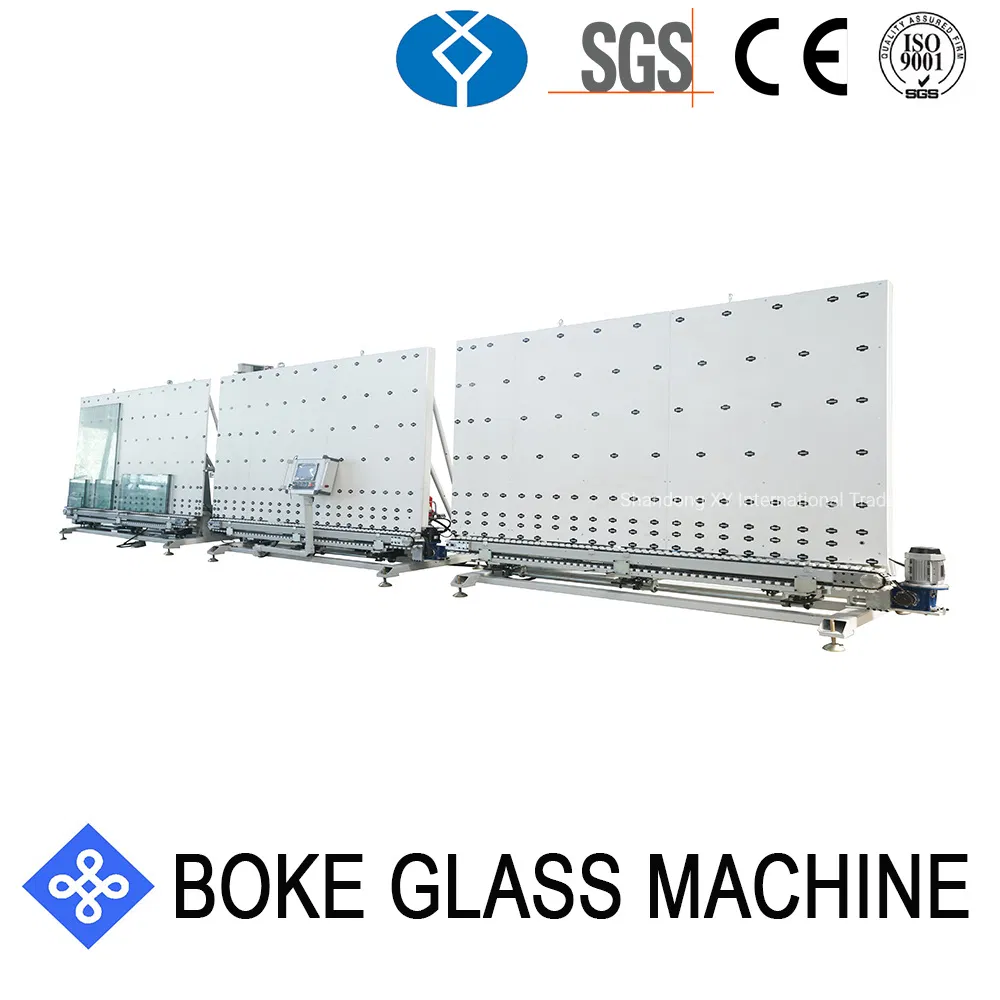

🤖 ZDJ-V20 Automatic Sealing Machine

High-efficiency automatic sealing robot designed for silicone sealant sealing in double glazing glass production, supporting glass sizes up to 2000*3000mm.

⭐ Main Features

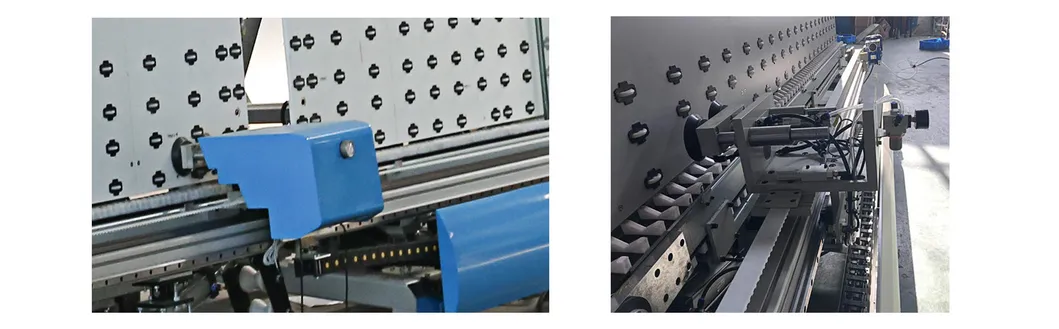

Gluing part adopts special relocation mechanism to ensure the gluing nozzle touches the IG unit closely without breaking it.

Sealing width is adjustable via parameter input; sealing depth is detected automatically for precision.

Equipped with imported high-end components: Servo motors, controllers, and fiber optic photo switches.

Key moving parts (suckers, reducers, rails, sliders) utilize international brands for smooth and safe glass transfer.

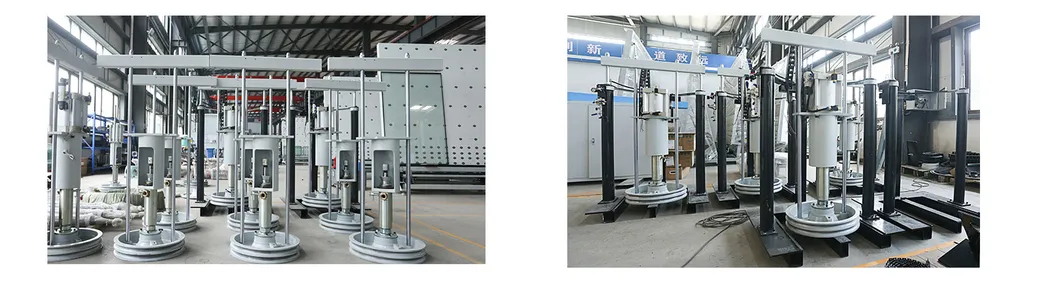

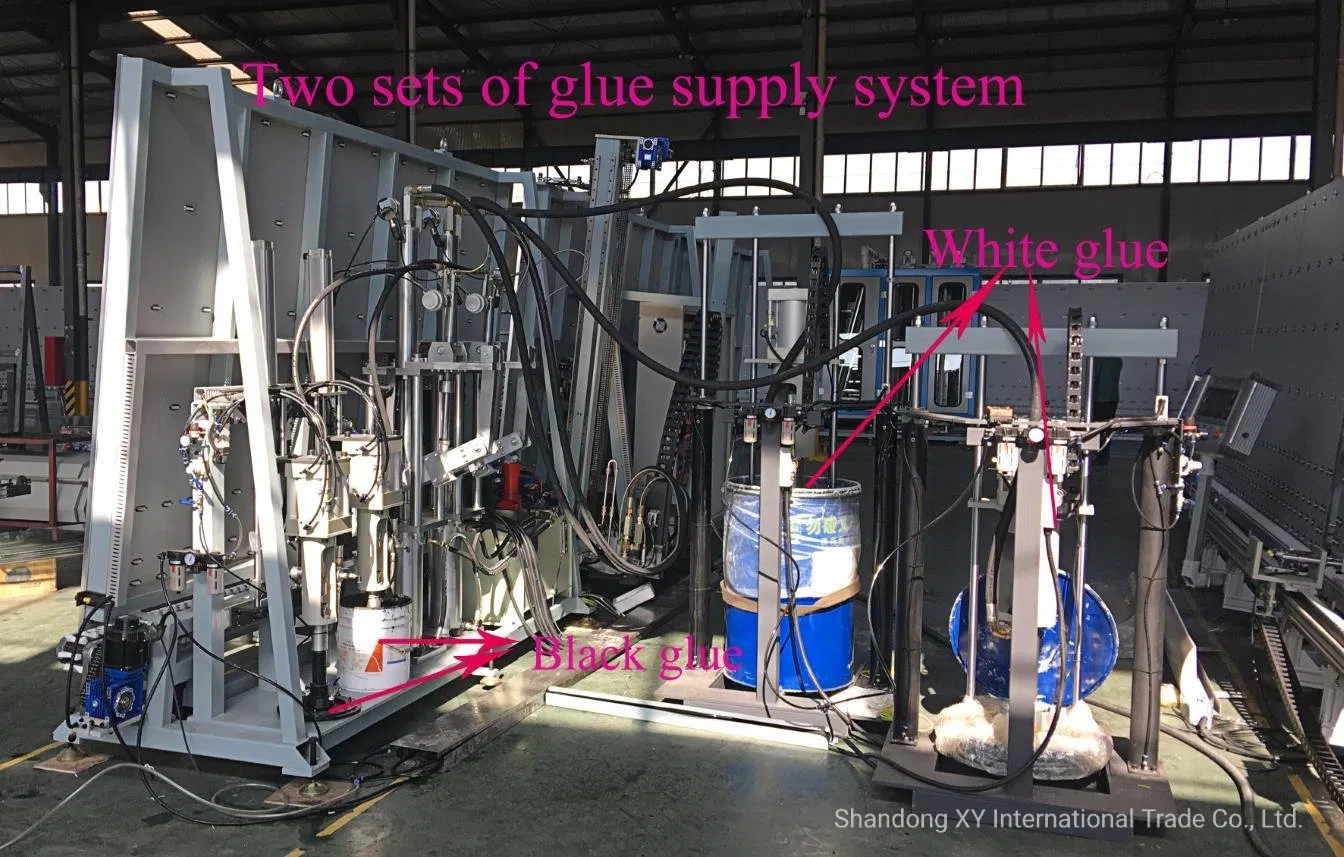

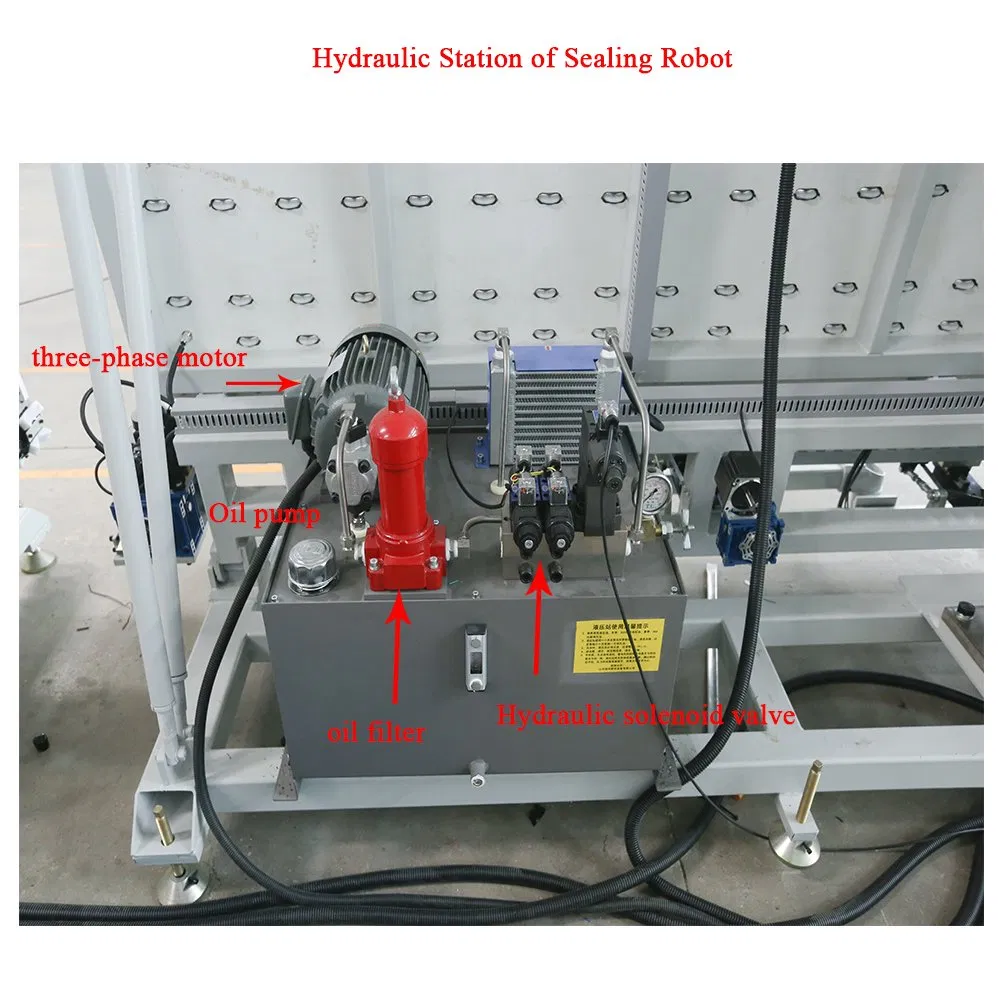

Hydraulic glue system provides quantitative oil supply to accurately control white and black glue ratios.

Features a unique combination of 3-row precision roller chains and V-blocks for stable coated glass transport.

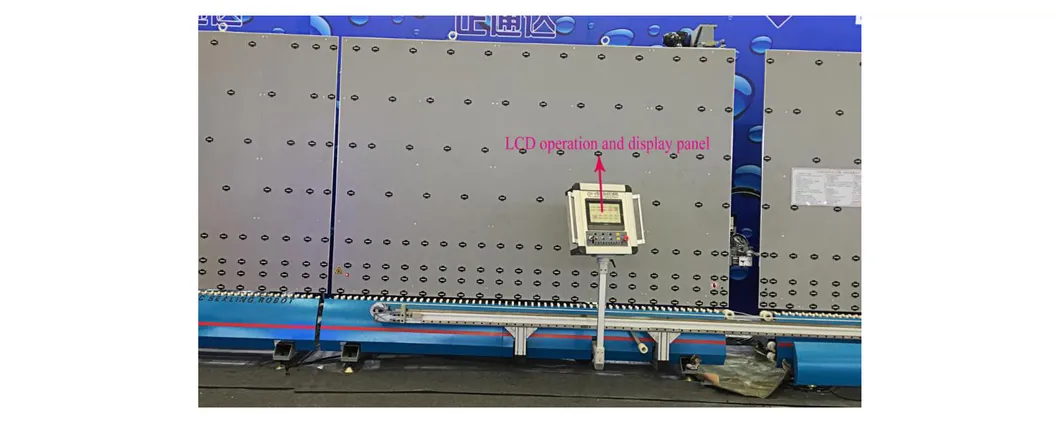

User-friendly Touch Screen interface with graphic combinations for easy operation.

Digital control system by servo motor ensures high precision and includes alarm determines and lock functions.

Versatile operation: Can work independently or as part of a full production line.

Durable construction using high-quality NC machined Aosong board and wheel combinations.

Optimized structure achieves low power consumption with high output efficiency.

⚙️ Technical Parameters

Parameter	ZDJ-V20 Specification
Sealing speed	5-35m/min
Sealing depth	<18mm
Thickness of IG unit	12-50mm
Min. IG unit size	350*200mm
Max. IG unit size	3000*2000mm
Glue supply pressure	<30MPa
Total power	8.1Kw
Outline dimension	1000035002700mm

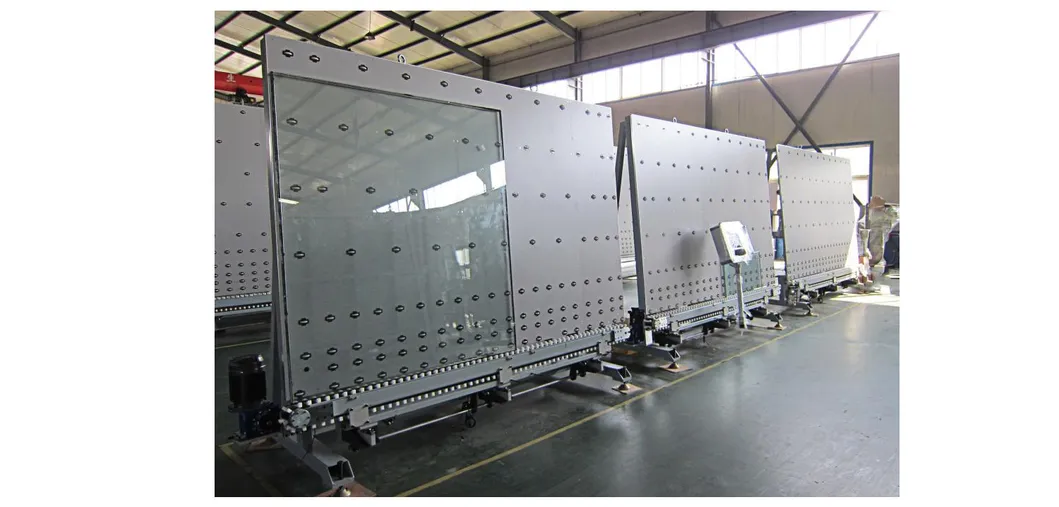

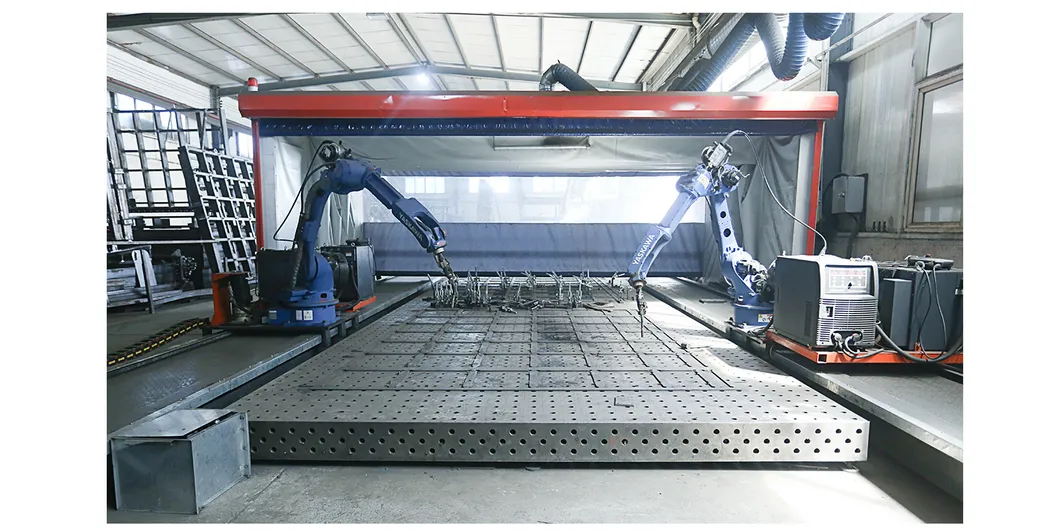

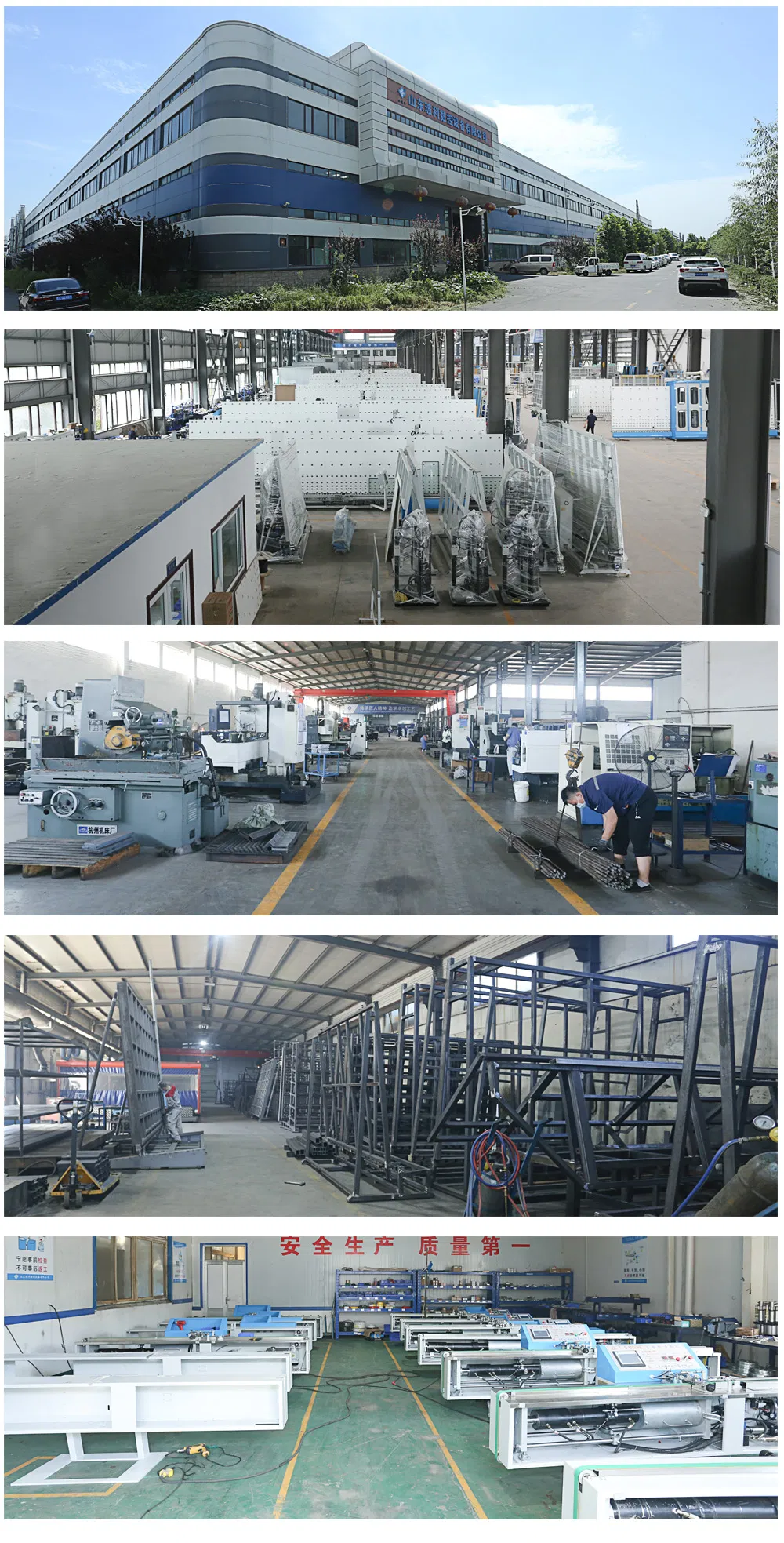

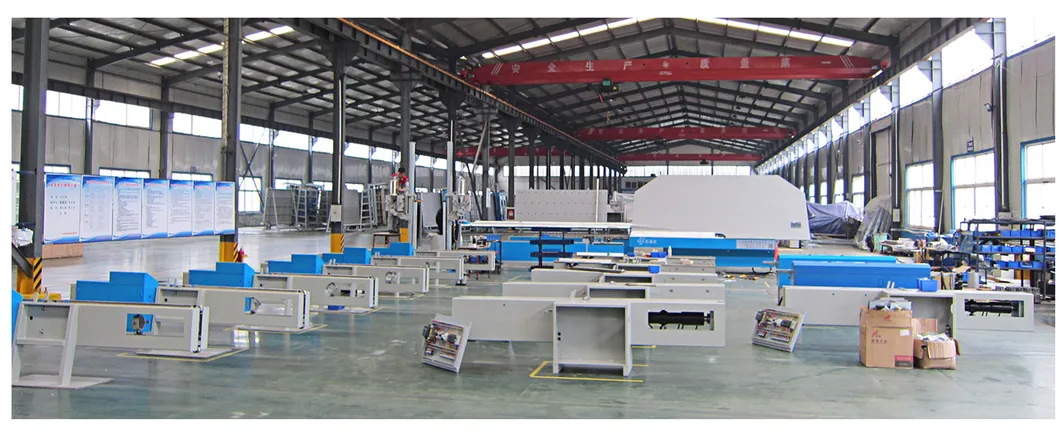

🏭 Workshop Display

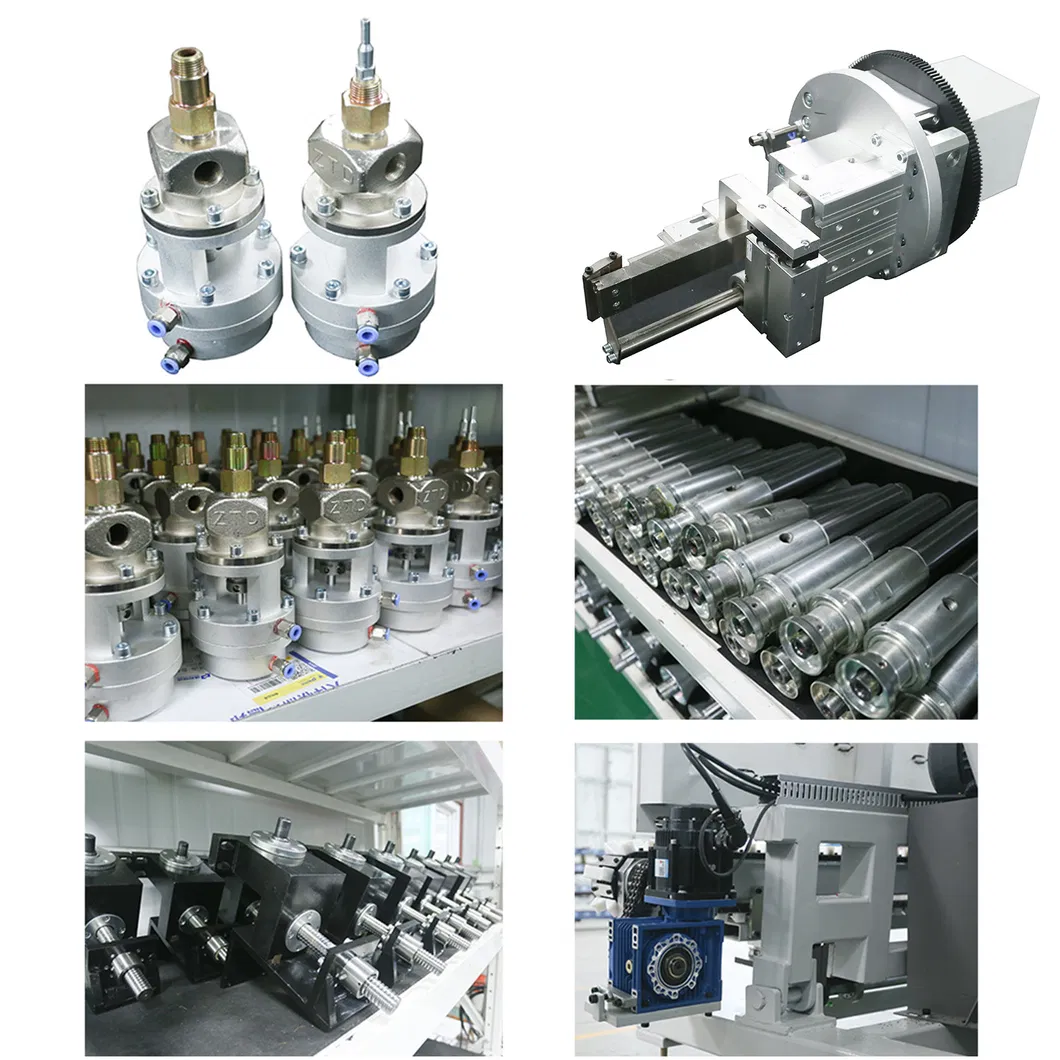

🧩 Key Components & Brands

Component Name	Brand / Origin
Servo motor and actuator	Yaskawa (Japan)
Pneumatic components (Cylinders)	SMC (Japan) / Airtac
Photoelectric switch	OPTEX (Japan) / Autonics
Guide rail and slider	HIWIN
Amphenol connector	WAGO (Germany)
Potentiometer	COPAL (Japan)

🏢 Professional Manufacturer

Established in July 2000, we are a high-tech enterprise integrated in production, scientific research, and development of middle and high-grade insulating glass equipment. With over 21 years of experience, we provide a global consulting and service network. Our manufacturing processes follow ISO9001 standards, and our machinery has attained the CE Certificate, distinguishing us as a market leader in fabrication methods.

❓ Frequently Asked Questions

Are you a professional manufacturer?

Yes, we have been a professional manufacturer of insulating glass production lines for more than 21 years.

What specific machinery do you produce?

We produce Insulating Glass Production Lines (with gas filling options), Automatic Sealing Robots, Butyl Coating Machines, Aluminum Spacer Bending Machines, Desiccant Filling Machines, and Glass Washing Machinery.

What is the standard delivery time?

Normally, the delivery time is about 30 days. For certain special cases, we can complete production within 2 weeks depending on the product type.

What payment methods are accepted?

We accept standard international payment methods including T/T and L/C.

Which port is used for loading and shipping?

All machinery is typically loaded and shipped through Qingdao Port.

Does the machine come with a warranty?

Yes, we provide a 2-year free warranty and lifetime after-sales service support for our equipment.
