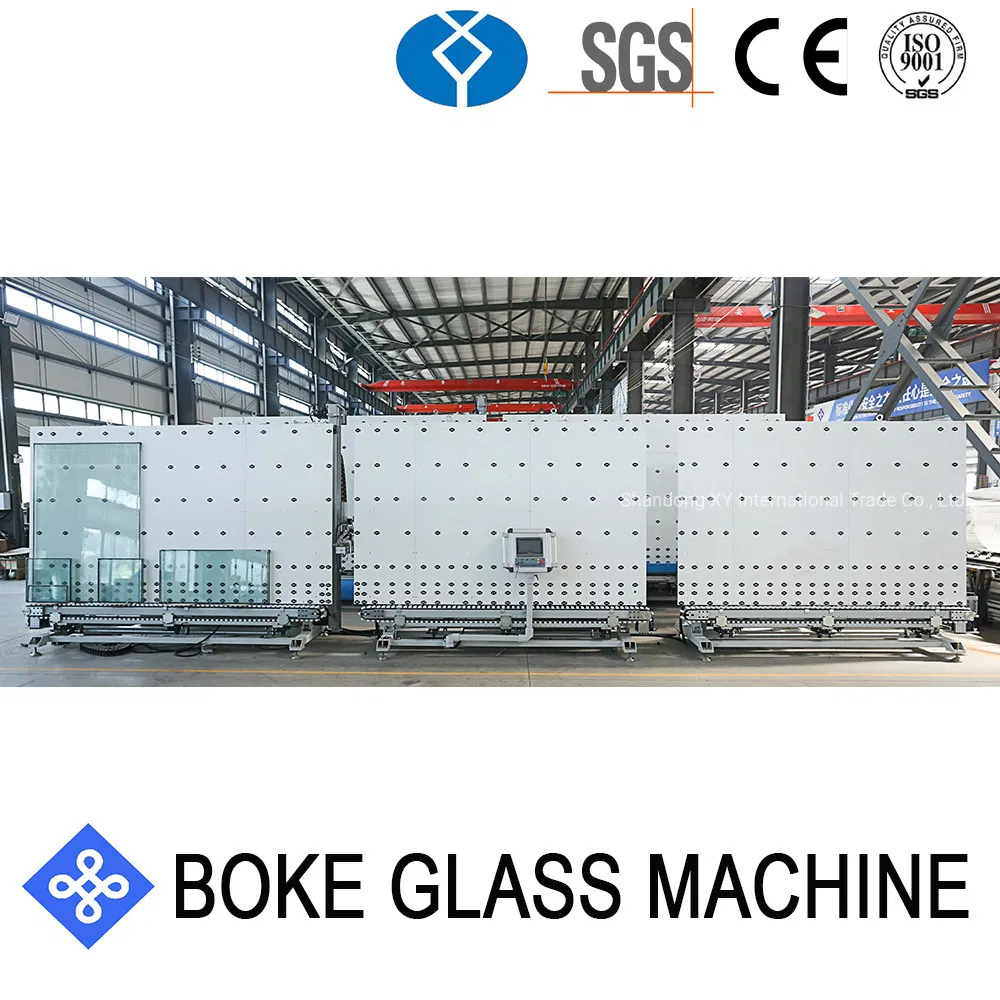

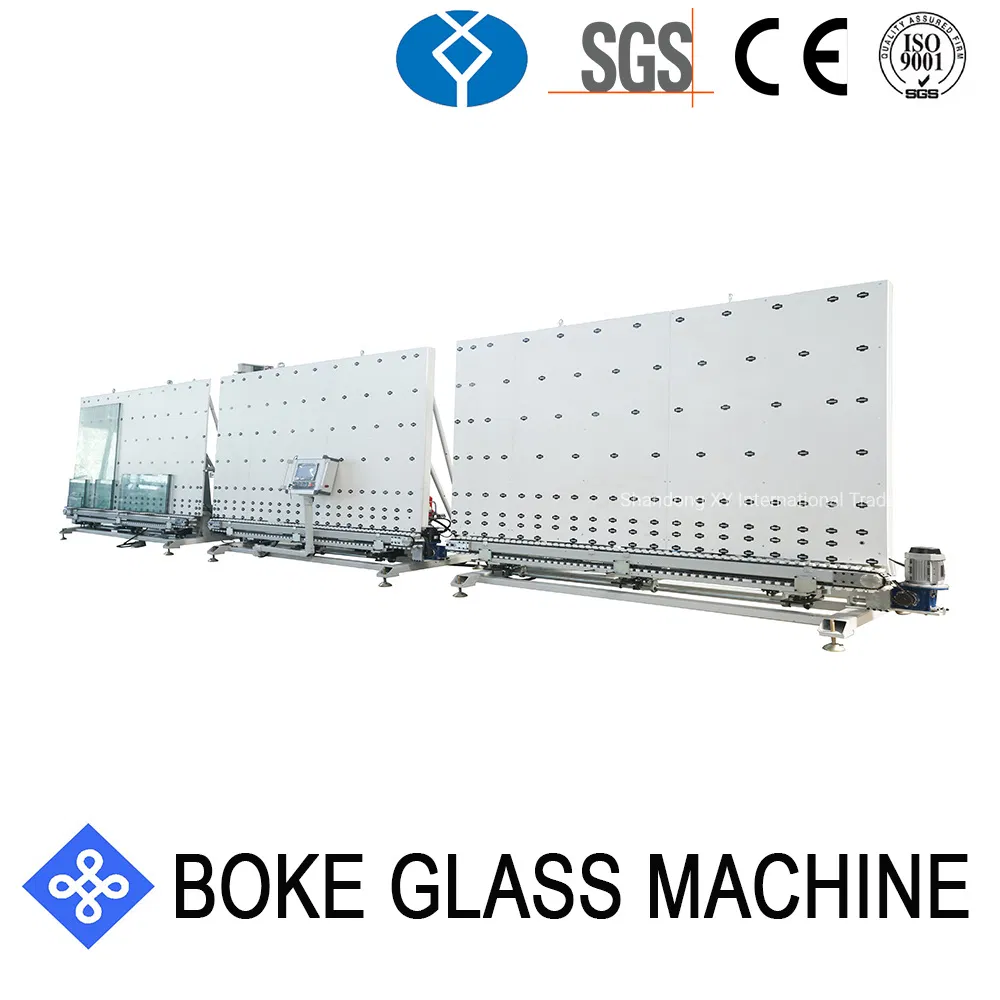

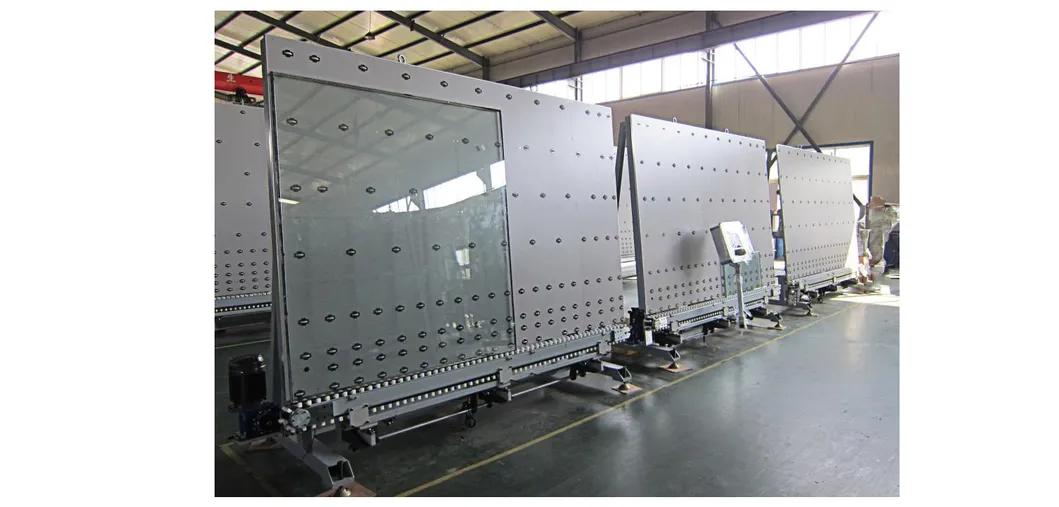

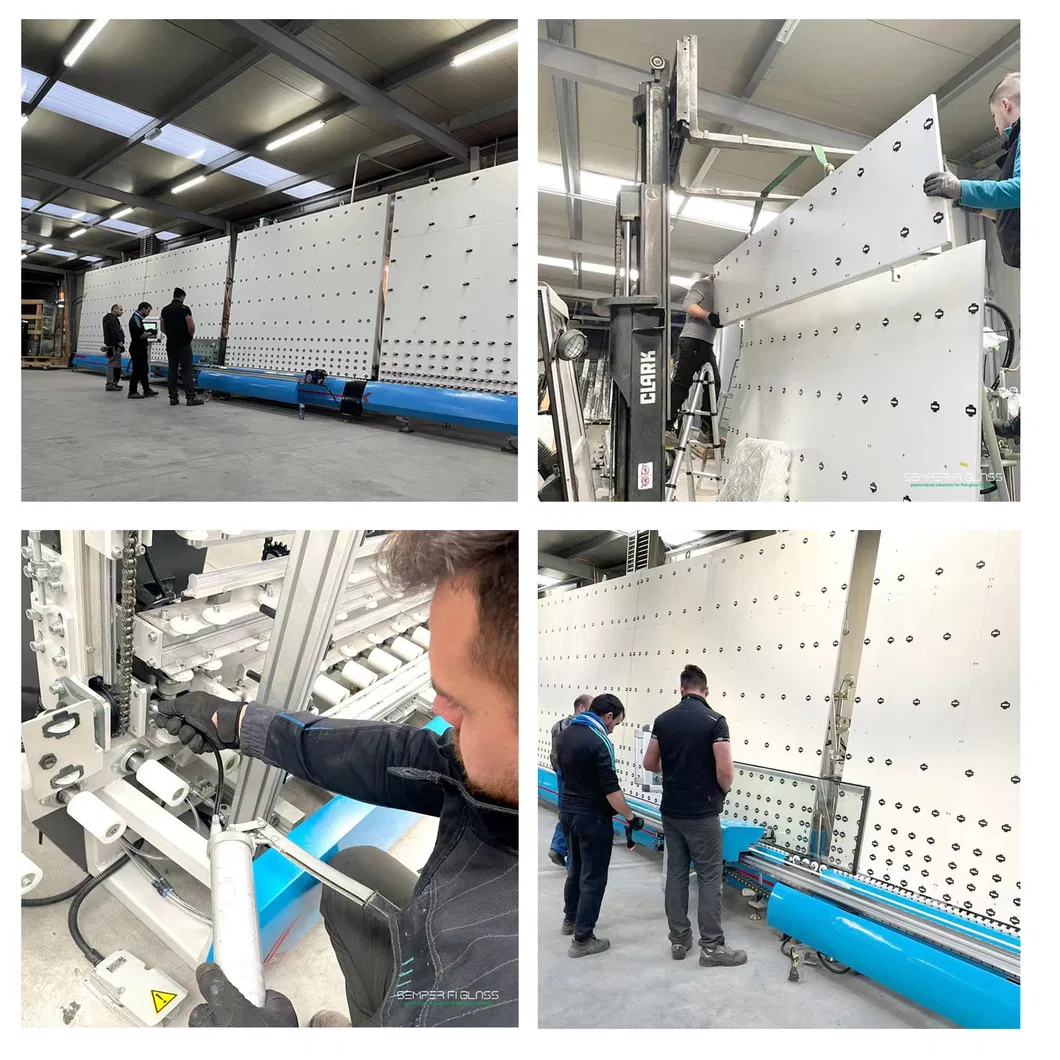

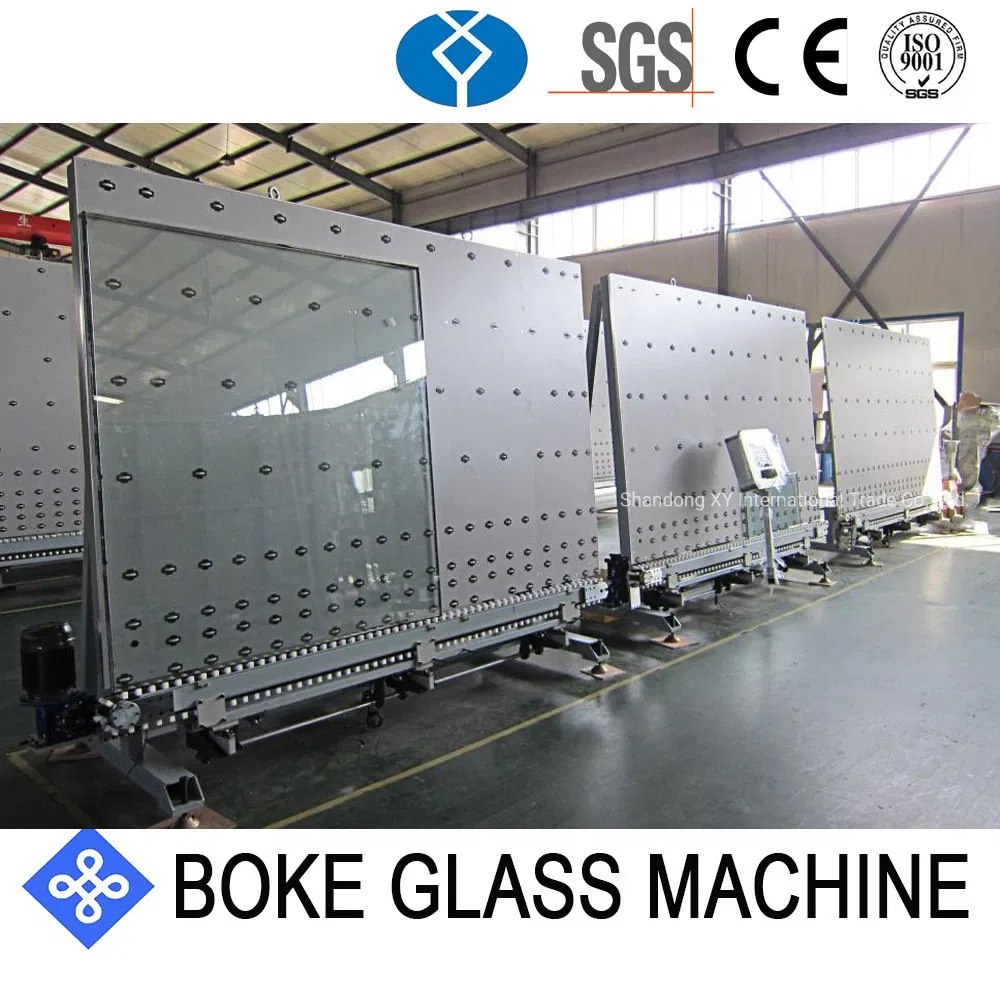

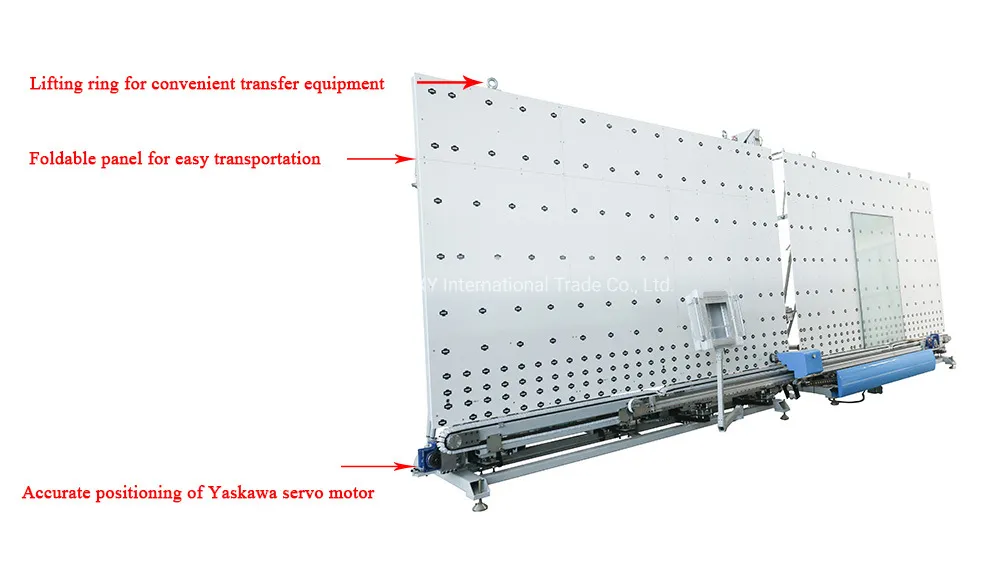

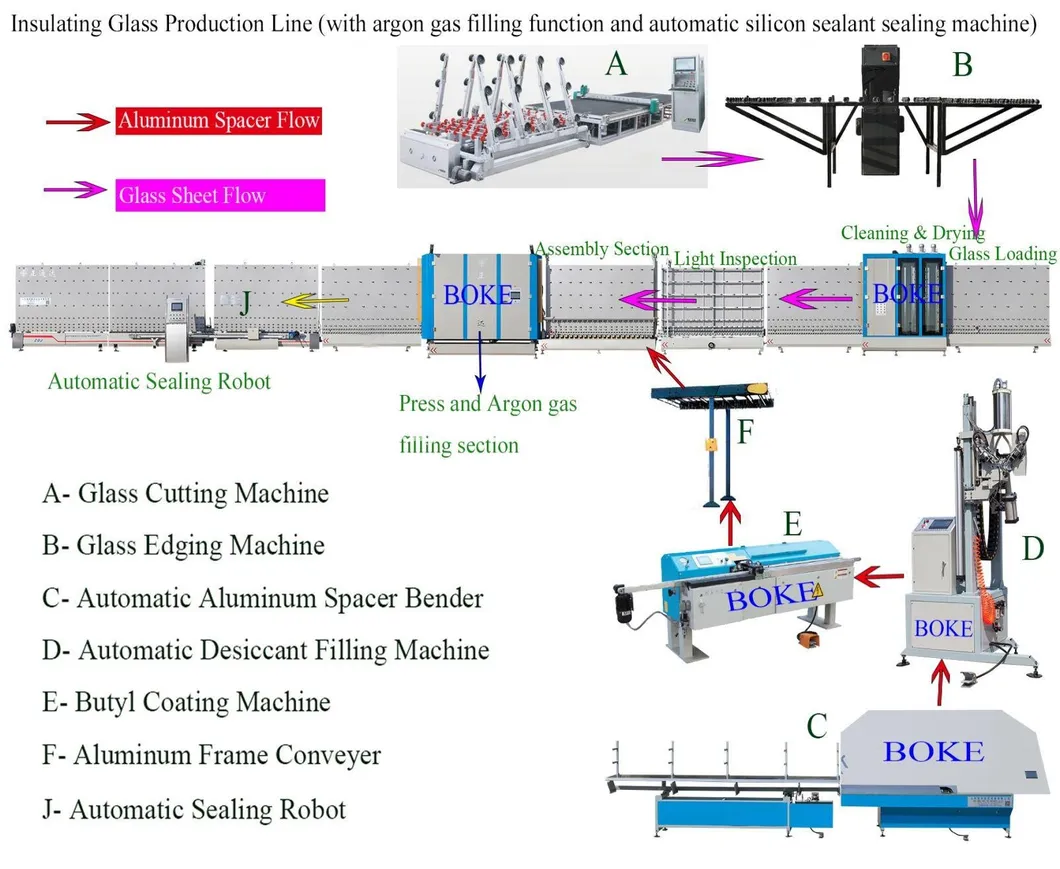

ZDJ-V20 Automatic Sealing Robot in Insulating Glass Production Line
(For Max. Glass Size: 2000*3000mm)
1

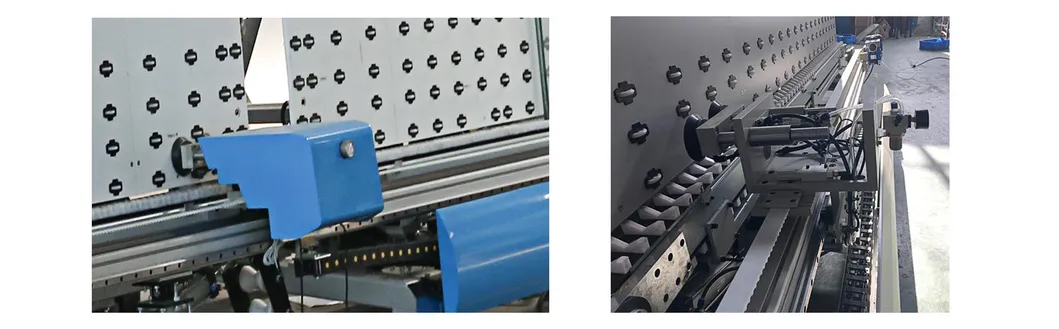

Gluing part adopts special relocation mechanism, ensuring the nozzle touches the IG unit closely without breaking it, adapting to displacement errors.
2
Sealing width is adjustable via parameter input; sealing depth is detected automatically. Speed is controlled by depth and quantity to ensure quality.
3

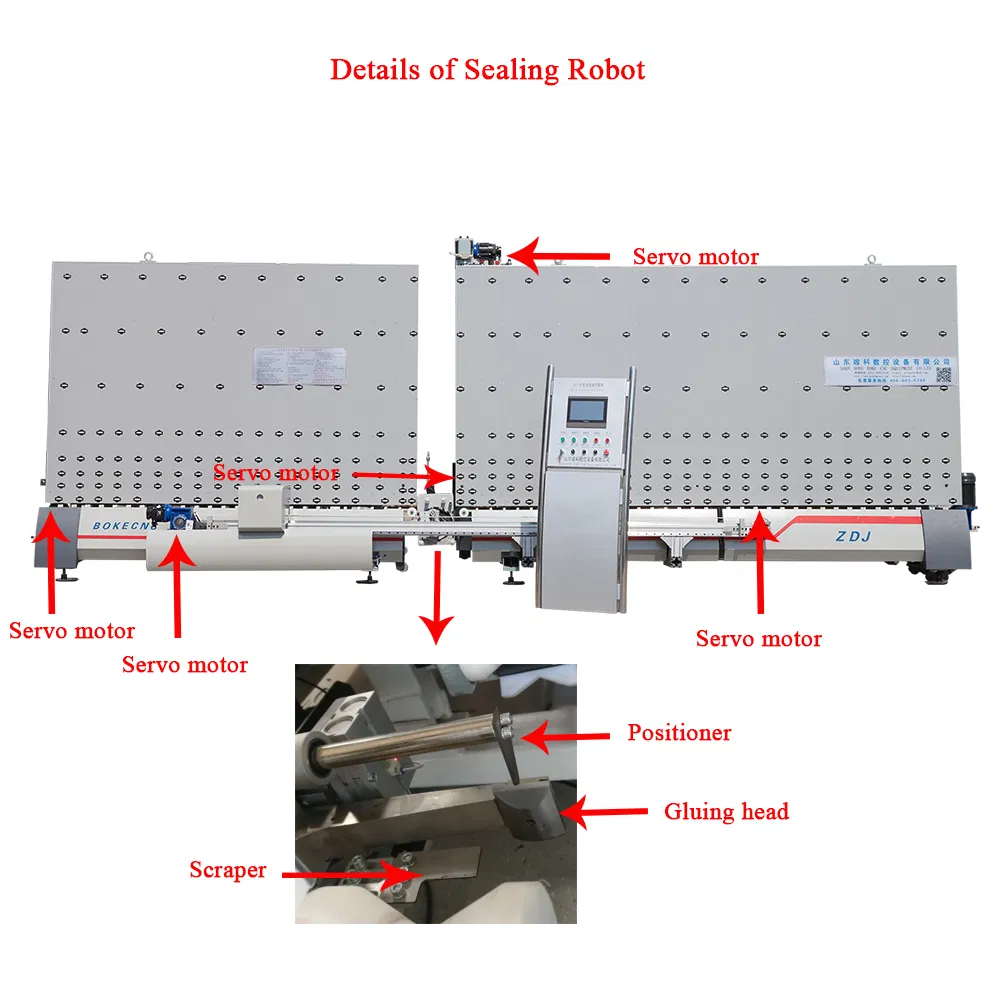

Equipped with imported famous brand electric elements (Servo motors, controllers, sensors) for reliable, long-life operation.
4
Key moving parts like suckers, reducers, and rails are from premium foreign brands for smooth and safe glass transfer.
5

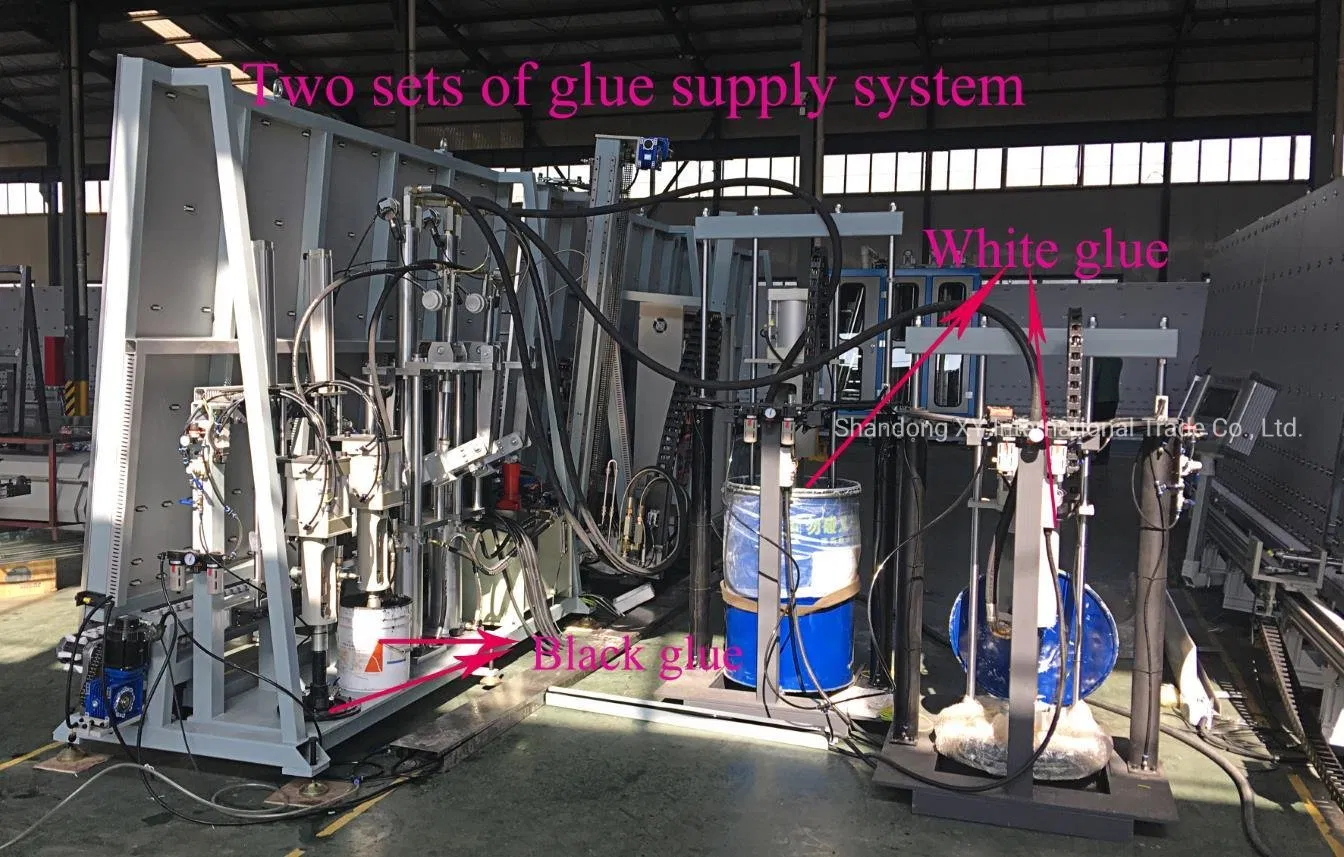

Hydraulic glue system provides stable quantitative supply through precise station pressure and mechanical linkage adjustment.
6
Combination transfer mode using precision 3-row roller chains and unique V-blocks for low friction and stable running of coated glass.
7

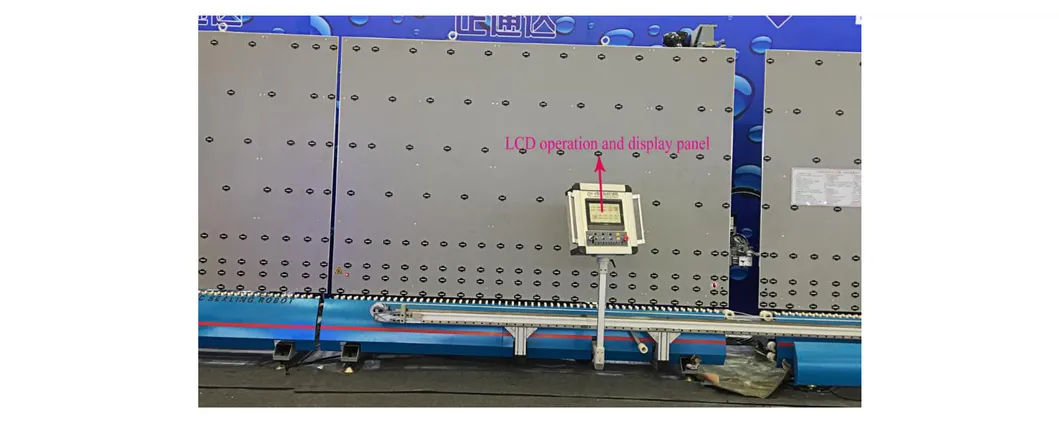

User-friendly Touch Screen interface with graphic combinations for easy operation and understanding.
8
Automatic digital control system by servo motor ensures precision, with unilateral sealing and alarming functions.
| Parameter Item |
ZDJ-V20 Specifications |
| Sealing speed | 5-35m/min |
| Sealing depth | < 18mm |
| Thickness of IG unit | 12-50mm |
| Min. IG unit size | 350*200mm |
| Max. IG unit size | 3000*2000mm |
| Glue supply pressure | < 30MPa |
| Standard Elevation | 400mm |
| Total power | 8.1 Kw |
| Max weight of IG unit | 500Kg |
| Outline dimension | 10000*3500*2700mm |
Key Components Brands:
| Component |
Brand |
Origin |
| Servo Motors & Actuators | Yaskawa | Japan |
| Pneumatic Components | SMC / Airtac | Japan / Taiwan |
| Photoelectric Switches | Optex | Japan |
| PLC System | Yaskawa | Japan |
| Guide Rails & Sliders | HIWIN | Taiwan |
| Amphenol Connectors | WAGO | Germany |
Frequently Asked Questions
What is the maximum glass size the ZDJ-V20 can process?
The ZDJ-V20 automatic sealing robot can handle insulating glass units up to a maximum size of 2000*3000mm.
What kind of control system does the robot use?
The machine features a fully automatic digital control system utilizing Yaskawa Servo motors, CNC, and PLC with an intuitive Touch Screen interface.
What is the production capacity of this sealing robot?
The system is highly efficient, capable of sealing approximately 800 square meters of insulating glass per set per day.
Which major component brands are integrated into the machine?
The machine adopts world-class components including Yaskawa (Japan) servo systems, SMC (Japan) and Airtac pneumatic parts, and HIWIN (Taiwan) guide rails.
Does the machine support different glass thicknesses?
Yes, the ZDJ-V20 supports a glass thickness range of 3-60mm, and the thickness of the total IG unit can range from 12mm to 50mm.
What is the warranty policy for this equipment?
We provide a 2-year free warranty for the equipment and offer a lifetime after-sales service to ensure reliable operation.
