Technical Specifications
Glue Supply Pressure
<30MPa
Type
Insulating Glass Production Line
After-sales Service
Lifetime
Key Features & Advantages
01
The gluing part adopts a special relocation mechanism, ensuring the gluing nozzle touches the IG unit closely without breakage, adapting to displacement errors.
02
Sealing width is adjustable via parameters for accuracy. Sealing depth is detected automatically; speed is synchronized with depth and quantity for consistent quality, especially at corners.
03
Equipped with imported premium components including Servo motors, controllers, low-voltage apparatus, and fiber optic switches for reliable long-term operation.
04
Key moving parts like suckers, reducers, rails, and sliders are sourced from international brands to ensure smooth and safe glass transfer.
05
Hydraulic glue system utilizes a hydraulic station for quantitative oil supply, precisely controlling sealant ratios through mechanical linkage adjustment.
06
Utilizes a high-quality 3-row roller chain and unique V-block transfer mode. Low friction and stable running ensure excellent spreading effects on coated glass.
07
Features a user-friendly touch screen man-machine interface with graphic combinations for easy operation.
08
Automatic digital control system by servo motor ensures high precision. Includes unilateral sealing, alarming, and automatic hazard determination with locking functions.
09
Versatile deployment: can operate as a standalone unit or integrate seamlessly into an IG unit production line for maximum efficiency.
10
Constructed with high-quality board material processed via NC machining, ensuring the robot is both beautiful and durable.
11
Optimized structural design achieves low power consumption while maintaining high output efficiency.

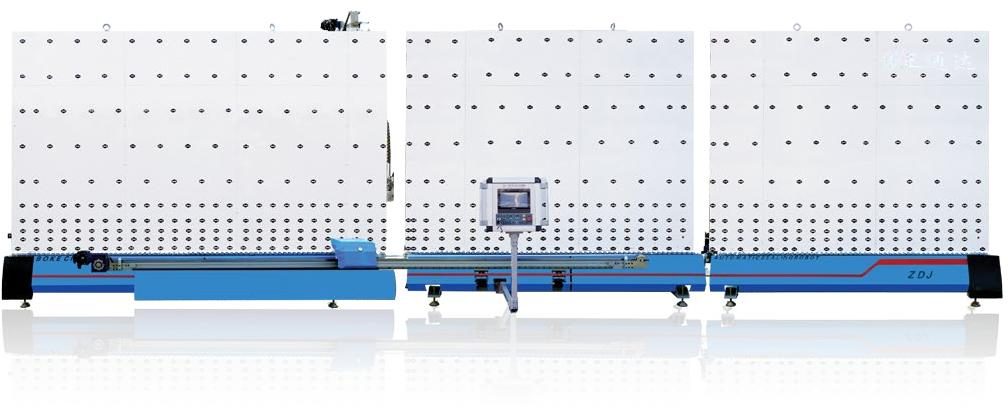

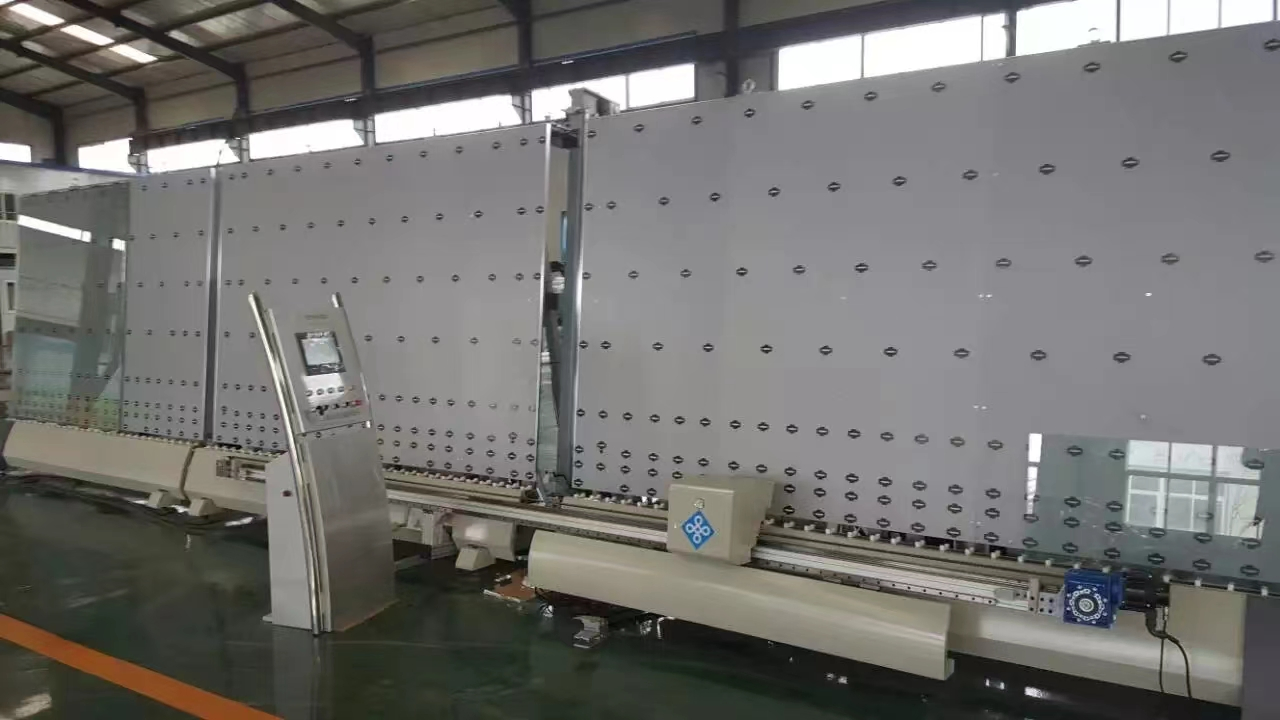

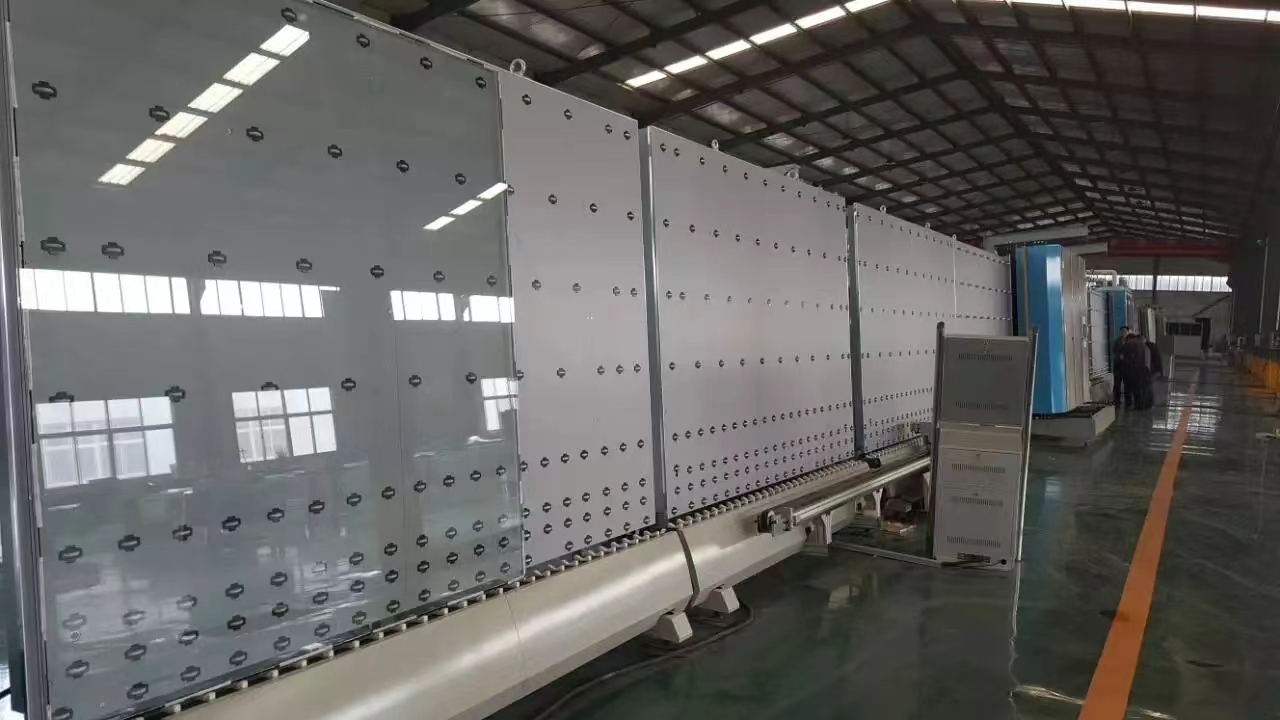

Product Gallery
Frequently Asked Questions

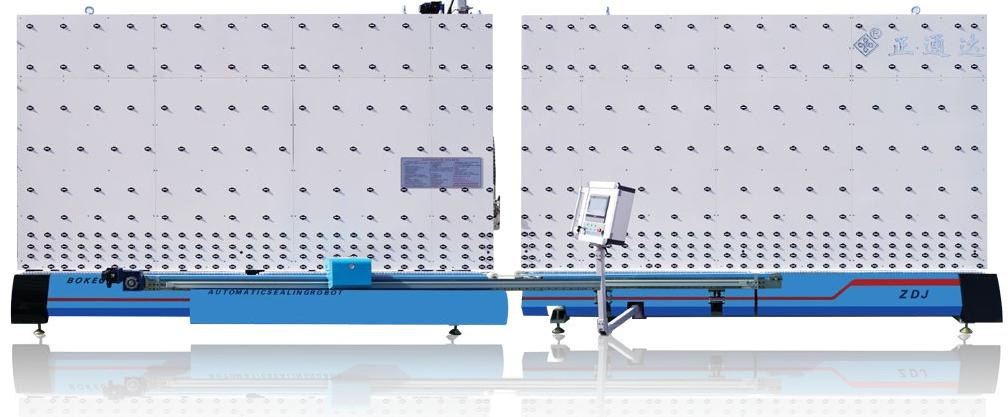

What is the maximum sealing speed of the ZDJ-V20?
The ZDJ-V20 automatic sealing robot offers a high-efficiency sealing speed ranging from 5 to 35 meters per minute.
Can the sealing depth be adjusted automatically?
Yes, the sealing depth can be detected automatically by the system, ensuring consistent glue quantity and high quality even on corners.
Is this robot compatible with triple glazing?
This equipment is designed for double glazing silicone sealant extrusion and can be integrated into standard insulating glass production lines.
What kind of maintenance support is provided?
The machine comes with a 1-year warranty and lifetime after-sales service support to ensure long-term reliable operation.
Does the system protect the glass from breaking during gluing?
Yes, the gluing nozzle uses a special relocation mechanism that maintains close contact with the IG unit without applying damaging pressure.
What is the required air pressure for operation?
The equipment requires a stable air pressure between 0.6 and 0.8 MPa for optimal performance.
